Chip cảm biến làm lạnh và làm nóng CPU TEC1-12706 12V 6A - intl

Feature:

Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own

custom car drink warmer/cooler.
Since they consit primarily of semiconductor material sandwiched between ceramic plates and have no moving parts

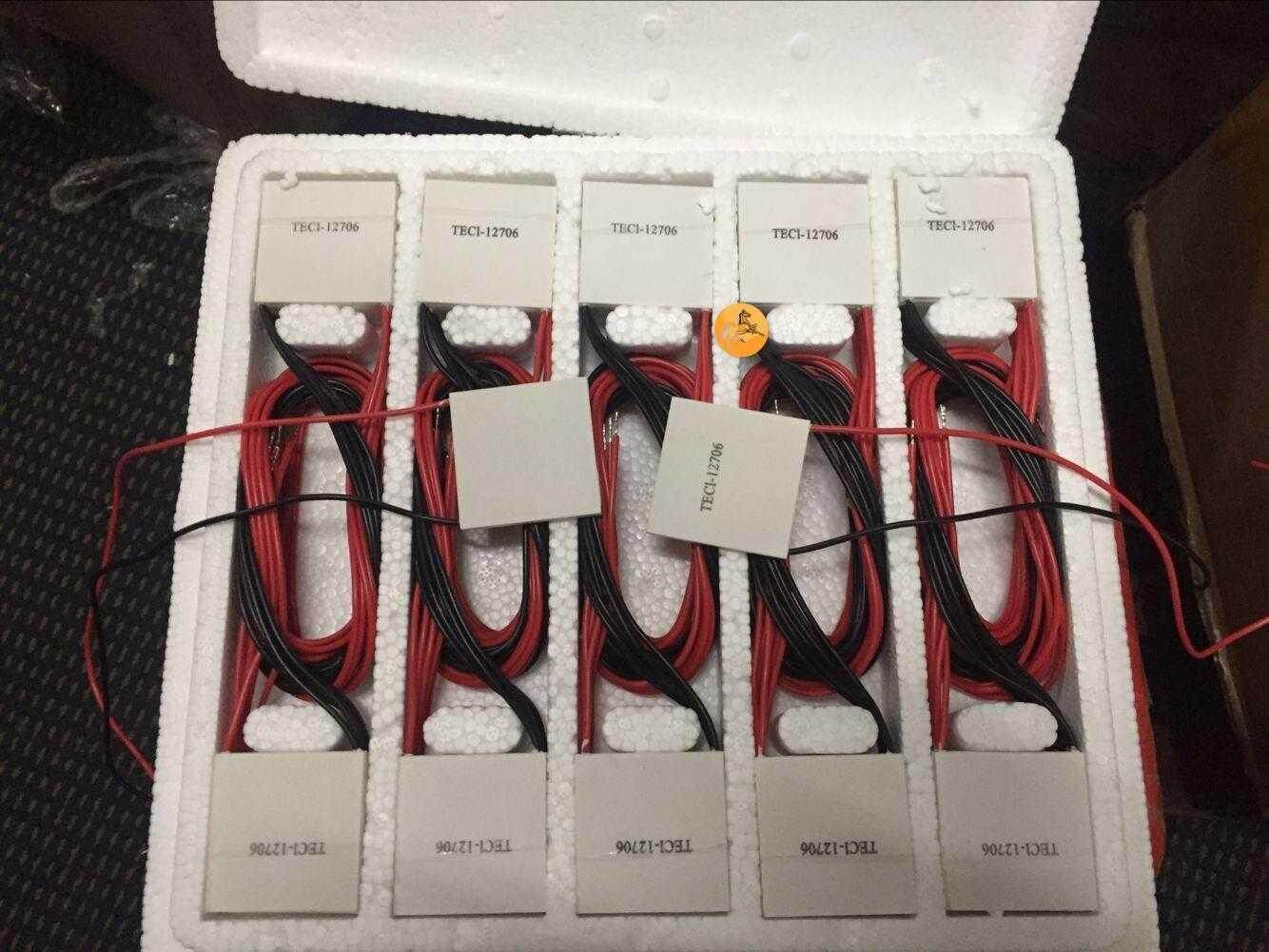

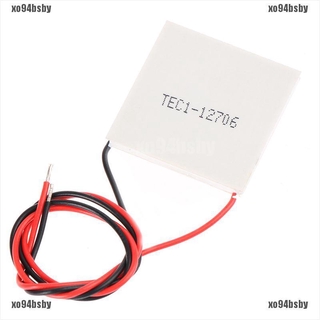

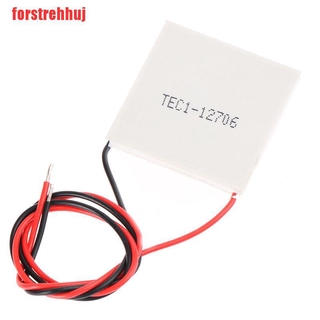

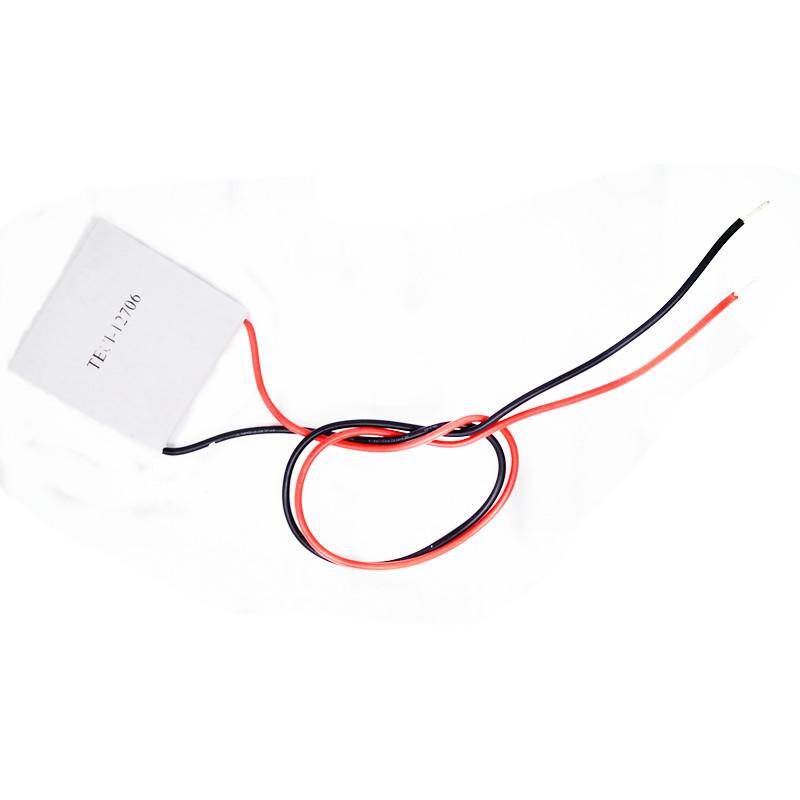

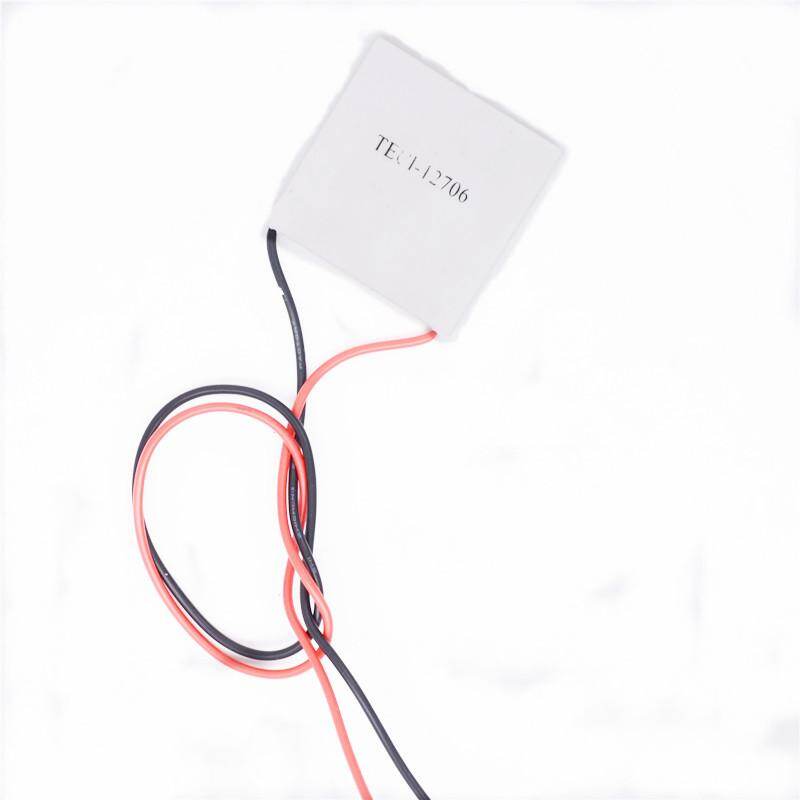

Model: TEC1-12706
Size: 40mm x 40mm x 4mm
Operates from 0~15.2V DC and 0~6A
Operates Temperature: -30'C to 70'C
Max power consumption: 70 Watts
These devices must be used in conjunction with a heat sink to avoid burned
Each device is full inspected and tested
Fitted with 6-inch insulated leads

How to refrigerate?
1, Prepare 5 large pieces: refrigeration sheet + radiator + silicone + insulation pad + electricity
2. Apply the silicone to the hot and cold side of the cooling plate.
3. Install the cooling plate on the radiator and the insulation pad on the middle pad.
4, Tighten the screw to power cooling

Package Includes:

1 * Thermoelectric Cooler

Note:

1. rated voltage 12V

2. Lead length: about 30CM

3. Power is only about 30W. Please do not shoot if you have high requirements.

4. The working state of the cooling sheet is that one side of the cooling side is heated, and the heat generating surface must be well dissipated during operation. It is strictly forbidden to energize for more than 2 seconds without heat dissipation, causing overheating to burn the buyer at your own risk!

5. Always apply thermal grease to the heat sink. There is a literal noodle and no literal noodle.
