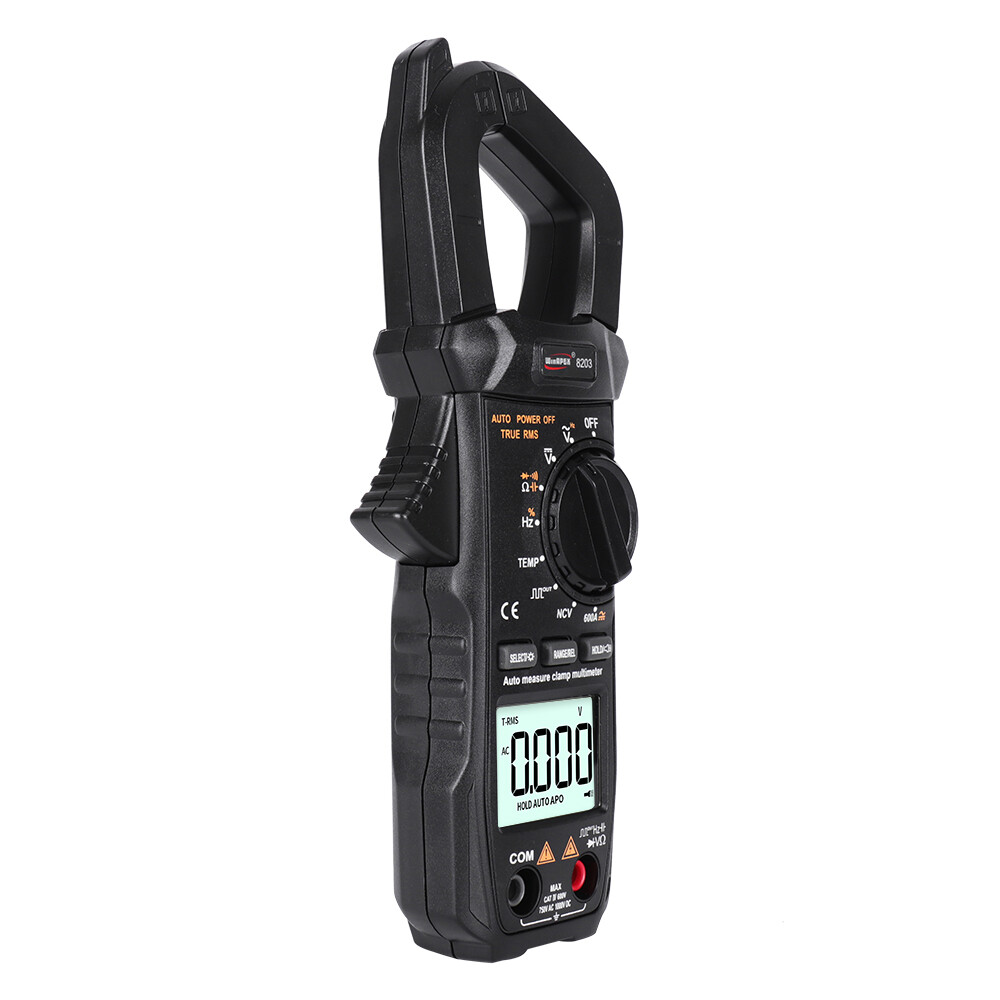

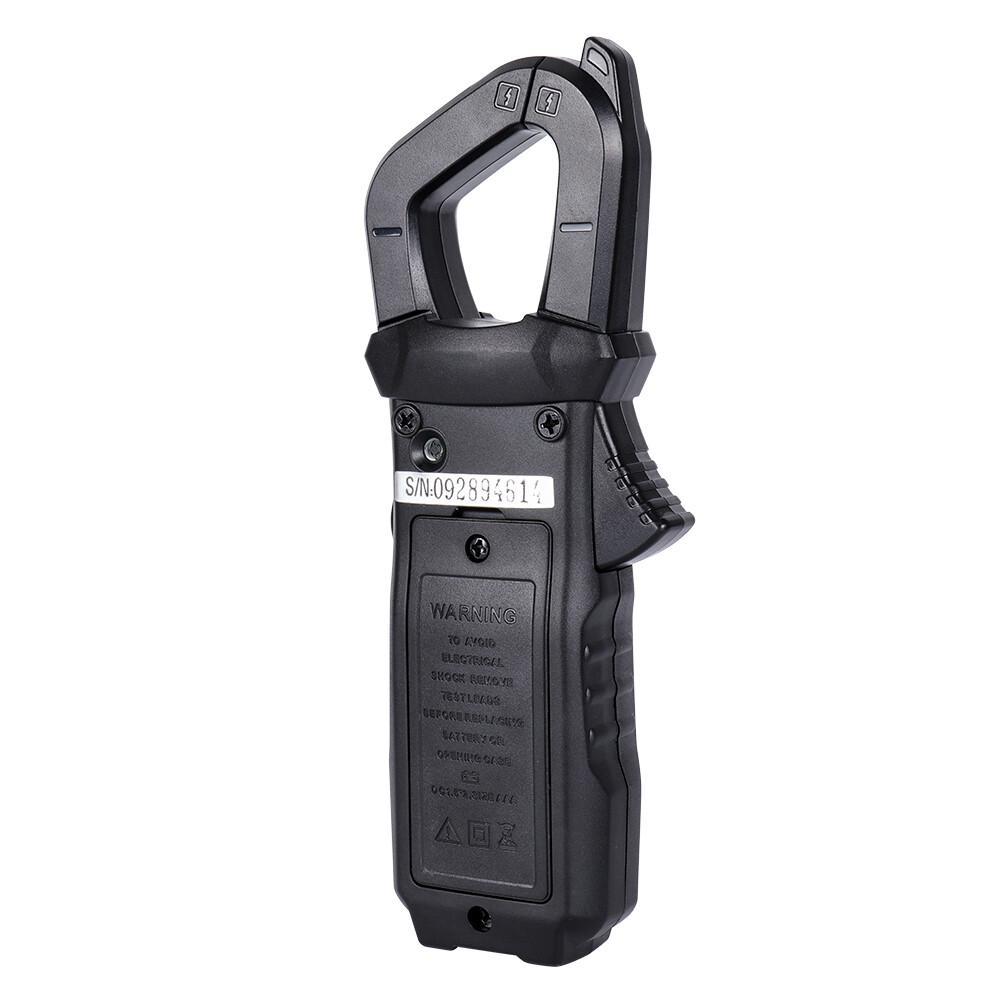

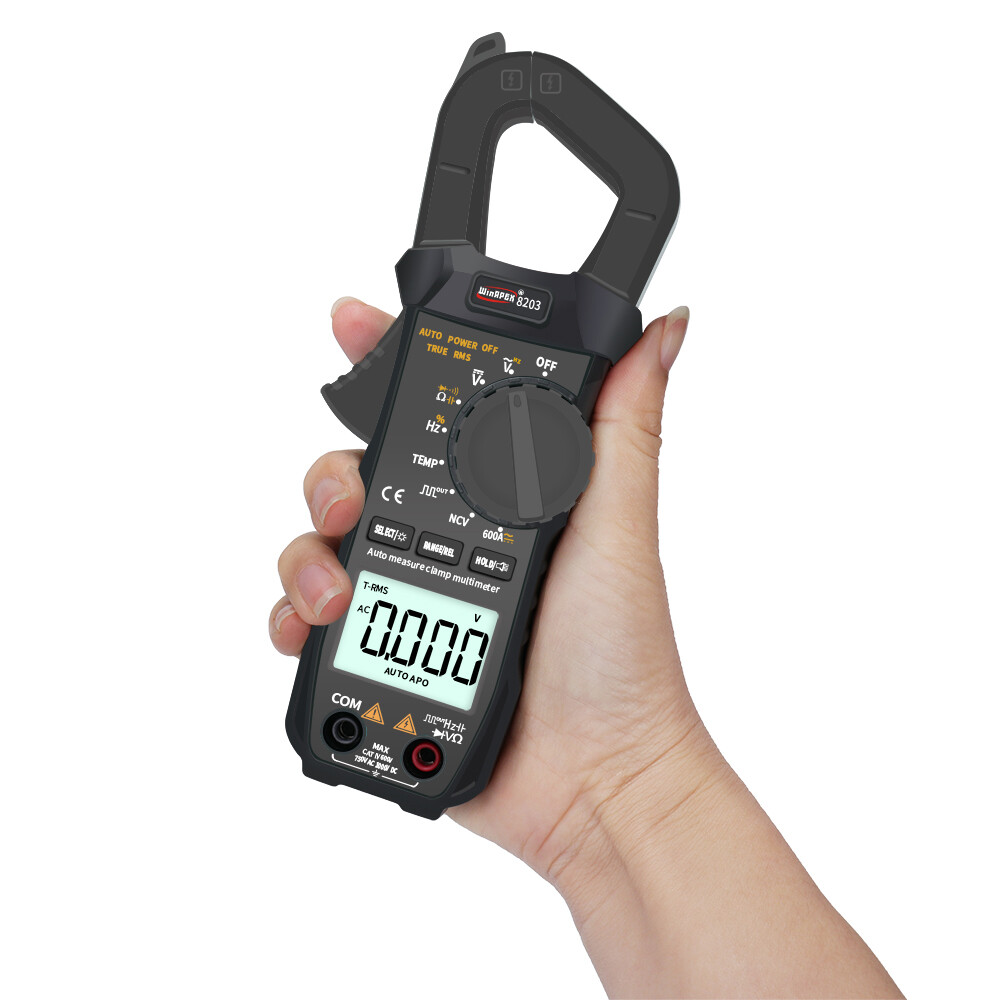

SMART SENSOR Portable Pocket Multimeter 6000 Counts True RMS Digital Clamp Meter with Square Wave Output

This is a pocket-sized 3 5/6-digit automatic digital meter. It has stable performance, high accuracy, high reliability, clear reading and overload protection.

Features:
Mini and portable, easy to use and operate.

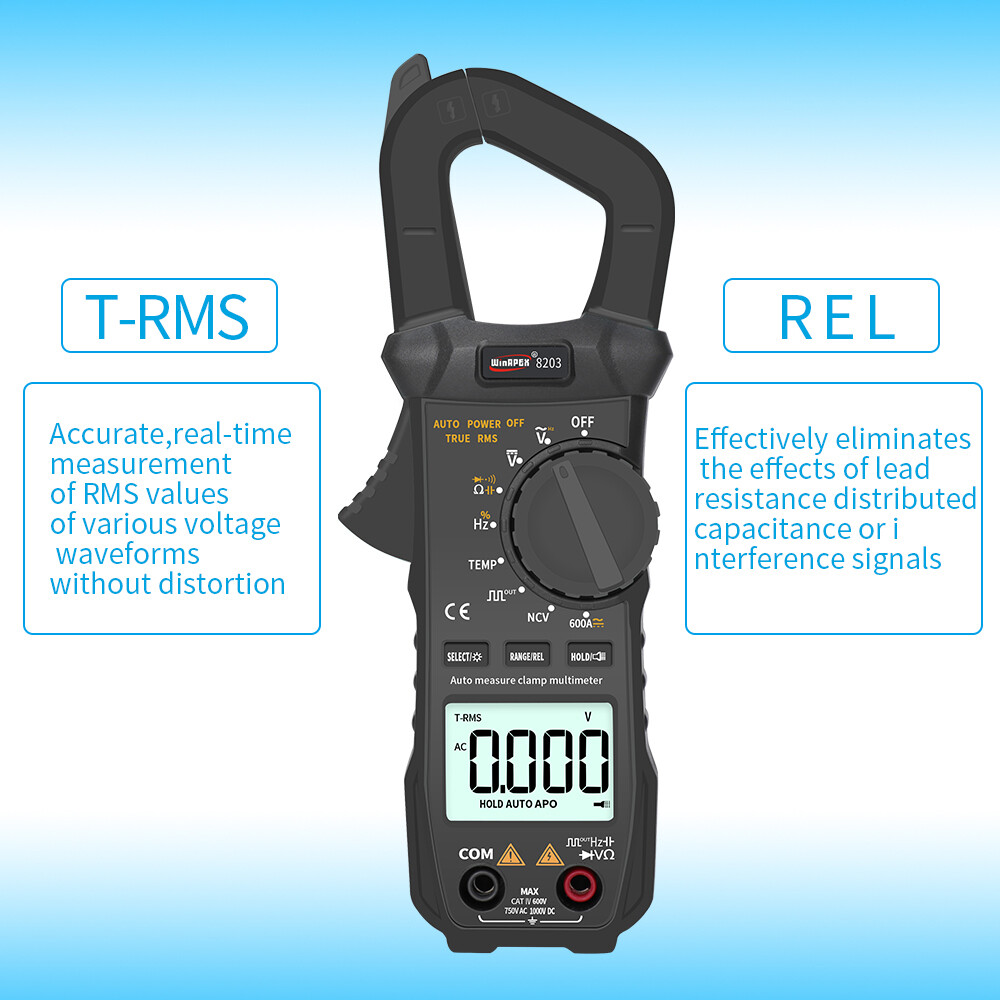

Accurate and real-time measurement of RMS values of various voltage waveforms without distortion.

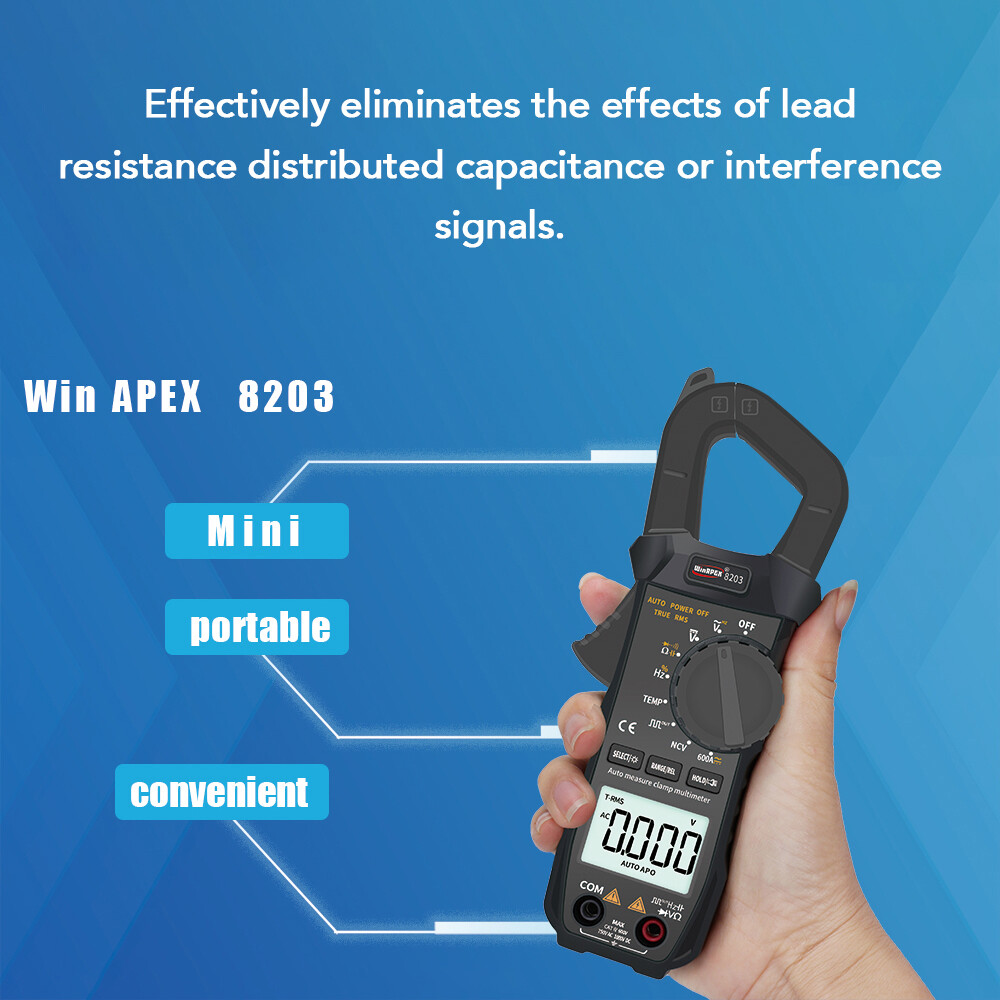

Effectively eliminates the effects of lead resistance distributed capacitance or interference signals.
The clamp unit measures vertically through the center of the hole.
Driven by AAA 1.5V battery (not included), the instrument adopts large LCD display screen   and adopts boost power source. Even at the edge of 2.3V low battery, it can ensure the high brightness of backlight and flashlight.
The instrument's backlight can be turned on and off automatically after 15 seconds.
It is a perfect tool for laboratories, factories, radio enthusiasts and families.

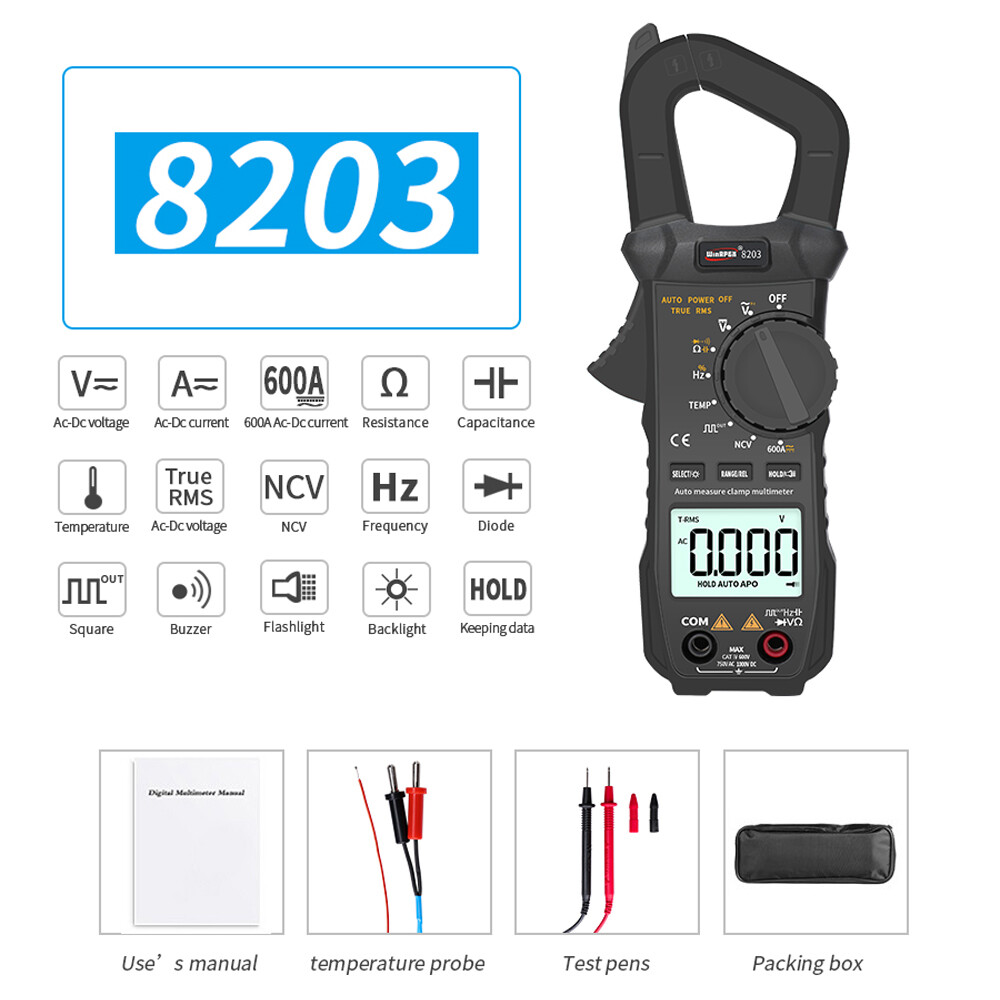

Function: AC-DC voltage, AC current (AC current 8202/AC-DC current 8203), resistance, capacitance, frequency, diode, buzzer, true RMS, NCV, square, TEMP, flashlight.

Specifications:
Material: ABS
Color: black
Model:  8203

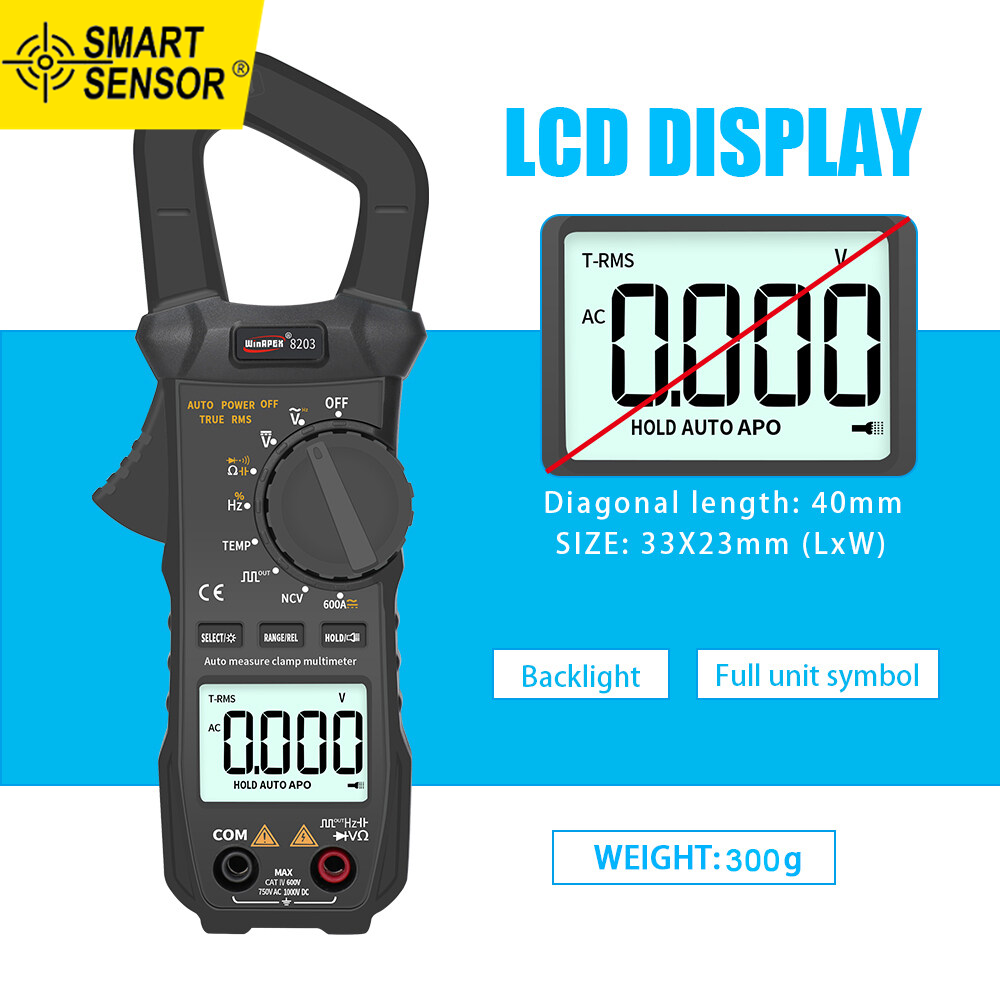

Display: LCD
Maximum display: 5999 (3 5/6) bit automatic polarity display
Measurement method: double integral A/D conversion
Sampling rate: about 3 times per second
Over range display: the highest position shows "OL"
Working environment: (0~40)°C, relative humidity <80%
Battery: 2 * AAA battery (not included)
LCD size: 33 * 23mm / 1.3 * 0.9in
DC voltage range: 6V/60V/600V/1000V
6000 counts:
6V/60V/600V: ±(0.5%+3)
1000V: ±(0.8%+10)
DC voltage resolution: 0.001V/0.01V/0.1V/1V
AC voltage range: 6V/60V/600V/750V
6000 counts:
6V/60V/600V: ±(0.8%+3)
750V: ±(1.2%+10)
AC voltage resolution: 0.001V/0.01V/0.1V/1V
AC current range: 6A/60A/600A
6000 counts: ±(2%+30)
AC current resolution: 0.001A/0.01A/0.1A
The difference between 8203 and 8202: 8203 can measure DC current
DC current range: 60A/600A
6000 counts: ±(2%+30)
DC current resolution: 0.01A/0.1A
Resistance range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/40MΩ
6000 counts:
600Ω: ±(0.8%+5)
6KΩ/60KΩ/600KΩ/6MΩ: ±(0.8%+3)
40MΩ: ±(2.5%+3)
Resistance resolution: 0.1Ω/1Ω/10Ω/100Ω/1KΩ/10KΩ
Capacitance range: 60nF/600nF/6μF/60μF/600μF/6mF/30mF
6000 counts:
60nF/600nF/6μF/60μF/600μF: ±(3.5%+20)
6mF/30mF: ±(5%+3)
Capacitance resolution: 10pF/100pF/1nF/10nF/100nF/1μF/10μF
Frequency range: 10Hz/100Hz/1KHz/10KHz/100KHz/1MHz/10MHz
6000 counts: ±(0.1%+3)
Frequency resolution: 0.01Hz/0.1Hz/1Hz/10Hz/100Hz/1KHz/10KHz

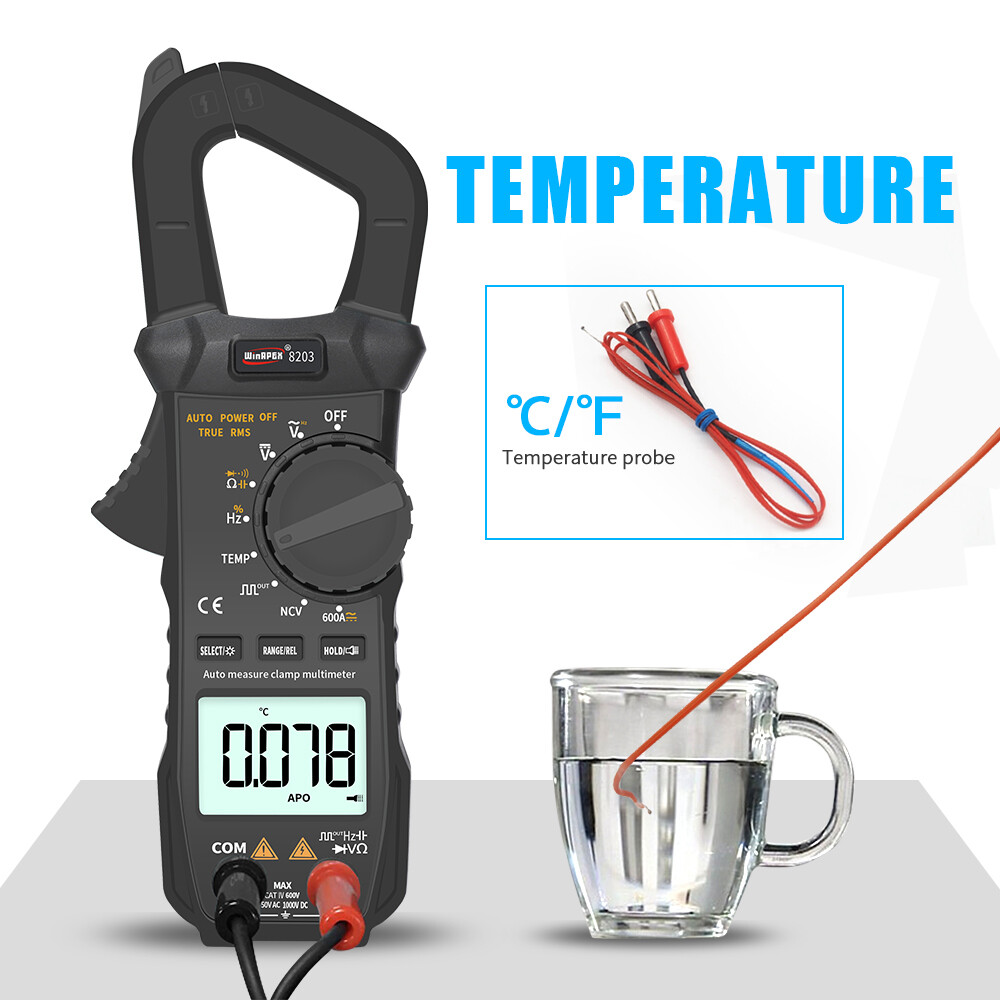

Temperature measurement range: (-20-1000)°C/(0-1832)°F
6000 counts:
(-20-1000)°C: ±(1.0%+5)<400°C; ±(1.5%+15)&ge;400°C
(0-1832)°F: ±(0.75%+5)<750°F; ±(1.5%+15)&ge;750°F
Temperature measurement resolution: 1°C/1°F

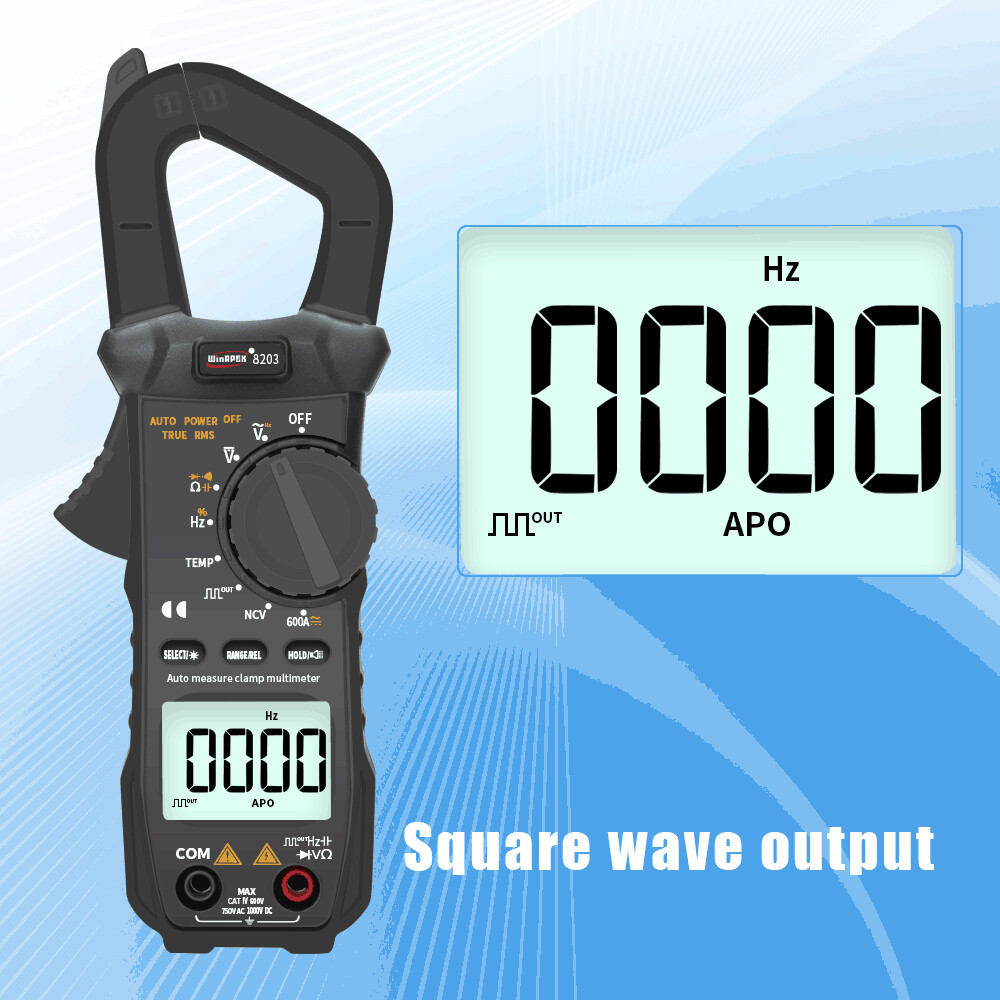

Square wave output: YES

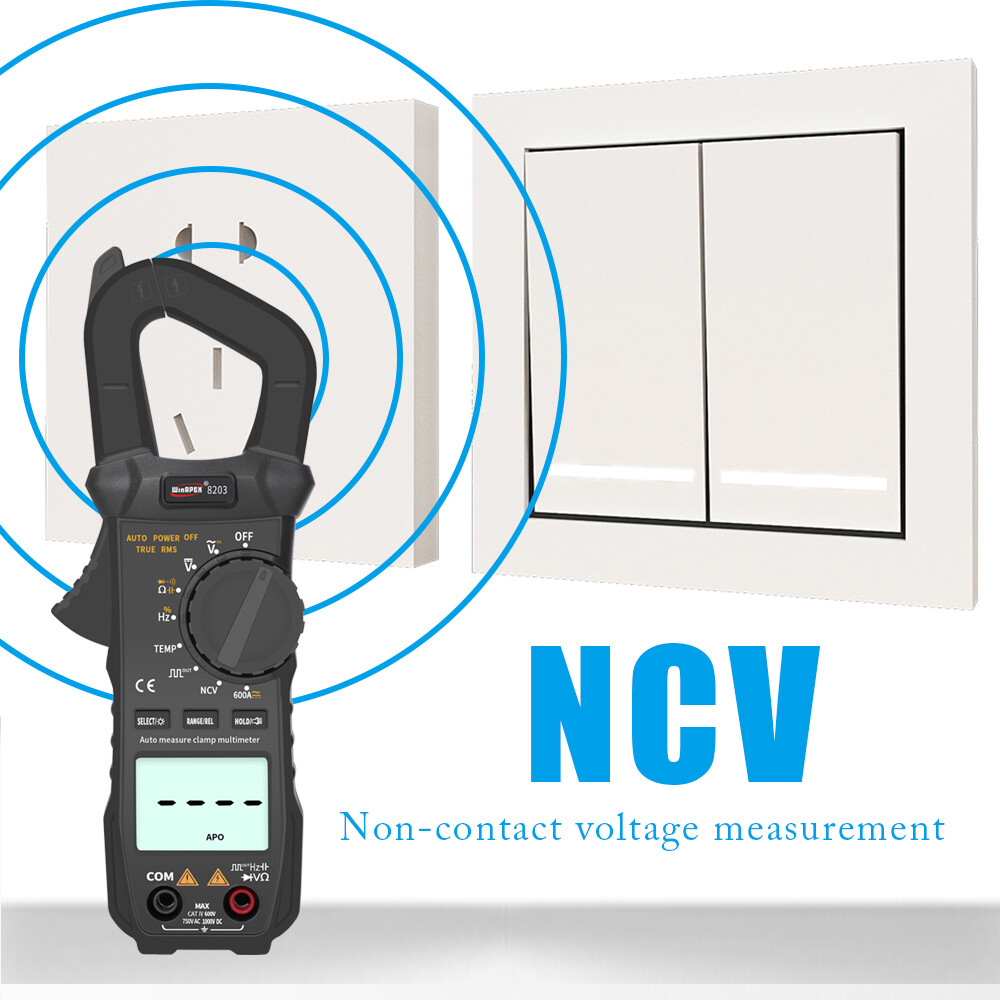

NCV: YES
Full unit symbol: YES
Backlight manual/Auto off: YES
True RMS measurement: YES

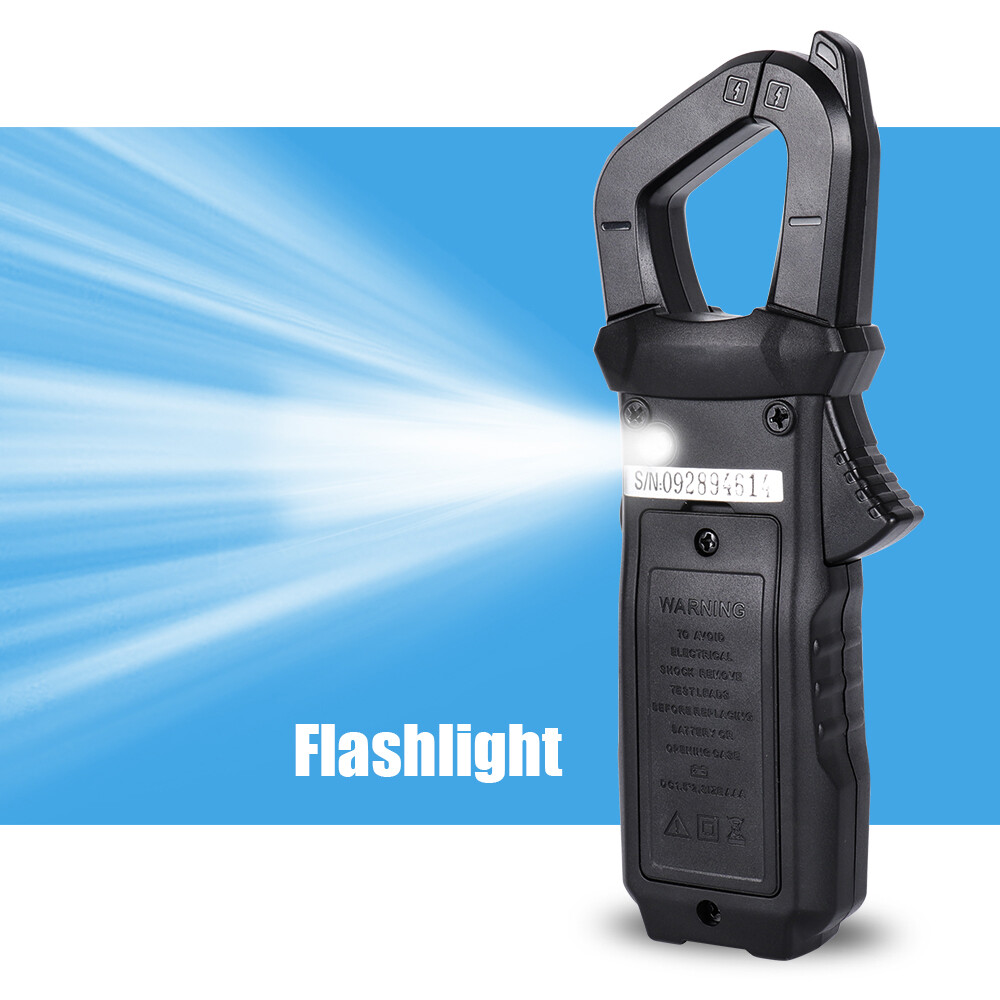

Flashlight lighting: YES

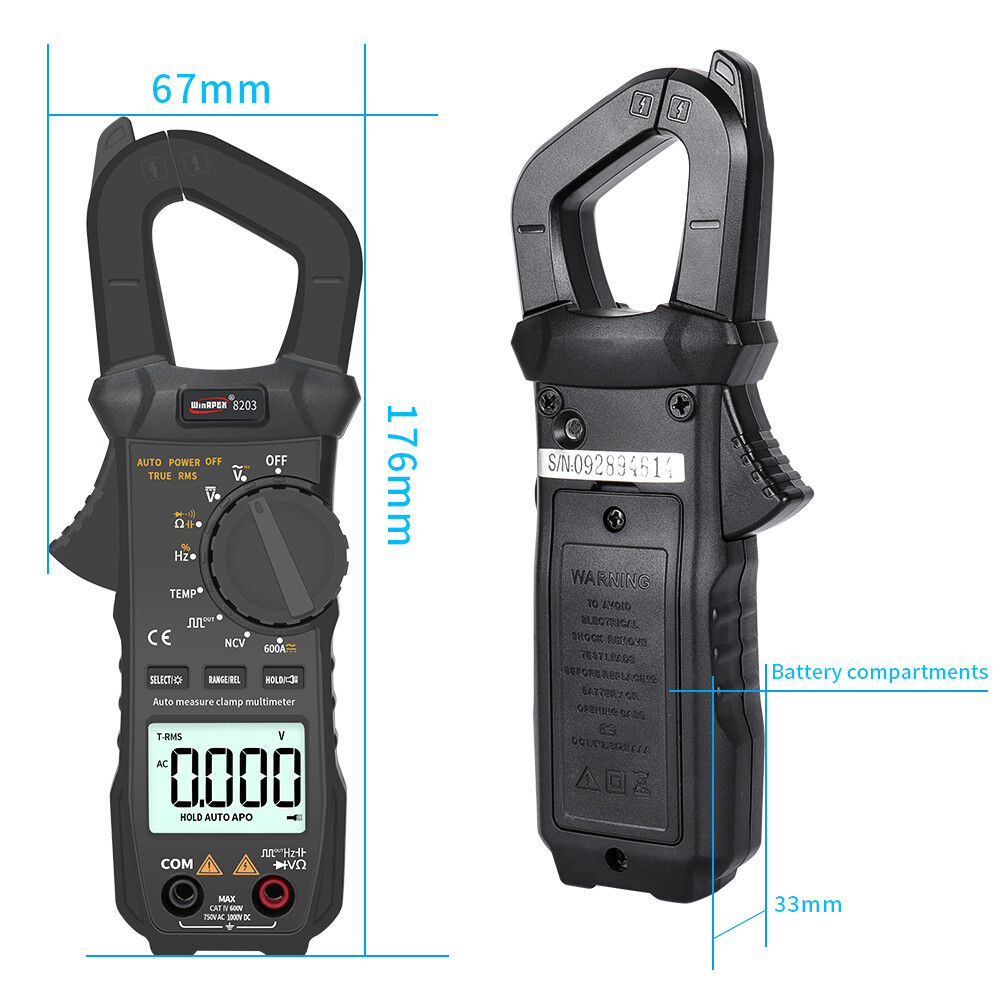

Item size: 176 * 67mm / 6.9 * 2.6in
Item weight: 300g / 10.6ounce
Package size: 205 * 115 * 42mm / 8.1 * 4.5 * 1.7in
Package weight: 330g / 11.6ounce
