Smart Sensor Đồng Hồ Vạn Năng Dao Động Cầm Tay 2 Trong 1 OWON Đồng Hồ Vạn Năng Dao Động Phòng Thí Nghiệm 2 Kênh Đồng Hồ Vạn Năng True-RMS Kỹ Thuật Số Với Băng Thông 70 MHz 250MSa/S Màn Hình LCD Màu 3.5 Inch Cho Âm Thanh Xe Hơi Đồ Điện Tử Ô Tô

Features:

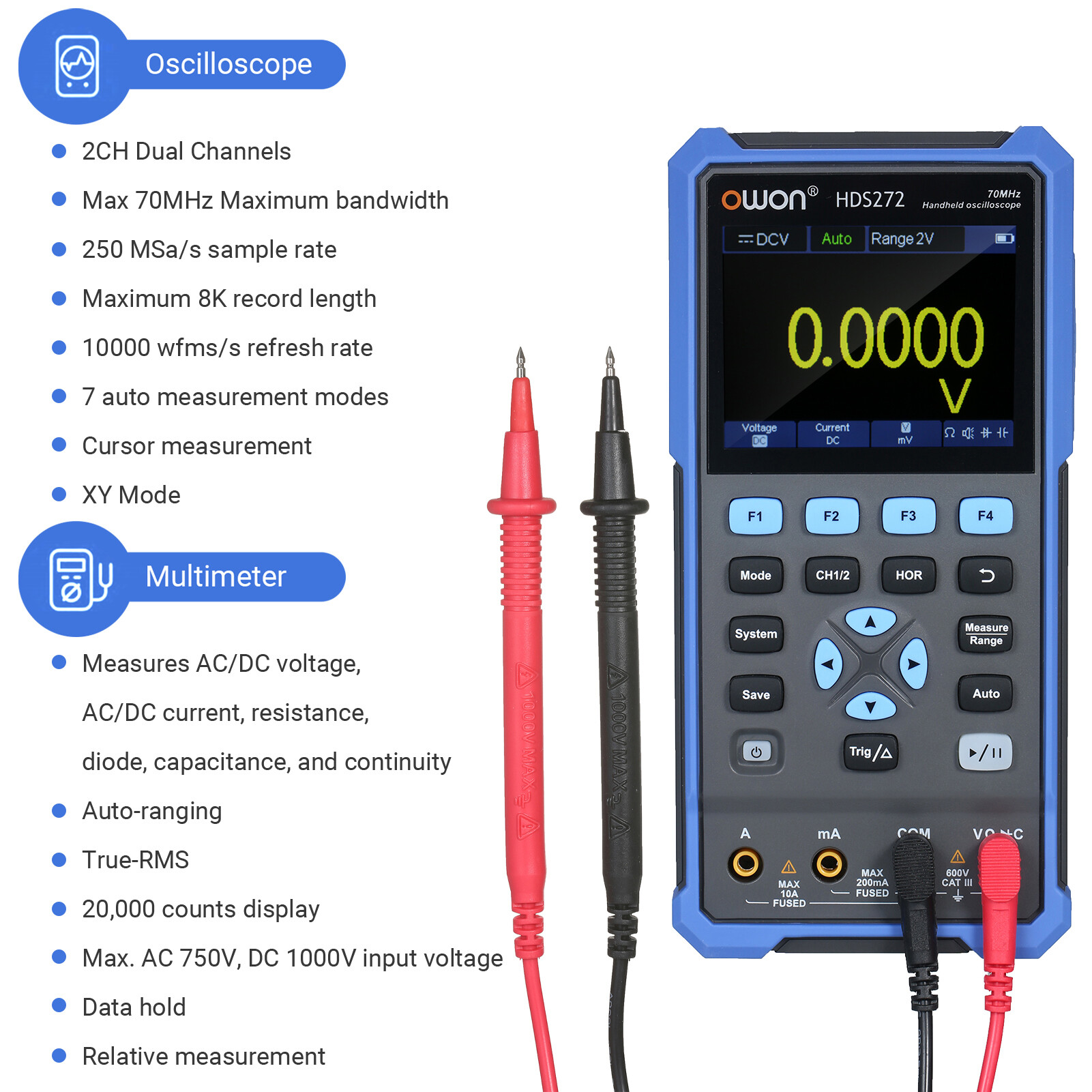

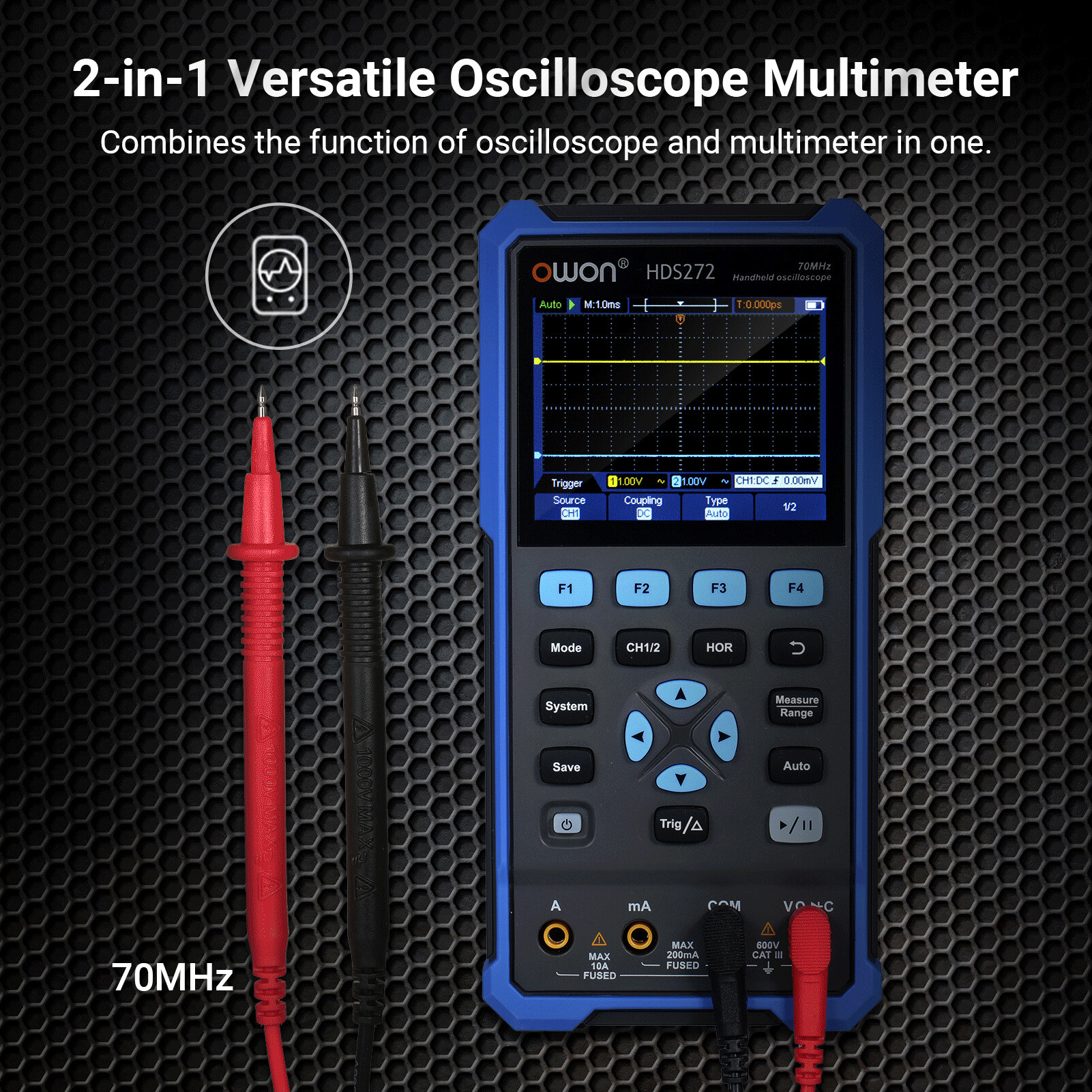

The 2-in-1 versatile unit combines the function of oscilloscope and multimeter in one.

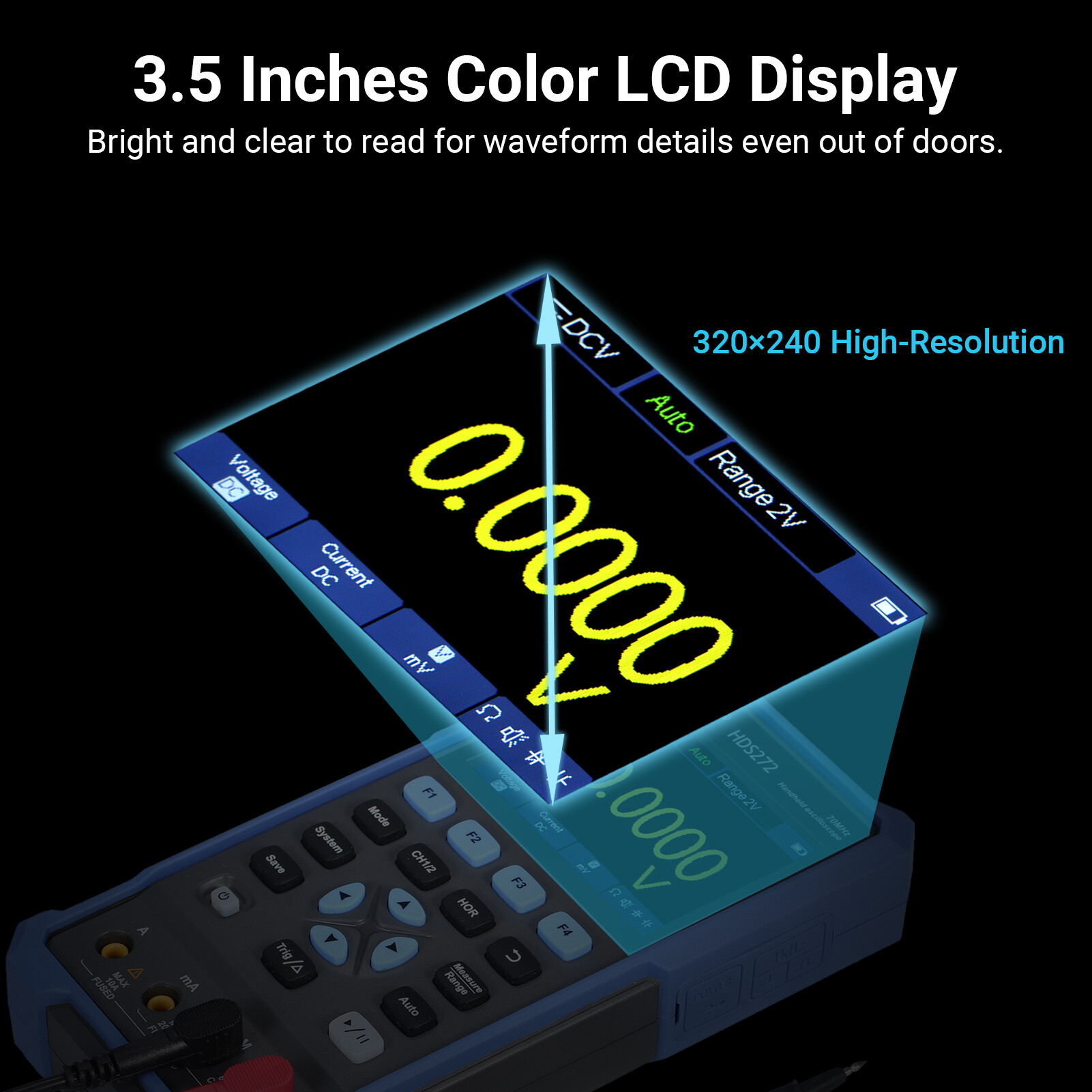

3.5 inches color LCD display, bright and clear to read for waveform details even out of doors.
2CH dual channels input, bandwidth up to 70 MHz, real-time sampling rate is 250MSa/s.

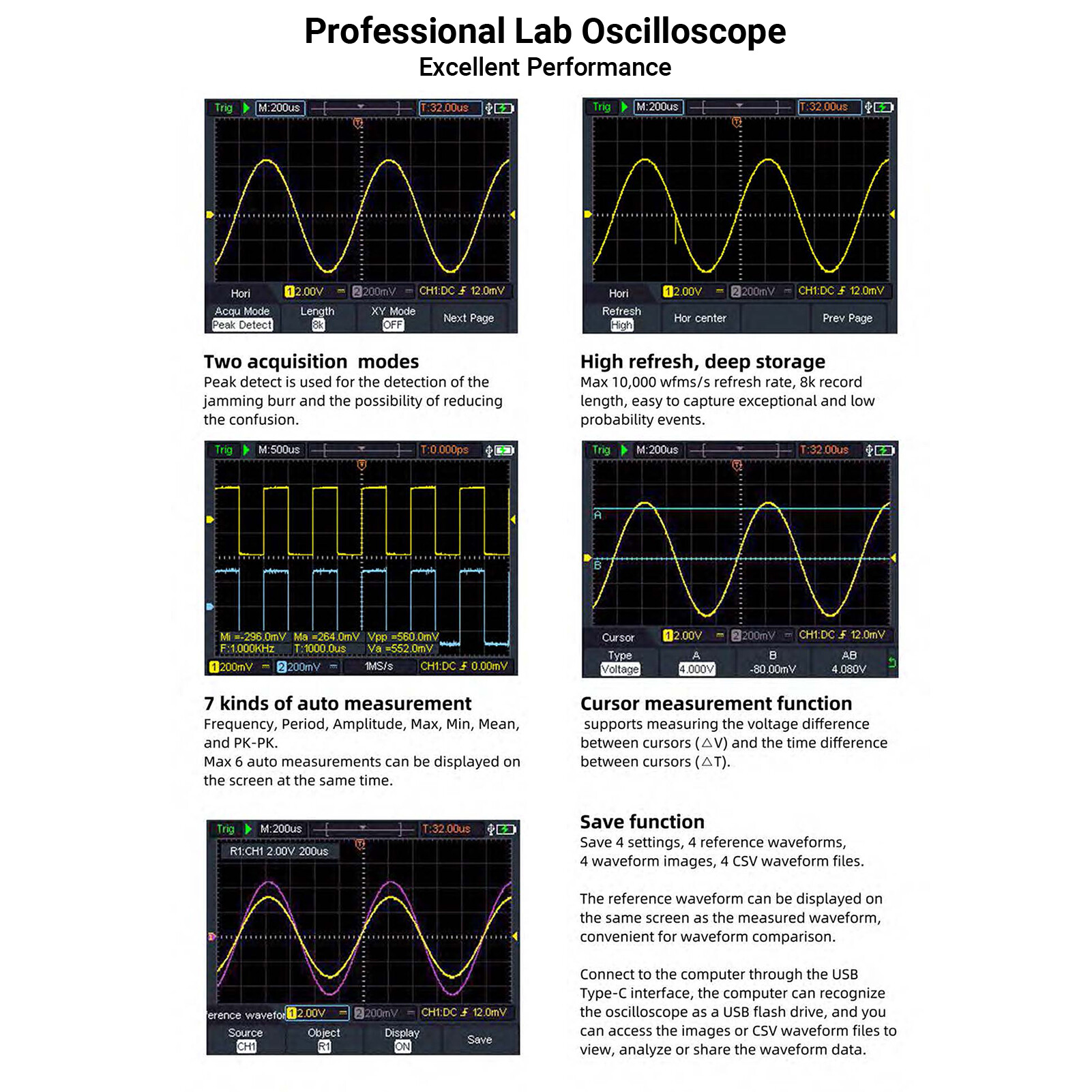

Maximum 8K record length, and 10000 wfms/s refresh rate, easy to capture exceptional and low probability events.
Easy to use, provided with 7 kinds of auto measurement - frequency, period, amplitude, max, min, mean, and PK-PK, perfect for professionals and novices.
More functions of the oscilloscope - cursor measurement, XY mode, and data save.
20,000 counts true-RMS multimeter able to measure AC/DC voltage, AC/DC current, resistance, diode, capacitance, and continuity.
Support maximum AC 750V, DC 1000V input voltage. Auto-ranging function, easy to detect and debug.
More functions of the multimeter - data hold, and relative measurement.

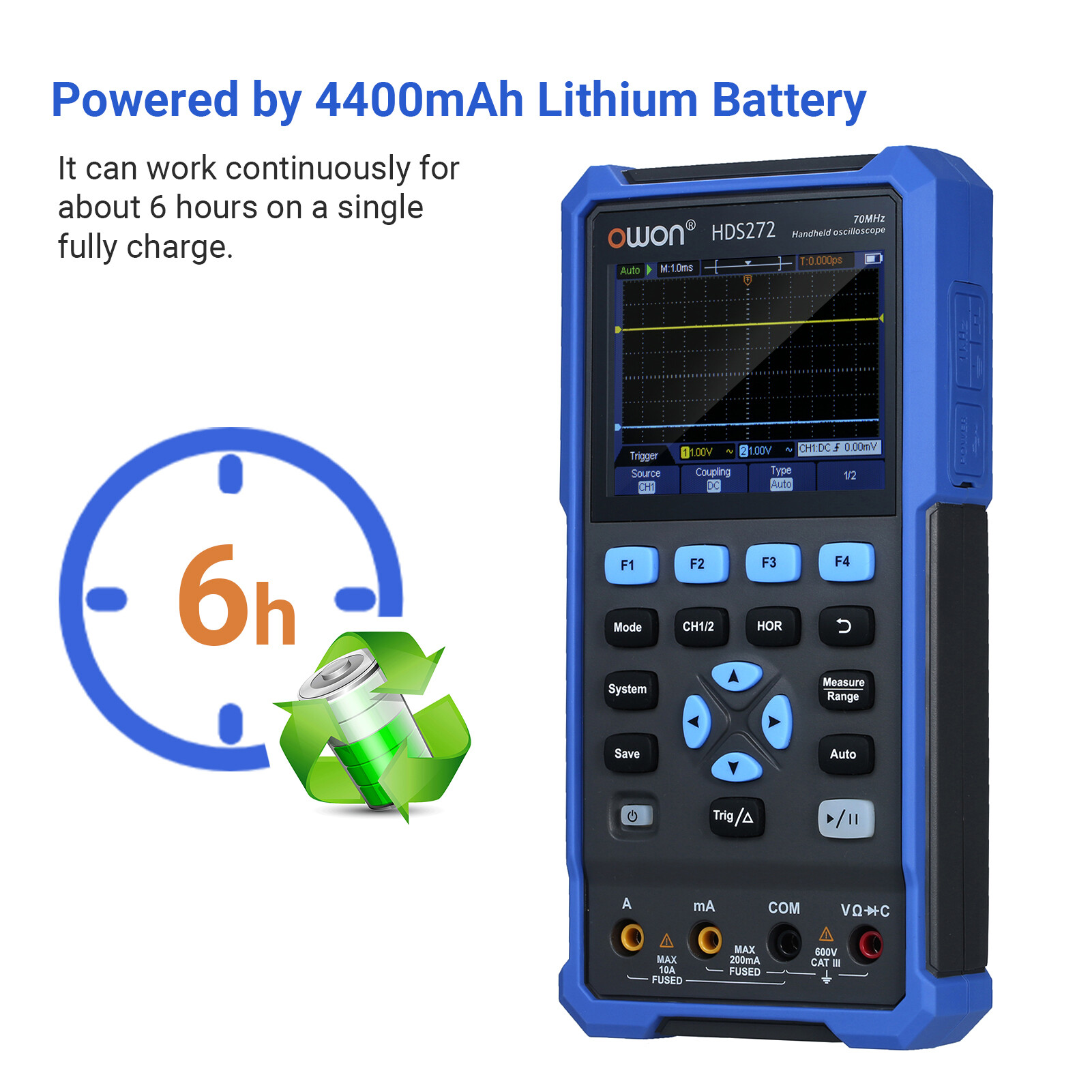

Powered by 4400mAh lithium battery, it can work continuously for about 6 hours on a single fully charge.
USB type-C interface can be charged by an adapter or a power bank, and supports PC software connection.

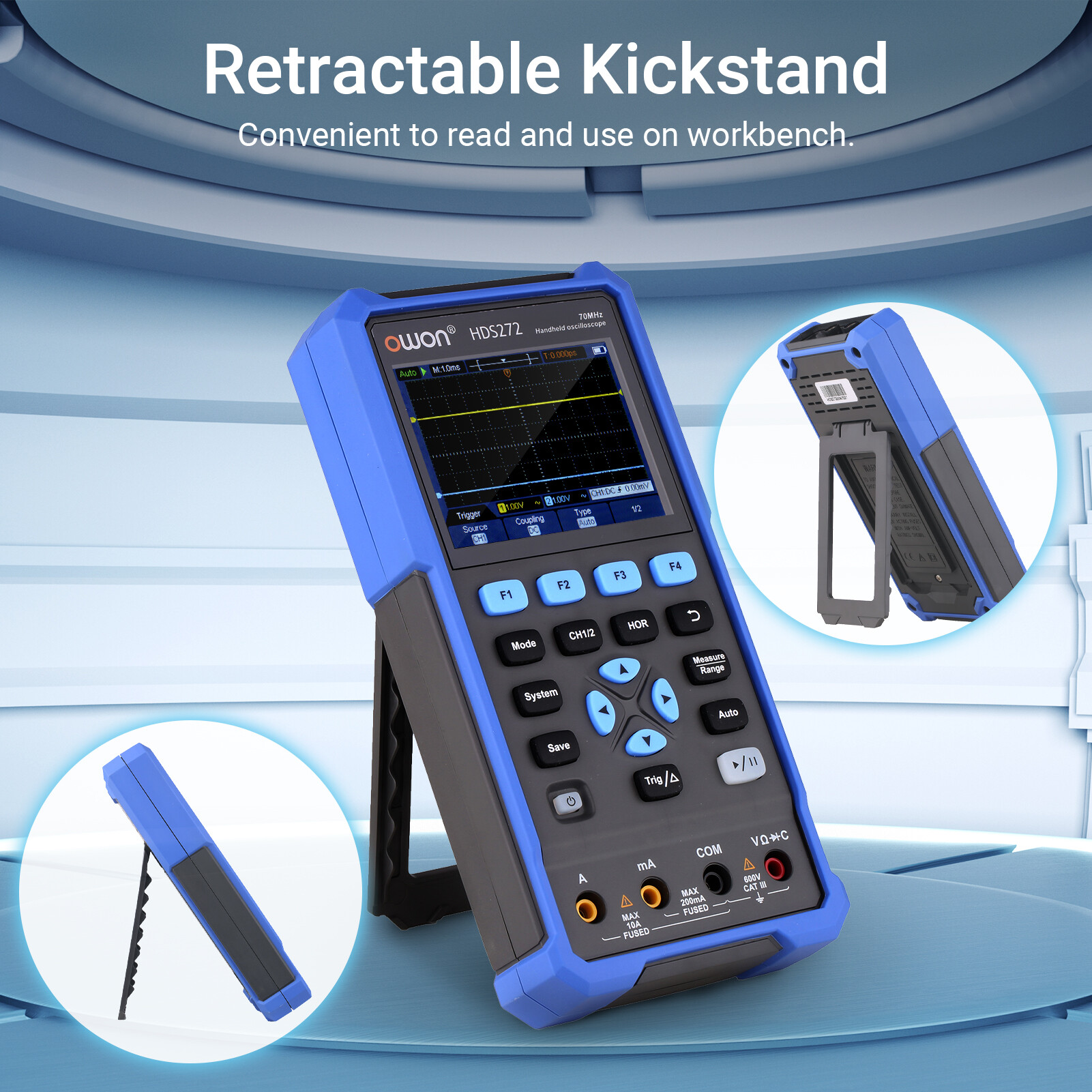

Compact and portable for travel, with solid kickstand on the back for easy reading on workbench.
Applied for the maintenance of sound systems, electronics, automobile, transceiver, etc.

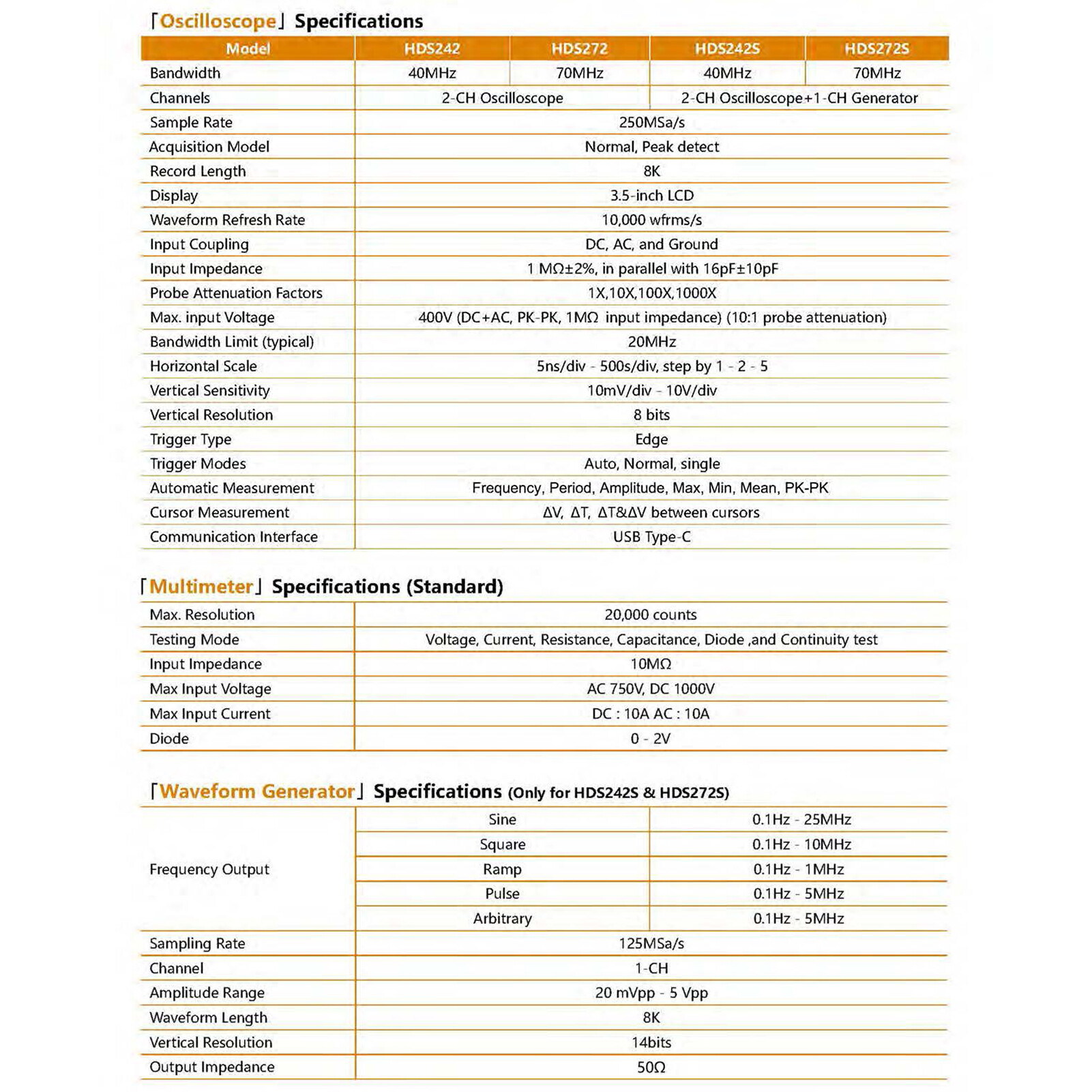

Parameters:
[Oscilloscope]
Bandwidth: 70MHz
Channels: 2CH
Sample Rate: 250MSa/s
Acquisition Model: Normal, Peak detect
Record Length: 8K
Display: 3.5-inch LCD
Waveform Refresh Rate: 10000 wfrms/s
Input Coupling: DC, AC, and Ground
Input Impedance: 1 MΩ±2%, in parallel with 16pF±10pF
Probe Attenuation Factors: 1×, 10×, 100×, 1000×
Max. Input Voltage: 400V(DC+AC, PK-PK, 1MΩ input impedance)(10:1 probe attenuation)
Bandwidth Limit(typical): 20MHz
Horizontal Scale: 5ns/div - 500s/div, step by 1-2-5
Vertical Sensitivity: 10mV/div - 10V/div
Vertical Resolution: 8 bits
Trigger Type: Edge
Trigger Modes: Auto, Normal, Single
Automatic Measurement: Frequency, Period, Amplitude, Max, Min, Mean, PK-PK

[Multimeter]
Max. Resolution: 20,000 counts
Testing Mode: Voltage, Current, Resistance, Capacitance, Diode and Continuity
Input Impedance: 10MΩ
Max. Input Voltage: AC 750V, DC 1000V
Max. Input Current: DC: 10A, AC: 10A
Diode: 0-2A

Specifications:
Brand: OWON
Material: ABS
Color: Blue
Plug Type: US / EU / UK (optional)
Battery Capacity: 4400 mAh
Chaging Time: approx. 4.5 hours
Battery Life: approx. 6 hours
Item Size: 19.8*9.6*3.8cm / 7.79*3.77*1.49in
Item Weight: 504g / 17.77oz
Tool Bag Size: 21*14*6cm / 8.26*5.51*2.36in
Package Size: 24*16*9.5cm / 9.44*6.29*3.74in
Package Weight: 1049g / 37oz

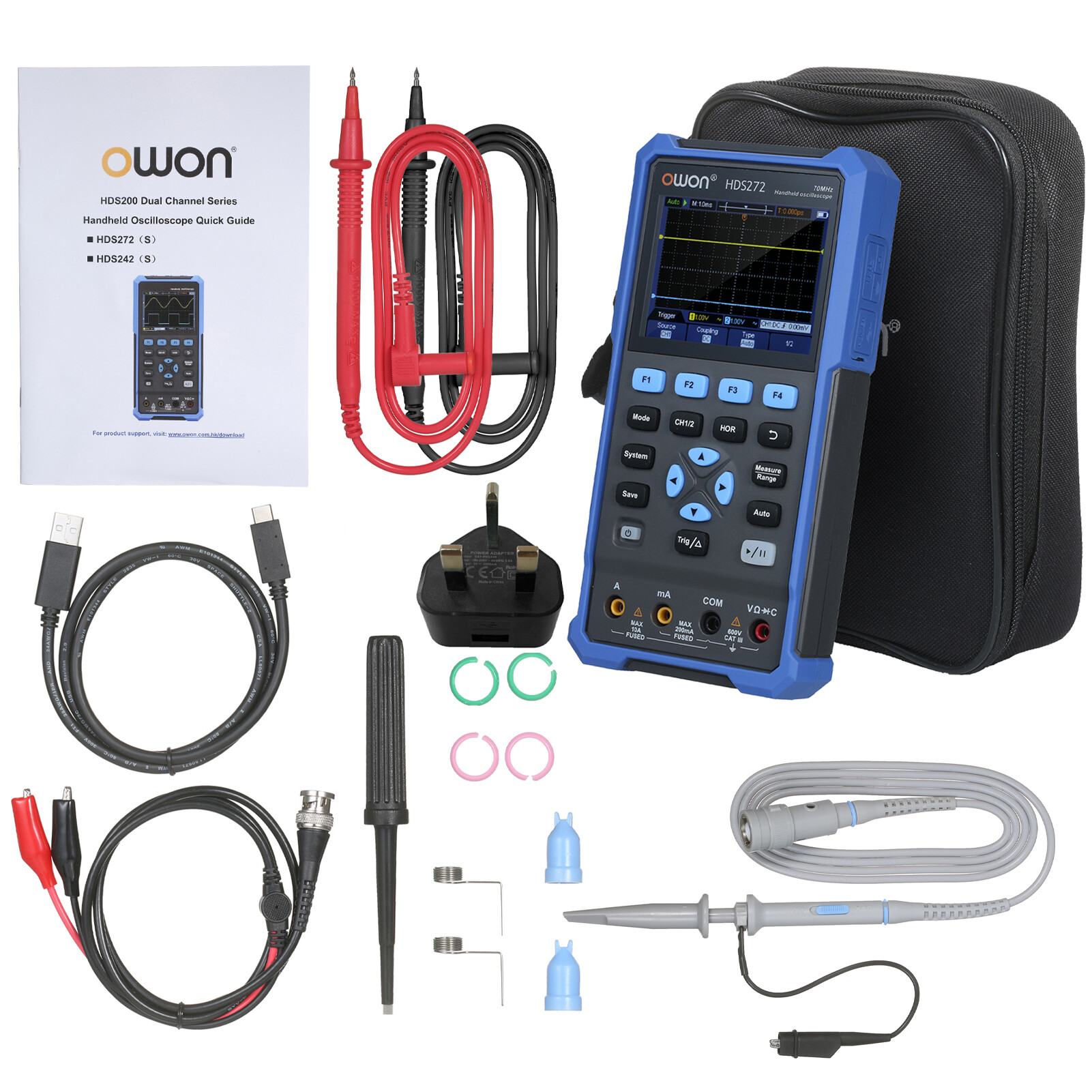

Packing List:
1 * Oscilloscope
1 * Probe
1 * Probe Adjust
1 * USB Cable
2 * Test Lead
1 * BNC to Alligator Clip
1 * Carrying Bag
1 * User Manual(English)
