SMART SENSOR Oscilloscope Đồng hồ vạn năng cầm tay LCD đa năng kế kỹ thuật số & oscillometer 2-in-1 Đồng hồ vạn năng máy đo phạm vi 9999 đếm 10MHz 48msa/S đơn kênh đo AC/DC điện áp và hiện tại Kháng Điện dung tần số

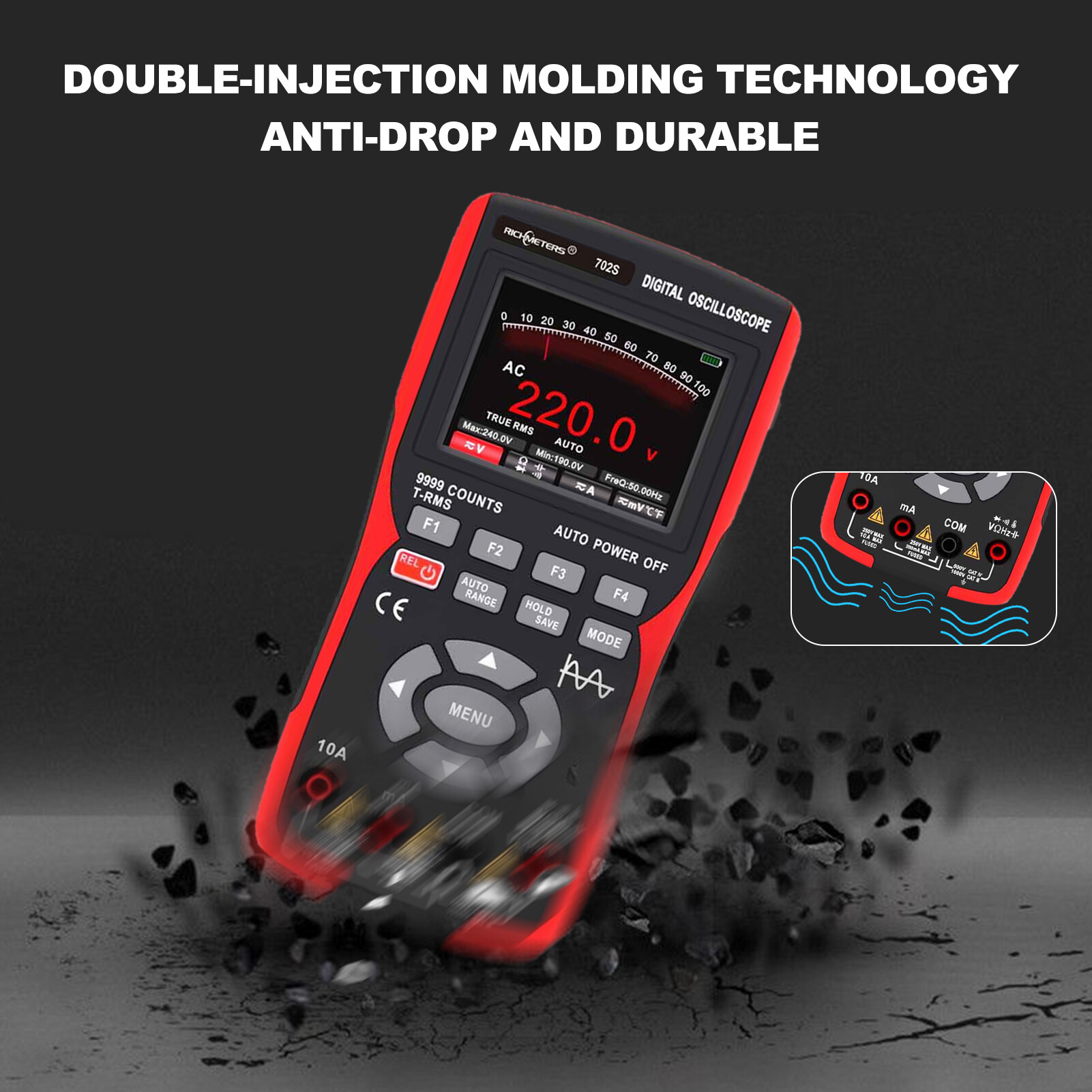

The tester combines the oscilloscope and multimeter function as one, with superior performance and powerful functions and can be used in various measurement scenarios to meet more measurement needs of you. The handheld oscilloscope multimeter adopts double-injection molding technology, with beautiful appearance design, small size, easy to carry, and flexible operation the function button menu interface is clear and intuitive. The screen adopts 2.8- inch IPS full-view color screen and the multimeter is 9999 counts.

Features:

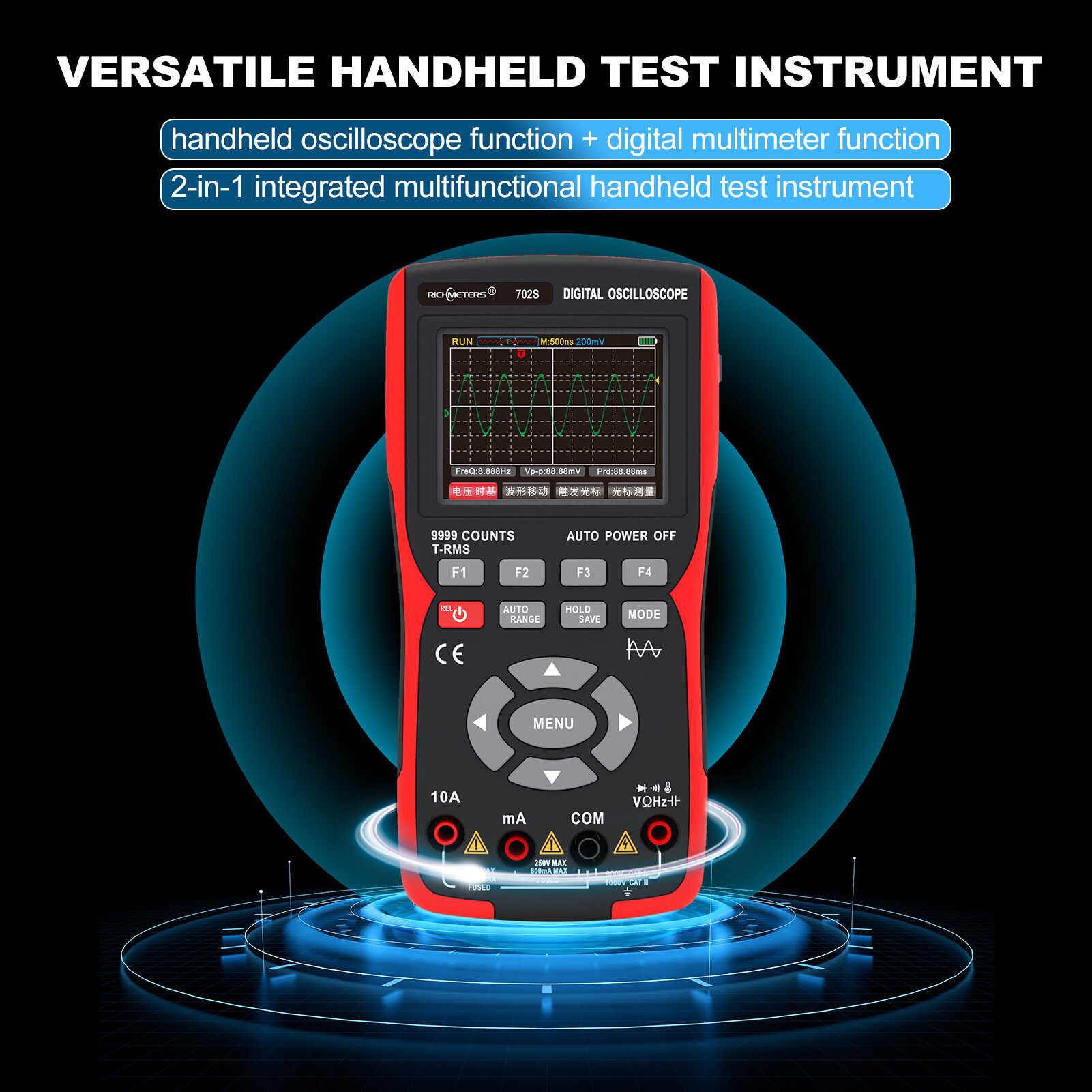

Versatile Handheld Test Instrument: handheld oscilloscope function + digital multimeter runction, 2-in-1 integrated multifunctional handheld test instrument. One key switch easy to operation, suitable for outdoor maintenance, rapid on-site measurement, automobile maintenance, power detection, etc.
Digital Oscilloscope Main Function: single channel input, 10MHz bandwidth, 48MSa/s real-time sampling rate. Multiple automatic measurement functions; Auto, normal, and single, 3 trigger methods; 150V(DC+AC peak) max. input voltage; Automatically identify the waveform type (sine or square wave) and adjust the control method to accurately display the waveform of the input signal.
Digital Handheld Multimeter: auto/manual ranging 9999 counts true RMS multimeter can be used to measure AC/DC voltage & current, resistance,, capacitance, frequency, temperature, continuity and diode test.
Save & View Waveforms: by pressing the hold&save button to save the current measured waveform data, and save it in the flash with a serial number in the form of a picture. Connect the oscilloscope to the computer with the Type-C data cable, click the USB disk, open the pic folder to view, or download the waveform to the computer for easier analysis.

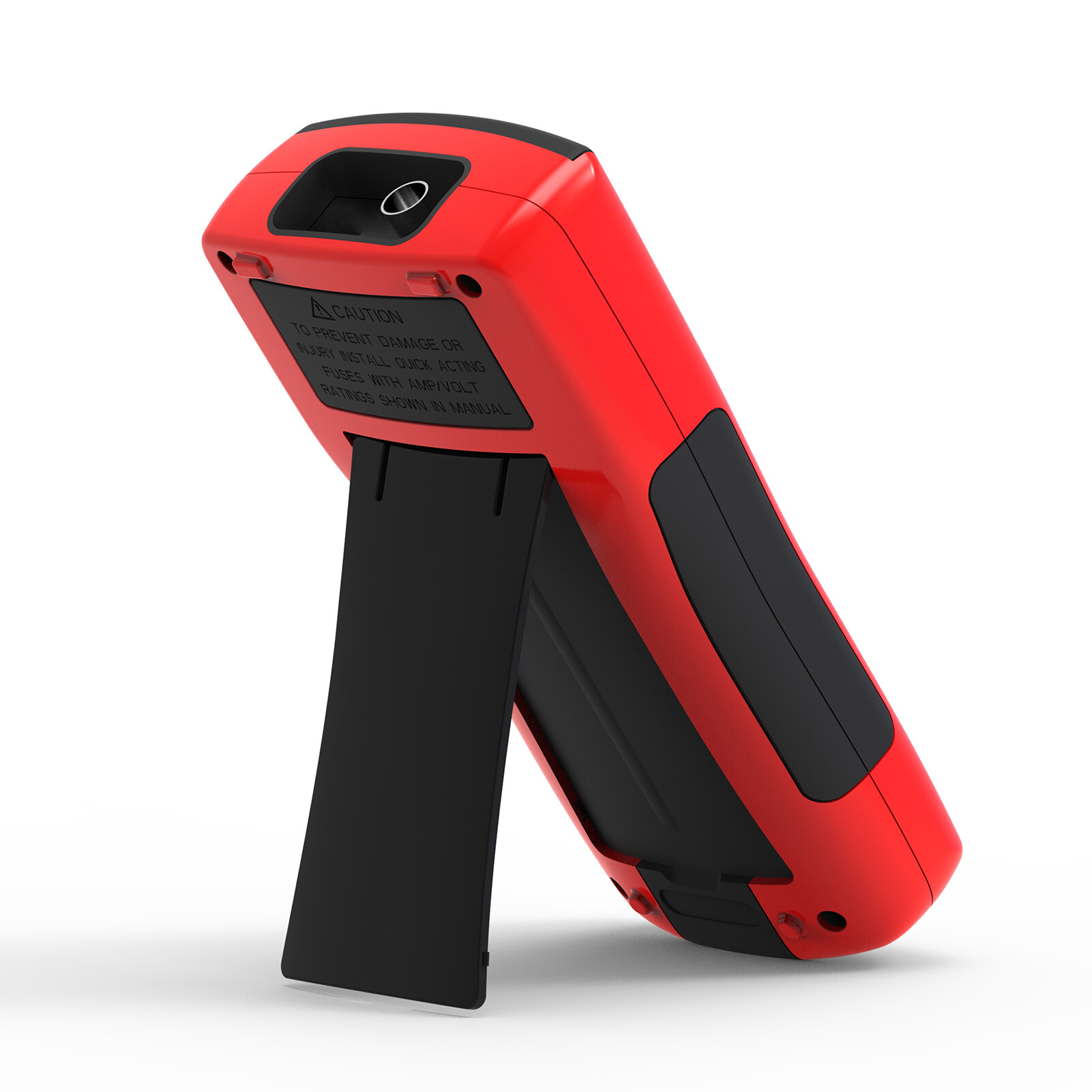

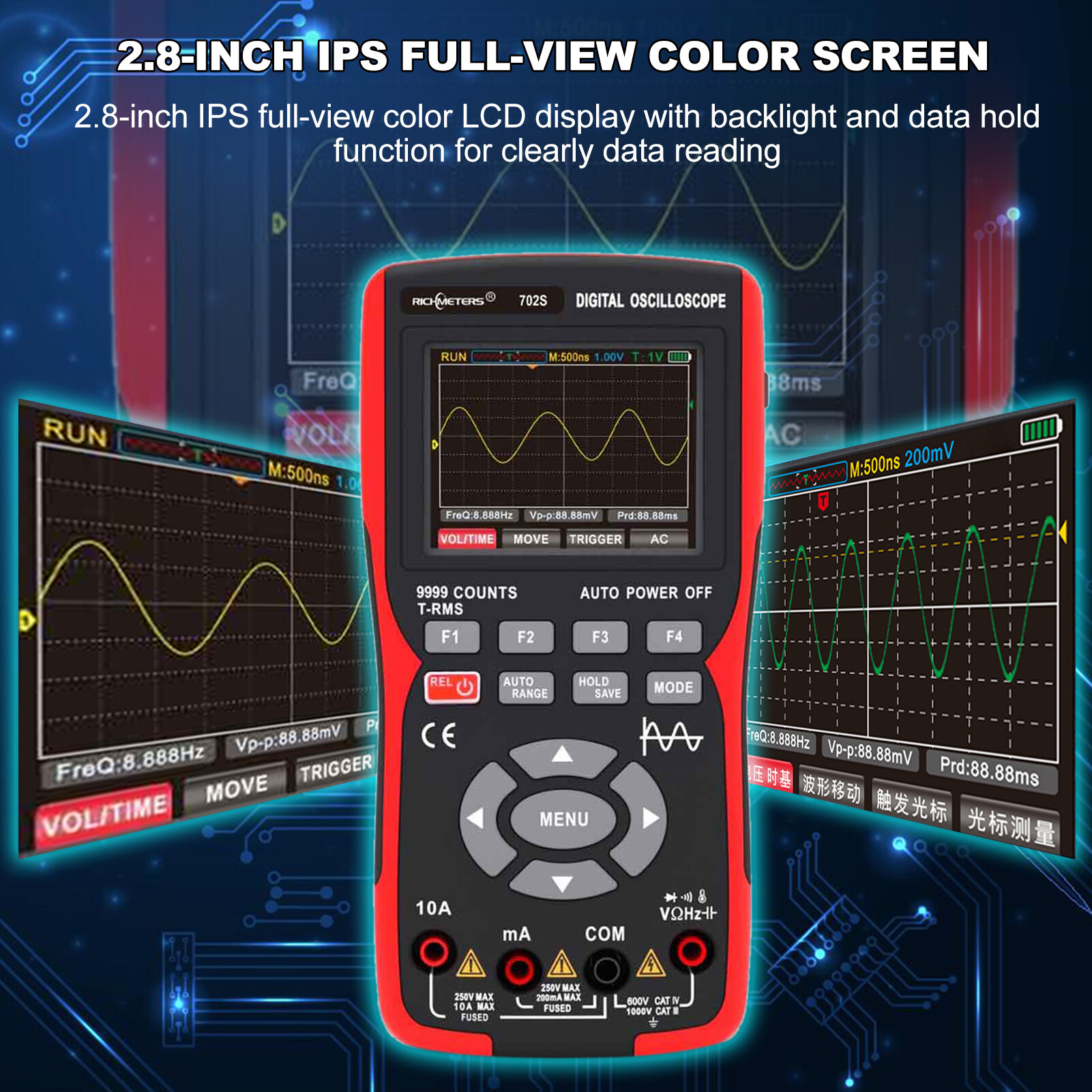

User-friendly Design: 2.8- inch IPS full-view color LCD display with backlight and data hold function for clearly data reading. Small compact size is suitable for single hand operating and portable to carry with. With a bracket on the back, convenient to place it on the table and read the values.
Low Battery Consumption: powered by the built-in 2000mAh rechargeable battery, included USB Type-C cable for convenient charging. With auto power off function for energy-saving and low battery indication icon to remind you replace battery.

Specifications:
Material: ABS+TPE
Display (LCD): 9999 counts
Ranging: Auto/Manual
Update Rate: 3 Times/Second
Ture RMS: Yes
Data Hold: Yes
Backlight: Yes
Low Battery Indication: Yes
Auto Power Off: 15/30/60/120 minutes, and no limit
Operating Temperature: 0~40°C
Operating Humidity: <75%
Storage Temperature: -20~60°C
Storage Humidity: <80%
Battery: Built-in 3.7V 2000mAh rechargeable battery

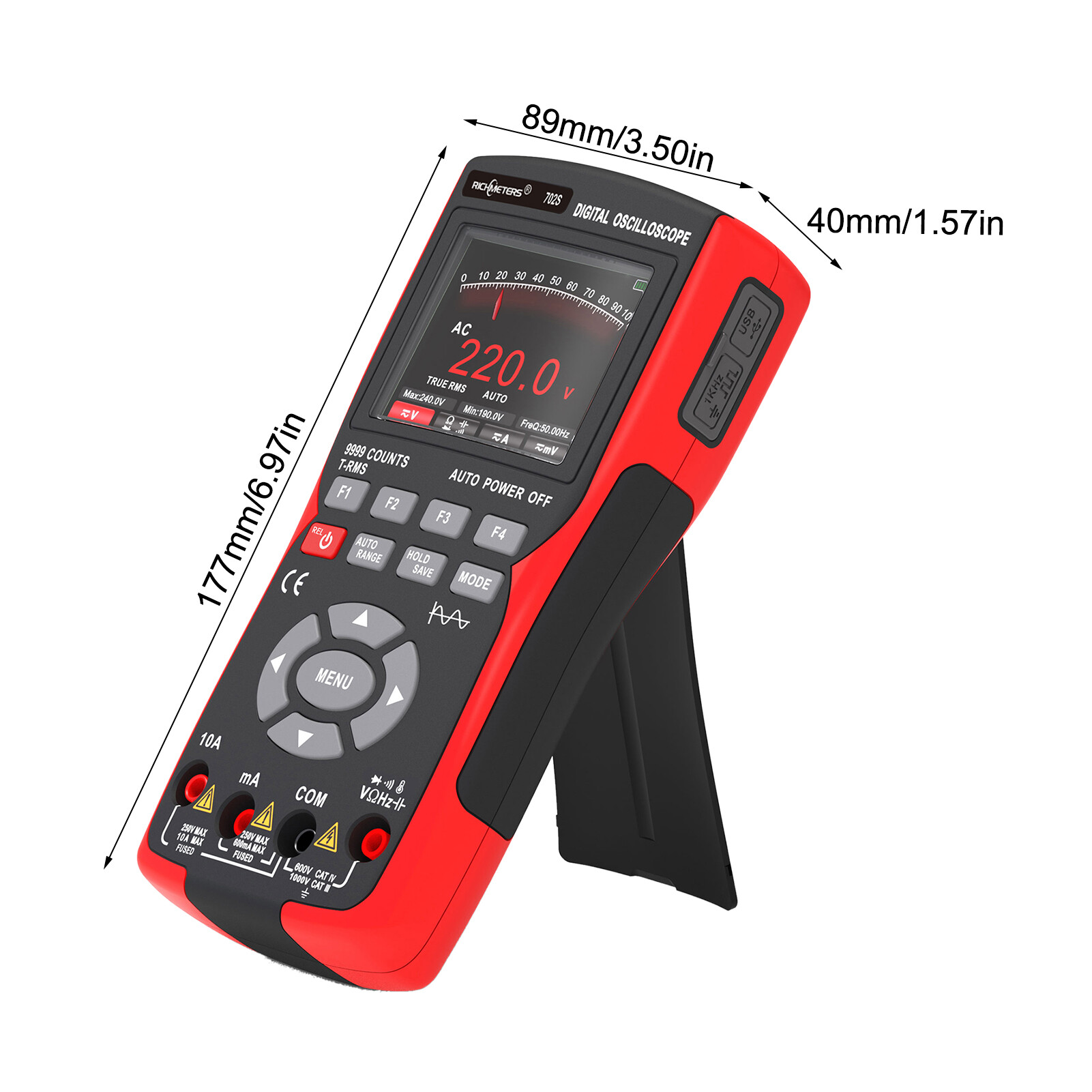

Item Size: 177 * 89 * 40mm / 6.97 * 3.50 * 1.57in
Item Weight: 352g / 12.43oz
Package Weight: 701g / 24.75oz
Package Size: 26 * 13.3 * 6.5cm / 10.24 * 5.24 * 2.56in

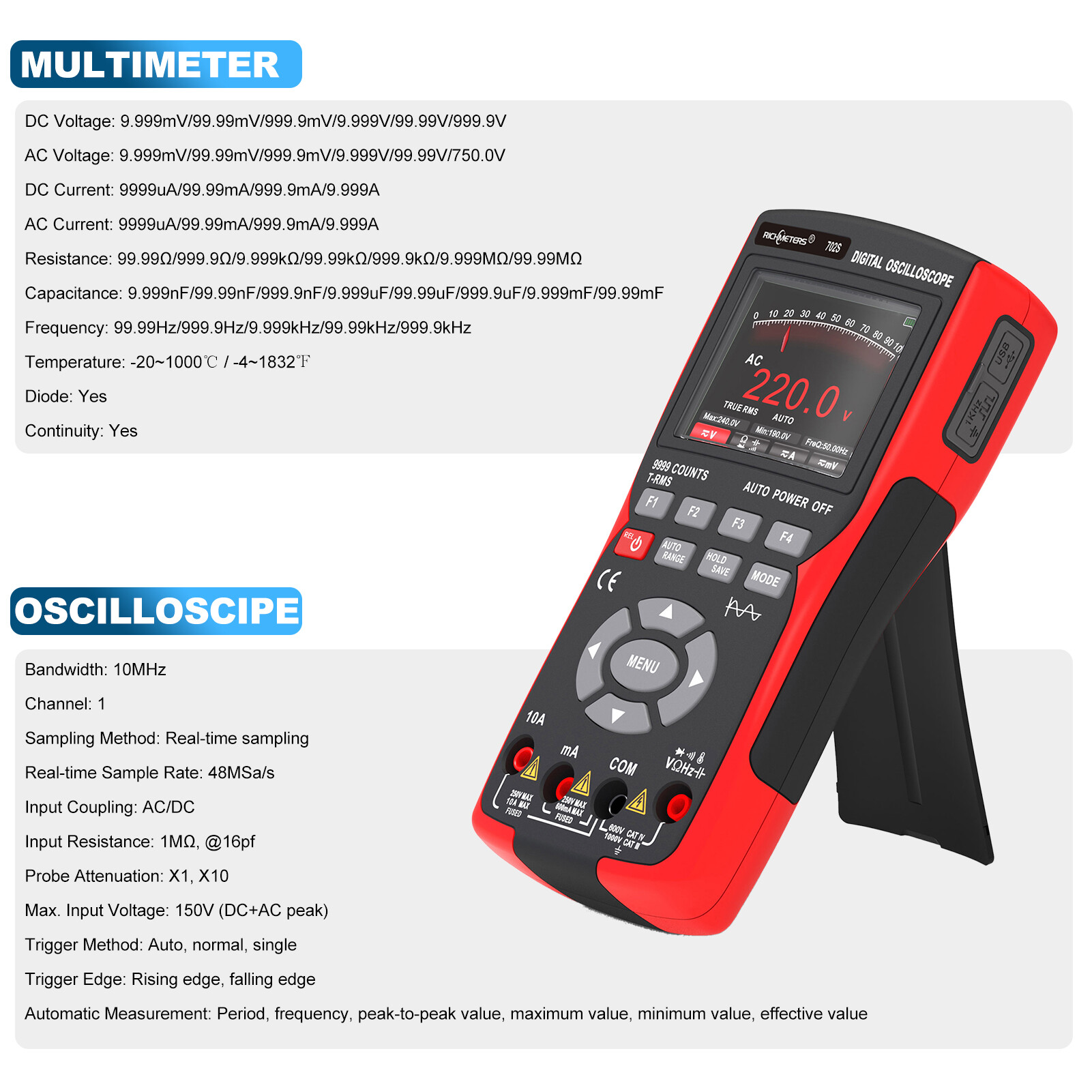

MULTIMETER:
DC Voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V
AC Voltage: 9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V
DC Current: 9999uA/99.99mA/999.9mA/9.999A
AC Current: 9999uA/99.99mA/999.9mA/9.999A
Resistance: 99.99Ω/999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ
Capacitance: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF
Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz
Temperature: -20~1000°C / -4~1832°F
Diode: Yes
Continuity: Yes

OSCILLOSCIPE:
Bandwidth: 10MHz
Channel: 1
Sampling Method: Real-time sampling
Real-time Sample Rate: 48MSa/s
Input Coupling: AC/DC
Input Resistance: 1MΩ, @16pf
Probe Attenuation: X1, X10
Max. Input Voltage: 150V (DC+AC peak)
Automatic Measurement: Period, frequency, peak-to-peak value, maximum value, minimum value, effective value
Trigger Method: Auto, normal, single
Trigger Edge: Rising edge, falling edge
