Cảm Biến Thông Minh Cầm Tay Mini Kỹ Thuật Số Dao Động, Với Màn Hình Màu 2.4 Inch Tốc Độ Lấy Mẫu Băng Thông 120M 500M Để Bảo Trì Và Tự Kiểm Tra Điện Tử

This is a kind of quality oscilloscope, with 120M bandwidth and 500M sampling rate, more stable and with higher precisions. 14 measurement options available, Frequency, Peaks-to-Peaks, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle. Support switch the output waveform: sine wave, square wave, triangle wave, etc. Widely application on mcu debugging, car repair, home appliance repair, DIY electronic competition, power-supply debugging, inverter, etc. You can have a try.

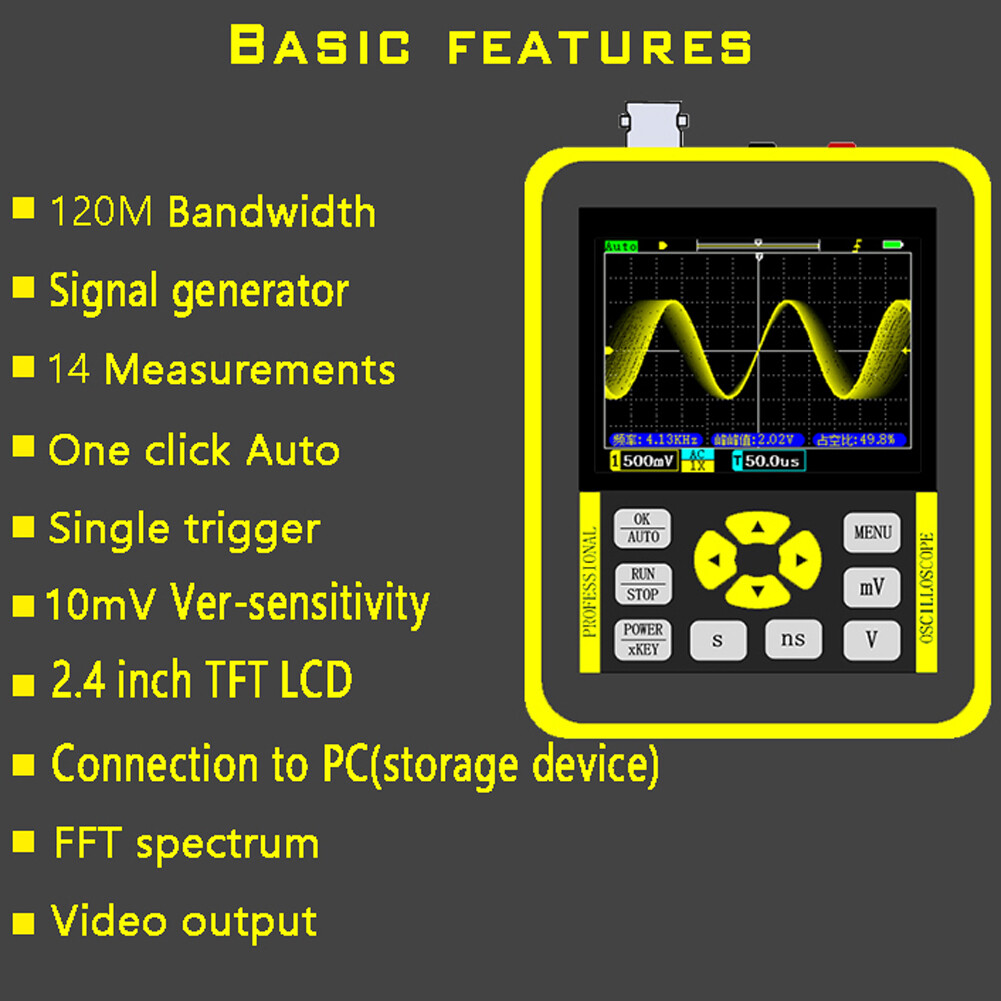

Features:
Resolution: Equipped with 320*240 resolution color display, with bright colors and high contrast, you can see the data clearly.
Bandwidth and sampling rate: With 120M bandwidth and 500M sampling rate, more stable and with higher precisions.

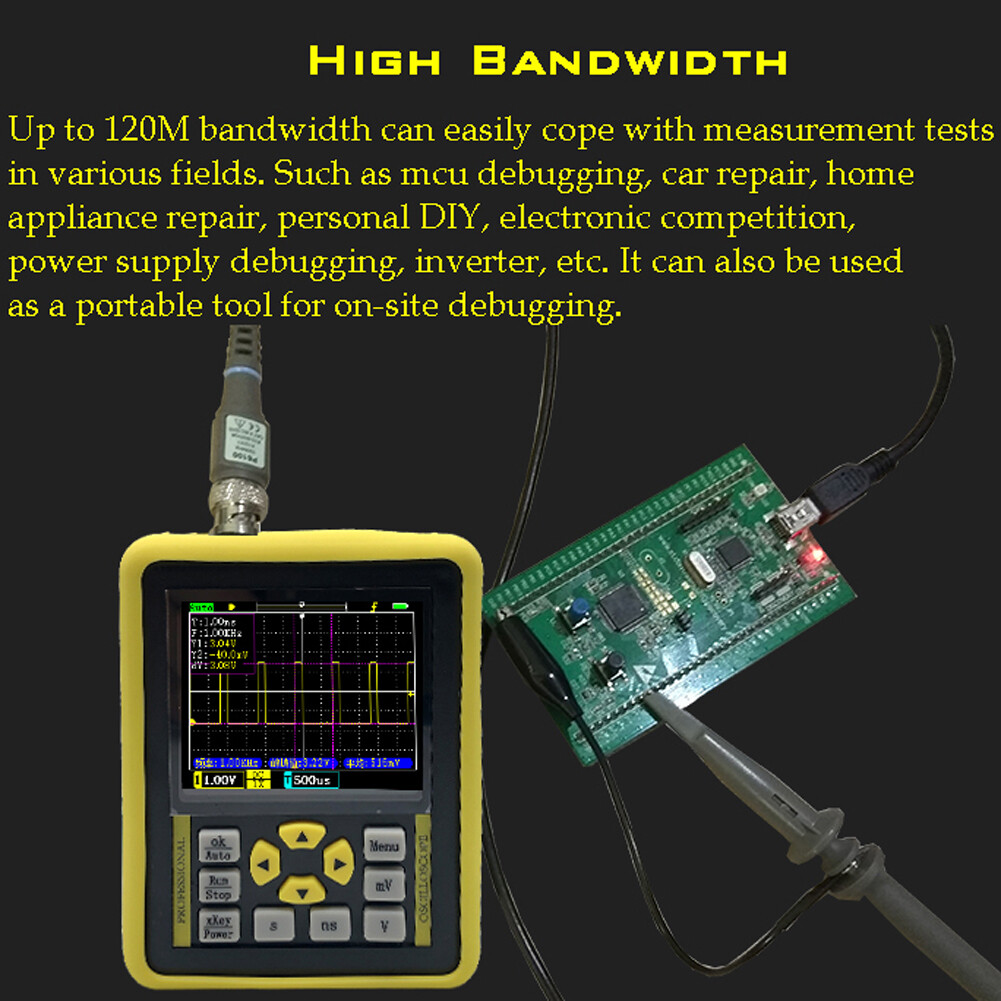

High bandwidth: Up to 120M bandwidth can easily cope with measurement tests in various fields.
There are 14 measurement options available as follows: Frequency, Peaks-to-Peaks, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle.

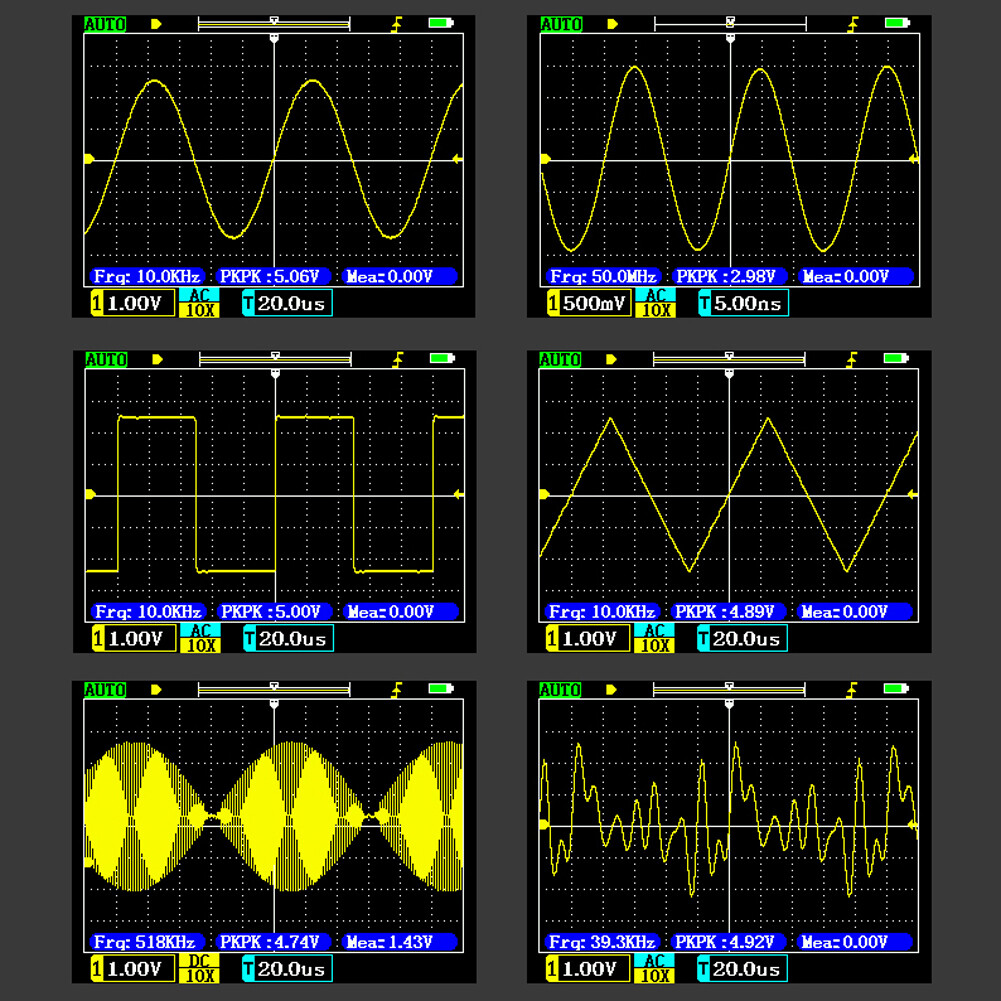

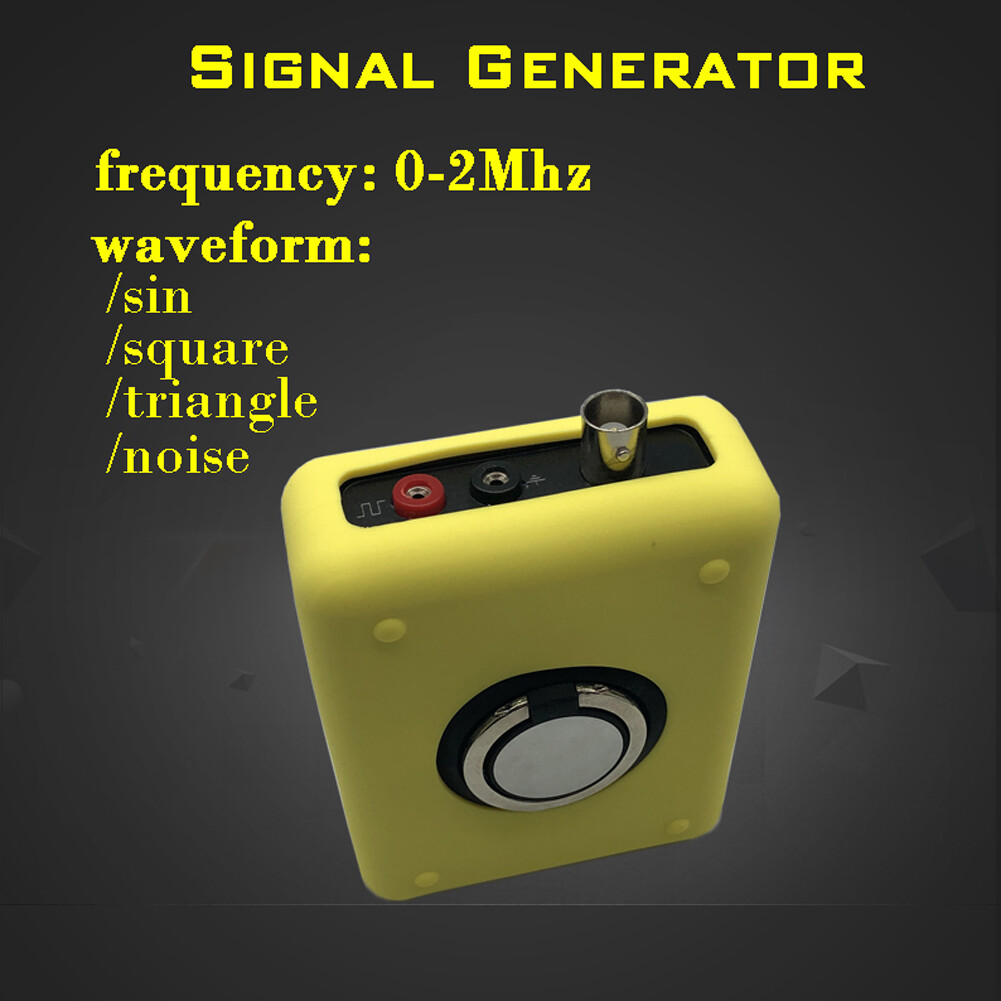

Support switch the output waveform: sine wave, square wave, triangle wave, etc.

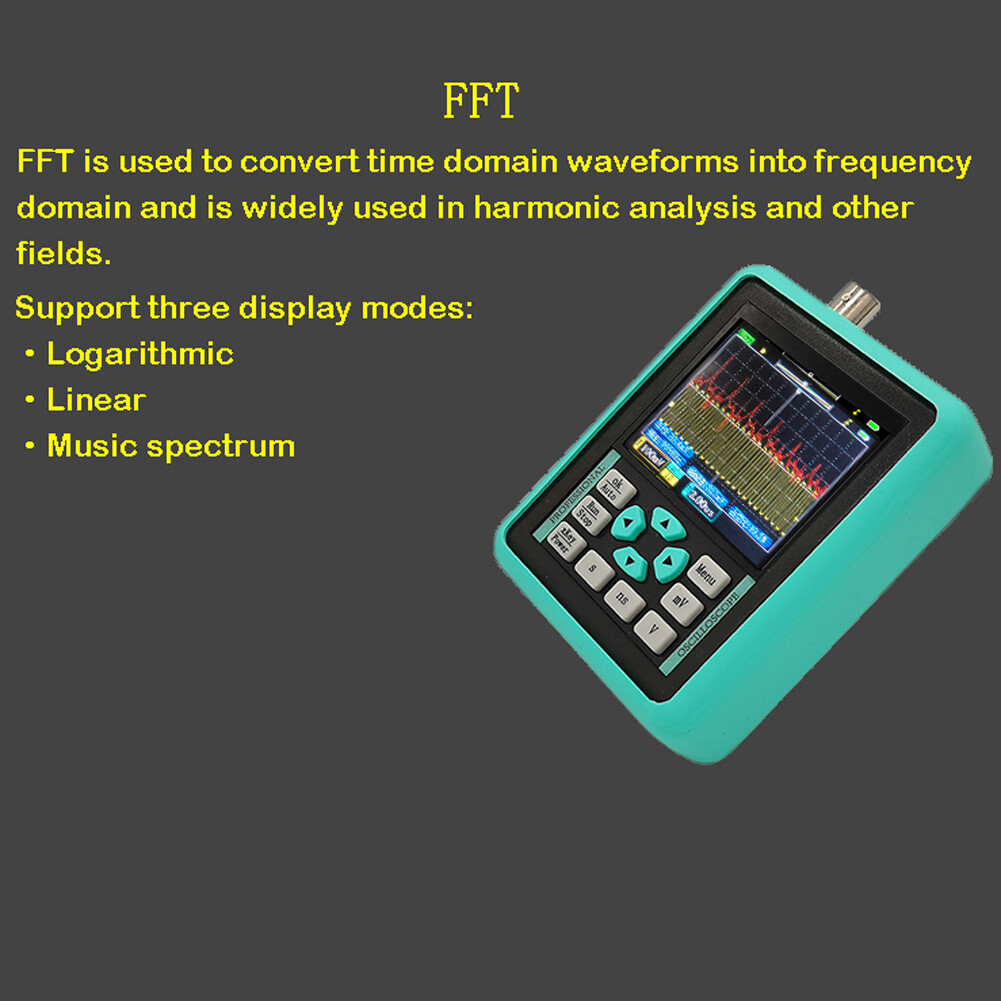

FFT: FFT is used to convert time domain waveforms into frequency domain and is widely used in harmonic analysis and other fields. Support three display modes: logarithmic, linear, and music spectrum.

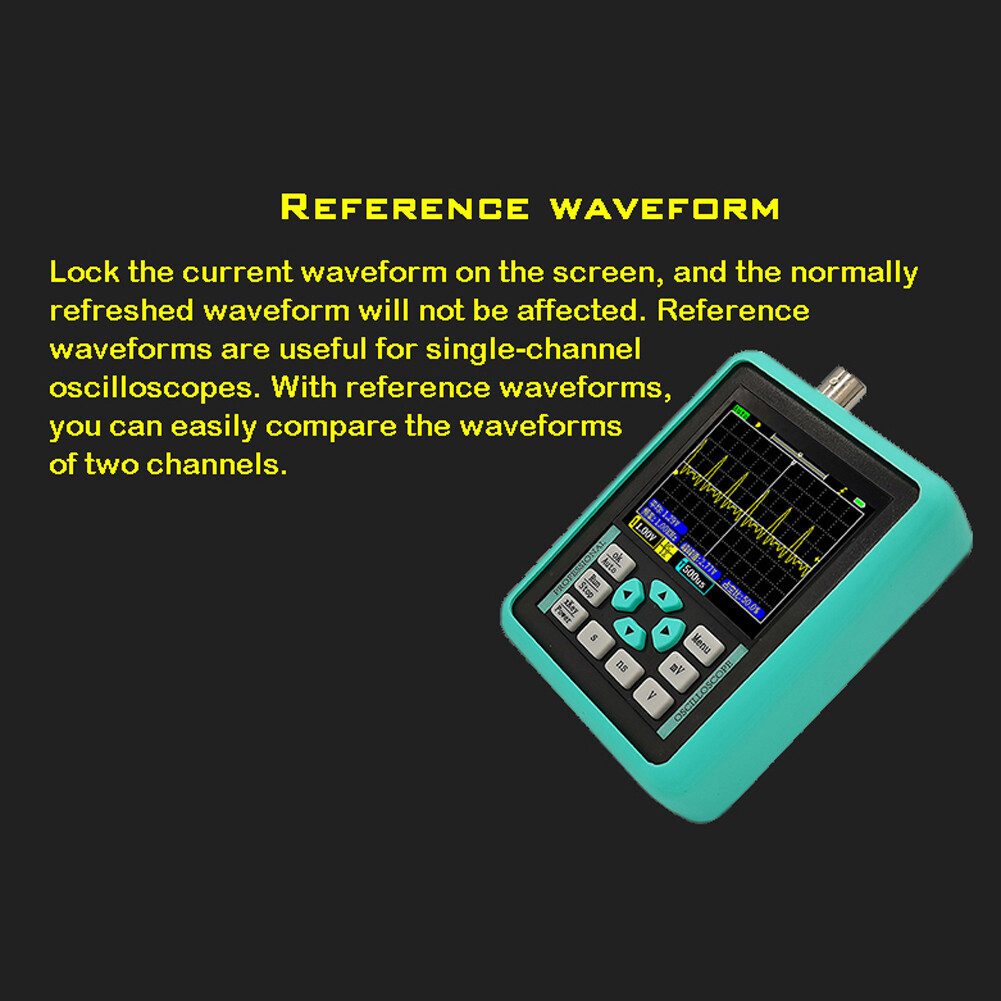

Reference waveform: you can measure the waveform first, lock the current waveform on the screen, and the normally refreshed waveform will not be affected. Reference waveforms are useful for single-channel oscilloscopes. With reference waveforms, you can easily compare the waveforms of two channels.

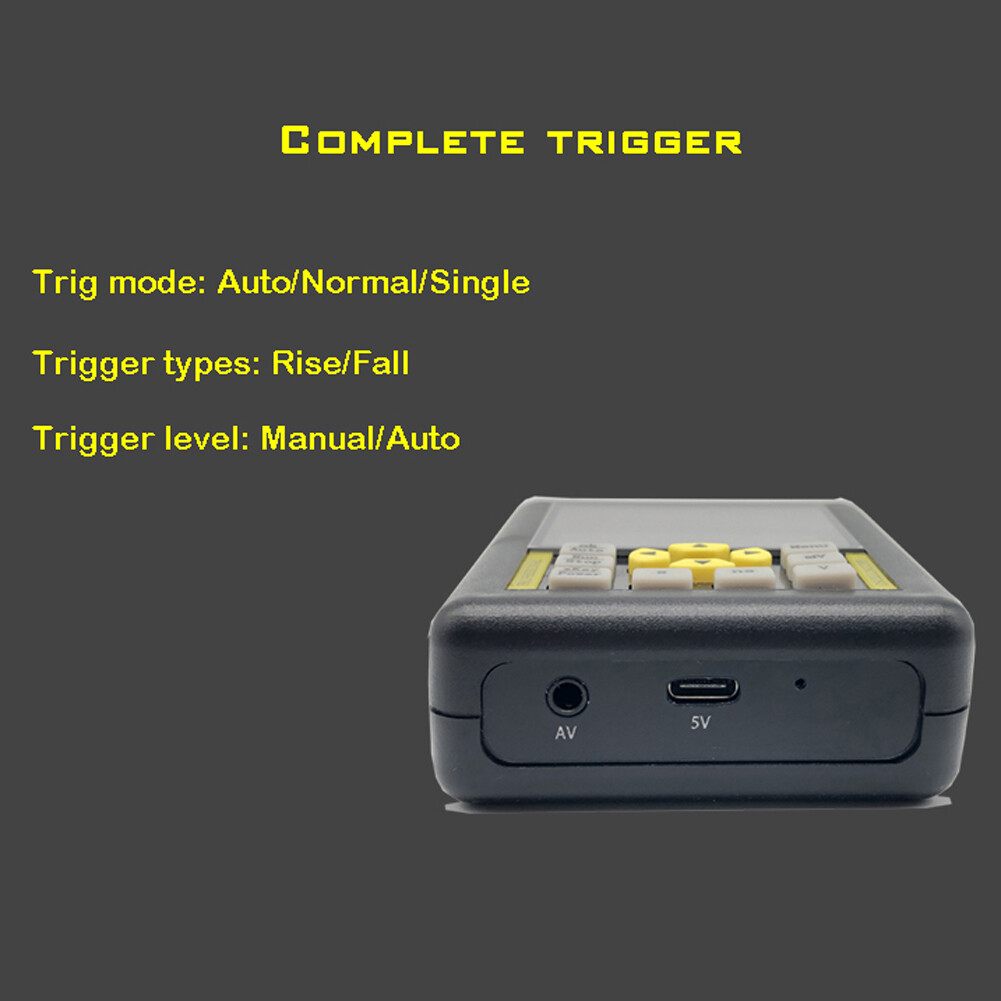

Complete trigger: Trig mode: Auto/Normal; Trigger types: Rise/Fall, Trigger level: Manual/Auto
Vertical sensitivity and time base: The scope's vertical sensitivity is ranges from 10mV/div to 10V/div (1X ranges). The oscilloscope time base is ranges from 5ns to 10s.

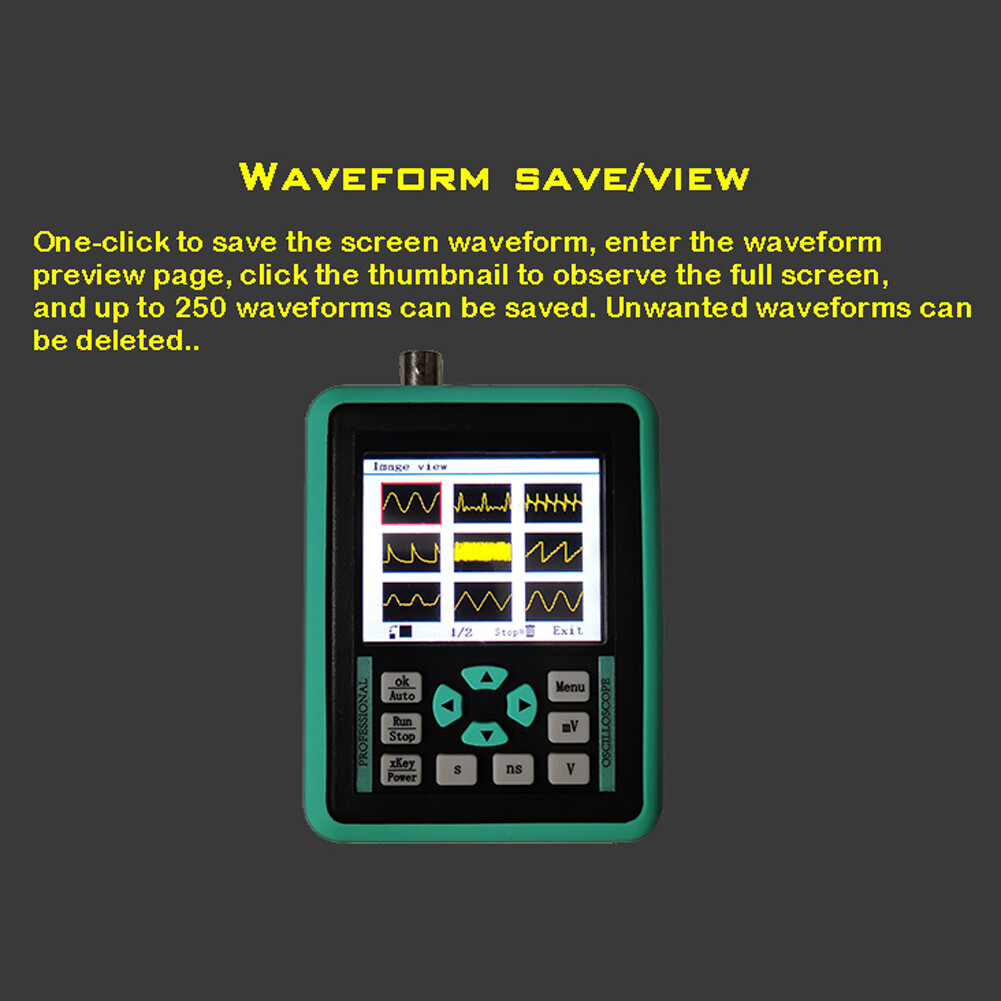

Waveform save: One-click to save the screen waveform, and also support delete or browse historical screenshots..

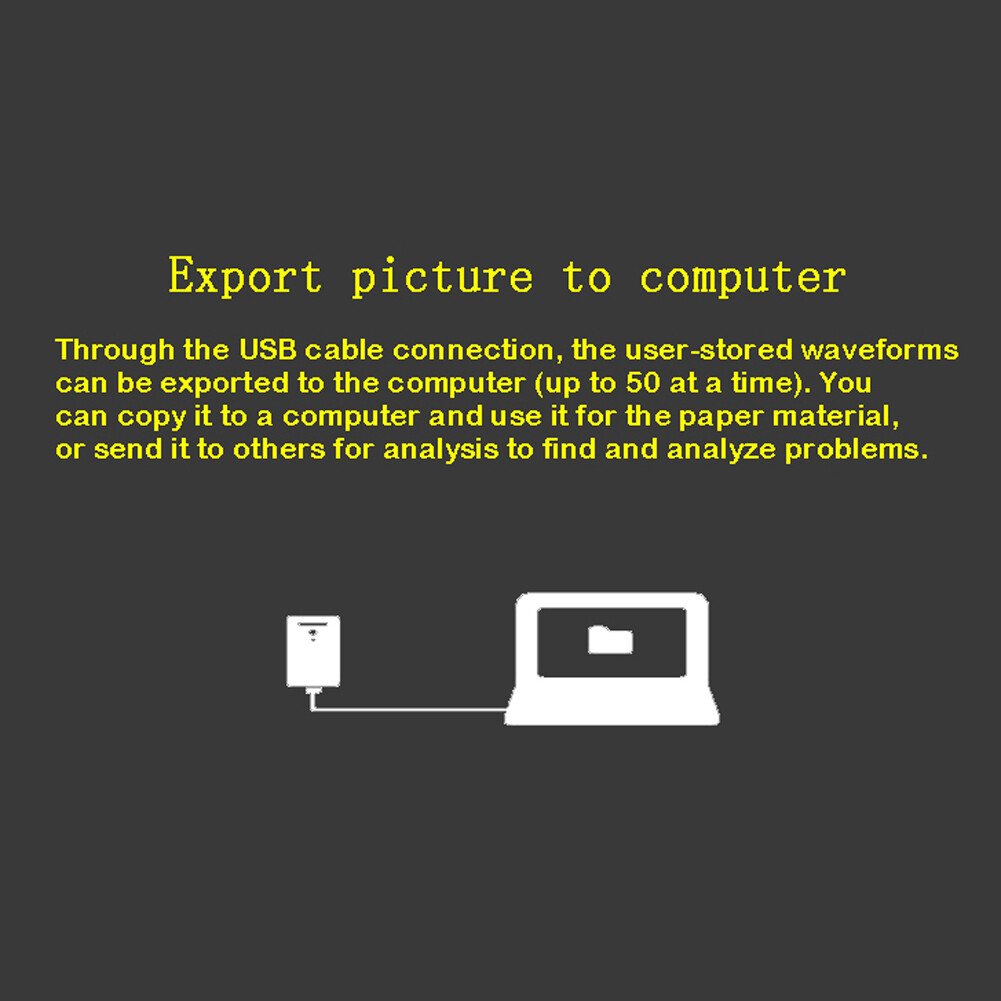

Connect to PC: The screenshot pictures can be exported to a computers via a USB connection.

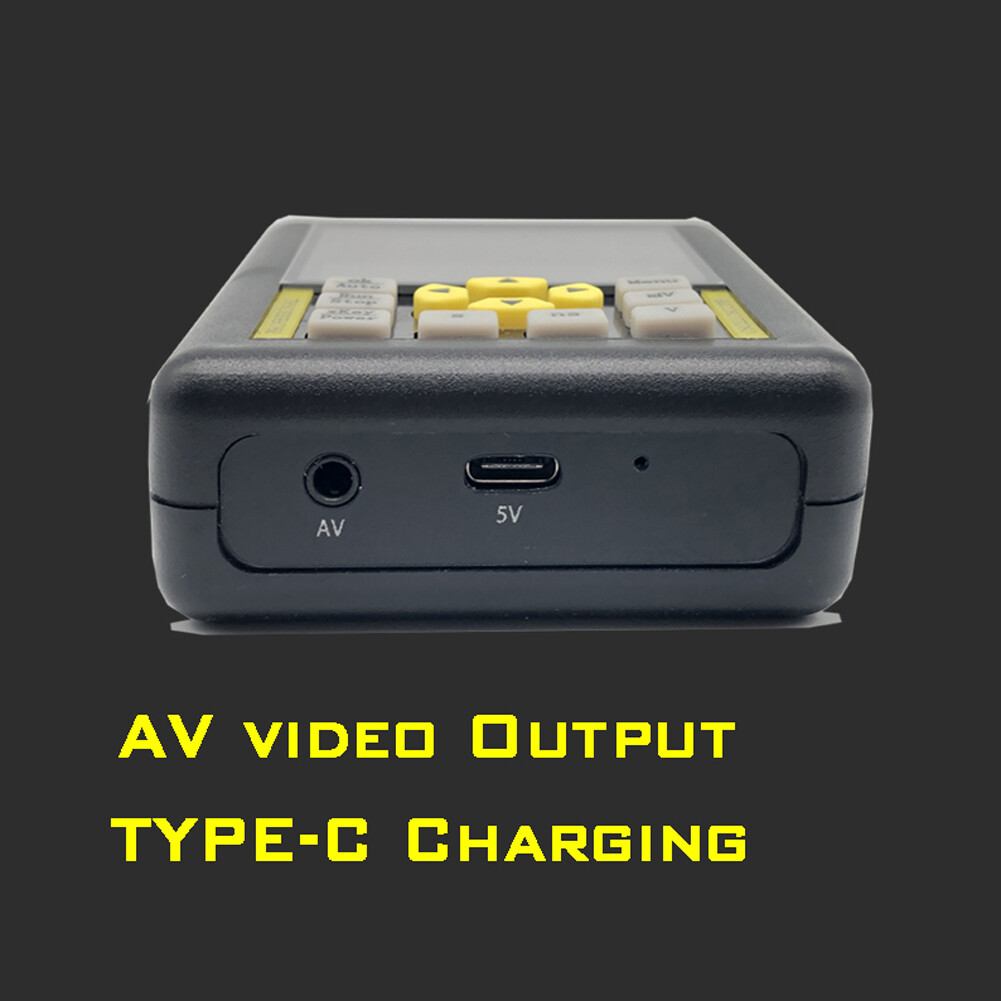

Video output: The 3.5mm headphone jack at the bottom can output AV video simulating signal, which can be connected to a TV or projector.
Power-supply: built-in rechargeable lithium battery, 3.7V, 3000mAh large caparity, full-charged can provides long working time.
Compact size: lightweight and portable, also can be used as a portable tool for on-site debugging.

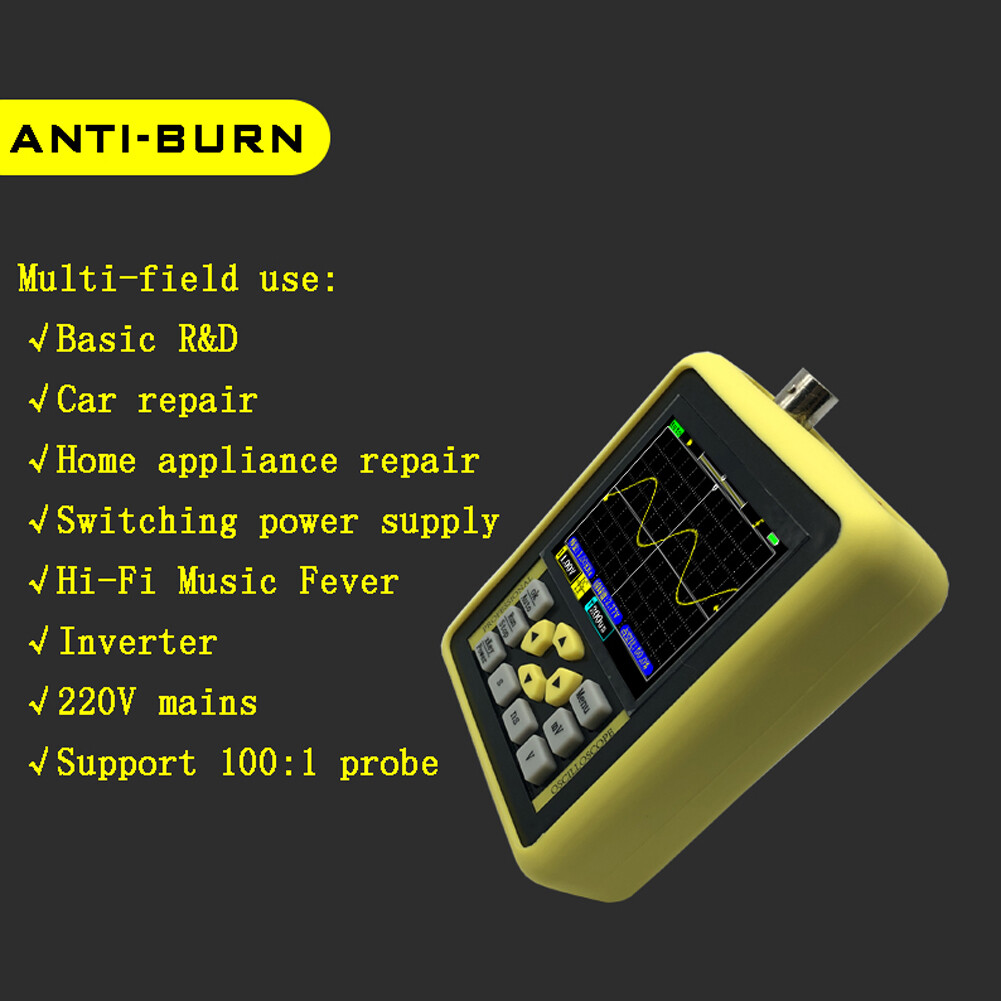

Widely applications: suitable for mcu debugging, car repair, home appliance repair, DIY electronic competition, power-supply debugging, inverter, etc.

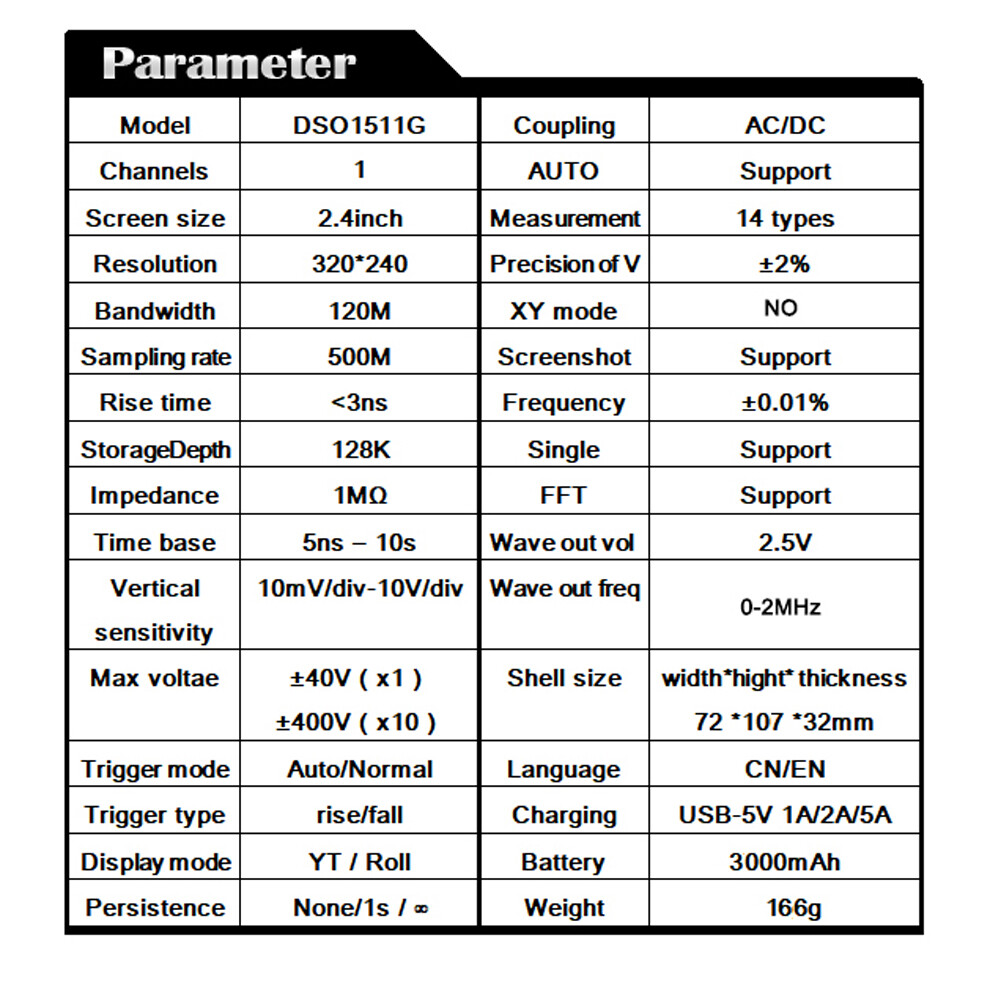

Specicifations:

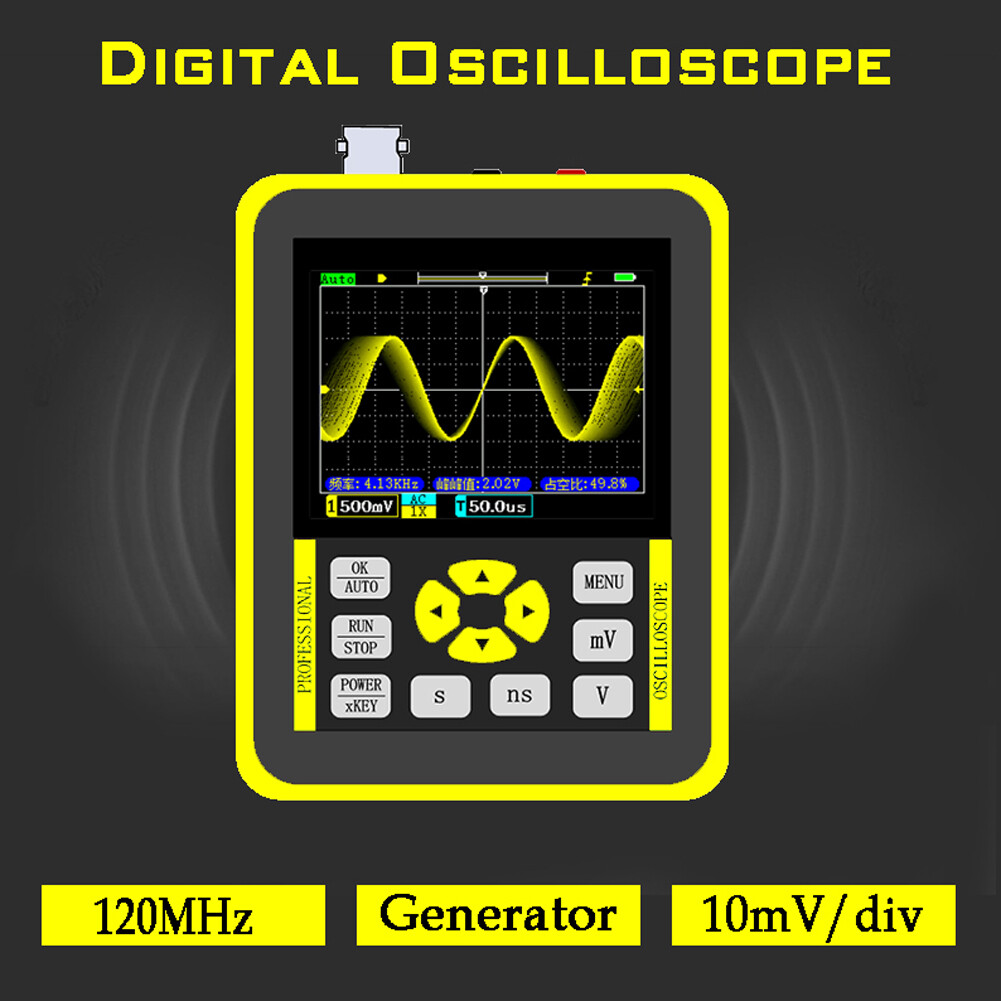

Name: Oscilloscope
Model: DSO1511G
Color: yellow, green (optional)
Battery: 1 * 2.5V, 3000mAh battery (included)
Channels: 1
Screen size: 2.4 inch
Measurement: 14 types
Resolution: 320*240
Bandwidth: 120M
Sampling rate: 500M
Rise time: <3ns
Storage depth: 128Kbit
Impedance: 1MΩ
Time base: 5ns–10s
Ver sensitivity: 10mV/div-10V/div
Max voltae: ±40V(x1); ±400V(x10)
Trigger mode: Auto/Normal
Trigger type: rise/fall
Display mode: YT/Roll
Persistence: None/1s / ∞
Coupling: Direct Current/Alternating Current
AUTO: Support
Precision of V: ±2%
Reference: Support
Screenshot: Support
Single: Support
FFT: Support
Frequency: ±0.01%

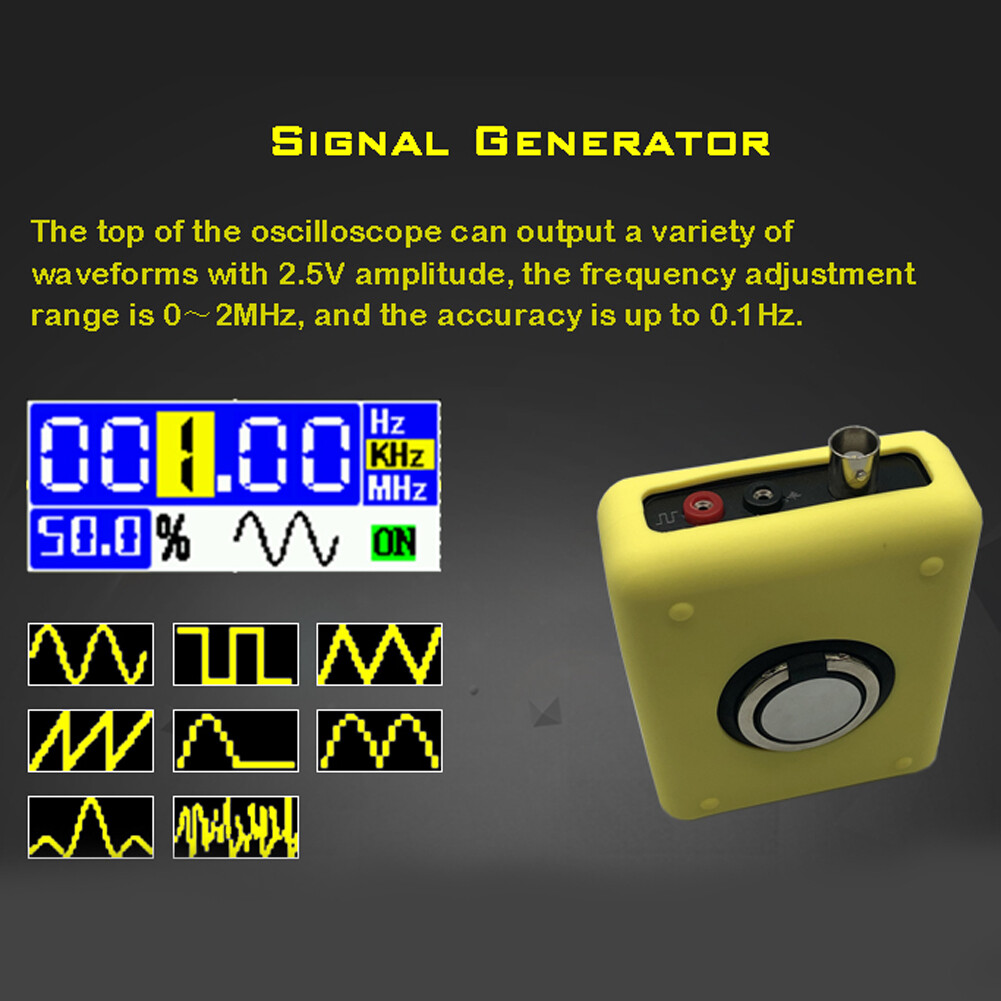

Generator: 0-2Mhz/2.5V
50%: Support
Language: CN/EN
Recharging: USB TypeC-5V 1A/2A/5A

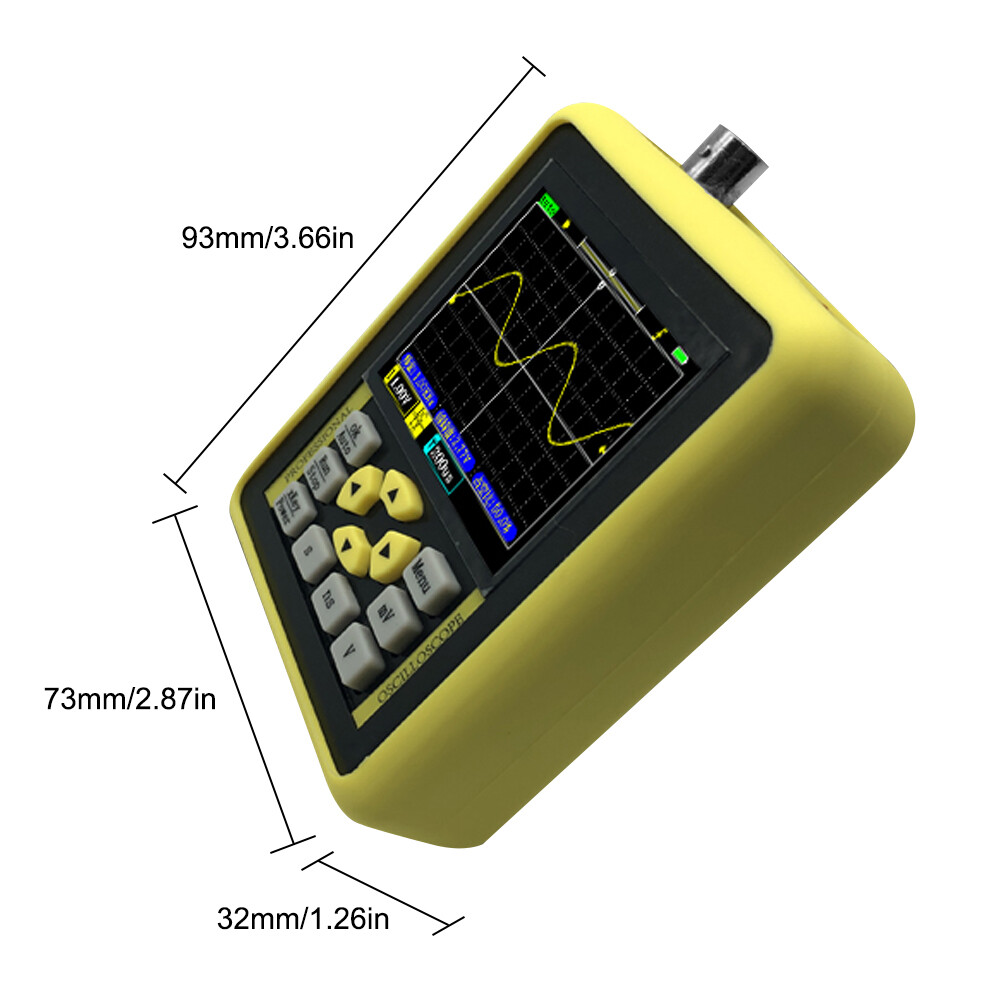

Item size: 73 * 93 * 32mm / 2.87 * 3.66 * 1.26in
Item weight: 166g / ounce
Package size: 190 * 100 * 130mm / 7.48 * 3.94 * 5.12in
Package weight: 500g / 1.10lb

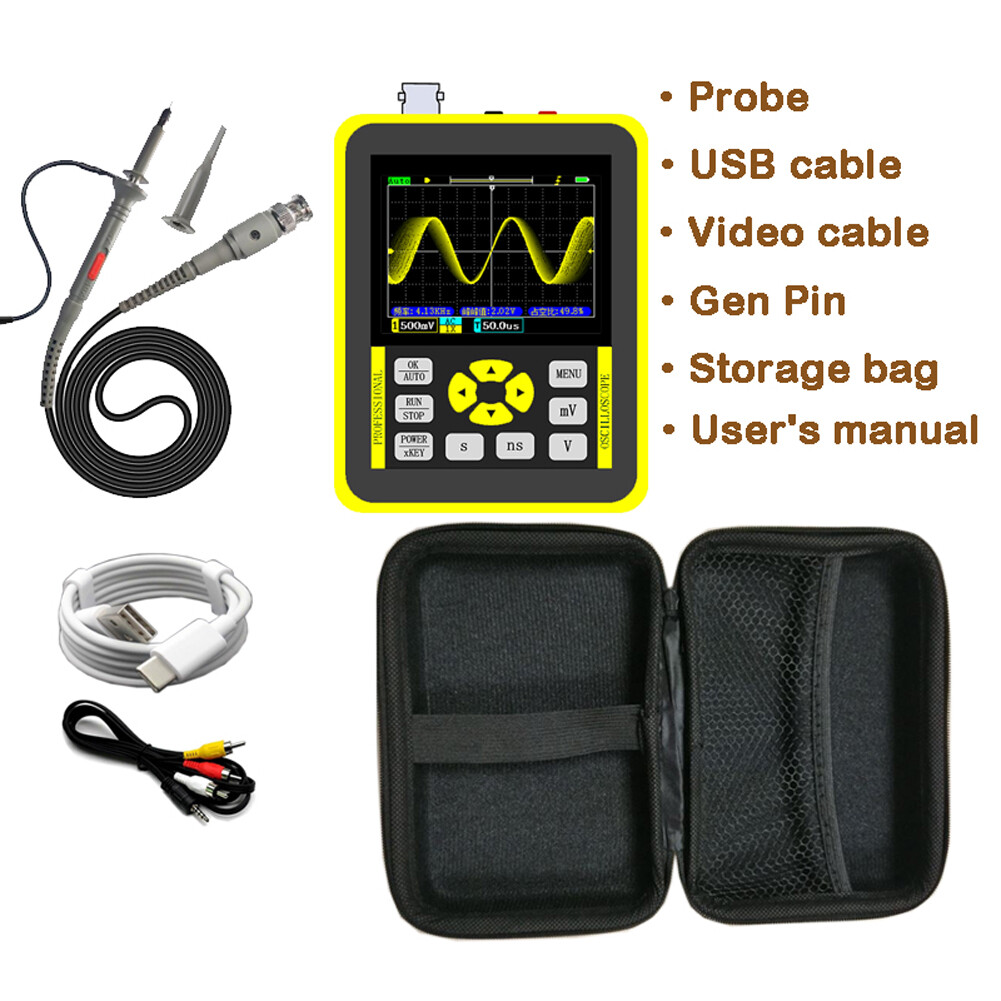

Packing List:
1 * Oscilloscope
