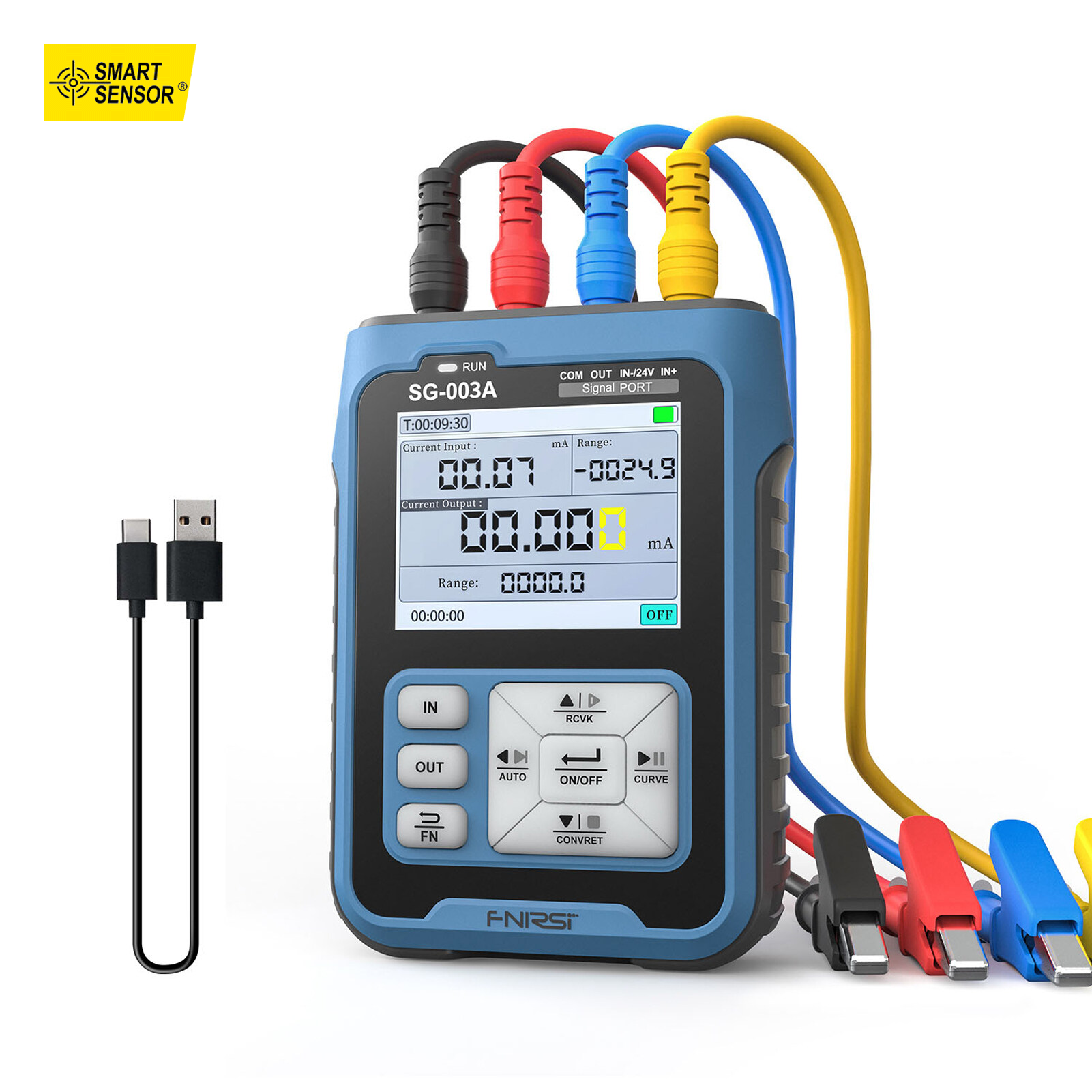

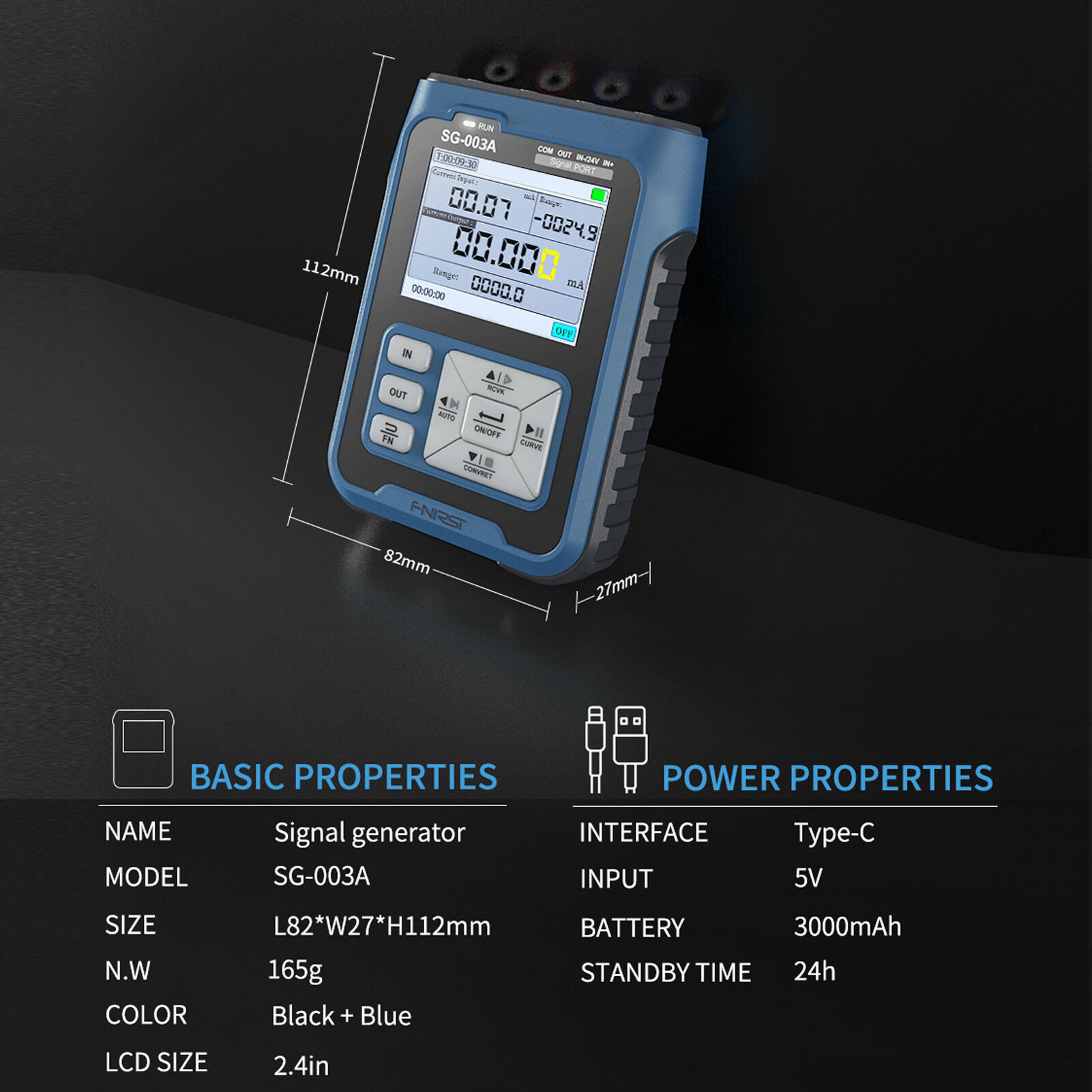

Smart Sensor Fnimsi Máy Phát Tín Hiệu Mô Phỏng Điện Áp Dòng Điện Có Thể Điều Chỉnh 0-10V 4-20MAh Cầm Tay Tiện Dụng Nguồn Máy Phát Hiệu Chuẩn Với Màn Hình Hiển Thị LCD 2.4 Inch

FNIRSI SG-003A signal generator is mainly used for debugging of industrial field PLC, process instrumentation, electric valve and so forth. Friendly operation interface is easy to use. This signal generator is small and light but has a long standby time and high precisions. Easy to carry when you go out to work. Adjustable button backlight and high-definition TFT color LCD screen make it more convenient for users to operate at night and during the day.

Features:

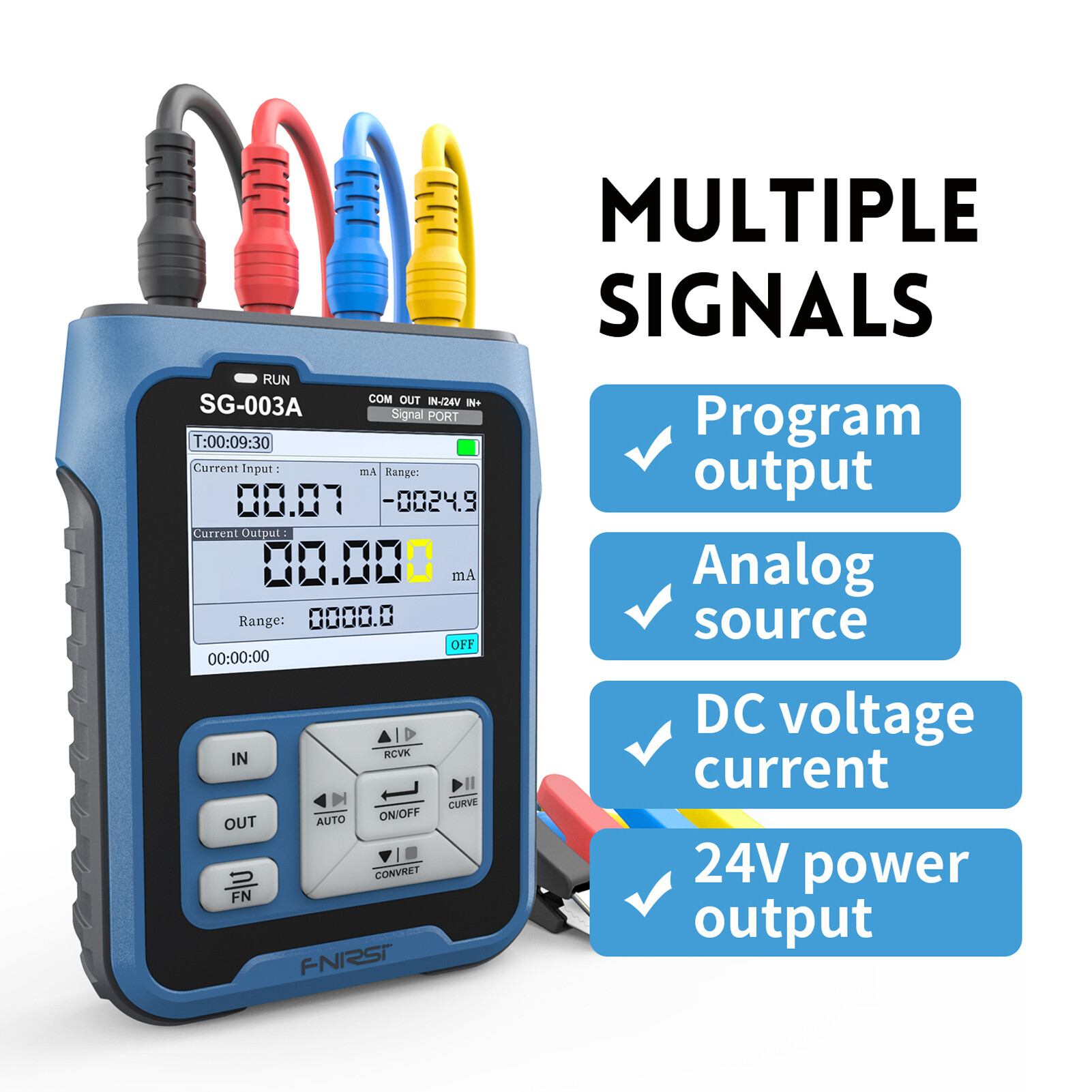

Expect with the conventional signal input and output functions.
Voltage and current have automatic output function,it can choose a singles rise,three modes of singles drop and cycle.
With input to output conversion,voltage conversion active current mode, passive mode and current conversion voltage mode.
The output has a custom function,the upper and lower output limits can be set arbitrarily.
Voltage input diagram, current input diagram,the frame rate is 10 frames.
PWM output can set frequency and duty cycle respectively.
Real-time curve:Real-time observation of changes in voltage and current.
It is powered by a large-capacity lithium battery and is charged with a Type-C interface (5V).The capacity of the lithium battery is 3000mAh,Super long working hours.

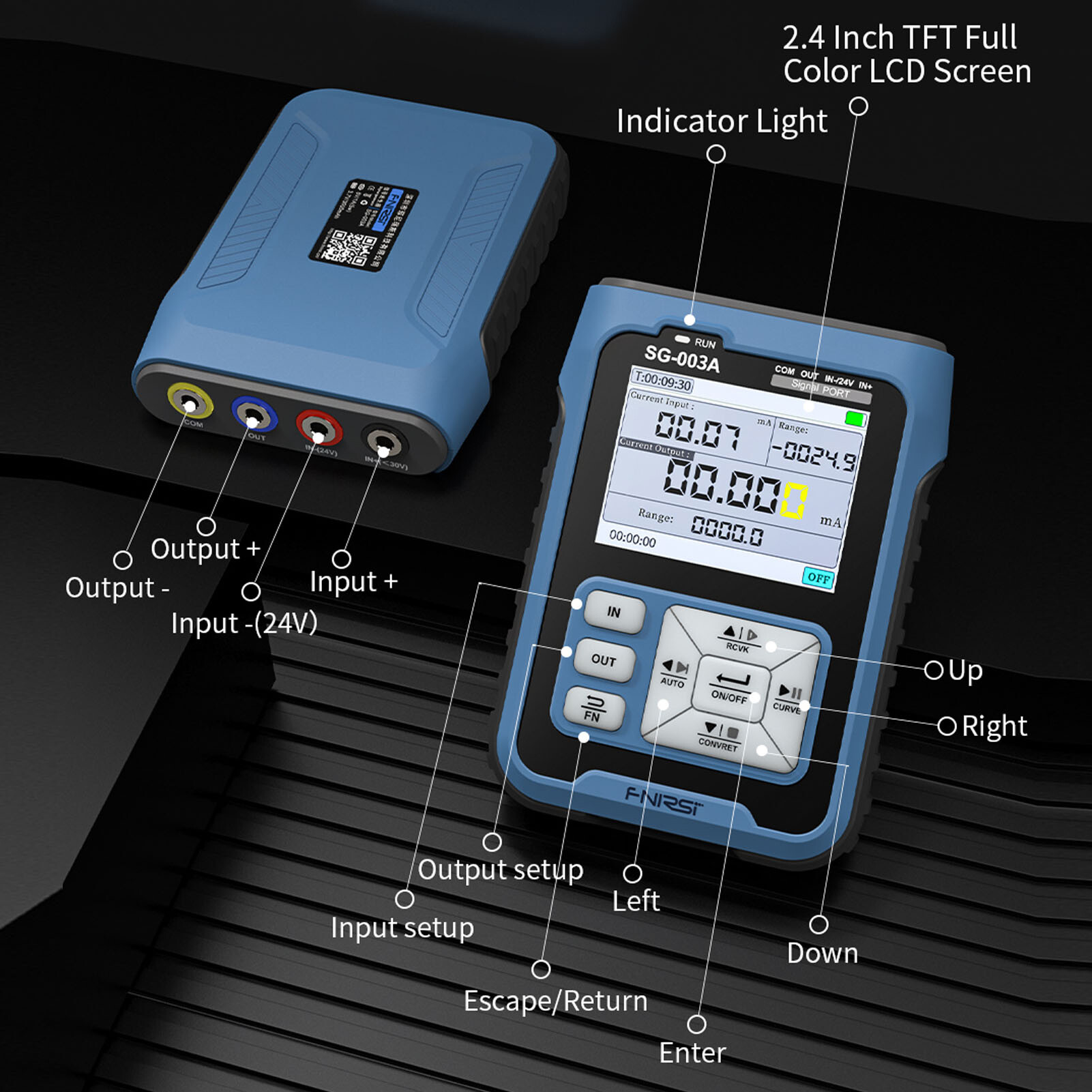

The TFT color LCD screen makes the reading more eye-catching. The resolution is 240*320.

Specifications:
Material: ABS
Active current output:
Ranges: 0~24mA
Resolution: 0.01 mA
Maximum load: 750Ω

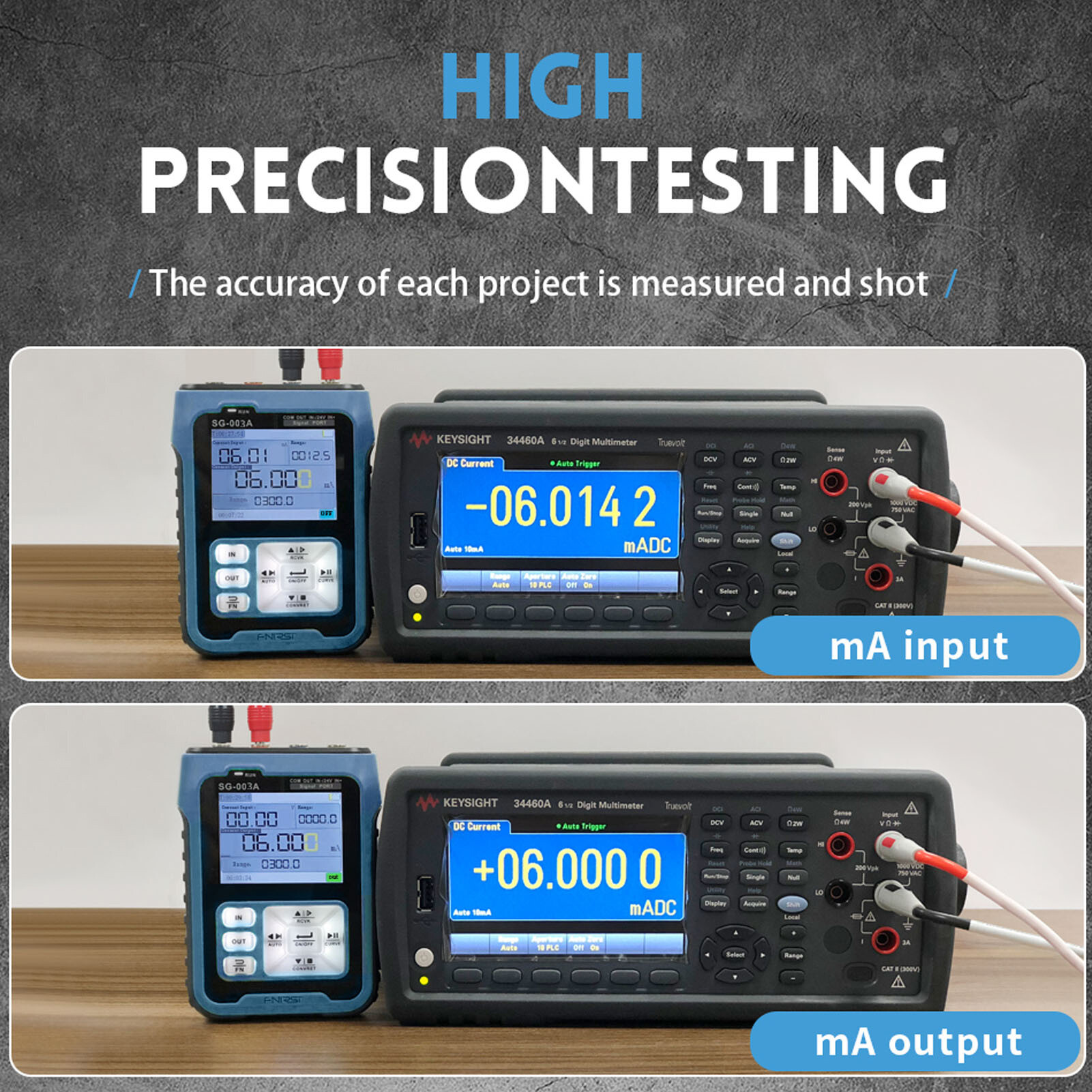

Precisions:±(0.1%+0.005)
Passive current output:
Ranges: 0-24 mA
Resolution: 0.01 mA
External power supply up to 30V
Precisions:±(0.1%+0.005)
Voltage output:
Ranges: 0-24V
Resolution: 0.01V
Maximum current 30mA
Precisions:±(0.1%+0.005)
24V voltage output:
Drive current: 24mA
Resolution: 0.01 mA
Precisions:±(0.1%+0.005)
Current input measurement:
Ranges: 0-24 mA
Resolution: 0.01 mA
Input impedance: 100Ω
Precisions:±(0.1%+0.05)
Voltage input measurement:
Ranges: 0-30 V
Resolution: 0.01 V
Input impedance: 2MΩ
Precisions:±(0.1%+0.05)
PWM output (frequency) ranges: 0-9999Hz
Battery: 1 * lithium battery, 3.7V 3000mAh (included)
Package size: 150 * 145 * 80mm / 5.9 * 5.7 * 2.0in
Package weight: 474.6g / 1.0lb

Packing list:
1 * Signal Generator Calibrator
4 * Test Clip
1 * Type-C Recharging Cable
