Cảm Biến Thông Minh Máy Hiện Sóng Kỹ Thuật Số Màn Hình Màu TFT 320 Inch Độ Phân Giải 240*2.4 DSO154Pro Máy Phát Tín Hiệu Hỗ Trợ Tốc Độ Lấy Mẫu 40MSa/S

This quality oscilloscope has ARM+FPGA+ADC architecture, 40MSa/s sampling rate, more stable and with higher precisions. Widely application on mcu debugging, car repairing, home appliance repairing, DIY electronic competition, power-supply debugging, inverter, etc. You can have a try.

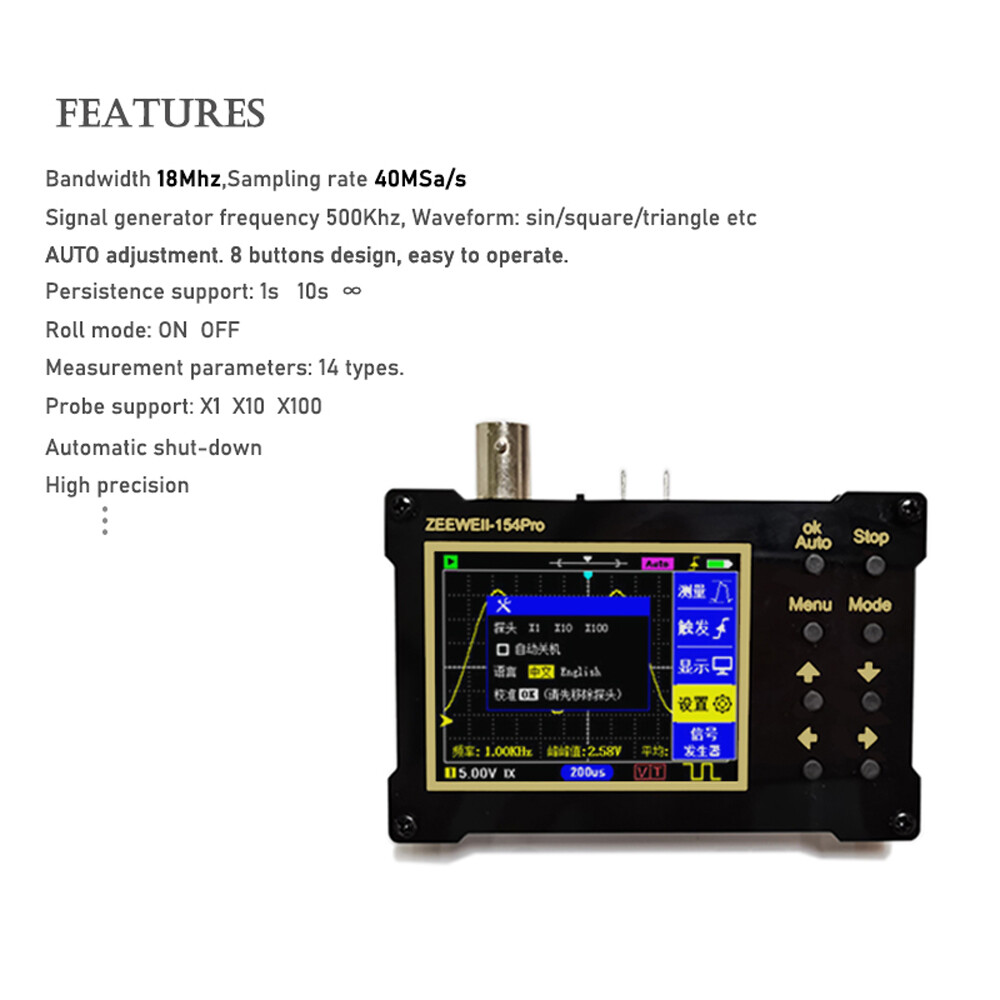

Features:
2.4 Inch TFT LCD Display: Equipped with 320*240 resolution color TFT LCD display, with bright colors and high contrast, you can see the data clearly.

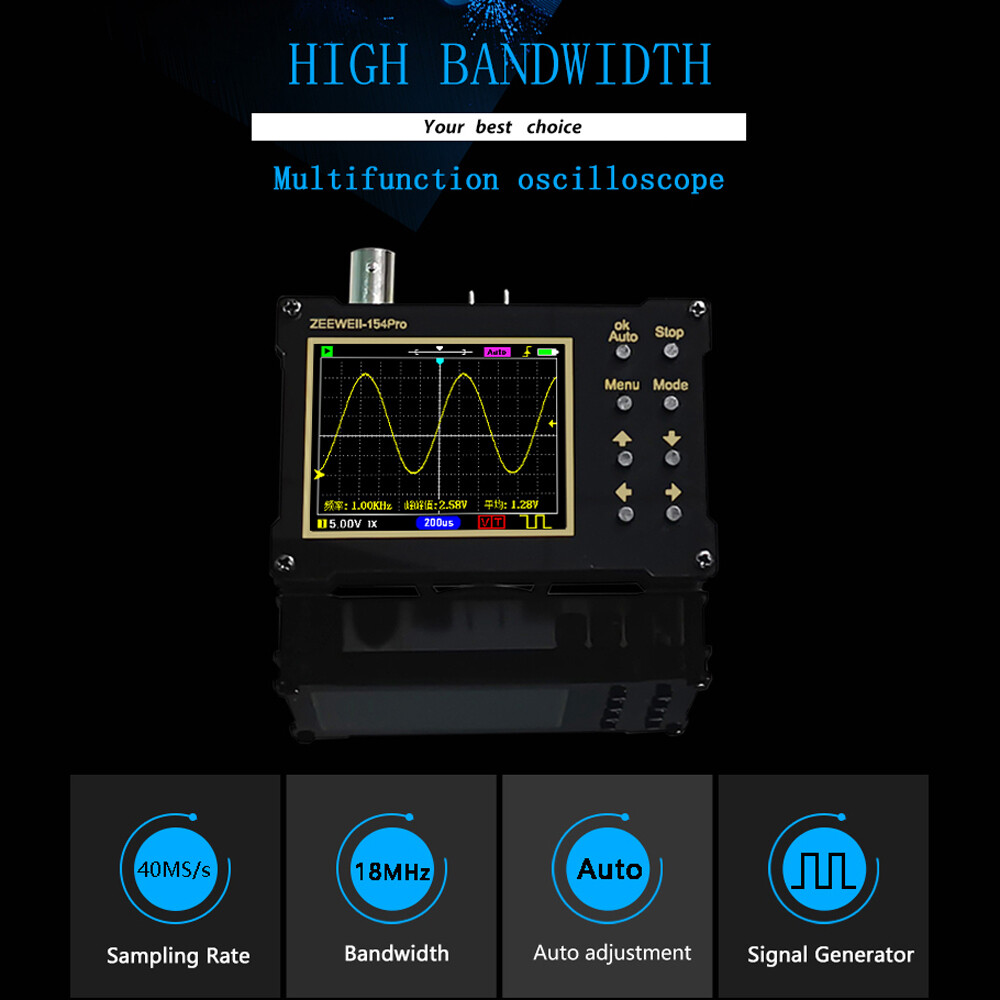

High Practicality: ARM+FPGA+ADC architecture, with 40MSa/s sampling rate, more stable and with higher precisions.

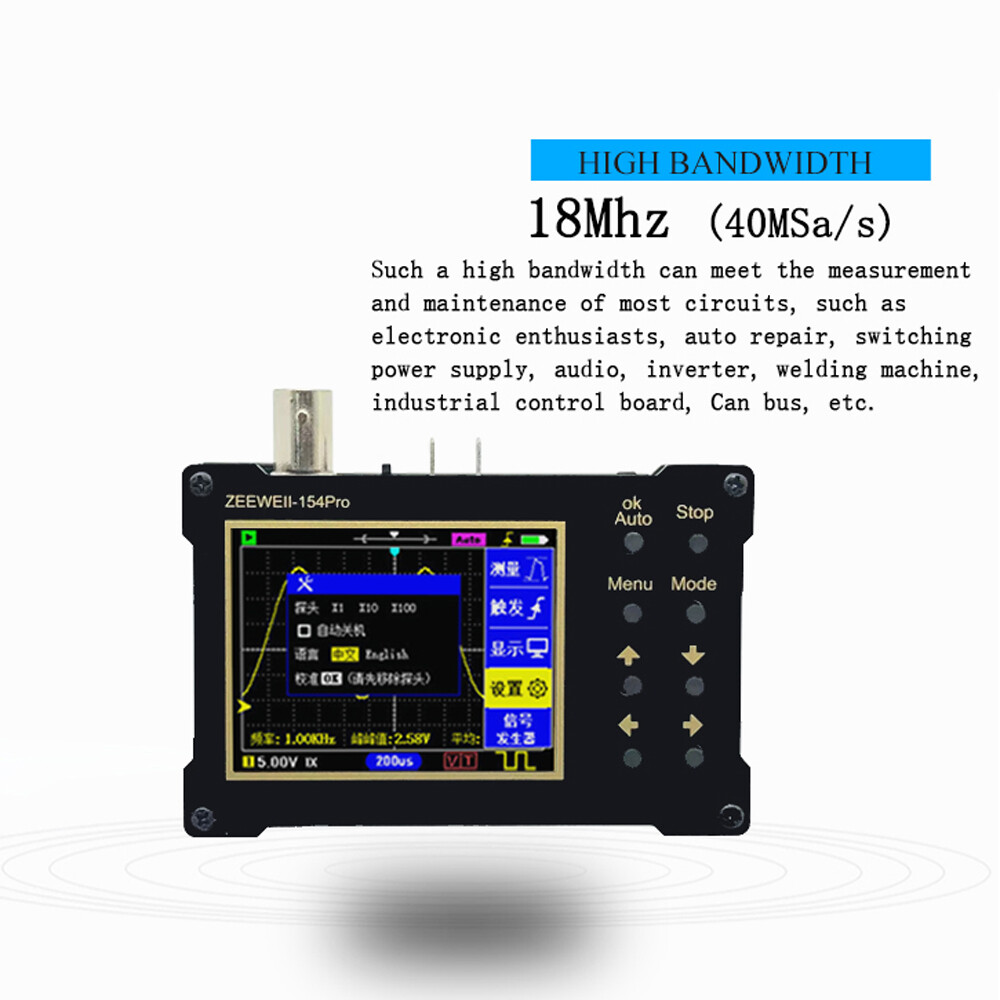

Optional Bandwidth: There are two bandwidths for you to choose, you can choose 1M bandwith version or 18M bandwith version depending on you needs, which can easily cope with measurement tests in various fields.

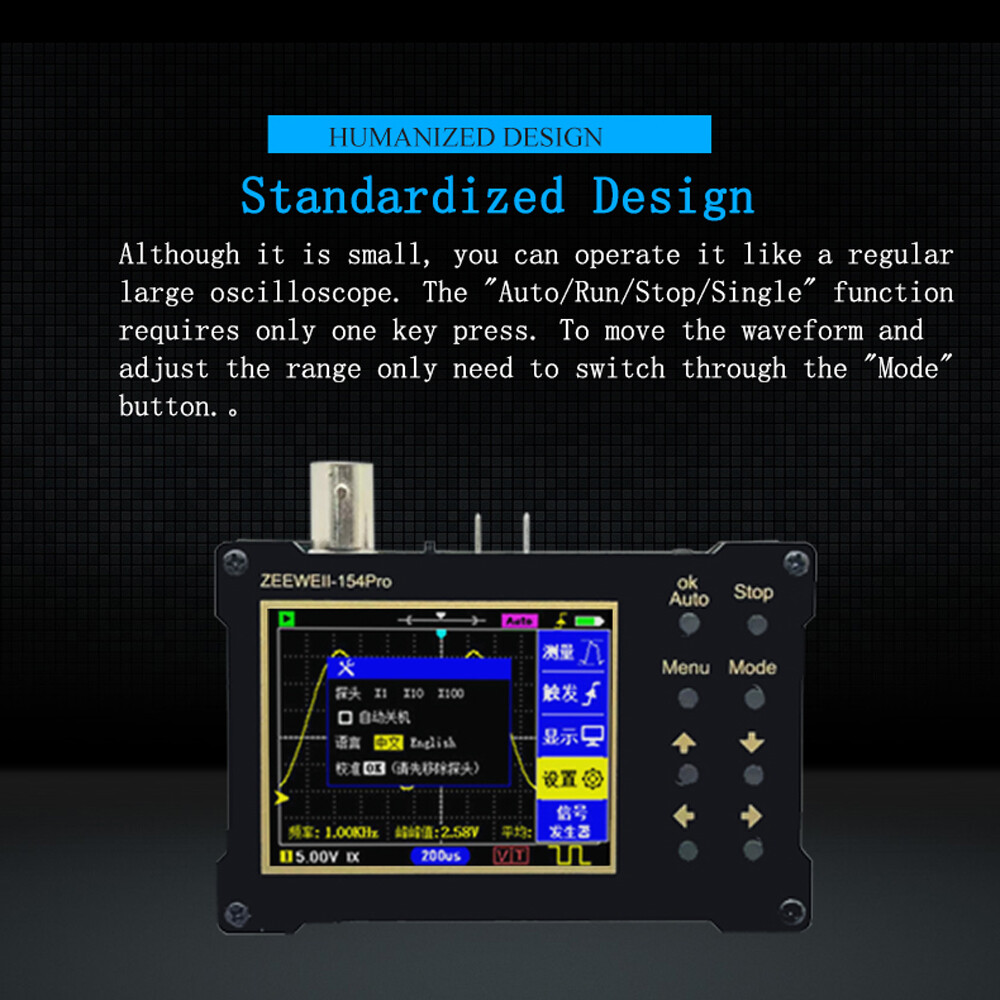

Humanized Design: Compact appearance, with 8pcs buttons design, it can be used as a portable tool for on-site debugging.
Easy to Use: Auto adjust, stops, menu and single trigger can all be done with one click. The waveform scaling and movement can be done by simply pressing the Mode button to switch between the 4 directional buttons, which is very convenient.

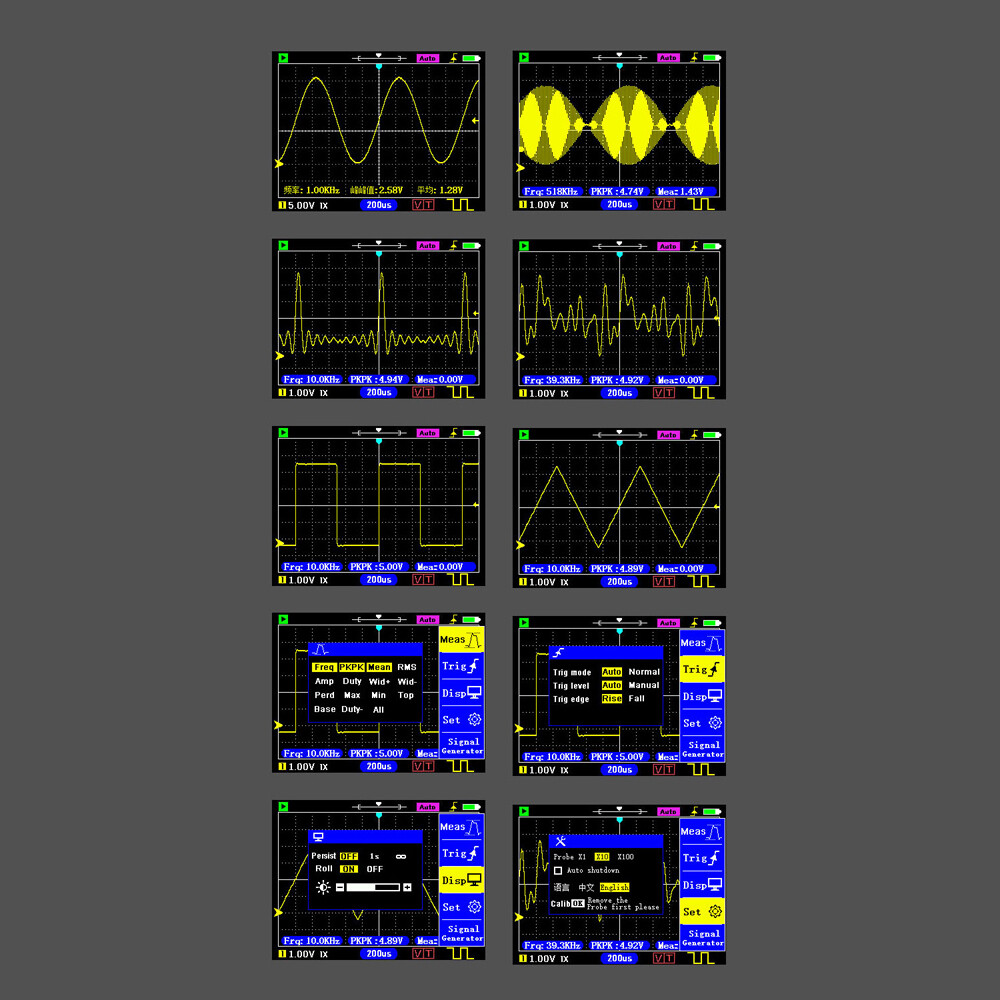

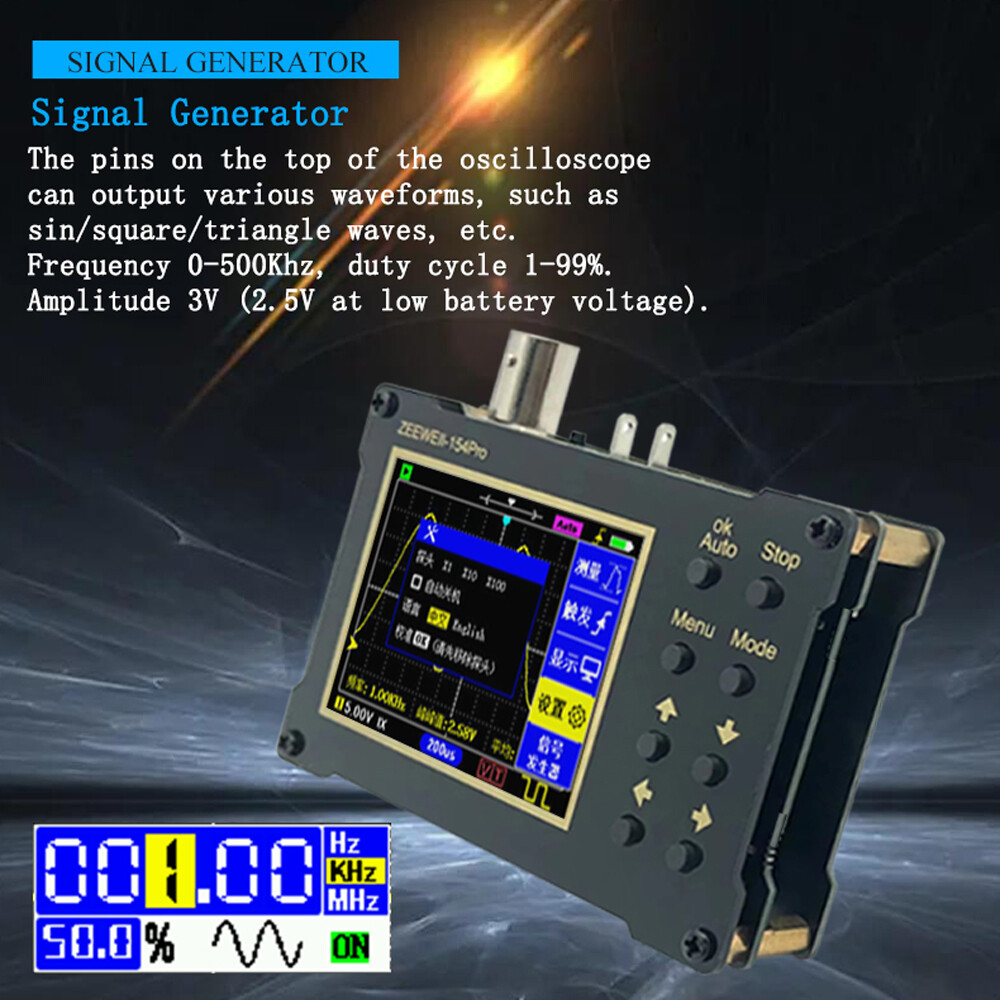

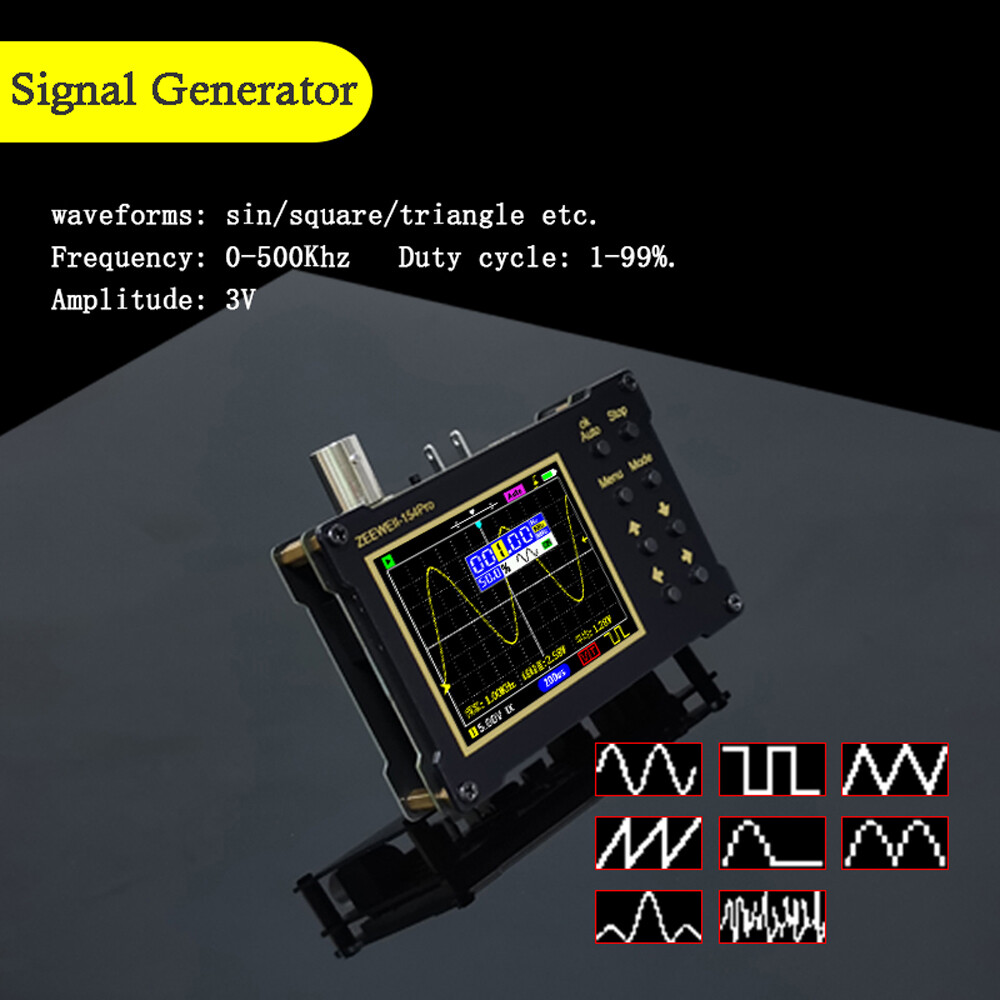

Squarewave Generator: Six waveforms including sinewaves, squarewaves and trianglewaves can be output. The upperside of the oscilloscope can output an adjustable waveform of 3V amplitude, the frequency-adjustment-range is 0-2MHz, the accuracy is up to 0.1Hz. The duty cycle-adjustment-range is 1%-99%. It can be used to calibrate new probes, drive mosFETs, replace crystals, etc.

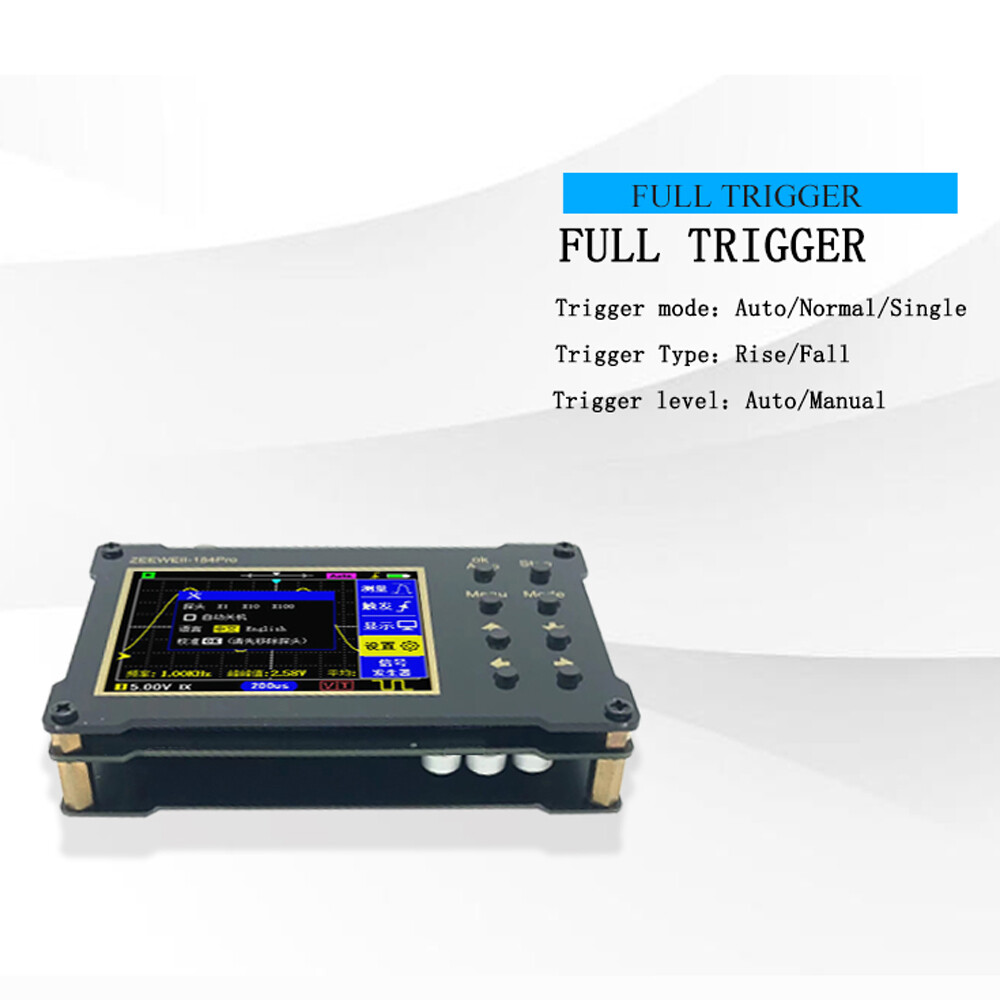

3 Trigger Modes Design: Threr are 3 trigger modes design, Auto trigger mode, Normal trigger mode, Single trigger mode.

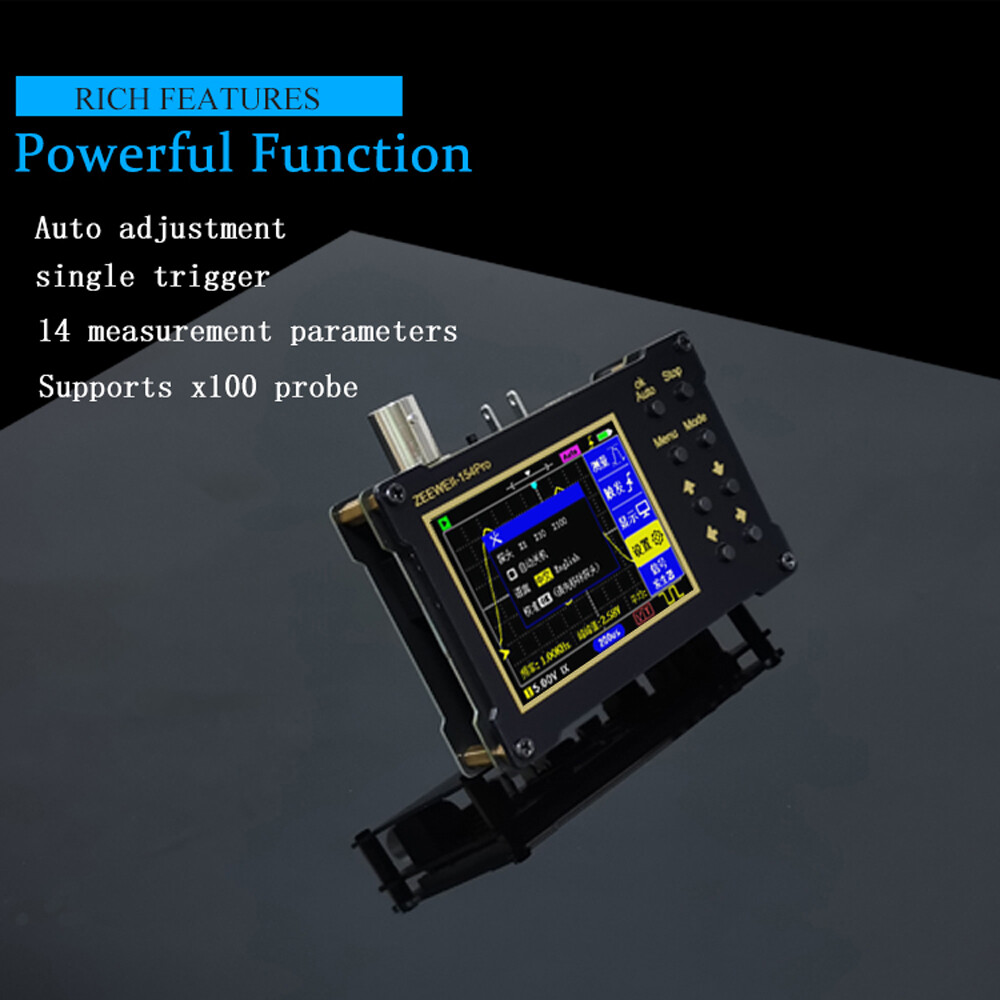

Rich and Powerful Features: One button for automatic adjustment, support for single trigger, support 14 measurement parameters, support for X100 high voltage probes.

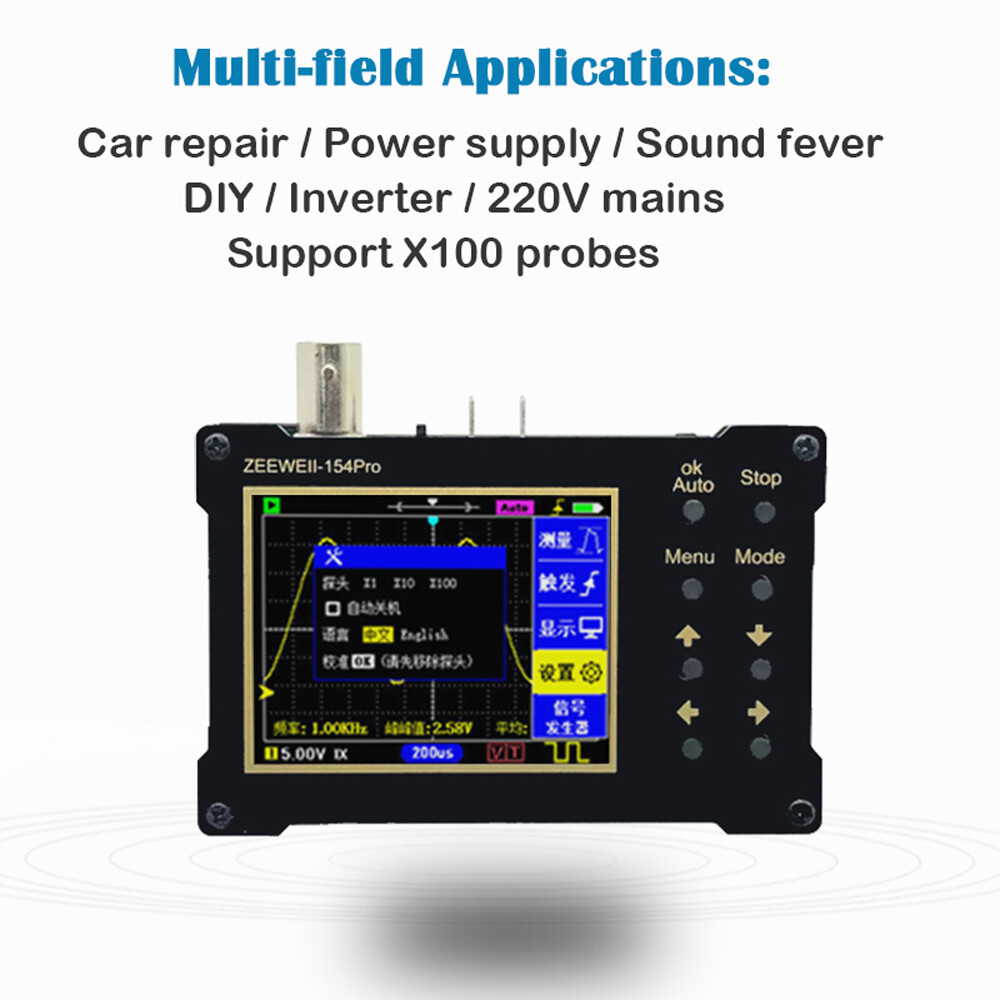

Widely Applications: Suitable for mcu debugging, car repairing, home appliance repairing, DIY electronic competition, power-supply debugging, inverter, etc.

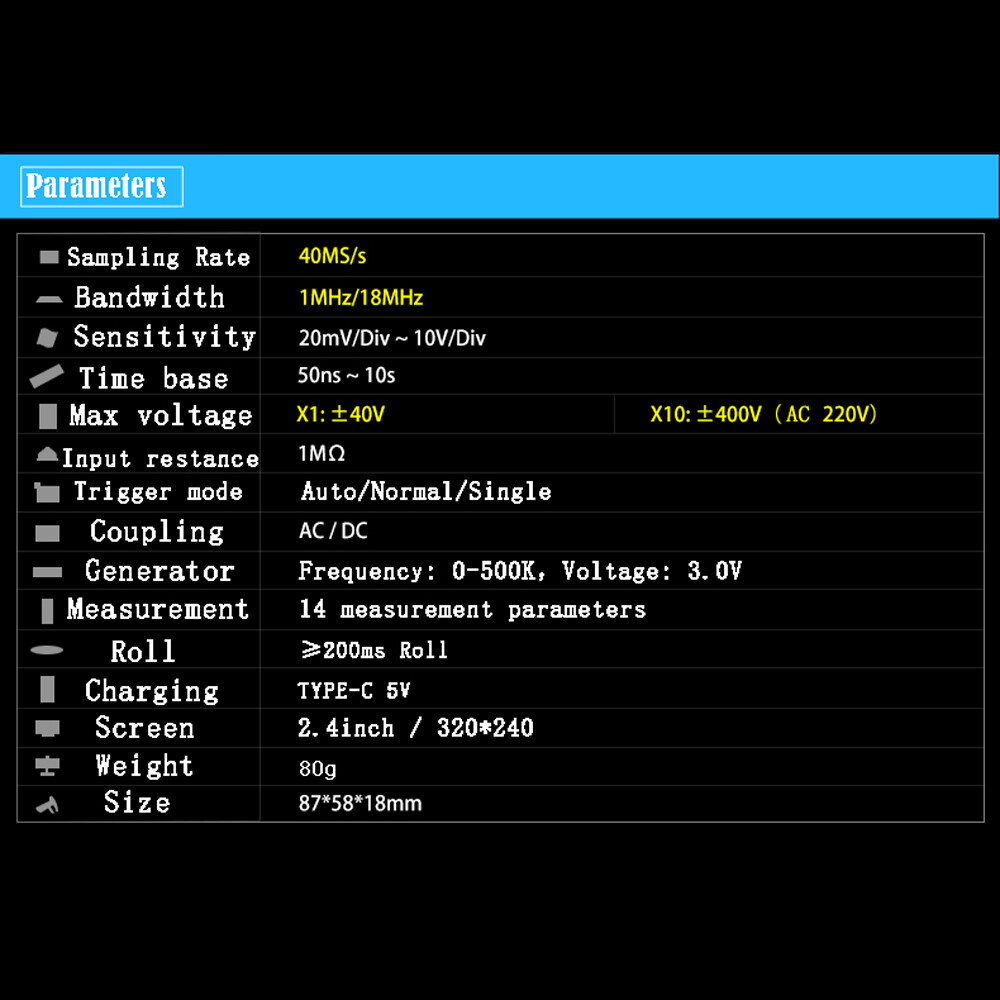

Specicifations:
Name: Oscilloscope
Model: DS0154Pro
Material: ABS
Bandwidth: 1MHz/18MHz (Optional)
Battery: according to you selection
1M Bandwidth: no battery included
18M Bandwidth: 1 * built-in rechargeable lithium battery, 3.7V, 1000mAh (included)
Hardware solution: ARM+FPGA+ADC
Screen: 2.4 inch TFT LCD
Channel: 1
Resolution: 320*240
Sampling rate: 40MSa/s
Rise time: <20ns
Storage depth: 16Kbit
Impedance: 1MΩ
Time base: 50ns-10s
Vertical sensitivity: 20mV/div-10V/div
Max voltage: ±40V(x1);±400V(x10)
Input impedance: 1MΩ
Signal Generator: 0-500K frequency adjustable, fixed voltage 3.0V
Trigger mode: Auto/Normal/Single
Waveform measurement: 14 types
Scroll mode: &ge;200ms entering scroll mode
Item size: 87 * 58 * 18mm / 3.42 * 2.28 * 0.71 in
Package size:
1M Bandwidth Version: 150 * 100 * 40mm / 5.91 * 3.94 * 1.57in
18M Bandwidth Version: 200 * 110  * 40mm / 7.87 * 4.33 * 1.57in
Package weight:
1M Bandwidth Version: 160g / 5.64ounce
18M Bandwidth Version: 250g / 8.82ounce

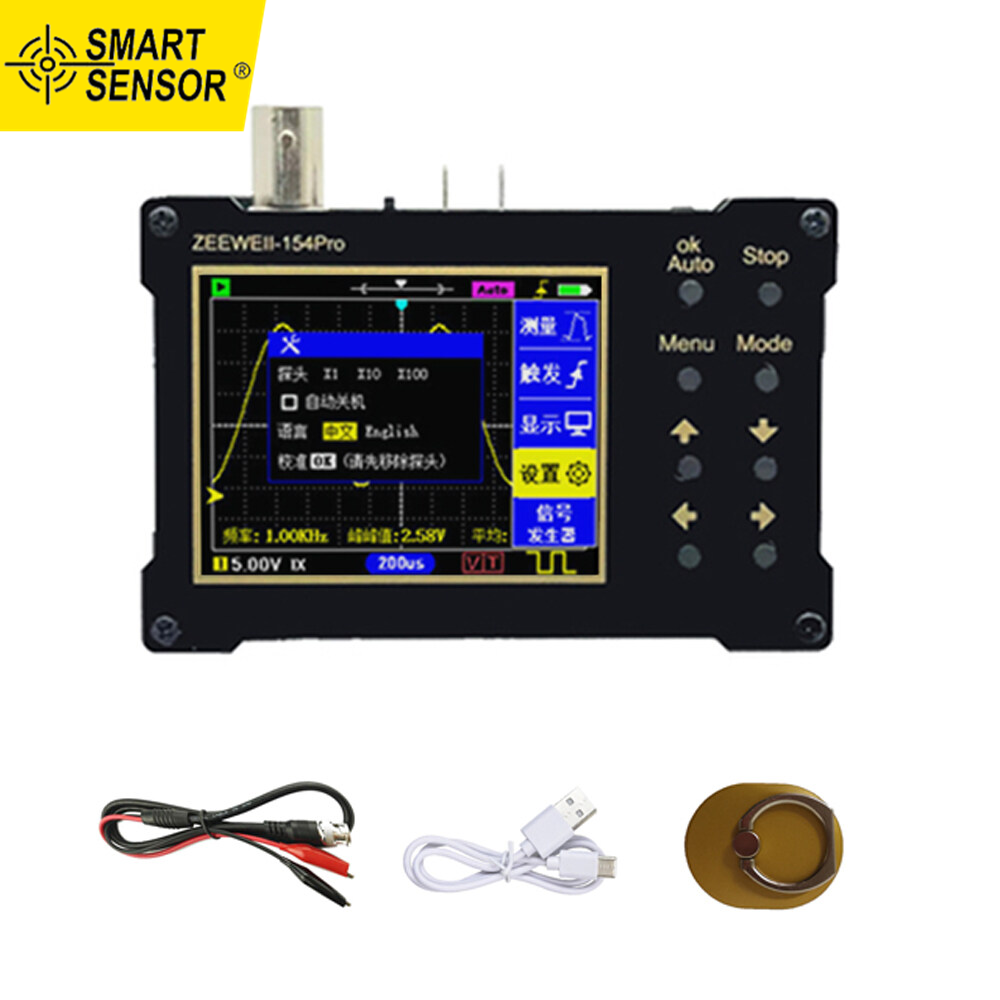

Packing List (1M Bandwidth Version):
1 * Oscilloscope
1 * Cable
1 * Bracket
1 * Guideline

OR

Packing List (18M Bandwidth Version):
1 * Oscilloscope
1 * Probe
1 * Cable
1 * Bracket
1 * Guideline
