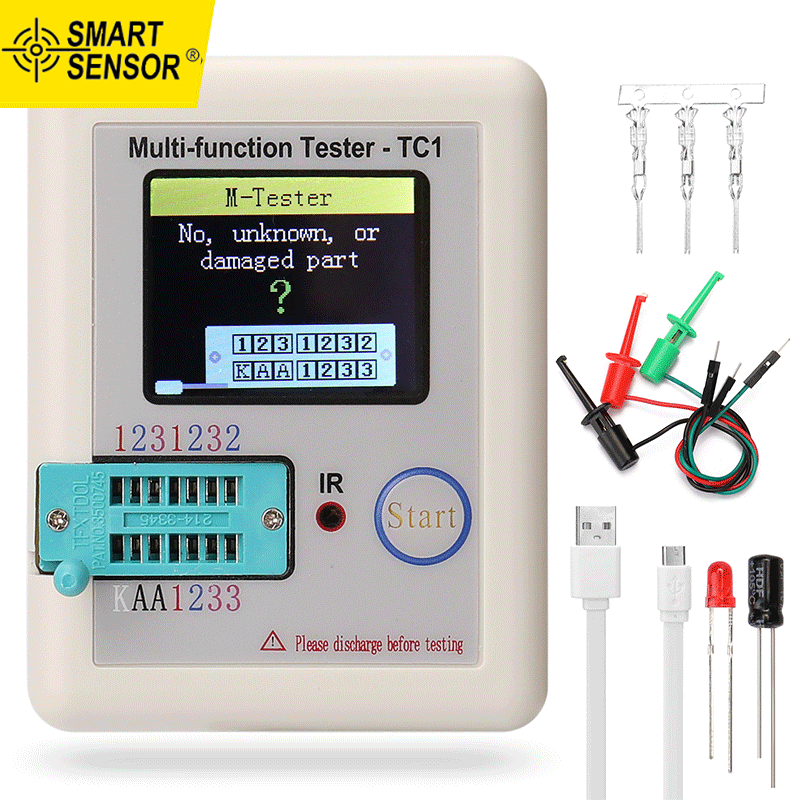

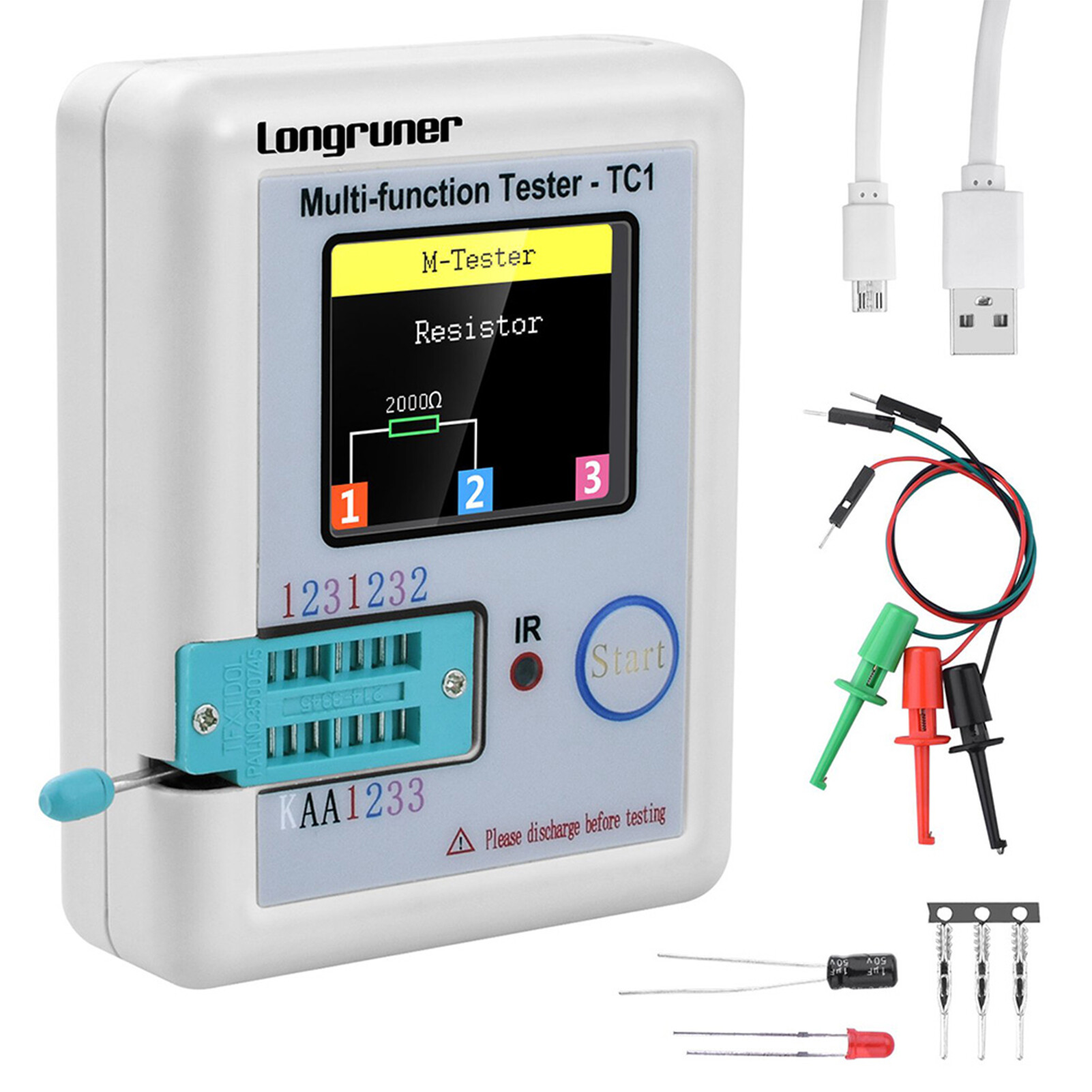

Cảm Biến Thông Minh LCR-TC1 Màn Hình Màu Đầy Đủ Hiển Thị Đồ Họa Bộ Kiểm Tra Bóng Bán Dẫn Đa Chức Năng NPN PNP Transitor N-channel P-channel FET Diode Điện Trở Điện Cảm Điện Dung SCR Pin Tự Động Đo

This is a cost-effective and widely used transistor detector. You can use it to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, triac and battery etc. It can also be used to detect infrared wave forms.

Features:
It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.
It also can detect zener diode and has the function of self-calibration.
After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.
One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too.

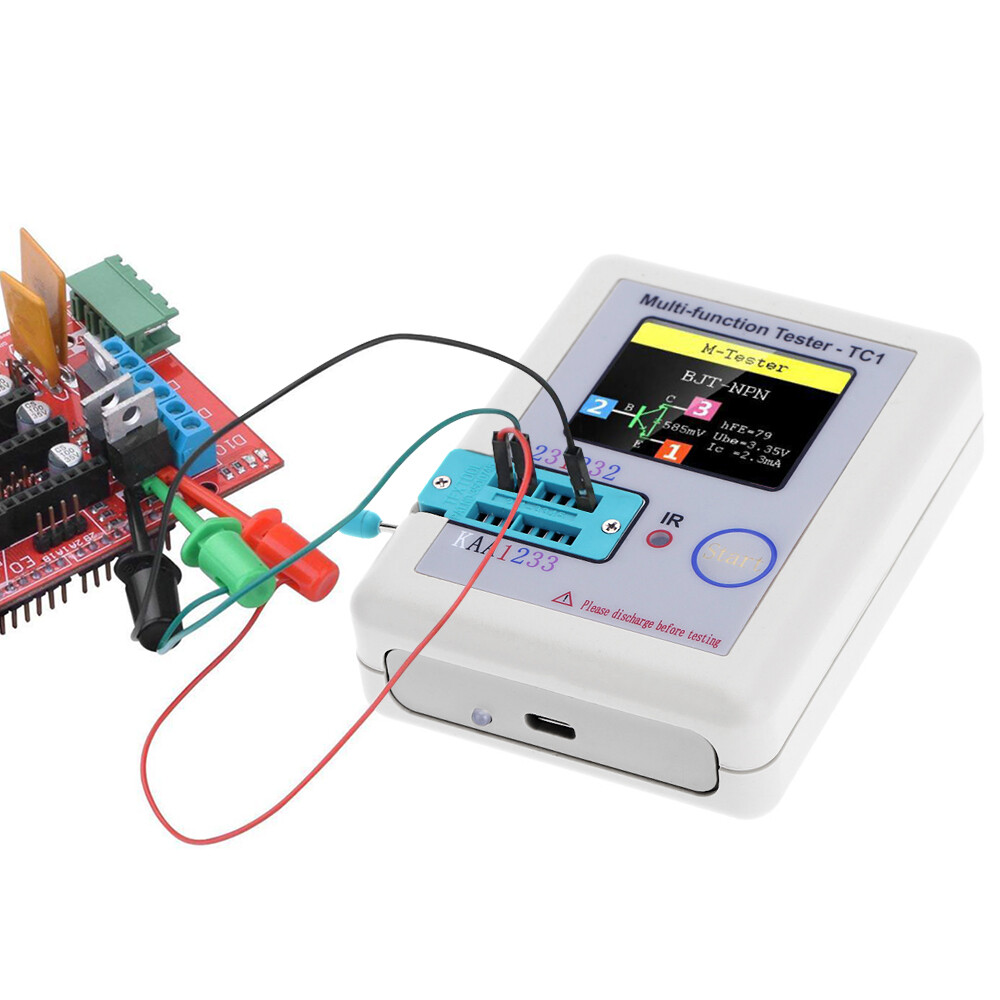

Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.

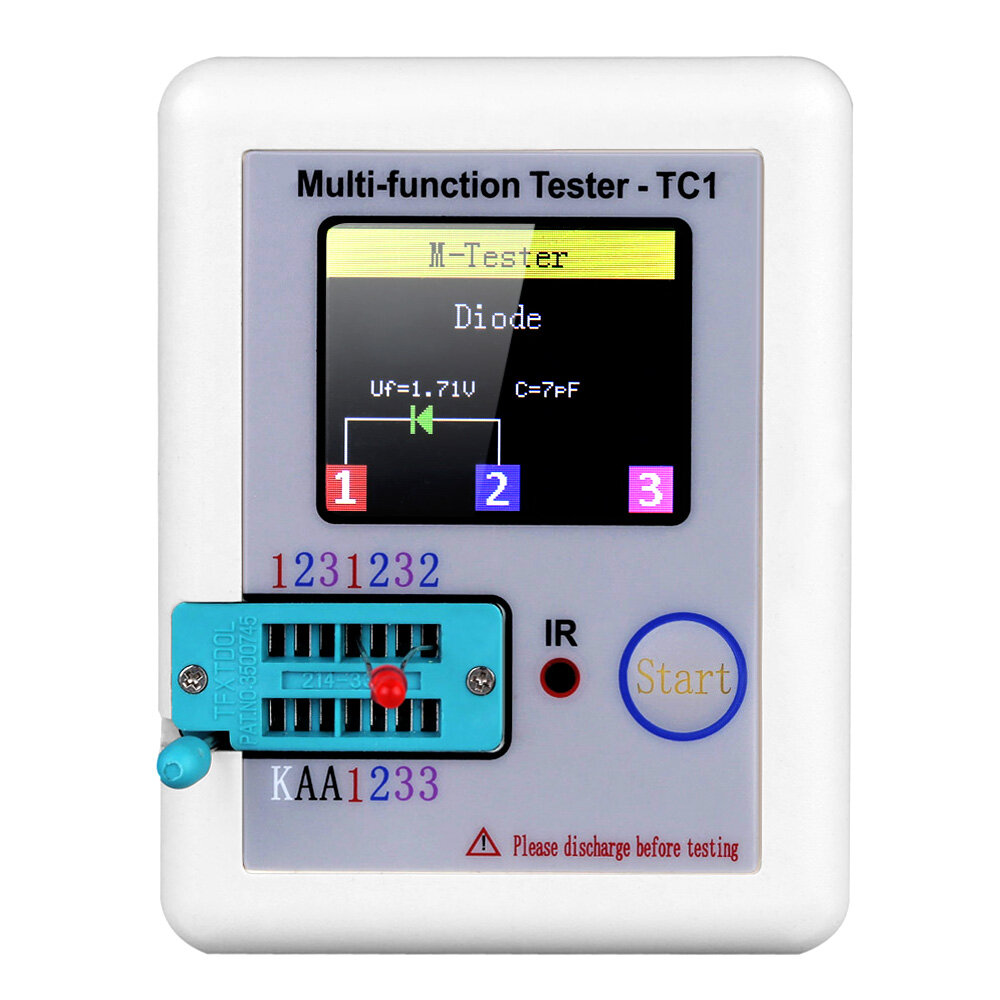

Not like the usual black and white display, this detector will show results in color.

Specifications:
Power Mode: Rechargeable Lithium Battery

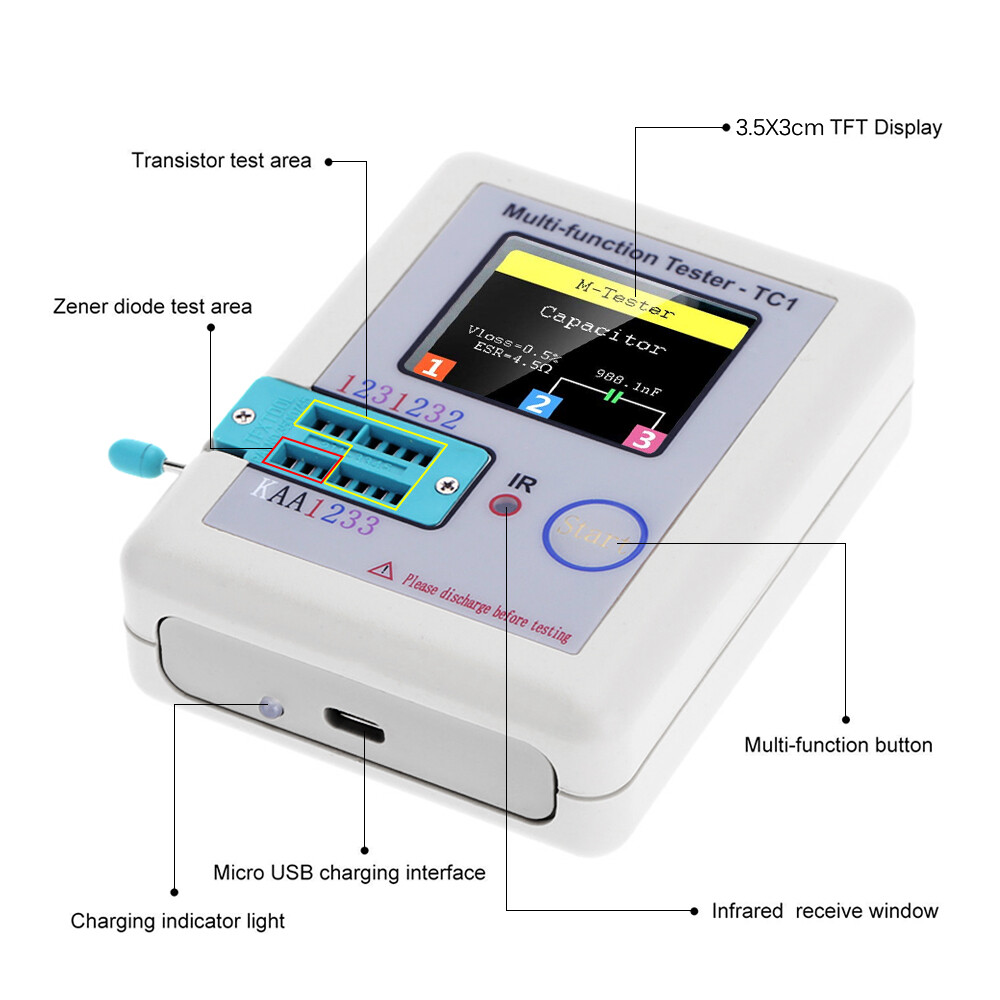

Display: 3.5 * 3cm TFT Screen
Diode Range: < 4.5V
Zener Diode：Transistor Detect Area: 0.01-4.5V  Zener Diode Detect Area: 0.01-30V
Triac Range: IGT < 6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50MΩ
Inductance: 0.01mH-20H
Battery: 0.1-4.5V

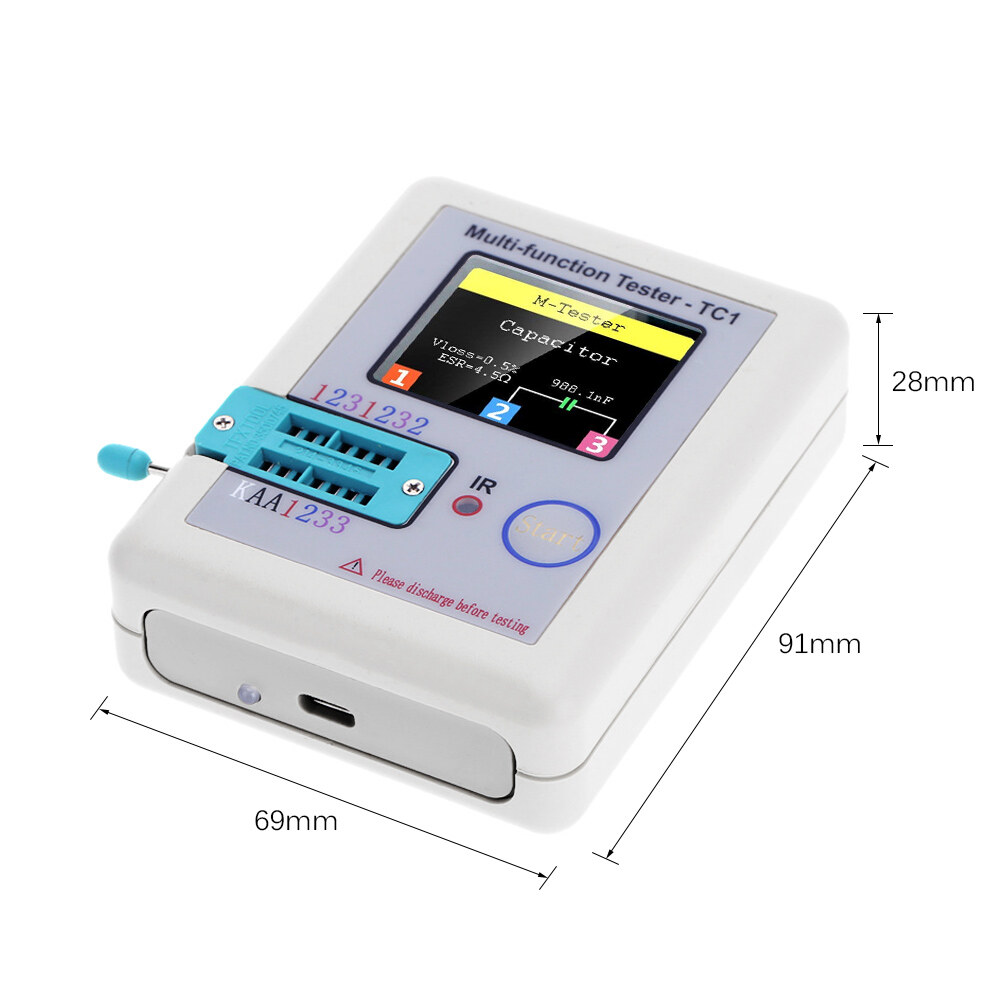

Item Size: 8.8 * 8 * 2.8cm / 3.47 * 3.15 * 1.10in
Item Weight: 111.5g / 3.94oz
Package Size: 14.5 * 12 * 2.7cm / 5.71 * 4.73 * 1.06in
Package Weight: 114g / 4.02oz

Note:
Before testing, please discharge the electronic components to protect the detector.
When the voltage and the inside battery is under 3V, please charge it before usage.

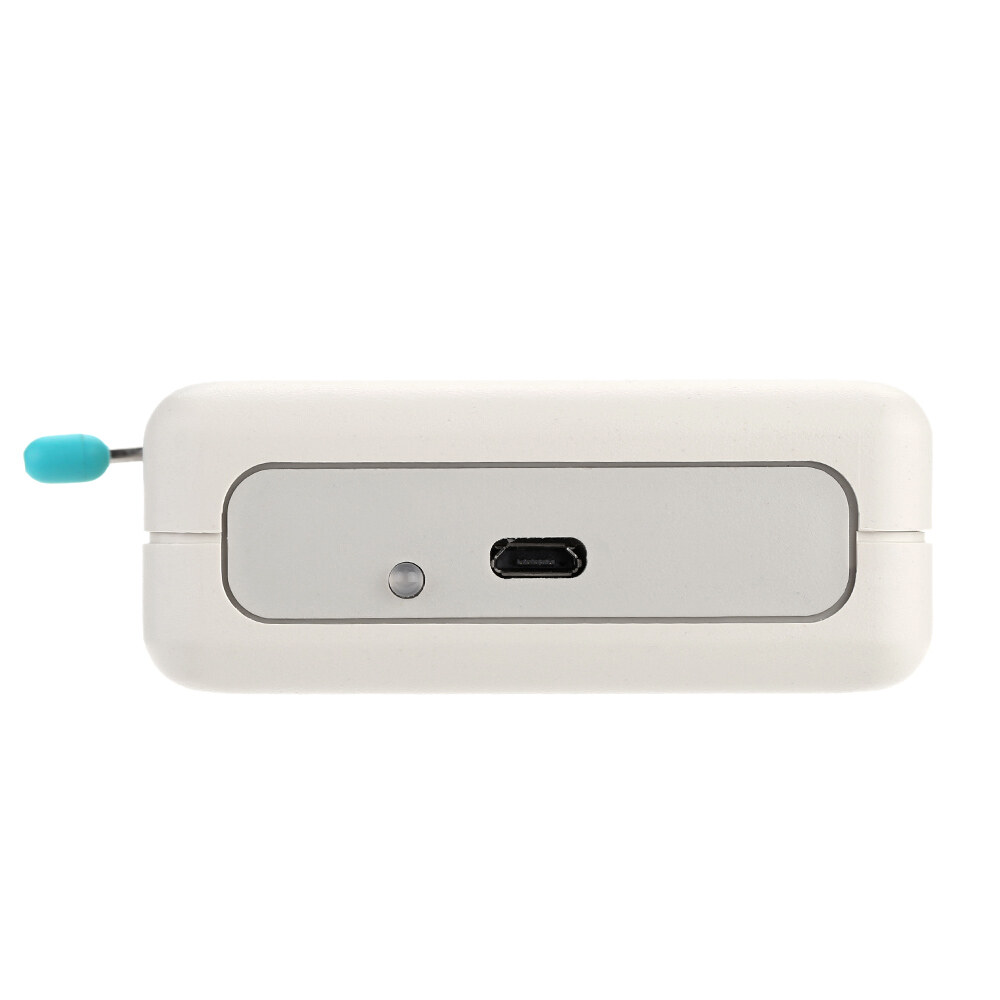

Please use 5V battery or USB interface to charge.
You can click the right link to see the user manual :
https://www.dropbox.com/sh/yiqlv8zq0unqzez/AAACXV2LDICMcBvQTi3Jkqb-a?dl=0
