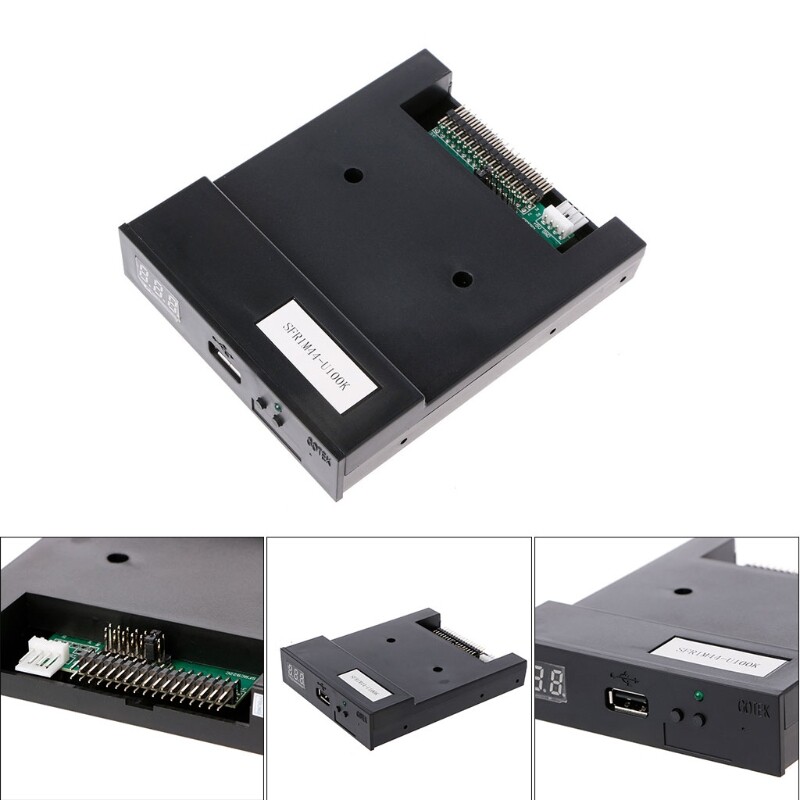

SFR1M44-U100K Ổ Đĩa Mềm 3.5 "Bộ Mô Phỏng USB Cho Nhạc Điện Tử Keyboad

Description:

Features:
100% brand new and high quality.
Use normal usb flash drive as the medium for transfer design.

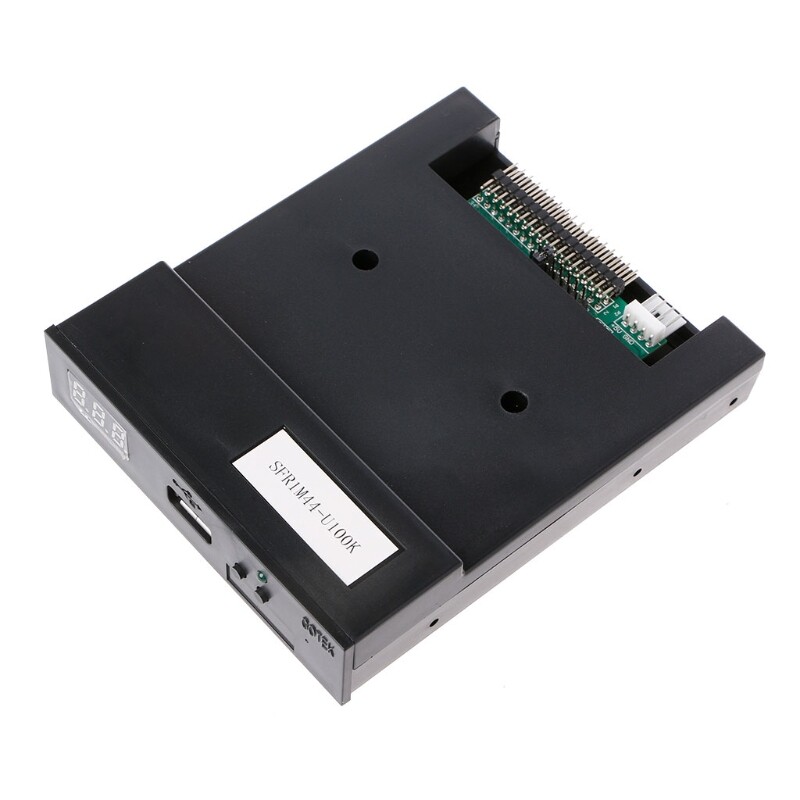

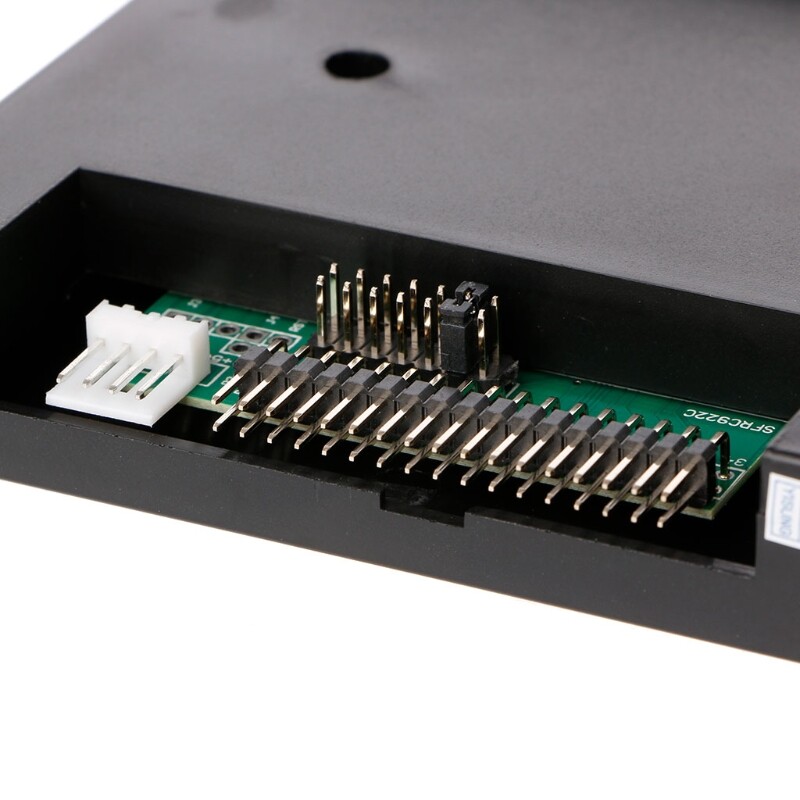

34pin floppy driver interface, 5V DC power supply, easy to install.
1000pcs partitions in usb flash drive can be used.
Built-in self-format function.(read relevant documents to use this function).
Jumpers with function for different machines(SFR1M44-U100K not support jumpers).
This floppy drive emulator is great for electronic organ.

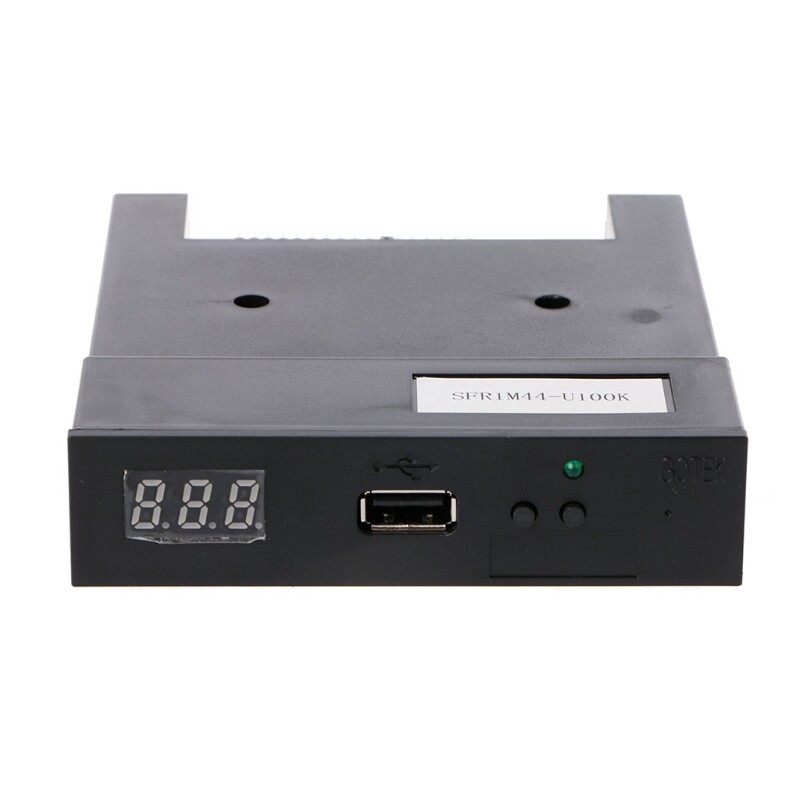

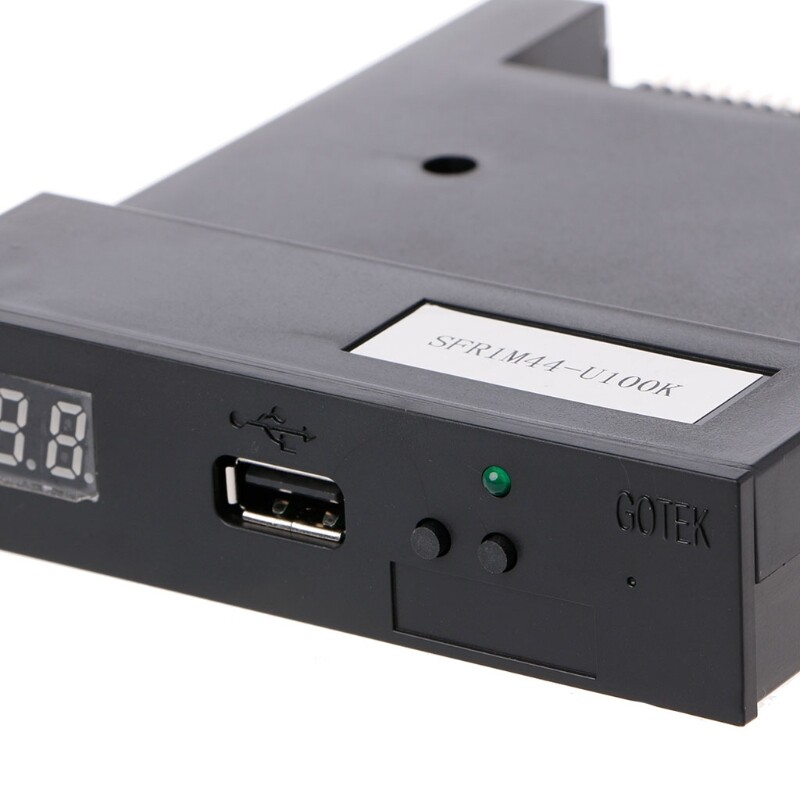

Panel:
8 segment numbers:represent partitions number
Green led:status of read and write operation
USB port:connect usb flash drive

Button:
Left button used to rise ten-digit,right botton used to rise single-digit,press 2 button together to
rise hundred-digit

Operation :
Format usb flash drive.
1.use built-in self-format function to format usb flash drive into 1000pcs partitions
2.use software in CD format usb flash drive under WINDOWS XP/2000,into 000-099 100pcs partitions.
3.install an emulator on computer,and format every partitions by operate driver A.
4.use emulator UFA1M44-100,plug usb flash drive on it,
connect to computer,it will recognized as removabe driver A or B under WINDOWS XP/2000/7,format every partitions.
UFA1M44-100 also built in self-format function.
Read and write data.
1.install emulator on machine
2.install emulator on computer
3.connect usb flash drive on computer,read and write data directory by software, under WINDOWS XP/2000
4.use emulator UFA1M44-100,plug usb flash drive on it, connect to computer,read and write data under WINDOWS XP/2000/7.

Specifications:
Model: SFR1M44-U100K
Housing Material: ABS
Color: Black

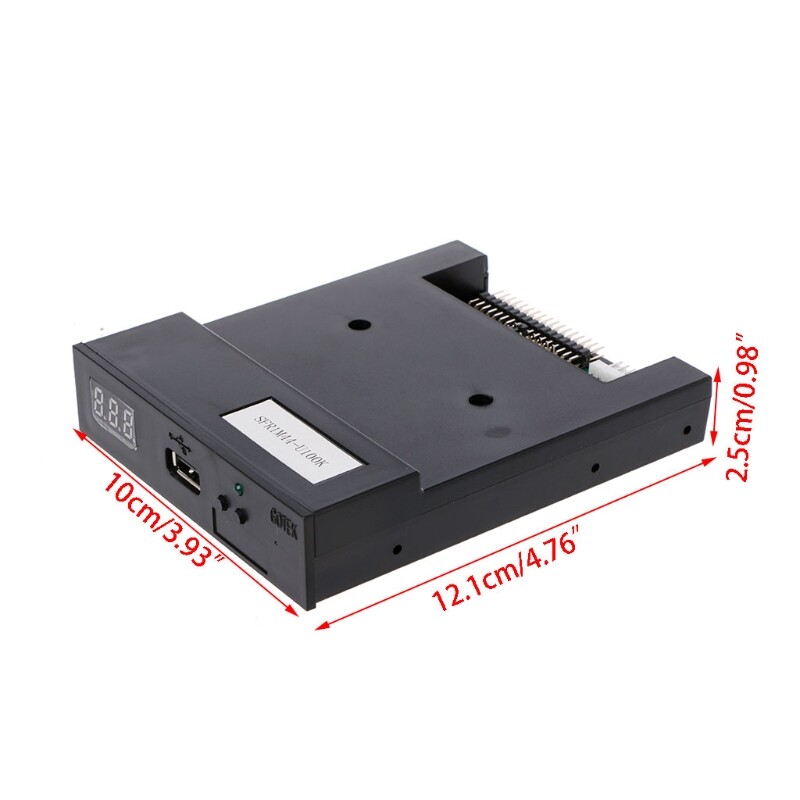

Size: 100×121×25mm/3.94×4.76×0.98in (Approx.)
Floppy driver with below function needed:
Floppy driver with 34pin interface and 5V DC power plug
Use 2HD flpppy disk with 1.44MB capacity
Format of disk: Cylinders: 80
Tracks: 160 Sectors/Track
18 Bytes/Sector: 512 Data
Transfer rate: 500 kbps
Encoding method: MFM
Quantity: 1 Set (other accessories demo in the picture is not included)

Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

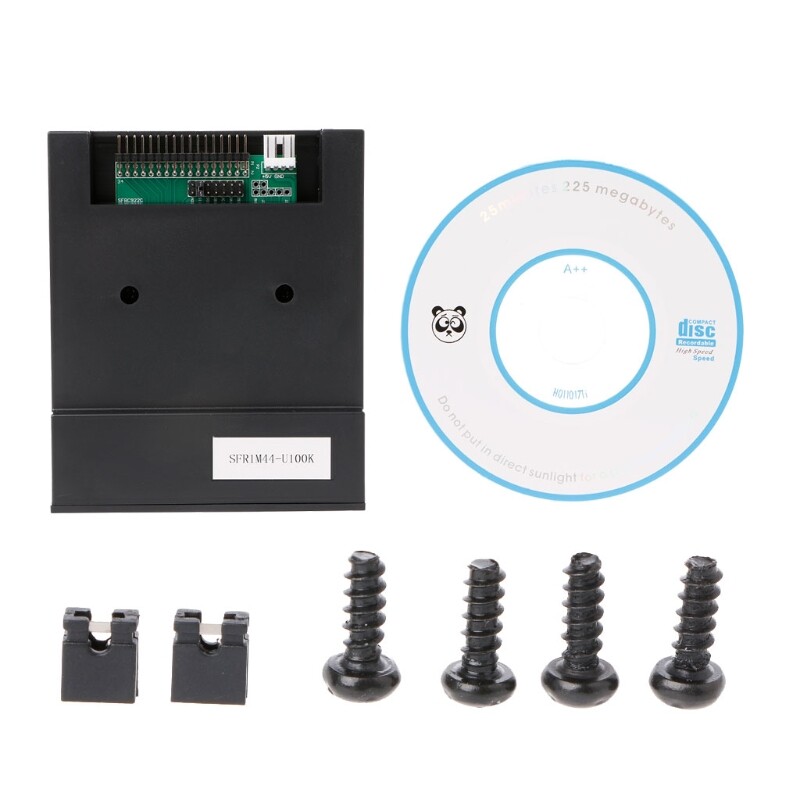

Package includes:
1 X USB Emulator
1 X CD Driver
1 Pack X Screws
