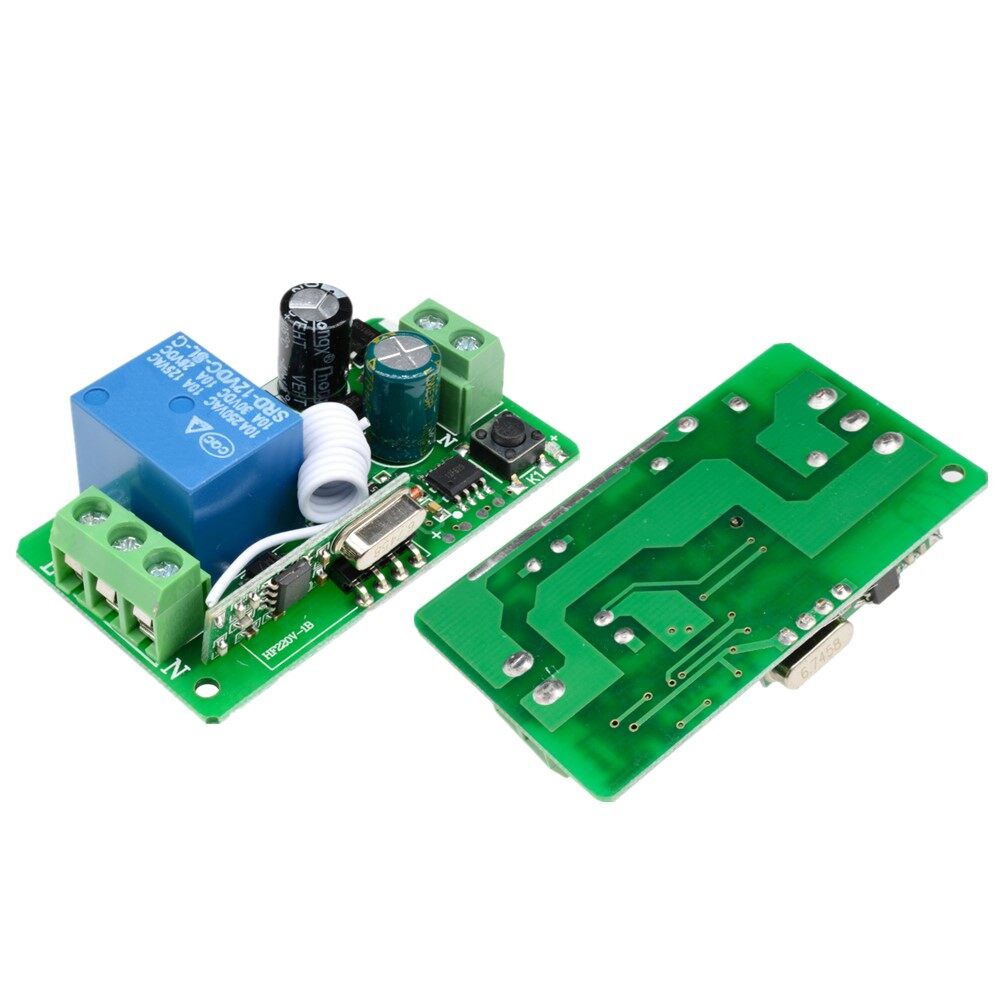

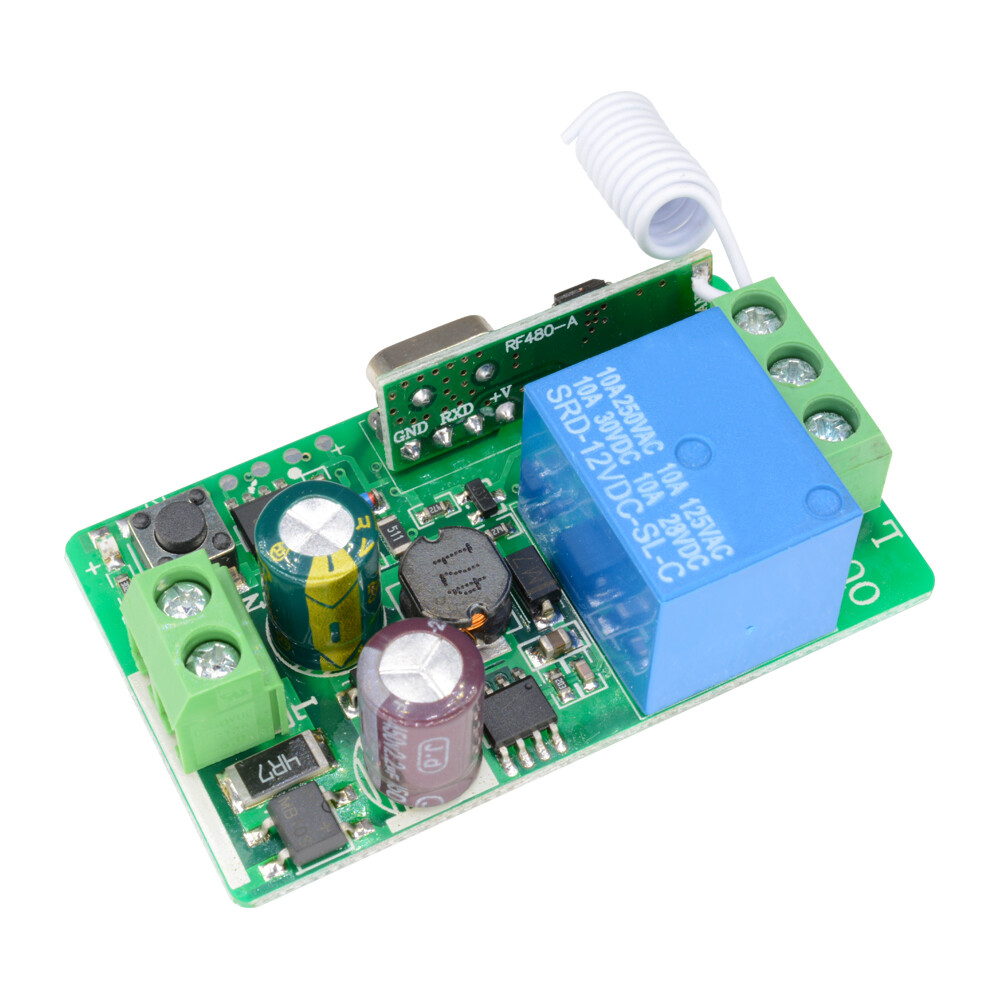

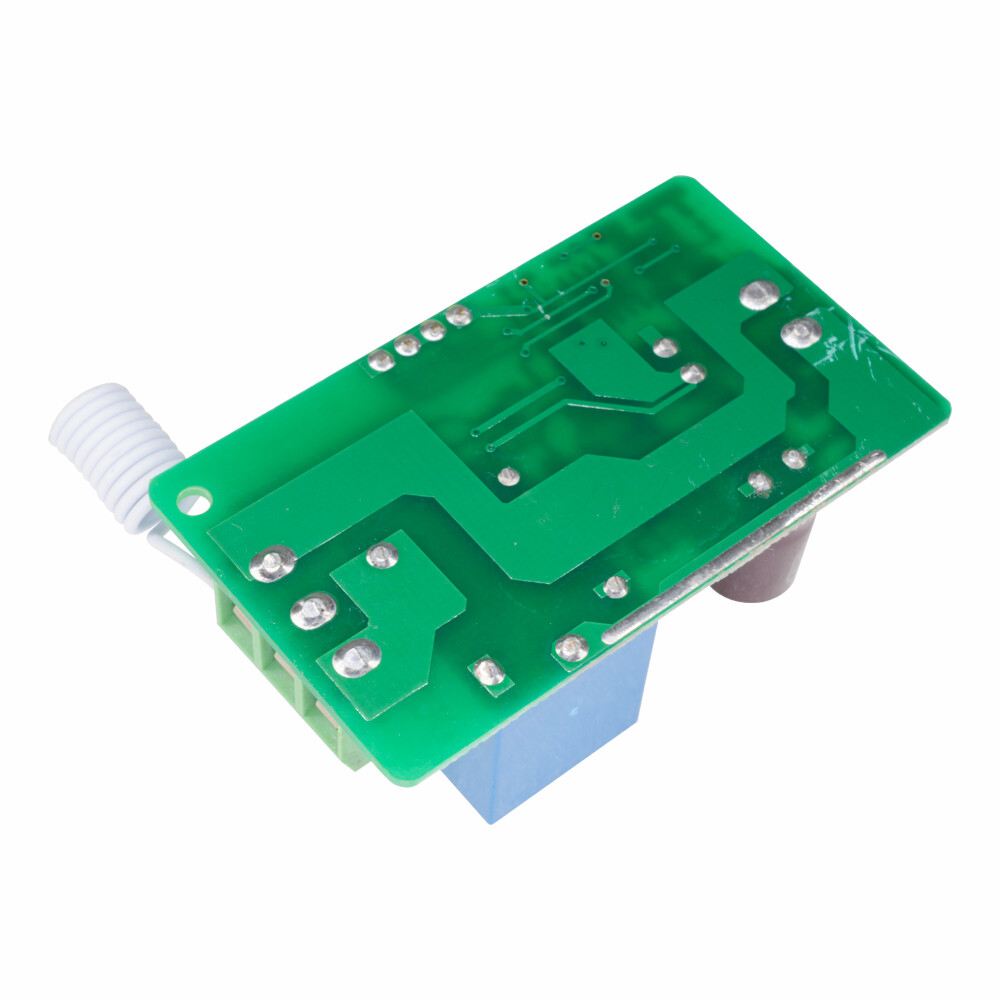

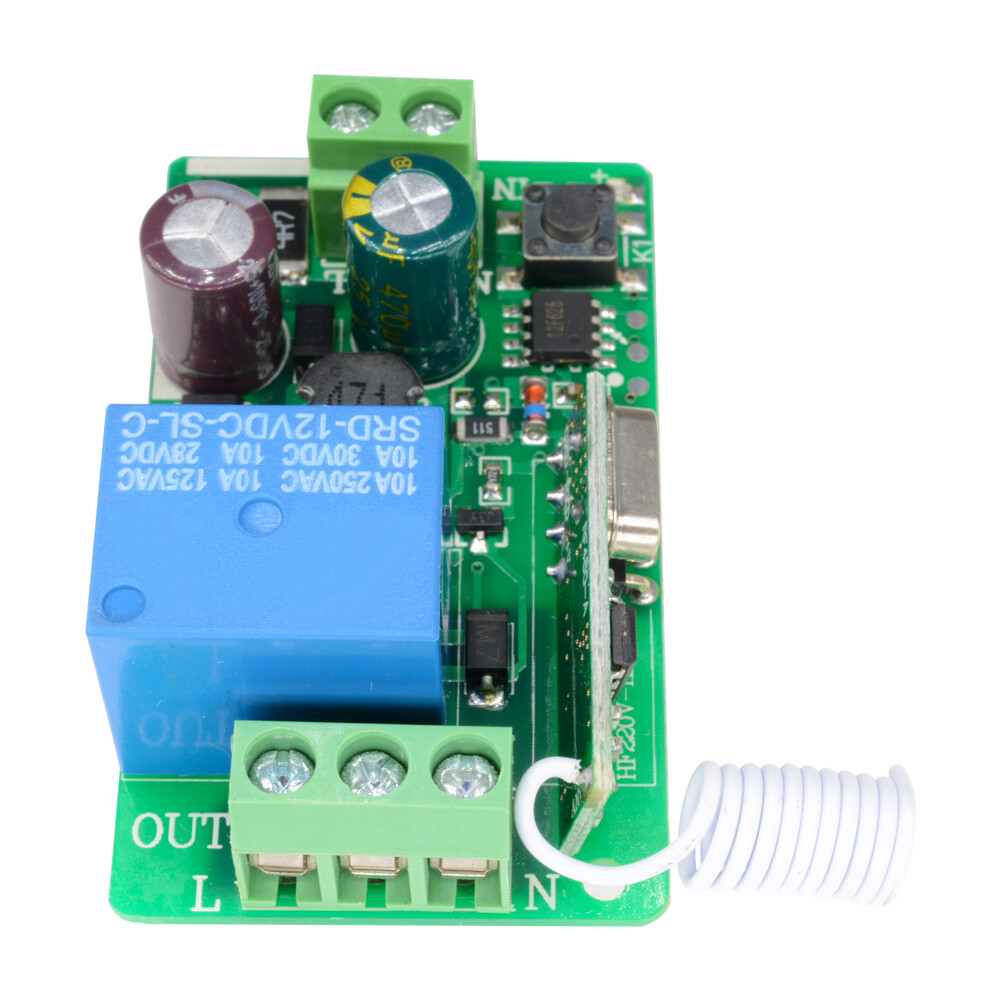

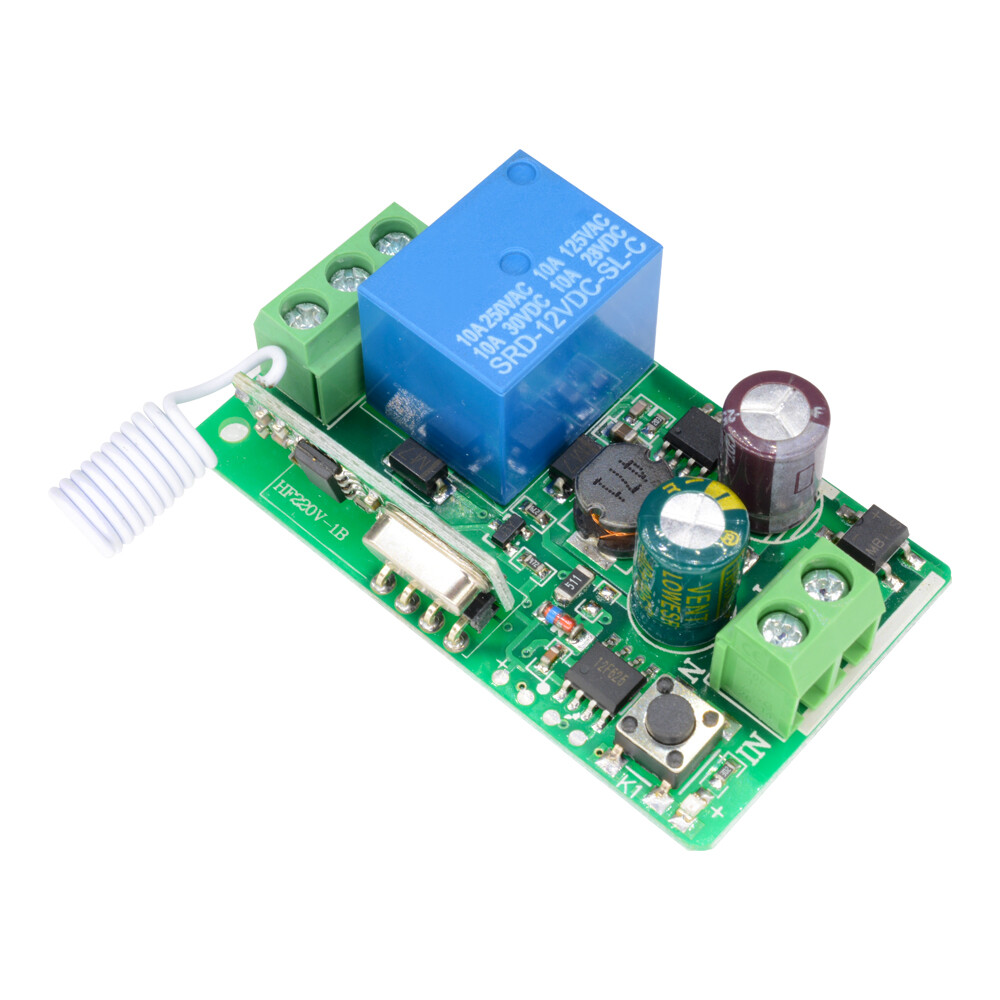

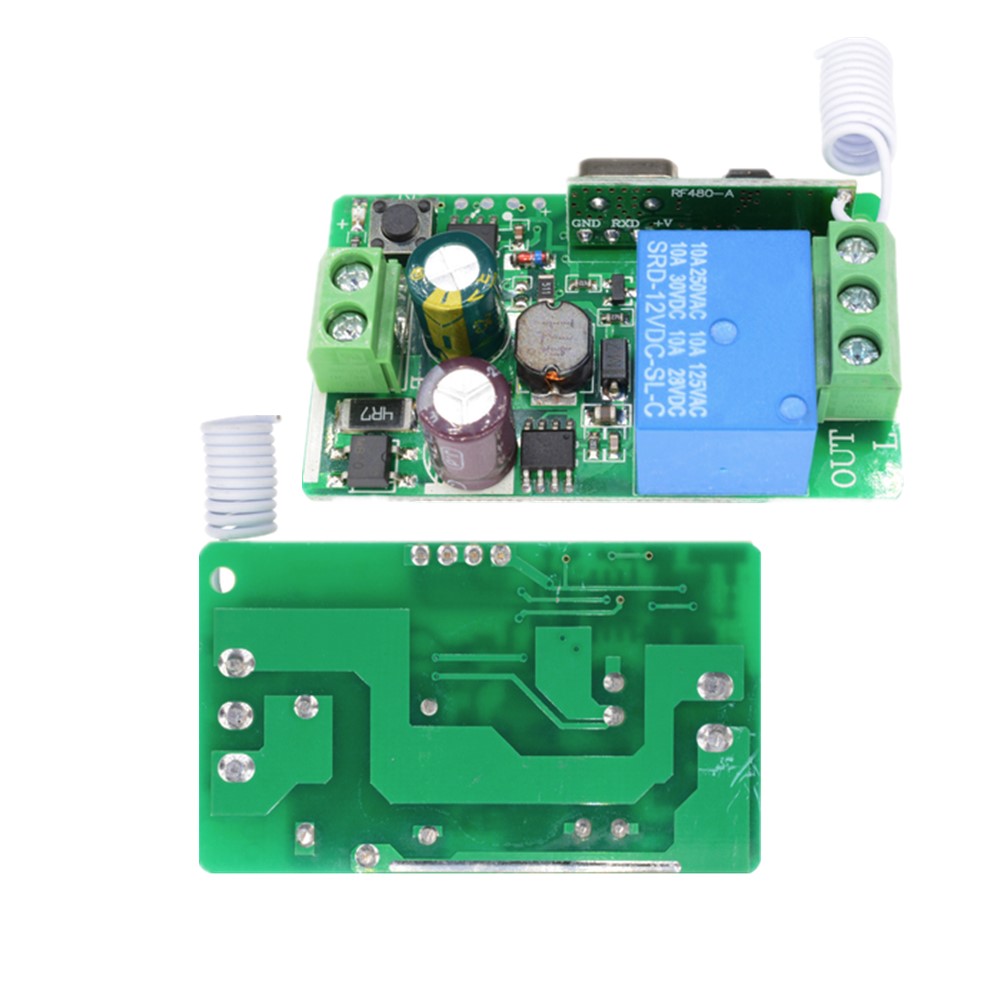

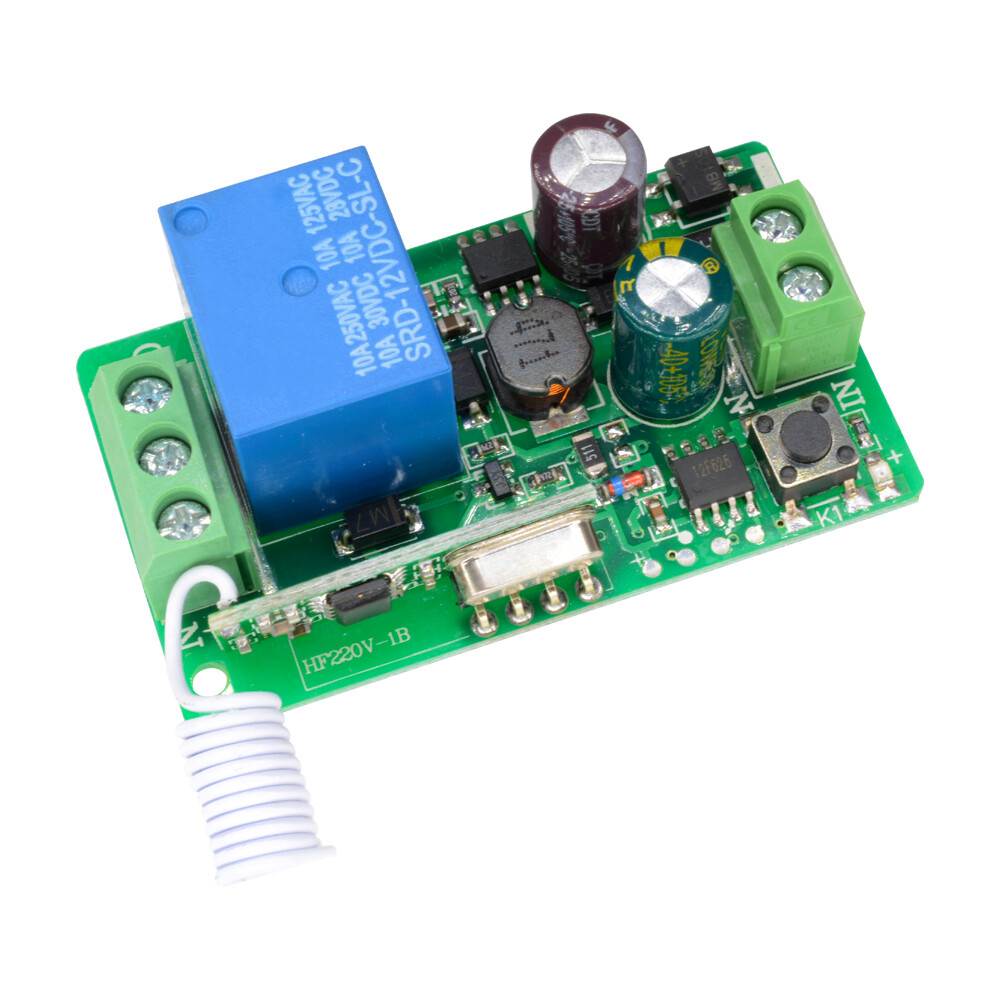

Description:
1. Input voltage: AC 85~220V
2. RF frequency: 315MHz433MHz
3. RF working mode: Super 315mhz-433.92
4. Receiver sensitivity: -107dBm
5. Remote control distance: >100meters (in open environment)
6. Decoding way: MCU software decoding
7. Can store the number of remote control: 16
8. Support remote control type: fixed code, learning code
9. Channel: 1CH
10. Multiple working modes: (Jog / Non-Locked, Inter-lock / Latched, Self-lock / Self-Locked)
11. Wiring method: fixed wiring terminal
12. Rated load: 10A 250V AC / 10A 125V AC / 10A 30V DC / 10A 28V DC
13. Dimension: 5.4cm * 3.1cm * 1.4cm
Working/Exit Way:
1. Jog / Non-latch: Press a button works / UP. release your finger on the same button is stop / off. A need one-button remote control.
2. Self-lock / Self-Latched: Press a button once is working / AUF. Press the same button again is stop / OFF. A need one-button remote control.
3. Intersperre / Latched: Press one button to work / press another button is stop / off. One need 2 buttons remote control.
Clear & Learn Code:
1. Clear function - After pressing the "KEY" button 8 times, the LED goes off and all the remote control data in the memory. When the LED flashes for 5 times, it indicates that the clear function is complete.
2, learning function - click the learn button "KEY", LED indicator light indicates that the microprocessor to enter the learning state of the code, press the appropriate wireless remote control button, LED light flashes 3 times then turn it means code success.
3. LED blinks to determine the selected function.
* flashes 1 time jogging function
* flashes 2 times self-locking function
* 3 times interlock function flashes
Package Included:

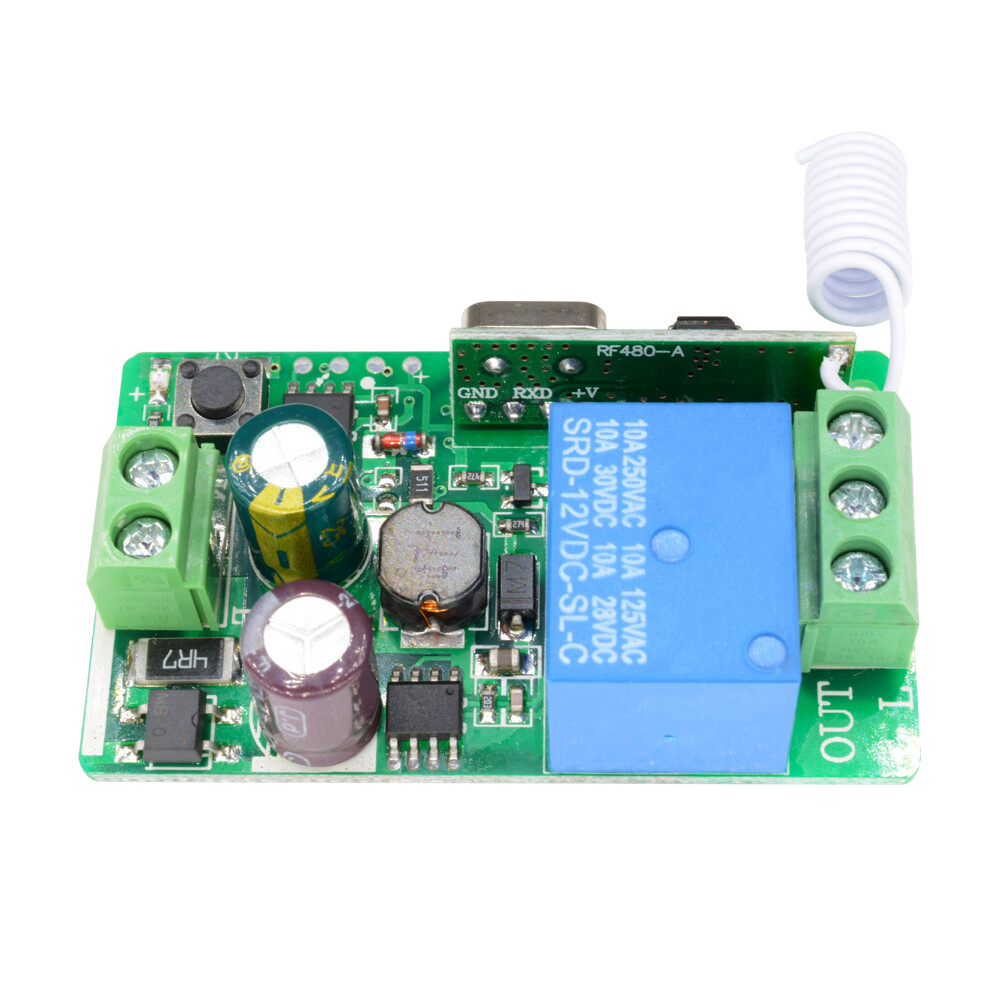

1PC×220V 1 channel wireless relay switch
