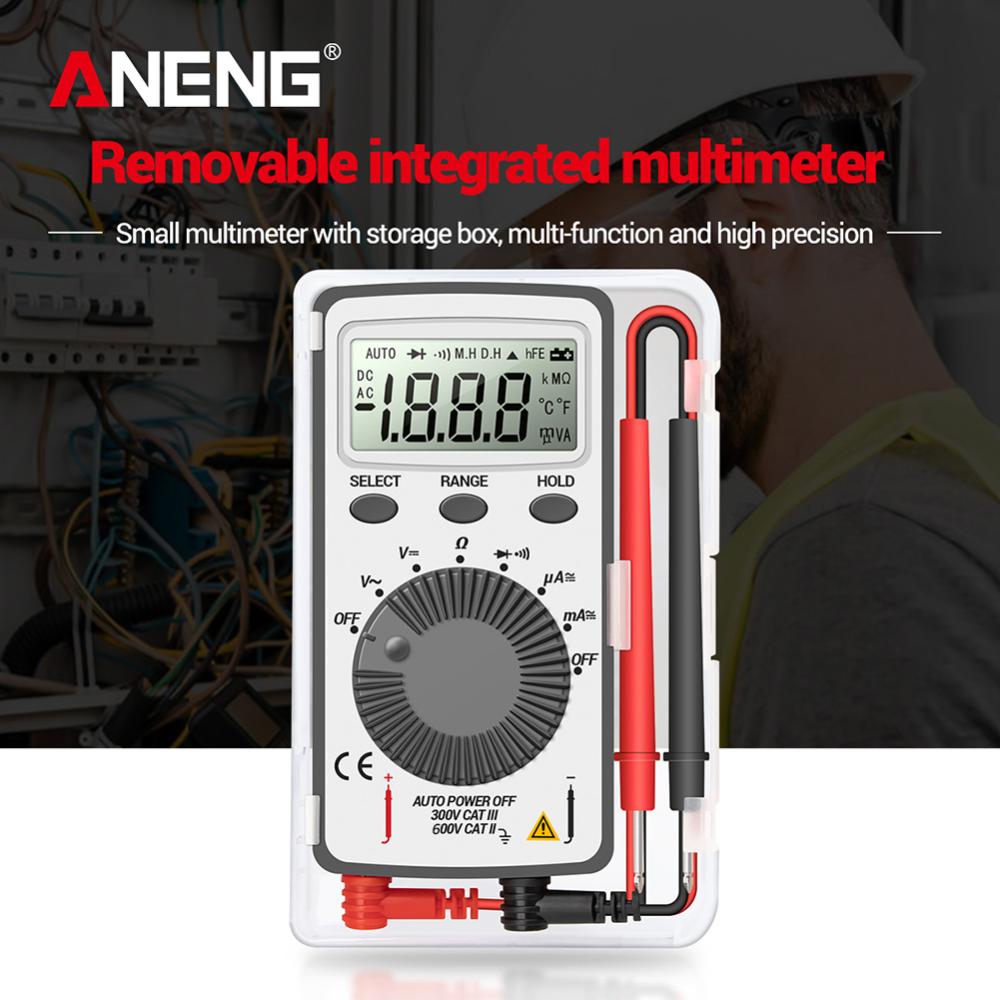

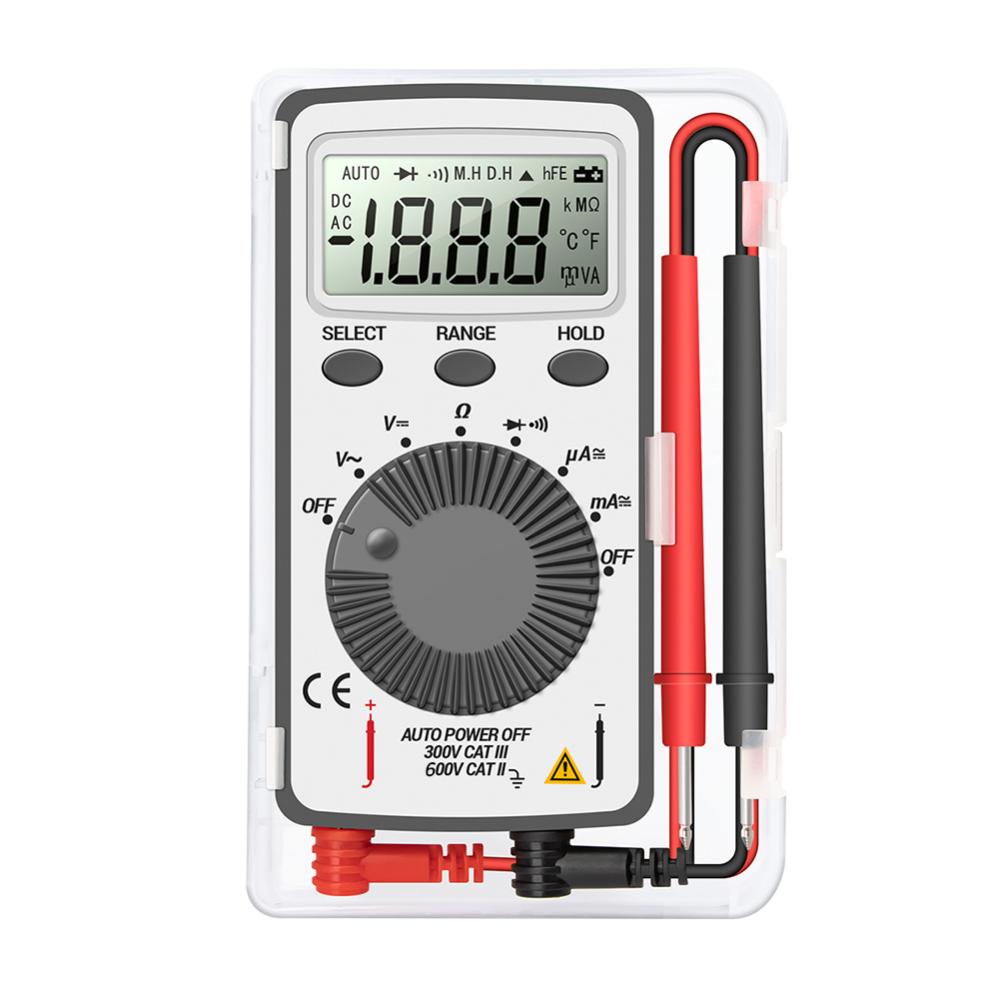

【ANENG】Portable LCD Pocket Digital Multimeter AC Voltage Capacitance Resistance Tester

ANENG AN101 LCD Pocket Digital Multimeter AC/DC Automatic Portable Voltmeter Ammeter Ohm Tester
Specification:
Display: LCD, 1999 count update 2/sec
LCD size: 40 x 20mm/1.57 x 0.79"
Polarity indication: automatically display "-"
Over-range indication: display "OL"

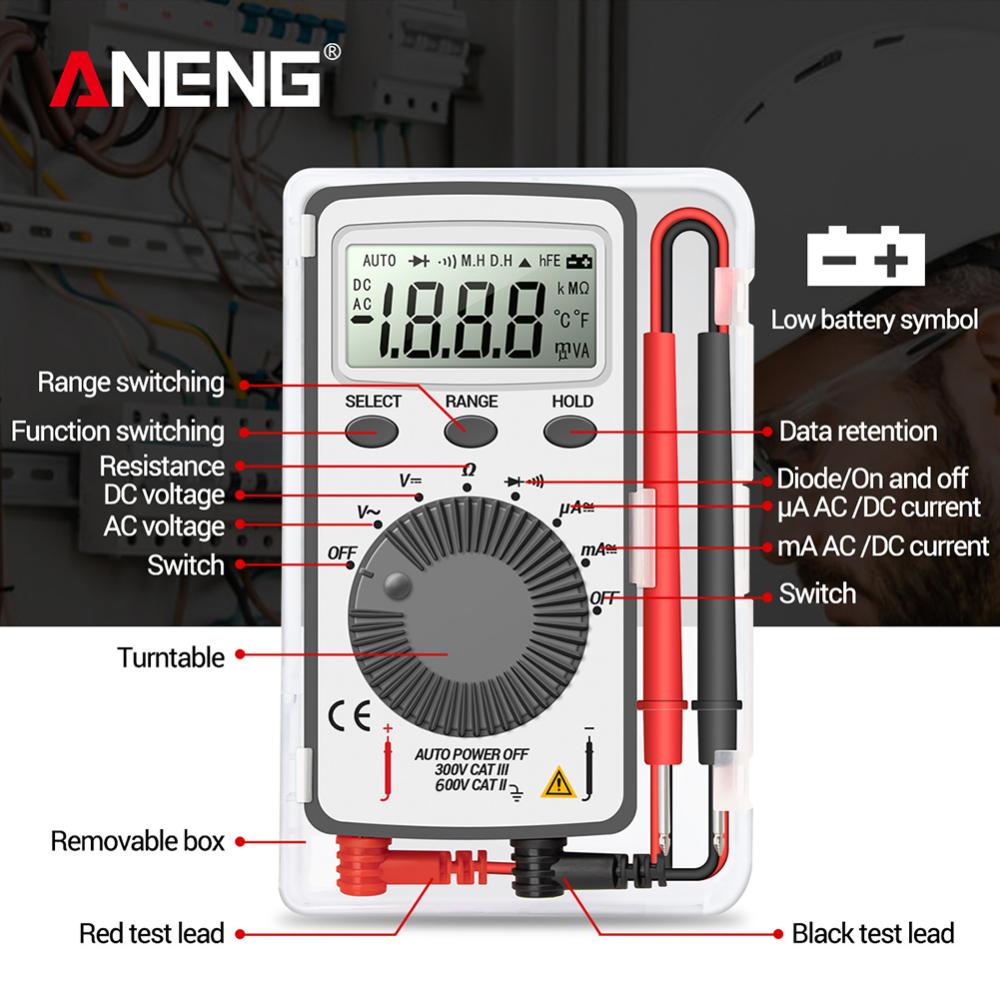

Range selection: automatic or manual
Operating temperature: 0°C to 40°C, below 80%RH
Storage temperature: -10°C to 50°C, below 85% RH

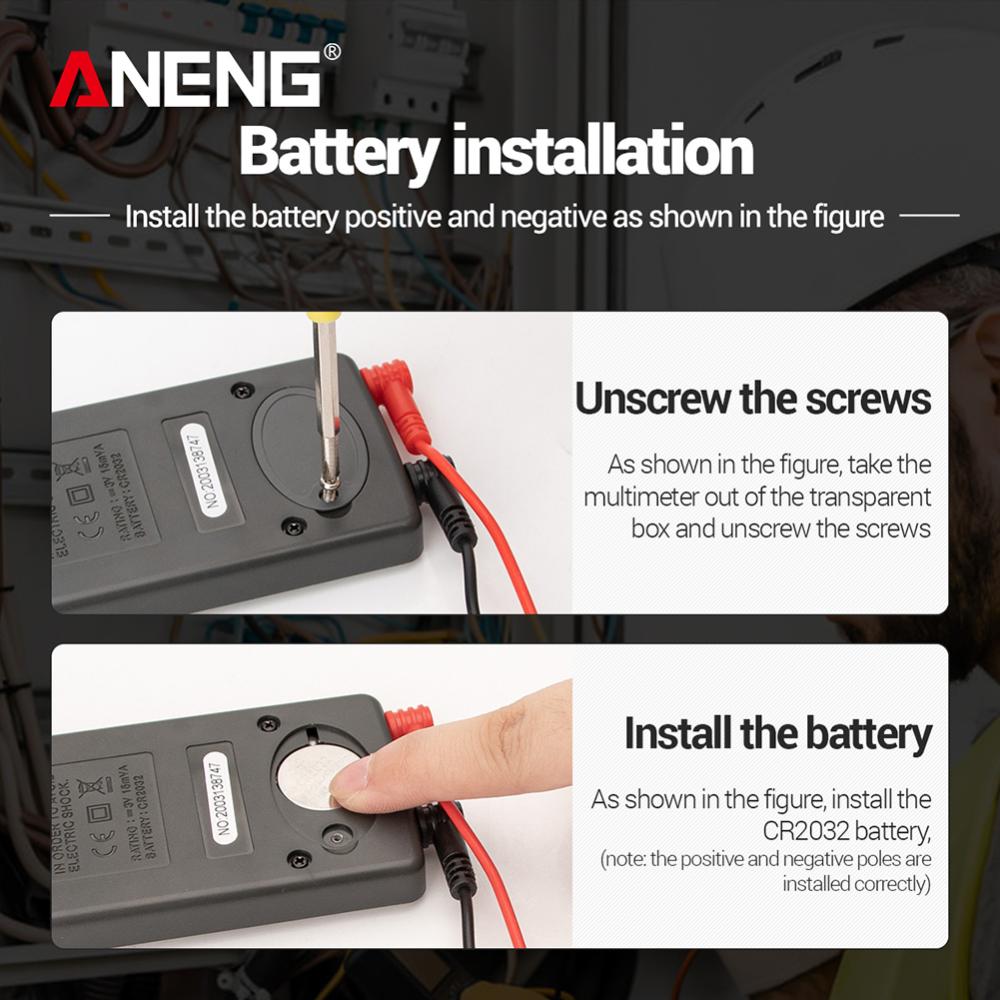

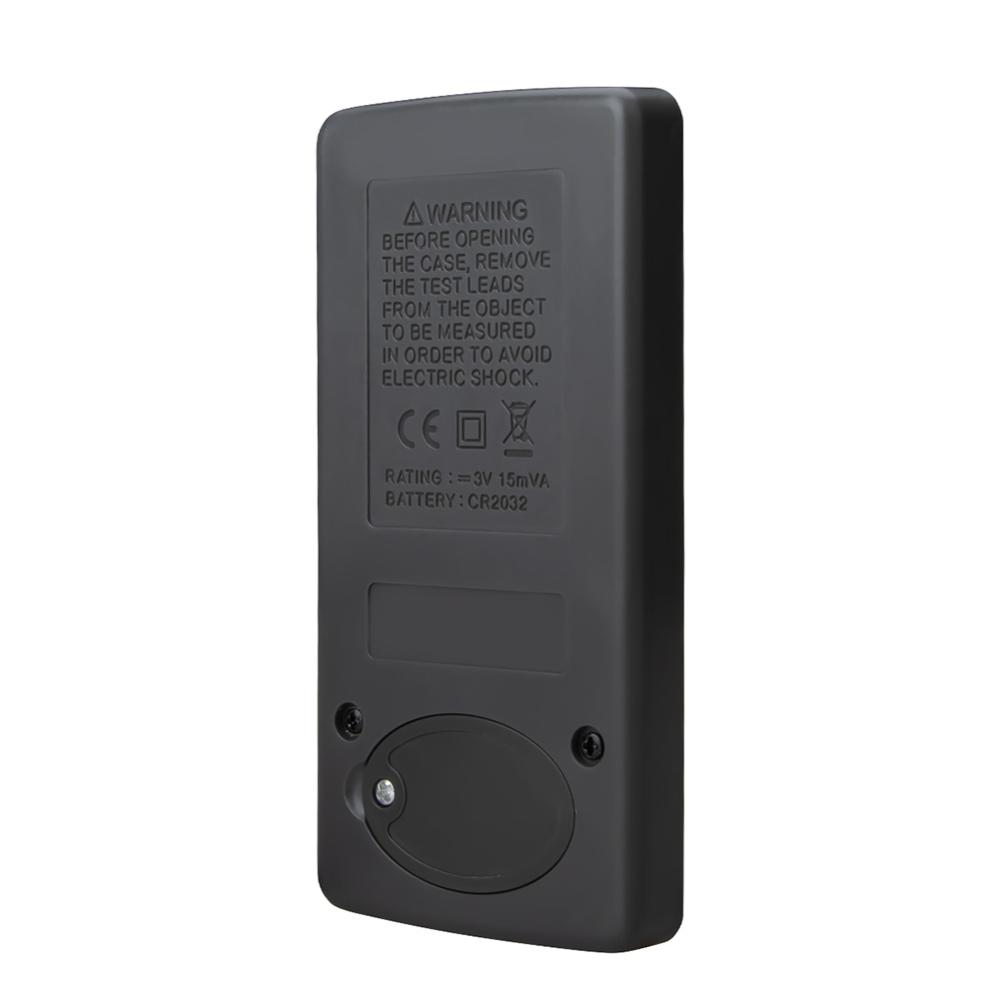

Battery type: 3V x 22032 size (not included)
Dimensions (height x width x depth): 110 x 55 x 10mm/4.33 x 2.17 x 0.39"
DC voltage (auto range)
Range resolution accuracy
200mV 0.1mV±(0.8% of reading + 5dgts)
2V 1mV±(0.5% of reading + 2dgts)
20V 10mV
200V 100mV
600V 1V±(1.0% of reading + 5dgts)
Input impedance: 10MΩ
Overload protection: 600V DC / AC rms
Maximum input voltage: 600V DC
DC current
Range resolution accuracy
200uA 0.1uA± (0.8% of reading + 5dgts)
2000uA 1uA
20mA 10uA
200mA 100uA
Overload protection: F0.5A / 600V fuse
maximum. Input current: 500mA
Voltage drop: 200uA and 20mA range: 20mV
2000uA and 200mA range: 200mV
AC current
Range resolution accuracy
200uA 0.1uA±(1.0% of reading + 5dgts)
2000uA 1uA
20mA 10uA
200mA 100uA
Overload protection: F0.5A / 600V fuse
Maximum input current: 500mA
Voltage drop: 200uA and 20mA range: 20mV
2000uA and 200mA range: 200mV
Frequency range: 40Hz~400Hz
Response: average, calibrated with sine wave rms
(AC range) (Auto range)
Range resolution accuracy
2V 1mV±(1.2% of reading + 3dgts)
20V 10mV
200V 100mV
600V 1V±(1.2% of reading + 8dgts)
Input impedance: 10MΩ
Frequency range: 40Hz~400Hz
Overload protection: 600V DC / AC rms
Response: average value, calibrated with sine wave rms
Input voltage: 600V AC rms
Quantity: 1 set

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3mm measuring deviation due to manual measurement.
