Specifications:

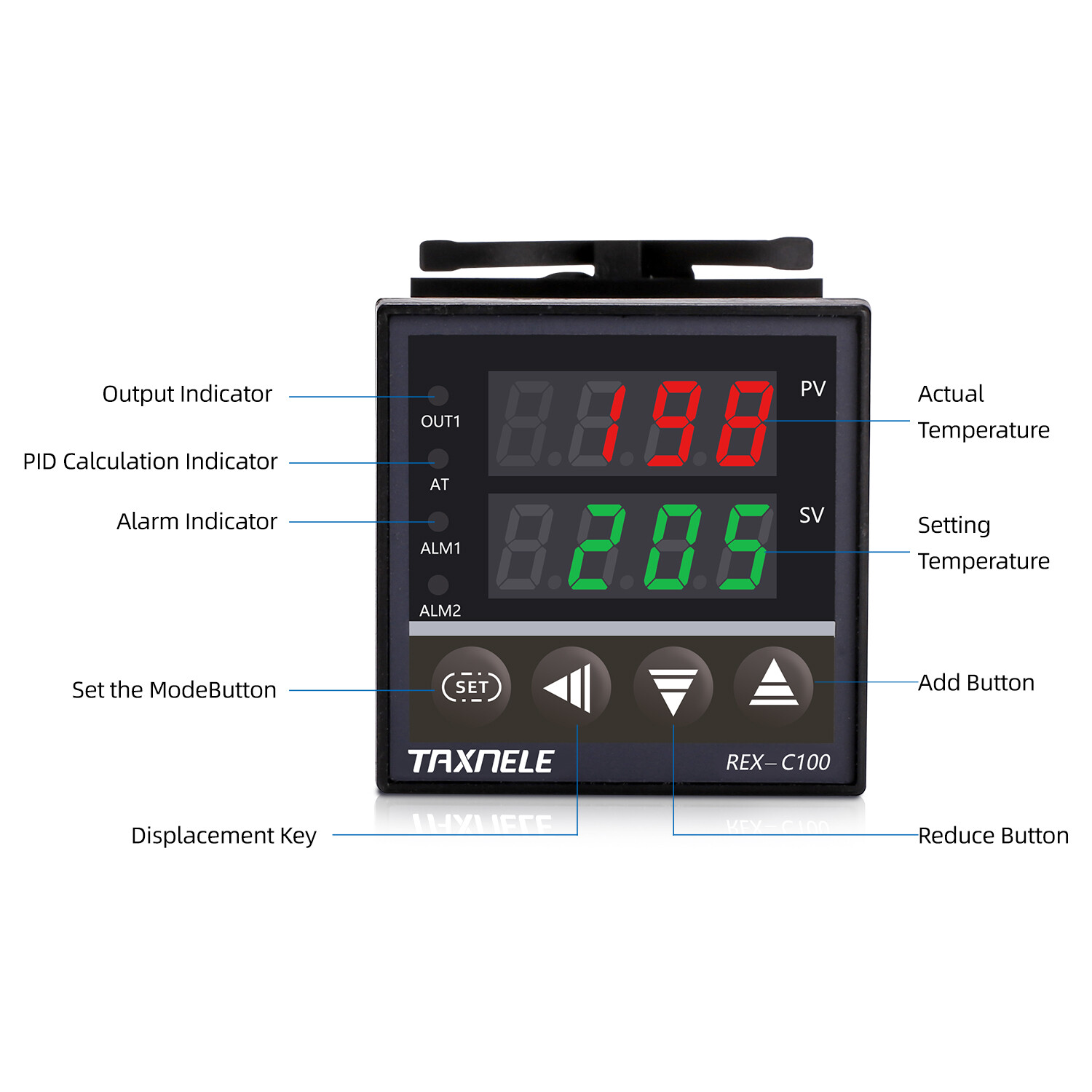

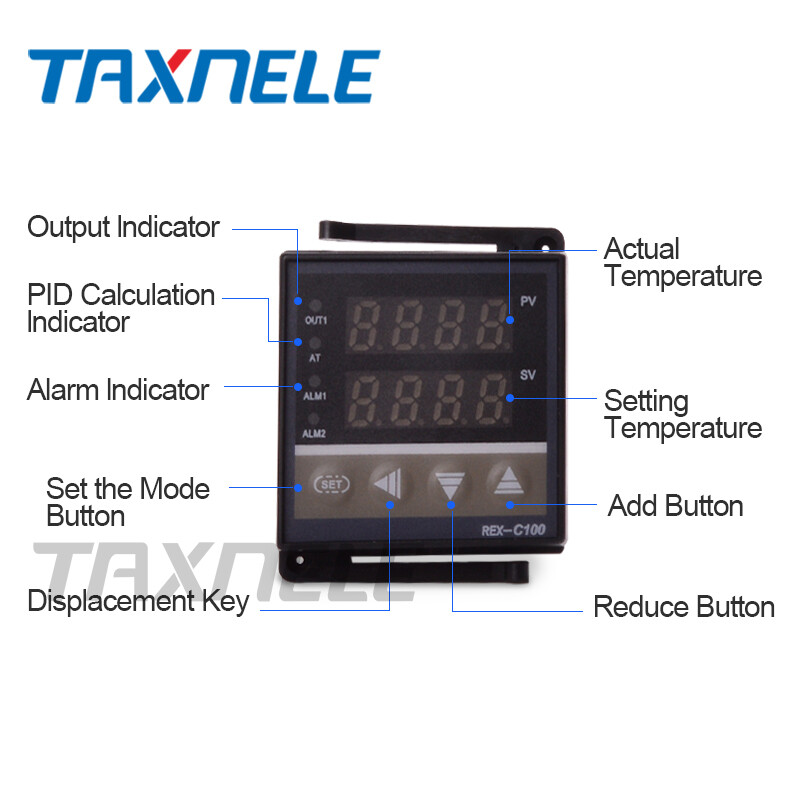

• Display: Dual display for Celsius (C)
• Range: -0-400C (default k type ) Can set 0-1300 C
• Main Output: SSR/Realy
• PID cooling/heating control
• 1 RELAY alarm: Normal open, capacity 250V/3A AC or 30V/3A DC
• 7 different Dual Output combinations with: high / low / high deviation / low deviation /interval / out of interval / breakage alarm
• Accuracy: 0.5%

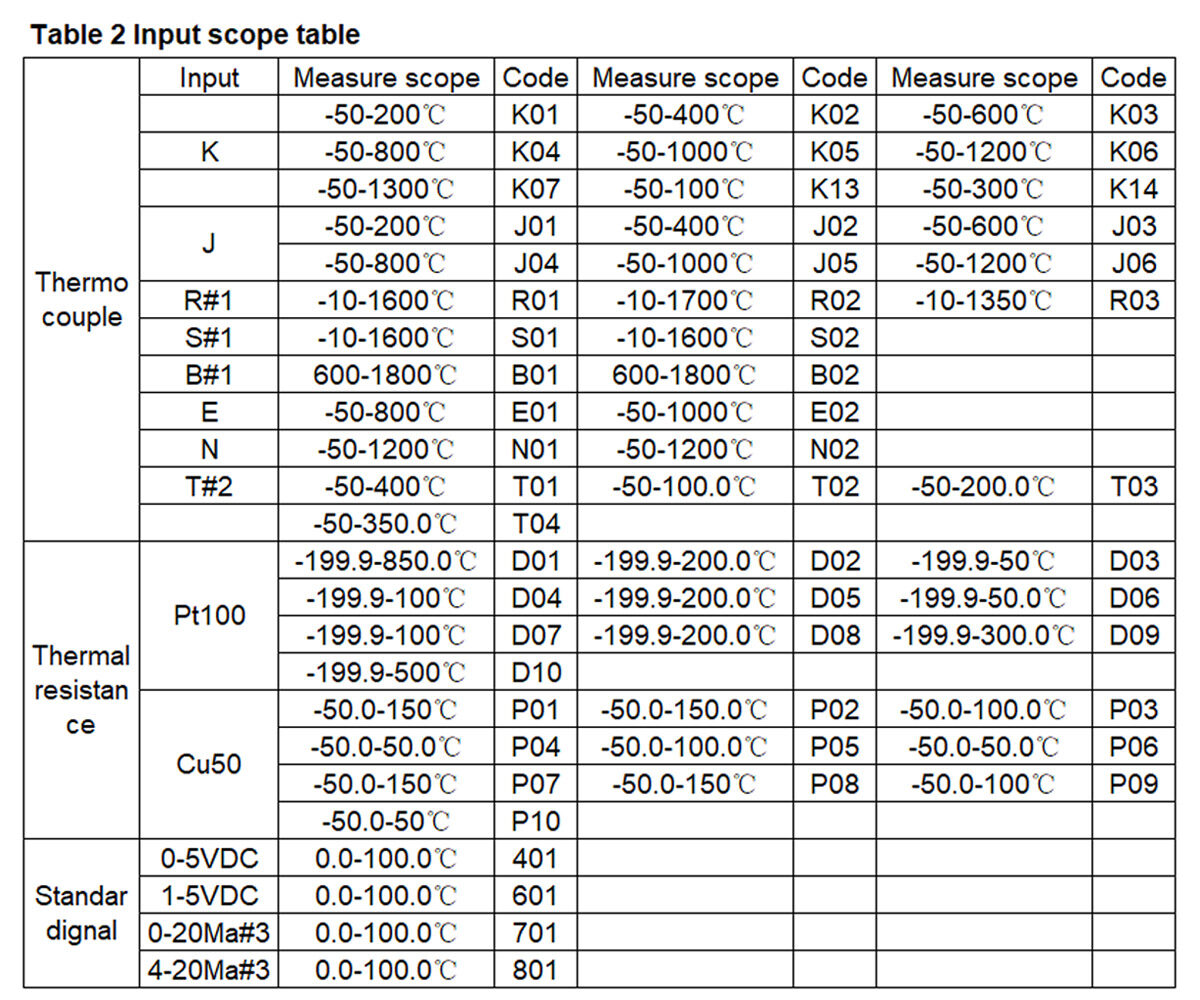

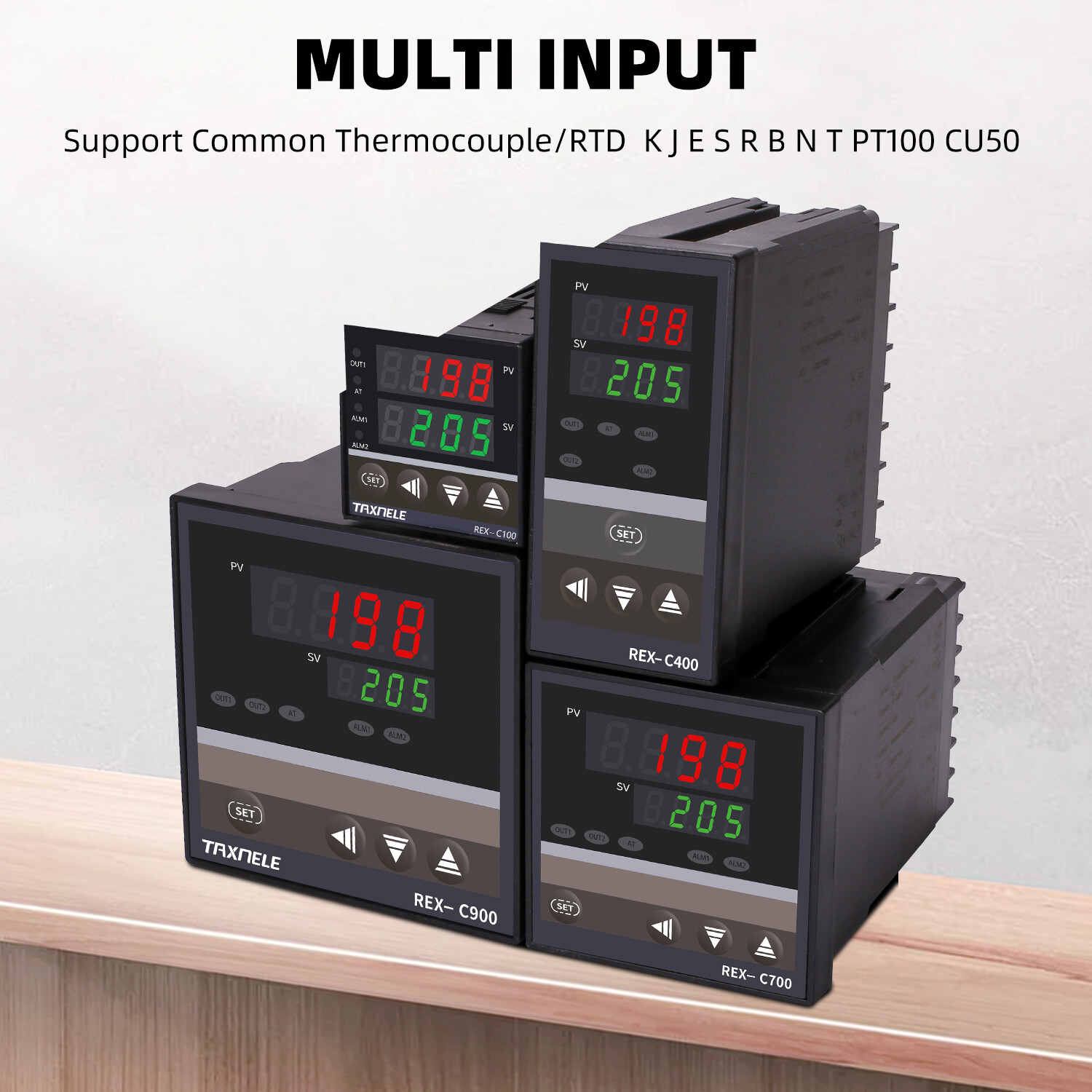

• Input:K,J,E,R,Js,B,N,T,PT00,Cu50
• Individually programmable PID control parameters.P, I, d, controlling period, digital filter coefficient, and more

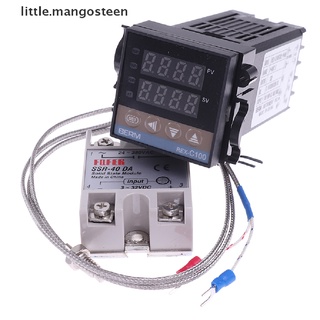

• SSR control ready to connect

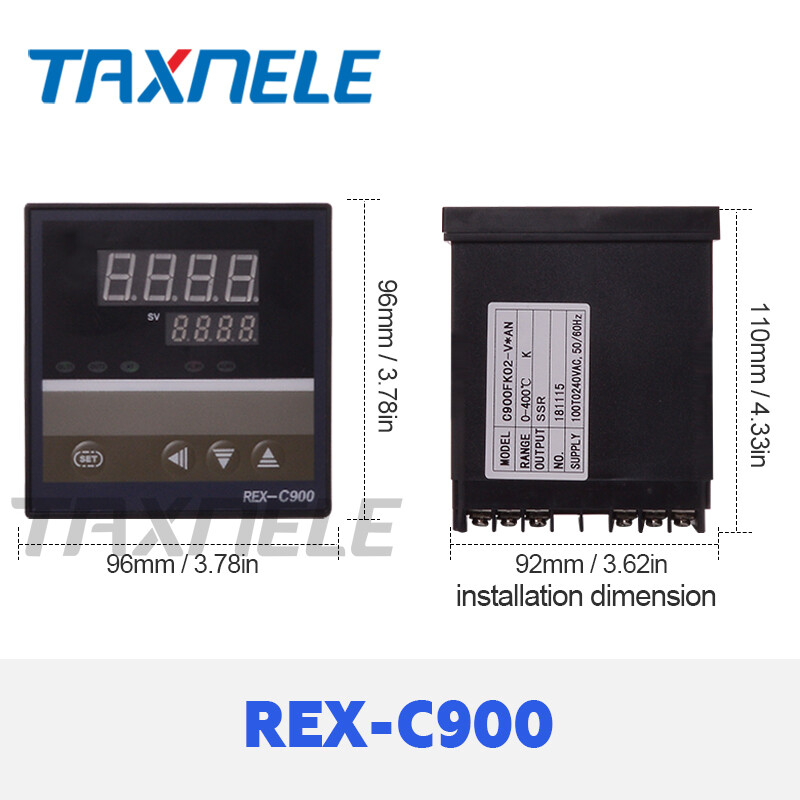

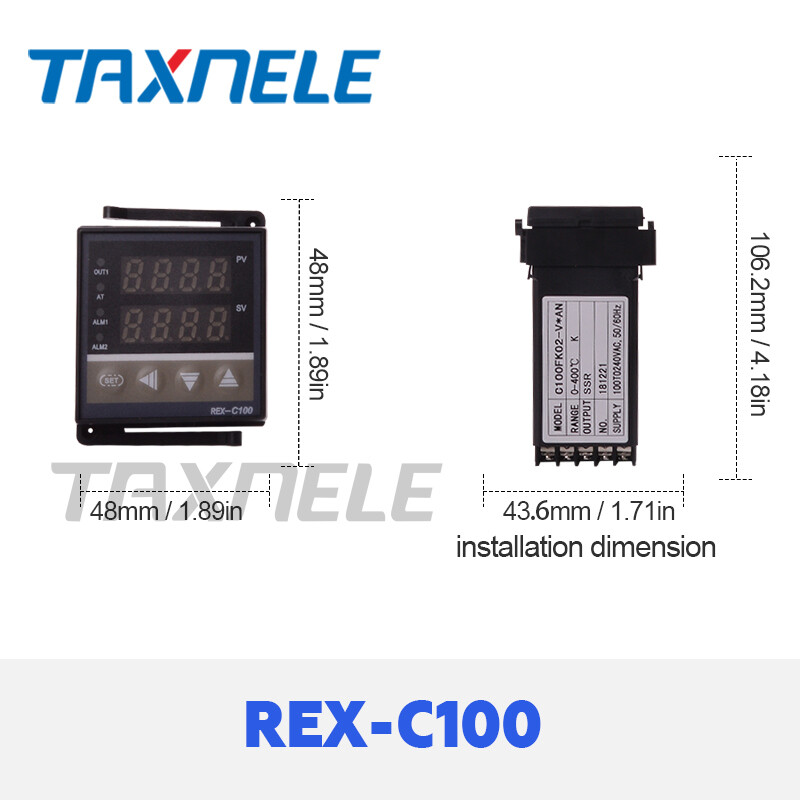

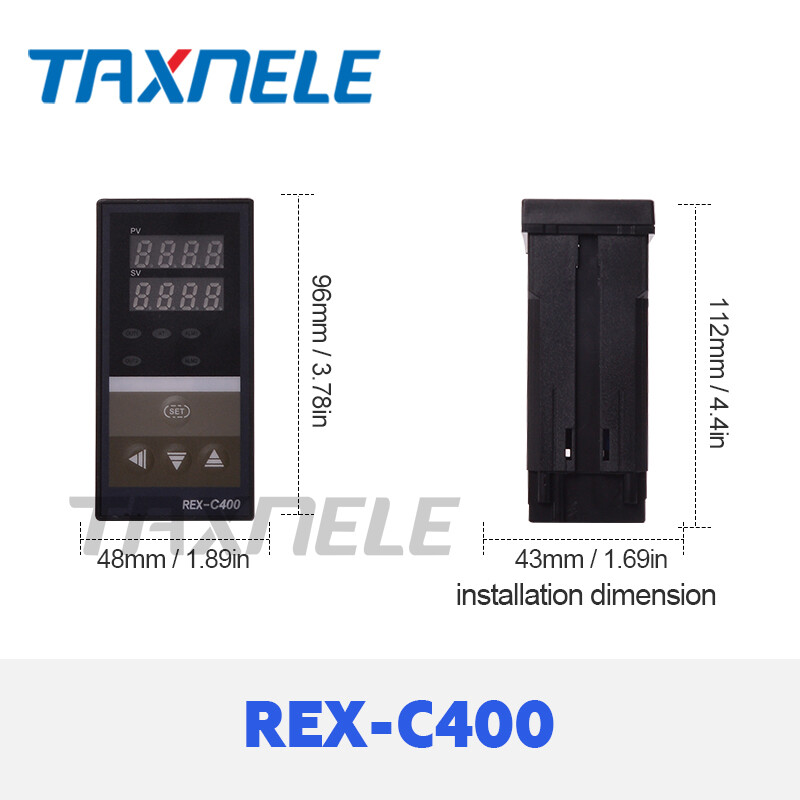

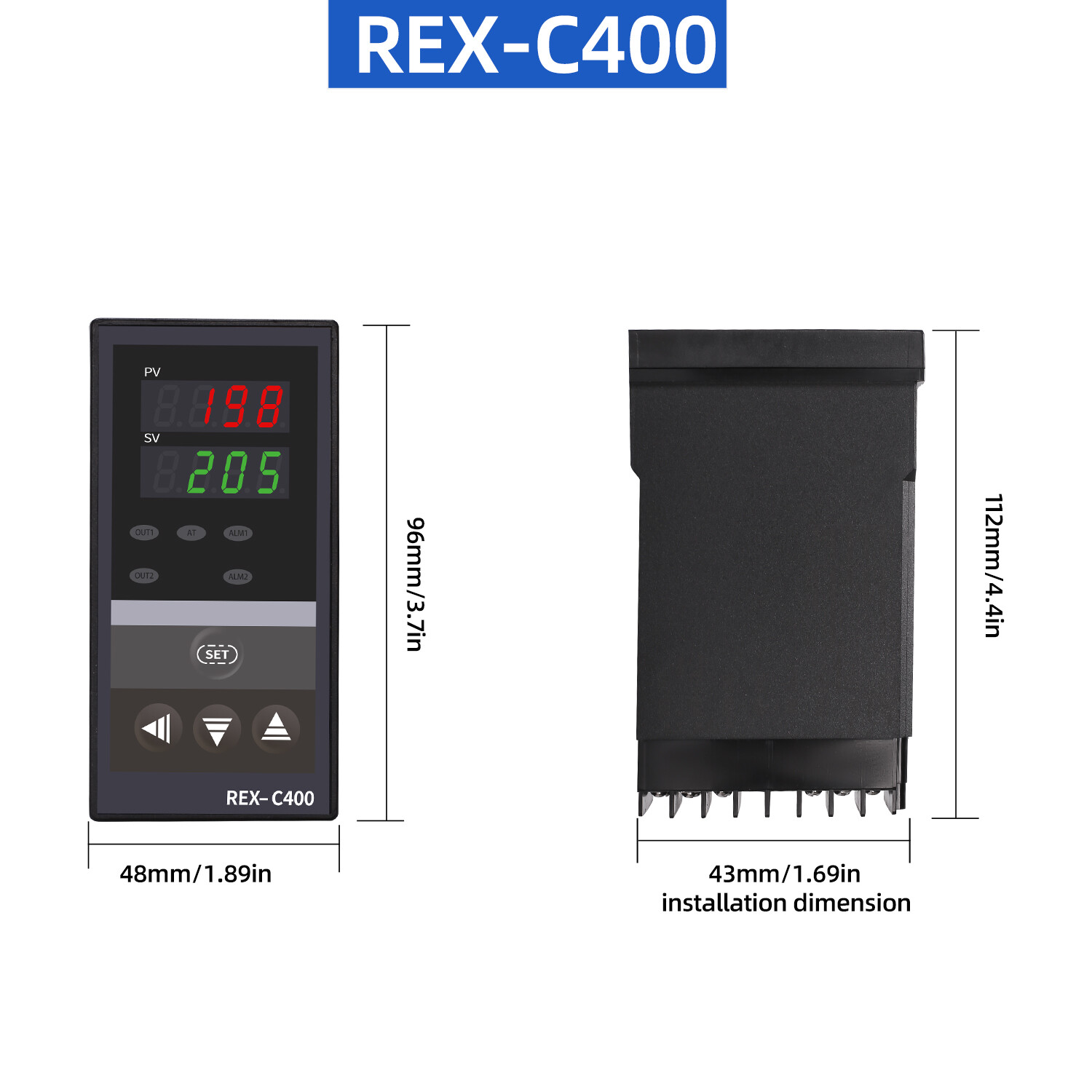

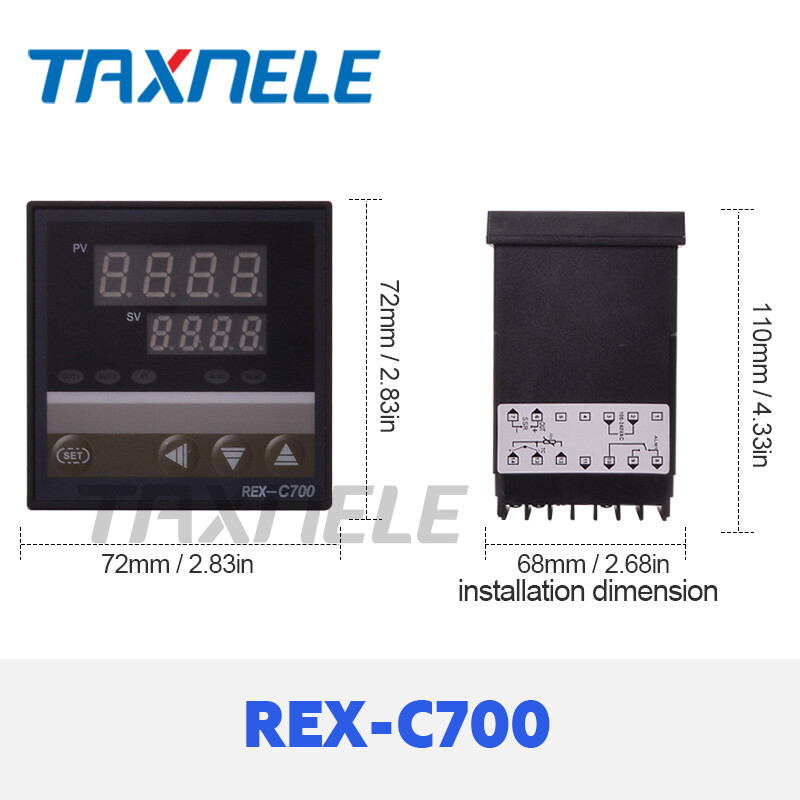

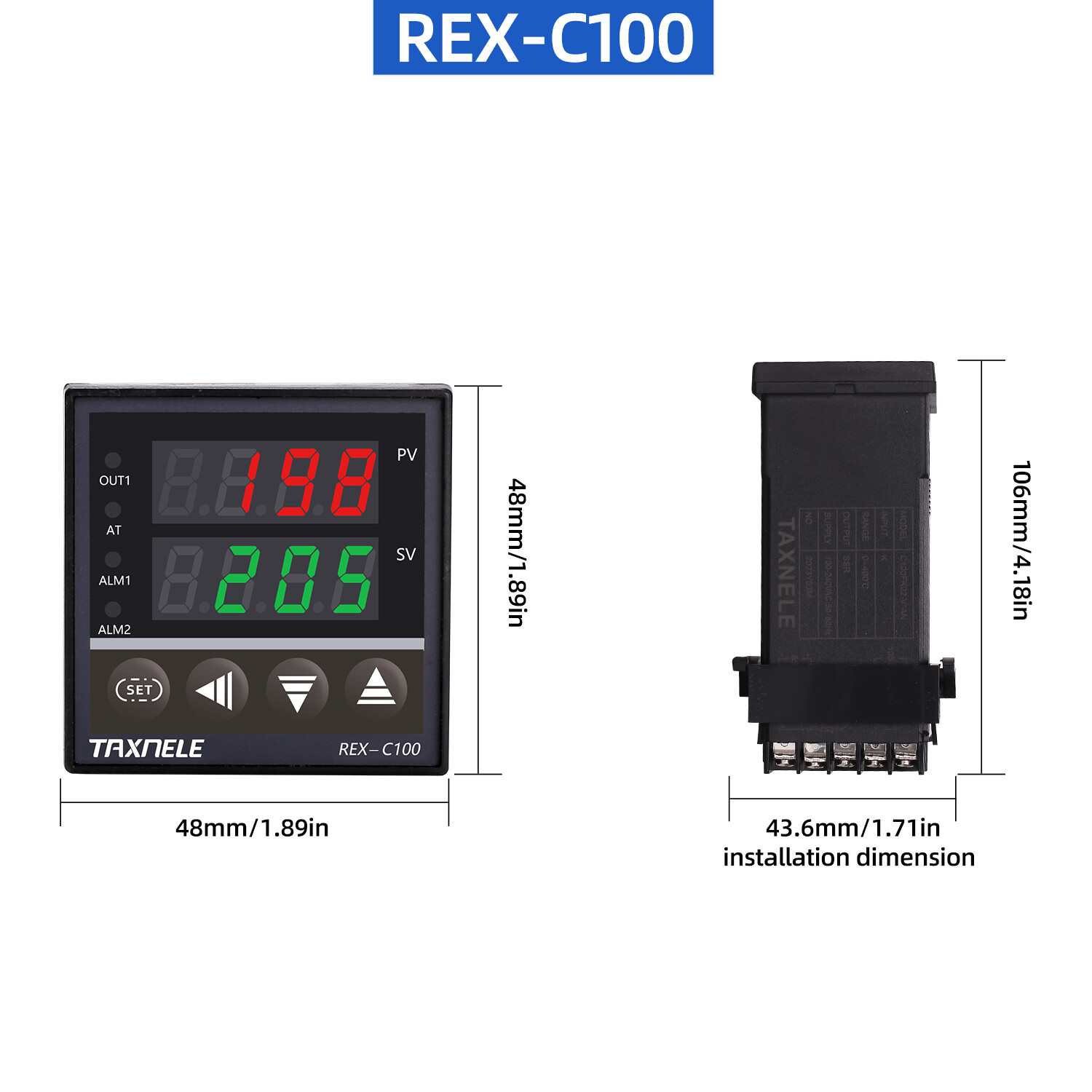

• Compact design:DIN 1/8 great form-factor to be included/build-in to your product.
• Alarm output: 1 line output, 7 kinds of alarm mode: high/low/high deviation/low deviation/interval/out of interval/breakage alarm
