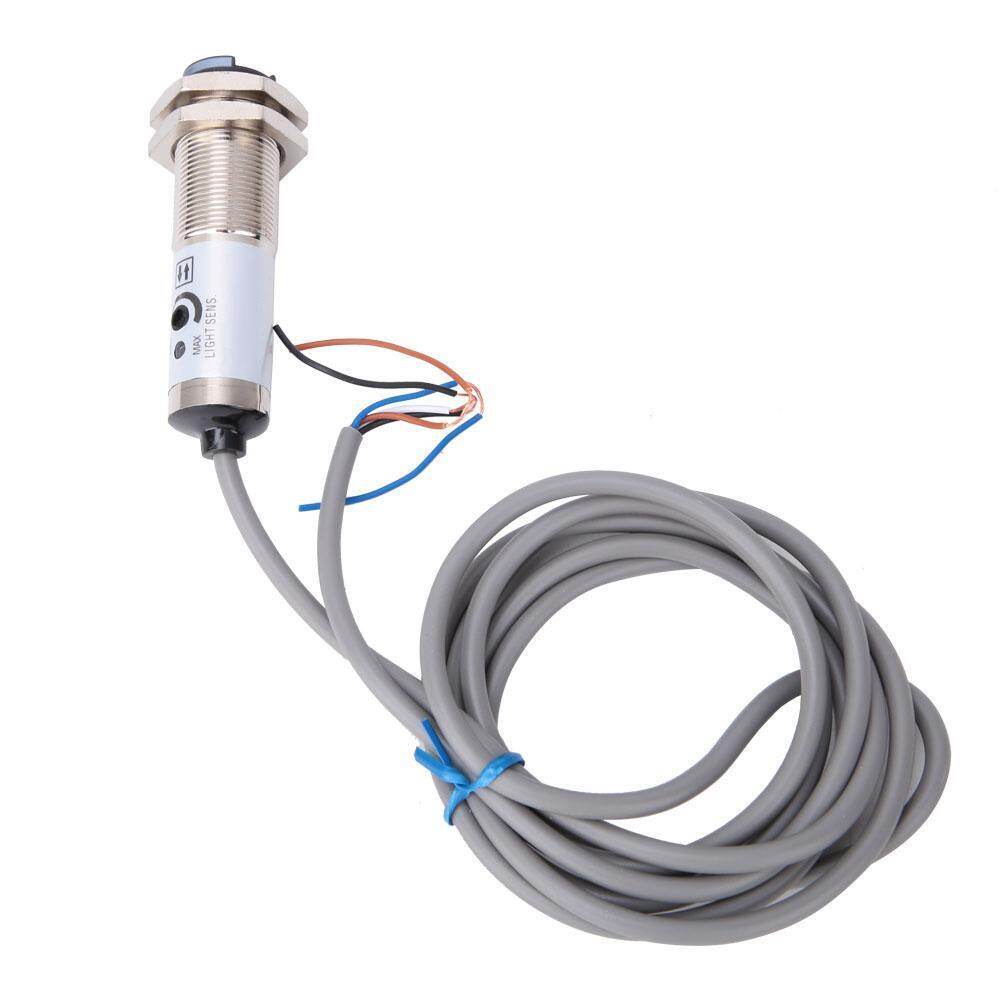

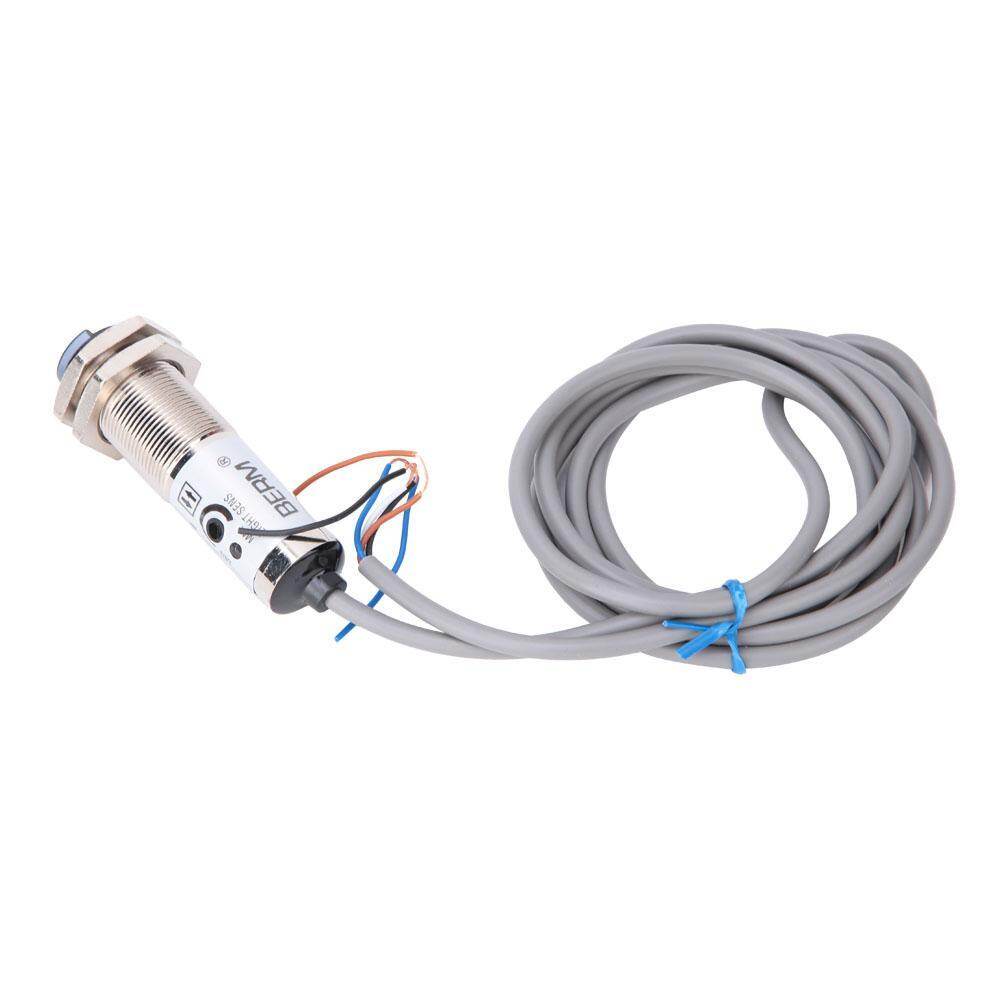

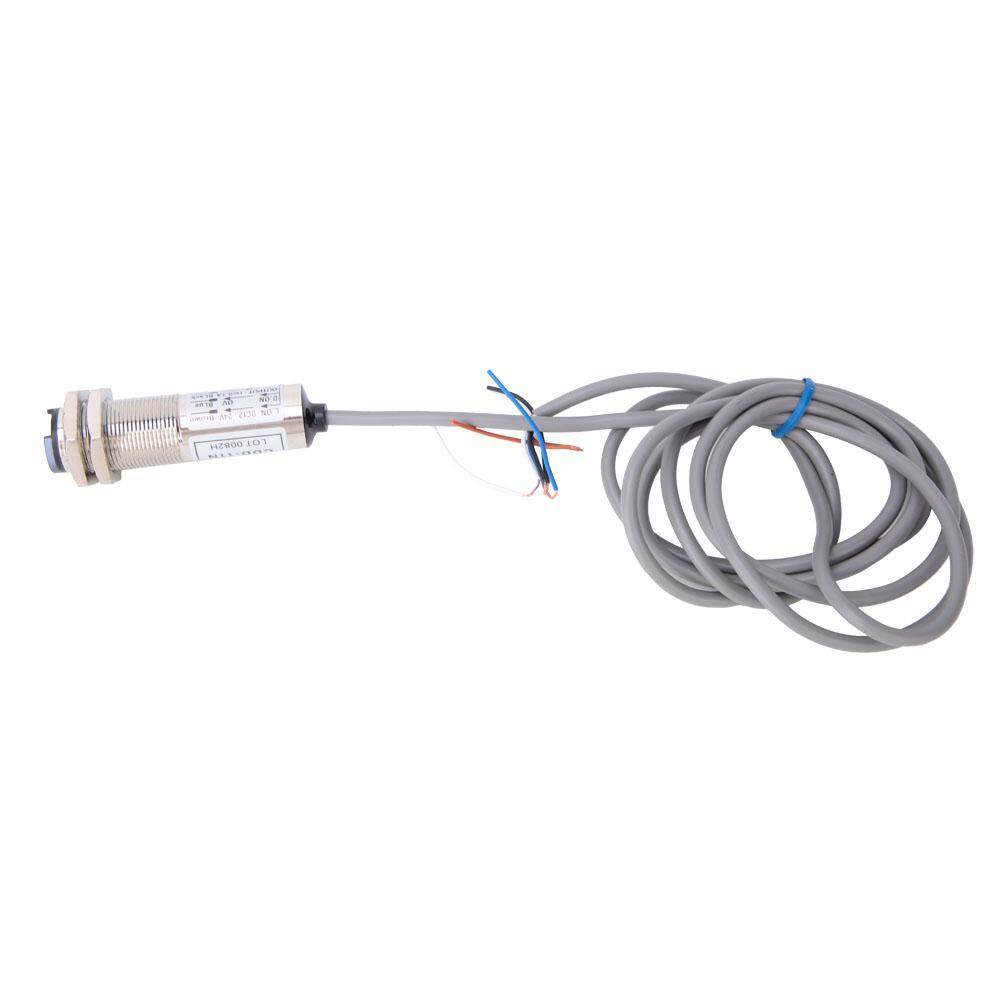

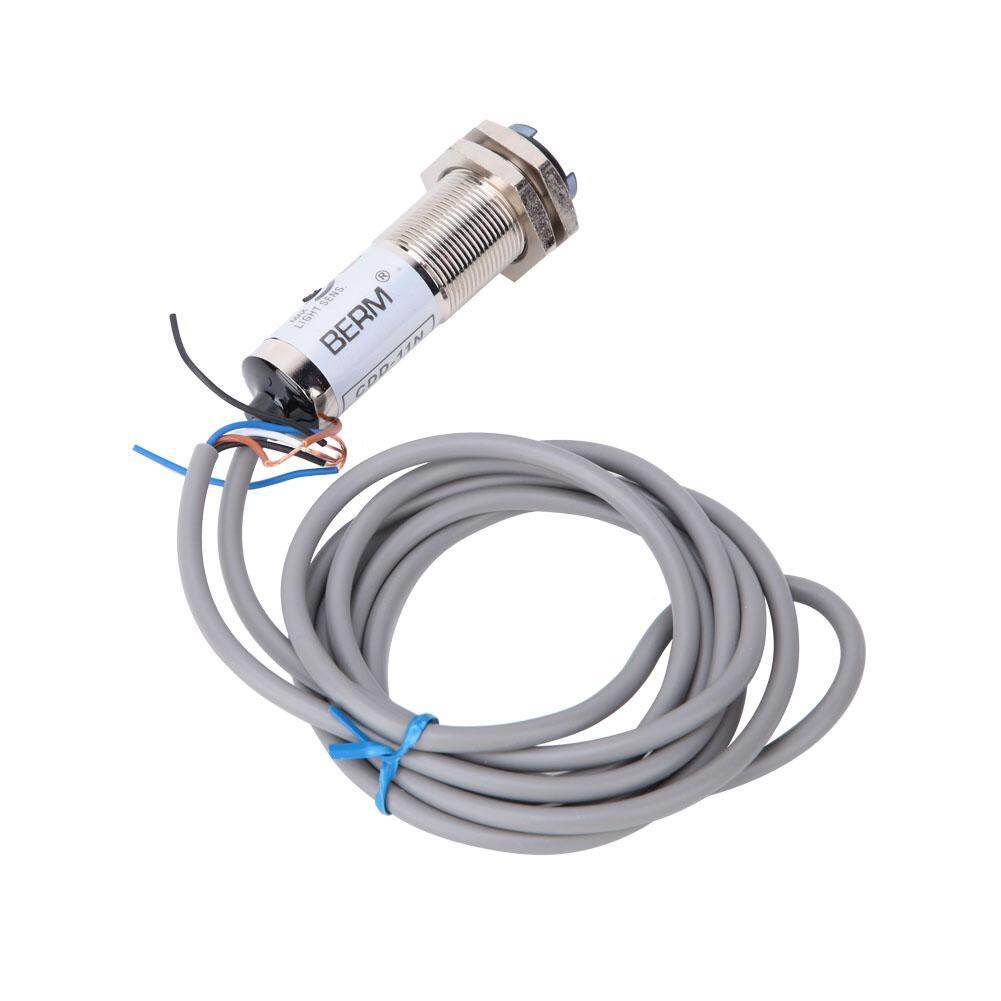

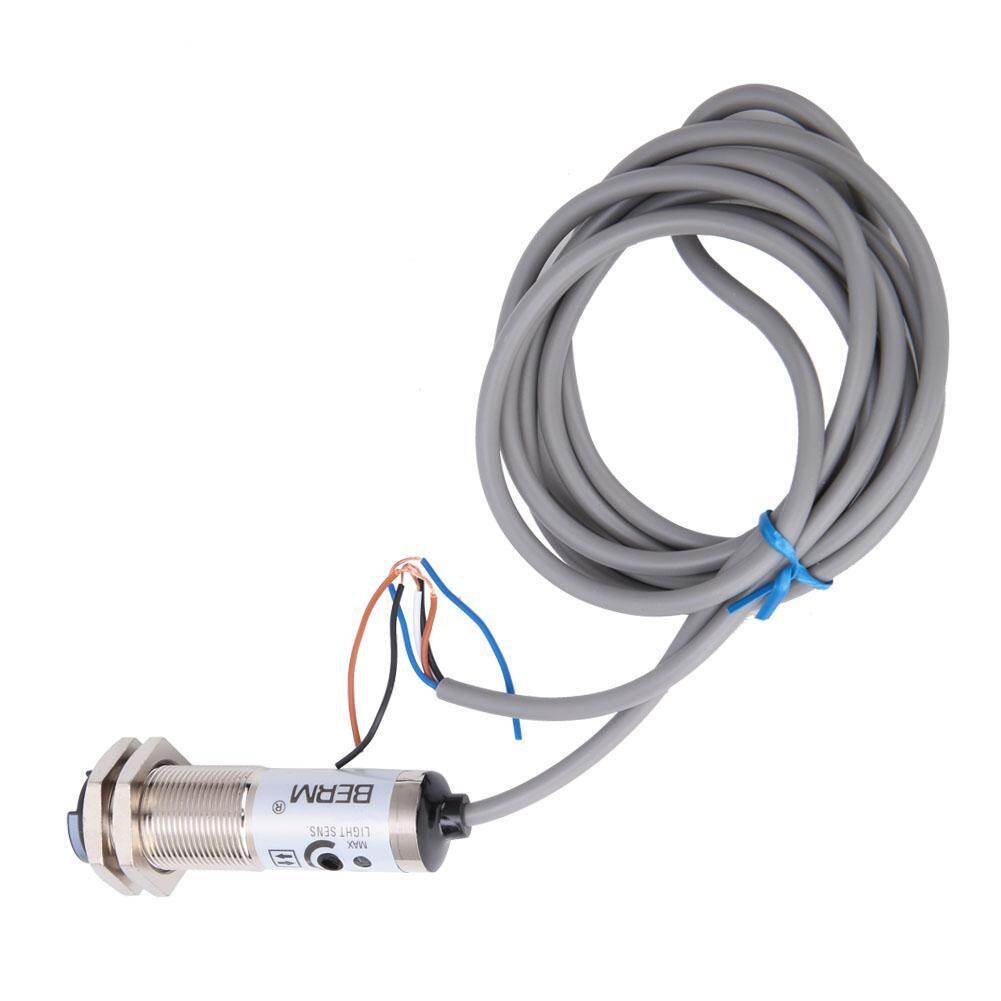

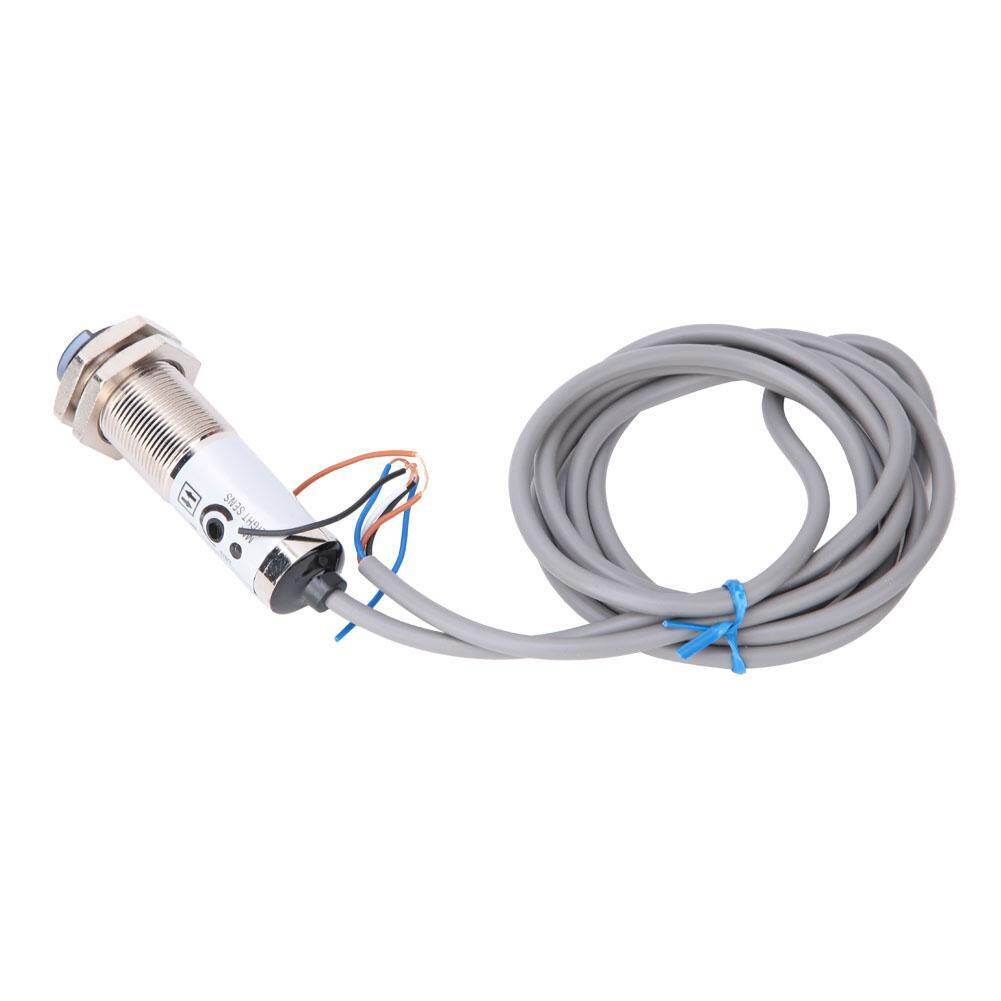

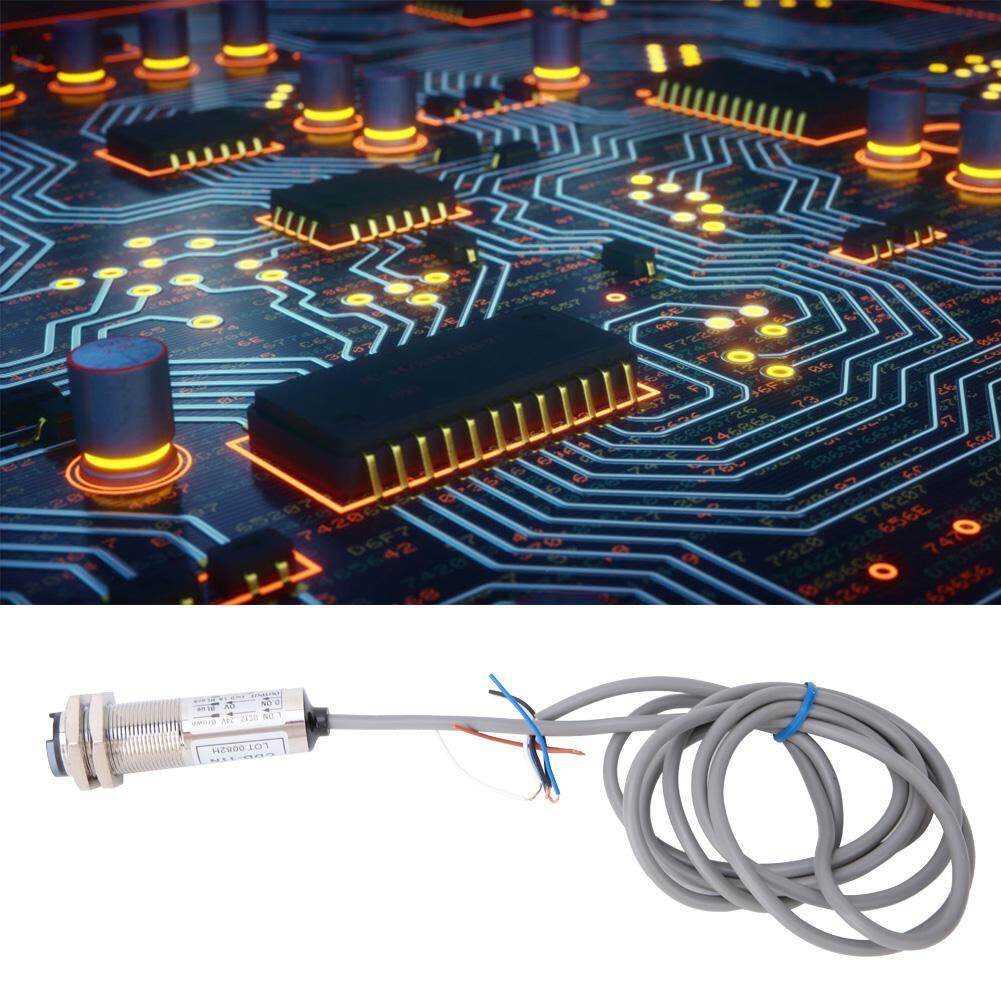

[Bán Chạy] Công Tắc Cảm Biến Quang Điện Phản Xạ Khuếch Tán CDD-11N 10Mm 4 Dây 12-24VDC

Features:

• Photoelectric switch makes use of the block or reflection of the detected object to the light beam, and the circuit is turned on by the synchronous circuit to detect the presence or absence of the object.
• Detection objects are not limited to metal, and all objects that reflect light (or block light) can be detected.
• The photoelectric switch converts the input current into a light signal on the transmitter, and the receiver detects the target object according to the intensity or presence of the received light.
• The sensor uses infrared light to detect the objects for sensitive detection with delay that can be almost ignored.
• Built-in multiple protection circuits, strong anti-interference ability, sensitive response.





















Specification:

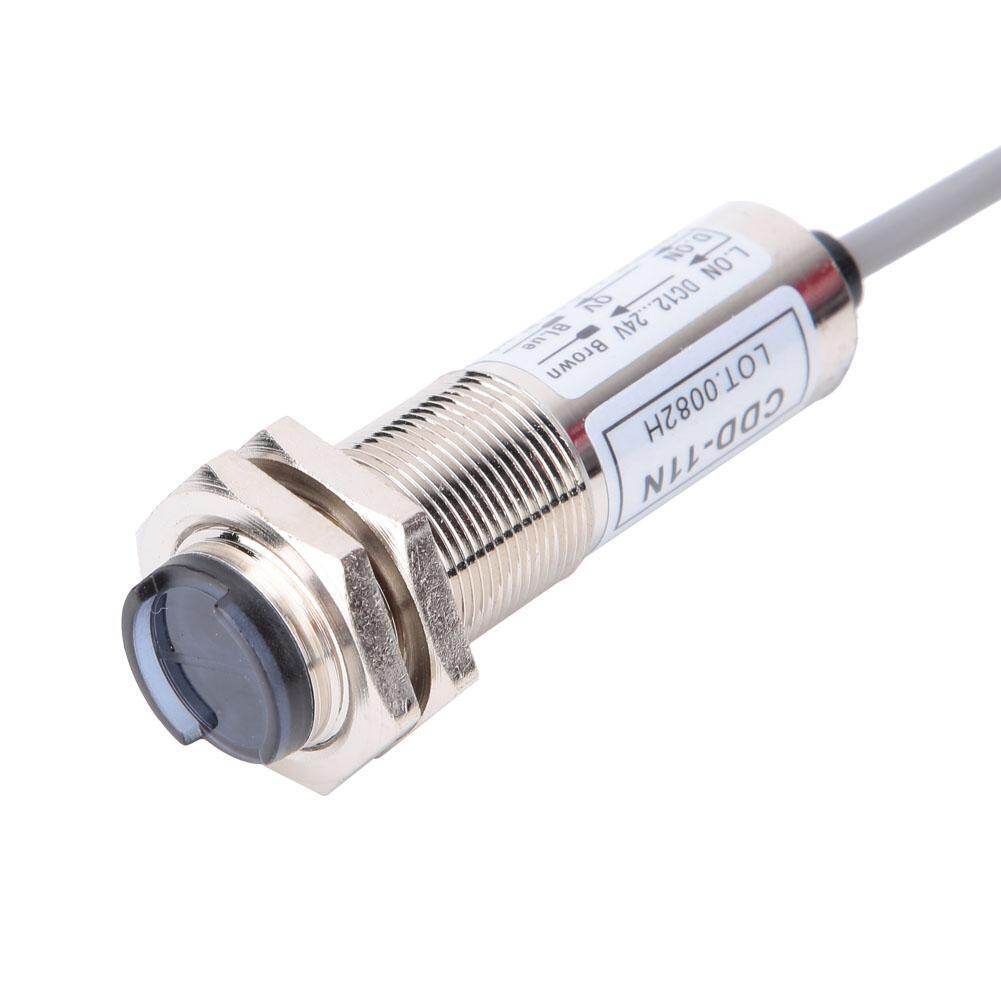

Model: CDD-11N

Power Supply Voltage: DC12-24V

Output Form & Status: NPN NO

Detection Distance: 10mm

Detecting Objects: Opaque objects

Cylindrical Head Diameter: 18mm

Line Length: 1.75m

Light Source Type: Transmitting tube

Induction Method: Diffuse reflection

Protection Level: IP66



Housing Material: Copper nickel plating

Control Output: <300mA

Current Consumption: <10mA

Response Frequency: 500Hz

Residual Voltage: <1.5V

Indicator Light: Action indicator (red LED)

Insulation Resistance: >50MΩ (500VDC megohm reference)

Withstand Voltage: 1500VAC 50/60Hz 1min

Vibration Resistance: 10-55Hz (cycle one minute) amplitude 1mm X, Y, Z 2 hours in each direction

Impact Resistance: 500m/s² (50G) X, Y, Z 3 times in all directions

Operating Environment: -25~+70°C, 35-95%RH

Storage Environment: -30~+80°C, 35-95%RH

Protection Circuit: Built-in Surge Protection Circuit, Power Reverse Polarity Protection Circuit, Over Current Protection Circuit

Package List:

1 x Photoelectric Sensor Switch
