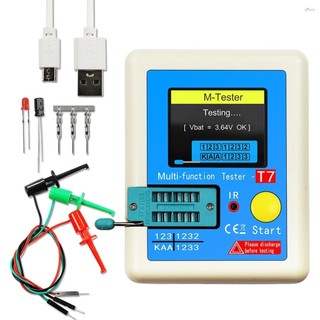

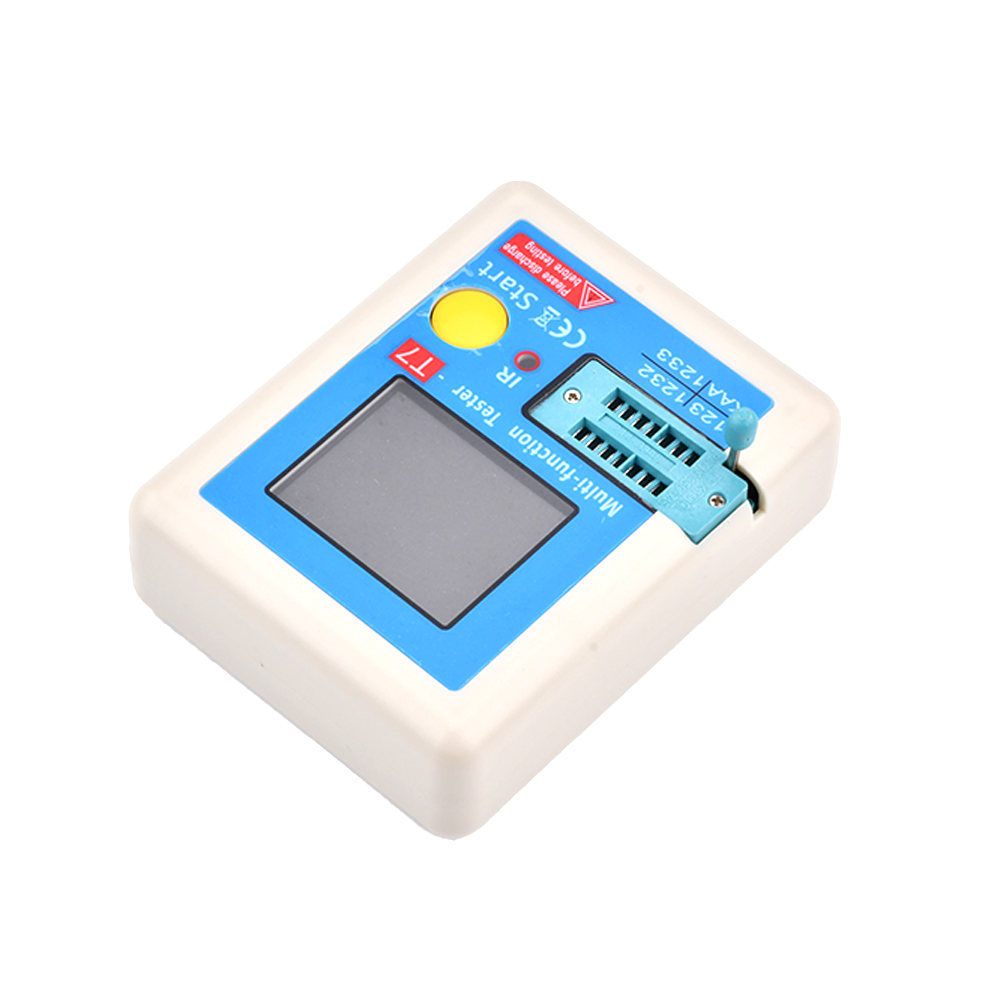

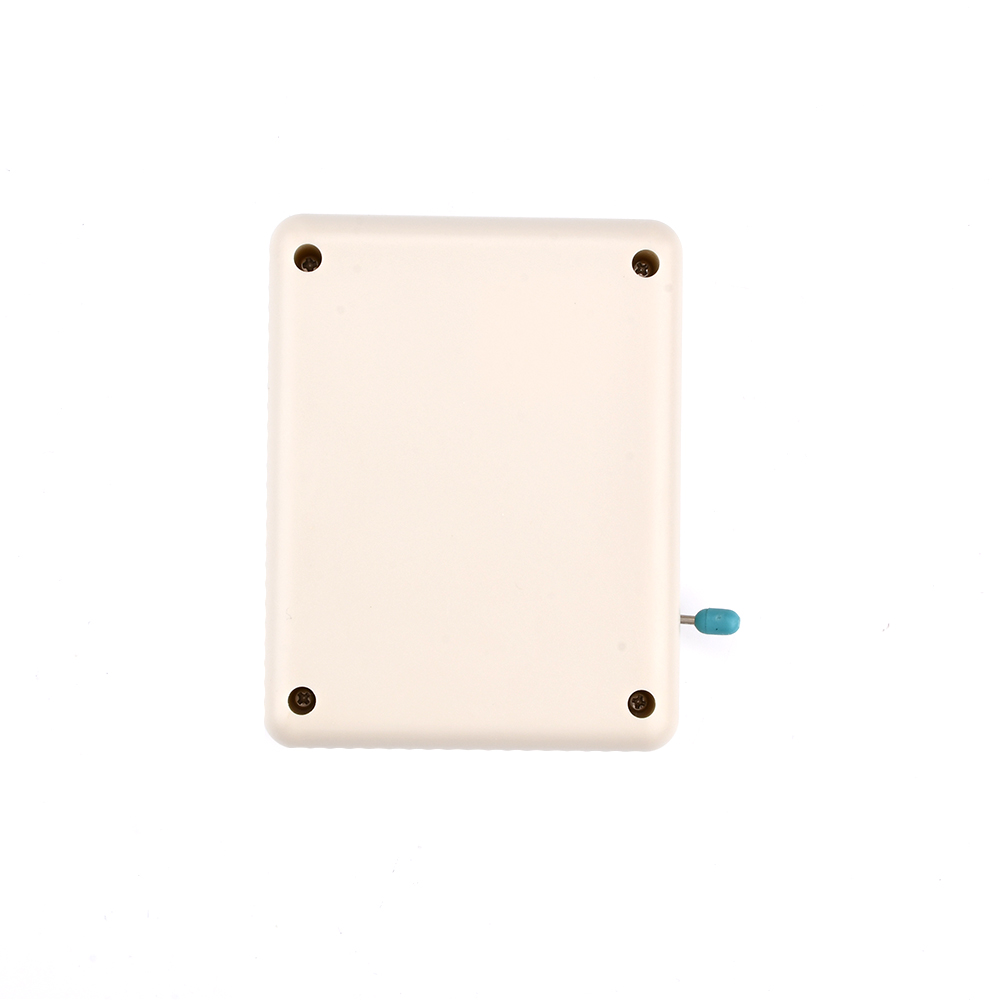

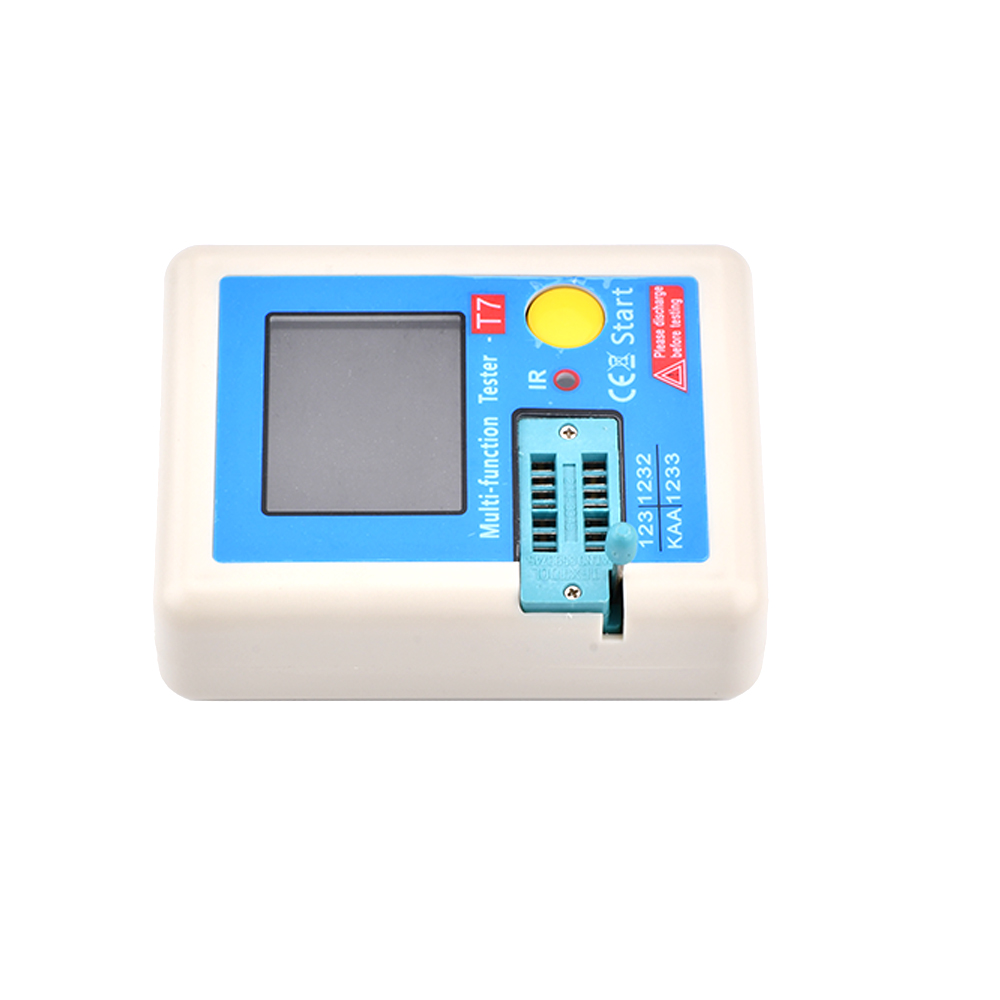

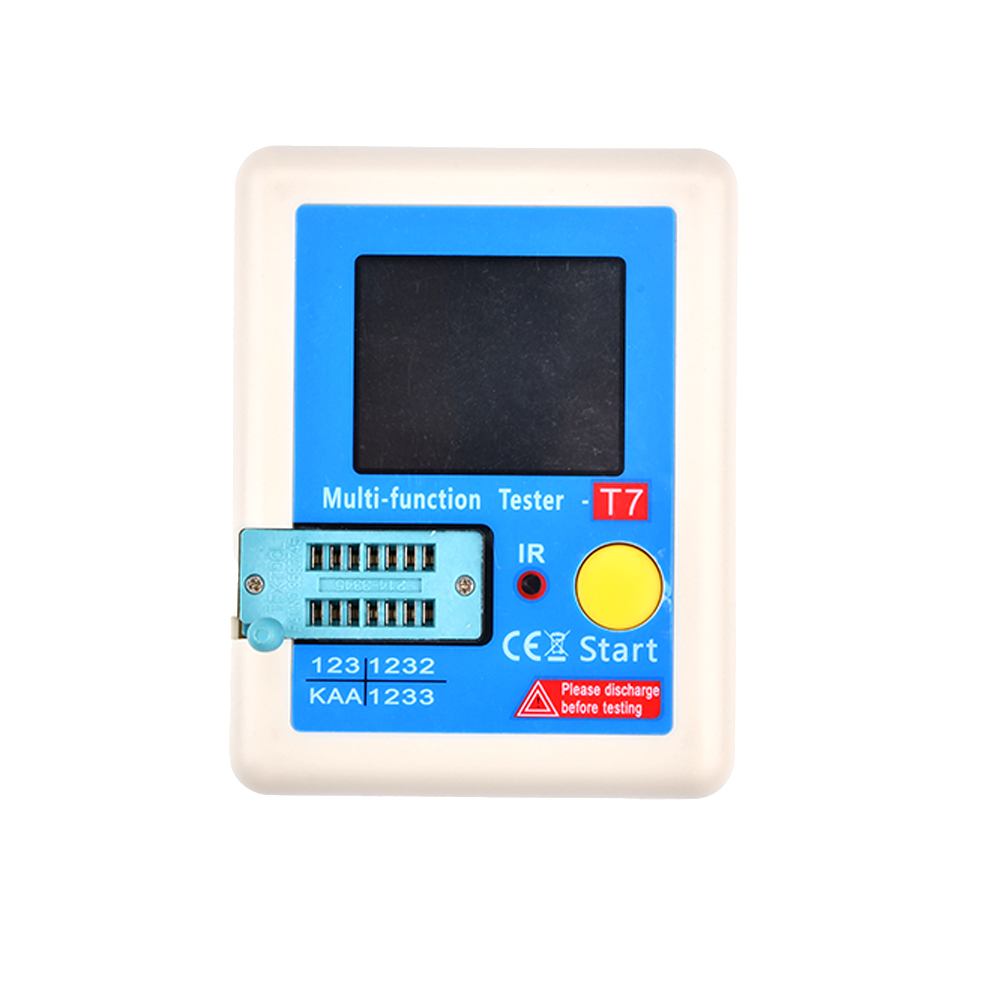

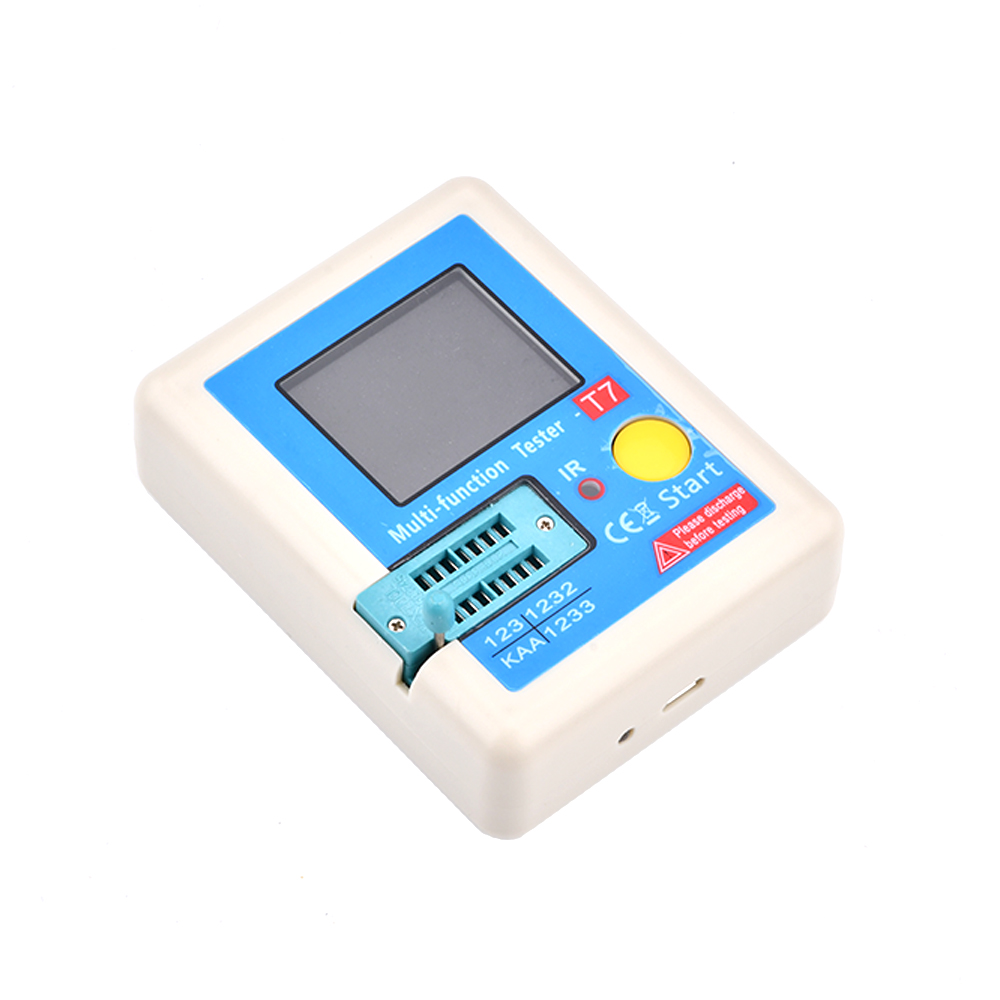

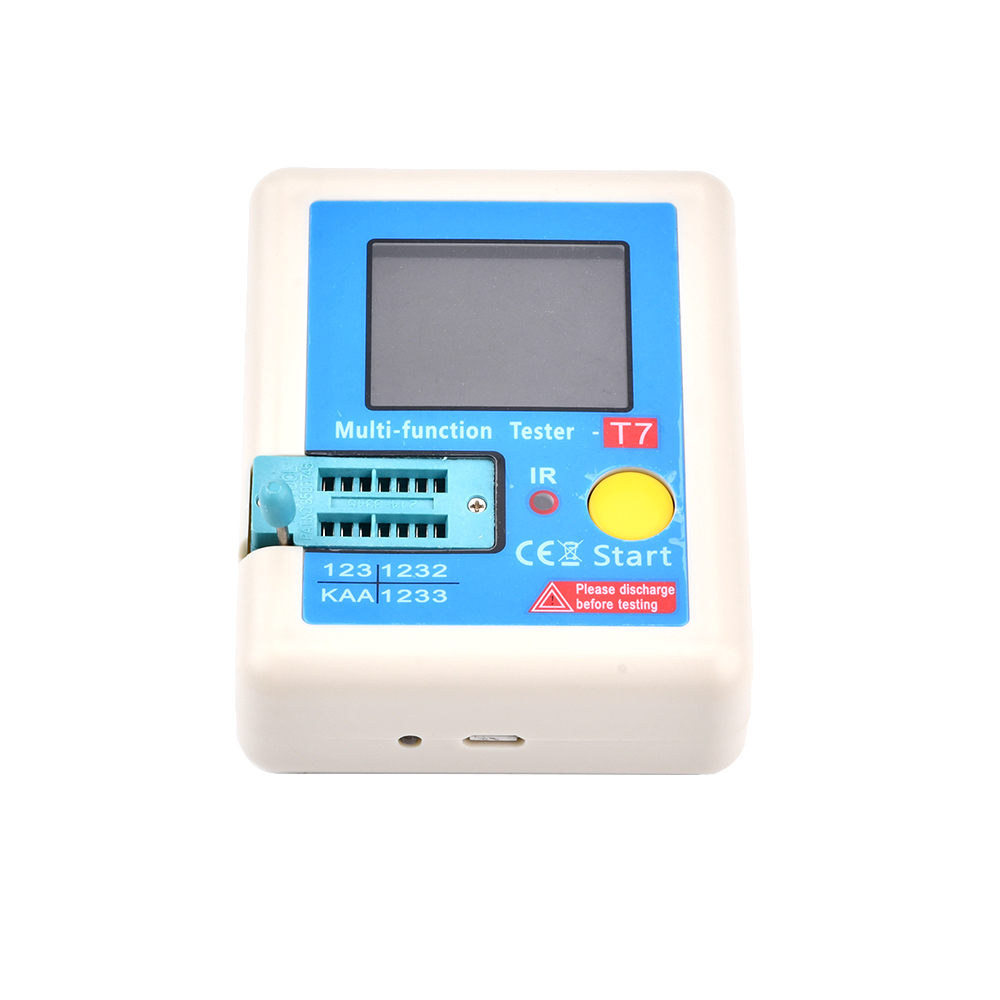

pcbfun Máy Kiểm Tra Bóng Bán Dẫn Mới LCR-T7 Máy Kiểm Tra Điện Dung Bóng Bán Dẫn Diode TFT Máy Kiểm Tra ESR LCR Máy Kiểm Tra Đa Năng NPN PNP MOSFET Máy Đo Đa Năng Màn Hình 160x128 TFT

1.1 characteristics TC-V2.12k is a multifunctional tft graphic display tester.

L Transistor Tester

-

- Automatic detection of zener diode 0.01-30V

-Self test with automatic calibration

L IR decoder

-Support hitachi go encoding

- Display IR waveform

- Infrared receives instructions

L others

-Measuring results using tft graphic display (160x128)

- An operating key

- Automatic shutdown (configurable timeout)

- Built-in high capacity rechargeable lithium-ion battery

- Voltage detection of lithium-ion battery display 160x128 tft

-Multifunction key

- Transistor test area

- Zener diode test area

- IR receiver window

- Micro usb charging interface

-LED charge indicator

1.1 characteristics TC-V2.12k is a multifunctional tft graphic display tester.

L Transistor Tester

-

- Automatic detection of zener diode 0.01-30V

-Self test with automatic calibration

L IR decoder

-Support hitachi go encoding

- Display IR waveform

- Infrared receives instructions

L others

- Measure results using tft graphic display (160x128)

- An operating key

- Automatic shutdown (configurable timeout)

- Support in Chinese and English

Warning: The built-in lithium-ion battery, the tester immersed in water or near a heat source is strictly prohibited!

Warning: For your personal safety, strictly follow the specifications and precautions for using the lithium ion battery!

1 Operating instructions 1.1 important operational definitions The multifunction key has two actions:

L short press: press the key and not less than 10 ms, release the key in 1.5 seconds

L long press: press the key for more than 1.5 seconds

1.2 Call In the off state, quickly press the multifunction key, the tester is turned on and measured automatically.

L power on & measurement interface

1.3 detect transistor In the power off state or the test is completed, place the test element in the transistor test area of the test seat, and press the locking handle, short press the multifunction key, the tester automatically measures, graphical display of the results when the test is complete.

WarningAlways make sure to DISCHAR capacitors before connecting them to the tester! The tester can be damaged before you turn it on!

Warning: We do not recommend using the tester to measure the battery! The battery voltage must be less than 4.5v, otherwise the tester may be damaged!

Components placement L

Test banks are divided into transistors and zener diode test area, detailed in 1.1 description.
