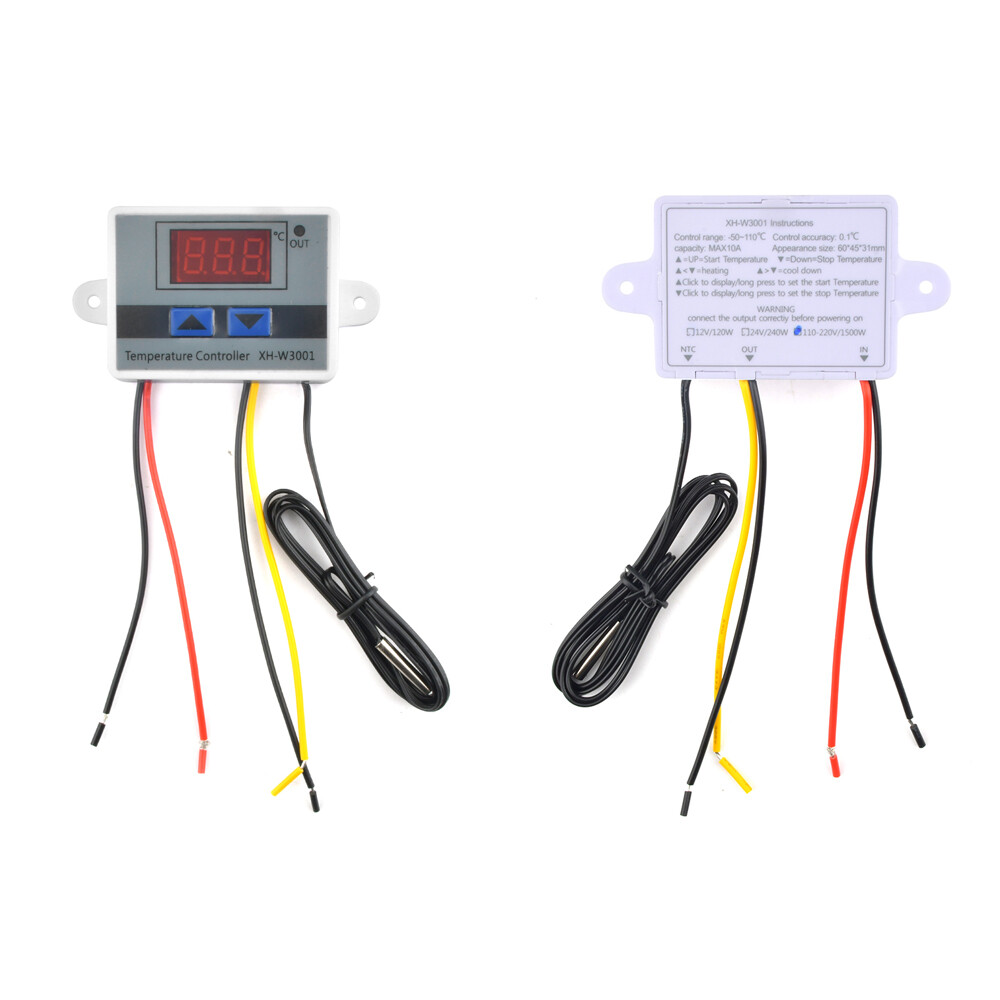

PANTHON XH-W3001 Bộ Điều Nhiệt Vi Tính Bộ Điều Khiển Nhiệt Độ Kĩ Thuật Số Điện Tử Thông Minh Công Tắc Điều Khiển Nhiệt Độ Màn Hình Hiển Thị Kỹ Thuật Số 12/24/220V

Specification:
Product name: Microcomputer temperature controller
Product Model: XH-W3001

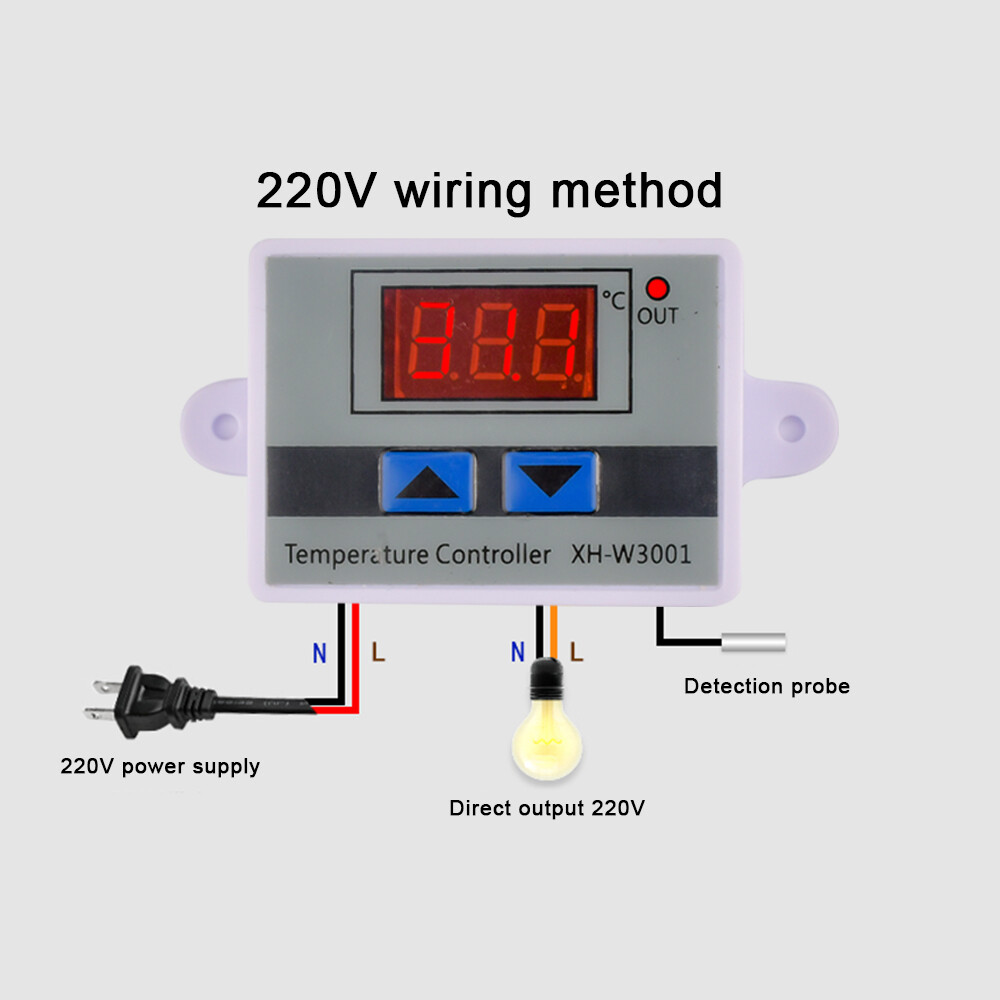

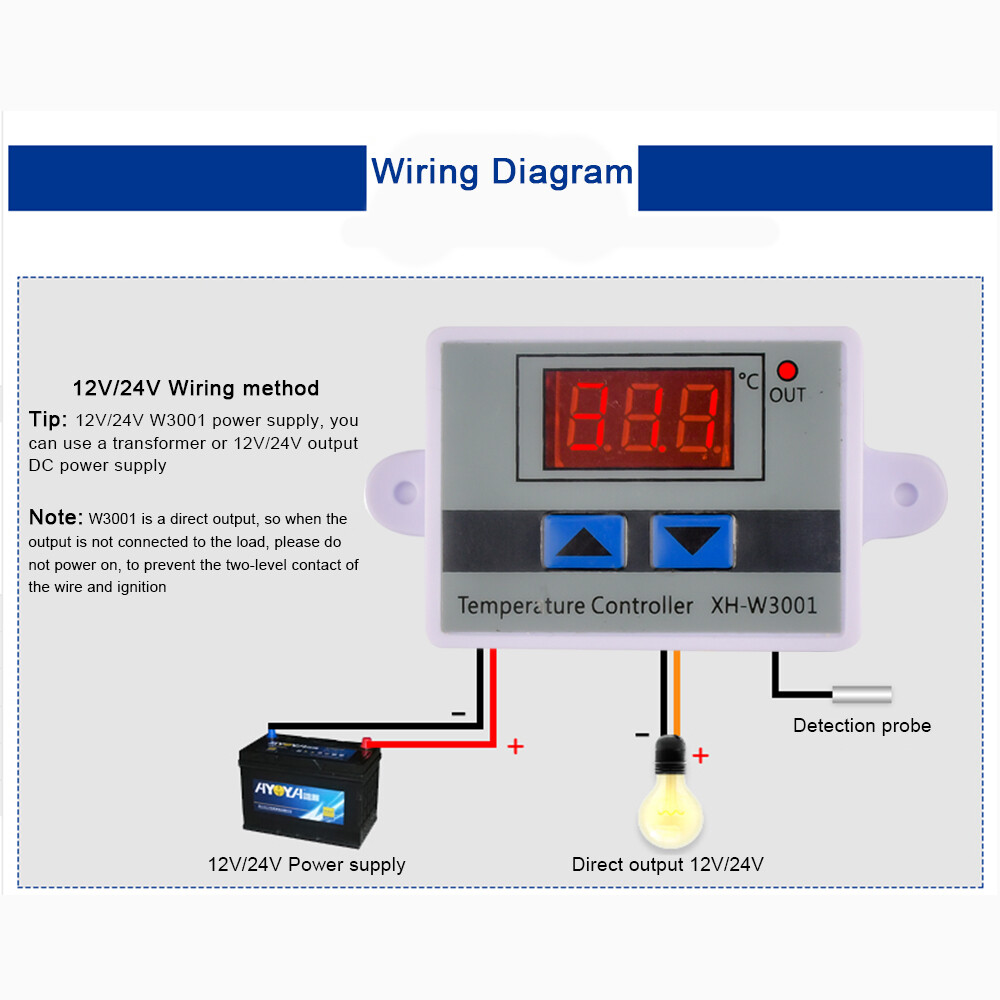

Supply voltage: 12/24/220V
Temperature measurement range: -50℃~110℃
Temperature control range: -50℃~110℃
Temperature control accuracy: 0.1℃
Load power: 120/240/1500W
Measurement input: NTC10K waterproof probe L=1 meter
output type: direct output
Output capacity: max 10A

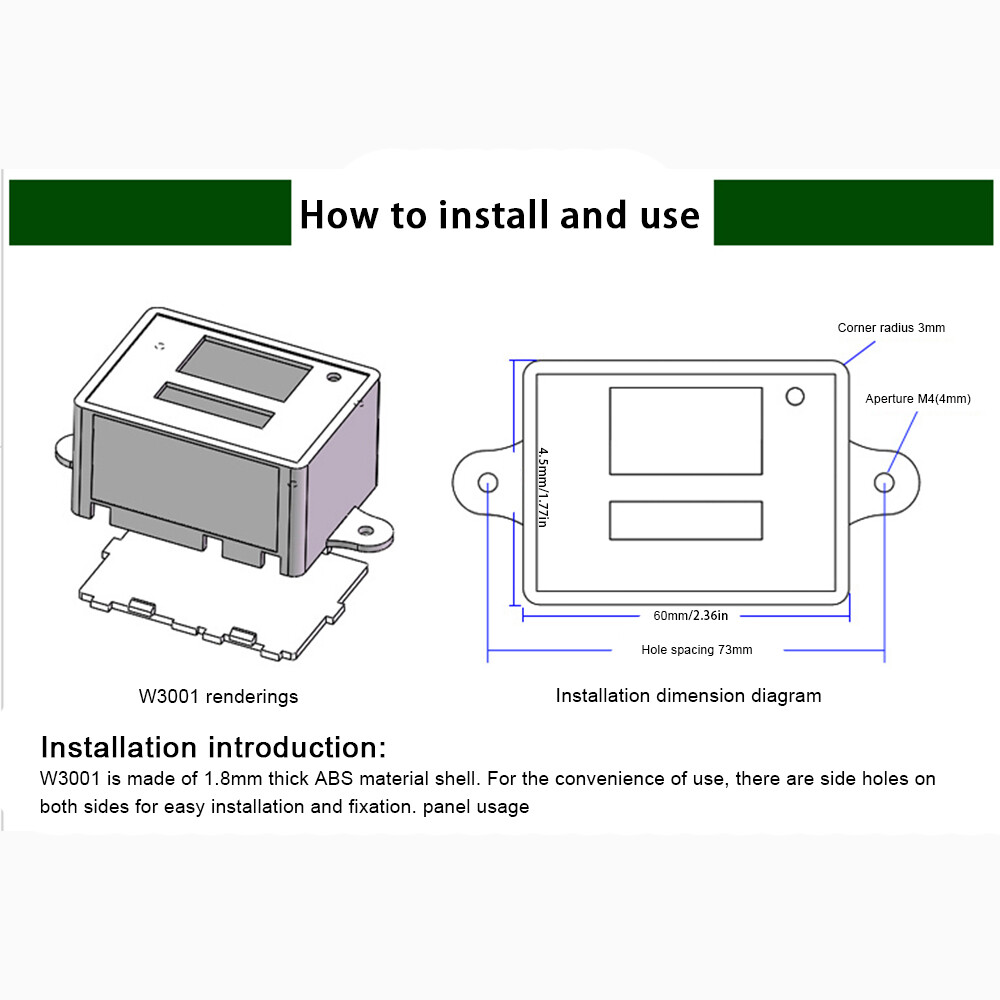

Installation hole distance: 73mm (diameter 4mm)
Appearance size: 60*45*31mm

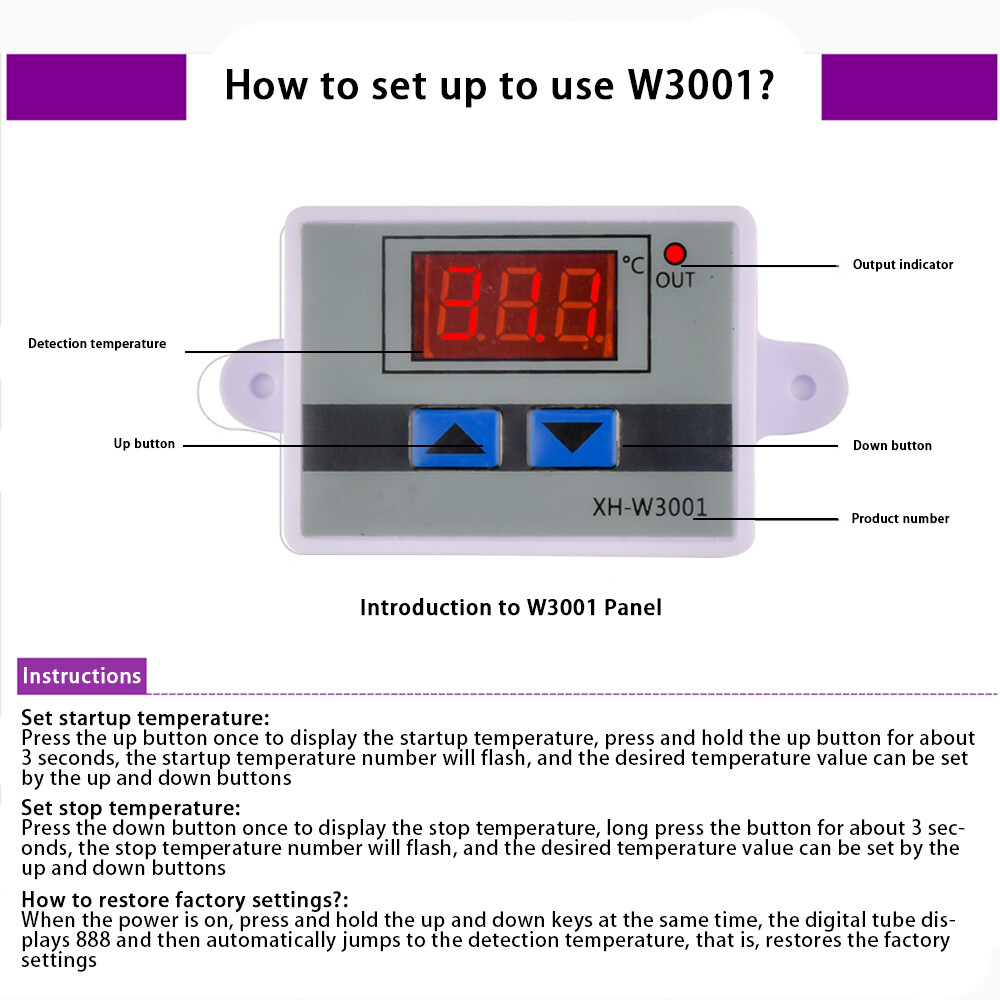

Instructions:
To set the startup temperature:
Press the up button once to display the startup temperature, press and hold the up button for about 3 seconds, the startup temperature number will flash, and the desired temperature value can be set by the up and down buttons
Set stop temperature:
Press the down button once to display the stop temperature, long press the button for about 3 seconds, the stop temperature number will flash, and the desired temperature value can be set by the up and down buttons
reset:
When the power is on, press and hold the up and down keys at the same time, the digital tube displays 888 and then automatically jumps to the detection temperature, that is, restores the factory settings

Package includes:
Thermostat X1
