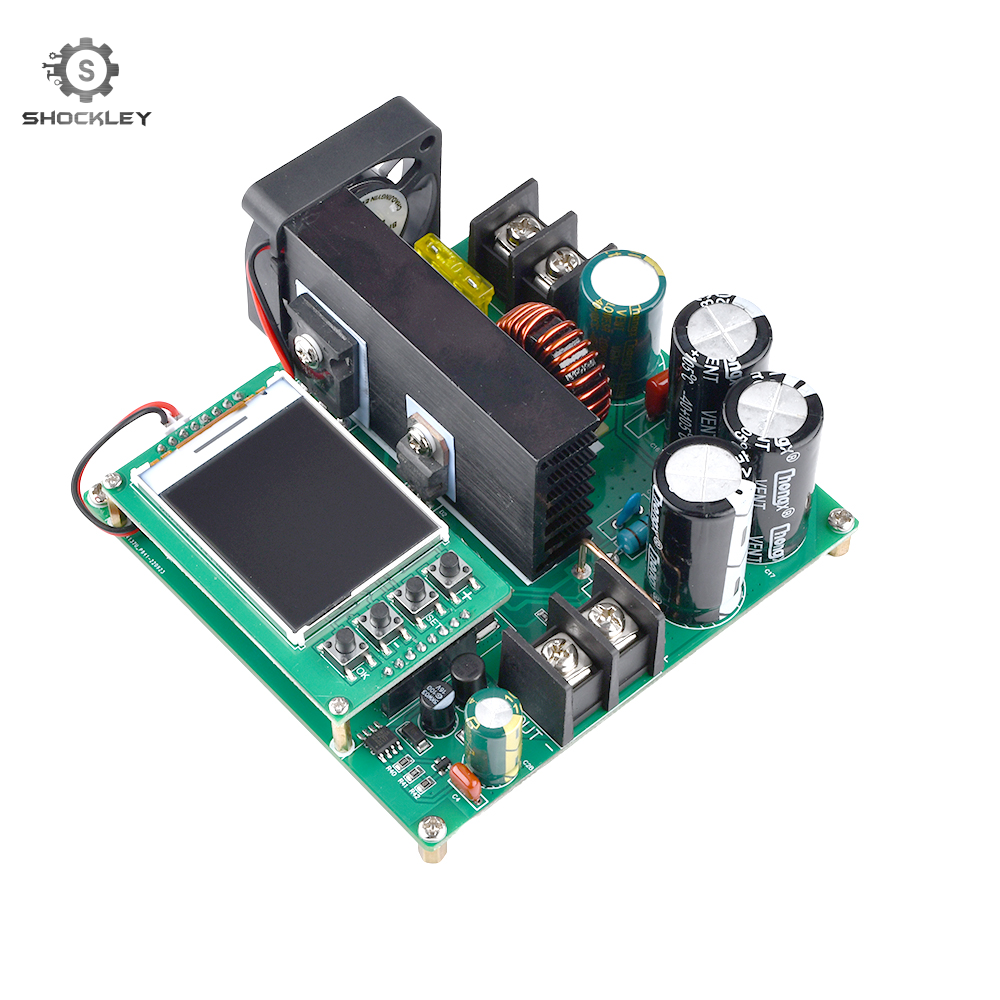

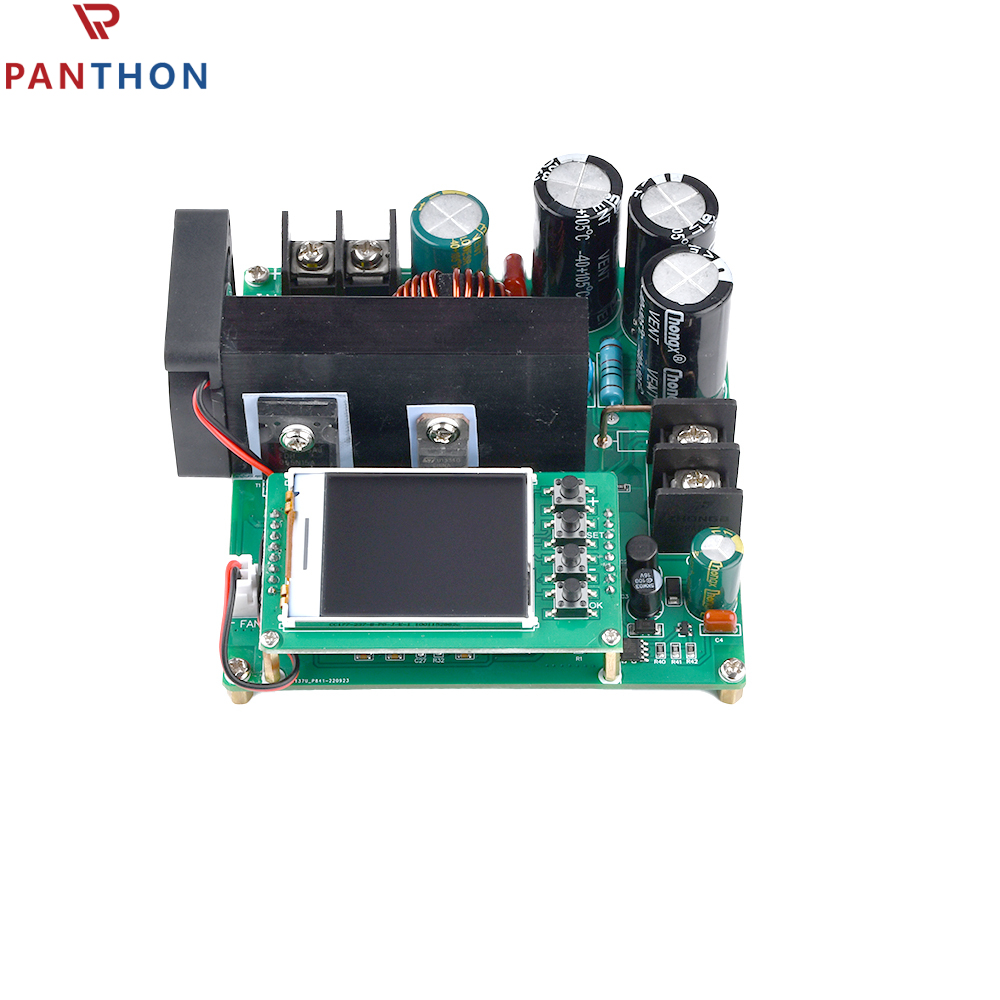

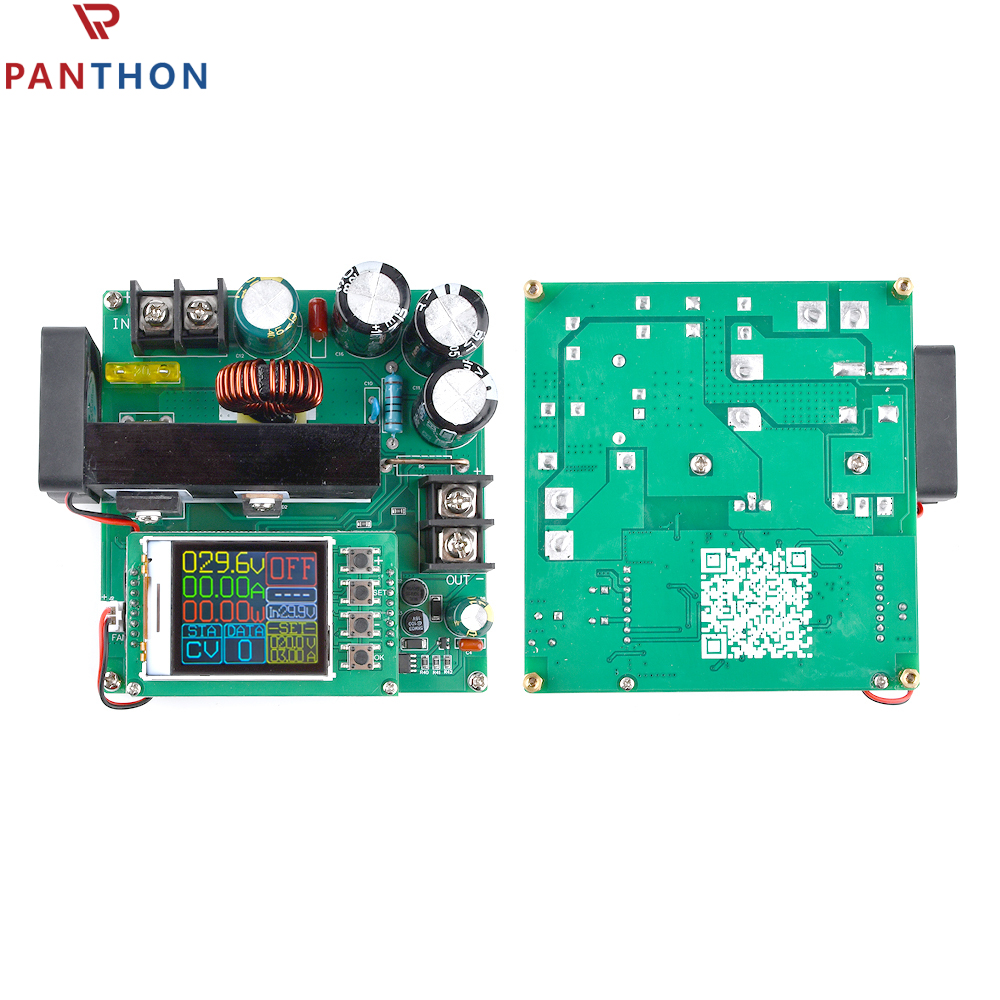

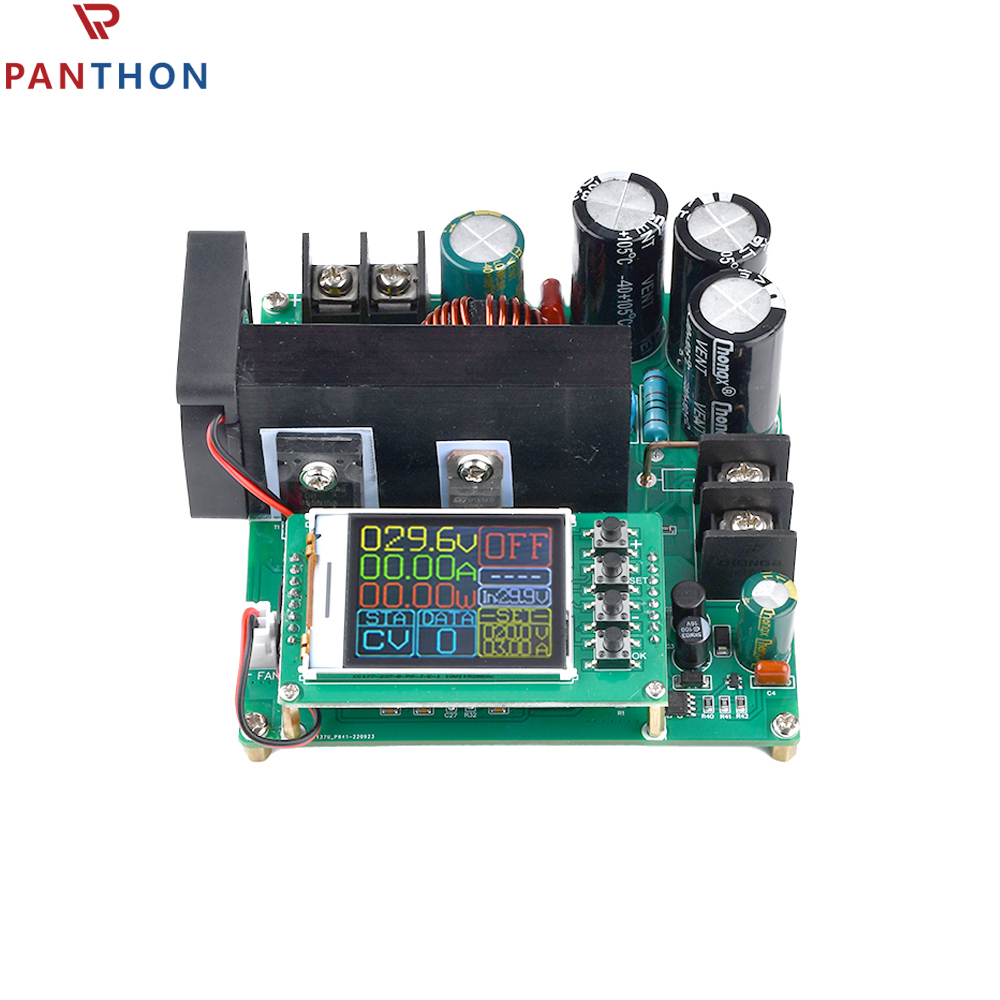

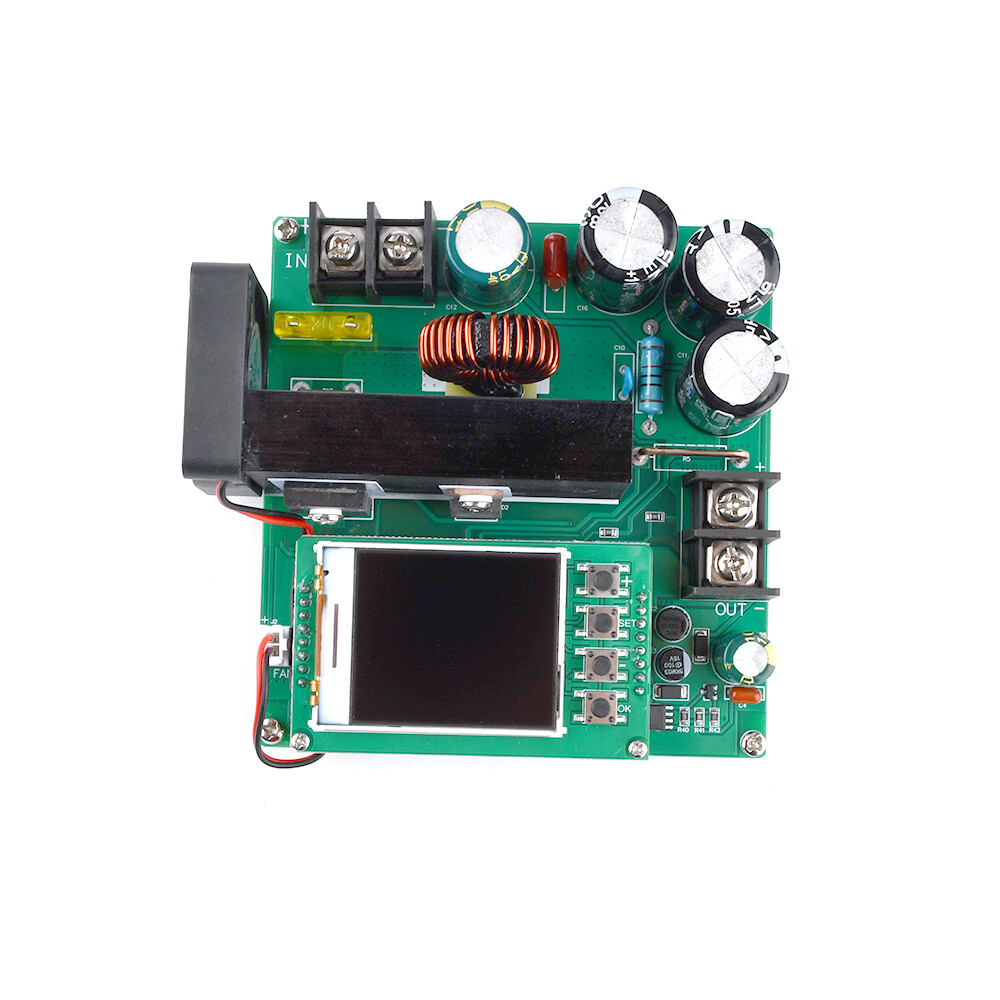

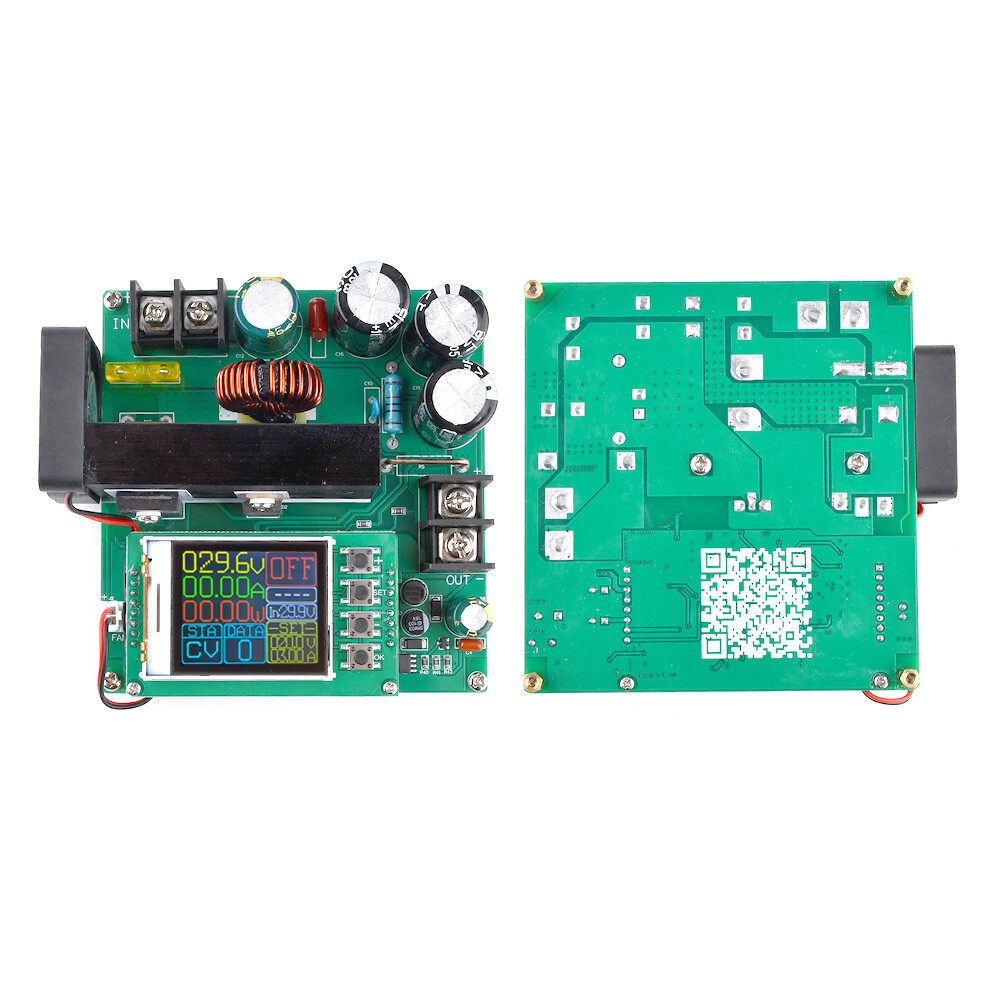

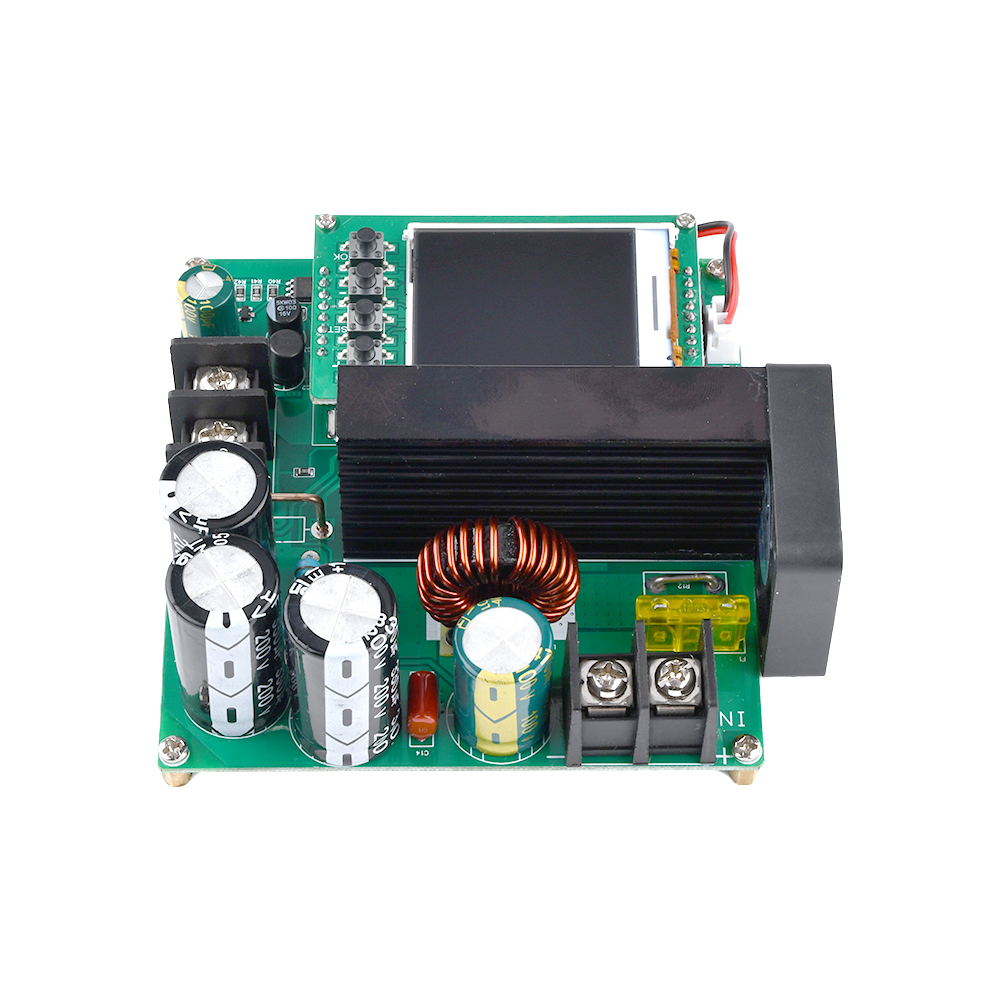

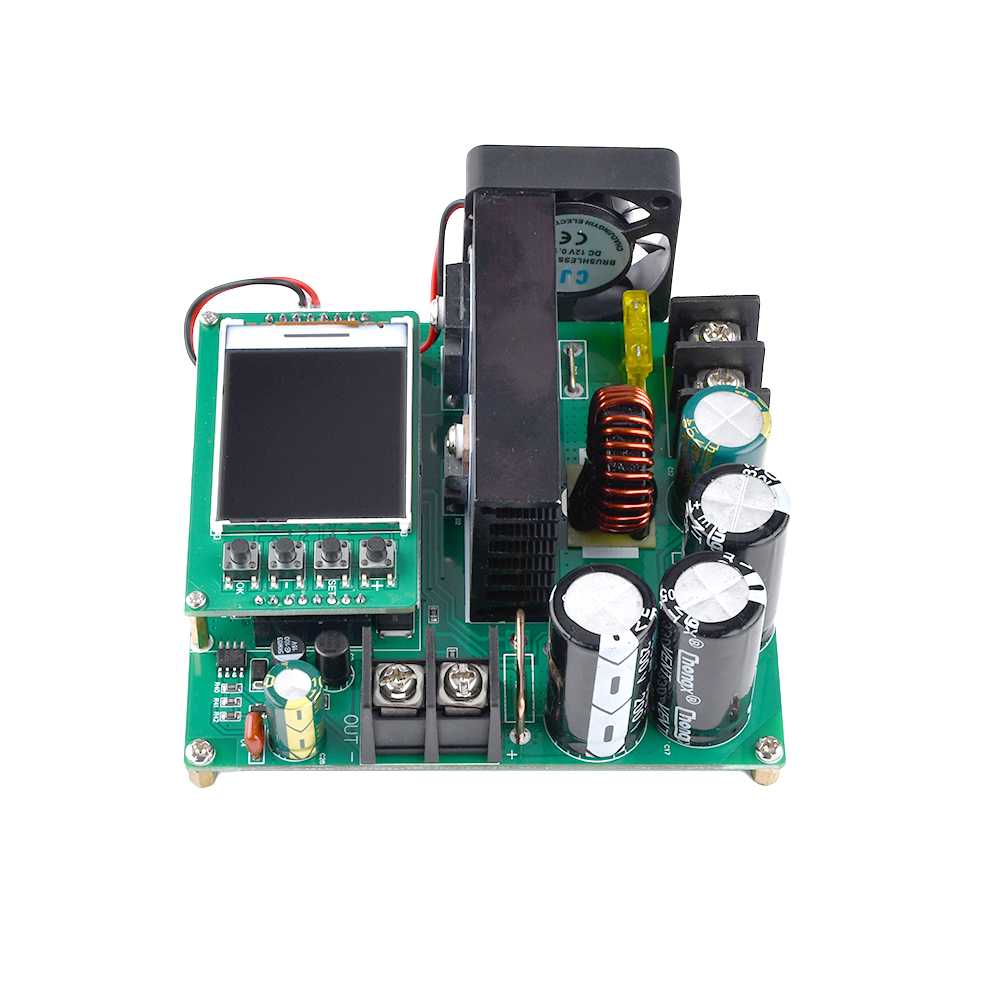

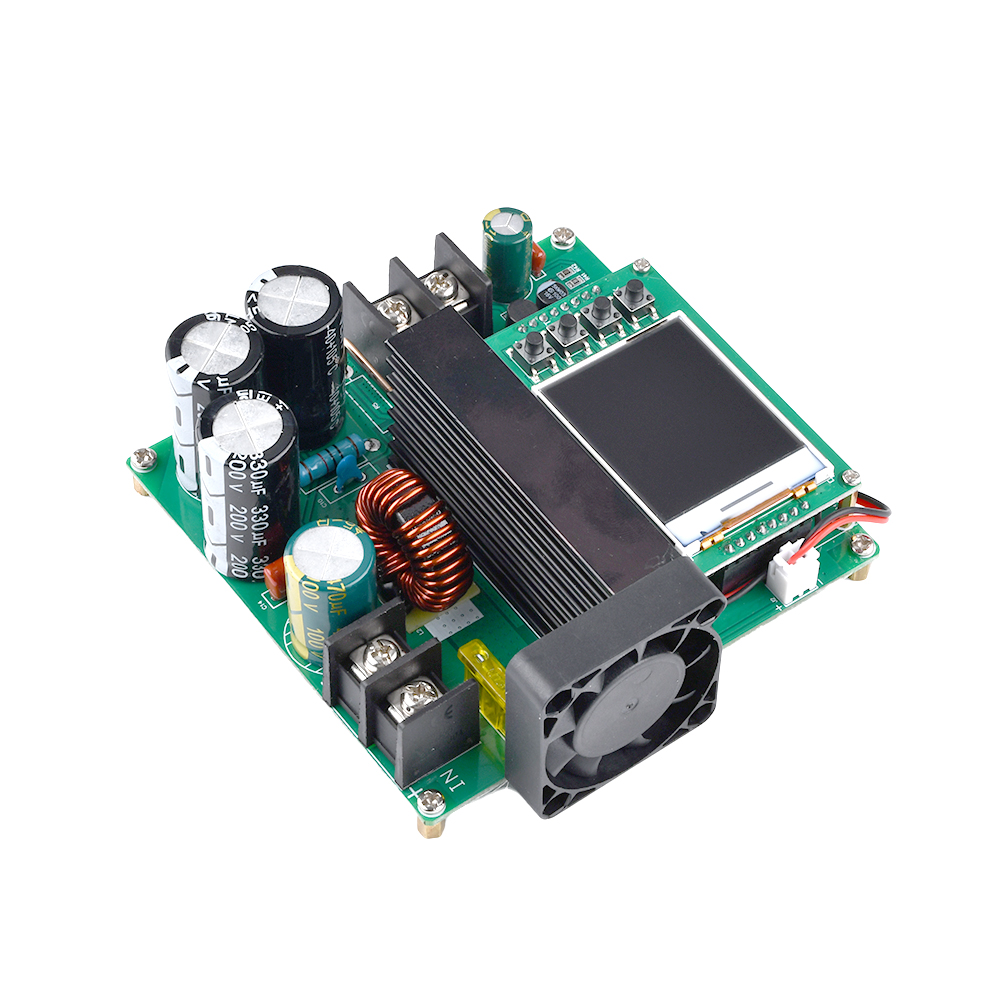

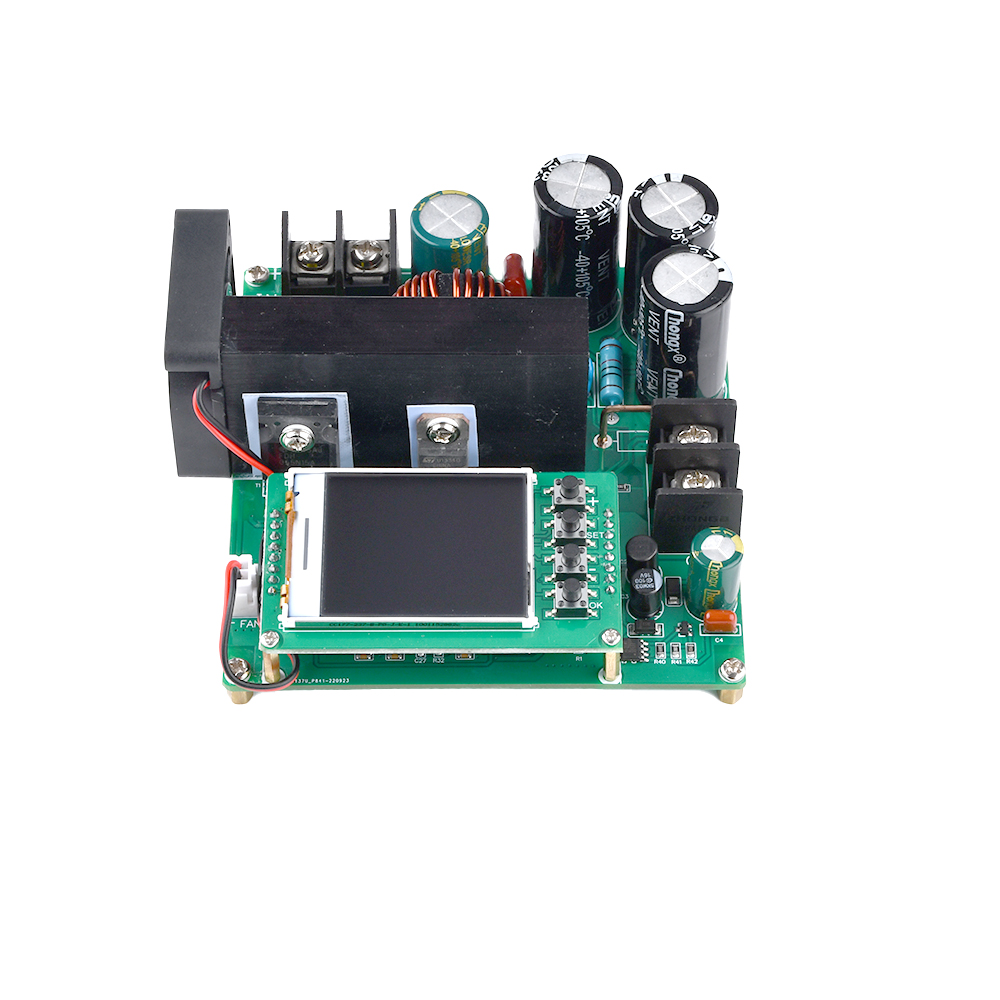

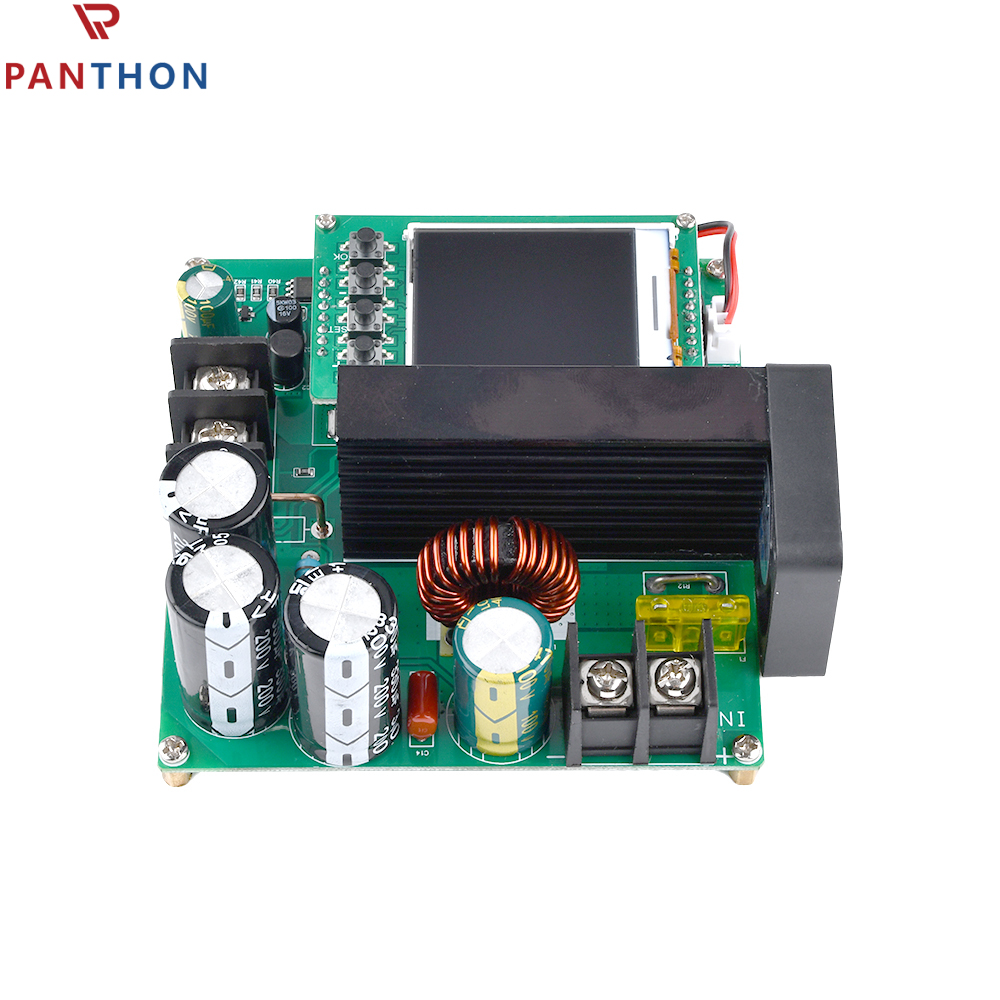

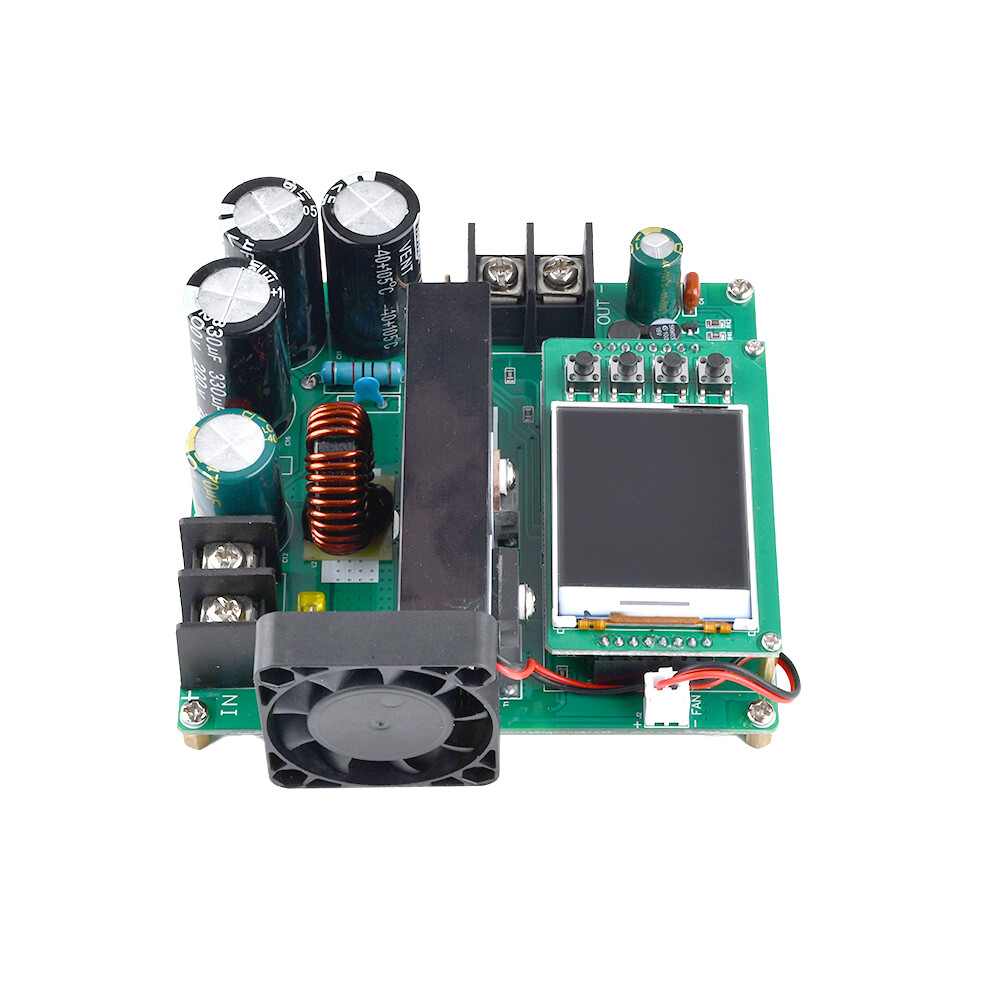

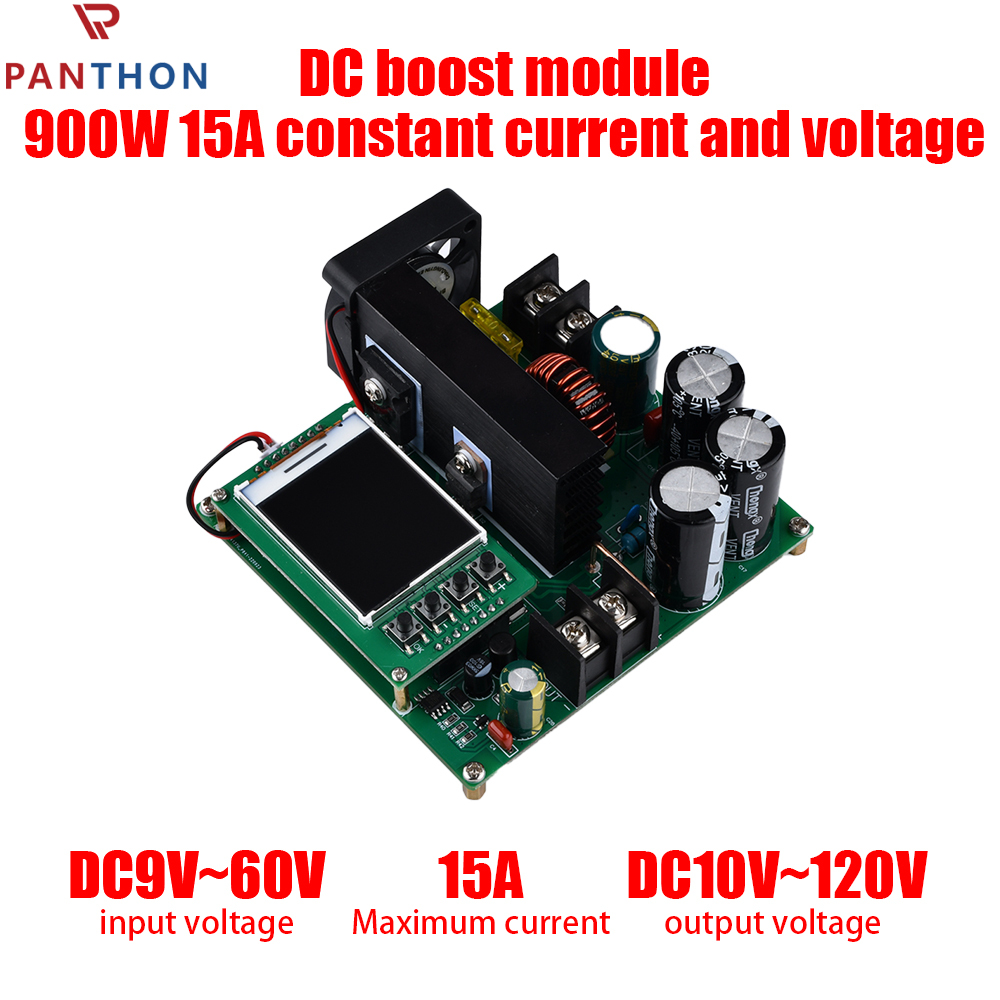

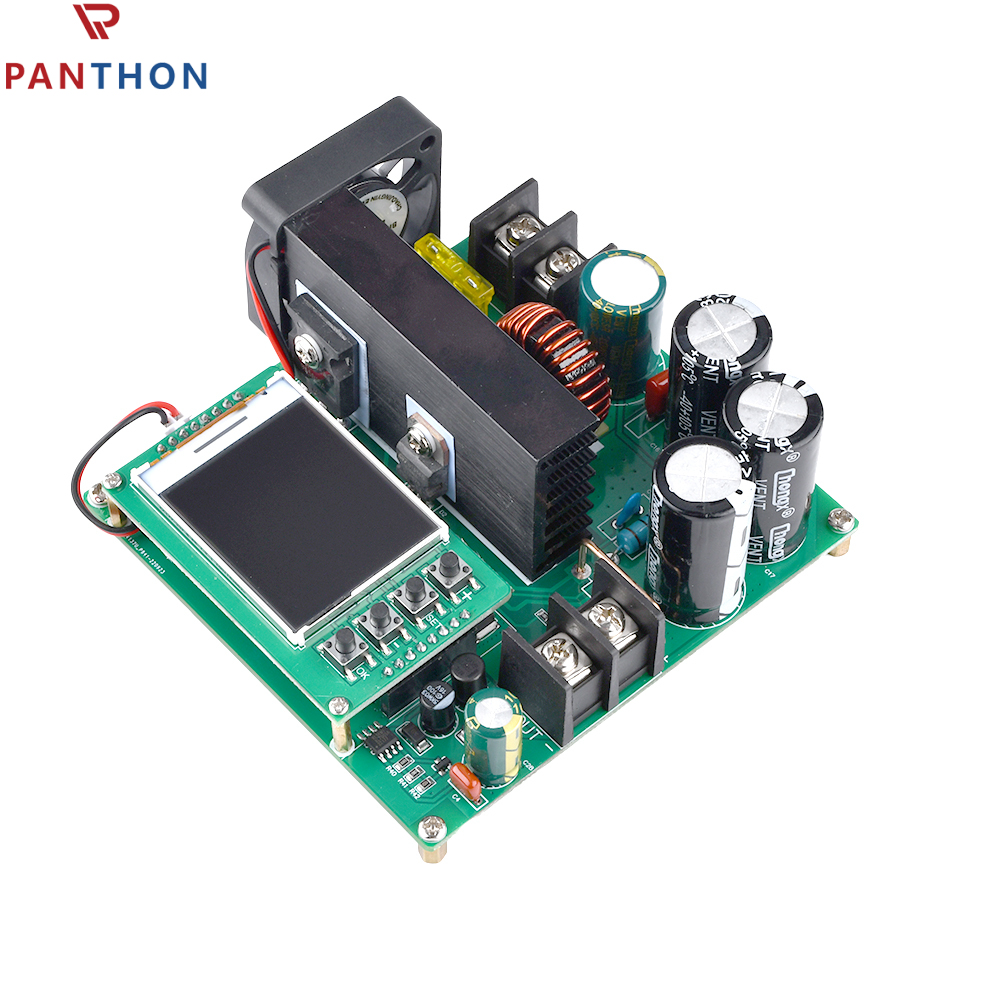

【💕Ready Stock🎉】PANTHON 1PC 900W 15A PCB CNC LCD Display Constant Current And Constant Voltage DC Boost Module Green

Features:

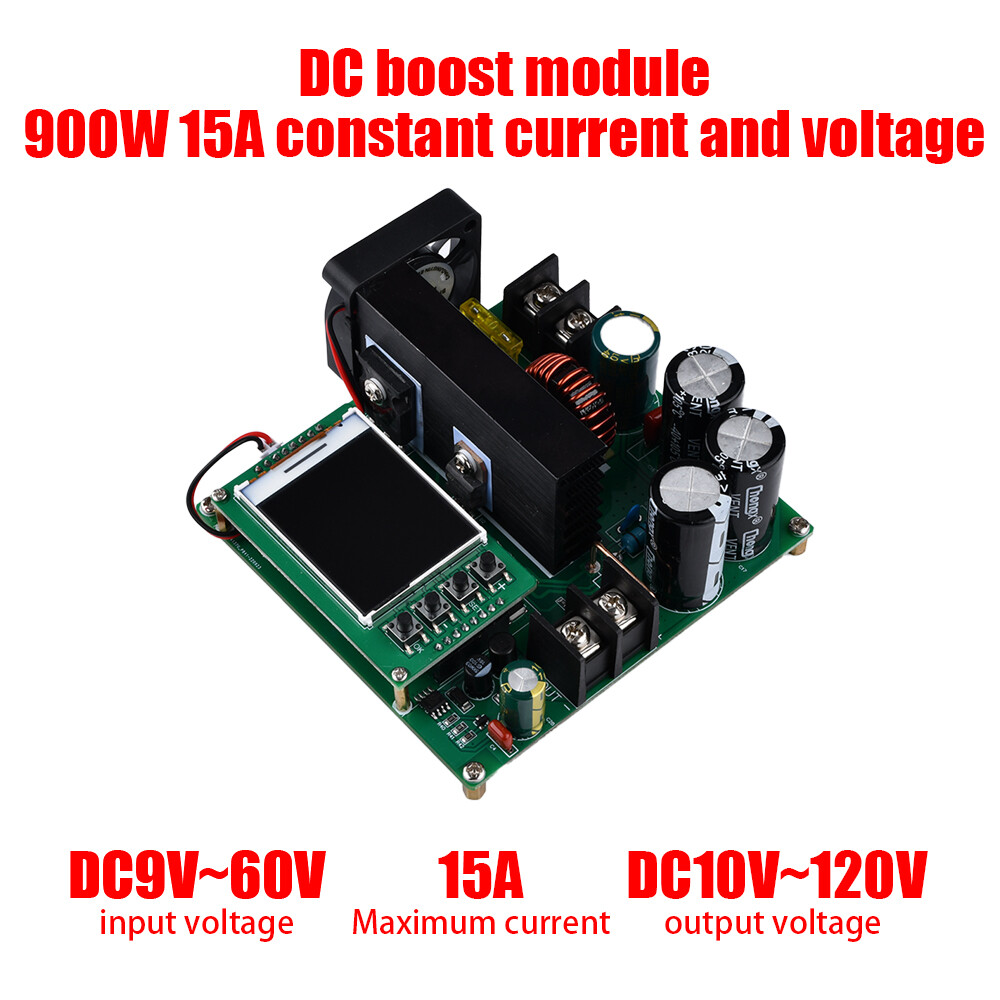

1.Adjustable step up converter, Input Voltage: DC9V~60V, Output Voltage: 10V~120V, Can be used for common boost module with over current protection, adjustable battery charger, LED driver, etc

2.Voltage and current regulation function.

3.Conversion efficiency: 85%

4.Safety Protection: active heat sink input fan runs continuously, short-circuit protection, low-voltage protection.

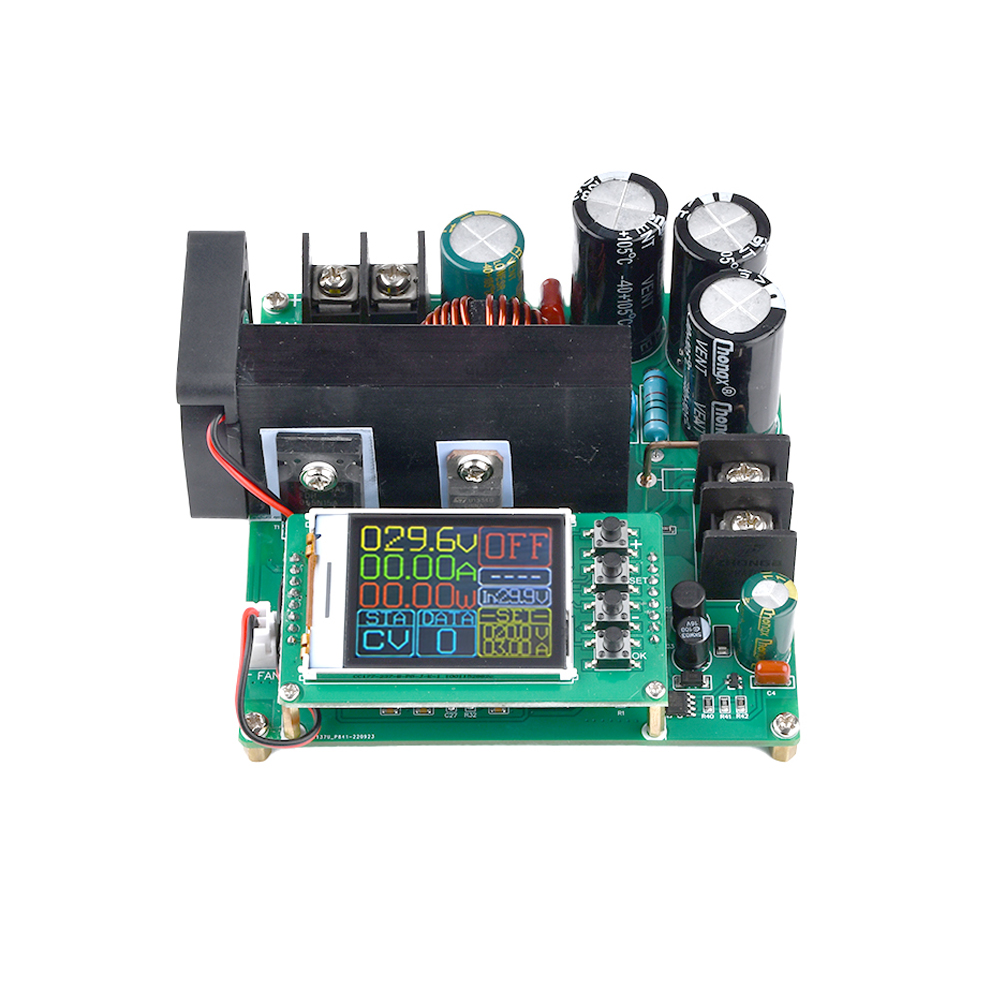

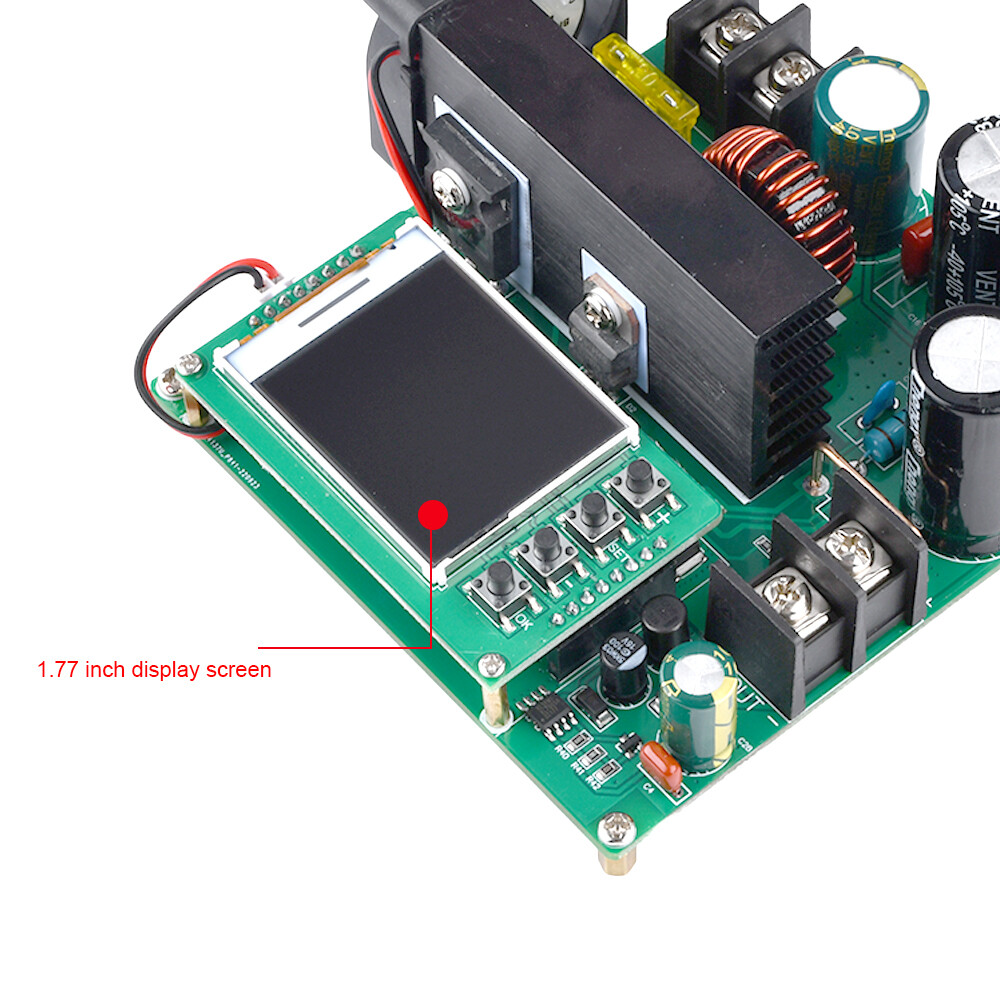

5.CNC+color screen display

Technical parameters:

Output current: 0~15A

Stored array: 10 groups

Input voltage (U-IN): DC9V~60V

Input current: 0~15A

Output voltage (U-OUT): 10V~120V

Output current: 0~15A

Conversion efficiency: 85%

Operating frequency: 150KHZ

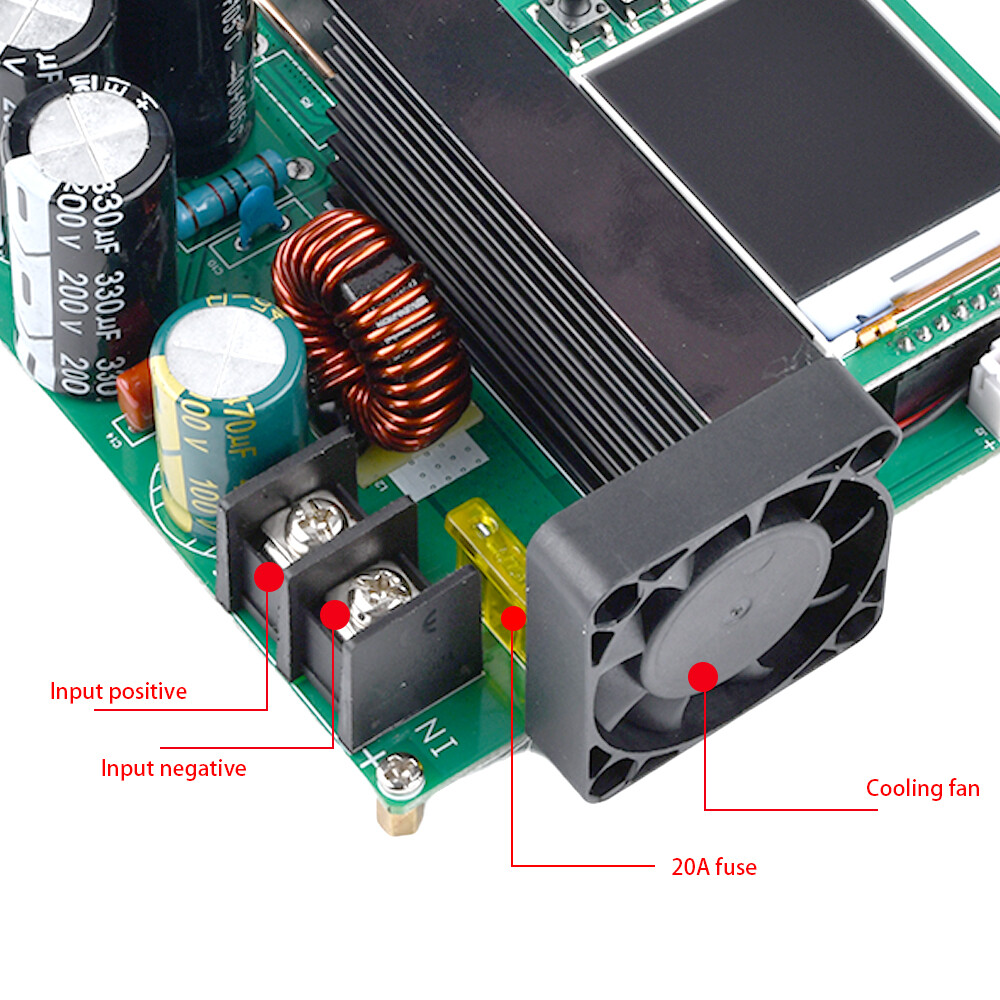

Short circuit protection: 20A fuse (non self recovery)

Operating temperature: - 40 ℃~85 ℃

Heat dissipation mode: active heat sink input fan runs continuously

Control mode: numerical control+color display

Voltage regulation display: 009.0V~120.0V

Current regulation display: 00.01A~15.00A

Output ripple: ≤ 50mV

Stored array: 10 groups

Standby power consumption: less than 150mA (measured when input 12V)

Weight: 235g (net weight) 280g (including package)

Size: 110mm × 105mm × 48mm (product)

Package size: 90mm × 110mm × 120mm (electrostatic bag+carton packaging)

Be careful:

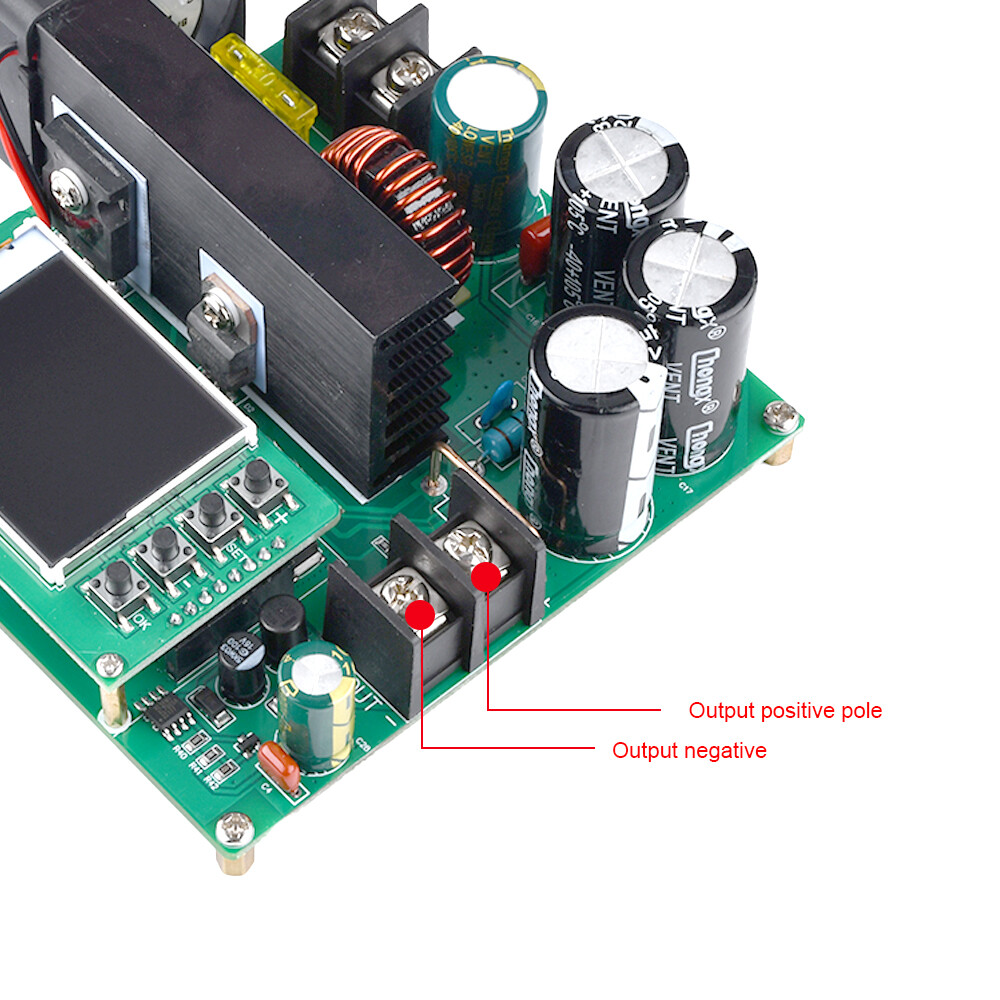

After the input is switched on, the output terminal is always electrically output, and the voltage is equal to the real-time output voltage displayed on the interface

Package include:

DC boost module X1
