Prameter

Product Features:

• Dual display for both set temperature and process temperature

• Vertical Size 48*96mm, 1/8 DIN

• Universal input, support 10 different types of thermocouples and RTD inputs by customers selected at panels.

• Auto-tune function can find the best PID parameter automatically

• Displays temperature inCelsius°C

• Four digits LED display can go up to "9999"

• Can be powered by either DC or AC power source

• Uses it for Kiln,Furnace,Oven,Incubator temperature control

• Uses it in heating control as well as for cooling control

• It is used in various industries to control and monitor process temperatures

Product Main Specifications:

Input type	TC: K, E, S, R, J, T, B, WRe3-WRe25. RTD: Pt100, Cu50
Input range	K (-200~+1300ºC), S (-50~+1600ºC), WRe3-WRe25 (0~2300ºC ), R (-50~+1600ºC), T (-200~400ºC), E (-200~900ºC), J (-200~1200ºC), B (350~1800ºC), Pt100 (-99.9~600.0ºC) or (-200~+600ºC), Cu50 (-50~150ºC)
Display	Two lines, Four digits. °C.
Display Resolution	1°C, or 0.1°C with Pt100
Accuracy	±0.5% or ±1 unit of full input range
Control mode	PID,On-Off
Output mode	Relay contact: 3A at 240 VAC.
Alarm	Upper-limit bias alarm
Power consumption	<2 Watt
Power supply voltage rating	85~260VAC/50~60Hz
Dimensions	CH402 48*96*110mm

Cautions:

• Only clean the instrument when power off.

• Please use a soft cloth or cotton paper to clean up the stain on the display.

• Do not clean up or touch the display by hard matters in case of any scrath.

• Never use sharp & hard matters such ass screwdrivers or ball pan to touch the buttons on the panel,in case of any scrath or damage.

Packages:

• 1×PID Digital Temperature Controller (NOT include thermocouple)

• 1 x English User Manual

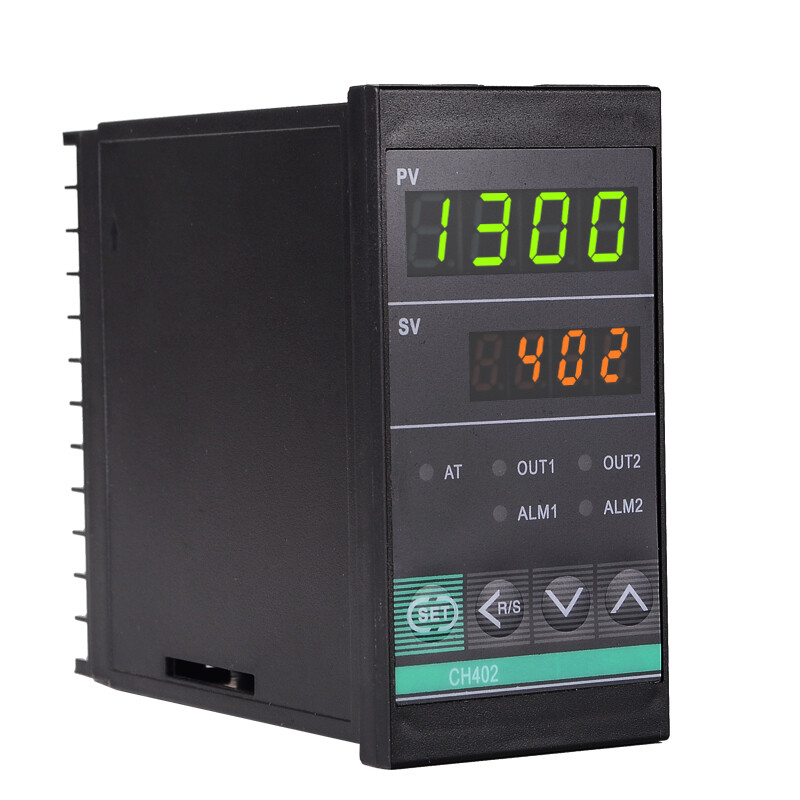

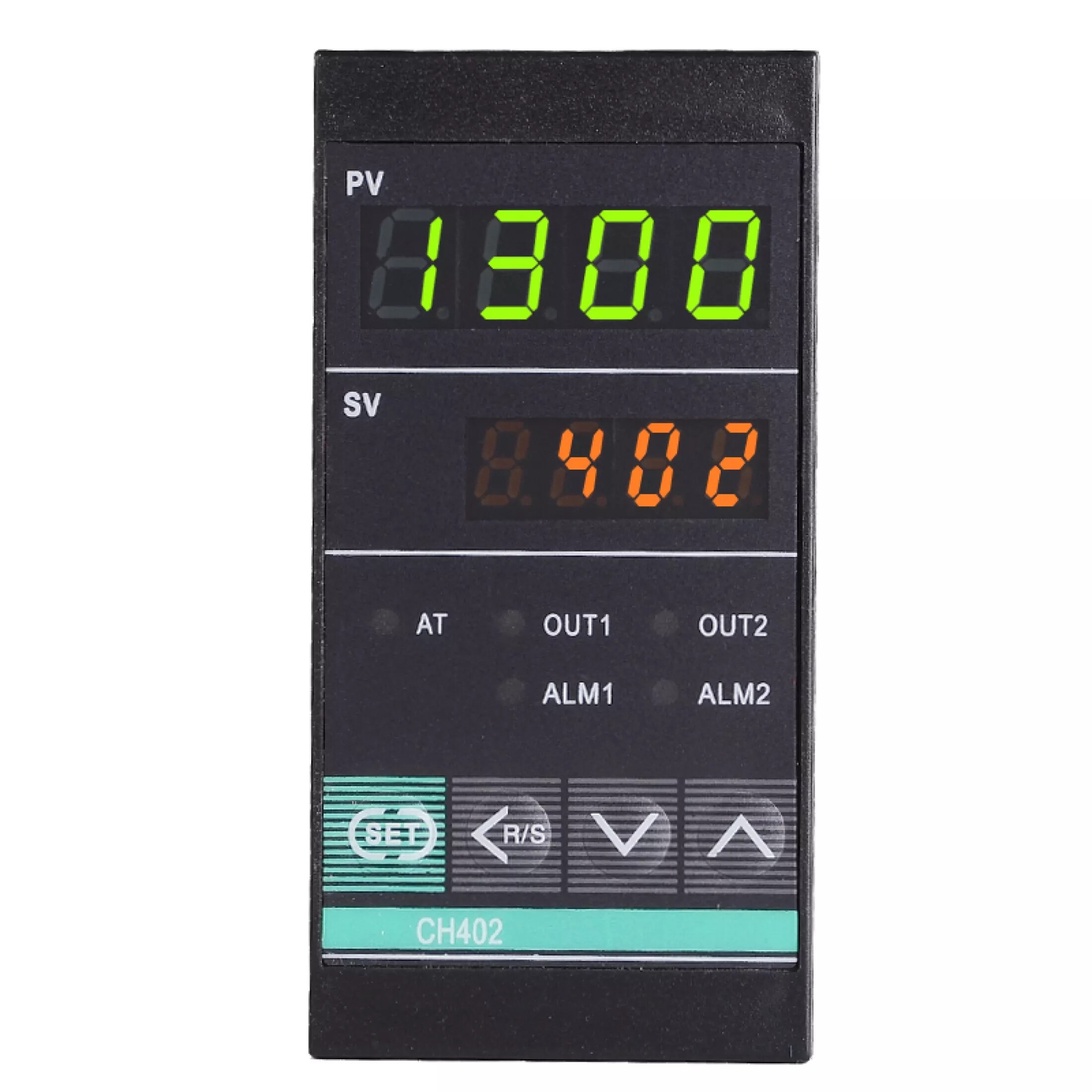

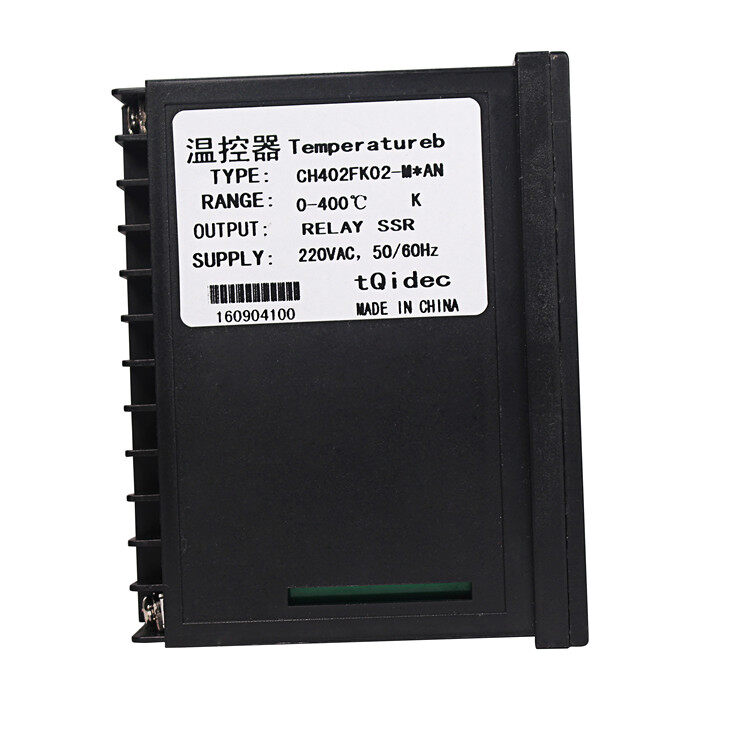

Product display
