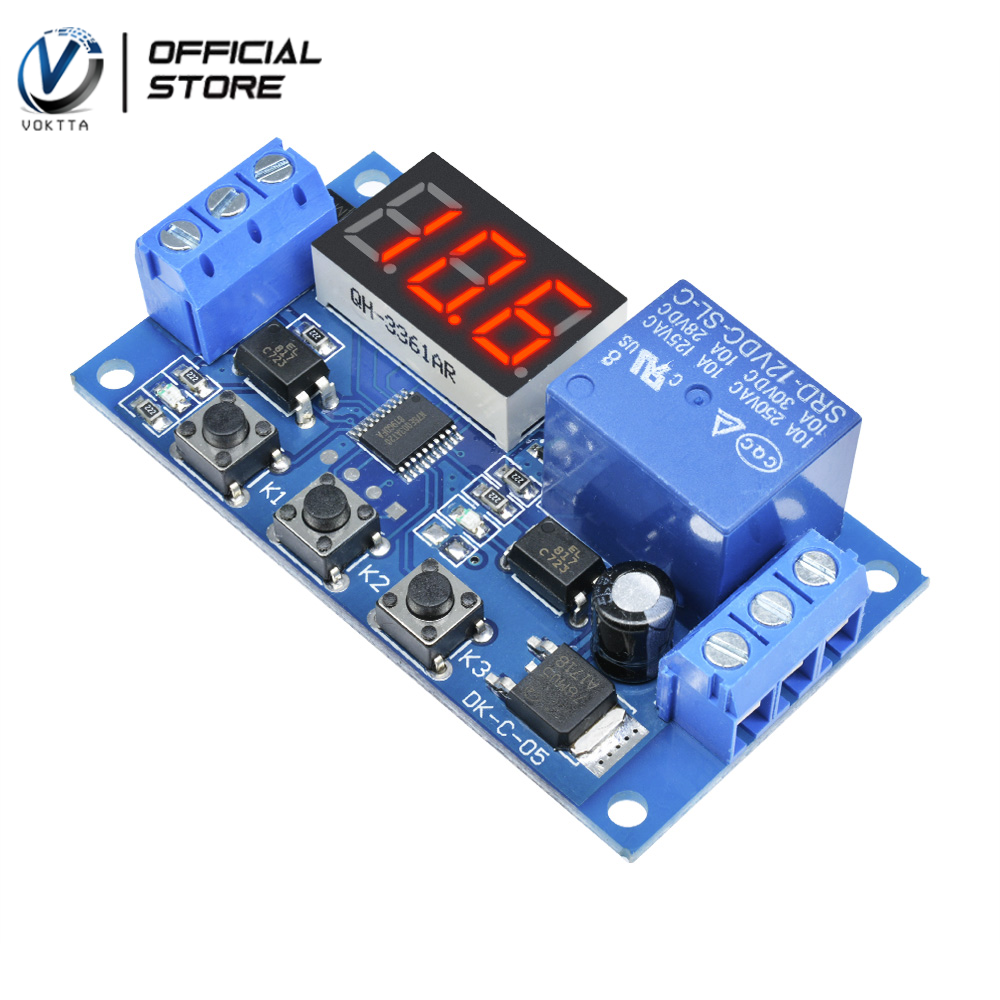

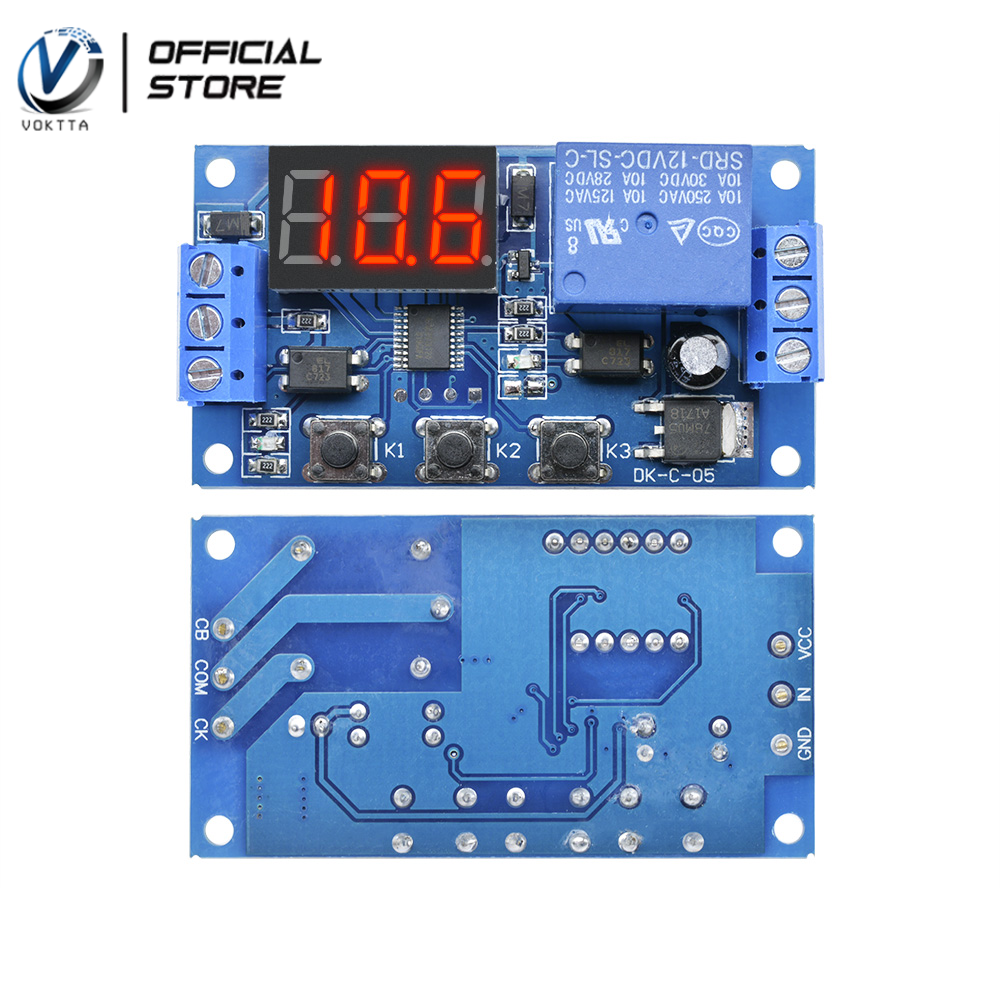

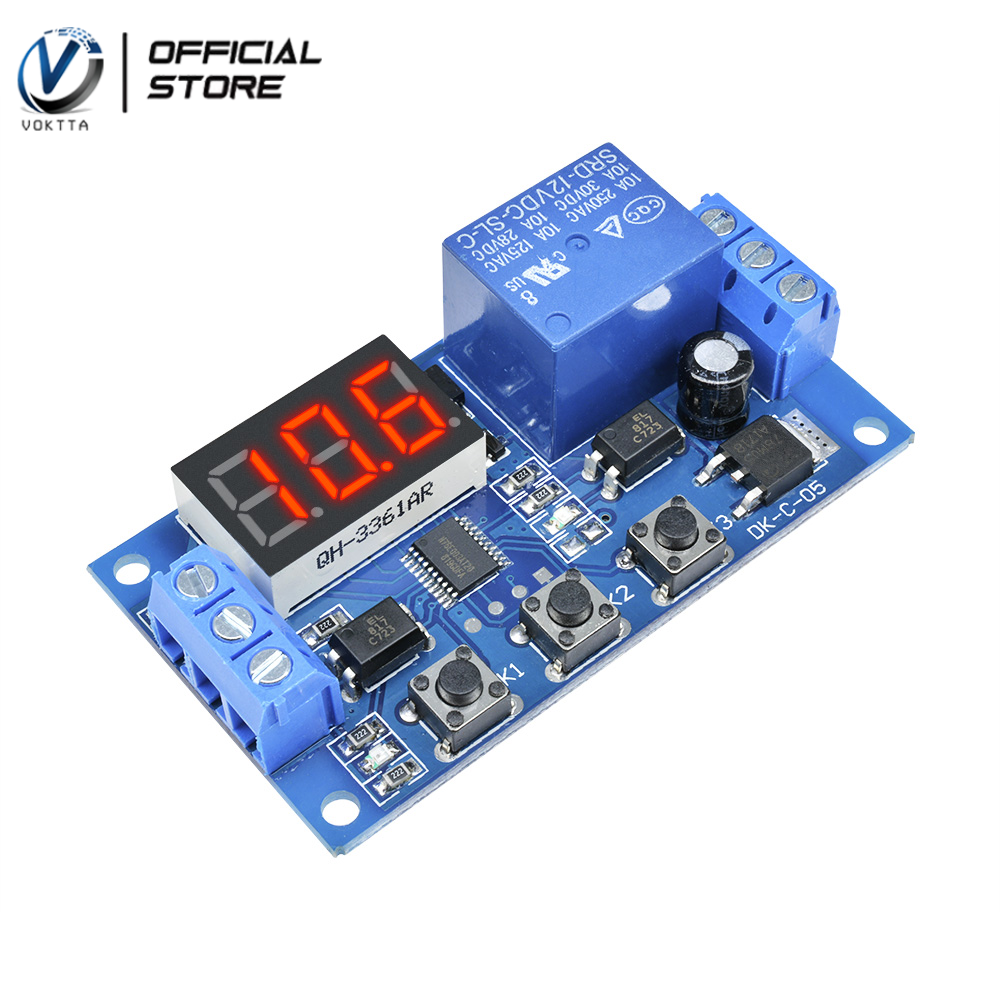

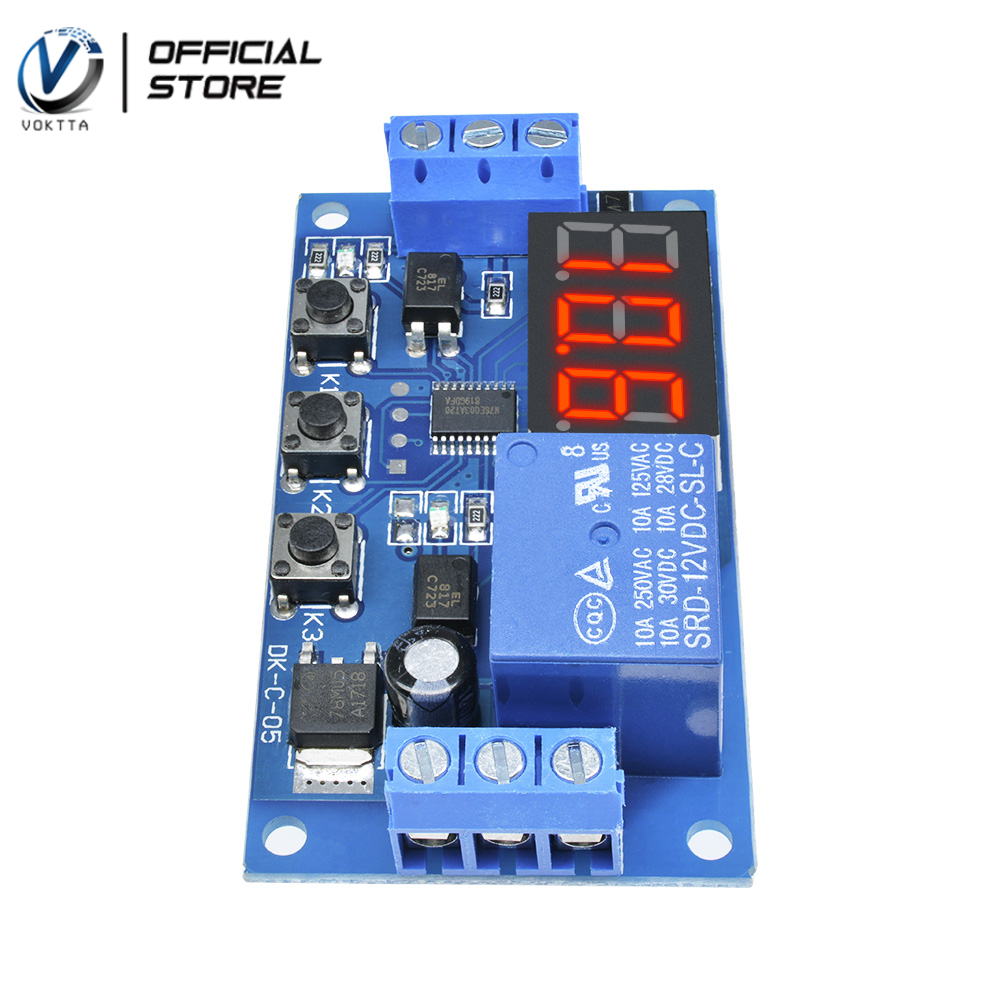

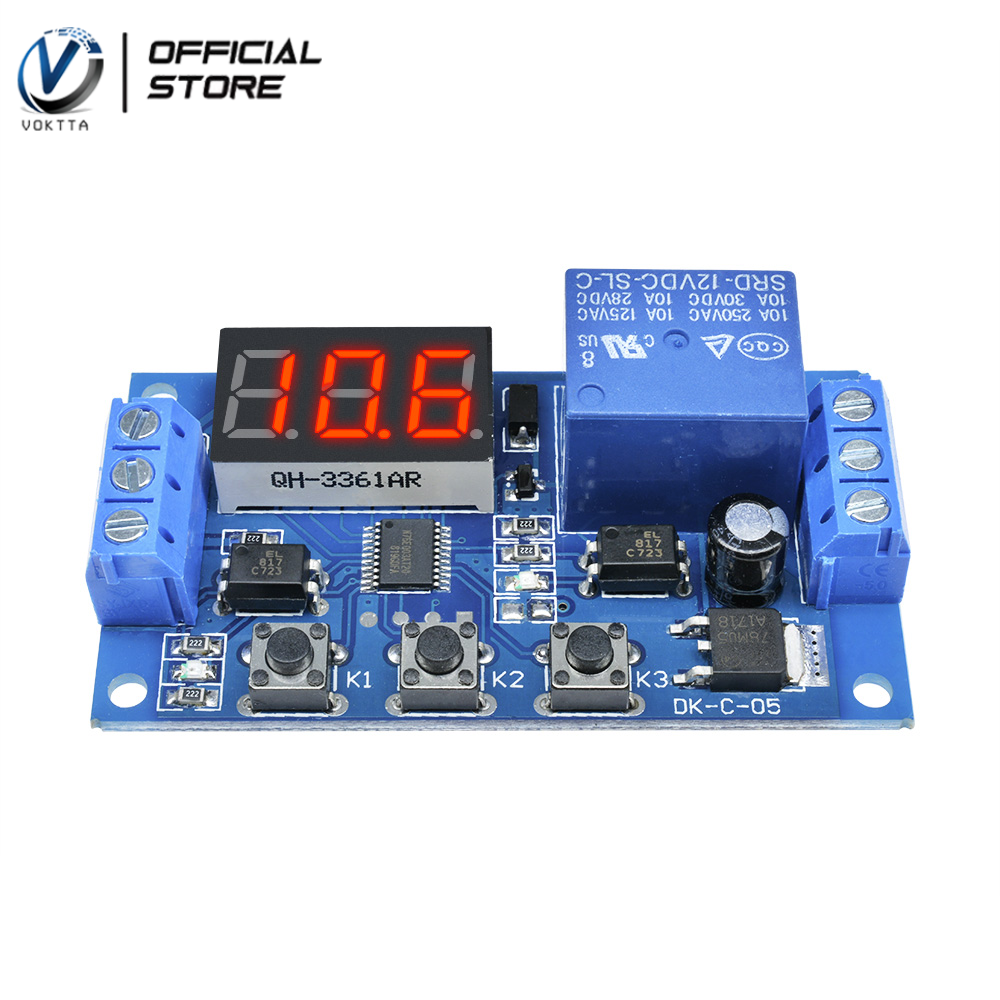

VOKTTA Mô-đun Rơ Le Trễ Hiển Thị Kỹ Thuật Số LED DC12V Chính Hãng Công Tắc Điều Khiển Hẹn Giờ Ống Kỹ Thuật Số 3 Chữ Số

Product parameters

Working voltage: DC12V (normal working voltage DC10V-16V)

Signal source: DC4V~20V (commonly used power supply positive trigger, button, PNP sensor, PLC signal, etc.)

Output capability: can control equipment within DC 30v5A or within AC 220v5A

Quiescent current: 20mA, working current: 50mA

Service life: more than 100,000 times;

Working temperature: -40~85℃;

Net weight: about 26g

Size: 64.2mm*34.8mm*18.5mm

Function introduction

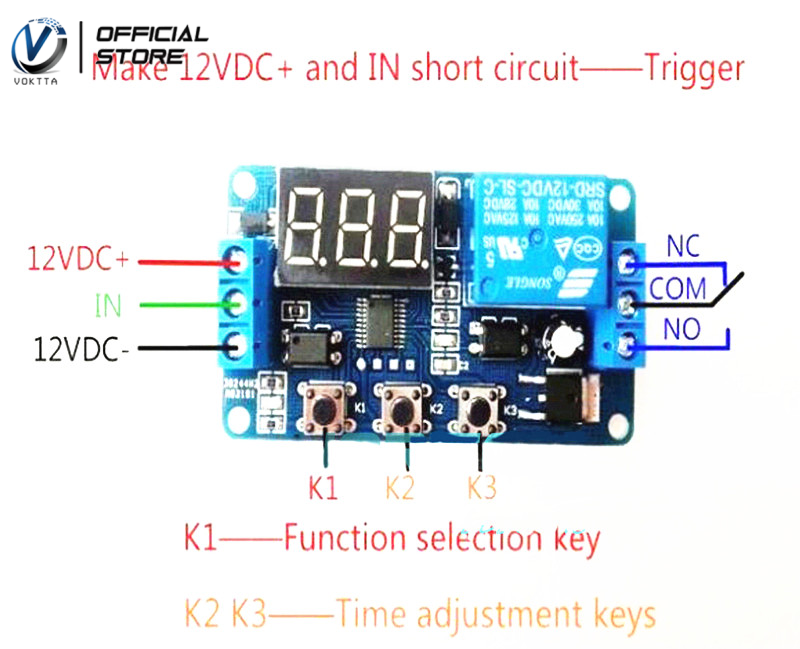

P-1: The signal triggers the relay to pull in, the time is up, the relay is disconnected, during the delay period A: Re-triggering is invalid B: Re-triggering and re-timing C: Re-triggering the relay reset to terminate the timing

P-2: Signal trigger starts timing time T1, when the time is up, relay pull-in time T2 is disconnected (reset) A: Re-triggering is invalid B: Re-triggering and re-timing C: Start delay without triggering power-on

P-3: Circular use: T1 is turned on, T2 is turned off, infinite loop. For T1 and T2, the time is adjustable; if a certain parameter is turned on or off, it can realize power-on delay on or power-on on-delay and power-off without cycle A: The relay is turned on immediately after power-on B : After the power is turned on, the relay will be turned off and then turned on

P-4: There is a signal, the relay is pulled in, it is kept closed, the signal disappears, the timing is started, the time is up, the relay is disconnected, during the delay period, the signal is given again, the delay is canceled, the relay is held, the signal disappears, and the timing is restarted.

pay attention

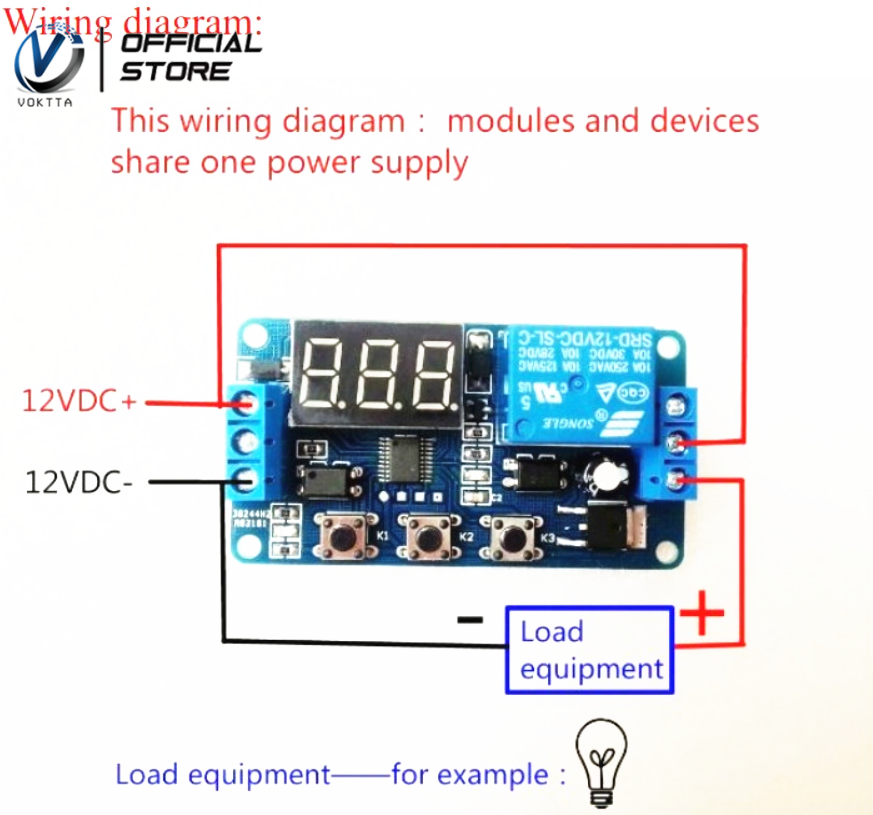

The relay output is a passive contact, no live output, and controls the on-off function of a line.

The package includes:

1*DC12V LED Digital Display Delay Relay
