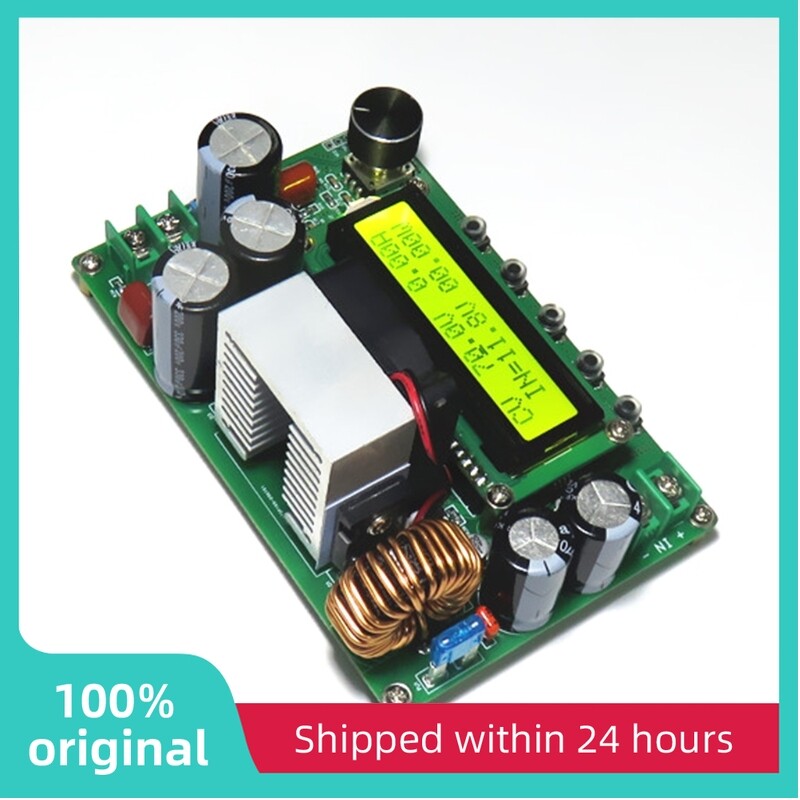

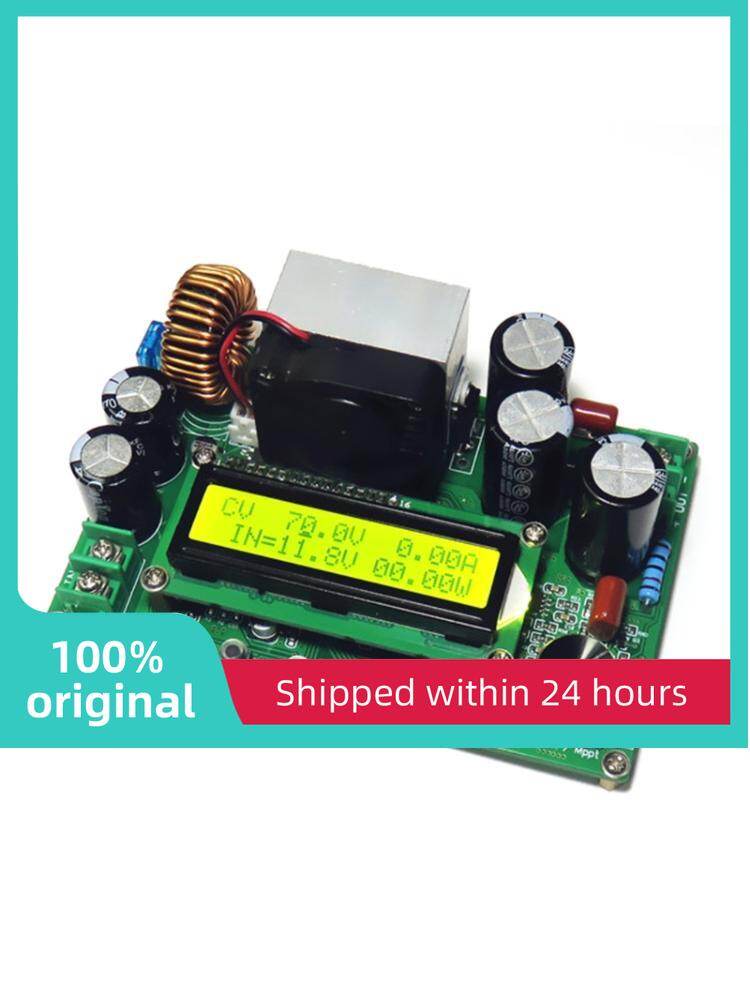

Mô-đun Tăng Áp Dpx800s DC NC CV DC 100% Diymore, NC Boost MPPT Điều Chỉnh Được 12V ~ 120V 0-15a

DPX800S CNC boost constant voltage constant current power supply with Solar MPPT communication 0-15a load
OOTDTY
First instrument profile

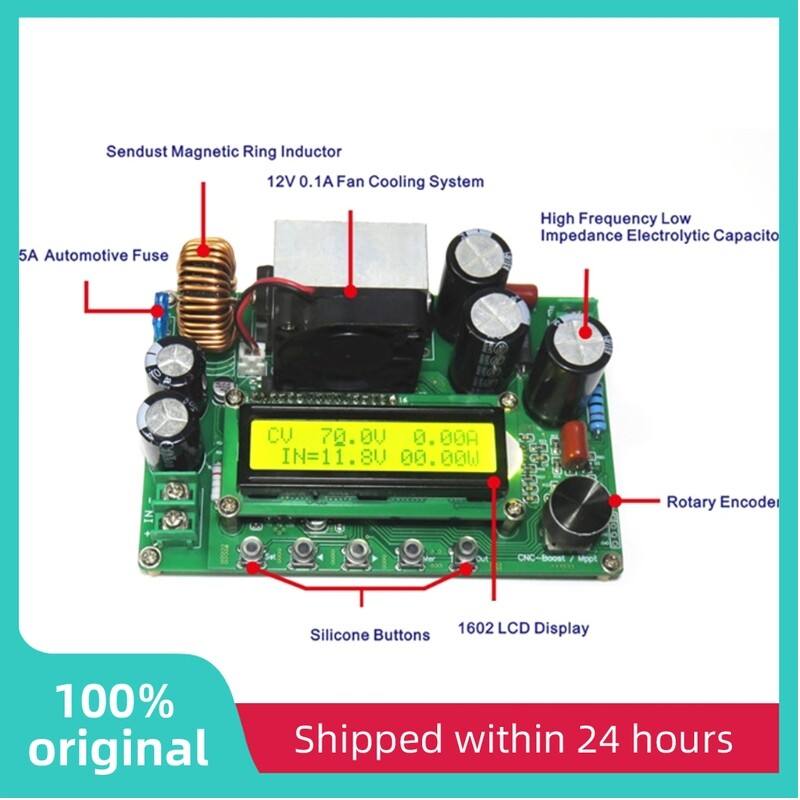

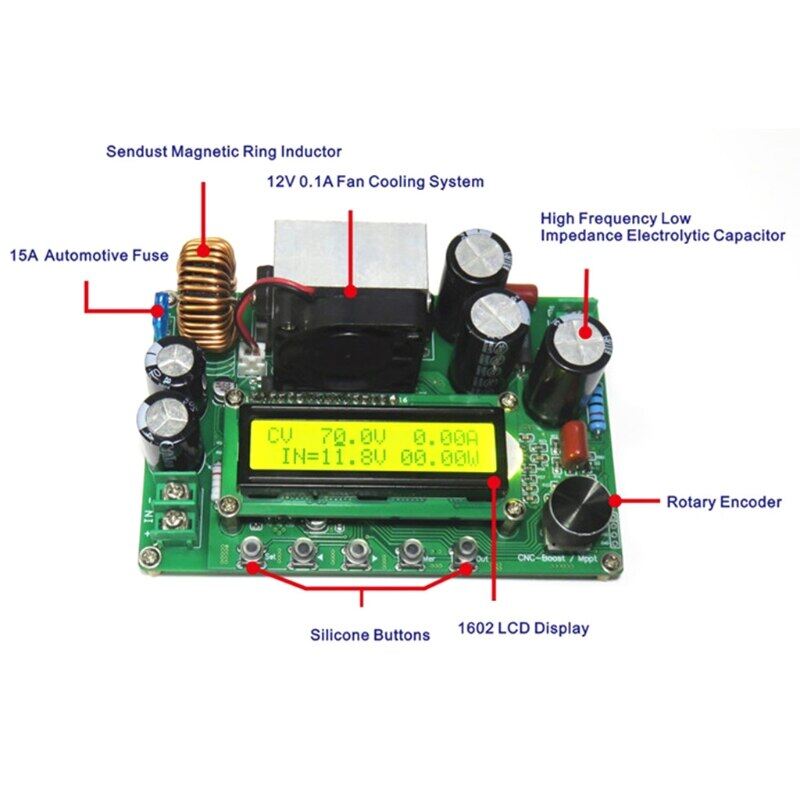

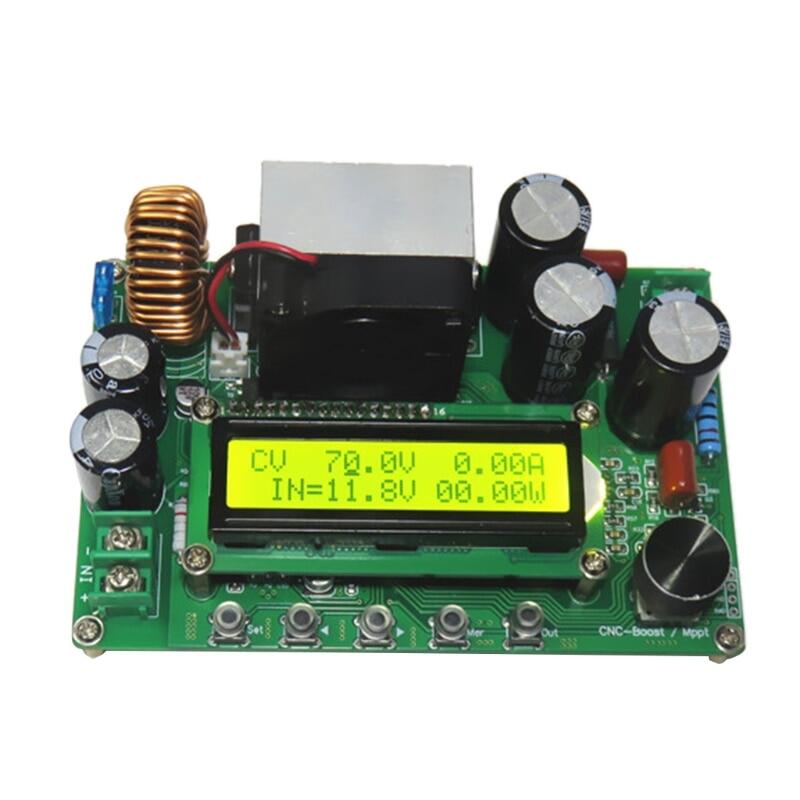

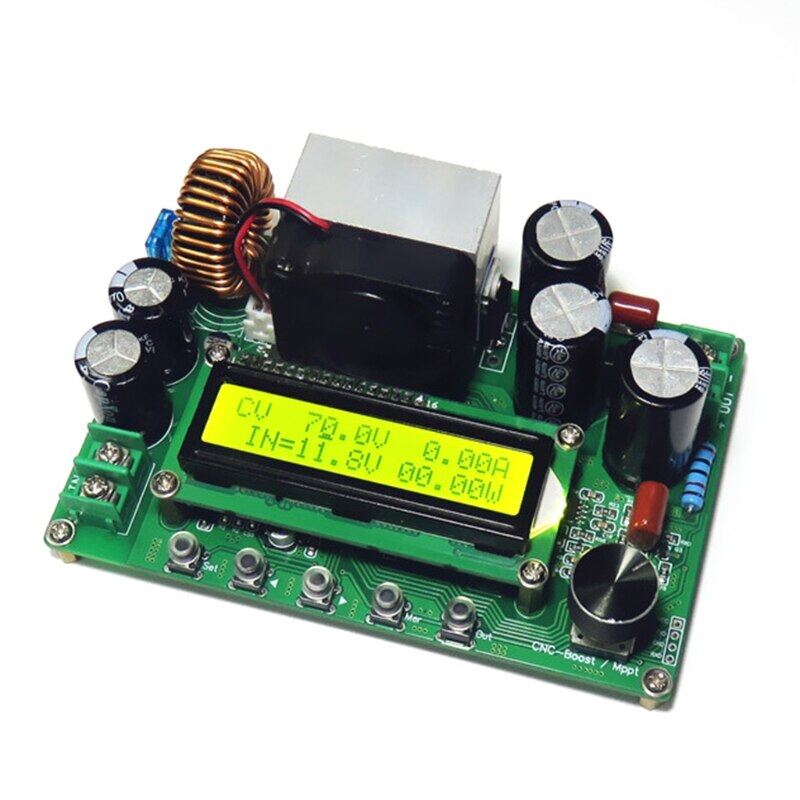

DPX800S numerical control boost module is a fully digital display boost module, small volume, large power, high efficiency, stable work, can be constant voltage and constant current output, and the module has its own algorithm MPPT function Fixed voltage, it can take maximum power output from solar panels. With advanced microprocessor control, the parameters can be adjusted by key and encoder, which is quick and convenient. And the LCD1602 liquid crystal display can display the information of the output voltage, current, power, output capacity and input voltage in real time.

Second instrument characteristics
1. Use the LCD1602 display information, the key and the encoder to adjust the parameters, human-computer interaction is more convenient;
2. It uses high-quality power devices and the CV and CC loop composed of peripheral precision operational amplifier, which greatly improves the performance of the module;
3. With its own heat dissipation fan, small temperature rise;
4. Fully digital display, easy to use;
5. Can be constant voltage, constant current output;
6. Using advanced microprocessors, the keys can precisely adjust the output voltage, current ;.
7. You can set automatic output after power on.
8. With input undervoltage protection (LVP), output overvoltage protection (OVP), output overcurrent protection (OCP).
9. With communication function, easy for secondary development.
10. With MPPT boost function, it is suitable for solar panel boost charging to grab the maximum output power of the solar panel.
11. The output can be turned off, which is safer and more convenient than traditional Boost enhancer.

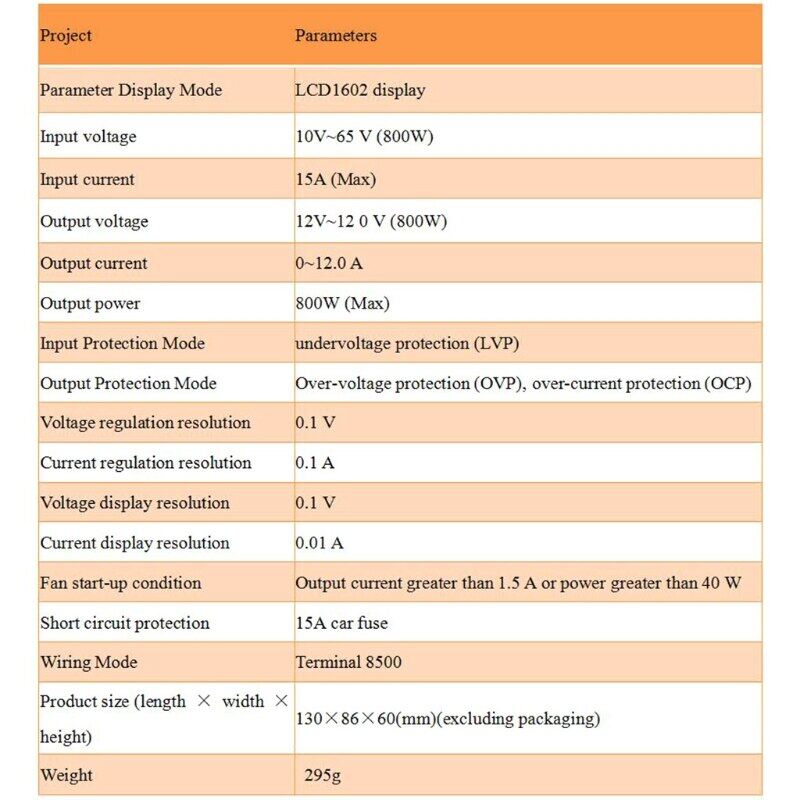

Parameter display mode: LCD1602 display
Input voltage: 10V ~ 65V (800W)
Input current: 15A (max)
Output voltage 12V ~ 12 0 V (800W)
Output current 0 ~ 12.0 A
Output power 800W (max.)
Undervoltage protection in input protection mode (LVP)
Output protection mode overvoltage protection (OVP), overcurrent protection (OCP)
Voltage regulation resolution 0.1V
Current regulation resolution 0.1 A
Voltage display resolution 0.1V
Current display resolution 0.01 A
Fan start condition: output current greater than 1.5 A or power greater than 40 W
Short circuit protection: 15A car fuse
Wiring Mode: 8500 Terminal

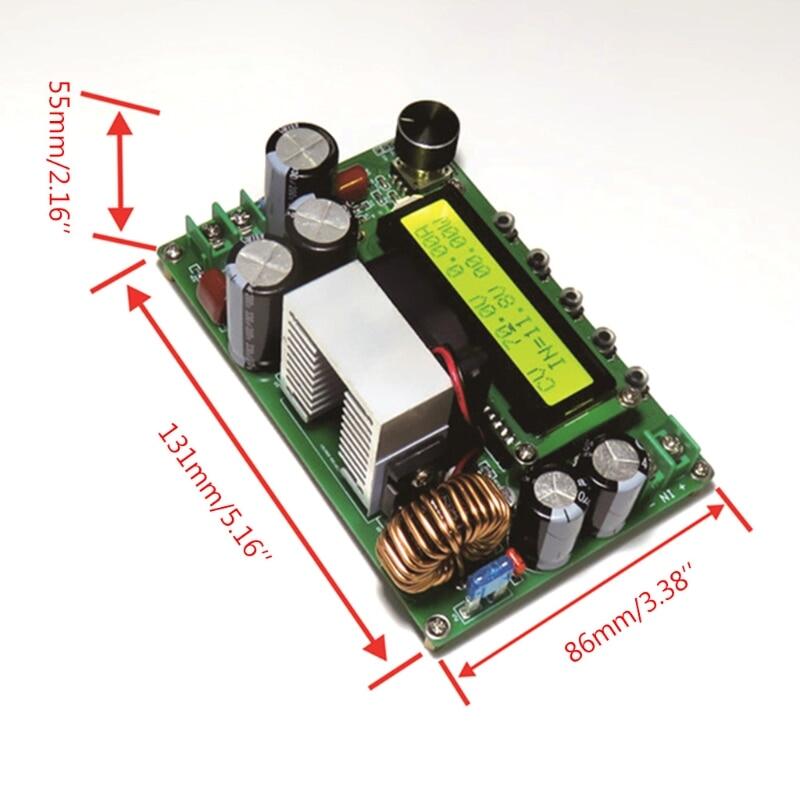

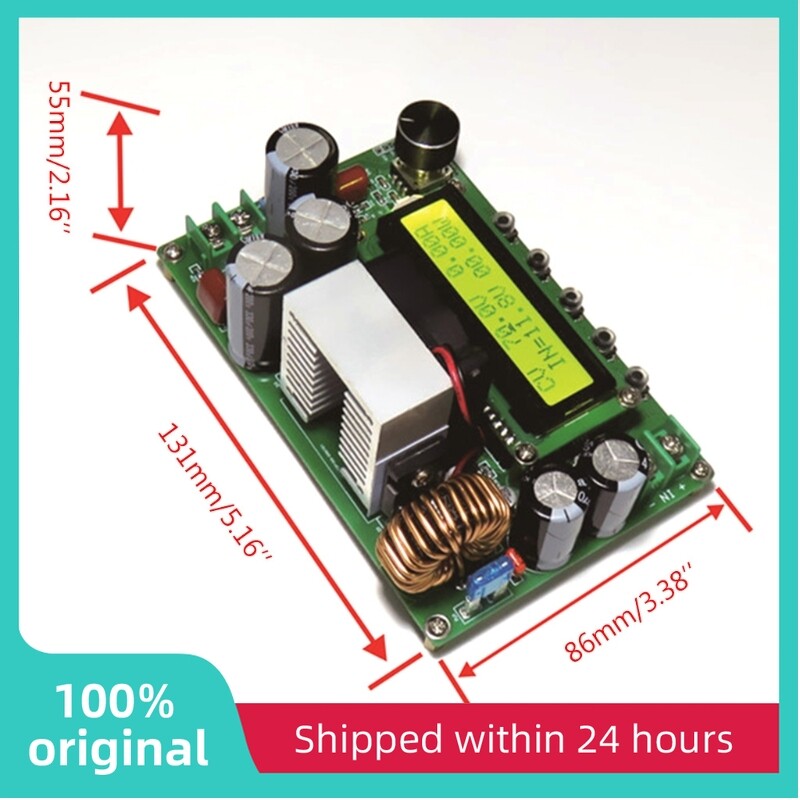

Product size (length × width × height) 130 × 86 × 60 (mm) (without packaging)
Weight: 295g

Package Included:
1 X DPX800S DC-DC NC CV CC Boost CNC Boost Module
