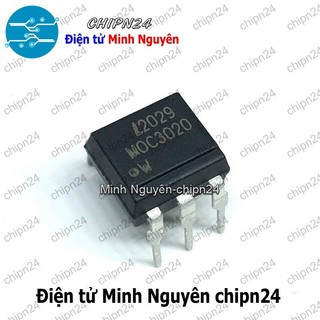

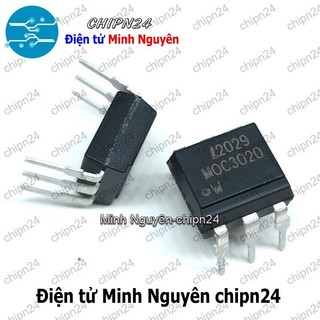

[2 con] (DT) Opto MOC3020 DIP-6 Đen Hàng Tốt (3020)

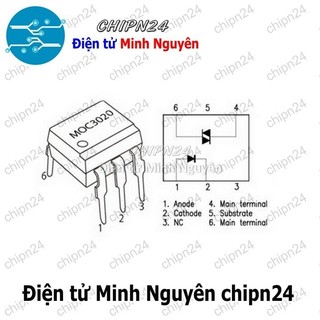

Opto MOC3020 DIP-6 ĐEN (3020) Mô tả: Description OPTOISOLATOR 5KV TRIAC 6DIP Detailed Description Optoisolator Triac Output 5000Vrms Channel 6-DIP Thông số kỹ thuật: - Package: Tube - Part Status: Active - Output Type: Triac - Zero Crossing Circuit: No - Voltage - Isolation: 5000Vrms - Static dV/dt (Min): 1kV/µs - Current - LED Trigger (Ift) (Max): 30mA - Current - Hold (Ih): 250µA (Typ) - Turn On Time: - - Voltage - Forward (Vf) (Typ): 1.15V - Operating Temperature: -40°C ~ 100°C - Mounting Type: Through Hole - Package / Case: 6-DIP (0.300", 7.62mm) - Supplier Device Package: 6-DIP - Approval Agency: CQC, CSA, TUV, UL, VDE - Number of Channels: 1 - Voltage - Off State: 400 V - Current - DC Forward (If) (Max): 50 mA .............................................................................. Điện tử Minh Nguyên CHIPN24 - Thời gian làm việc: + Từ T2-T7: 8h00' sáng - 6h00' tối + Riêng Chủ nhật: Từ 8h00' sáng - 3h00' chiều - ABC.813
