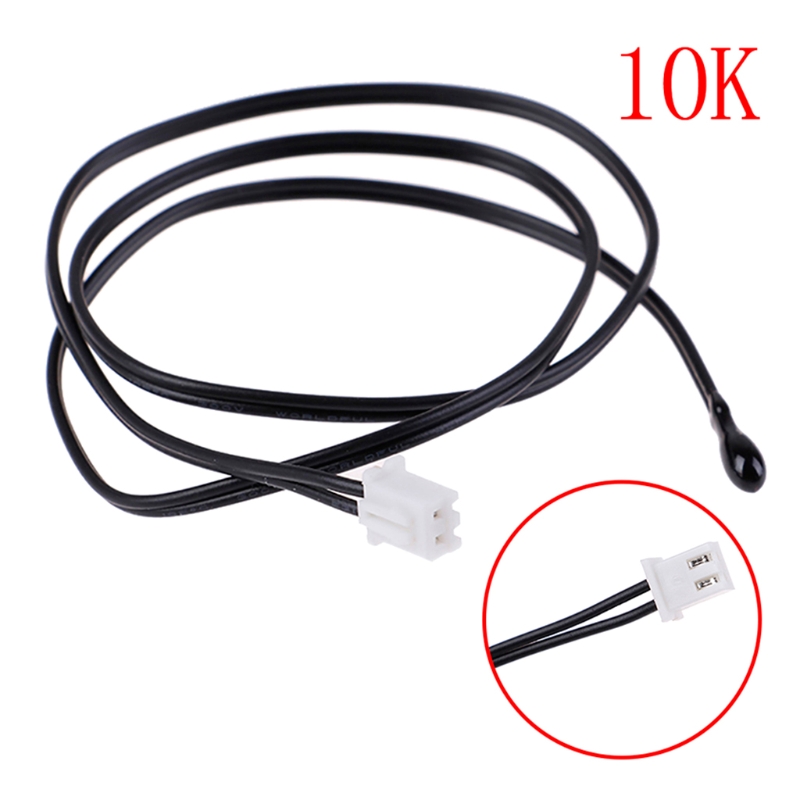

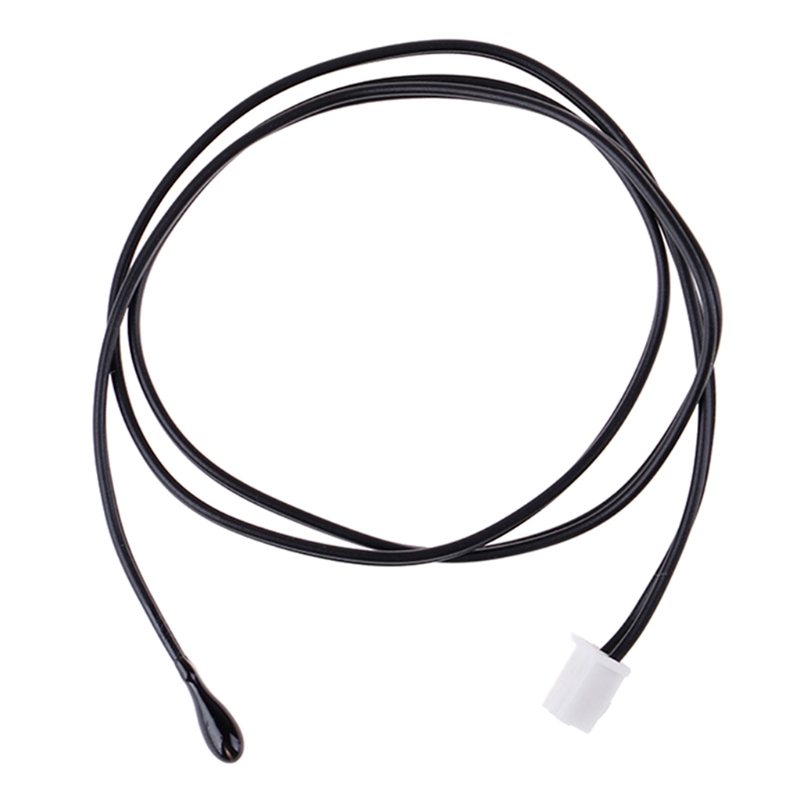

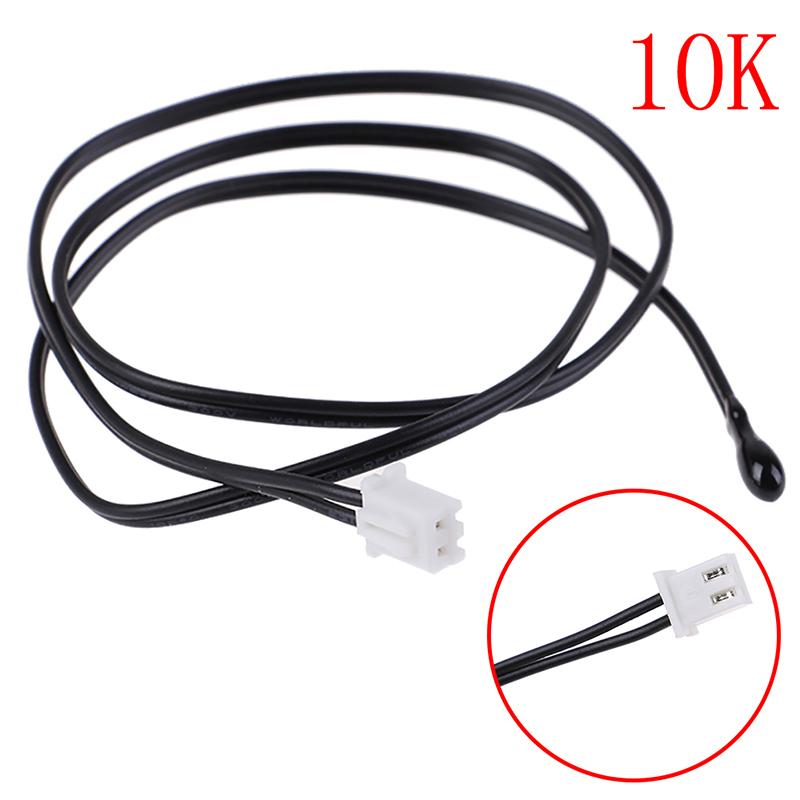

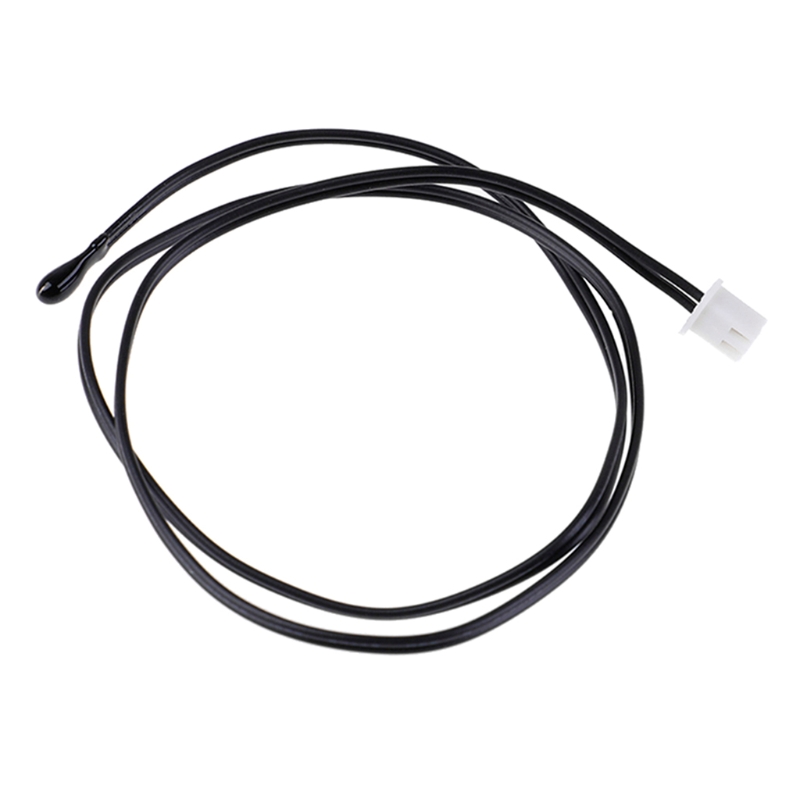

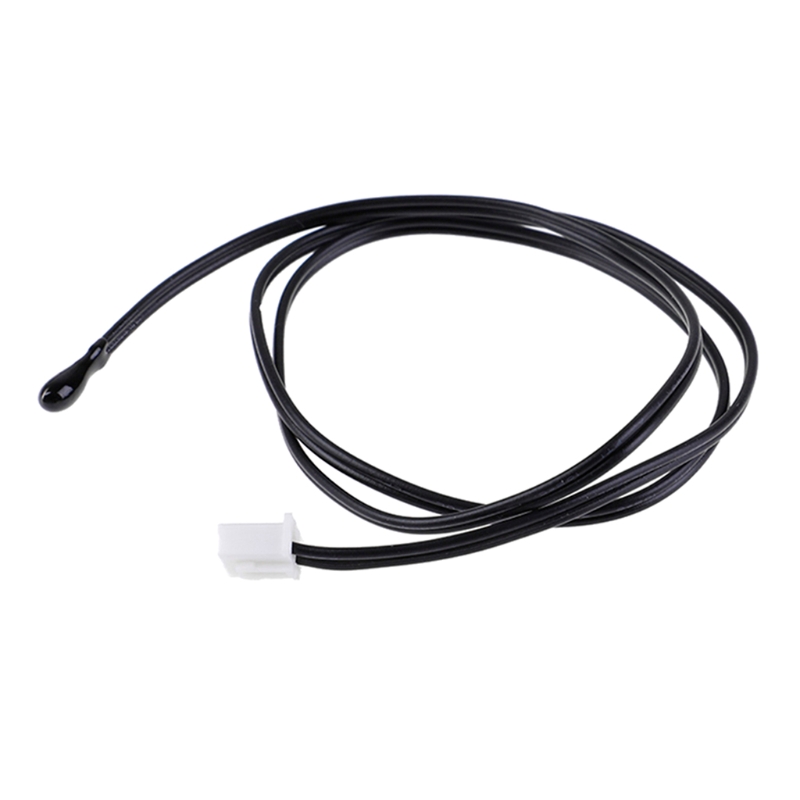

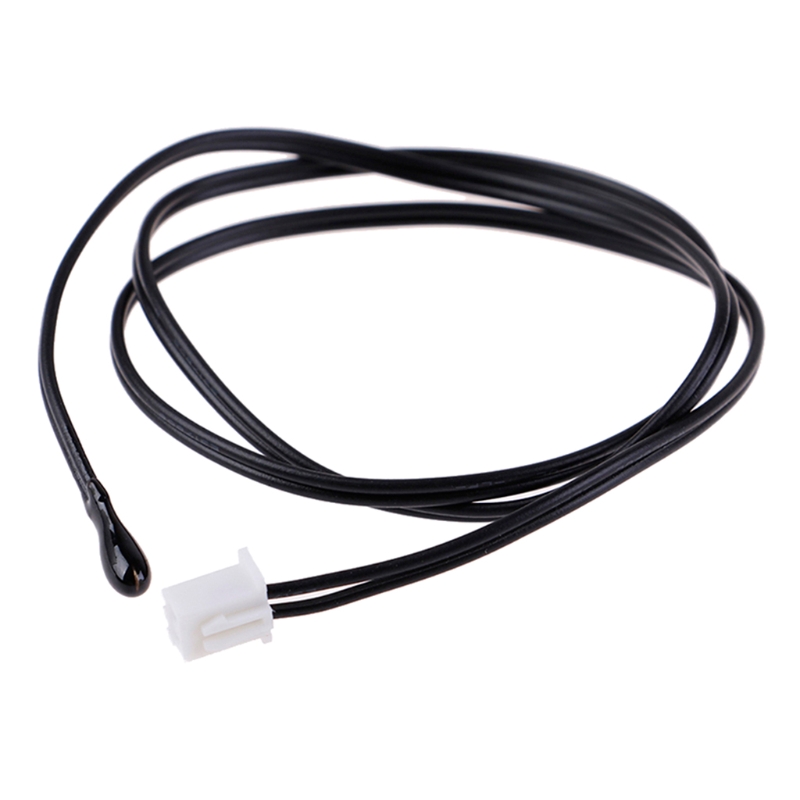

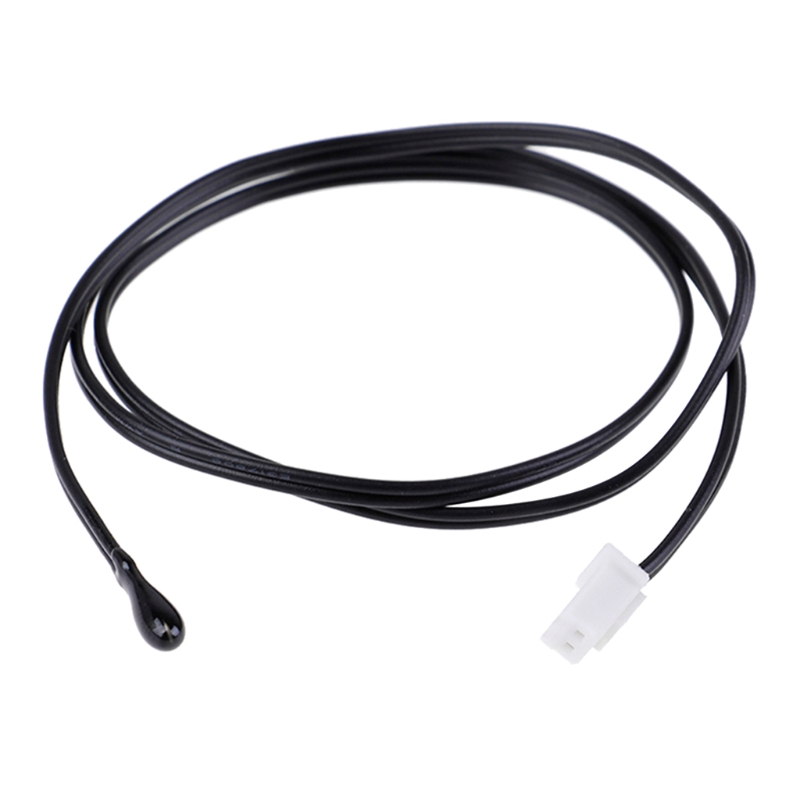

【New Arrival】 NTC Temperature Thermal Thermistor TC 10K Probe Sensor 50cm Air Conditioning Temperature Sensor Waterproof

Features:

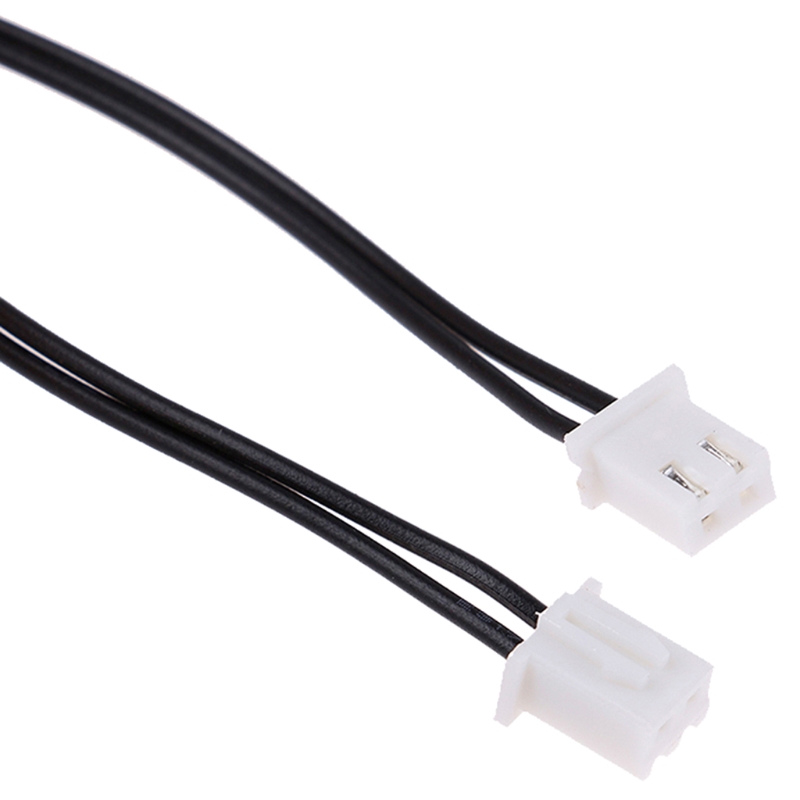

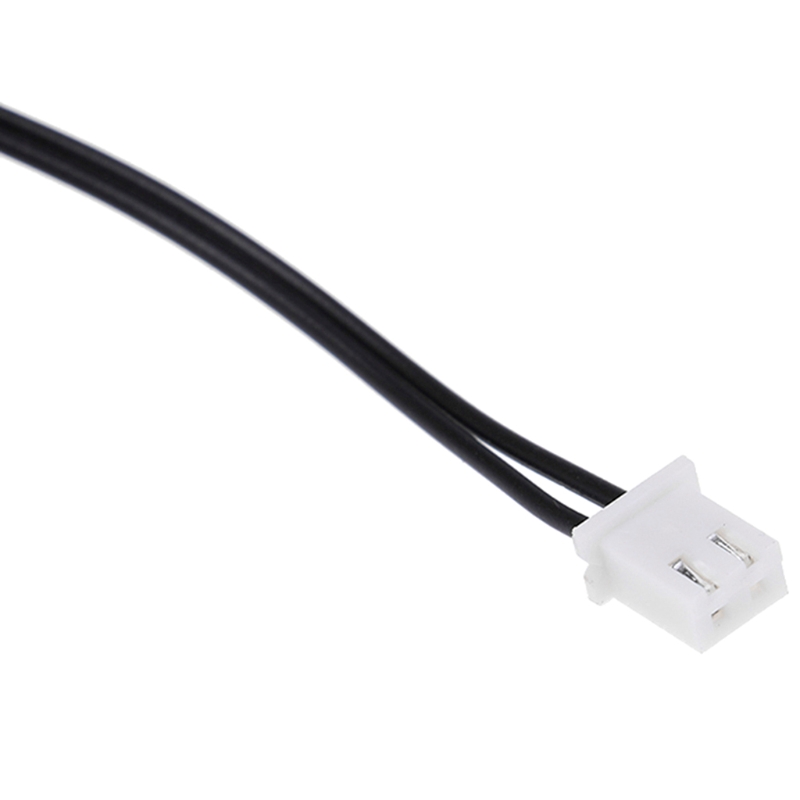

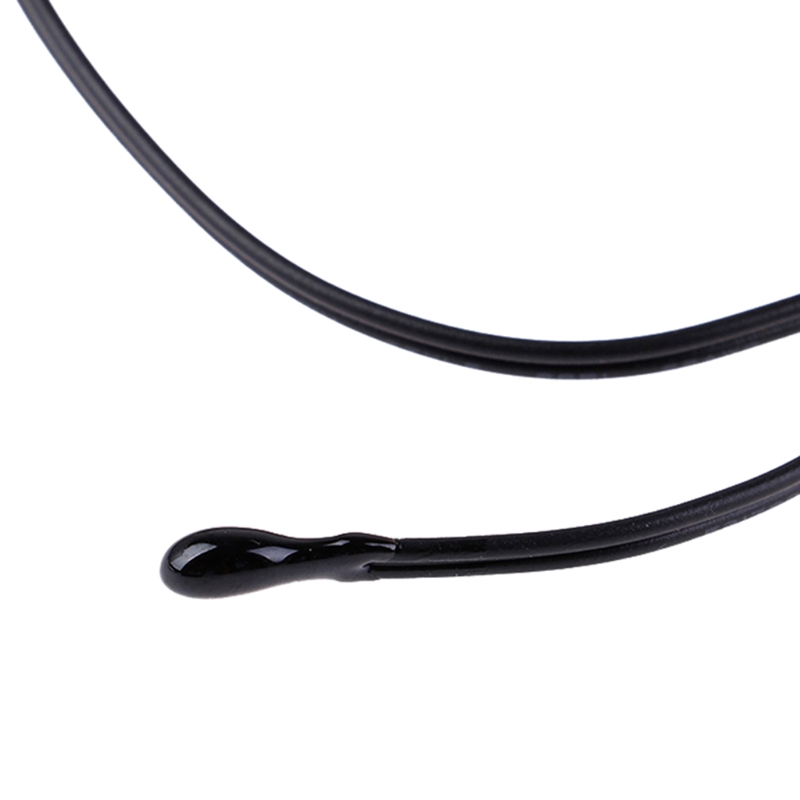

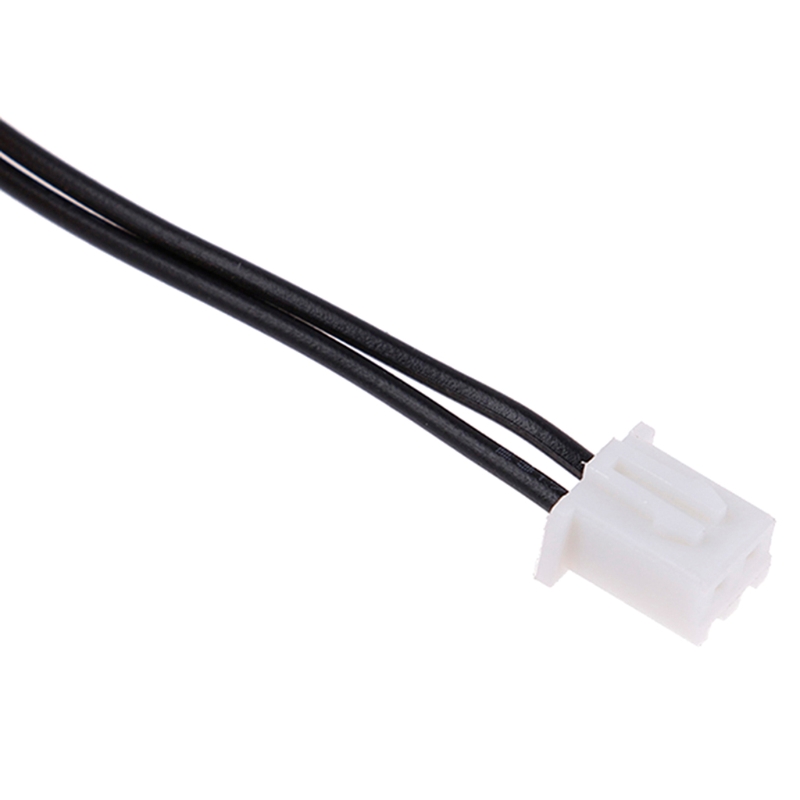

1.High sensitivity and quick response. 10K in water drop shape, 500mm in line length, xh-2y. Easy installation, high sensitivity, fast response.
2.Applicable Category: sensor temperature sensitivity response rapid.
3.Waterproof stable performance, used in water heaters, boilers and other measurement temperature environment.
4.Wide operating temperature zone, good stability and high reliability. Can provide products with different R and B values, with strong interchangeability and high precision.
5.Widely use. Temperature measurement and control of gas water heaters and instant water heaters and other household appliances, refrigerators and medium and low temperature drying ovens, incubators and other occasions.

Specifications:
Nominal Resistance: R25 (25°C): (commonly used) 1.5K, 2K, 5K, 10K, 20K, 30K, 47K, 50K, 100K, 200K, 500K, etc.
Resistance Accuracy: ±1%, ±2%, ±3%
B value R25/50: (commonly used) 3435K, 3600K, 3950K, 3990K, 4100K, 4200K, etc.
B Value Accuracy: ±1%
Operating Temperature Range: -40℃～+150℃
Dissipation Power Coefficient: ≥5 mW/℃ (in static air)
Maximum Rated Power: 45mW
Thermal for Time Constant: ≤7S (in static air)
Temperature Coefficient of Resistance: -2～-5%/℃
Insulation Performance: 500V for DC test single insulation resistance ≥100MΩ
Withstand Voltage Performance: 1500V AC, 5s, 0.5mA without breakdown

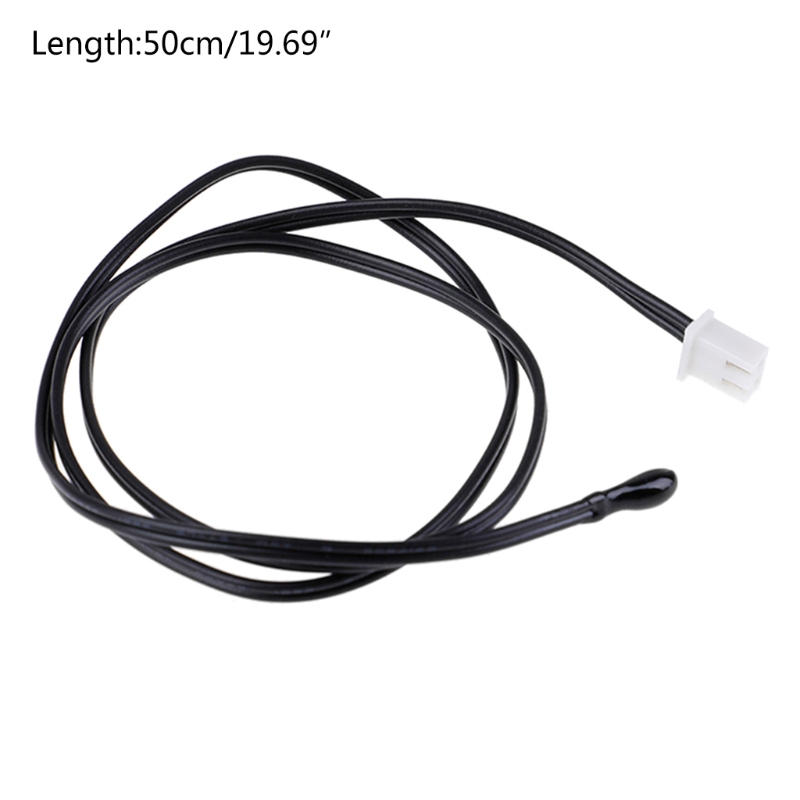

Cable Length: Approx. 50cm/19.69in
Weight: Approx. 20g

Note:
1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 Piece 10K Probe Sensor
