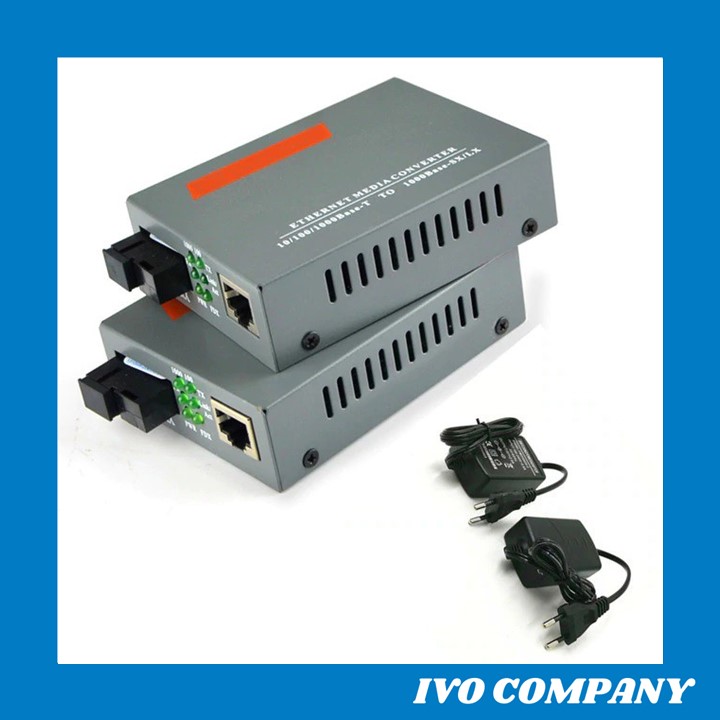

[HCM]Thiết Bị Chuyển Đổi Quang Điện 1 Sợi Media Converter 1FO 1 Quang 1 LAN 1Gbps Netlink HTB-GS-03AB

Media Converter 1FO 1 Optical Port 1 LAN Port 1Gbps Netlink HTB-GS-03AB* Features:- The transmission of a chan_nel optical signals can be completed by single fiber. - It has doubled in quantity of fiber data transmission compared with twin fiber type.- Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.- UTP port supports MDI / MDI-X auto crossover.- Supporting the max 1536 byte Ethernet packet.- Supporting flow controlAdopting internal power supply.* Specifications:- Operating standards: IEEE802.3z/AB 1000Base-T, 1000Base-SX/LX.- Data Buffer: 256K.- Connector:UTP: RJ-45, 10/100/1000Mbps.Fiber: SC,1000Mbps.- Cable:UTP: Cat 5e or Cat 6.Fiber (multimode): 50/125, 62.5/125μm (the max distance up to 550/224m).Fiber (singlemode): 8.3/125, 8.7/125, 9/125μm (the max distance up to 100km).- Flow Control:Full Duplex: IEEE802.3x flow control.Half Duplex: back pressure flow control.- Power: AC110-240V to DC5V.DC 48V to DC5V.- Ambient temperature: 0 ~ 50℃.- Storage temperature: -40 ~ 70℃.- Humidity: 5% ~ 90%.- Dimensions: 40 (high) x 110 (width) x 140 (length) mm.* Notice:- 10/100/1000Mbps Singlemode Single Fiber Converters mu_st be used and ordered in couples.
