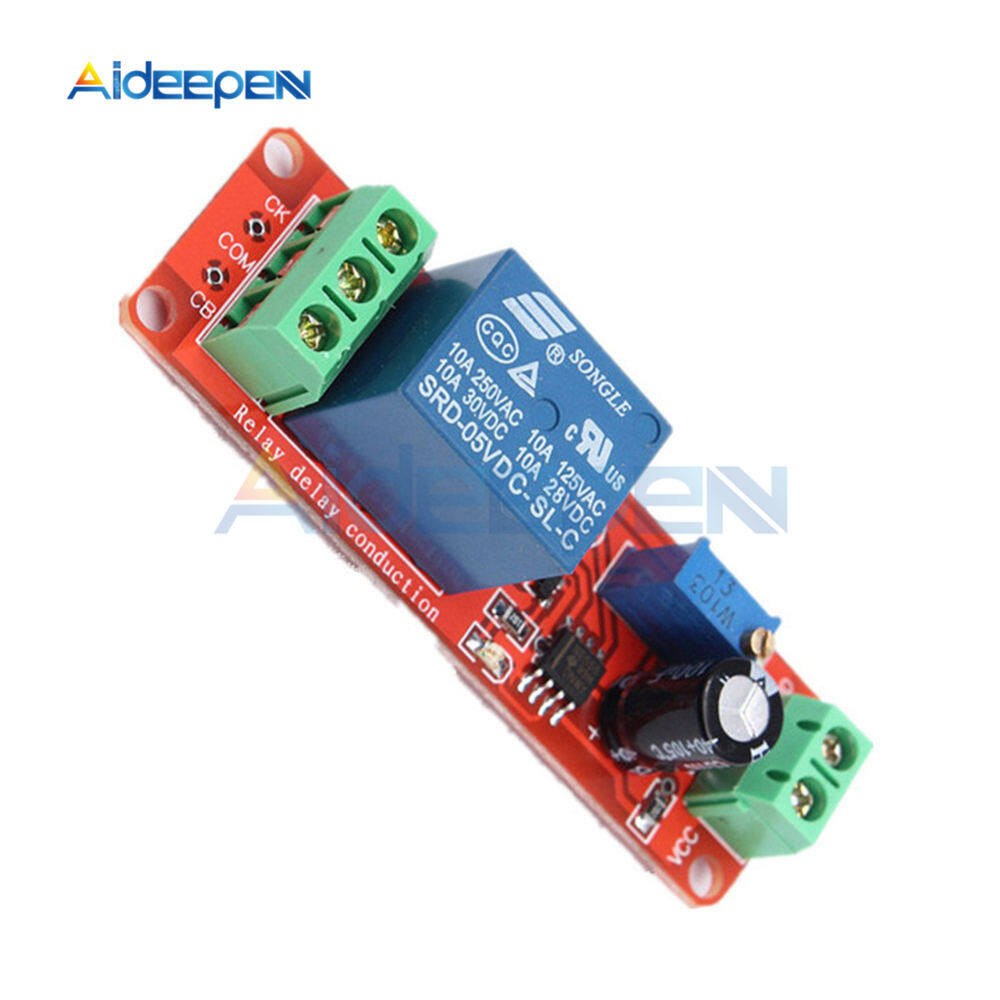

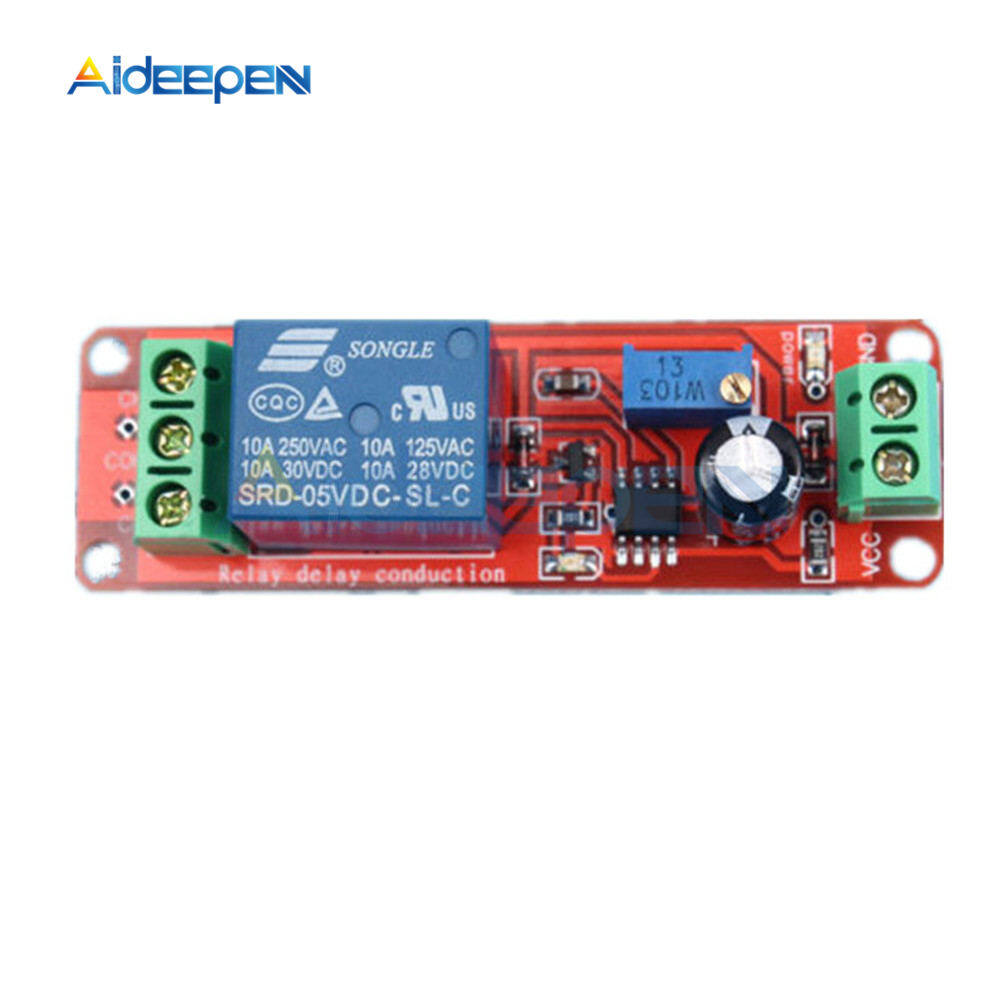

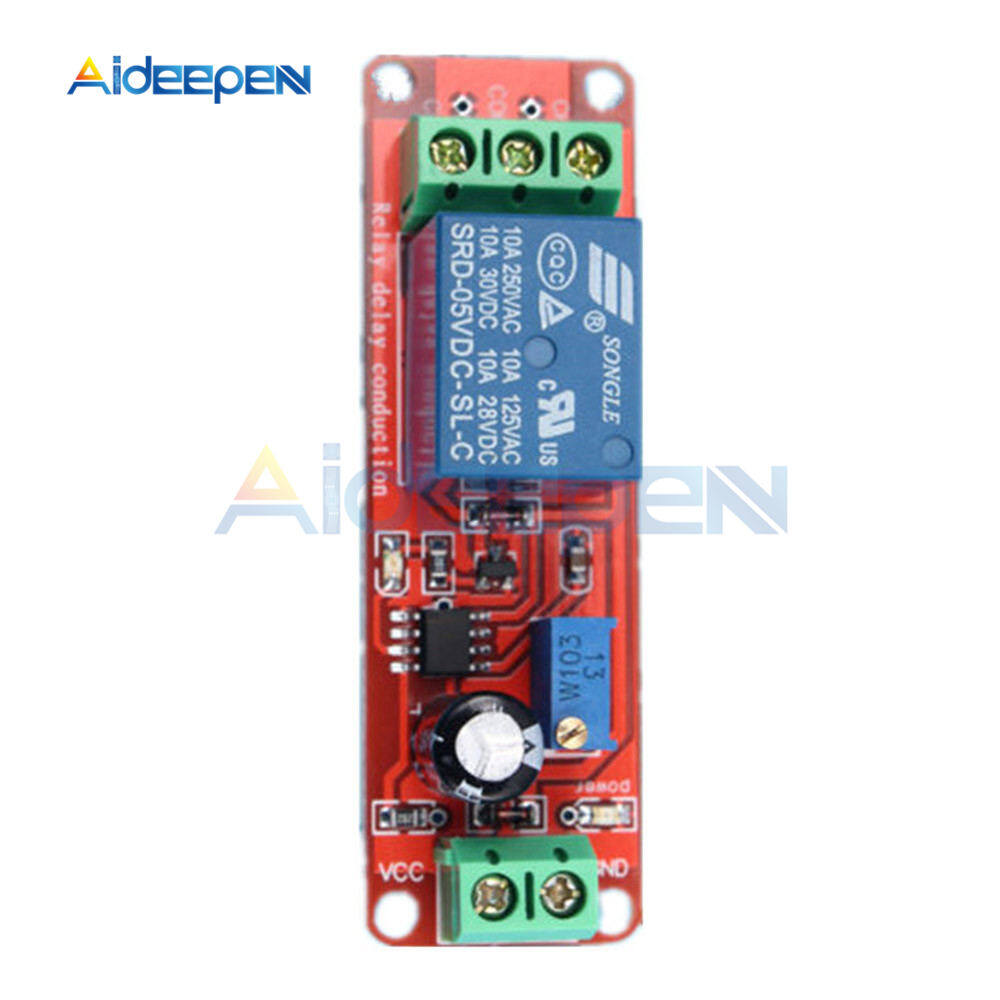

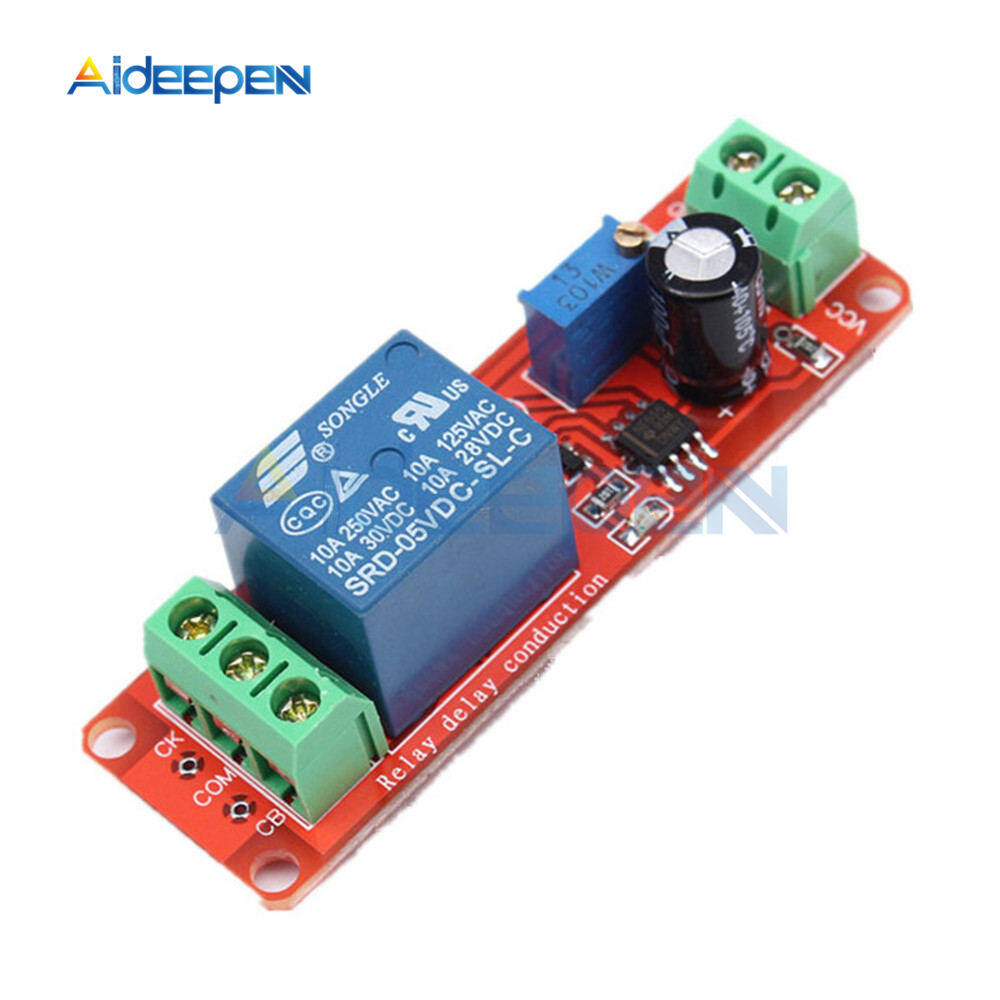

Ne555 Adjustable Module Timer Switch, 5V, Delay Relay Module, Cpu 0-10S, To 10 Seconds, 2200W

Application:

Vehicle-delay equipment to prevent car ignition, prevention of sudden high current to burn out components and devices.

This is a 5v conduction delay relay module , This is a brand new and high quality delay activation module. The use of high-performance timing cpu design. The LED power indicator and trigger time indication of the LEDs switch; Output can be connected to ac 250v 10a dc 30v 10a Load;

There is chronopotentiometry adjustment time, adjustable from 0 to 10 seconds by default or by changing the capacitance adjustment time longer.

Specification:

1. Module based on: NE555 chip.

2. delay module: delay connection module

3. Input voltage: dc 5v

4. Control voltage: ac 0-250v/max. 10a, dc 0-30v/max. 10th operating voltage: 5 volts dc;

5. max. load: 2200w

Main chip (NE555) features:

1. time from microseconds to long hours

2. Simple circuit design

3. generation of precision/time pulses,

4. Adjustable duty cycle

Package included:

1 x timer delay relay module
