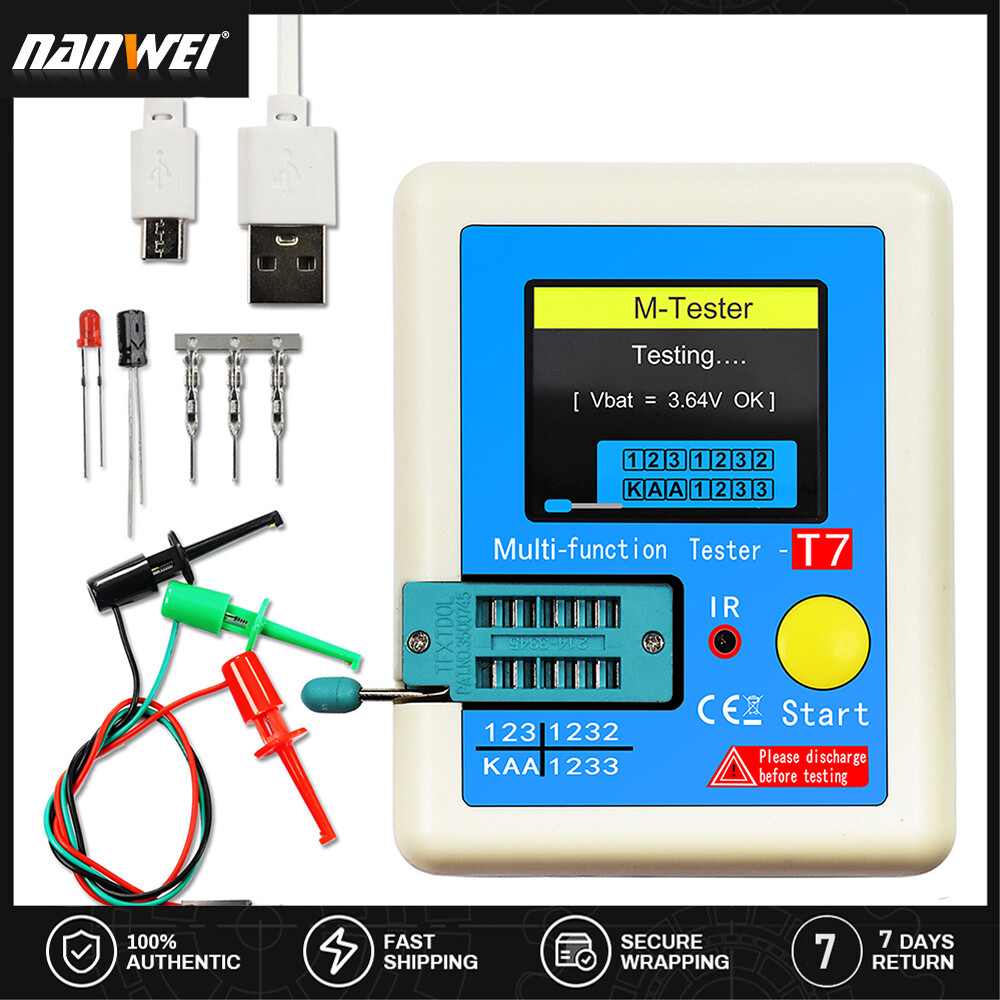

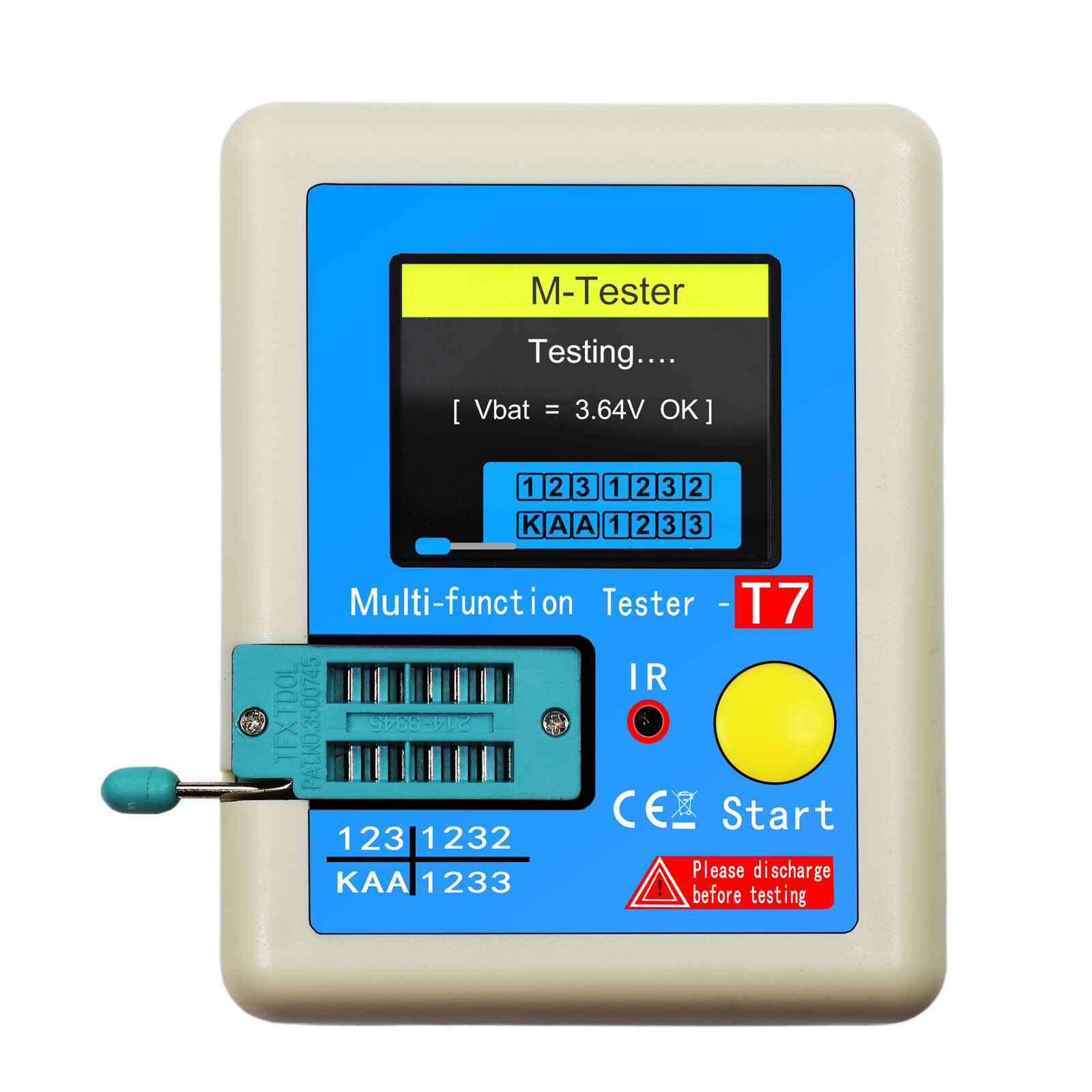

Nanwei bóng bán dẫn LCR-T7 đa chức năng điện dung Máy đo điện trở đầy màu sắc hiển thị bóng bán dẫn cho đèn hai cực đèn ba cực tụ điện điện trở bóng bán dẫn LCR NPN PNP MOSFET

This is a cost-effective and widely used transistor detector. You can use it to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, triac and battery etc.

Features:
It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.
It also can detect zener diode and has the function of self-calibration.
After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.
One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too.
Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.
Not like the usual black and white display, this detector will show results in color.

Specifications:
Material: ABS
Power Mode: Rechargeable Lithium Battery
Display: 160 x 128 TFT Screen
Diode Range: Forward voltage <4.50V
Zener Diode: Transistor Test Area: 0.01-4.5VZener Diode Test Area: 0.01-20V
Triac Range: Gate trigger current<6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50MΩ
Inductor: 0.01mH-20H
Battery: 0.1-4.5V
Item Size: 9 * 7 * 2.7mm / 3.5 * 2.8 * 1.1in
Item Weight: 84g / 2.9oz
Package Size: 19 * 10 * 3cm / 7.5 * 3.9 * 1.2in
Package Weight: 132g / 4.7oz

Note:
Before testing, please discharge the electronic components to protect the detector.
When the voltage and the inside battery is under 3V, please charge it before usage.
Please use 5V battery or USB interface to charge.
