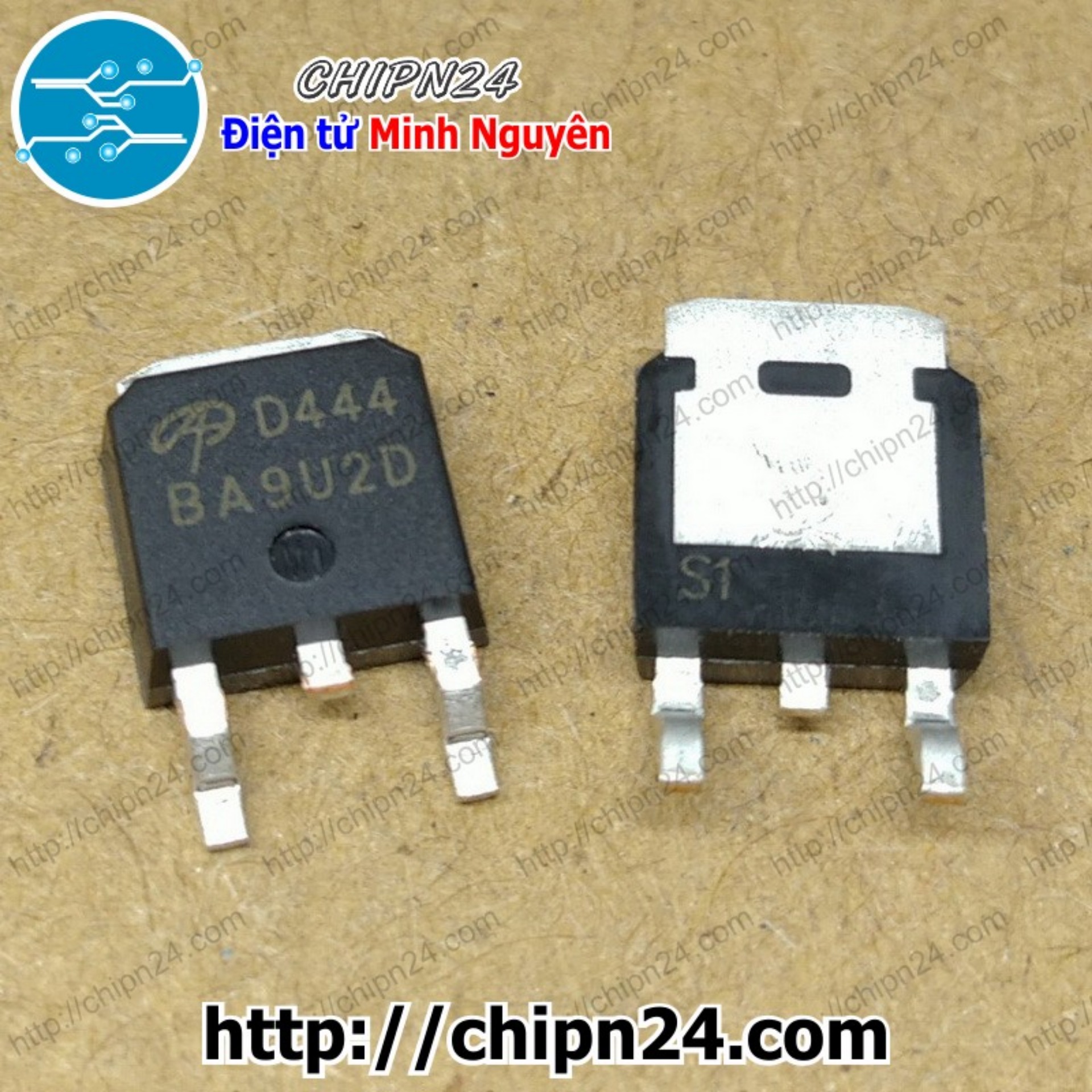

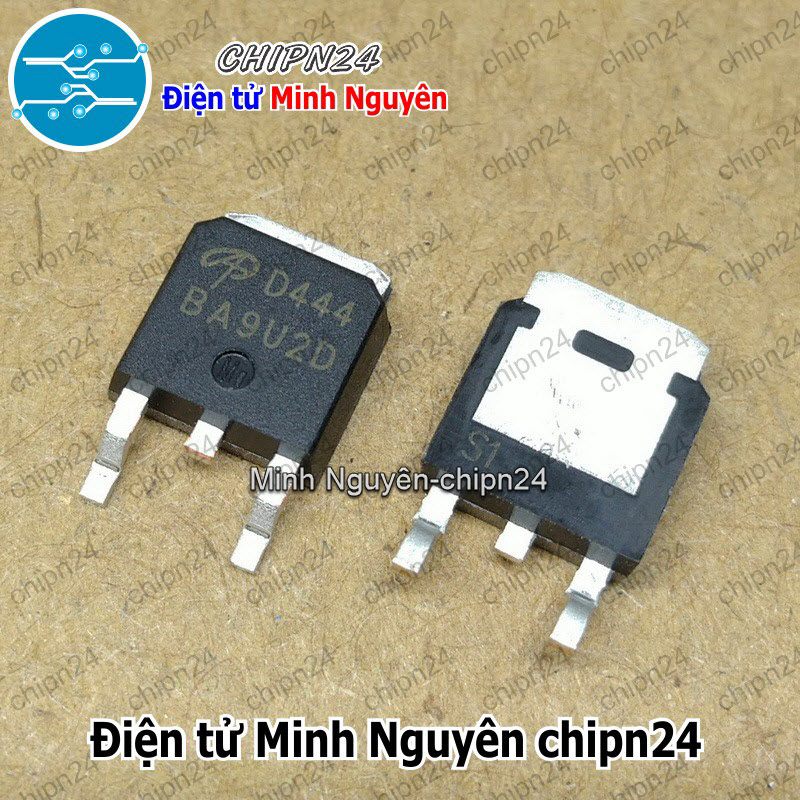

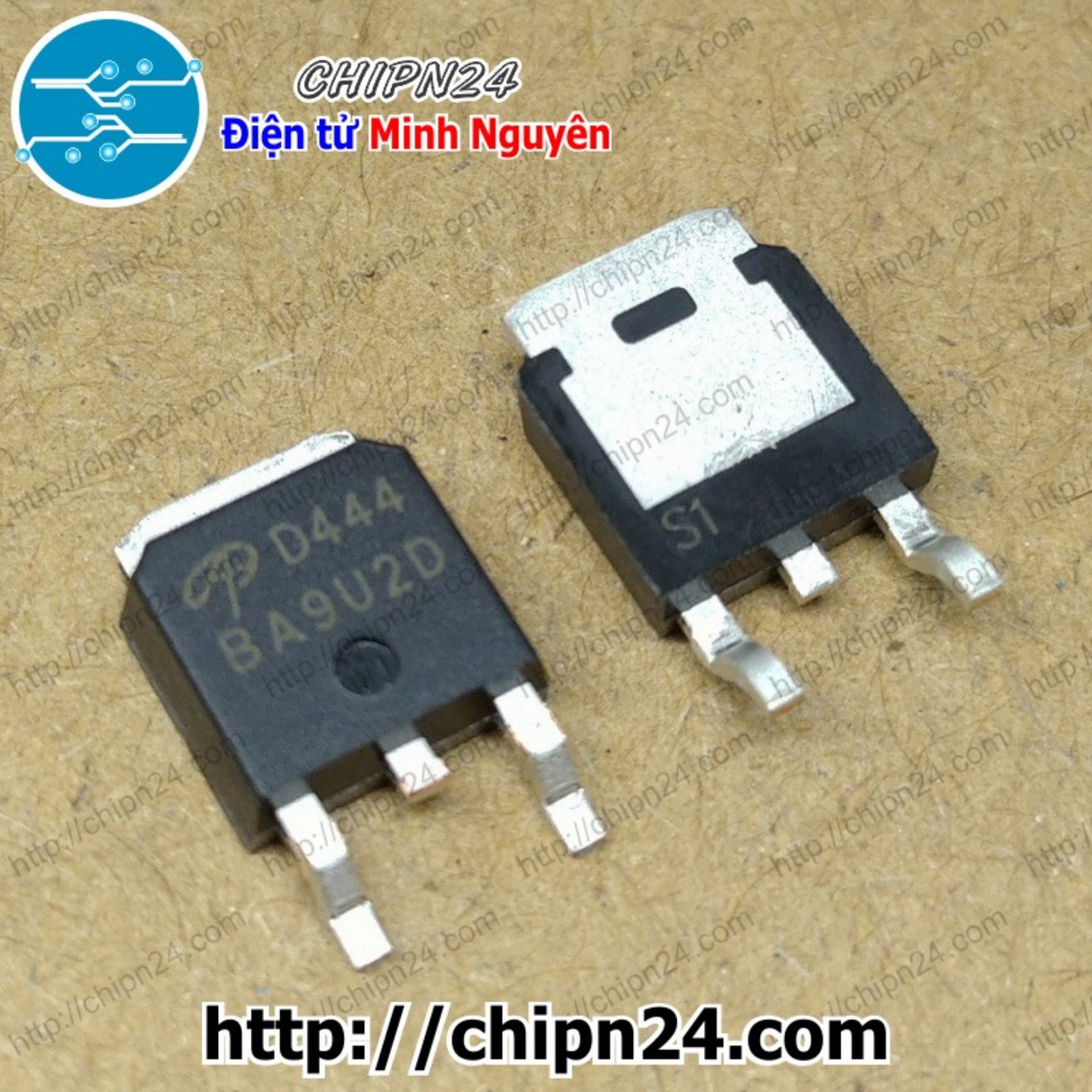

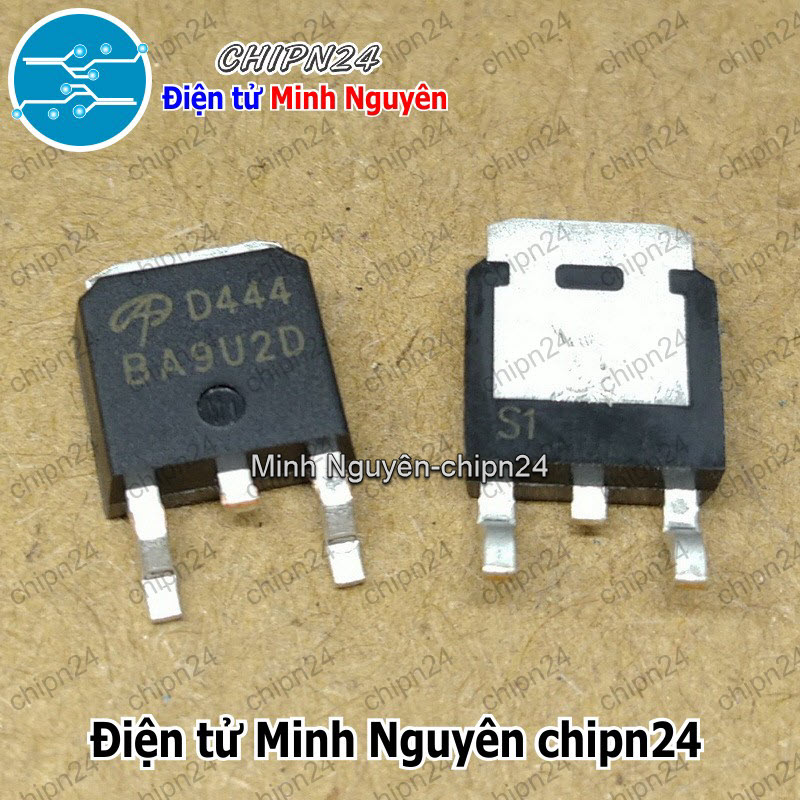

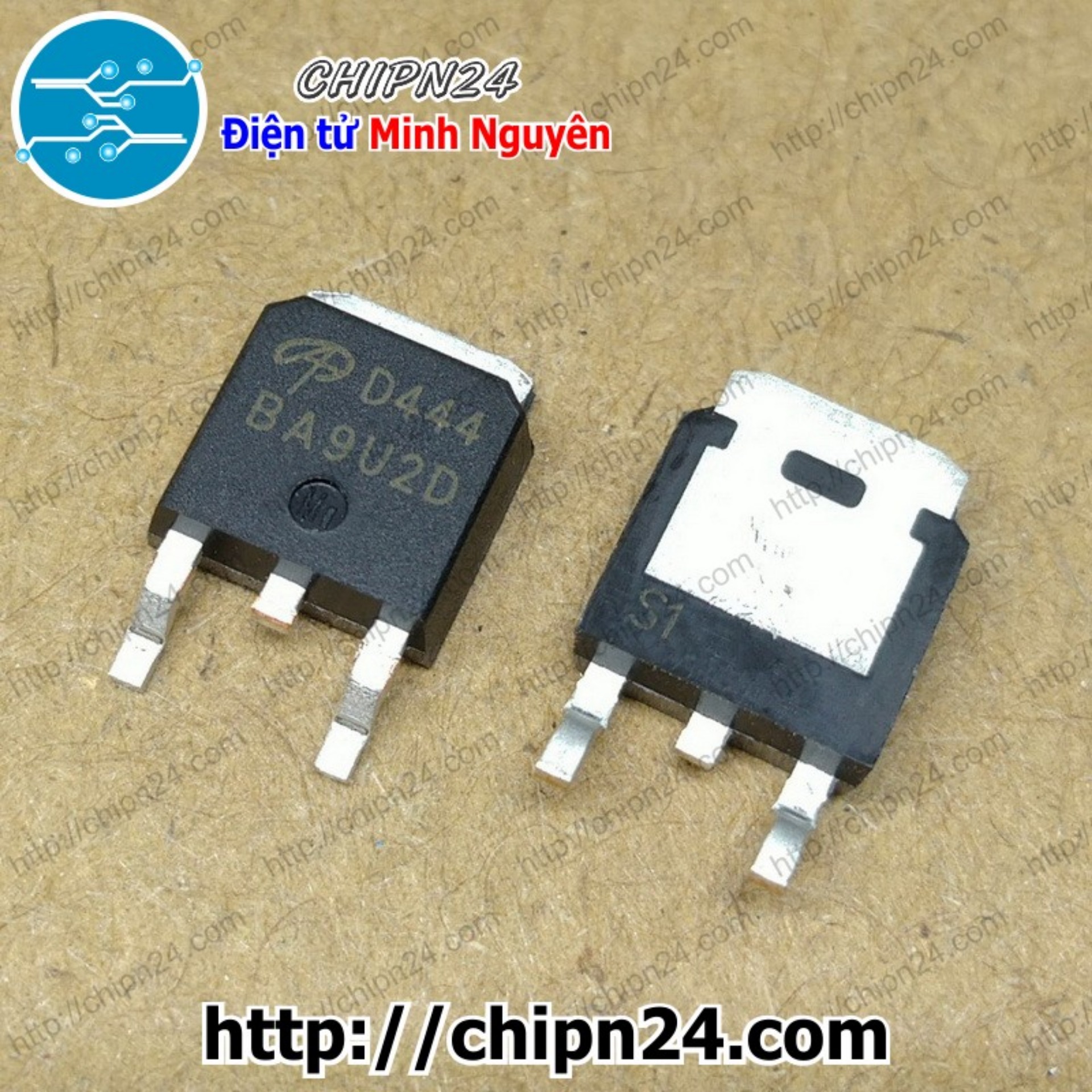

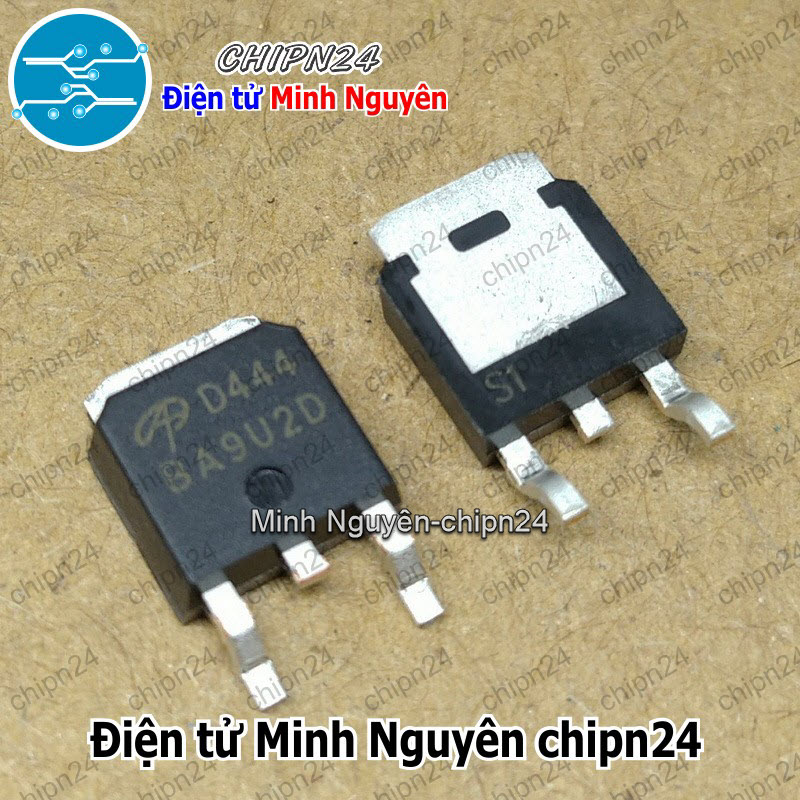

Mosfet Dán AOD444 TO-252 12A 60V Kênh N (SMD Dán) (D444 444)

_x000D_ Mosfet Dán AOD444 TO-252 12A 60V Kênh N (SMD Dán) (D444 444)

Mô tả:
MOSFET N-CH 60V 4A/12A TO252
Detailed Description
N-Channnel 4A (Ta), 12A (Tc) 2.1W (Ta), 20W (Tc) Surface Mount TO-252, (D-Pak)

Thông số kỹ thuật:
- Part Status: C1Active
- FET Type: N-Channnel
- Technology: MOSFET (Metal Oxide)
- Current - Continuous Drain (Id) @ 25°C: 4A (Ta), 12A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 60mOhm @ 12A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Vgs (Max): ±20V
- FET Feature: -
- Power Dissipation (Max): 2.1W (Ta), 20W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: TO-252, (D-Pak)
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Drain to Source Voltage (Vdss): 60 V
- Gate Charge (Qg) (Max) @ Vgs: 10 nC @ 10 V
- Input Capacitance (Ciss) (Max) @ Vds: 540 pF @ 30 V

Datasheet:
http://aosmd.com/res/data_sheets/AOD444.pdf
