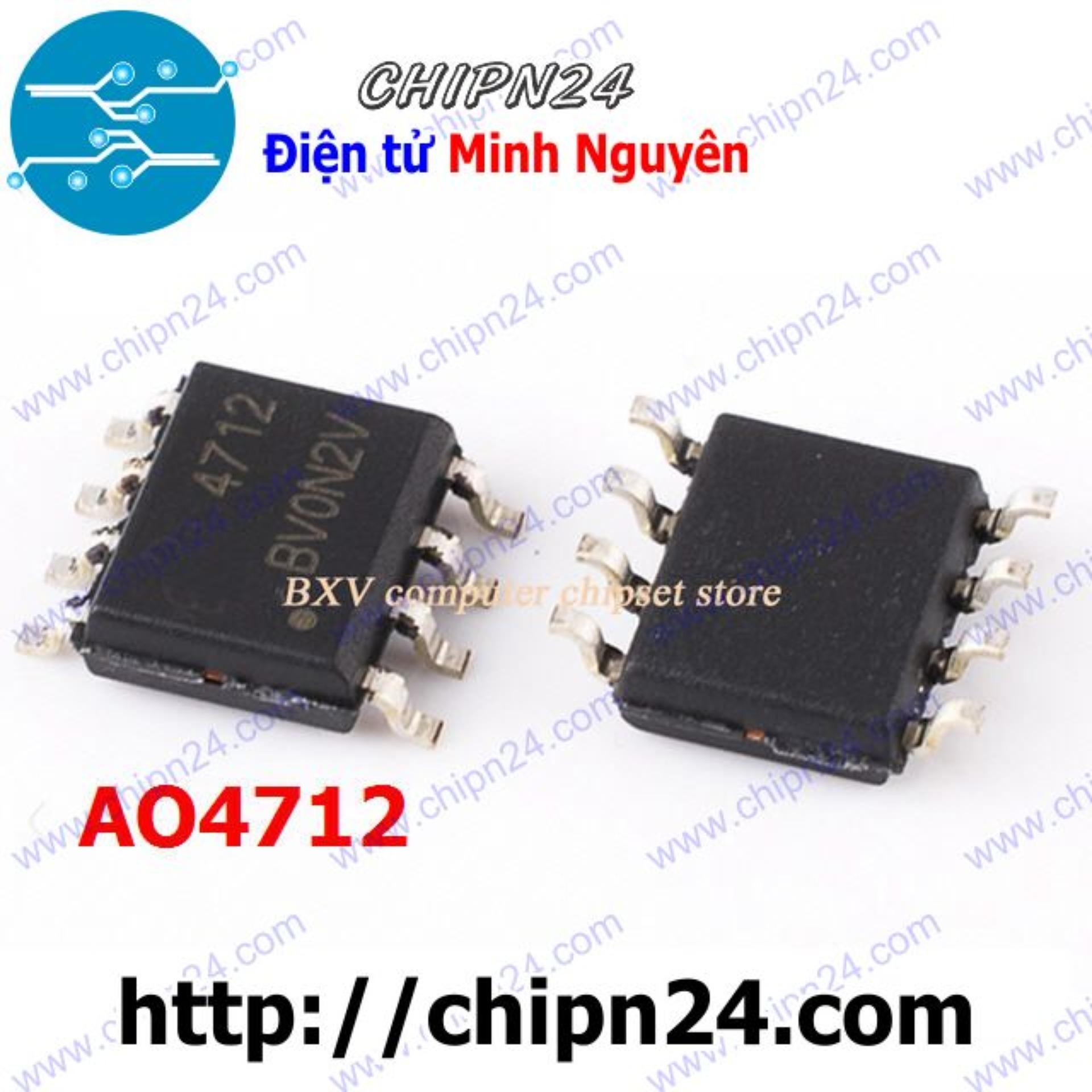

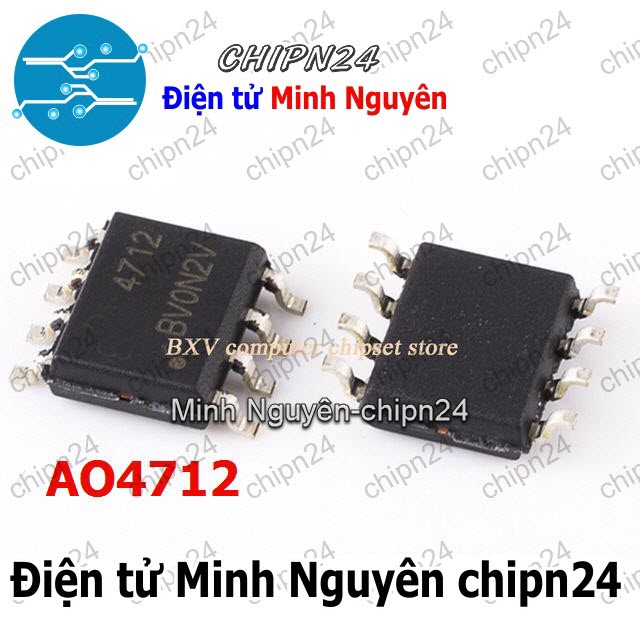

Mosfet Dán AO4712 SOP-8 13A 30V Kênh N (SMD Dán) (4712)

_x000D_ Mosfet Dán AO4712 SOP-8 13A 30V Kênh N (SMD Dán) (4712)

Mô tả
Description
MOSFET N-CH 30V 13A 8SOIC
Detailed Description
N-Channnel 13A (Ta) 3.1W (Ta) Surface Mount 8-SOIC

Thông số kỹ thuật:
- Package: Tape & Reel (TR)
- : Cut Tape (CT)
- : Digi-Reel®
- Part Status: Obsolete
- FET Type: N-Channnel
- Technology: MOSFET (Metal Oxide)
- Current - Continuous Drain (Id) @ 25°C: 13A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 14.5mOhm @ 11.2A, 10V
- Vgs(th) (Max) @ Id: 2.4V @ 250µA
- Vgs (Max): ±12V
- FET Feature: Schottky Diode (Body)
- Power Dissipation (Max): 3.1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SOIC
- Package / Case: 8-SOIC (0.154"", 3.90mm Width)
- Drain to Source Voltage (Vdss): 30 V
- Gate Charge (Qg) (Max) @ Vgs: 31 nC @ 10 V
- Input Capacitance (Ciss) (Max) @ Vds: 1885 pF @ 15 V

Datasheet:
https://Datasheet:pdf.com/pdf/586298/Alpha&OmegaSemiconductors/AO4712/1
