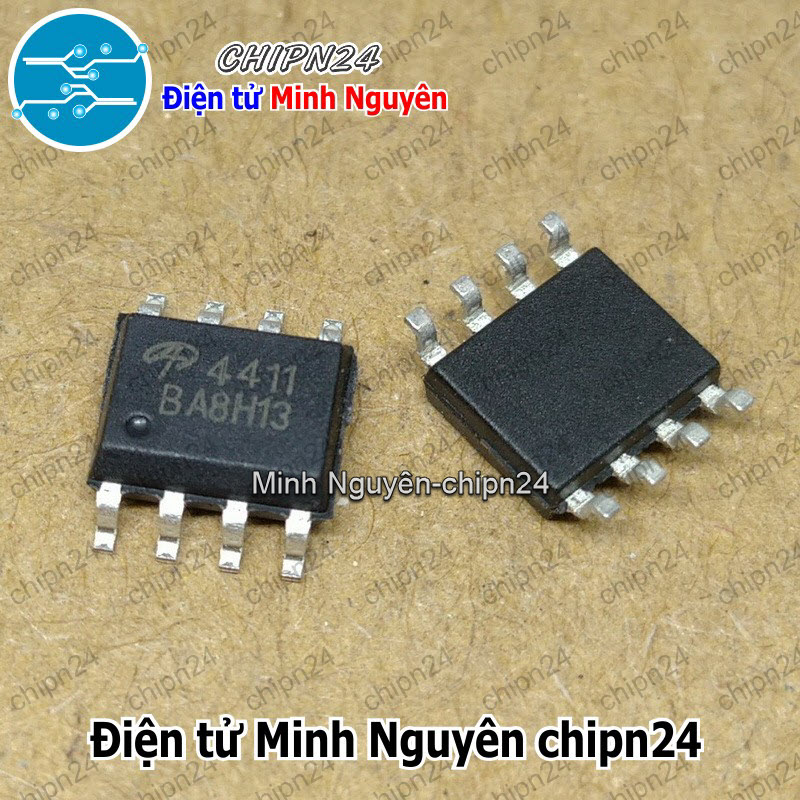

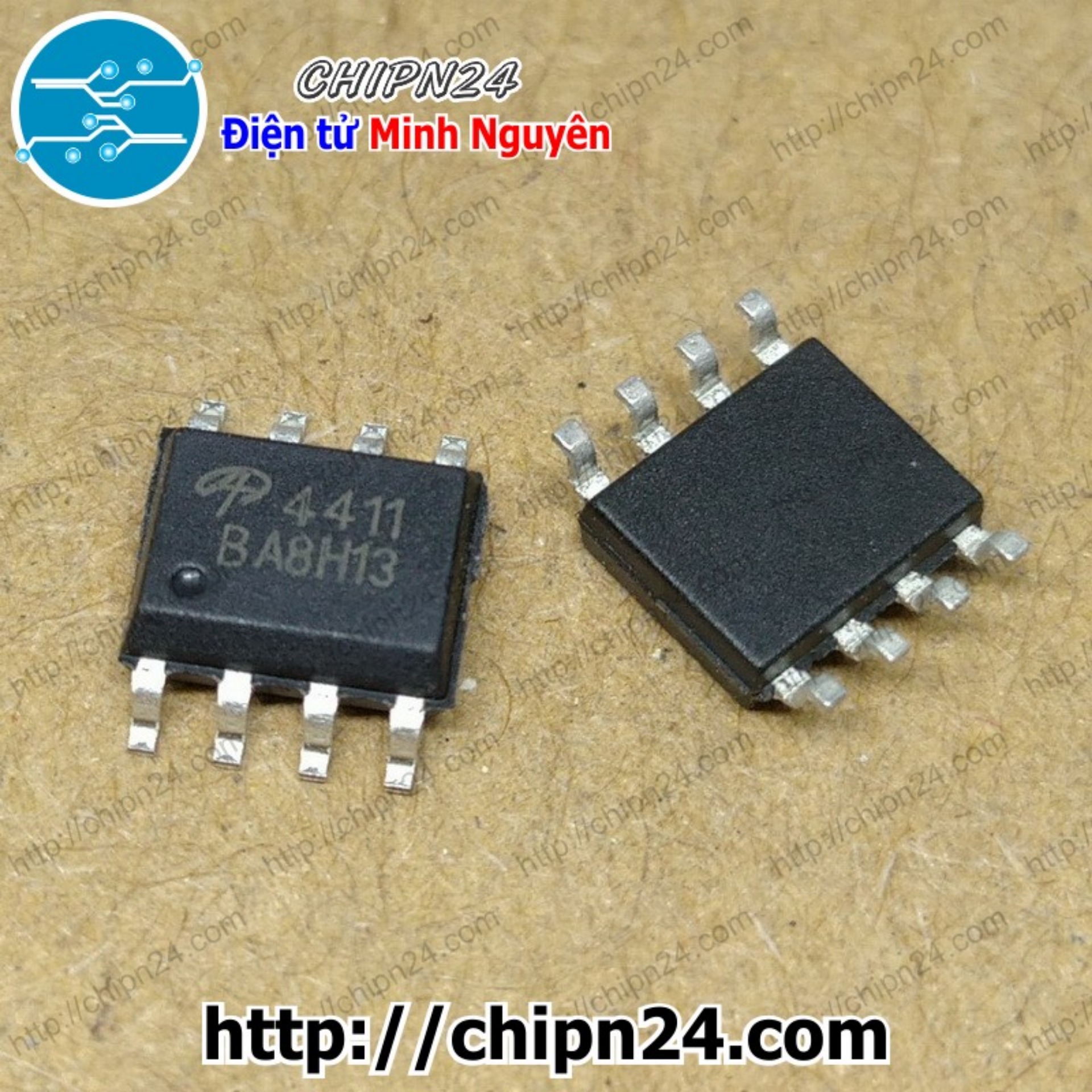

Mosfet Dán AO4411 SOP-8 8A 30V Kênh P (SMD Dán) (4411)

_x000D_ Mosfet Dán AO4411 SOP-8 8A 30V Kênh P (SMD Dán) (4411)

Mô tả:

MOSFET P-CH 30V 8A 8SOIC
Manufacturer Standard Lead Time
P-Channnel 8A (Ta) 3.1W (Ta) Surface Mount 8-SOIC

Thông số kỹ thuật:
- Part Status
- FET Type: P-Channnel
- Technology: MOSFET (Metal Oxide)
- Current - Continuous Drain (Id) @ 25°C: 8A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 32mOhm @ 8A, 10V
- Vgs(th) (Max) @ Id: 2.4V @ 250µA
- Vgs (Max): ±20V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SOIC
- Package / Case: 8-SOIC (0.154"", 3.90mm Width)
- Drain to Source Voltage (Vdss): 30 V
- Gate Charge (Qg) (Max) @ Vgs: 16 nC @ 10 V
- Input Capacitance (Ciss) (Max) @ Vds: 760 pF @ 15 V

Datasheet:
http://www.aosmd.com/res/data_sheets/AO4411.pdf
