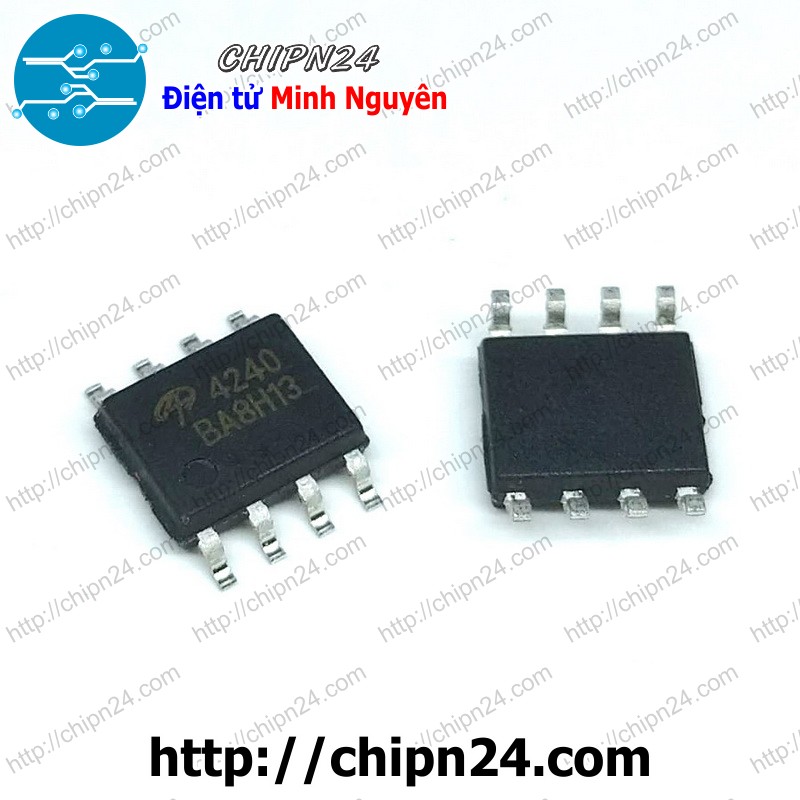

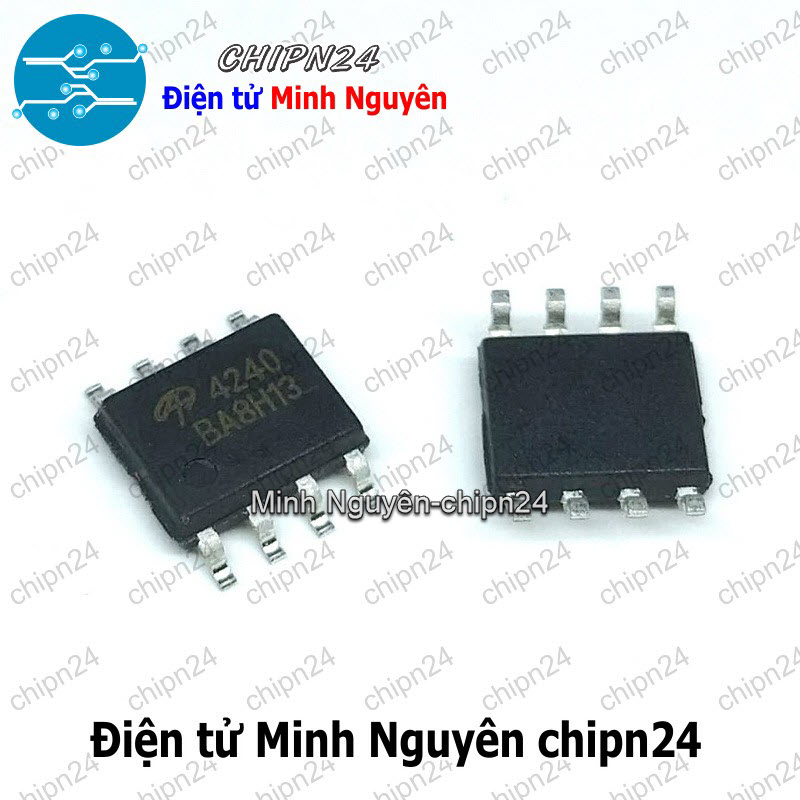

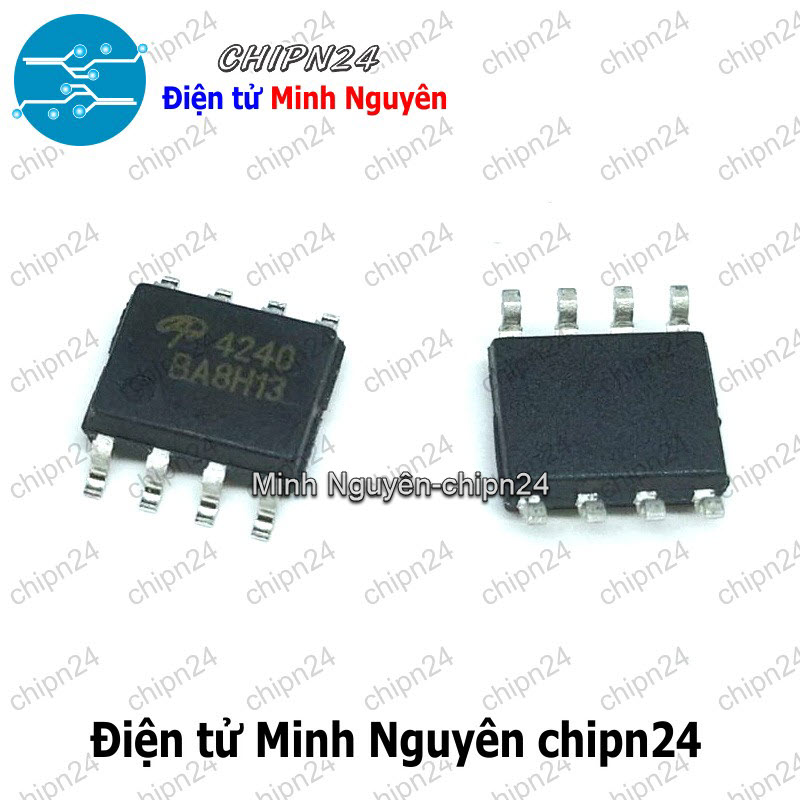

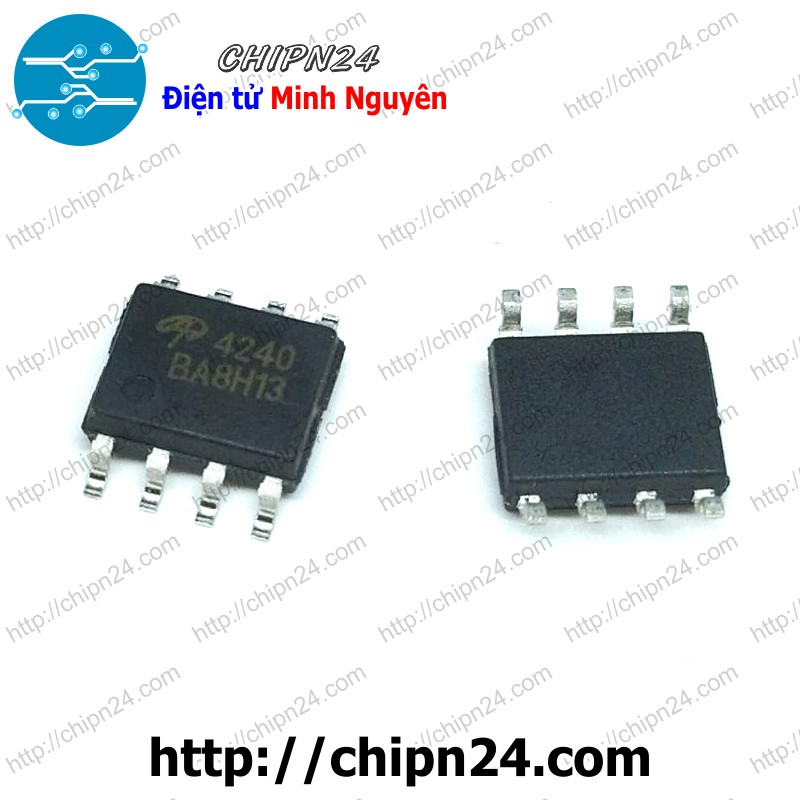

Mosfet Dán AO4240 SOP-8 24A 40V Kênh N (SMD Dán) (4240)

_x000D_ Mosfet Dán AO4240 SOP-8 24A 40V Kênh N (SMD Dán) (4240)

Mô tả:

MOSFET N-CH 40V 24A 8SOIC
Detailed Description
N-Channnel 24A (Ta) 3.1W (Ta) Surface Mount 8-SOIC

Thông số kỹ thuật:
- Part Status
- FET Type: N-Channnel
- Technology: MOSFET (Metal Oxide)
- Current - Continuous Drain (Id) @ 25°C: 24A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 3.3mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 2.3V @ 250µA
- Vgs (Max): ±20V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SOIC
- Package / Case: 8-SOIC (0.154"", 3.90mm Width)
- Drain to Source Voltage (Vdss): 40 V
- Gate Charge (Qg) (Max) @ Vgs: 87 nC @ 10 V
- Input Capacitance (Ciss) (Max) @ Vds: 4245 pF @ 20 V

Datasheet:
https://pdf1.alldatasheet.com/datasheet-pdf/view/482473/AOSMD/AO4240.html
