Micro thu âm Audio-Technica AT2020 (0403)

Tên thiết bị:  Microphone Audio-Technica AT2020

Thương hiệu:  Audio-Technica

Tình trạng: hàng mới, chính hãng 100%





---

Product Highlights

• Side-Address Studio Condenser
• Cardioid Pattern Rejects Off-Axis Sound
• Superior Transient Response
• 144dB SPL Handling
• Wide, Linear Frequency Response
• Low-Mass Diaphragm



Overview:

The Audio-Technica AT2020 is a cost effective studio condenser microphone intended for vocal and general instrument capturing in project and professional studio environments. The capsule features a 16mm low-mass, side-address diaphragm with a cardioid polar pattern. The cardioid pattern is effective in rejecting ambiance and noise at the off-axis sections of the microphone capsule. A linear frequency response of 20Hz to 20kHz enables the flexibility to accurately reproduce signals from any source. High SPL handling and wide dynamic range allow the AT2020 to capture loud signals with minimal noise and distortion. The microphone includes a pivoting, threaded stand mount for accurate positioning.

Cardioid Condenser Element

The 16mm low-mass diaphragm features a cardioid polar pattern. The cardioid pattern effectively minimizes ambient room noise, noise from adjacent instruments or vocalists and minimizes feed-back caused by monitors.

Wide Frequency Response

The wide frequency response of 20Hz to 20kHz allows accurate signal reproduction from any source.

Wide Dynamic Range & Transient Response

The AT2020 boasts a wide dynamic range of 124dB (typical). The capsule reproduces loud signals and transients with minimal noise and peak distortion.



Specifications:

Transducer	Fixed-charge back plate permanently polarized condenser
Polar Pattern	Cardioid
Frequency Response	20Hz - 20kHz
Open Circuit Sensitivity	-37 dB (14.1 mV) re 1V @ 1 Pa
Impedance	100Ω
Noise	20 dB SPL
Dynamic Range (Typical)	124dB, 1 kHz @ Max SPL
Signal-to-Noise Ratio	74dB, 1kHz @ 1 Pa
Maximum Input Sound Level	144dB SPL, 1kHz @ Max SPL
Power Requirements	48V DC, 2 mA typical
Output Impedance	100 ohms
Output Connectors	3-pin XLR male
Pad	No
Low Frequency Roll-Off	No
Dimensions	6.38" x 2.05" (162 x 52mm) (Length x Diameter)
Weight	12.1 oz (345 g)

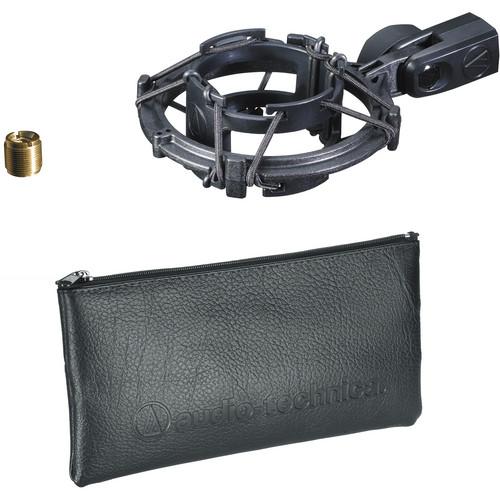

In the Box:

Audio-Technica AT2020 - Cardioid Condenser Microphone

• Pivoting Stand Mount 5/8" - 27 threaded
• Soft Protective Pouch
• 1 Year Warranty
