MCP4725 Module I2C DAC Breakout Development Board

• The MCP4725 is a single-channel 12-bit buffered voltage output DAC with non-volatile memory (EEPROM). Users can store configuration register bits (2 bits) and DAC input data (12 bits) in non-volatile EEPROM (14 bits) memory. By setting the configuration register bits, the DAC can be configured into normal mode or power-saving shutdown mode. The device can use a 2-wire I2C compatible serial interface and is powered by a single power supply with a voltage range of 2.7V to 5.5V.

  Description: You've always wanted to output analog voltages from a microcontroller, the MCP4725 is the DAC that will let you do it! The CJMCU-MCP4725 is an I2C controlled Digital-to-Analog converter (DAC). A DAC allows you to send analog signal, such as a sine wave, from a digital source, such as the I2C interface on the Arduino microcontroller. Digital to analog converters are great for sound generation, musical instruments, and many other creative projects!

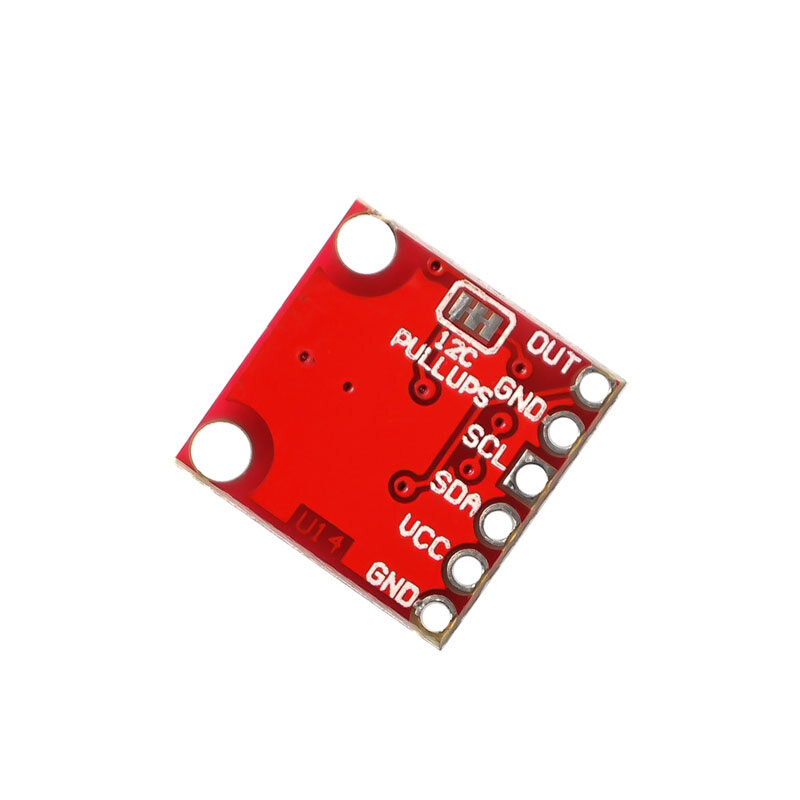

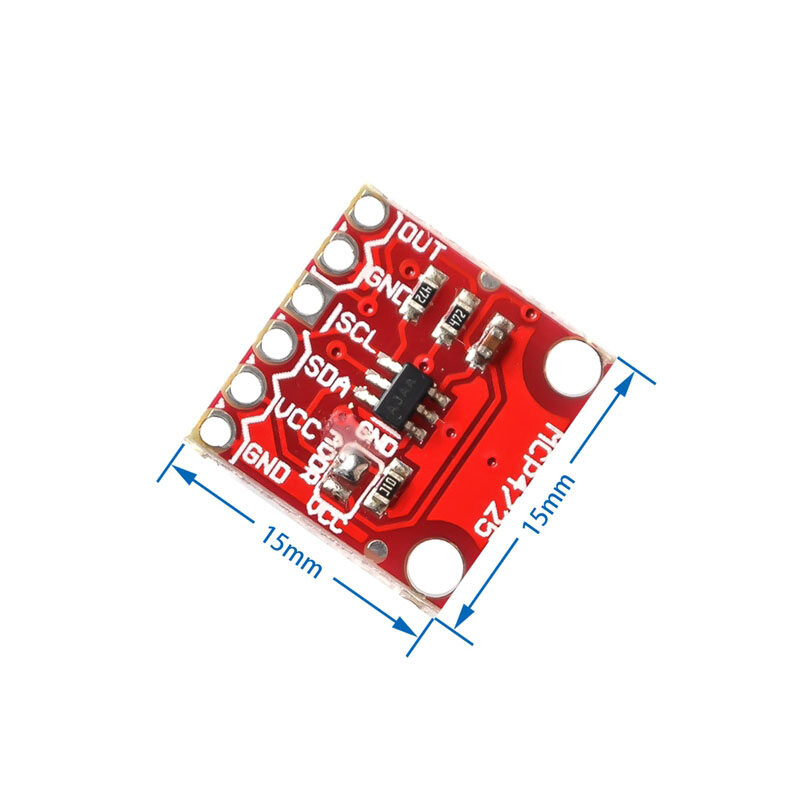

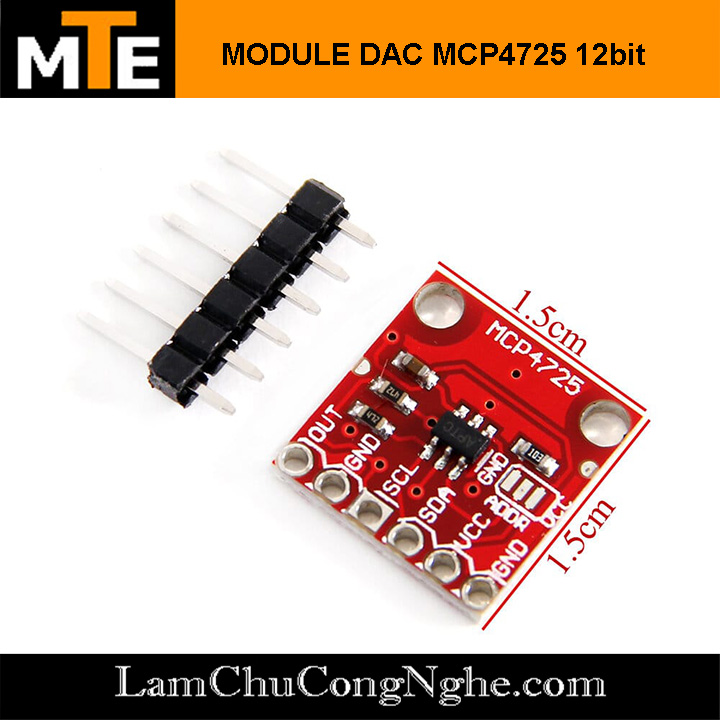

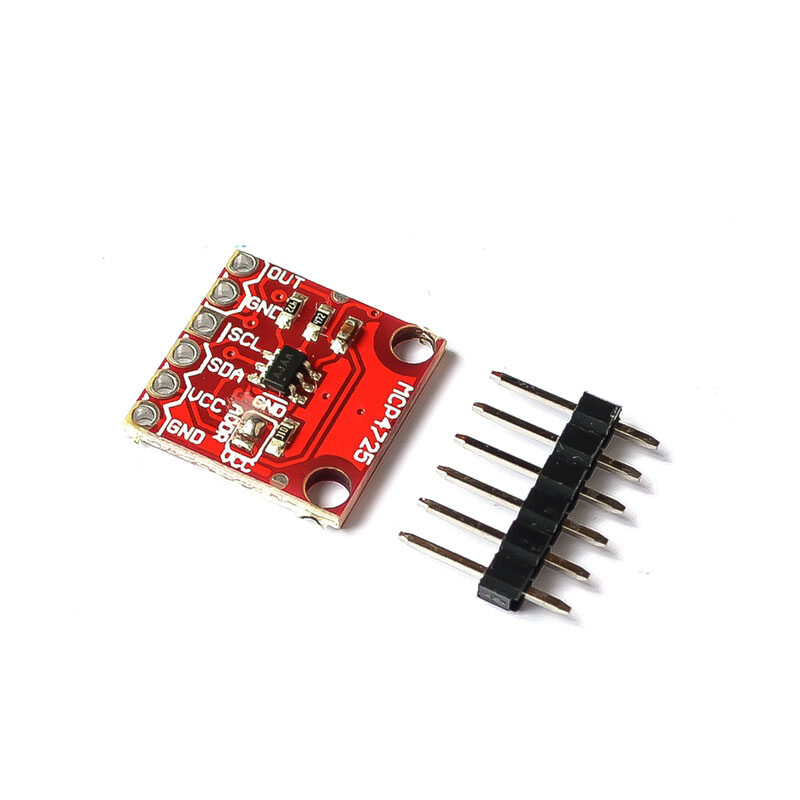

  This version of the CJMCU-MCP4725 Breakout fixes a few issues with the board including the IC footprint, the I2C pinout, changes the overall board dimensions to better fit your projects, and a few more minor tweaks. This board breaks out each pin you will need to access and use the MCP4725 including GND and Signal OUT pins for connecting to an oscilloscope or any other device you need to hook up to the board. Also on board are SCL, SDA, VCC, and another GND for your basic I2C pinout. Additionally, if you are looking to have more than one MCP4725 on a bus, the pull-up resistors on this board can be disabled just check the Hookup Guide in the Documents section below for instructions and tips on doing this.

  Features:

  12-bit resolution
  I2C Interface (Standard, Fast, and High-Speed ​​supported)
  Small package
  2.7V to 5.5V supply
  Internal EEPROM to store settings
