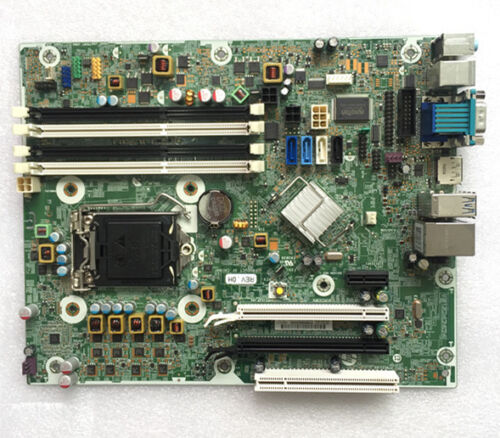

Mainboard HP Compaq Pro 6300 6380 8300SFF Q75 sff (657.239-001 656.961-001) (0408)

Tên thiết bị:Mainboard HP Compaq Pro 6300 6380 Q75 sff (657.239-001 656.961-001)

Model:HP Compaq Pro 6300 6380 Q75 sff (657.239-001 656.961-001)

Thương hiệu:HP

Tình trạng:hàng mới, chính hãng 100%

Thời gian đặt hàng: 1 - 2 ngày

Hình ảnh thiết bị như hình chụp

Product features

Feature	Description
Chipset	Intel Q75 Express
Processor	Intel 3rd generation core i7 processors: Intel Core i7-3770 processor: Intel 3rd generation core i5 processors: Intel Core i5-3570 processor Intel Core i5-3470 processor Intel 2nd generation core i3 processors: Intel Core i3-2130 processor Intel Core i3-2120 processor Intel Pentium processors: Intel PentiumG870 processor Intel PentiumG860 processor Intel PentiumG640 processor Intel Celeron processors: Intel Celeron G550 processor Intel Celeron G540 processor Intel Celeron G460 processor
Graphics	Integrated on all models (depends on processor): Intel HD Graphics: Basic, 2000, 2500, 4000 Optional discrete graphics solutions: AMD Radeon HD 6350 (512MB) PCIe x16 (includes a DMS-59 to Dual VGA Y Cable) AMD Radeon HD7450 (1GB) PCIe x16 (includes a DVI to VGA adapter cable) NVIDIA NVS 300 (512MB) PCIe x16 (Includes a DMS-59 to Dual VGA Y Cable) NVIDIA NVS 310 (512MB) PCIe x16 Adapters and cables: DisplayPort to DisplayPort cable DisplayPort to DVI-D adapter DisplayPort to HDMI adapter DisplayPort to VGA adapter
Storage	SATA hard drive: 250GB, 7200 rpm, SATA 6.0 Gb/s, SMART IV, 3.5 in 500GB, 7200 rpm, SATA 6.0 Gb/s, SMART IV, 3.5 in 1TB, 7200 rpm, SATA 6.0 Gb/s, SMART IV, 3.5 in SATA self-encrypting drive: 320GB, 7200 rpm, SATA, 3.5 in SATA self-encrypting Solid State Drive (SSD): 256GB, SATA, 3.5 in SATA Solid State Drive (SSD): 120GB, SATA (with 3.5 in adapter) 128GB, SATA (with 3.5 in adapter) Optical disc drive: DVD-ROM SuperMulti DVD writer Blu-ray writer Media card reader: 22-in-1
Memory 1	Type: DDR3 non-ECC Up to 1600 MT/s Maximum: 32GB Number of slots: 4
Networking/Communications	Ethernet (RJ-45): Intel 82579LM Gigabit Network Connection (standard) Intel Pro Gigabit CT Desktop PCIe x1 Network Card (optional) Wireless: 802.11b/g/n PCIe x1 (optional)
Audio/Multimedia	High Definition Audio with Realtek ALC221 codec (all ports are stereo) Microphone2 and headphone front ports (3.5 mm) Line-out and Line-In rear Ports2 (3.5 mm) Multi-streaming capable2 Internal speaker (standard) Thin USB power speakers USB HD 720P business webcam Business headset
Keyboards and pointing devices	Keyboard: PS/2 keyboard USB keyboard USB Smart Card (CCID) keyboard USB and PS/2 washable keyboard Wireless keyboard and mouse combo Mice: PS/2 optical mouse USB optical mouse USB laser mouse USB and PS/2 washable mouse
Power	240 W, active PFC, 90% high efficiency 240 W active PFC, standard efficiency
Ports	I/O ports - standard: 4 - USB 3.0 (rear) 4 - USB 2.0 (front) 2 - USB 2.0 (rear) 1 - Serial RS-232 compatible 2 - PS/2 (color-coded support for keyboard (purple) and mouse (green) 1 - VGA 1 - DisplayPort 1.1 1 - Microphone and headphone (front) 1 - Audio-in and Audio-out (rear) 1 - RJ-45 (accesses the integrated network interface controller) I/O ports - optional 1 - Serial RS-232 compatible 1 - Parallel 1 - eSATA
Bays	3.5 in external (For Media Card Reader unless used for secondary data drive) - 1 each 5.25 in external - 1 each 8.19 in depth 3.5 in internal HDD - 1 each
Slots	PCI (5 volt): 1 each 2.5 in low profile 6.6 in length 25 W maximum power PCI Express x1 (2.0): 2 each 2.5 in low profile 6.6 in length 10 W maximum power PCI Express x16 (3.0 - Primary): 1 each 2.5 in low profile 6.6 in length 25 W maximum power

​​​​​​​
