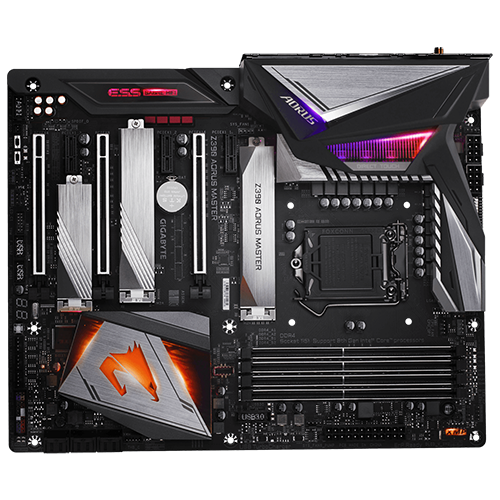

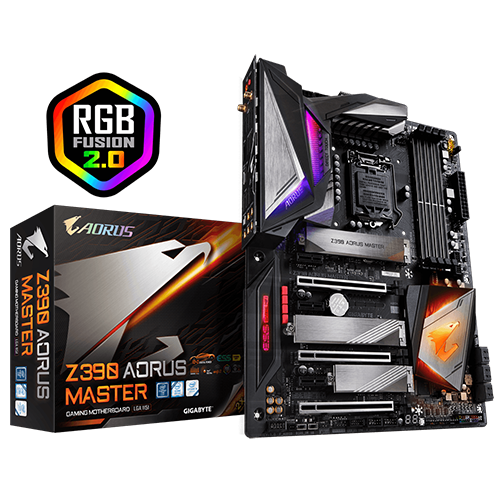

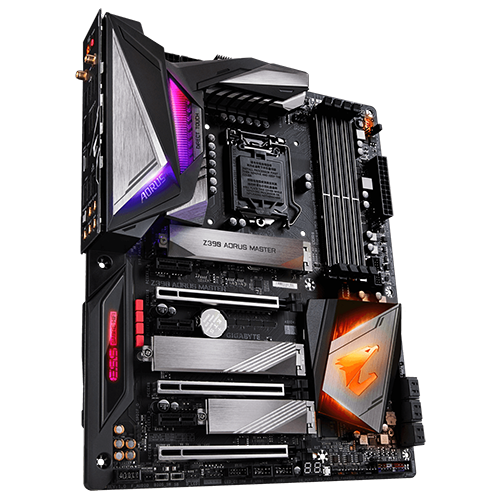

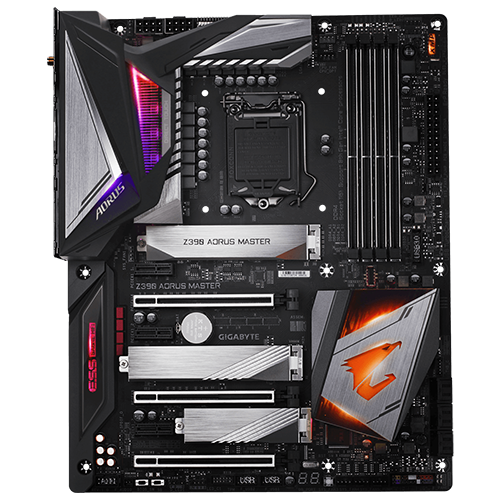

[Trả góp 0%]Mainboard Gigabyte Z390 AORUS Master

Thông số kỹ thuật

Kích thước	ATX
Socket	FCLGA1151 thế hệ 8 và 9
Chipset	Z390
Loại Ram hỗ trợ	4 x DDR4, tối đa 128GB
Bus RAM hỗ trợ	4400(OC) / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2666 / 2400 / 2133 MHz
Giao diện lưu trữ	6 x SATA 3 6Gb/s, 3 x M.2 SATA/NVMe
Khe PCI	1 x PCI Express x16, chạy x16 1 x PCI Express x16, chạy x8 2 x PCI Express x16, chạy x4 3 x PCI Express x1, chạy x4 1 x M.2 Wifi
Hỗ trợ Đa GPU	NVIDIA®Quad-GPU SLI™ and 2-Way NVIDIA®SLI™ AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™
LAN	Intel®GbE LAN chip (10/100/1000 Mbit)
Wifi và Bluetooth	Intel®CNVi interface Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5 Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate
Âm thanh	Realtek®ALC1220-VB codec ESS SABRE 9118 DAC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out

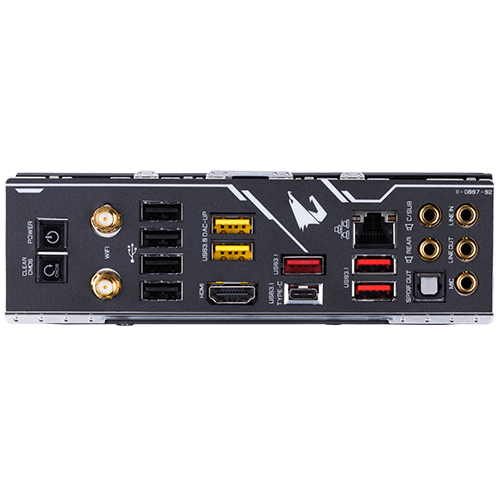

Kết nối Back Panel	1 x Power/Reset button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 3 x USB 3.1 Gen 2 Type-A ports (red) 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks
Kết nối Internal I/O	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x Addressable LED strip headers 2 x Addressable LED strip power select jumpers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Thunderbolt™ add-in card connector 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x OC button 1 x reset button 2 x temperature sensor headers 2 x BIOS switches 1 x Clear CMOS jumper Voltage Measurement Points
