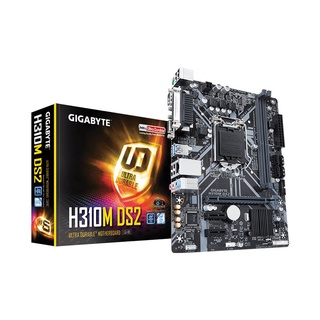

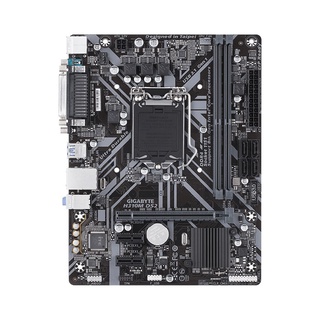

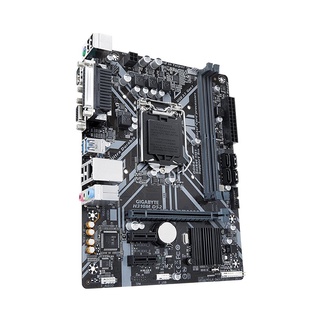

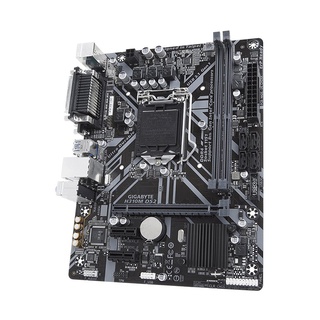

Mainboard GIGABYTE H310M-DS2 (Intel H310, Socket 1151, m-ATX, 2 khe RAM DDR4) - Đã Qua Sử Dụng

Tên gọi: Gigabyte H310M-DS2 CPU hỗ trợ: Intel® Socket 1151 for 8th Generation Core™ Processors Chipset / Socket: Intel® H310 Bộ nhớ (RAM): • 2 x DDR4 memory slots, support up to 32GB • Supports DDR4 2400/ 2133 MHz (by JEDEC)1 • Supports DDR4 2400/ 2133 (by XMP OC)1 • Supports Dual-Channel mode • Supports non-ECC, un-buffered memory • Supports Intel® Extreme Memory Profile (XMP) Khe cắm mở rộng: • 1 x PCI Express 3.0 x16 Slots• 2 x PCI Express 3.0 x1 Slots LAN / Wireless: • Realtek® GbE LAN chip (10/100/1000 Mbit) Âm thanh: • Realtek® ALC887 Codec Cổng kết nối (Internal): • 1 x 24-pin ATX main power connector • 1 x 4-pin ATX 12V power connector • 4 x SATA 6Gb/s connectors • 1 x CPU fan header • 1 x system fan header • 1 x front panel header • 1 x front panel audio header • 1 x USB 3.1 Gen 1 header • 1 x USB 2.0/1.1 header • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) • 1 x Clear CMOS jumper Cổng kết nối (Back Panel): • 1 x PS/2 keyboard/mouse port • 1 x parallel port • 1 x serial port • 1 x D-Sub port • 2 x USB 3.1 Gen 1 ports • 4 x USB 2.0/1.1 ports • 1 x RJ-45 port • 3 x audio jacks Công nghệ độc quyền: • Support for APP Center • Support for Q-Flash • Support for Xpress Install Phụ kiện đi kèm: - Quick Installation Guide, Support CD, I/O Shield Hệ điều hành khuyến nghị: • Windows® 10 64-bit Chuẩn kích cỡ: • mATX Form Factor
