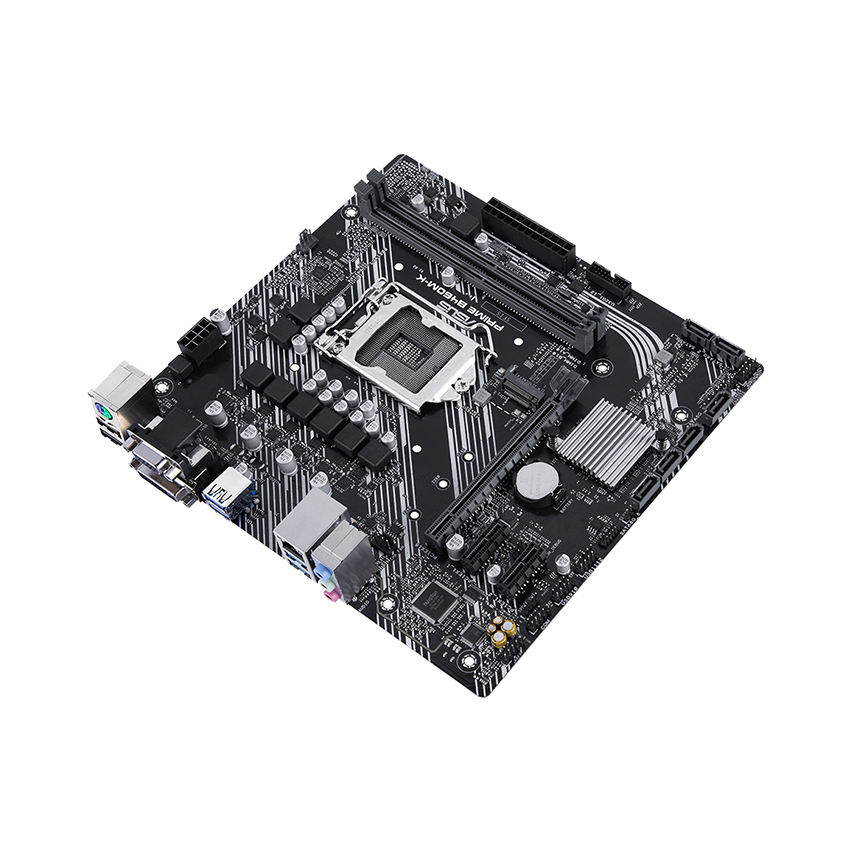

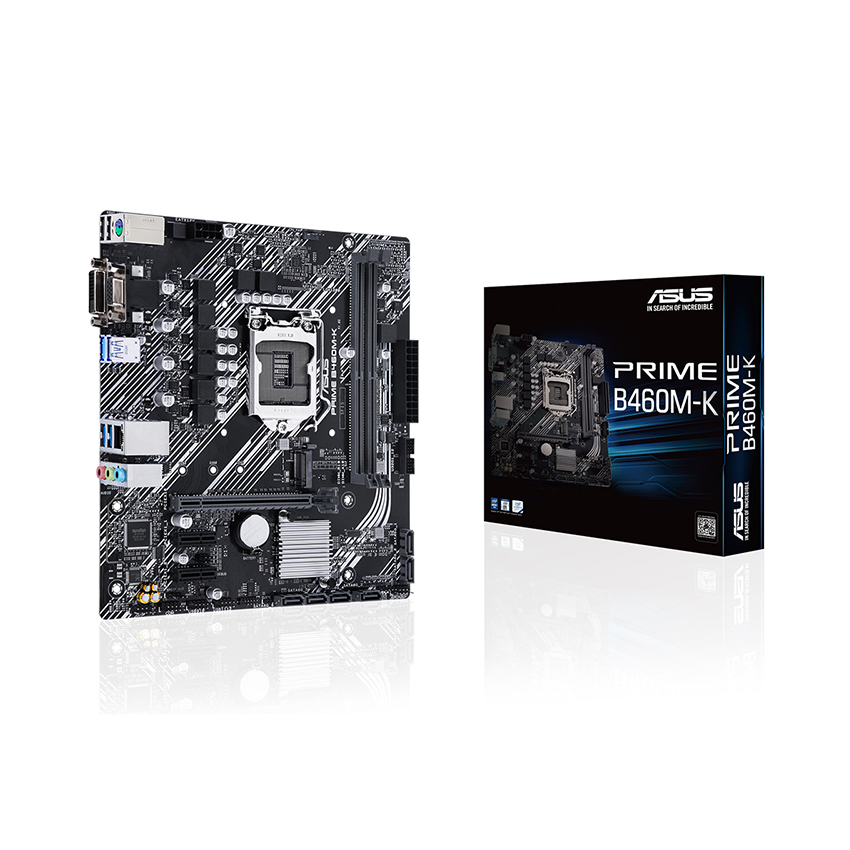

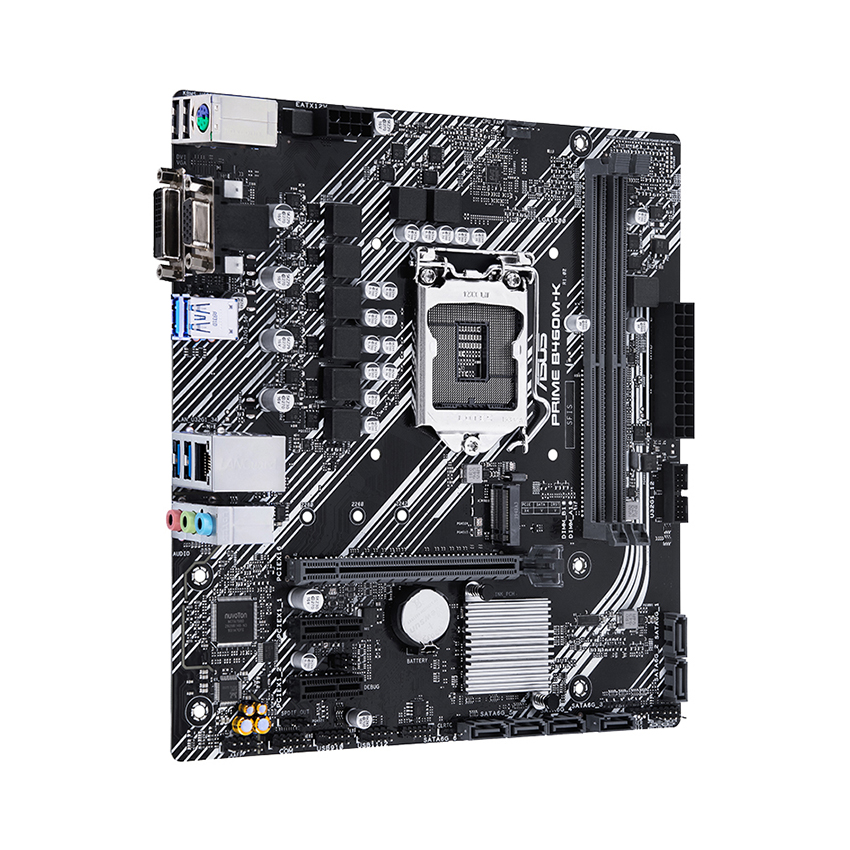

Mainboard ASUS PRIME B460M-K (Intel B460, Socket 1200, m-ATX, 2 khe Ram DDR4)

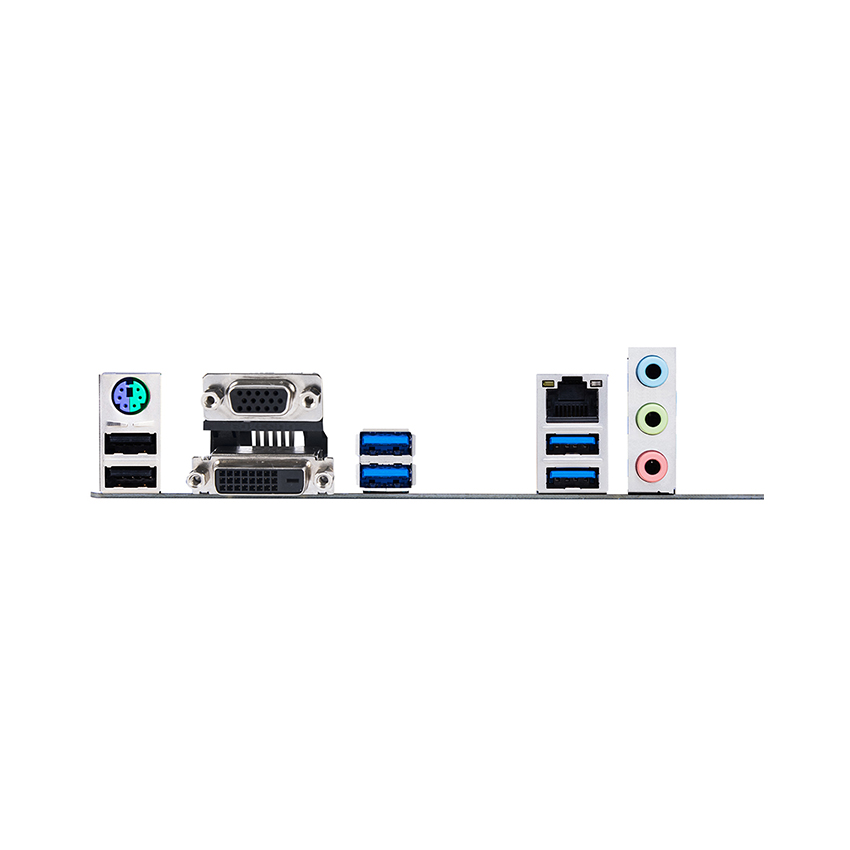

Thông số kỹ thuật chi tiết Mainboard ASUS PRIME B460M-K (Intel B460, Socket 1200, m-ATX, 2 khe Ram DDR4) Sản phẩm Bo mạch chủ Tên Hãng ASUS Model PRIME B460M-K CPU hỗ trợ Intel Chipset B460 RAM hỗ trợ 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Khe cắm mở rộng 1 x PCIe 3.0/2.0 x16 (x16 mode), 2 x PCIe 3.0/2.0 x1 Ổ cứng hỗ trợ 1 x M.2_1 socket 3, 6 x SATA 6Gb/s port(s) Cổng kết nối (Internal) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x AAFP connector 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Speaker connector Cổng kết nối (Back Panel) 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 3 x Audio jack(s) LAN / Wireless Realtek® RTL8111H, 1 x Gigabit LAN Controller(s), support LANGuard Kích cỡ mATX Form Factor 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
