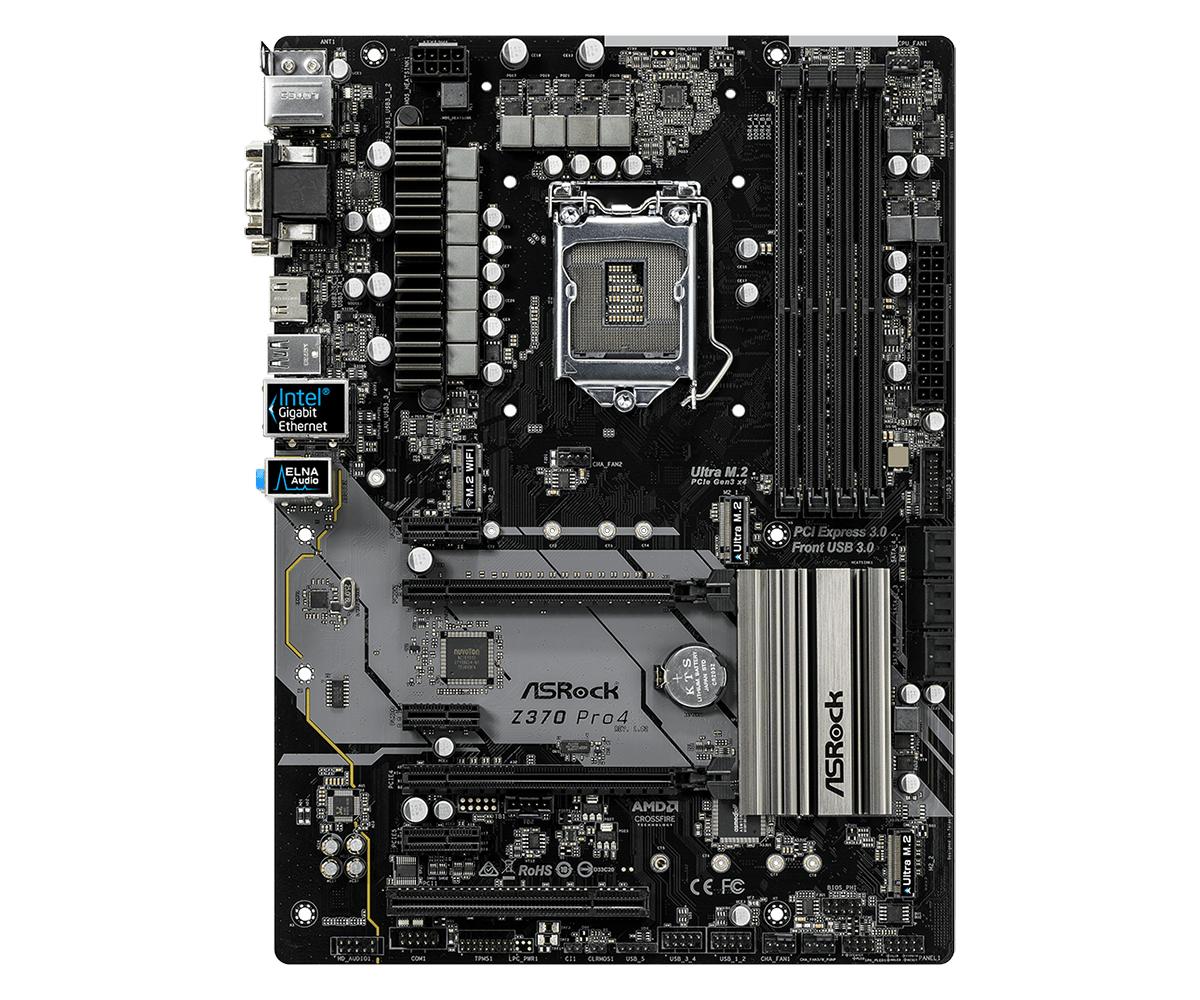

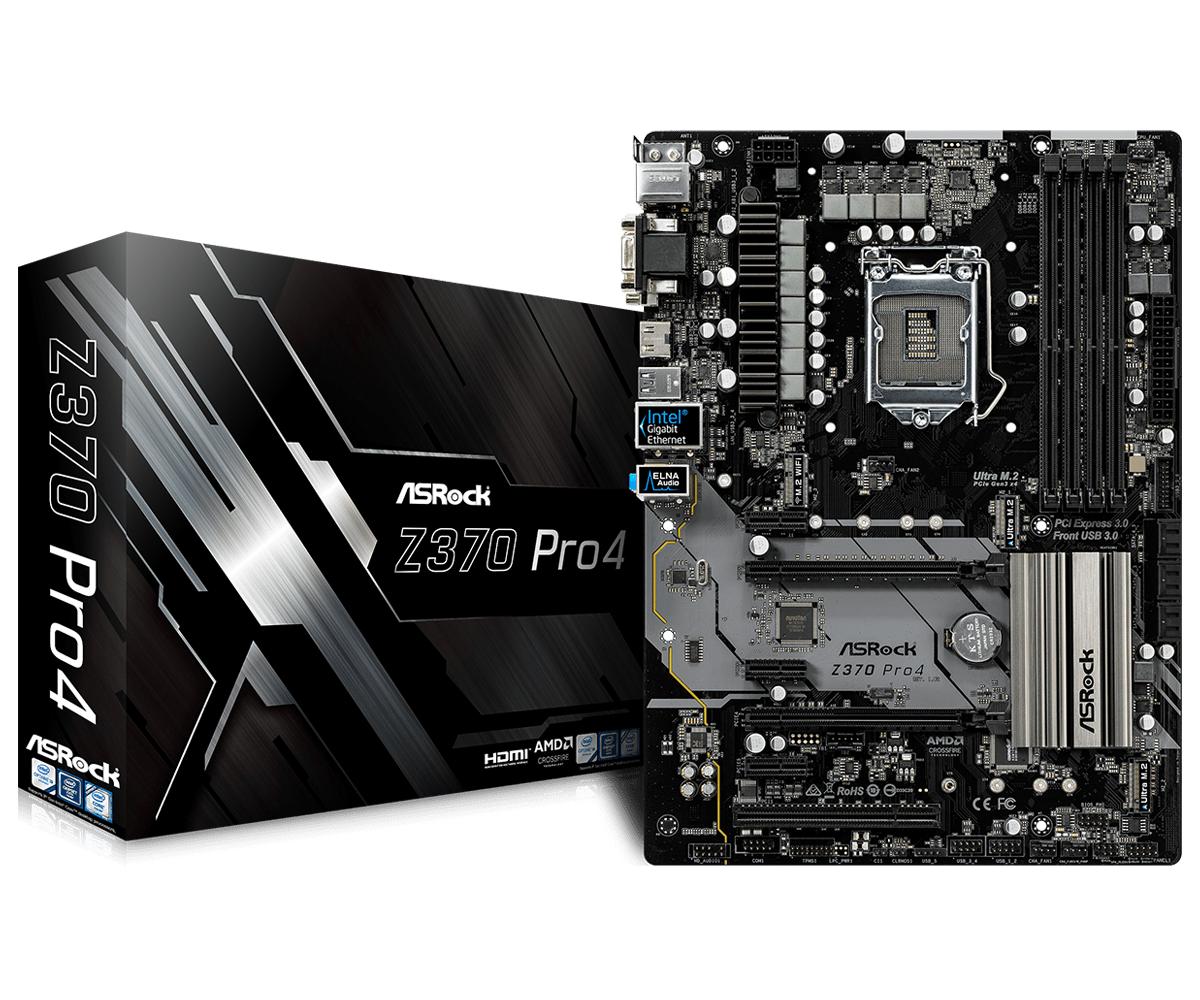

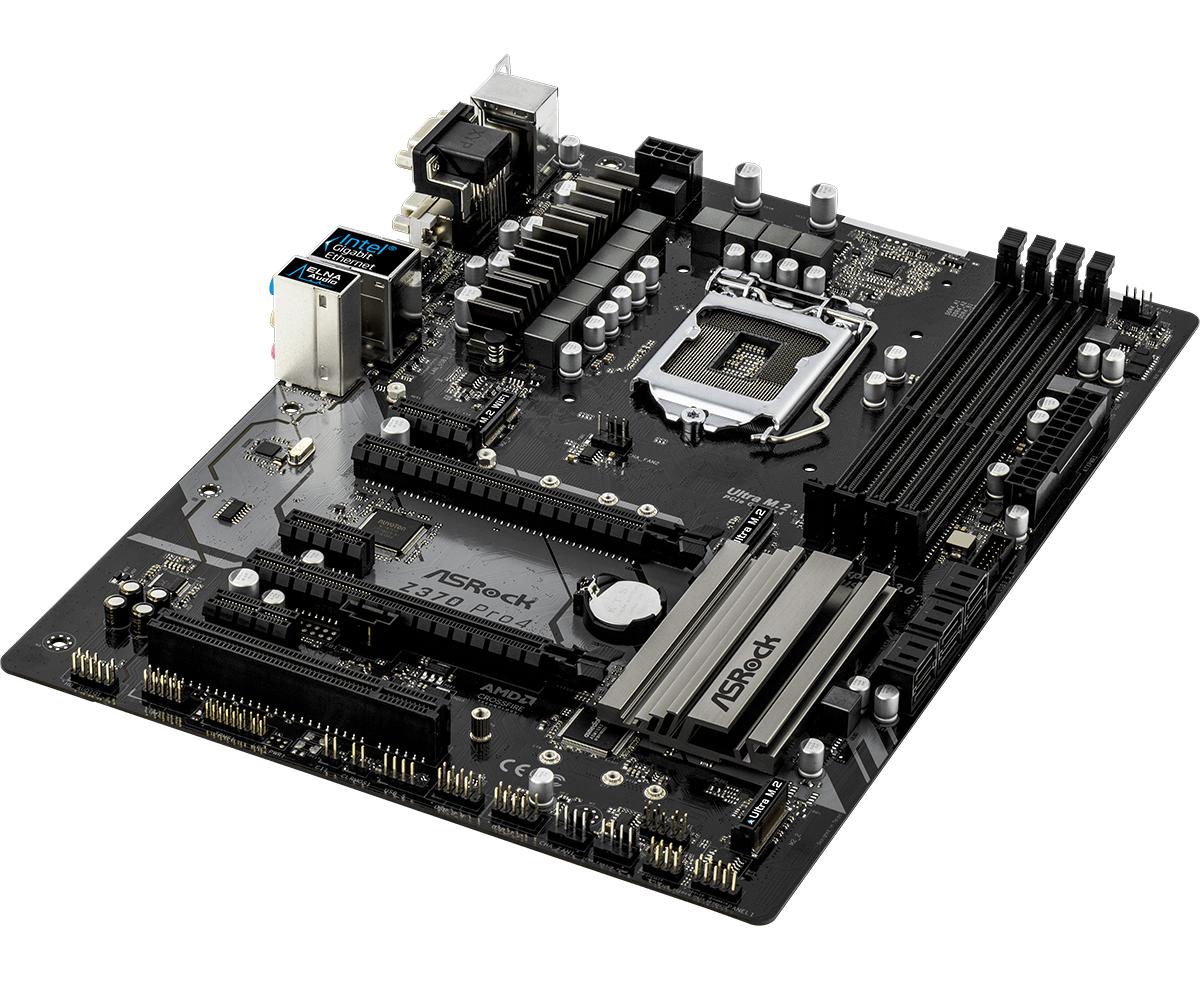

[HCM]Mainboard Asrock Z370 Pro4

Supports 8th Generation Intel® Core™ Processors (Socket 1151) Supports DDR4 2666 1 PCIe 3.0 x16, 1 PCIe 2.0 x1 Asrock Z370M Pro4 Chipset / Socket Intel® Z370 Express Chipset / Intel Socket 1151 (Version 2) CPU hỗ trợ 8th Generation Intel® Core™ Processors, and Intel® Pentium® and Celeron® Processors Bộ nhớ (RAM) • 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory • Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules Khe cắm mở rộng • 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)* • 2 x PCI Express 3.0 x1 Slots (Flexible PCIe) • 6 x SATA3 6.0 Gb/s Connectors • 1 x Ultra M.2 Socket • 1 x Ultra M.2 Socket Âm thanh • 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)* • Premium Blu-ray Audio support • Supports Surge Protection • ELNA Audio Caps LAN / Wireless • Giga PHY Intel® I219V Cổng kết nối • 1 x Print Port Header • 1 x COM Port Header • 1 x TPM Header • 1 x Chassis Intrusion and Speaker Header • 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)* • 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** • 1 x 24 pin ATX Power Connector • 1 x 8 pin 12V Power Connector • 1 x Front Panel Audio Connector • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) • 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) • 1 x Performance Mode / Easy OC Header Chuẩn kích cỡ • Micro ATX Form Factor Đa GPU • AMD Quad CrossFireX™ and CrossFireX™
