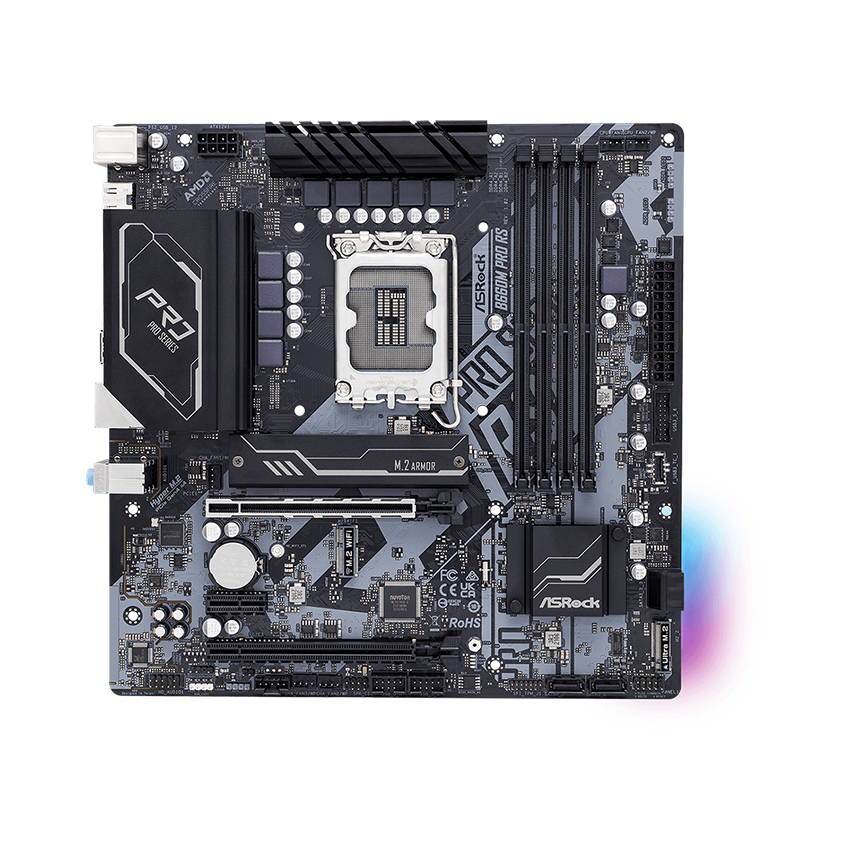

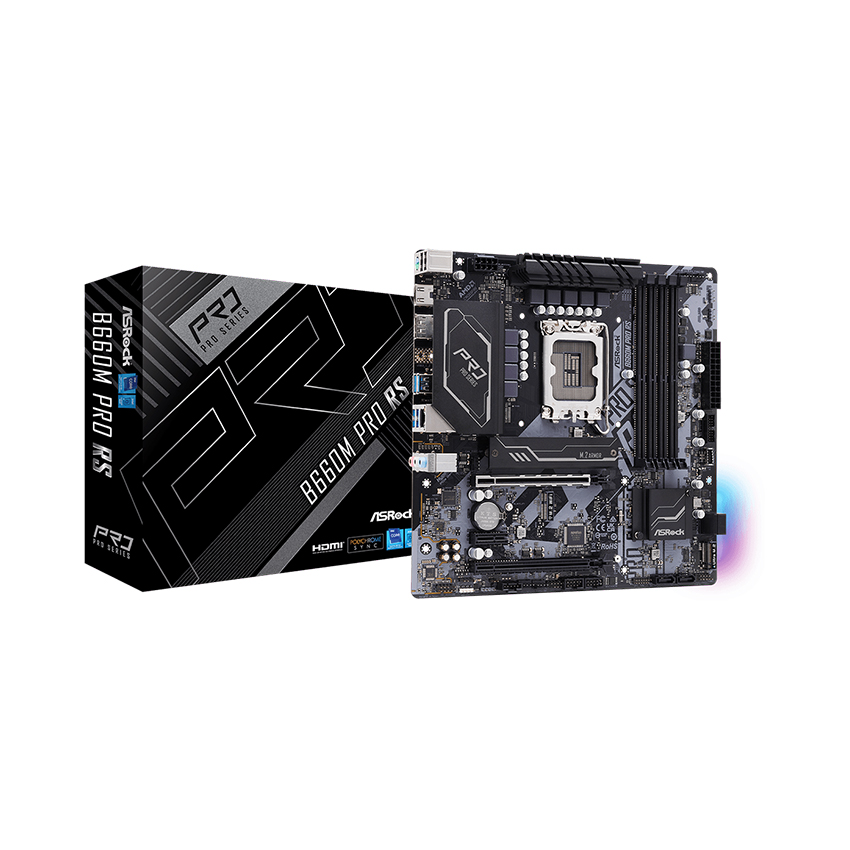

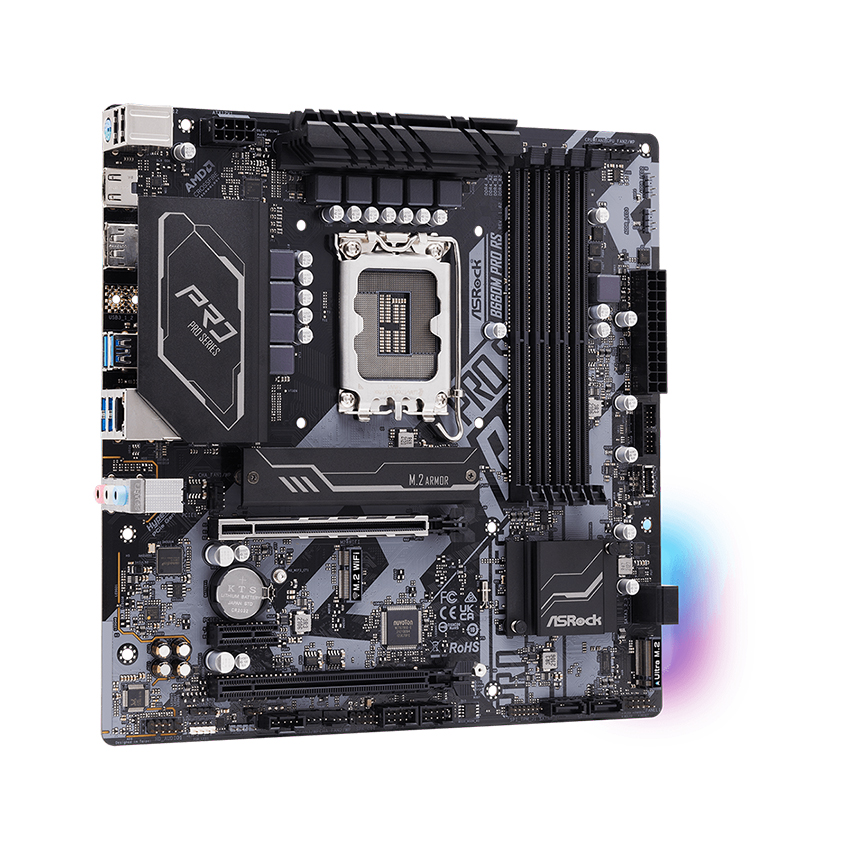

Mainboard Asrock B660M Pro RS ( Intel B660/LGA 1700/4 khe/M-ATX/DDR4 ) - Hàng Chính Hãng

Model: B660M Pro RS DDR4

CPU hỗ trợ: Intel

Chipset: B660

RAM hỗ trợ:

- Dual Channel DDR4 Memory Technology

- 4 x DDR4 DIMM Slots

- Supports DDR4 non-ECC, un-buffered memory up to 4800+(OC)*

- Supports ECC UDIMM memory modules (operate in non-ECC mode)

- Max. capacity of system memory: 128GB

- Supports Intel® Extreme Memory Profile (XMP) 2.0

Khe cắm mở rộng:

- 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*

- 1 x PCIe Gen3x1 Slot

- Supports AMD CrossFire™

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)

Ổ cứng hỗ trợ:

- 4 x SATA3 6.0 Gb/s Connectors** If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode**

- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s) mode**

Cổng kết nối (Internal):

- 1 x SPI TPM Header

- 1 x Chassis Intrusion and Speaker Header

- 1 x RGB LED Header

* Supports in total up to 12V/3A, 36W LED Strip

- 3 x Addressable LED Headers

* Support in total up to 5V/3A, 15W LED Strip

- 1 x CPU Fan Connector (4-pin)

* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

* CPU_FAN2/WP, CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector

- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

- 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

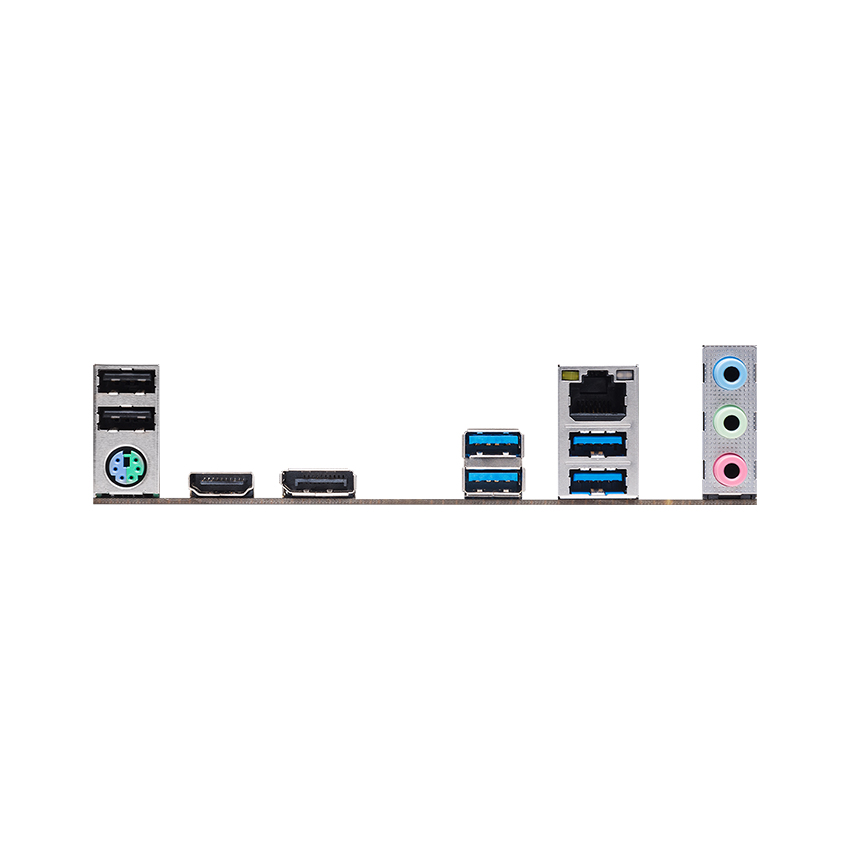

Cổng kết nối (Back Panel):

- 3 x Antenna Mounting Points

- 1 x PS/2 Mouse/Keyboard Port

- 1 x HDMI Port

- 1 x DisplayPort 1.4

- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Line in / Front Speaker / Microphone

LAN / Wireless:

- Gigabit LAN 10/100/1000 Mb/s

- Giga PHY Intel® I219V

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports UEFI PXE

Kích cỡ:

- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

- Solid Capacitor design
