MACH3 CNC USB 100Khz Interface Board Usb Interface Board Engraving Machine Cnc Motion Control Card 5-Axis Interface

manual download link: https://pan.baidu.com/s/1Tr8kbKk_kh5ZKQ273aP-Lg

Extract code: enpy

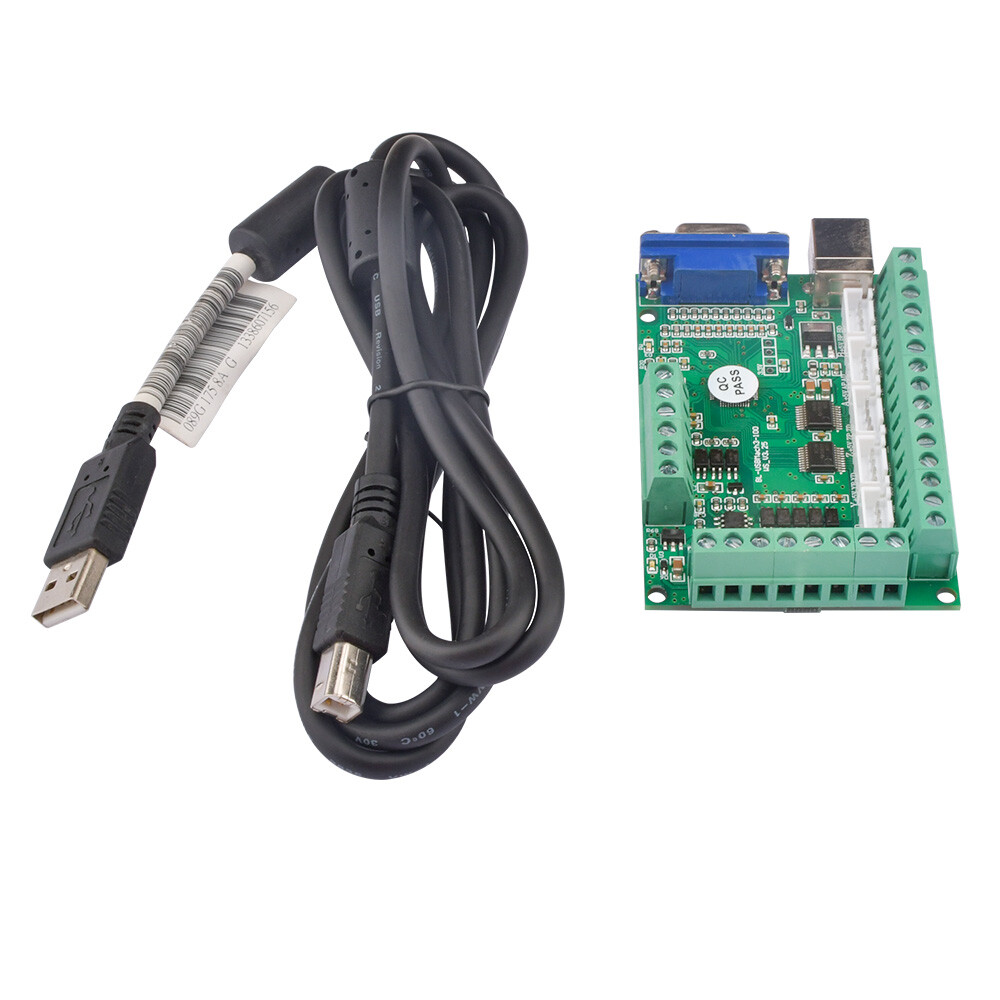

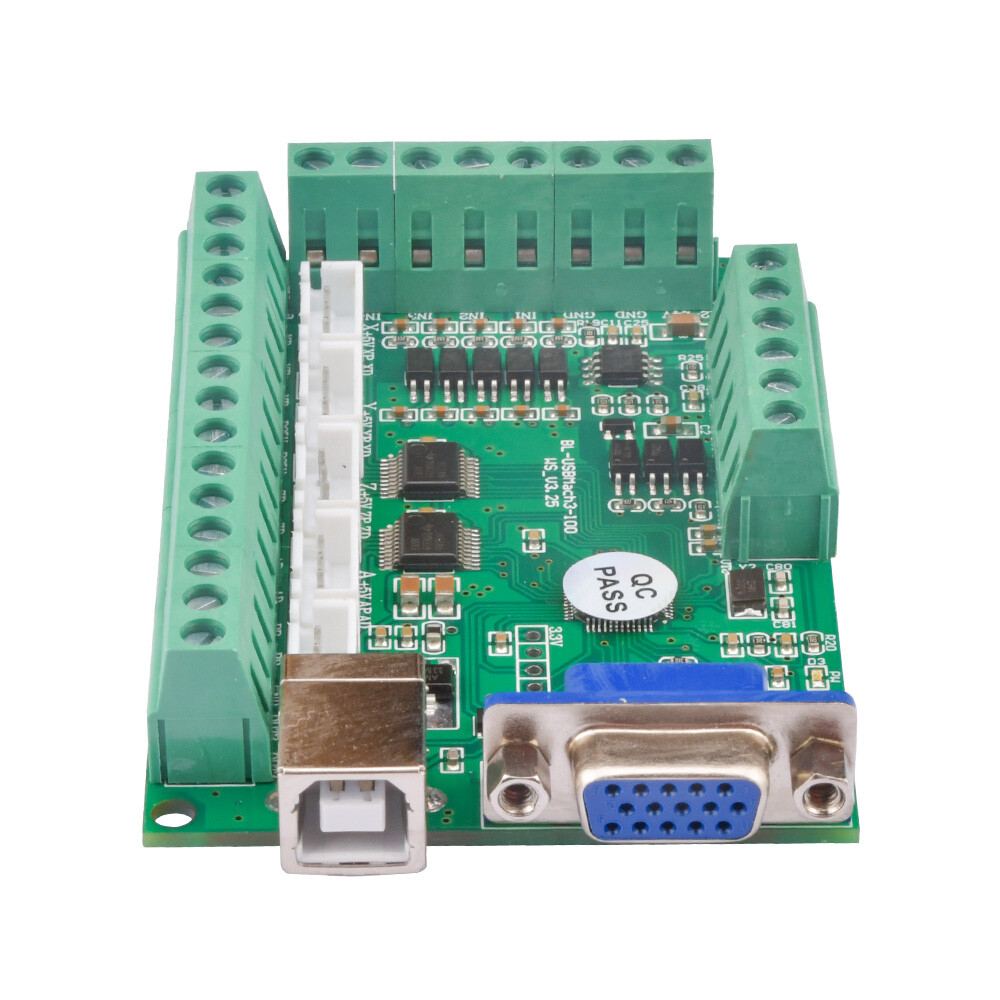

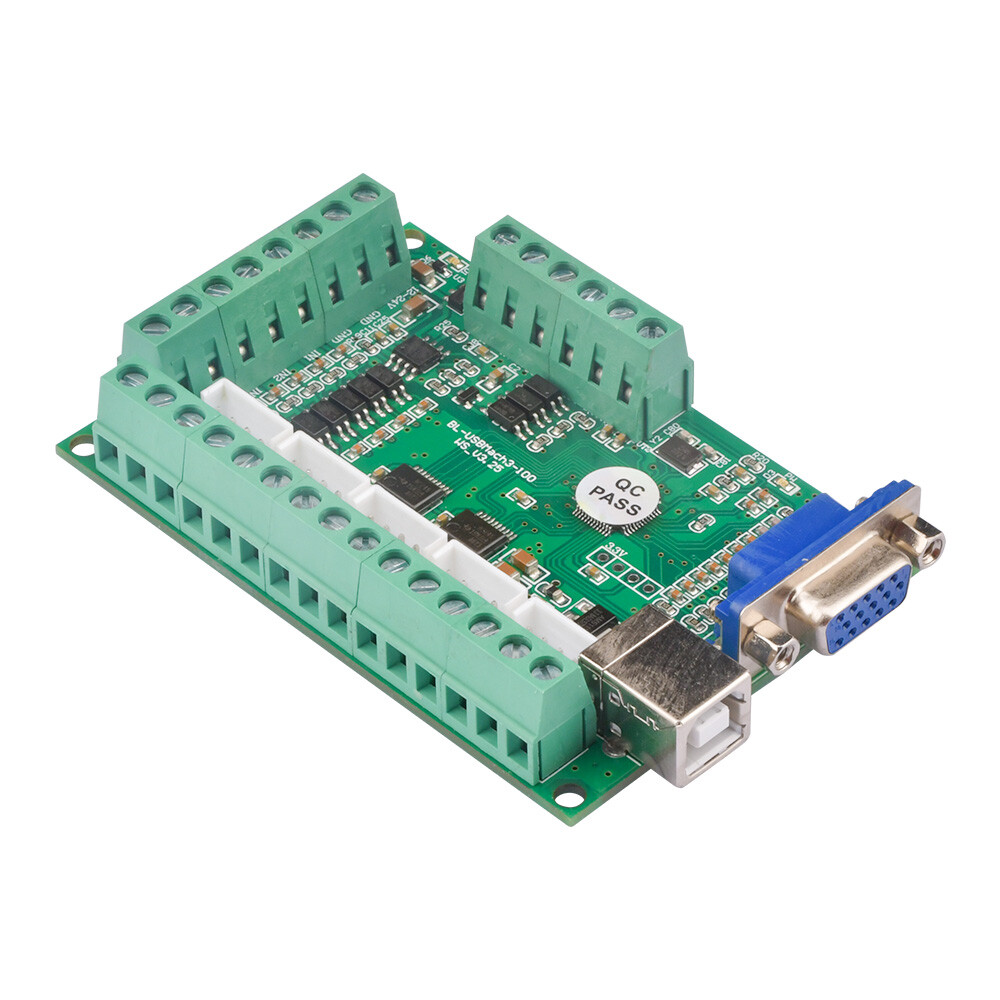

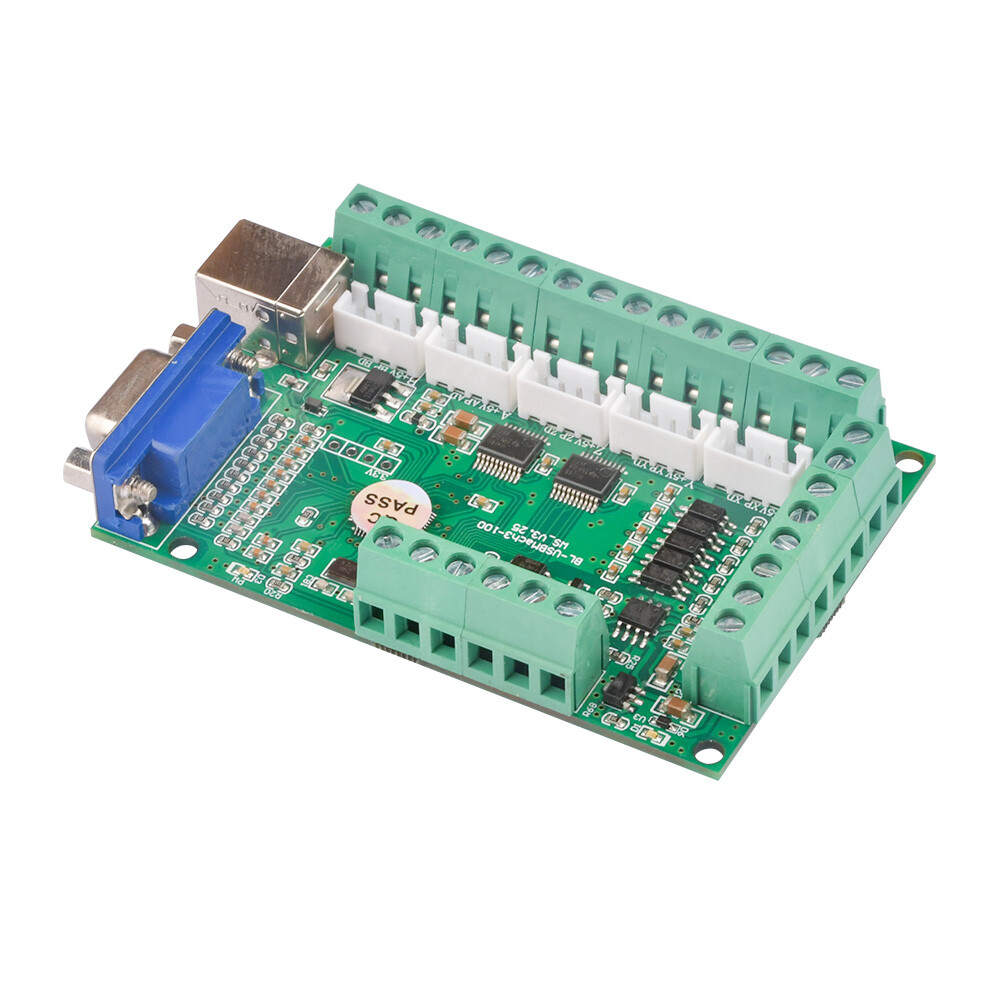

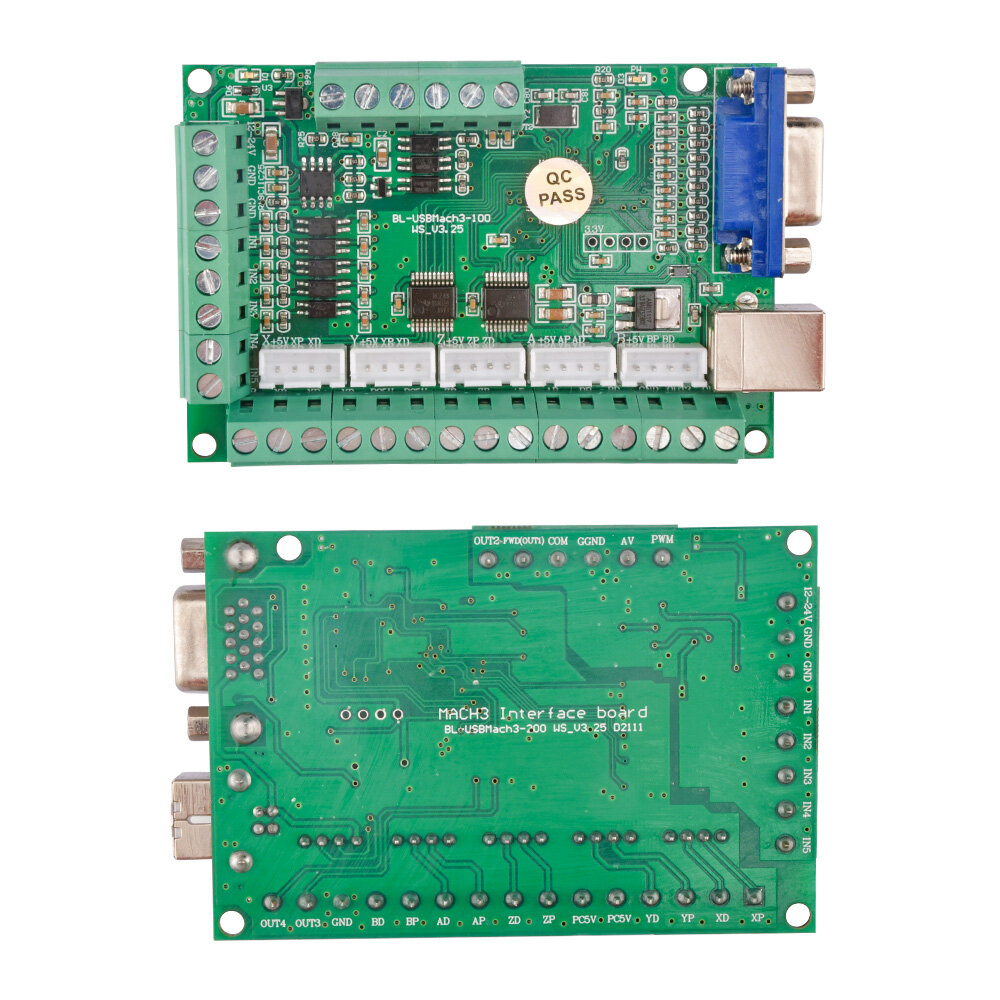

''Product selling point 1: Wide range of applications 2: Small size 3: Simple to use 4: cost-effective 5: Anti-reverse connection function 100HKZ MACH3 USB five-axis motion control card 1. Support various versions of MACH3 software, support the latest version. 2. Support Windows XP, WIN7, WIN8, WIN10, support 64-bit system, support notebook computer, support tablet computer. 3. Peripheral wide voltage input, 12-24V, and anti-reverse connection function. 4. All input signals are isolated by optical coupling, which can be connected to emergency stop, tool setting, limit, return to zero, etc., to ensure computer security. The input can be connected to a mechanical switch or a proximity switch (with NPN normally open). 5. One channel of 0-10V analog voltage output isolated by optocoupler can control the frequency converter input by 0-10V analog voltage and control the spindle speed. 6. Provide PWM output (5V level), which can be connected to the spindle speed controller controlled by PWM. 7. Provide 4 output ports (5V level), which can be connected to a relay module with optocoupler to control water cooling, spray, etc. 8. The maximum output of each axis is 100KHZ, which can be connected to common anode or common cathode, the input level is 5V, and the stepper or servo motor driver with optocoupler input (pulse + direction). 9. At the same time, a 5-axis interface cable socket (XH2.54) is provided for easy connection. 10. Provide electronic handwheel interface. 11. All port names are printed on the board, which is clear at a glance. list:

1*Driver board 1*Connecting wire''
