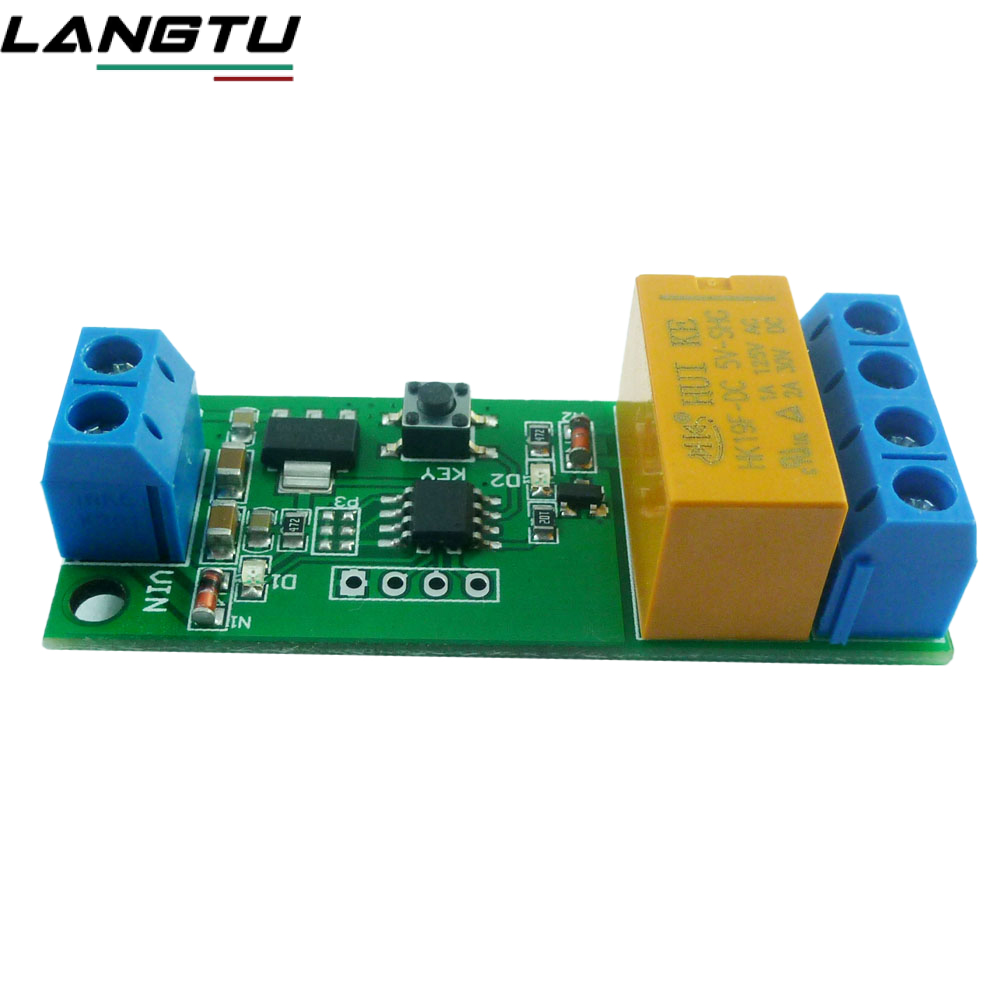

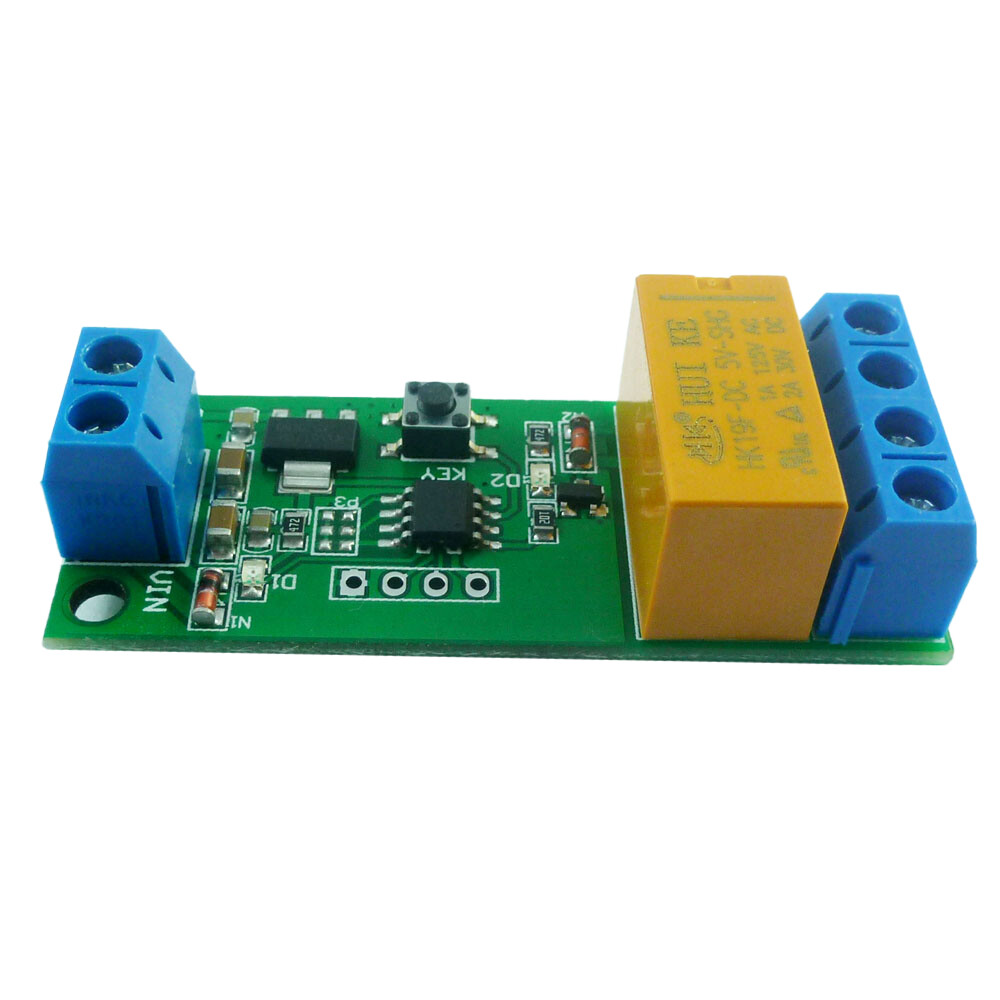

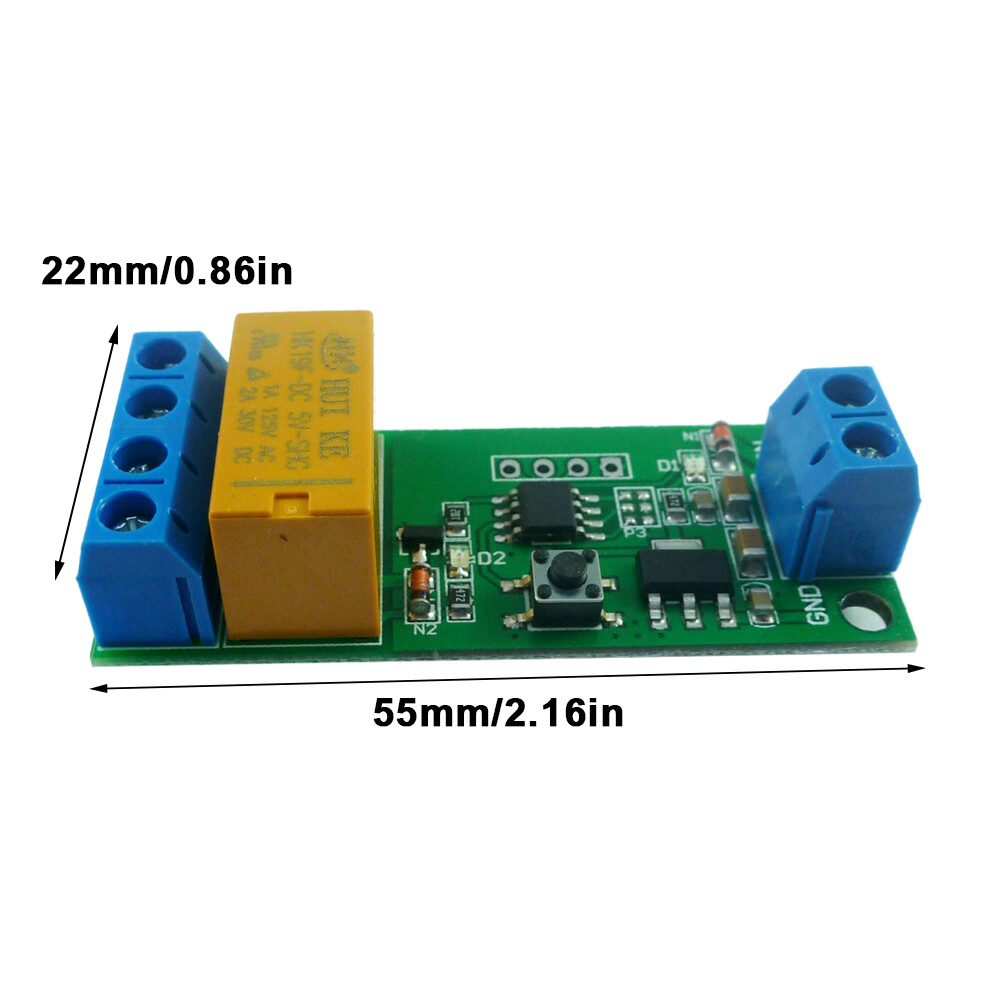

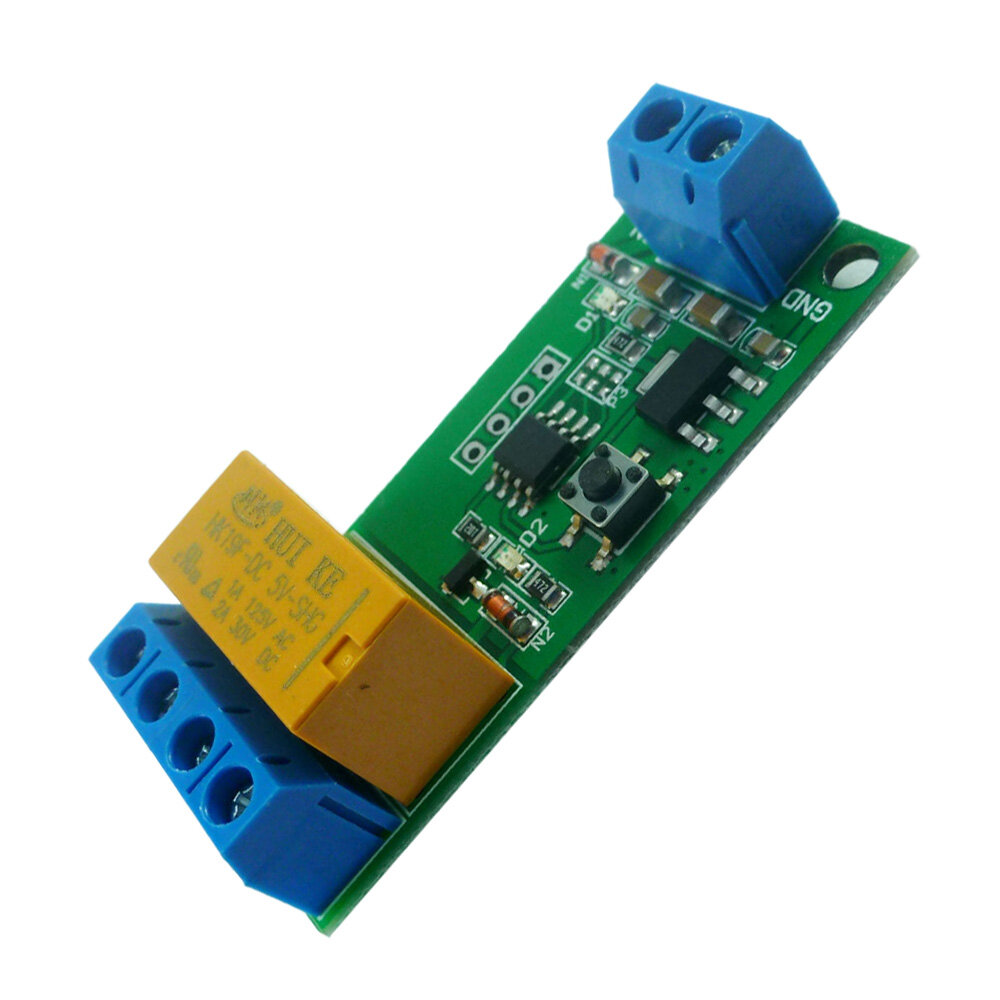

LANGTU Bộ Điều Khiển Đảo Chiều Động Cơ DC 5-12V

How to use:

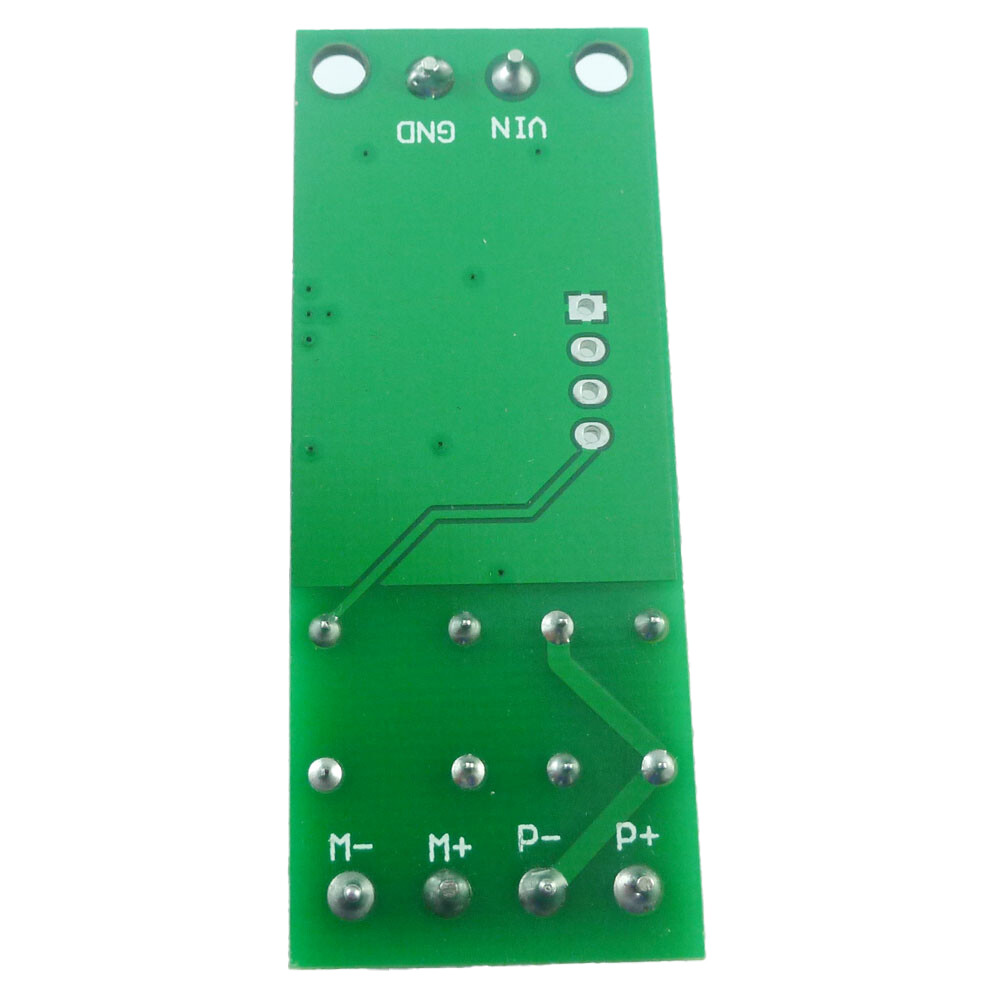

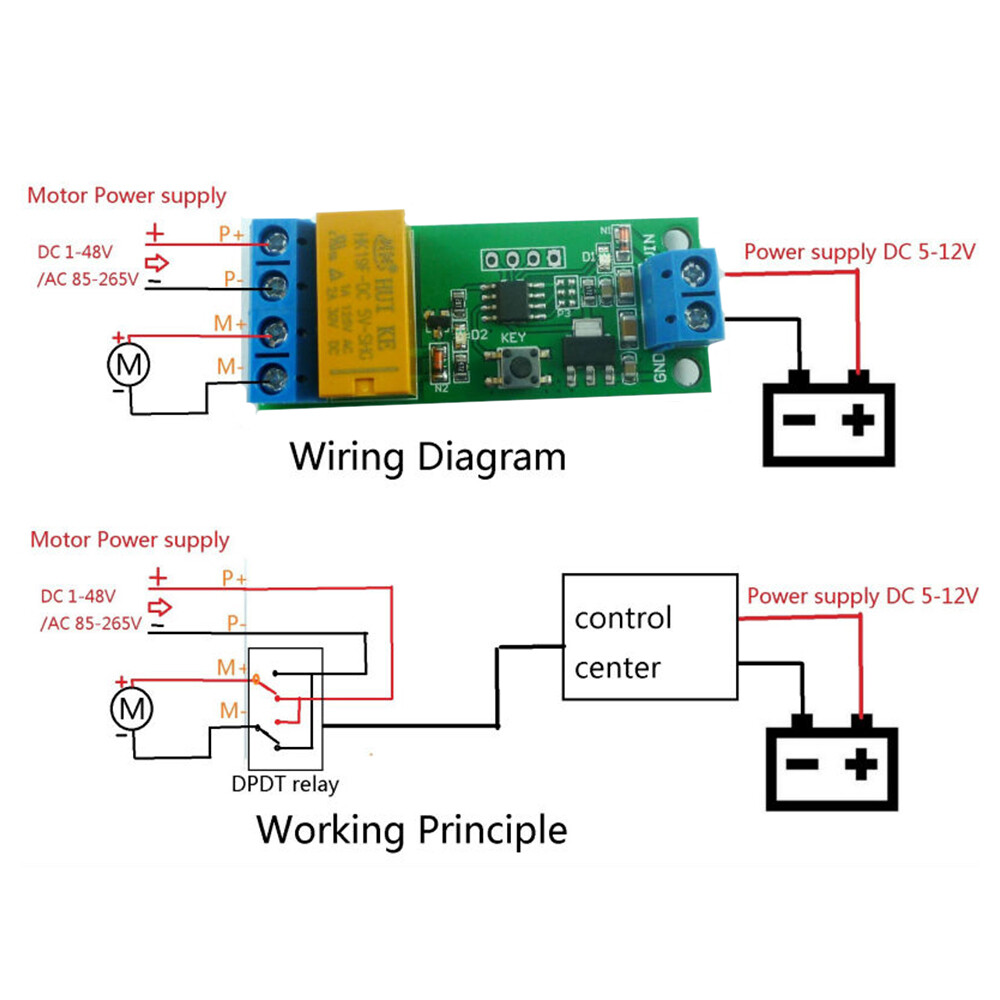

VIN is connected to the positive pole of the power supply, and GND is connected to the negative pole of the power supply;

P+ is connected to the positive pole of the motor power supply, P- is connected to the negative pole of the motor power supply;

M+M- connect both ends of the motor

After power-on, D1 flashes 3 times, D2 is off, M+ outputs positive pole, M- outputs negative pole, and the motor rotates forward; after delay T1, D2 turns on, M+ outputs negative, M- outputs positive, and the motor reverses; after delay T2 , D2 is off, M+ outputs the positive pole, M- outputs the negative pole, the motor rotates forward; and so on.

T1: Indicates the motor forward rotation delay time, the default is adjustable from 0.1 to 5000 seconds (step 0.1 seconds)

T2: Indicates the motor reversal delay time, the default is adjustable from 0.1 to 5000 seconds (step 0.1 seconds)

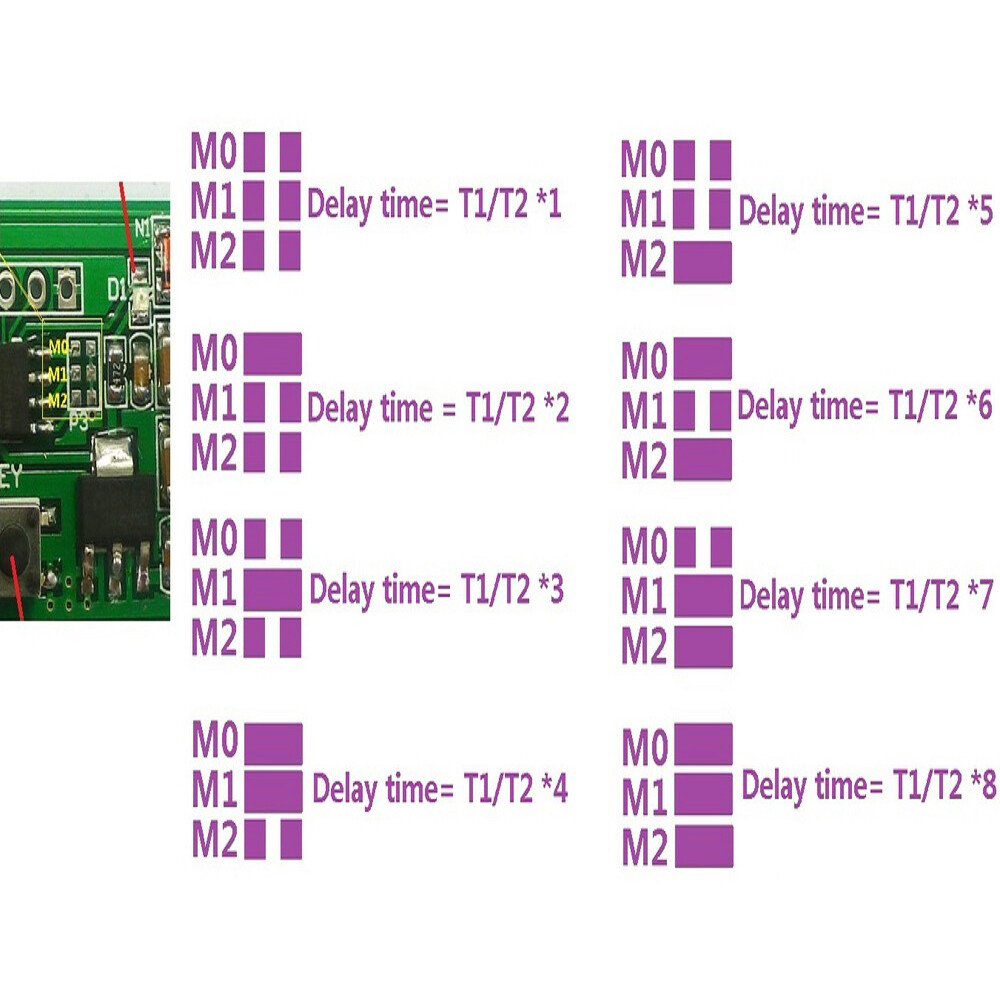

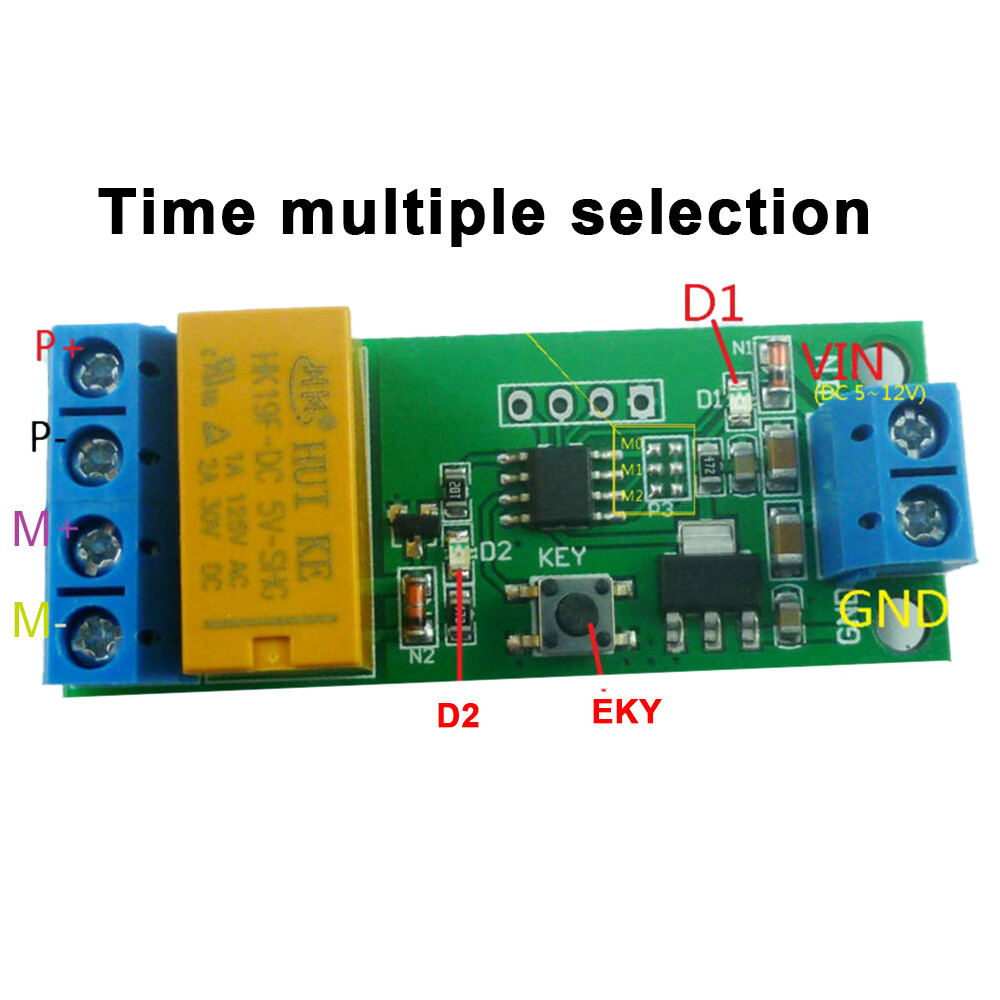

Through the "time multi-selection" setting, the maximum delay can reach 40000 seconds

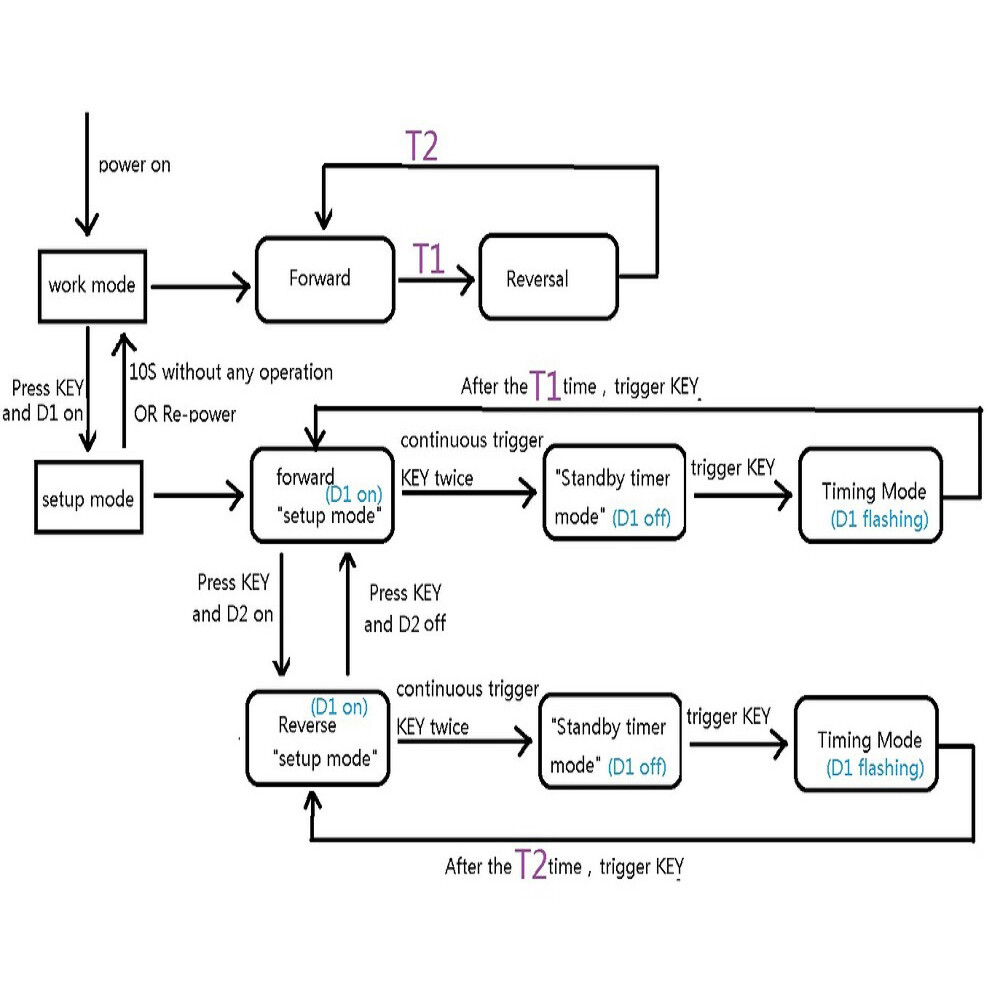

After power on, D1 3 flashes and enters "working mode"

D2 turns on reverse, D2 turns off forward

Press and hold the button for 2 seconds, D1 lights up, enter the "setting mode"

D2 is off, it is the forward "set mode"

In the forward "setting mode", trigger the KEY twice in a row, D1 is turned off, and enter the "standby timer mode"

In "Standby Timer Mode", trigger the KEY to start timing (enter "Timing Mode")

D1 flashes to indicate timing ("Timekeeping Mode")

Trigger the KEY again to stop the clock (exit "Timekeeping Mode")

The flashing time of D1 is the forward rotation time (T1)

Press and hold the button for 2 seconds, D2 lights up, enter the reverse "setting mode"

In the reverse "setup mode", trigger the key twice in a row, D1 is turned off, and enter the "standby timer mode"

In "Standby Timer Mode", trigger the KEY to start timing (enter "Timing Mode")

D1 flashes to indicate timing ("Timekeeping Mode")

Trigger the KEY again to stop the clock (exit "Timekeeping Mode")

The flashing time of D1 is the reverse time (T2)

So far, the forward time (T1) and reverse time (T2) have been set

Power cycle in "work mode"

Package includes:

1* DC Motor Reversible Controller"
