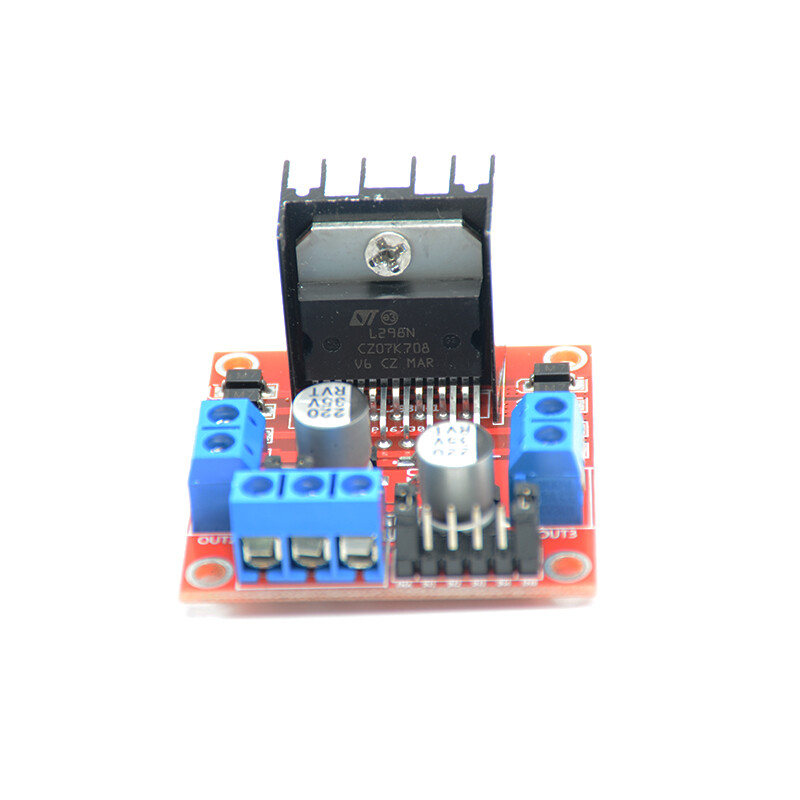

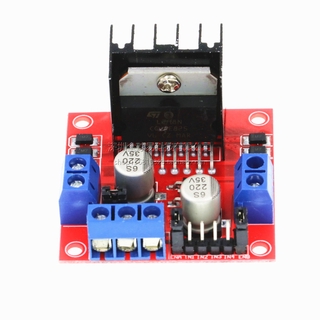

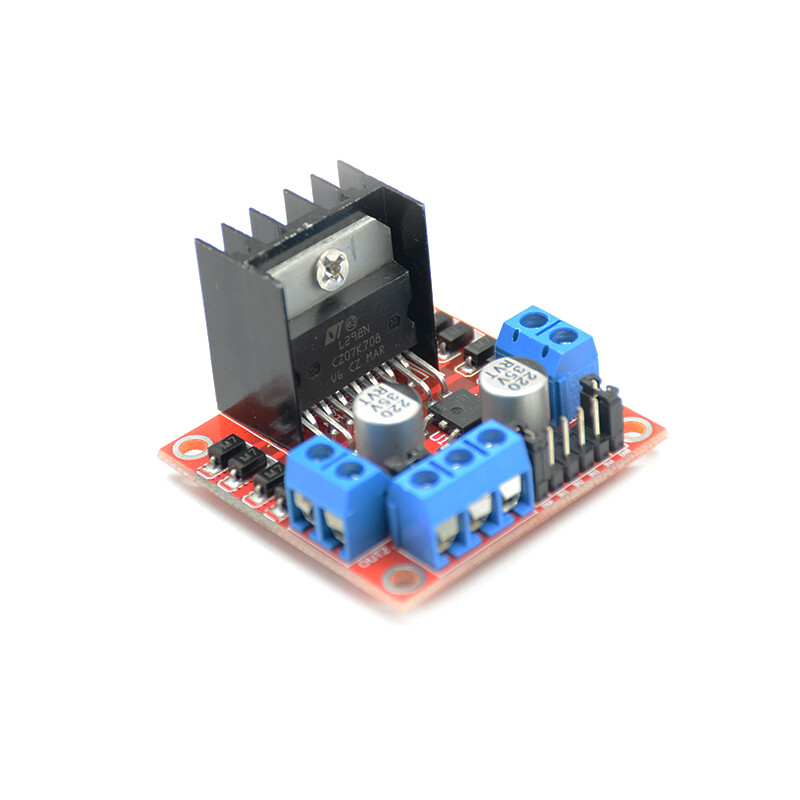

L298N Motor Driver Board Module Stepper Motor DC Motor Smart Car Robot



• Description:

  module name: double H bridge motor driver module

  Mode of operation: H bridge driver (dual)

  Main control chip: L298N

  Logic voltage: 5V

  Driving voltage: 5V-35V

  Logic current: 0mA-36mA

  drive current: 2A (MAX bridge)

  Storage temperature: -20oC to +135 oC

  Maximum power: 25W

  Weight: 30g

  peripheral size: 43*43*27mm

  Characteristic:

• This module uses ST company's L298N as the main chip, has a strong driving ability, low heat, strong anti-interference characteristics.

• This module can use the built-in 78M05by driving power supply part electric work, but in order to avoid voltage stabilizing chip damage, when using more than 12V drive voltage, please  using external  5V logic power supply.

• This module uses large capacity filter capacitor, the continued flow protect diode, can improve the reliability
