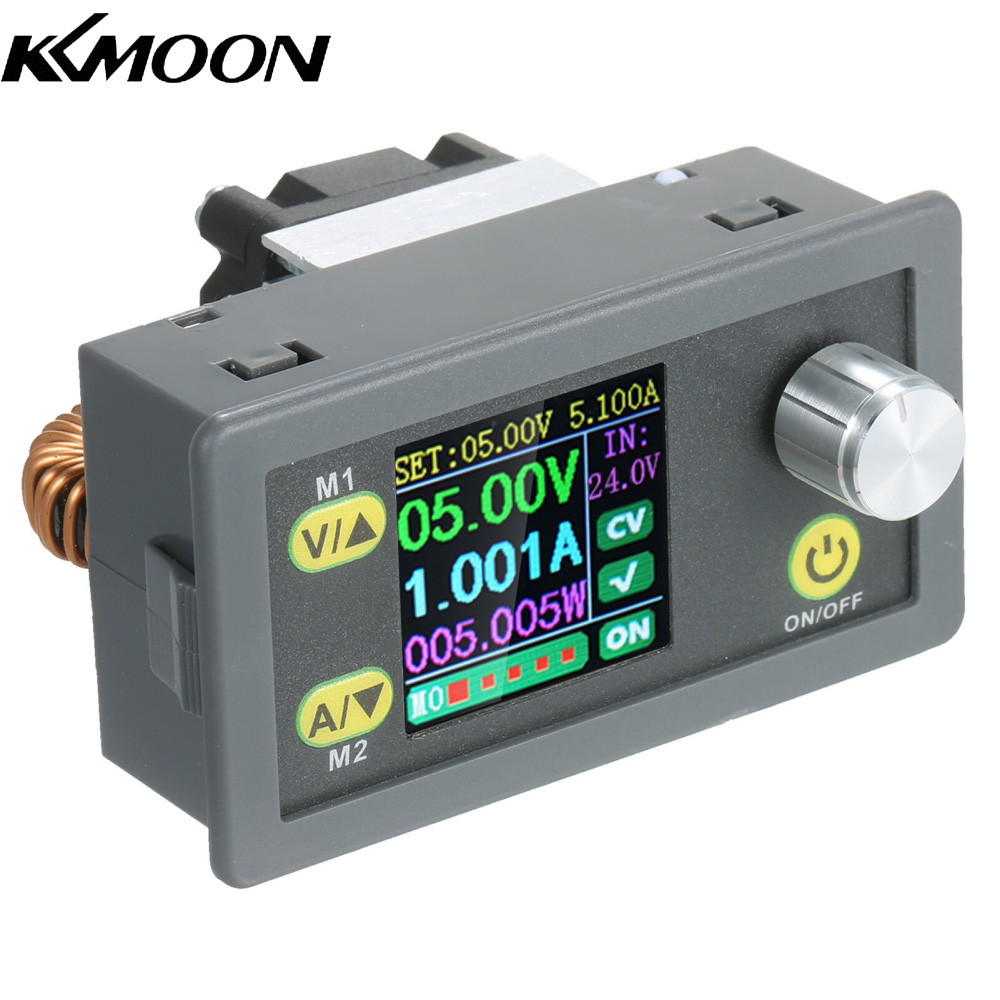

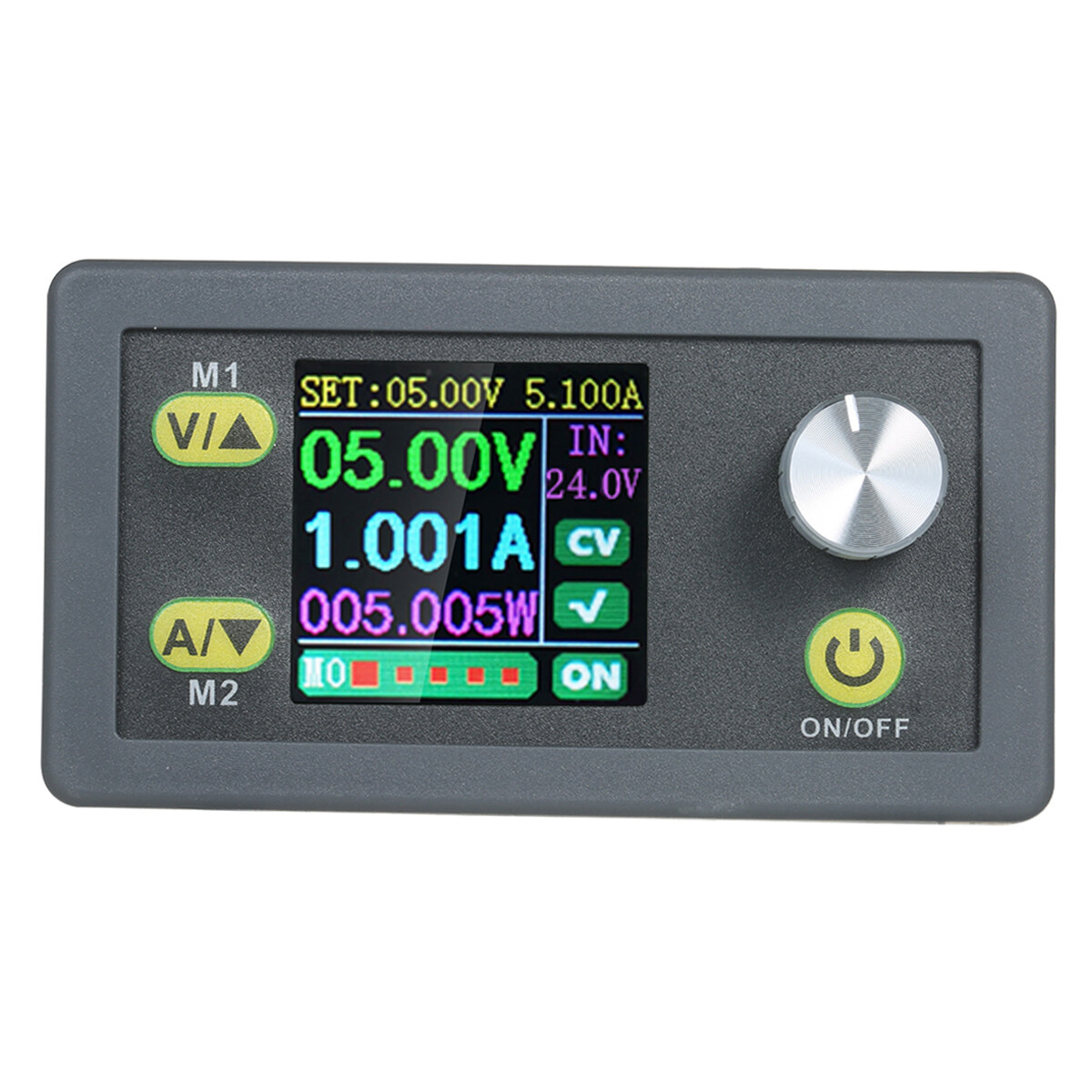

KKmoon Điều Khiển Kỹ Thuật Số Mô-đun 5A 80W Điện Áp Không Đổi Dòng Điện Nguồn Điện Lập Trình Mô-đun Cấp Nguồn Có Thể Điều Chỉnh Điều Chỉnh Điện Áp Lưu Trữ Dữ Liệu Mô-đun Nguồn Một Chiều

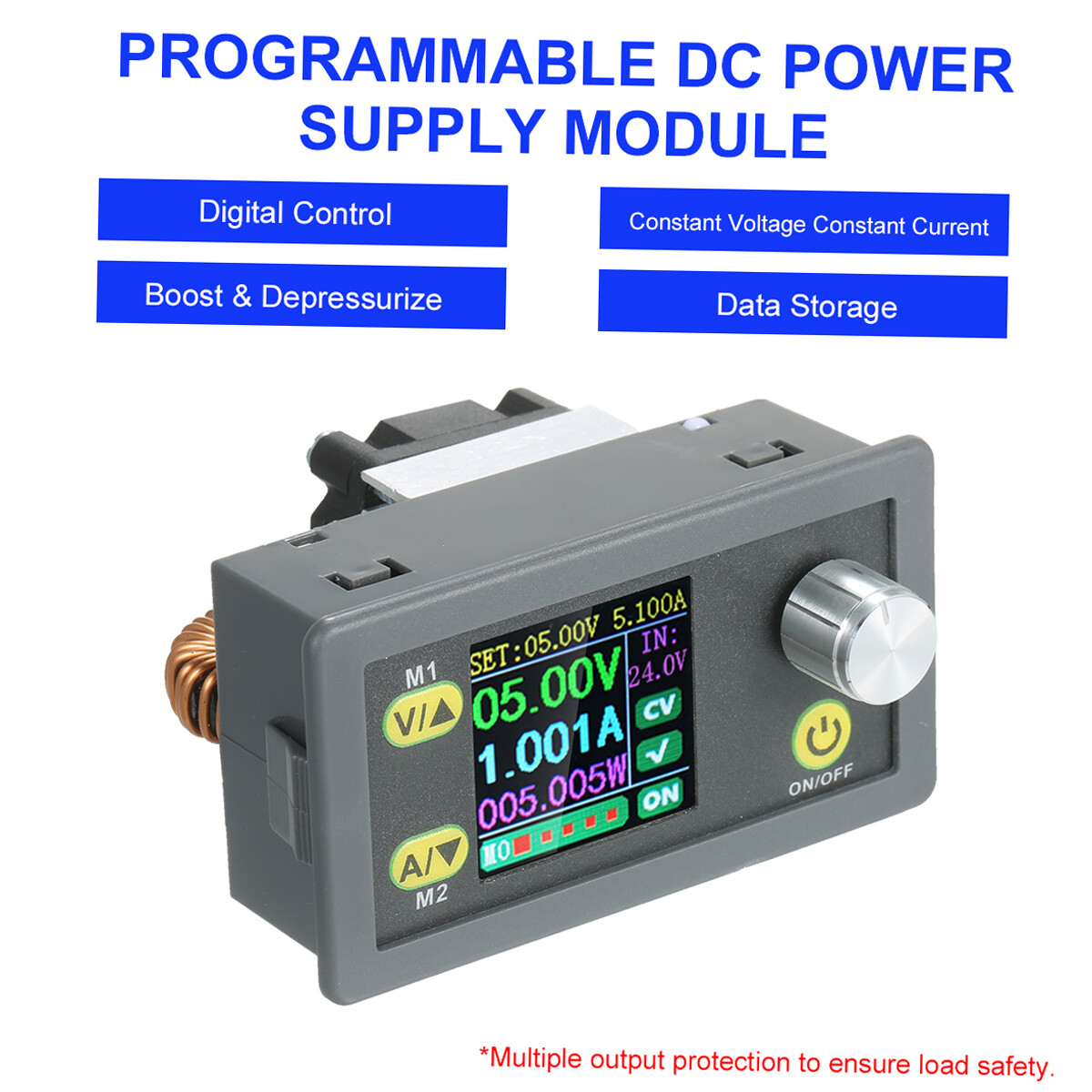

With multiple protection mechanisms, this 80W DC programmable power module in small size features high power, high efficiency and stable performance. Equipped with 1.44-inch LED display screen, it can display the voltage, current, power, capacity, time and other parameters in real time.

Features:

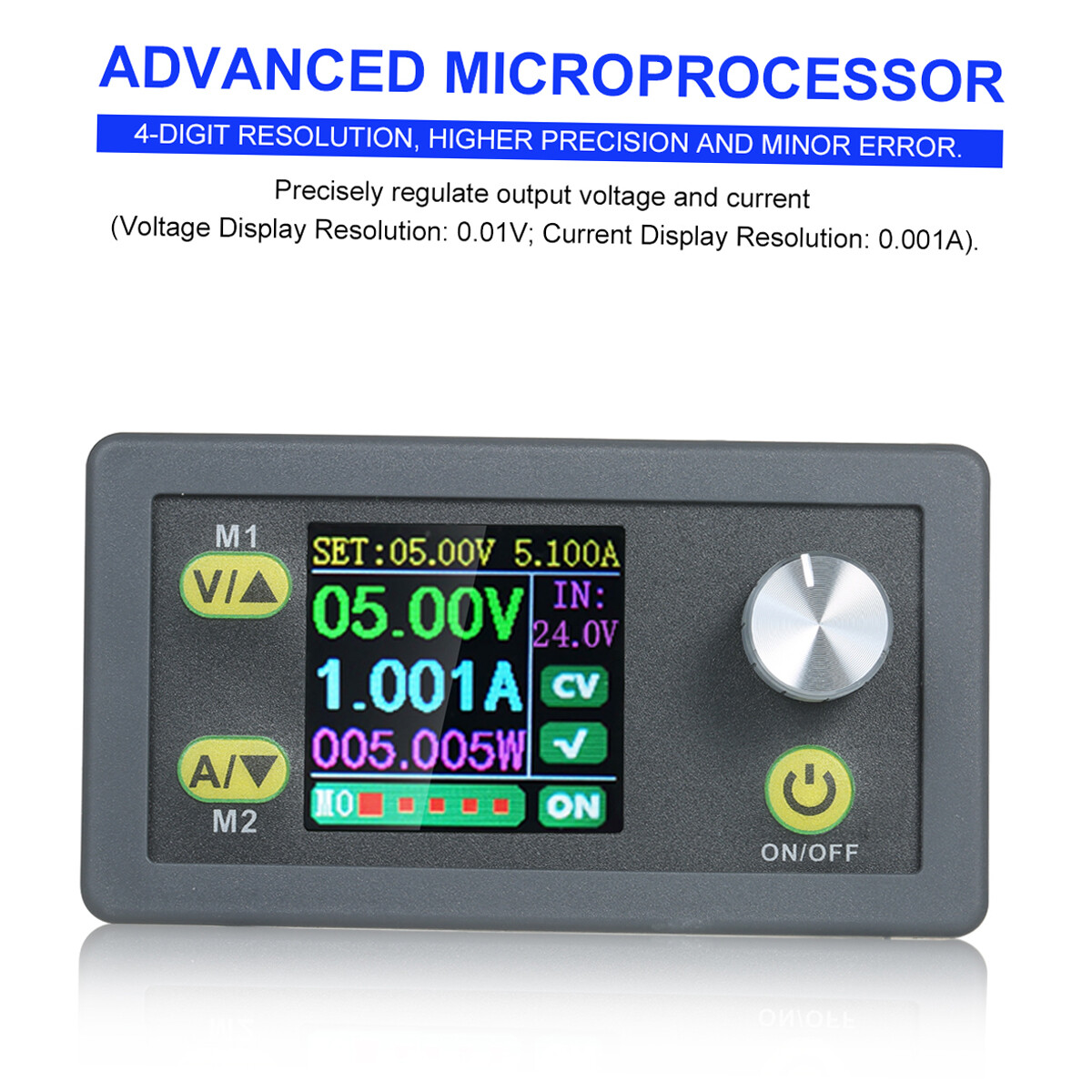

[Advanced Microprocessor] Precisely regulate output voltage and current (Voltage Display Resolution: 0.01V; Current Display Resolution: 0.001A).
[Numerical Control Adjustment] The module can be set to boost and depressurize. The output voltage and limited current can be regulated at will between 0.6 ~ 36V / 0 ~ 5A.

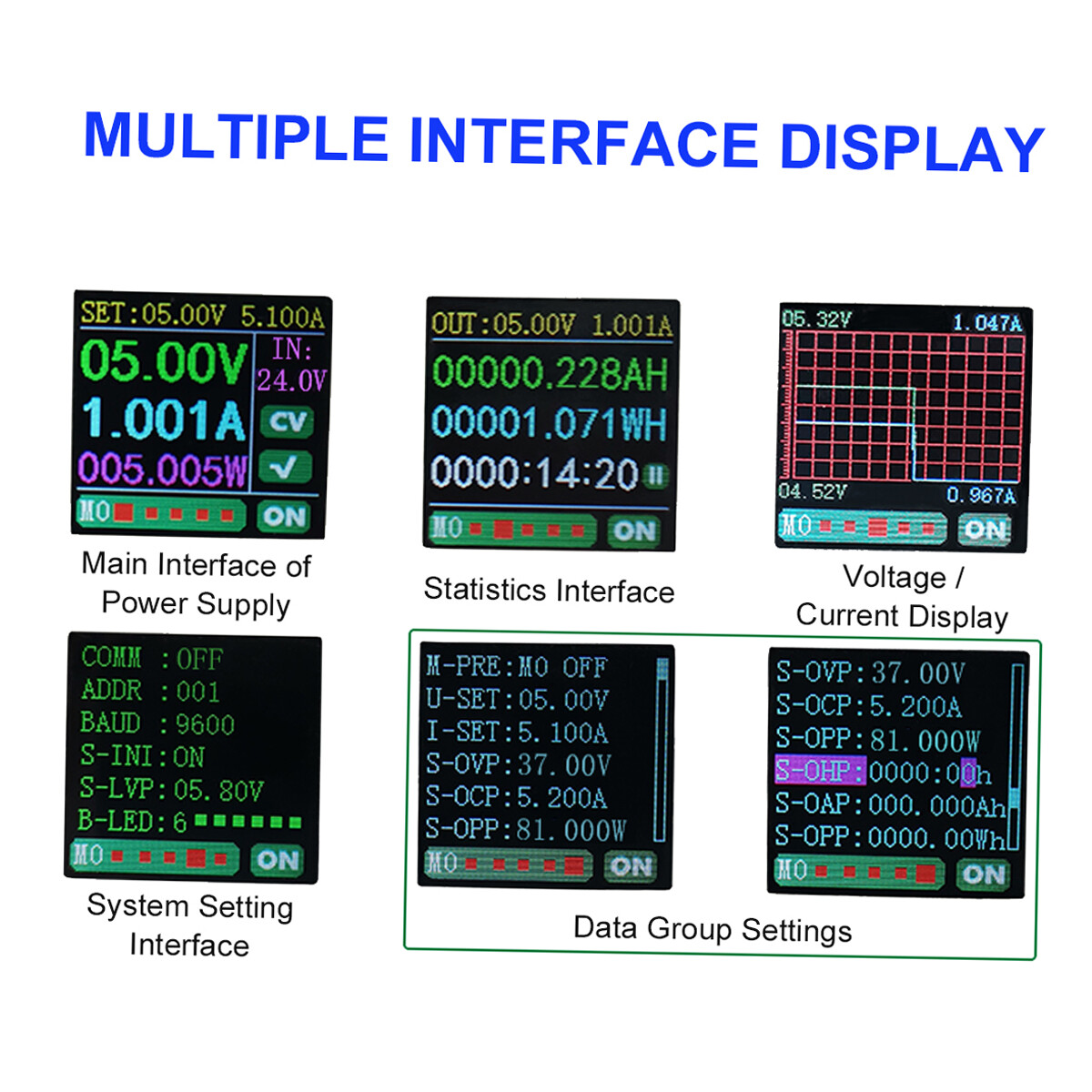

[Clear LED Display] Capable of displaying input voltage, output voltage, output current, output power, output capacity and time.
[Intelligent Temperature Control Fan] ON/OFF automatically. When the temperature is higher than 50°C or the current is greater than 1A, the fan will start automatically to cool the module, good for stable and long-term work.
[Thickened Heat Sink] Large heat dissipation space, two-way ventilation, good heat dissipation effect.
[Multiple Protection Mechanisms] Input under-voltage protection, output over-voltage protection, output over-current protection, output over-power protection, timeout protection, over capacity protection and over energy protection, preventing the module from burning.
[Data Storage] Capable of storing 10 groups of data, convenient to view and compare data.

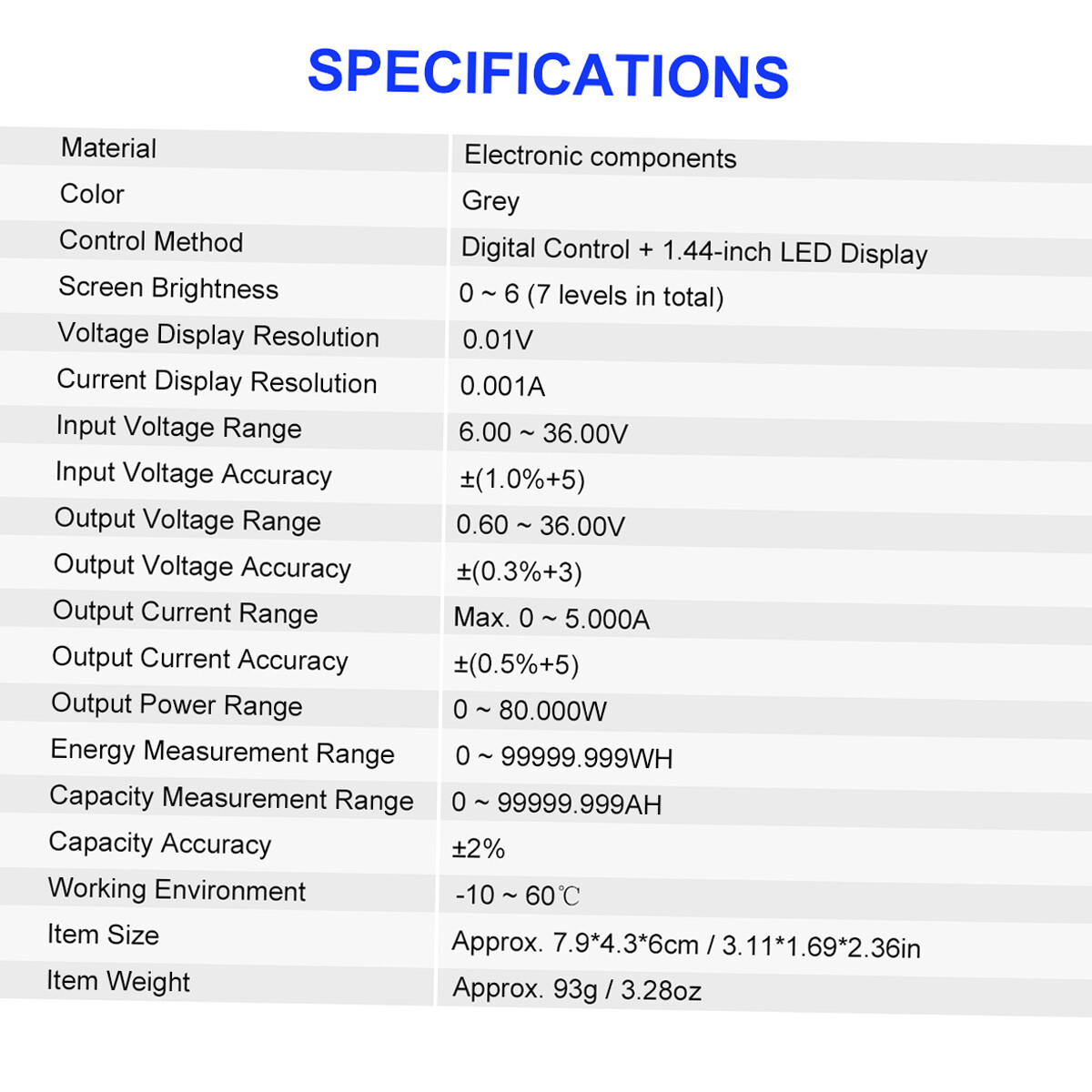

Specifications:
Material: Electronic components
Color: Grey

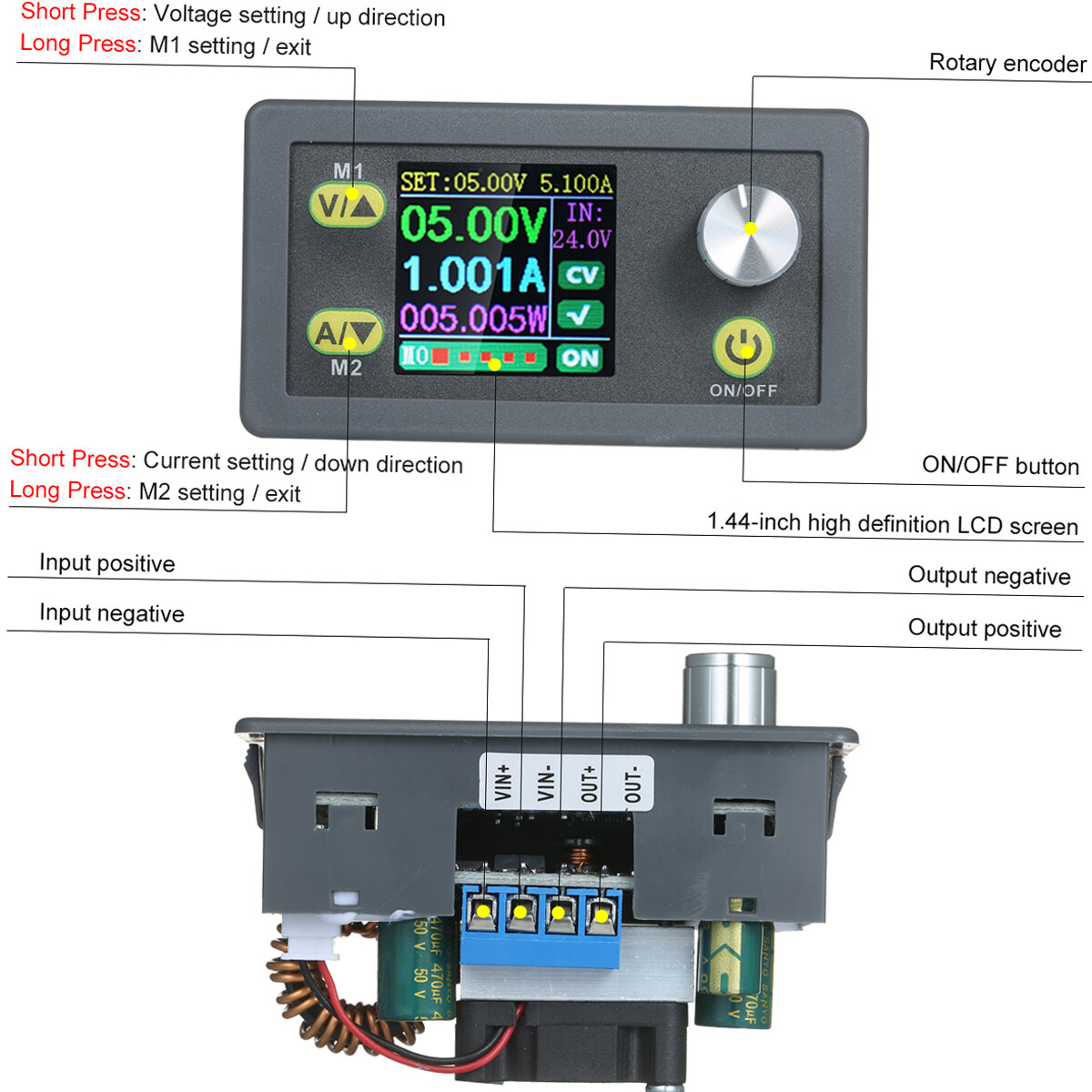

Control Method: Digital Control + 1.44-inch LED Display

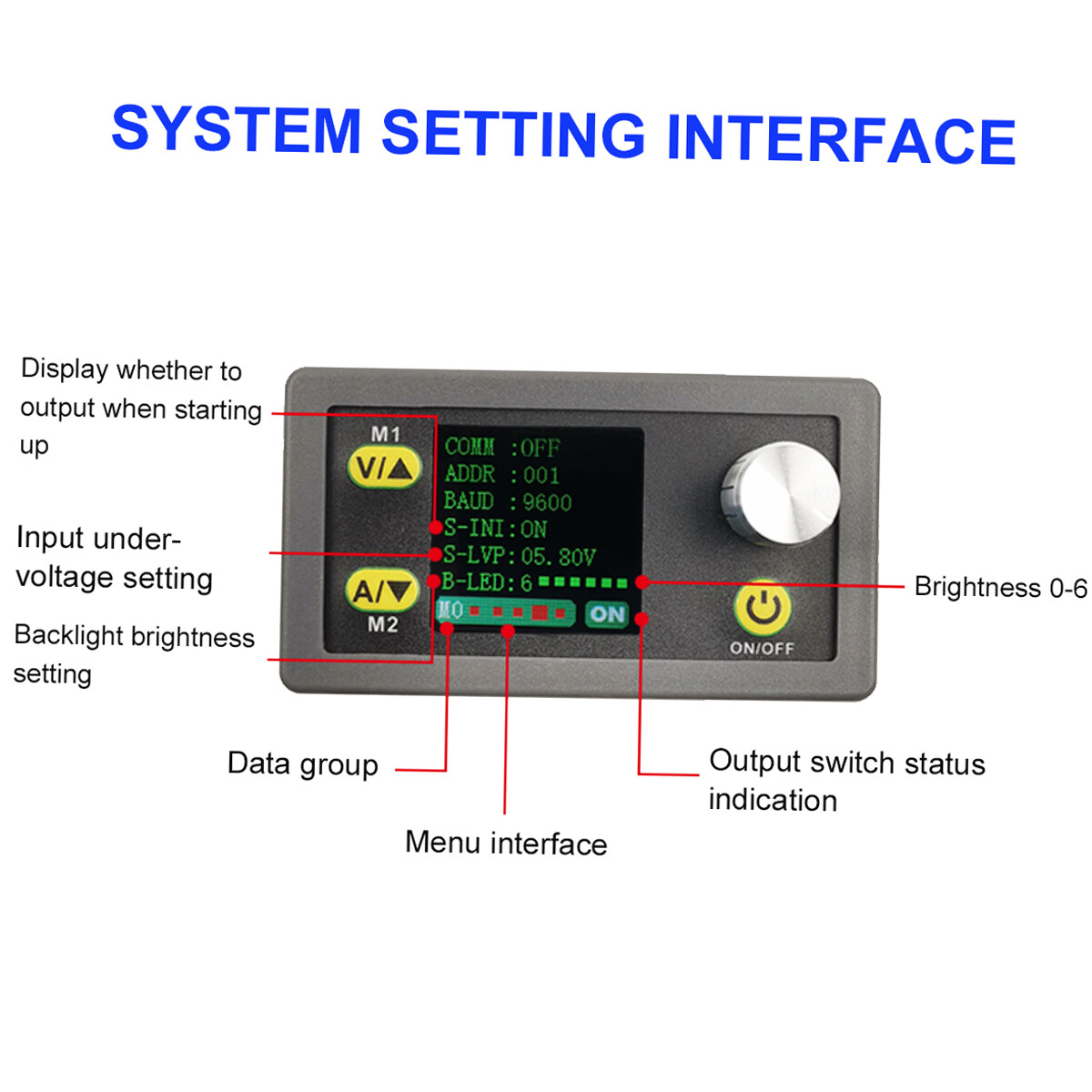

Screen Brightness: 0 ~ 6 (7 levels in total)
Voltage Display Resolution: 0.01V
Current Display Resolution: 0.001A
Input Voltage Range: 6.00 ~ 36.00V
Input Voltage Accuracy: ±(1.0%+5)
Output Voltage Range: 0.60 ~ 36.00V
Output Voltage Accuracy: ±(0.3%+3)
Output Current Range: Max. 0 ~ 5.000A
Output Current Accuracy: ±(0.5%+5)
Output Power Range: 0 ~ 80.000W
Energy Measurement Range: 0 ~ 99999.999WH
Capacity Measurement Range: 0 ~ 99999.999AH
Capacity Accuracy: ±2%
Working Environment: -10 ~ 60°C
Protection Mechanism:
Input under-voltage protection; output over-voltage protection; output over-current protection; output over-power protection; timeout protection; over capacity protection; over energy protection.

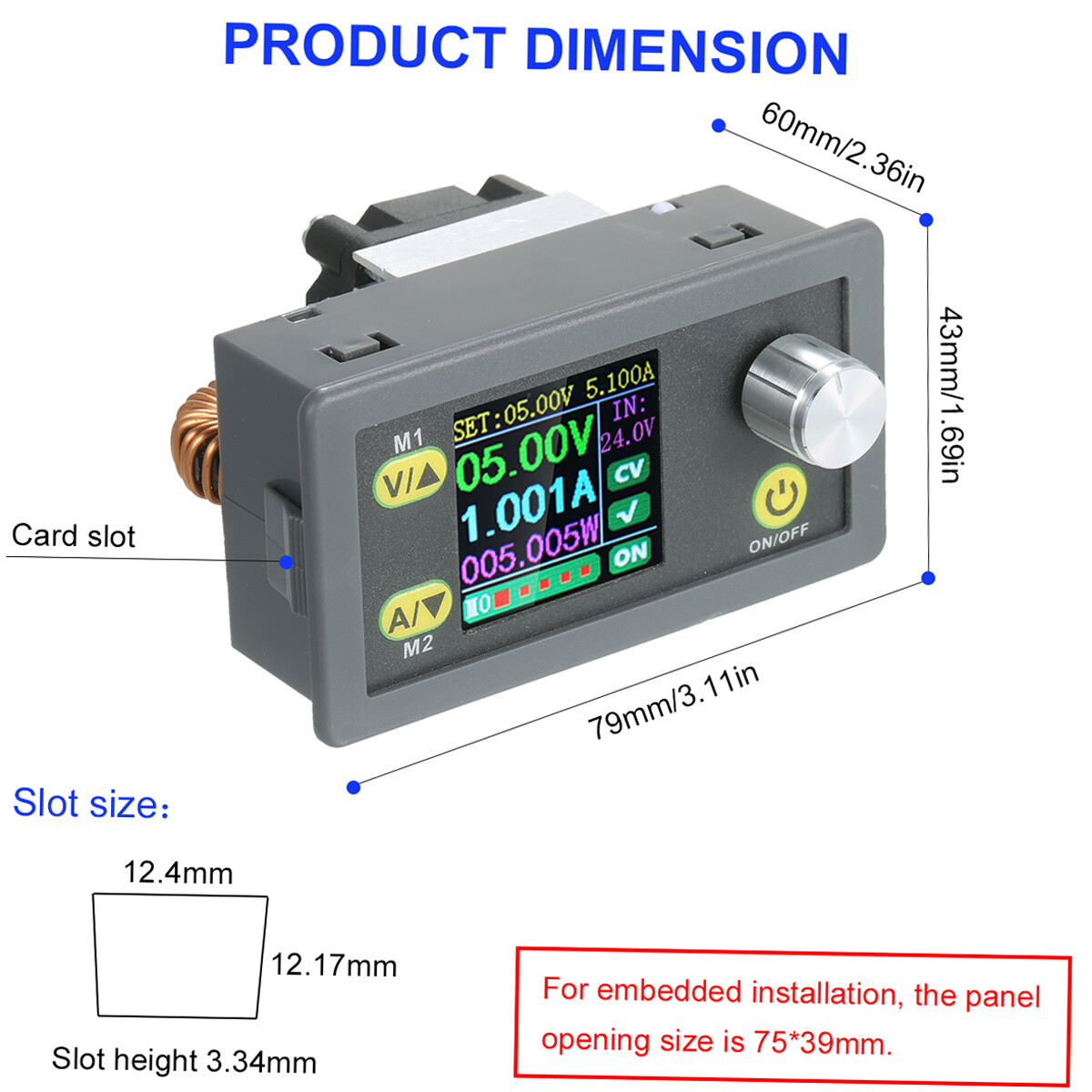

Item Size: Approx. 7.9*4.3*6cm / 3.11*1.69*2.36in
Item Weight: Approx. 93g / 3.28oz
Package Size: Approx. 11.1*6.7*5cm / 4.37*2.64*1.97in
Package Weight: Approx. 118g / 4.16oz

Packing List:
1 * 80W Digital Boost Module
