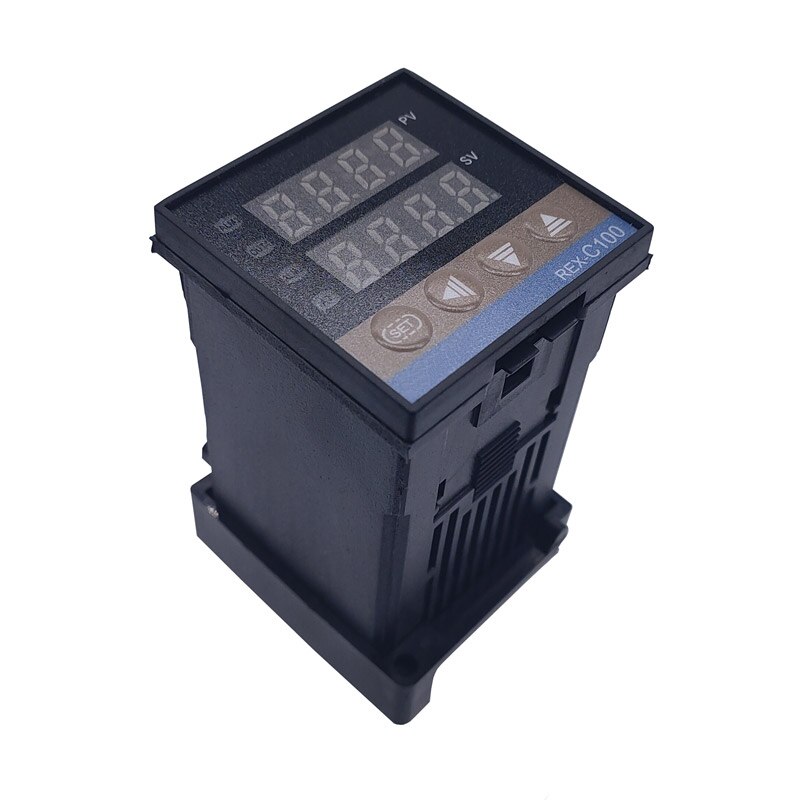

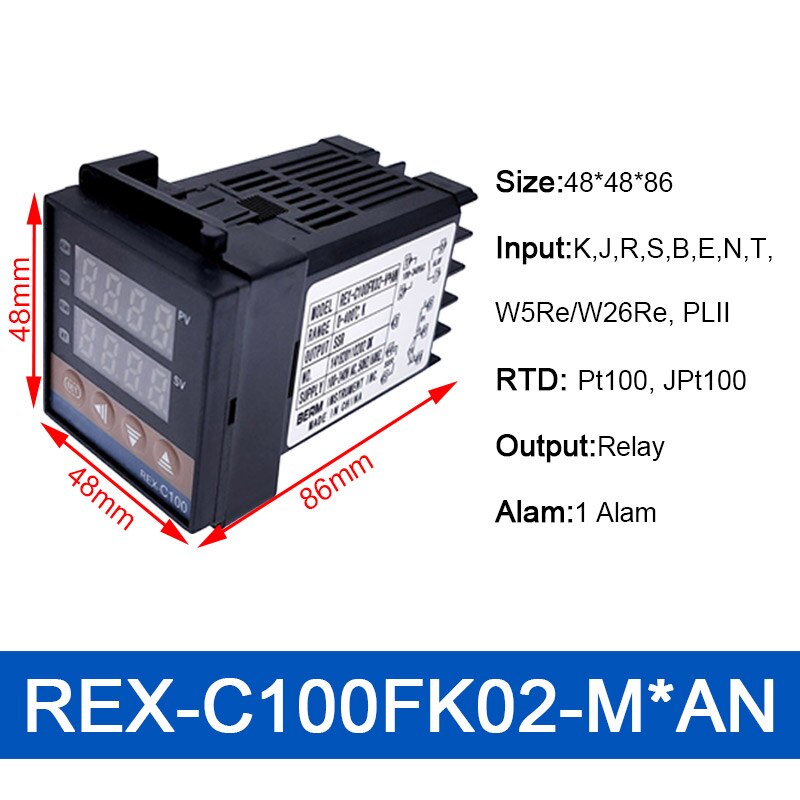

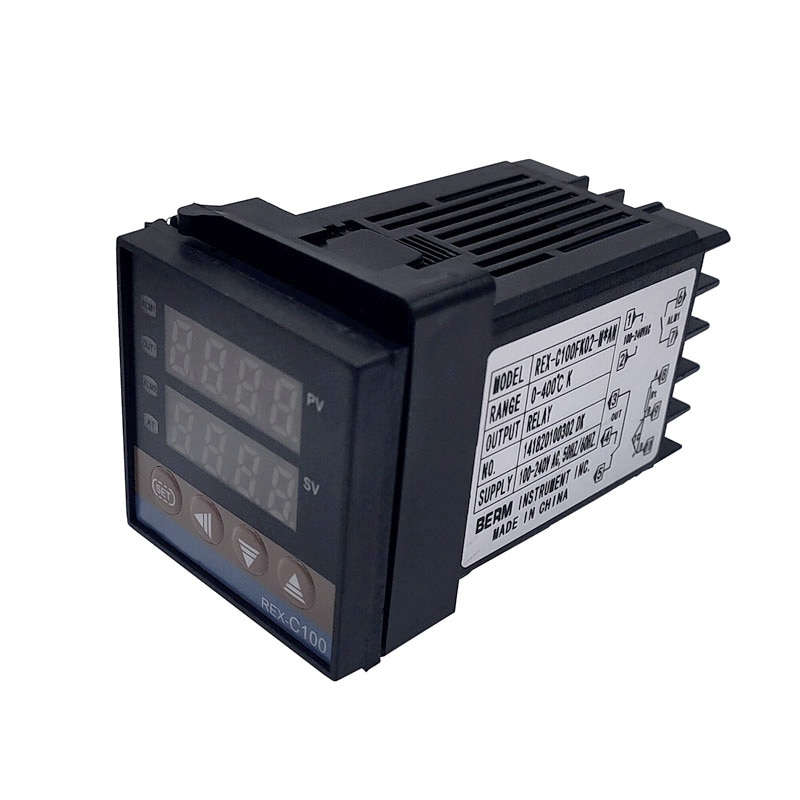

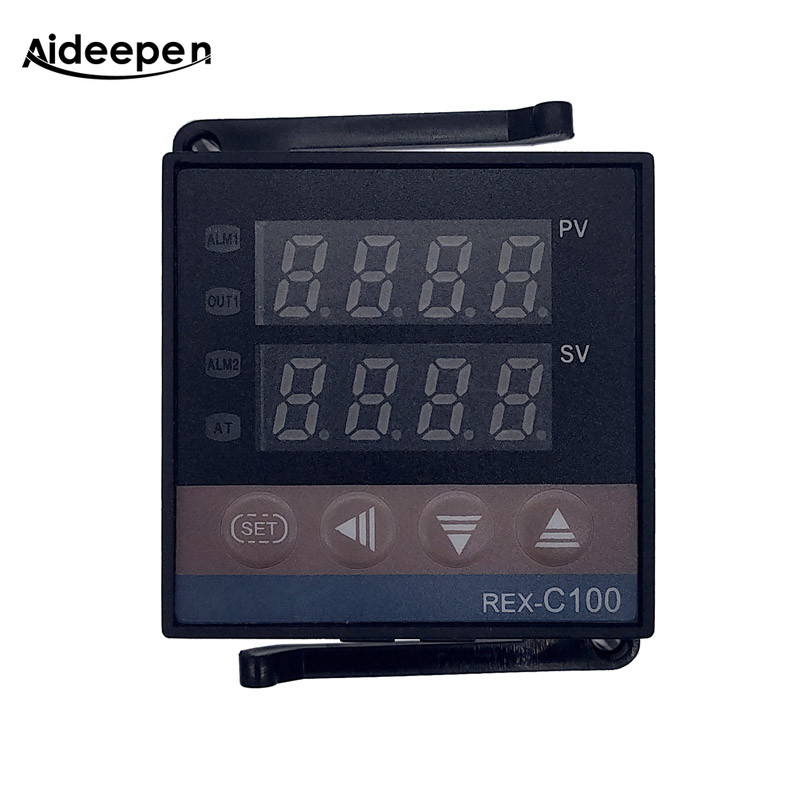

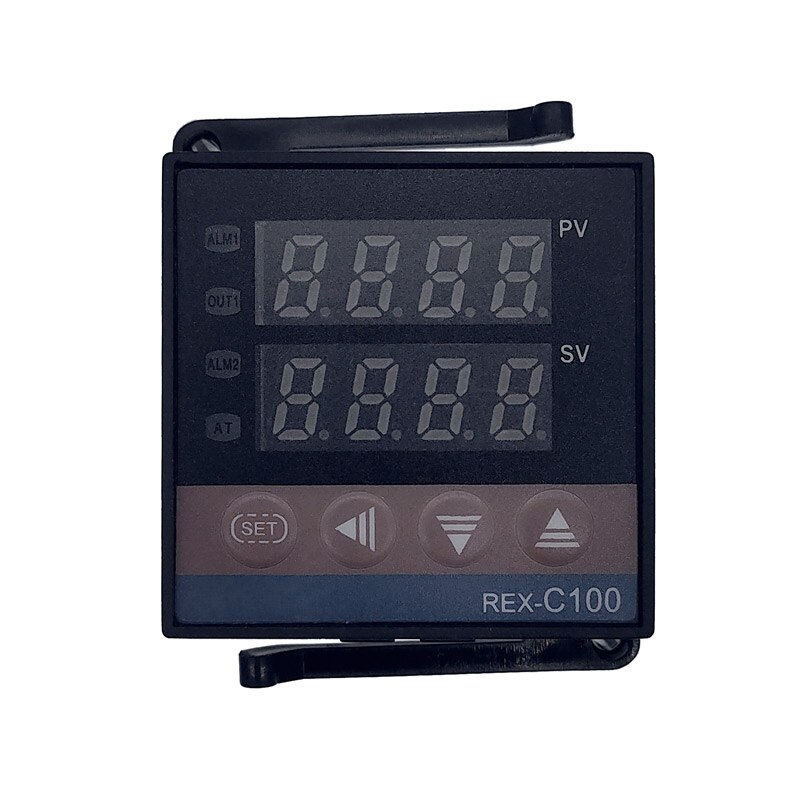

REX-C100 Mới Bộ Điều Khiển Nhiệt Độ Thông Minh PID Bộ Điều Nhiệt Đa Năng Loại K REX C100 Đầu Ra Rơ Le SSR

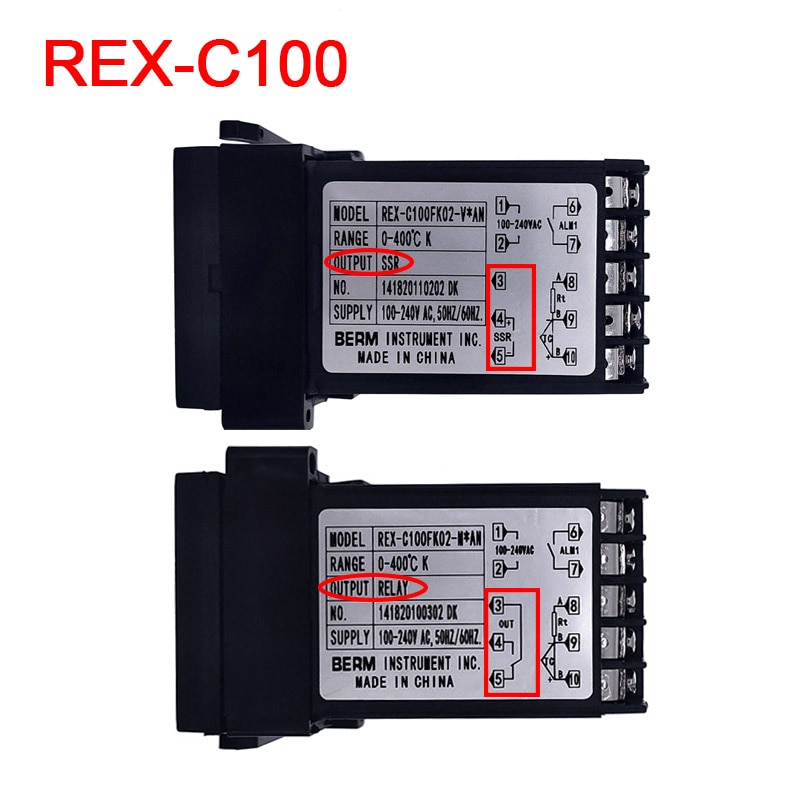

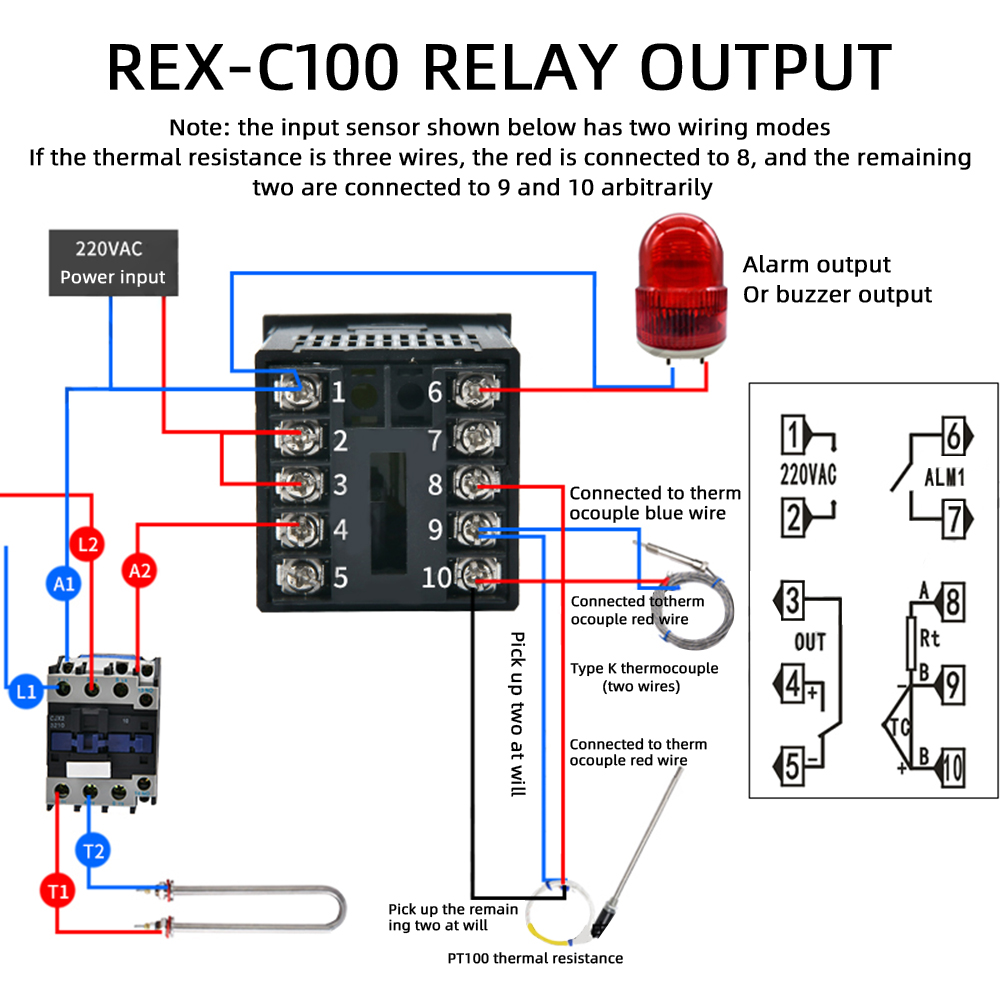

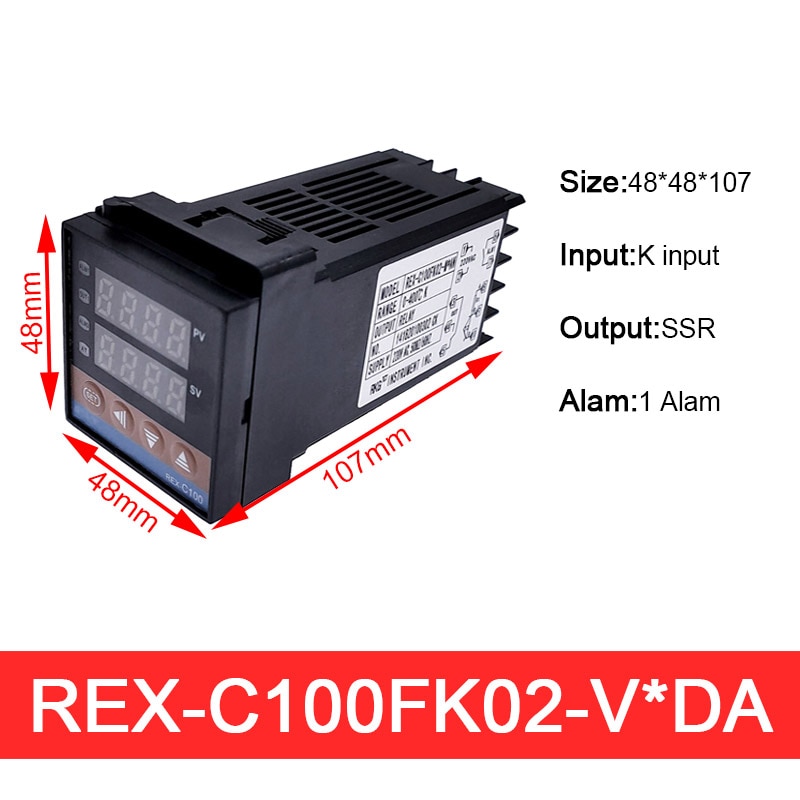

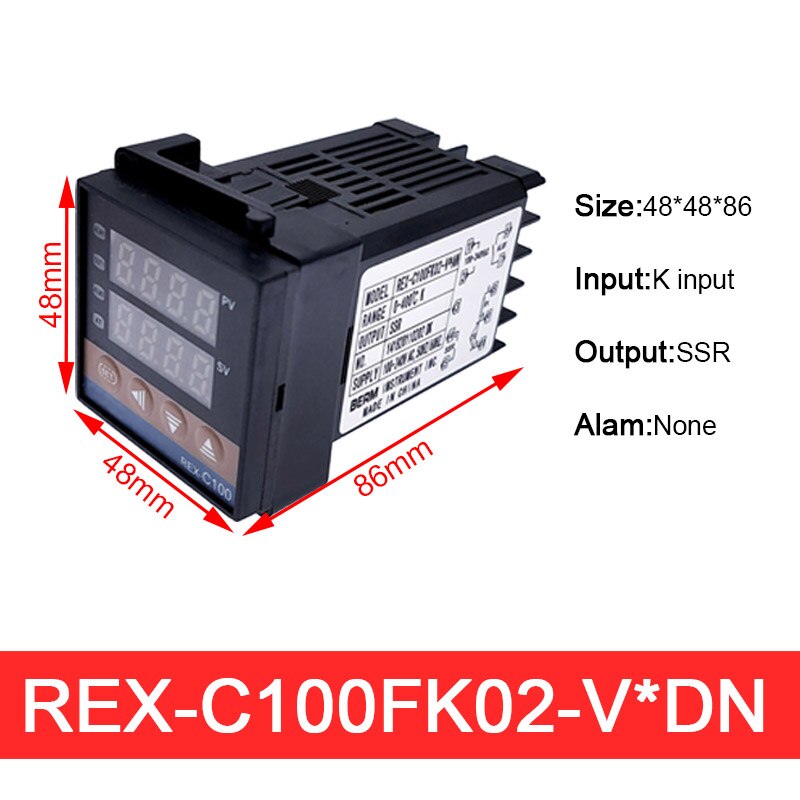

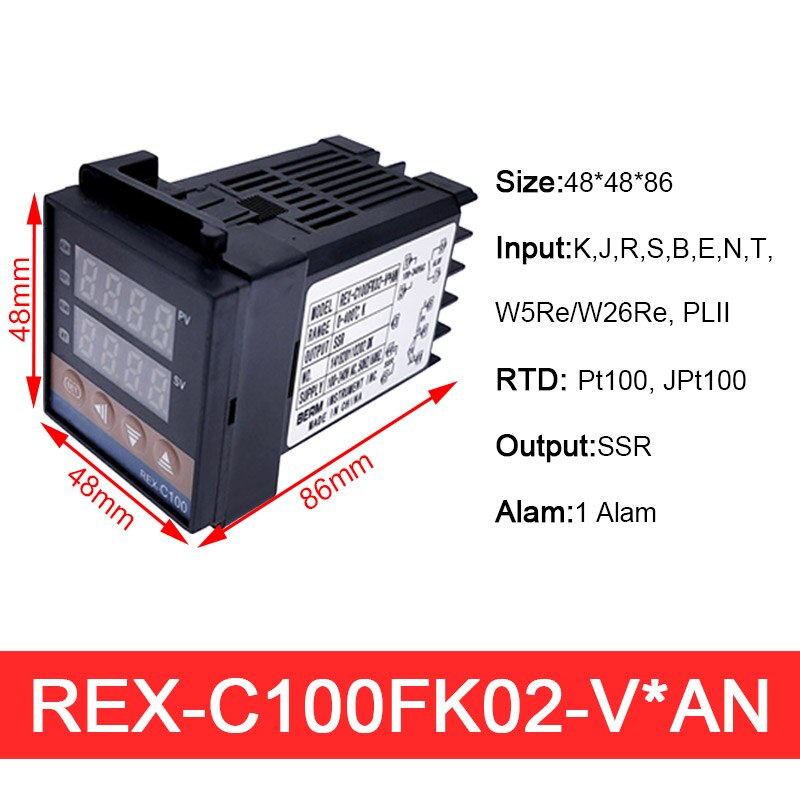

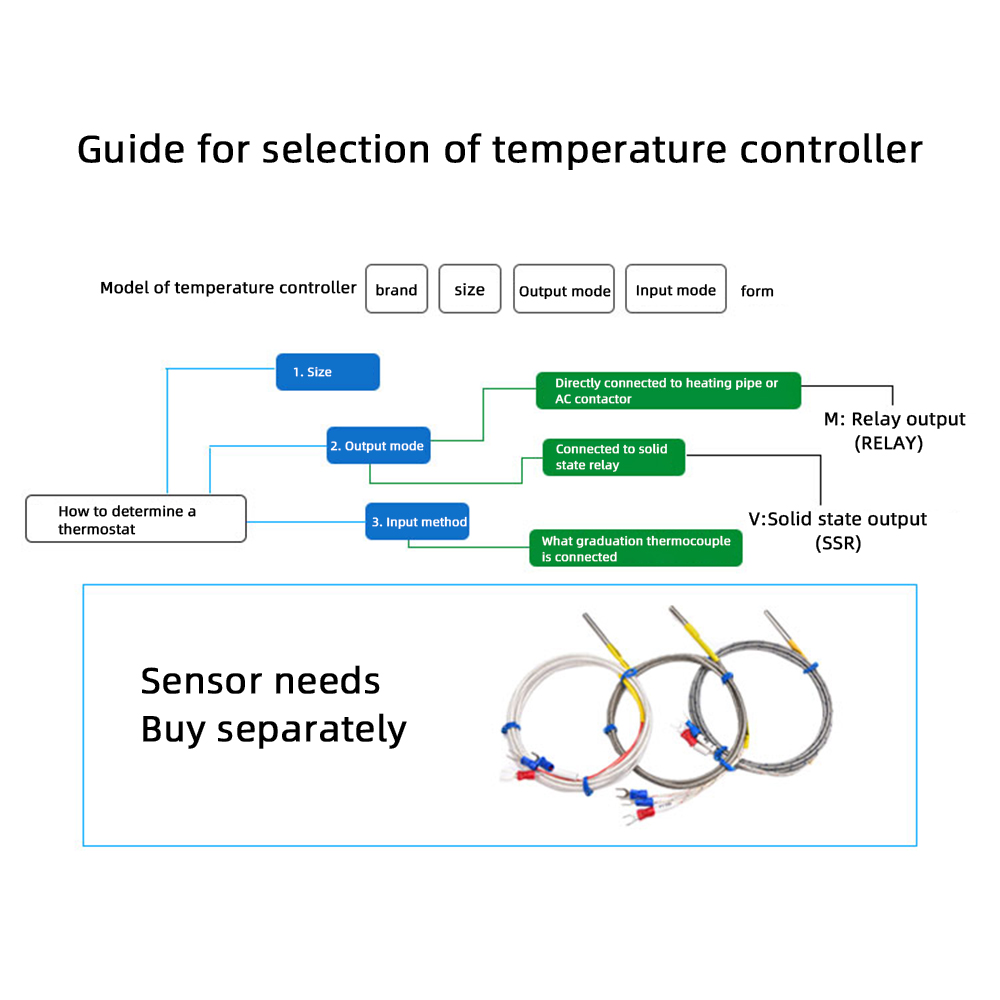

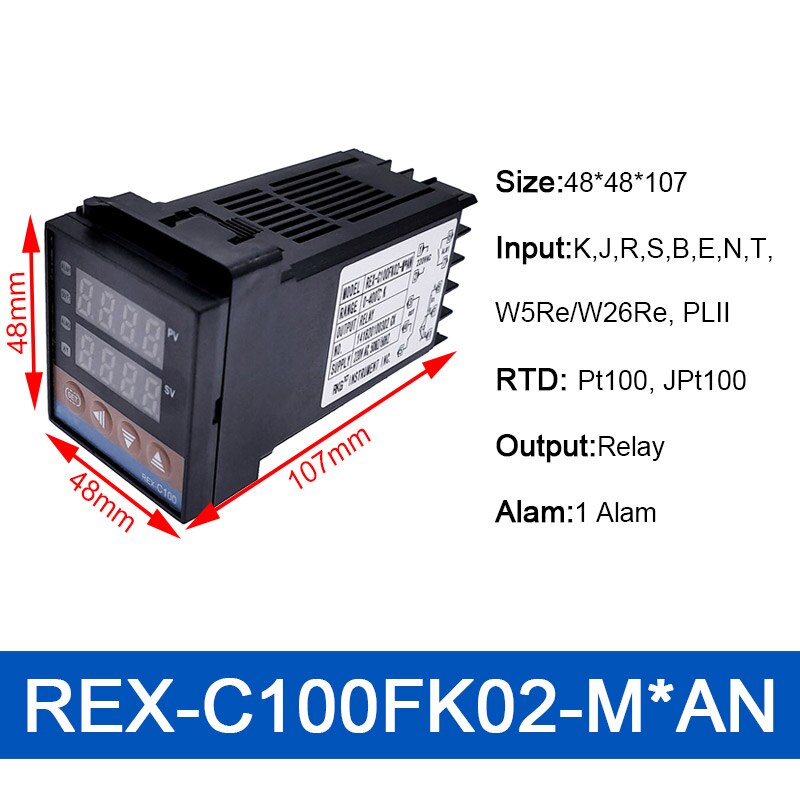

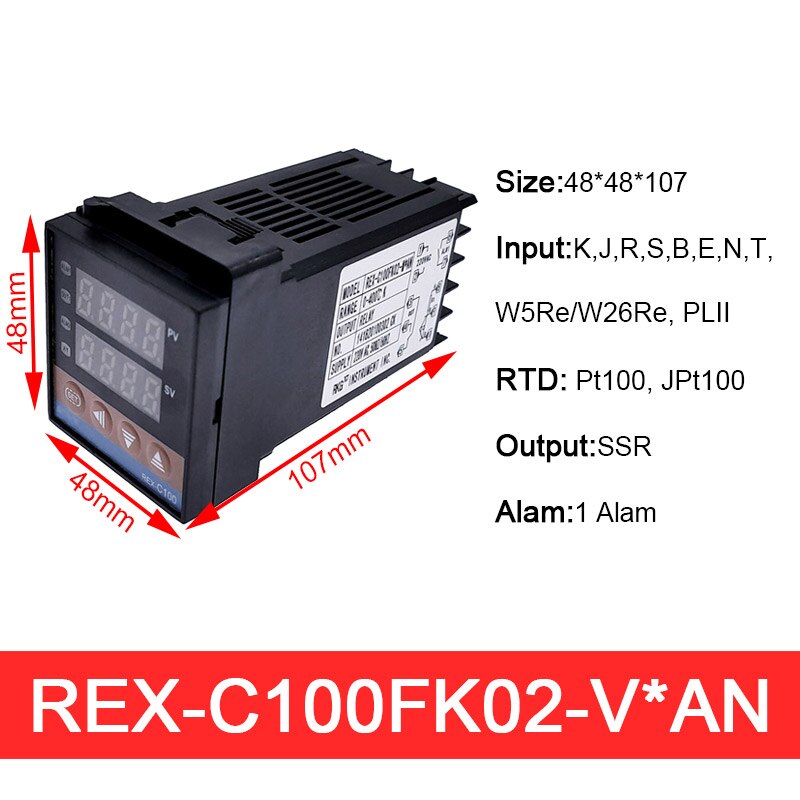

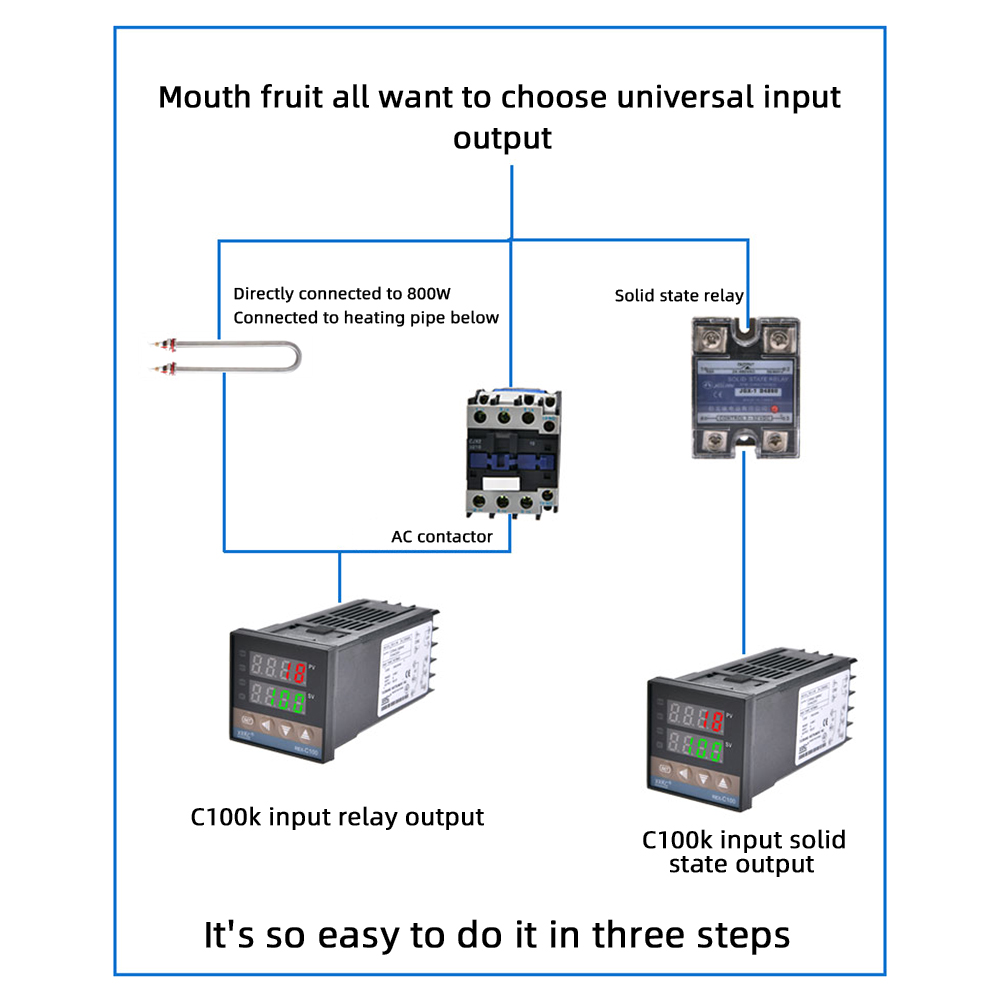

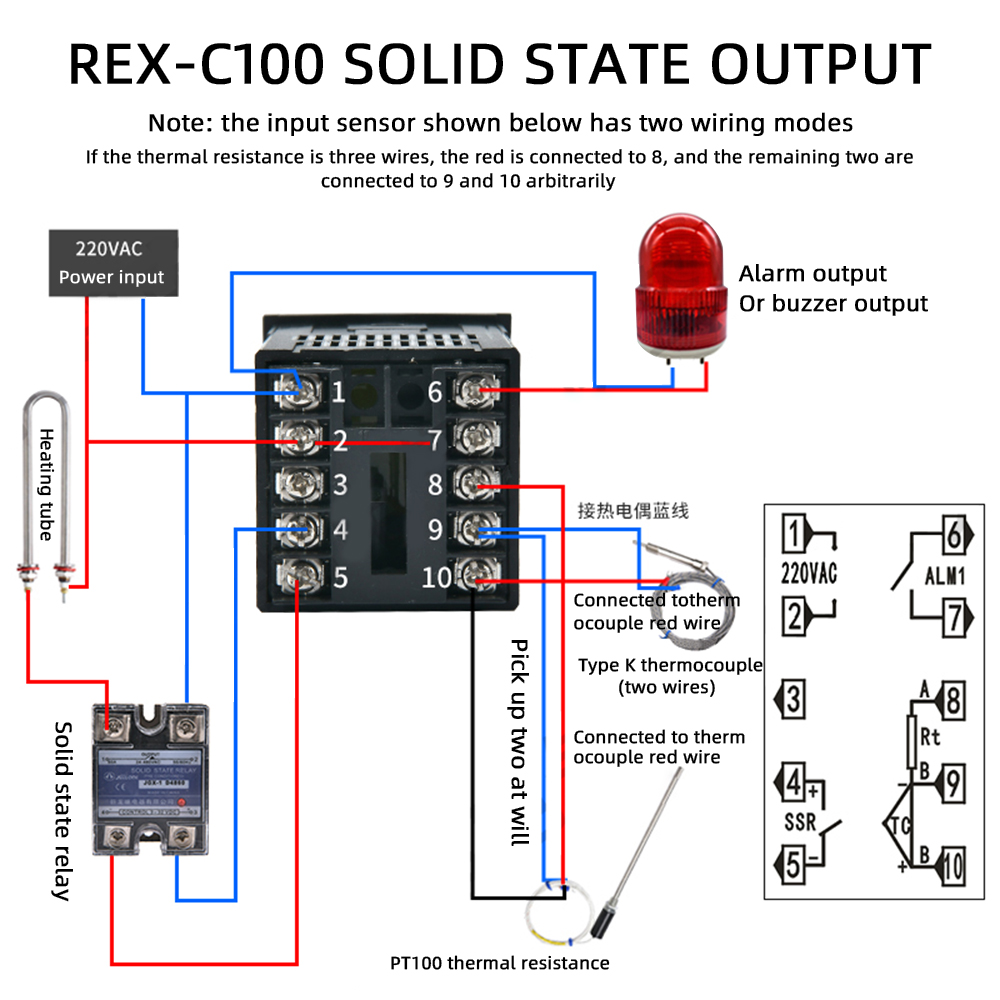

type1: Relay output (output without alarm, K-type input is short) type2: solid state output (no alarm, short k) type3: K type input relay output type4: K-type input solid-state output Product selling points: 1. Universal input, wide application range 2. This series of products is based on the most advanced modern control theory, using microcomputer single-chip control 3. Intelligent temperature control instrument with PID self-tuning (automatic optimization) function 4. For oven use, purpose, oven, temperature control incubator 5. Used in various IT industries to control and monitor process temperature parameter: 1. Measurement error: 3 levels: 1%+1 word, 0.5%±1 word, 0.2%±1 word. Additional cold junction compensation error: within the range of 0 ~ 50 ℃, ≤ ± 2 ℃, temperature coefficient ≤ 0.05% / ℃ 2, measurement digital display range: -1999 ~ 9999, -199 ~ 9999 two kinds. 2. Relay output contact capacity: 3A/220V, resistive or specified. 3. SCR trigger signal: 15/40 uS or rated 100mA, instantaneous IA (self-trigger). 6. Output signal of solid state relay: 15±3V/3 0mA. 4. Power supply: 220V ~ ± 10% 50HZ; power consumption: 4W. 5. Working environment: 0~50℃, relative humidity 35%~85%RH, non-corrosive and no strong electromagnetic field radiation. Simple problem repair: After connecting the corresponding power line, sensor line and output control line according to the instrument specifications, the PV window of the instrument will display the measured value after power-on and the SV window will display the set value, and at the same time it will enter the automatic temperature control state. 1. If you think the indicator is abnormal, please check the sensor and wiring. 2. The display of various functions and output indications on the instrument panel are normal, and when the instrument is out of control, please check whether the output control line is connected correctly, whether the external load is short-circuited, open circuit, or wrong wiring, etc. Check whether the copper foil of the output terminal and the output protection resistor are burnt. Package list: Temperature controller*1 (thermocouple and sensor need to be purchased separately) Black buckle*1 Manual *1
