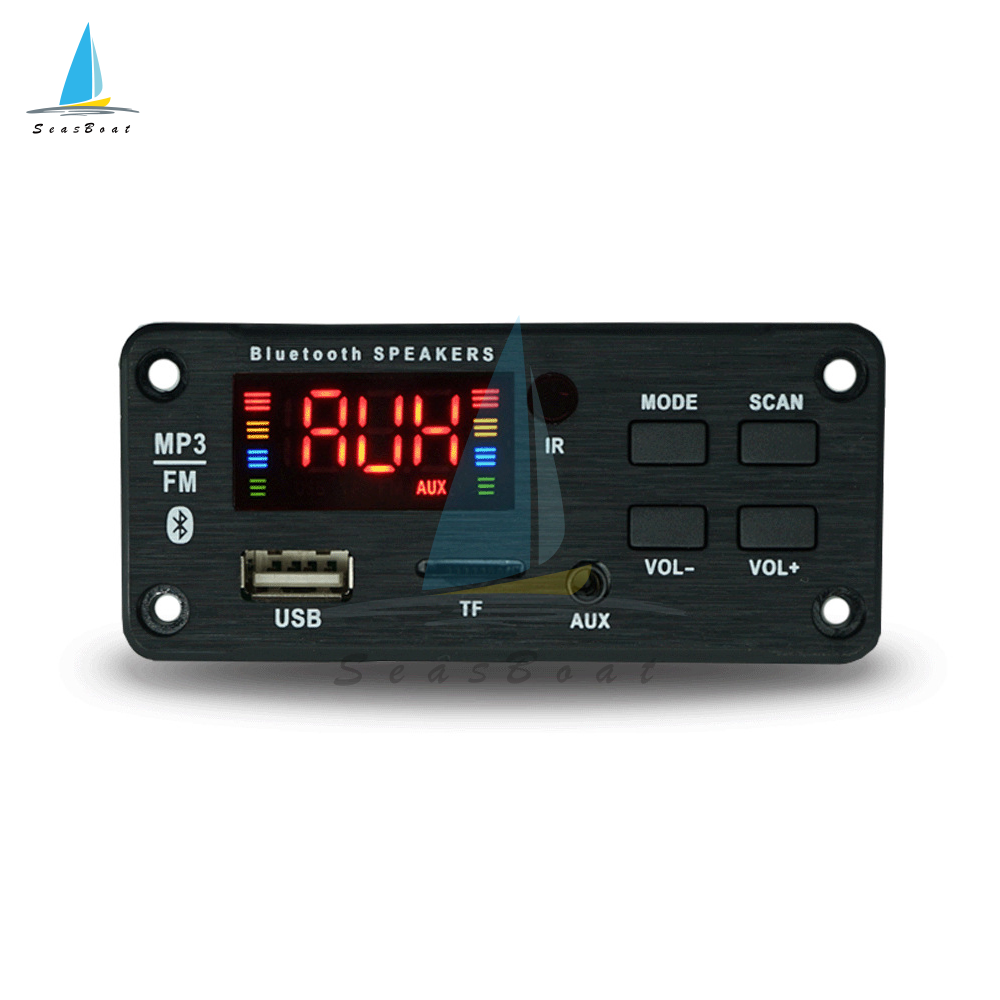

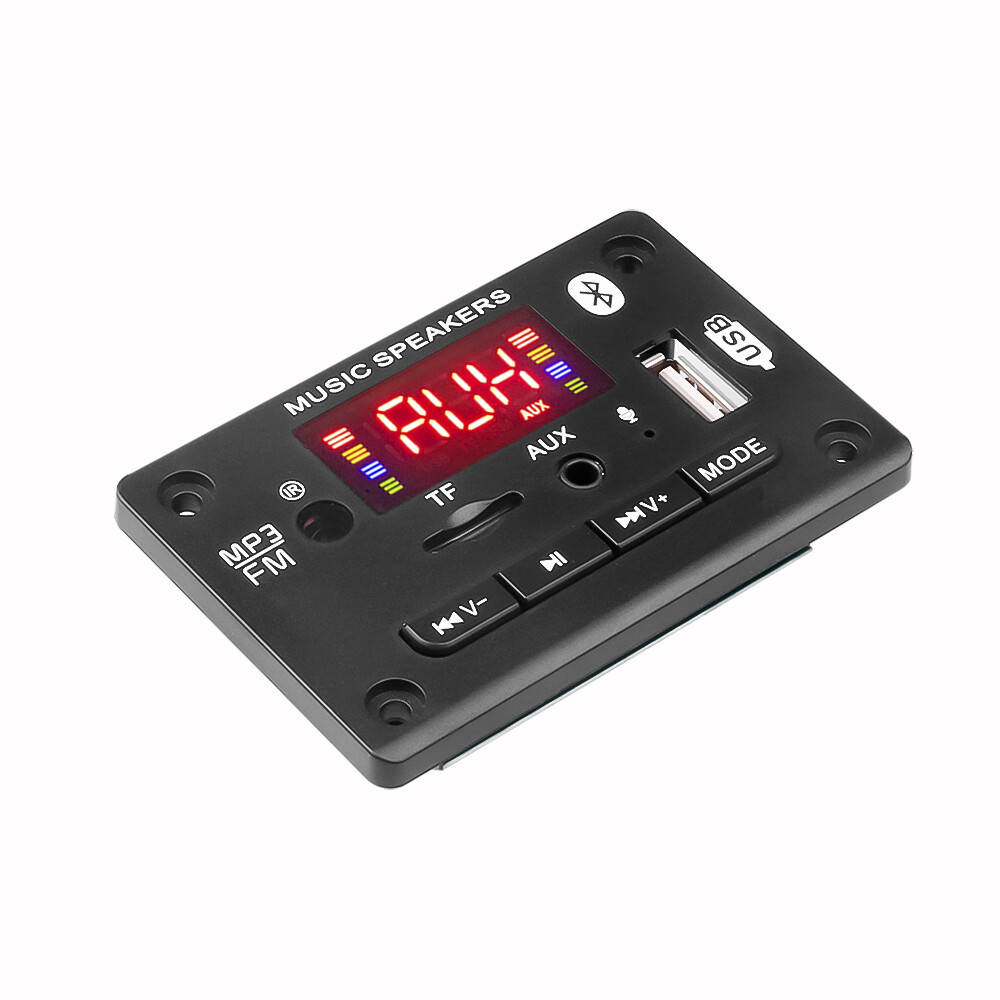

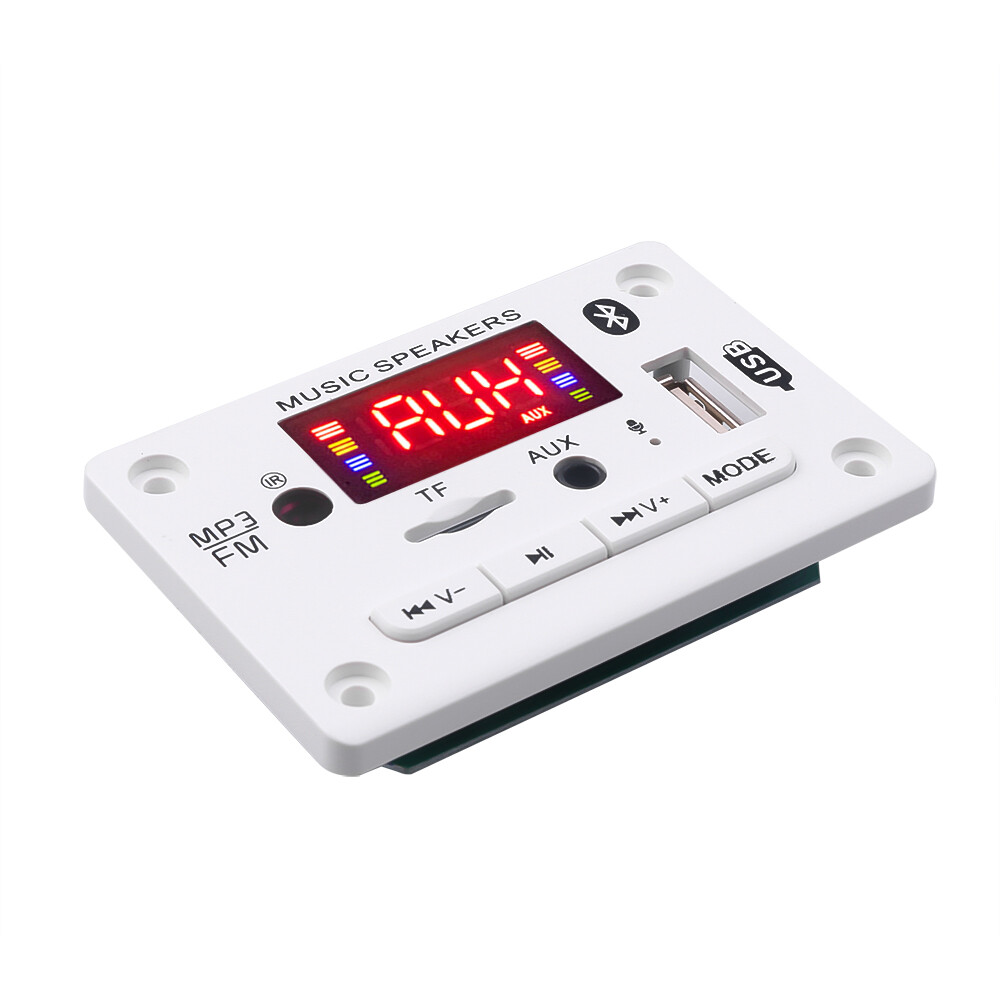

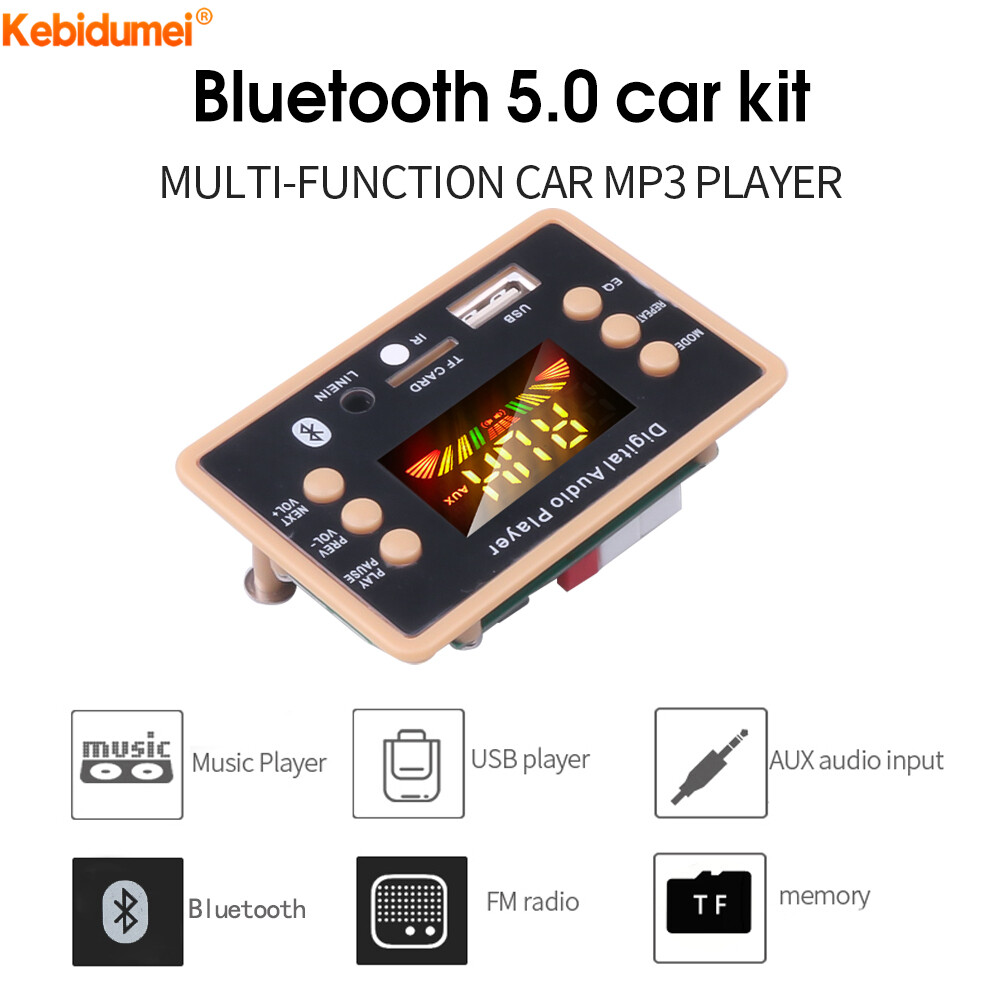

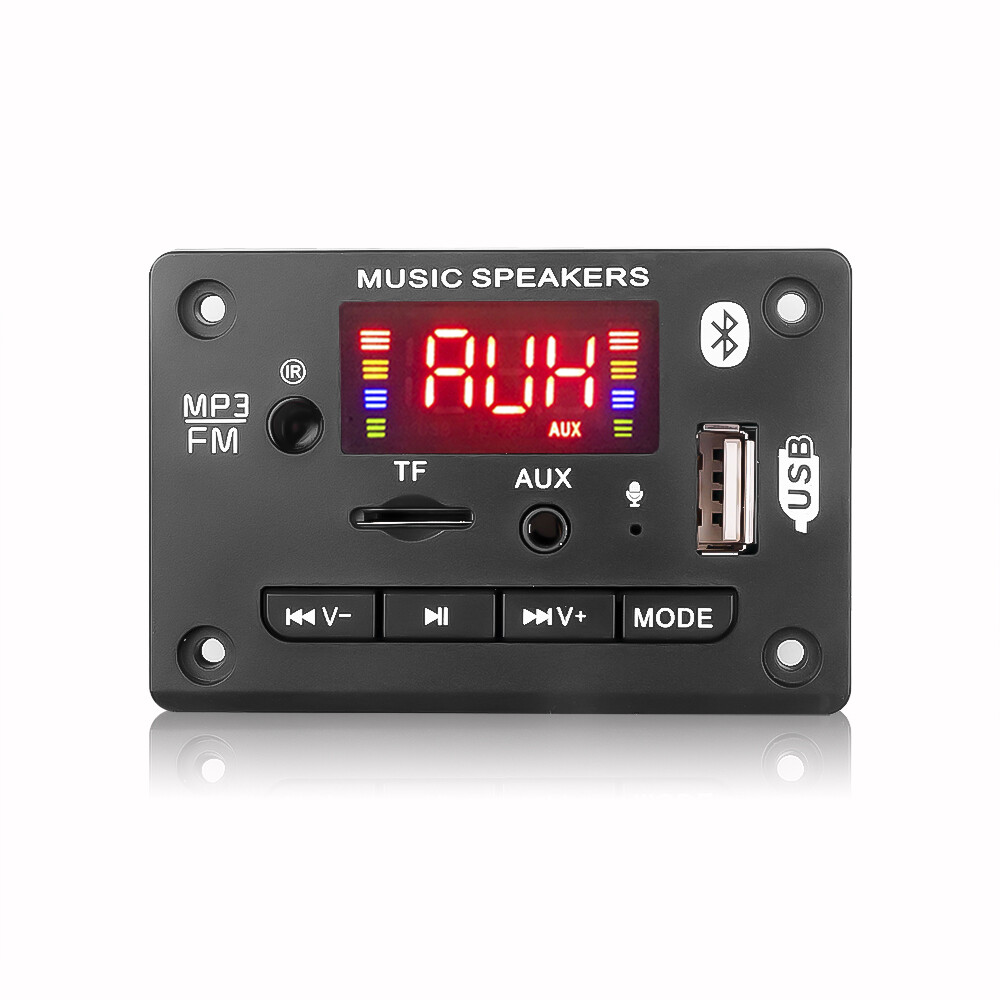

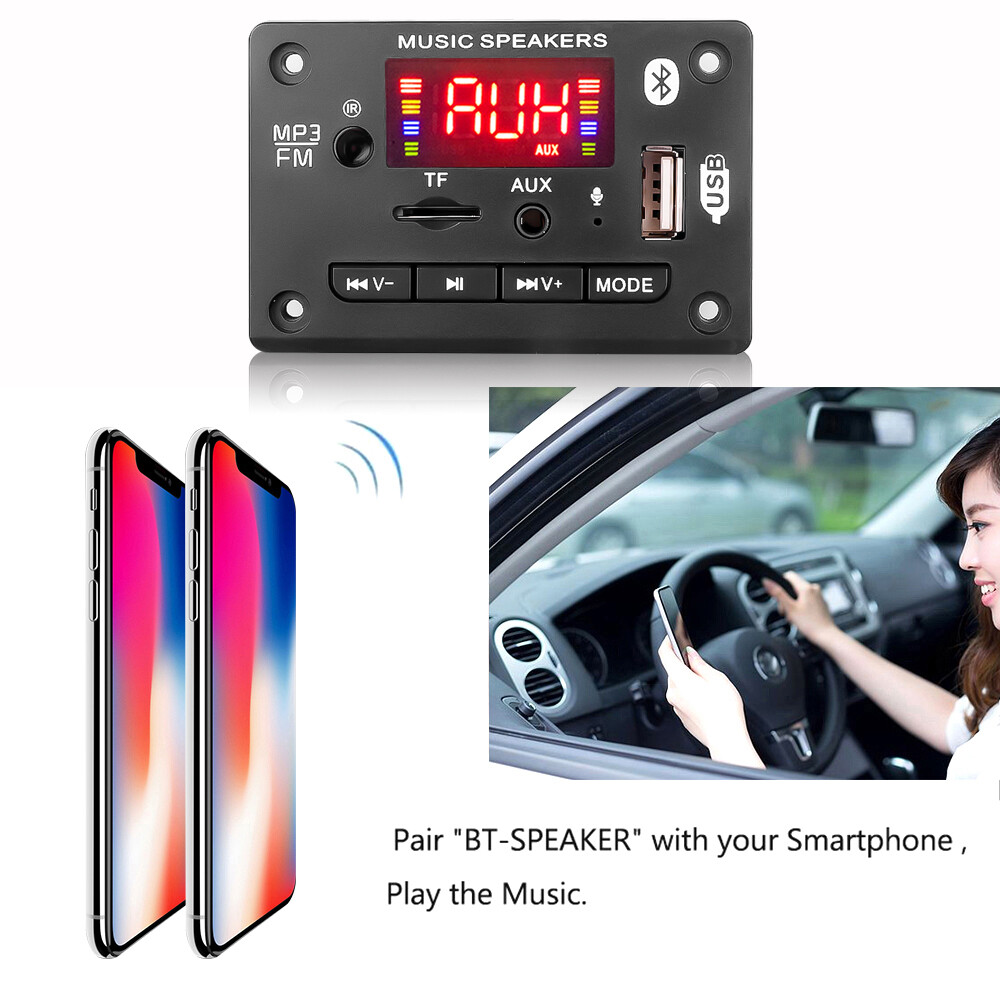

Kebidumei Mô-đun Giải Mã Bảng Mạch MP3 Bluetooth 5.0 Máy Phát MP3 Xe Hơi 5V 12V Mô-đun Bảng Mạch Từ Xa USB FM Thẻ TF WAV WMA

Features:

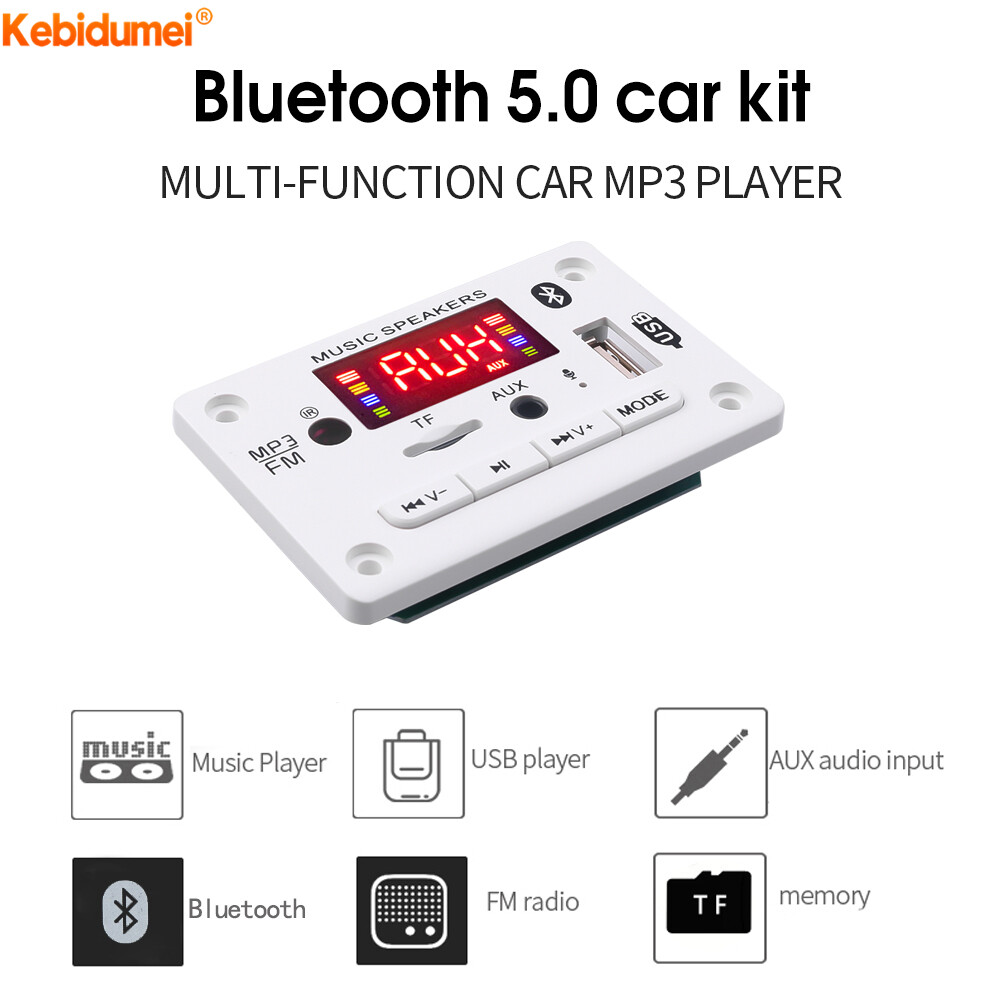

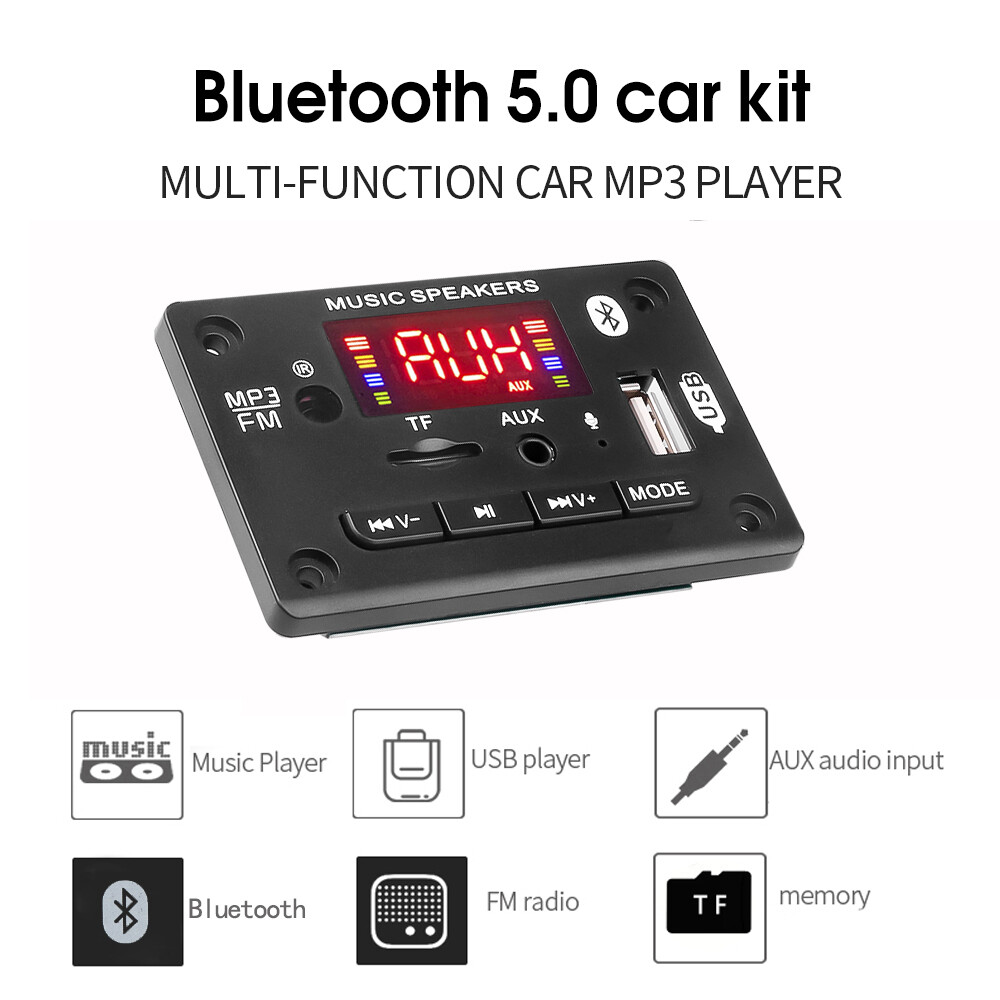

MODE: USB / TF / FM / LINE IN / BLUETOOTH voice switching;

REPEAT: Press once to cycle through singles, press again to cancel cycle through singles;

EQ: sound field mode, test 6 kinds of sound quality; (classical) (jazz) (rock) (subwoofer) (pop) (normal);

LED: digital screen display

PLAY / PAUSE: the short press is to switch between pause and play; the long press is radio FM automatic station;

PREV / VOL-: the short press is to select the previous song; the long press is to decrease the volume;

NEXT / VOL +: the short press is to select the next song; the long press is to increase the volume;

USB: connect U disk (up to 32GB);

TF: Connect TF memory card (up to 32GB)

⑩IR: infrared receiving module;

⑾LINE IN: audio input interface;

Master IC: AC6926

Bluetooth IC: AC6926 Bluetooth version is 5.0

Music format: MP3 / WMA / WAV / FLAC / APE lossless format

Radio FM frequency: 87.5-107.5 MHZ

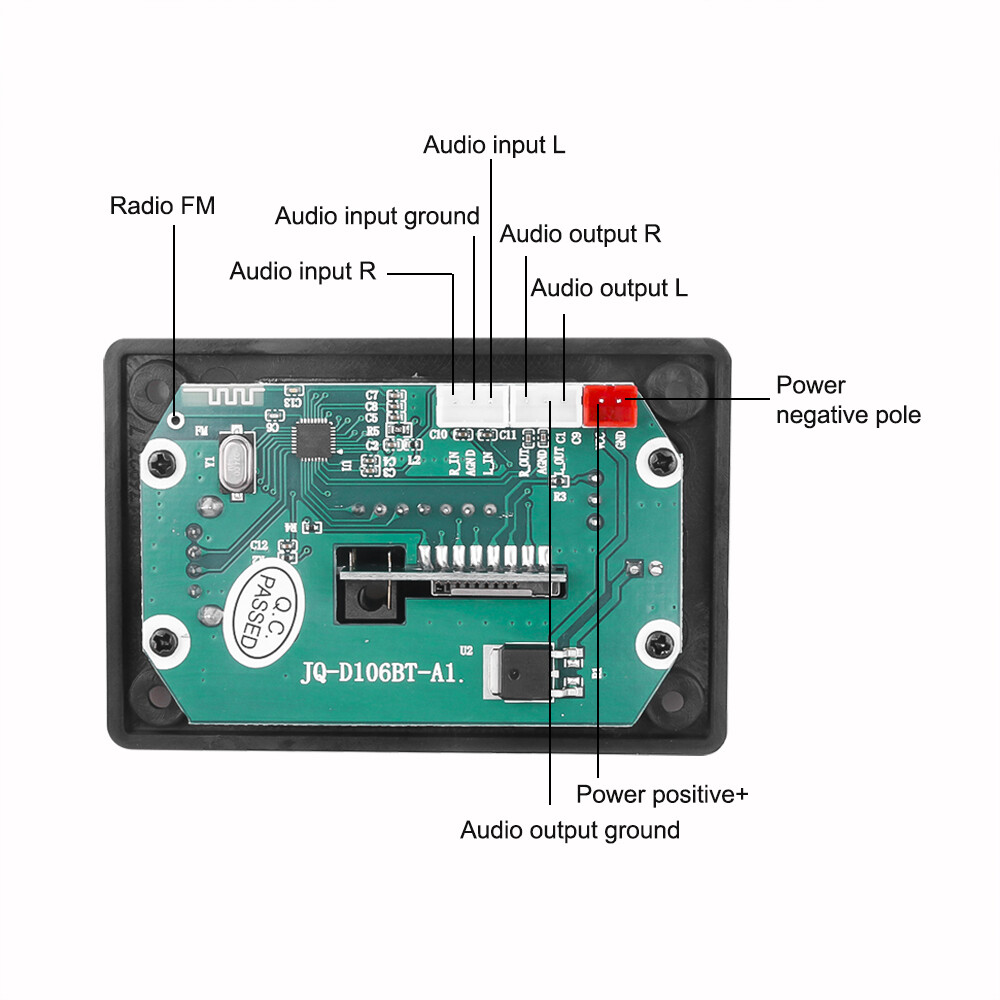

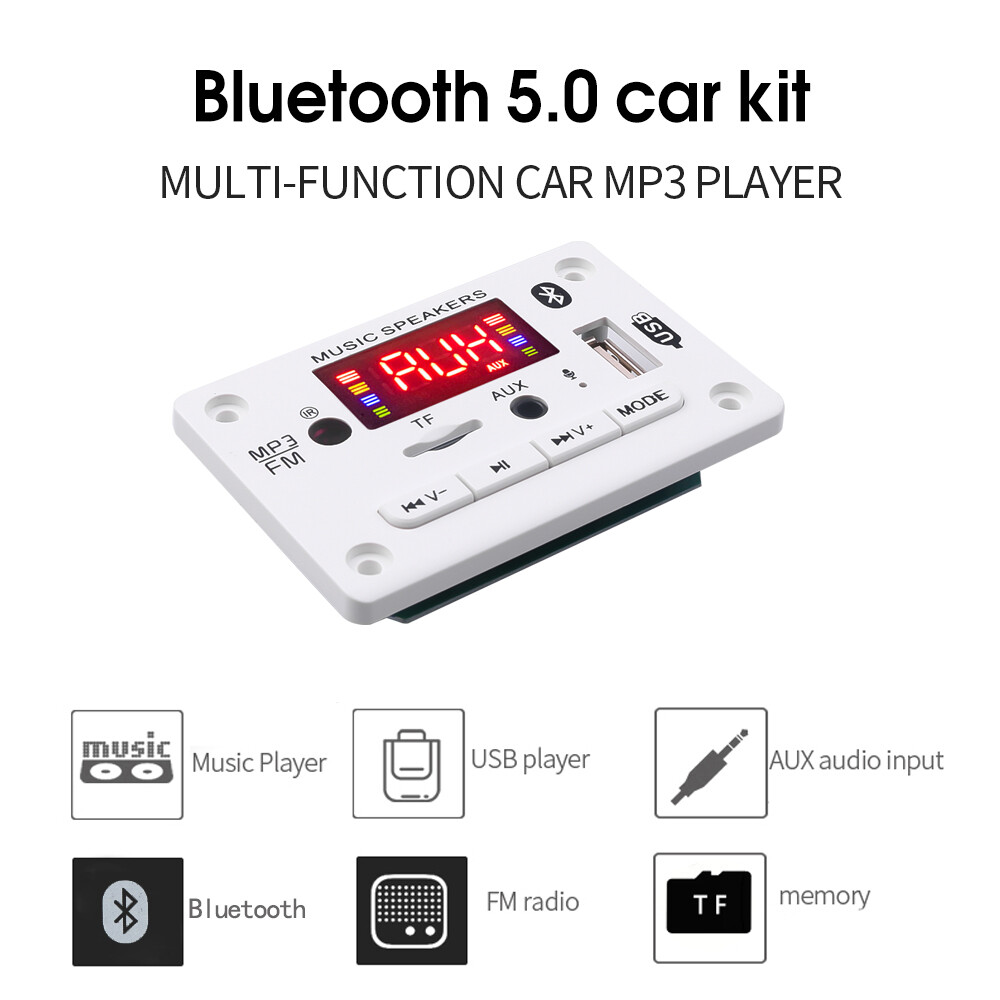

Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control / DC 5V or 12V (optional)

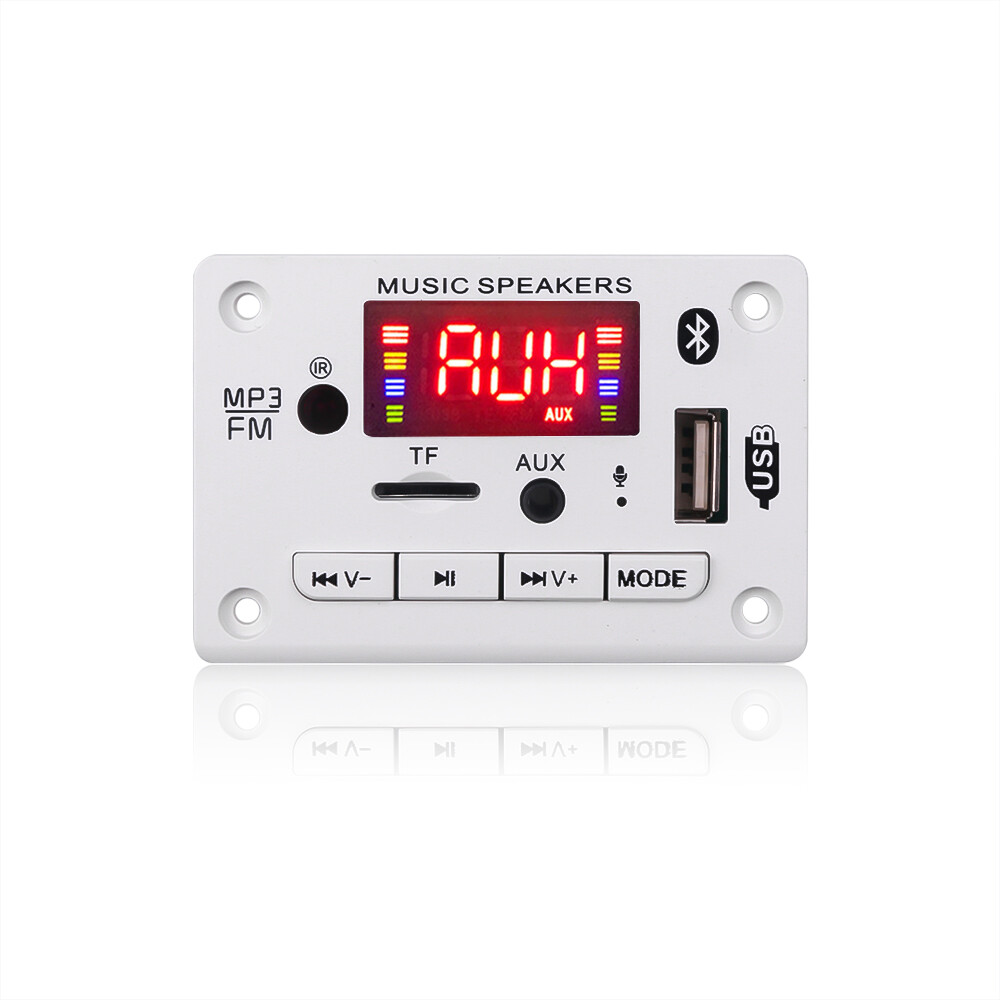

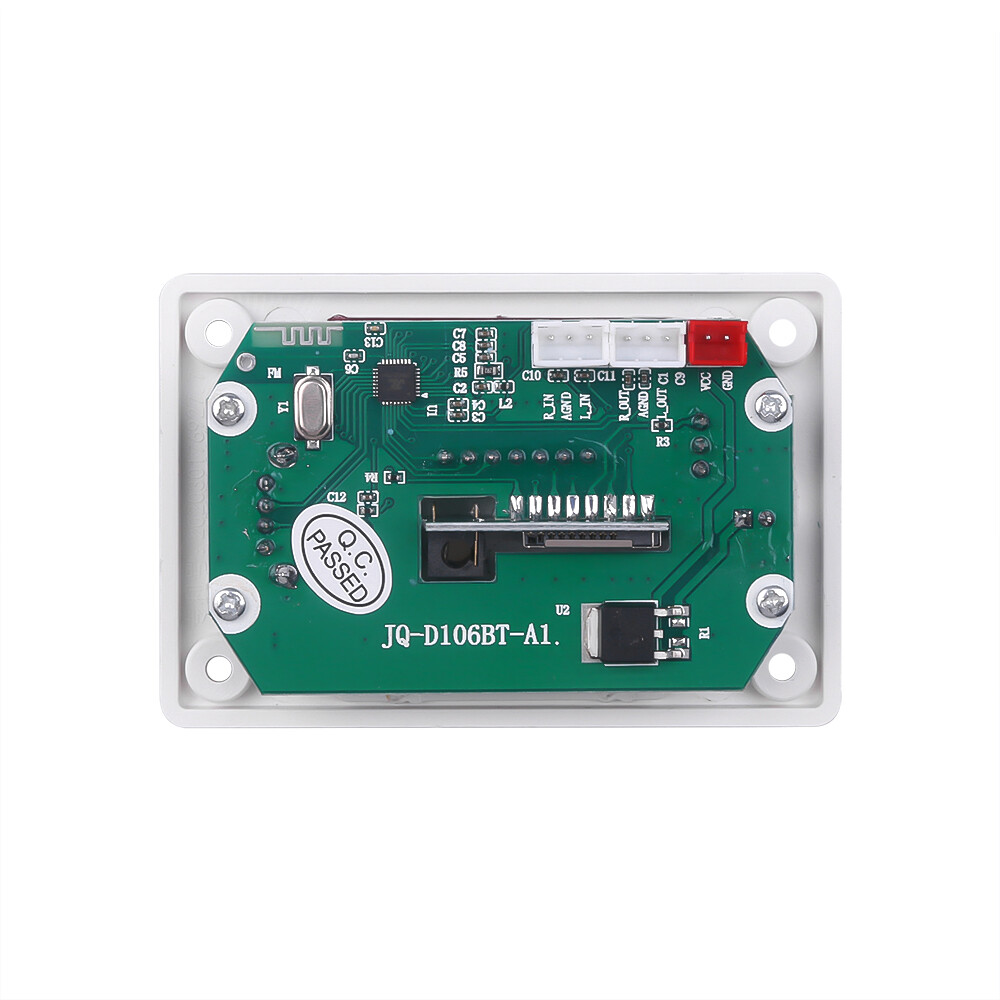

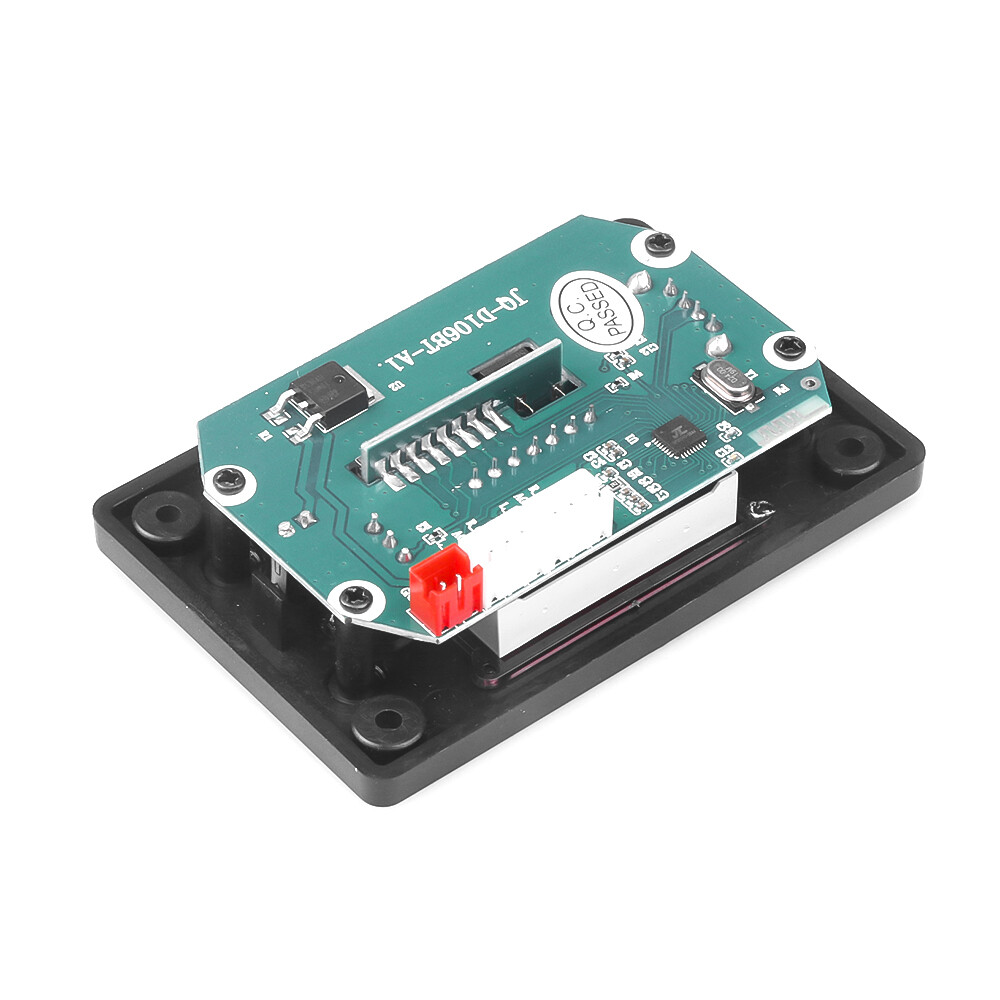

About the structure: panel size: 78 * 58 MM, the screw holes are located around the panel, and then the surface is covered with PVC lenses, the depth of the board is 23MM

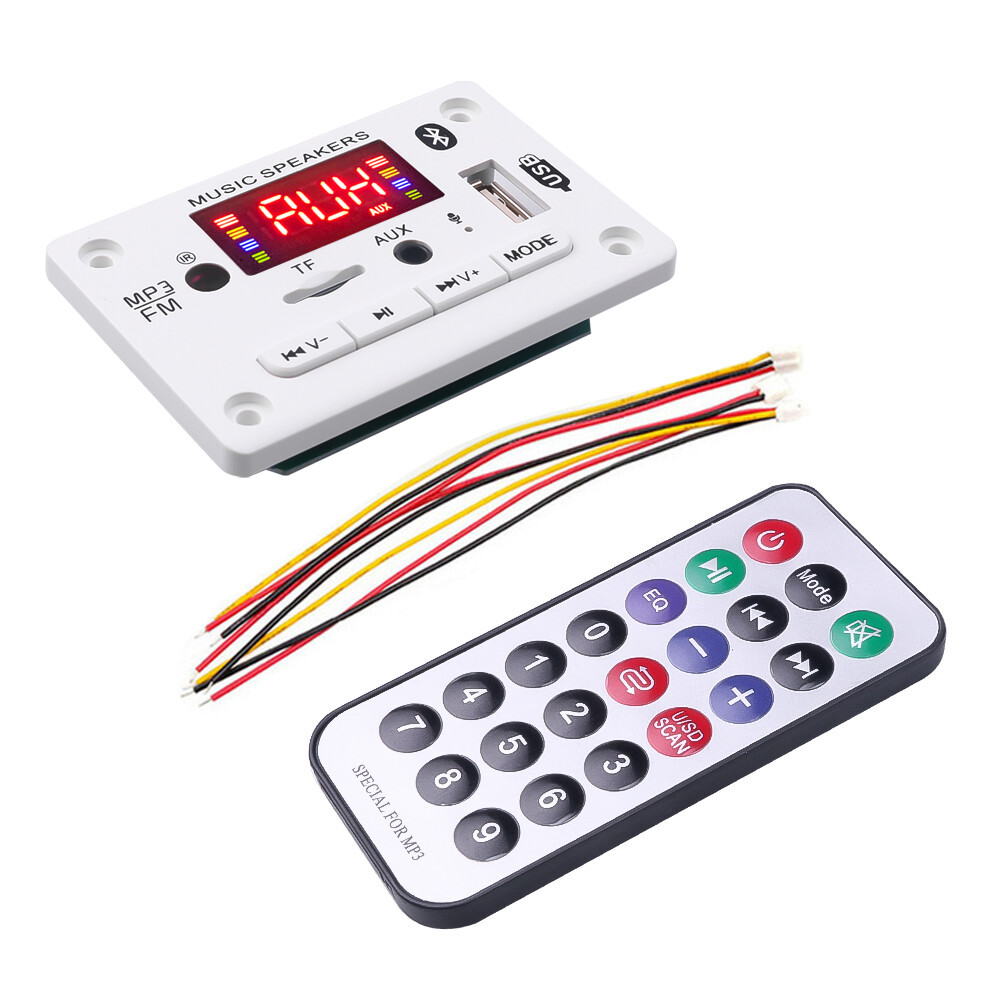

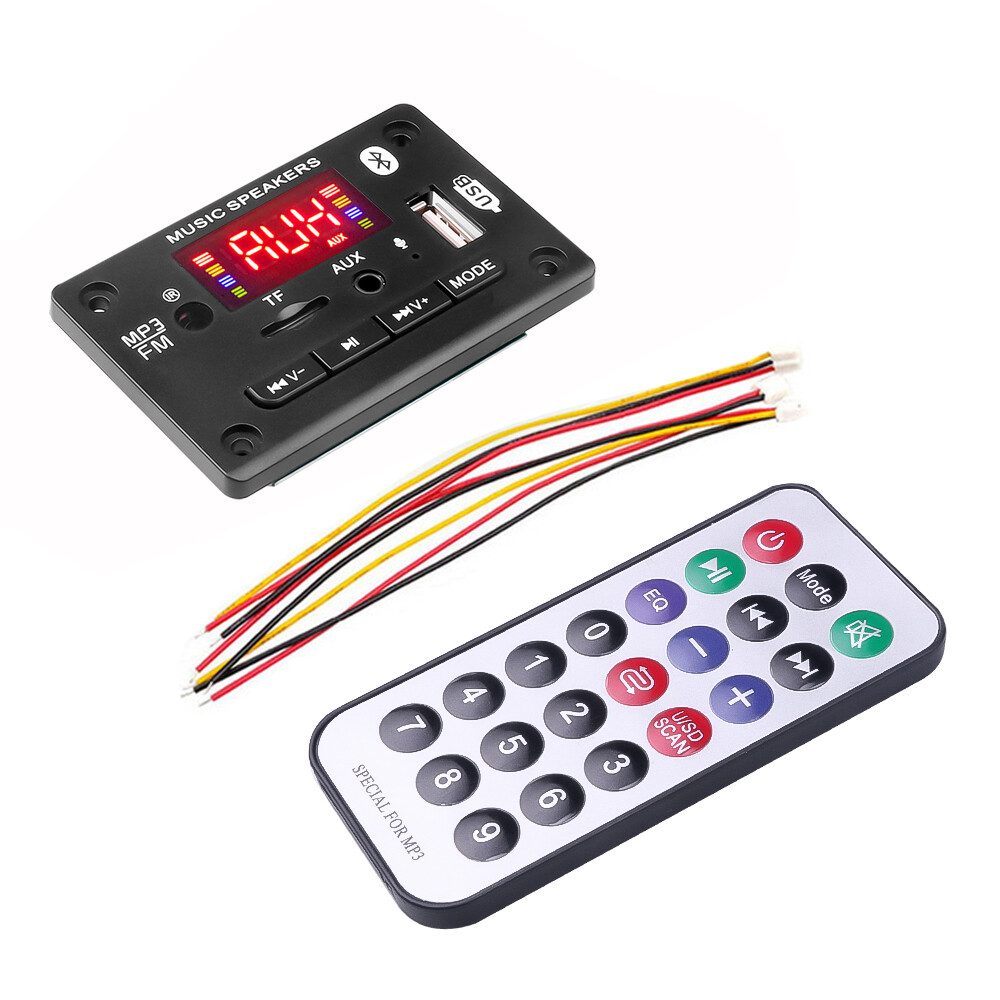

Package Included:

1 x MP3 Decoder Board

1 x Remote Control

2 x Audio Cable

2 x Power Cable

Note: This item with bubble bag packaging, without a retail box, but please rest assured that we will pack it well before shipping!

​​​​​​​
