KEBETEME Bo Mạch Giải Mã MP3 Bluetooth 5.0 Không Dây Rảnh Tay Máy Nghe Nhạc MP3 DC 5V 12V Bộ Âm Thanh Xe Hơi LED Với Bộ Điều Khiển Từ Xa

Hands-free Wireless Bluetooth MP3 WAV WMA FLAC APE Decoder Board DC 5V-12V MP3 Player LED Screen Car Audio Kit With Remote Controller USB U Disk SD FM Radio 3.5mm Aux Line-in Music Audio Module Receiver

Version:With Bluetooth Function & LEDScreen Version SupportMP3 WAV WMA FLAC APE format

Specification:

Overall dimensions: 83 x 28mm (W x H)

Input voltage: 5V-12V

Main function:

1. Double decoding supports music in MP3 WAV WMA FLAC APE format

2. Support Bluetooth function;

3. With digital tube display;

4. Support MMC/SD/MMA and other cards, support USB interface (U disk);

5. Power failure memory function 24C02;

6. Support 5-10 meters distance infrared remote control operation;

7. Support for external audio input LINE IN (AUX);

8. Support radio FM, receiving frequency band (87.5MHZ-108.0MHZ);

9. Button: four buttons multi-directional control, MODE/previous song/play/pause/next song;

The button operation details:
1. Previous button (volume down): Short press in the MP3 state for the previous song, long press for the volume to decrease; short press in the FM state to adjust one station number; short press under the Bluetooth function Bluetooth is a song, long press to reduce the volume.
2. Play/Pause: Short press in MP3 state for play/pause; short press in FM state for play/pause, long press to automatically receive and save the station; short press for play/pause under Bluetooth function.
3. The next song button (volume increase): in the MP3 state, short press for the next song, long press for the volume to increase; short press in the FM state to adjust a station number; short press under the Bluetooth function Bluetooth next song, long press for the volume to decrease.
4. MODE button: Switch between USB/TF/FM/AUX/Bluetooth function.

The remote control instruction:

1. POWER: STANDBY button cannot switch.

2. MODE: SD card and U disk: switching sequence for USB→SD→Bluetooth→FM→AUX;

Only U disk: switching sequence for USB→Bluetooth→FM→AUX;

Only the SD card: switching sequence for SD→Bluetooth→FM→AUX;

There is no USB and SD card: switching sequence for FM→AUX→Bluetooth.

3. PREV: In USB/SD / Bluetooth MODE, short press for PREV;

In the USB / SD MODE, long press for fast rewind; In FM MODE, short press for last channel, long press for scan search last channel.

NEXT: In USB /SD/Bluetooth MODE, short press for NEXT;

In USB / SD MODE, long press for fast forward;

In FM MODE, short press for next channel, long press for scan searches the next channel.

4. VOL + : short / long press for music. VOL-: short/long press for music.

5. REP: In USB / SDMODE, is the switch key between single repeat and whole cycle when play music, boot for all cycle.

6. STOP: In the USB / SD MODE, short press to STOP the music play.

7. MUTE: MUTE, press for MUTE, press again for relieve(also can relieve by VOL- /VOL+).

8. EQ: Acoustic field MODE. The NORMAL→BAS→POP→ROC→JAZZ→CLA→CUT→NORMAL

9. PLAY/PAUSE: In USB/SD/Bluetooth MODE for PLAY / PAUSE; In the FM MODE, long press for searching all channels and save.

Package Content:

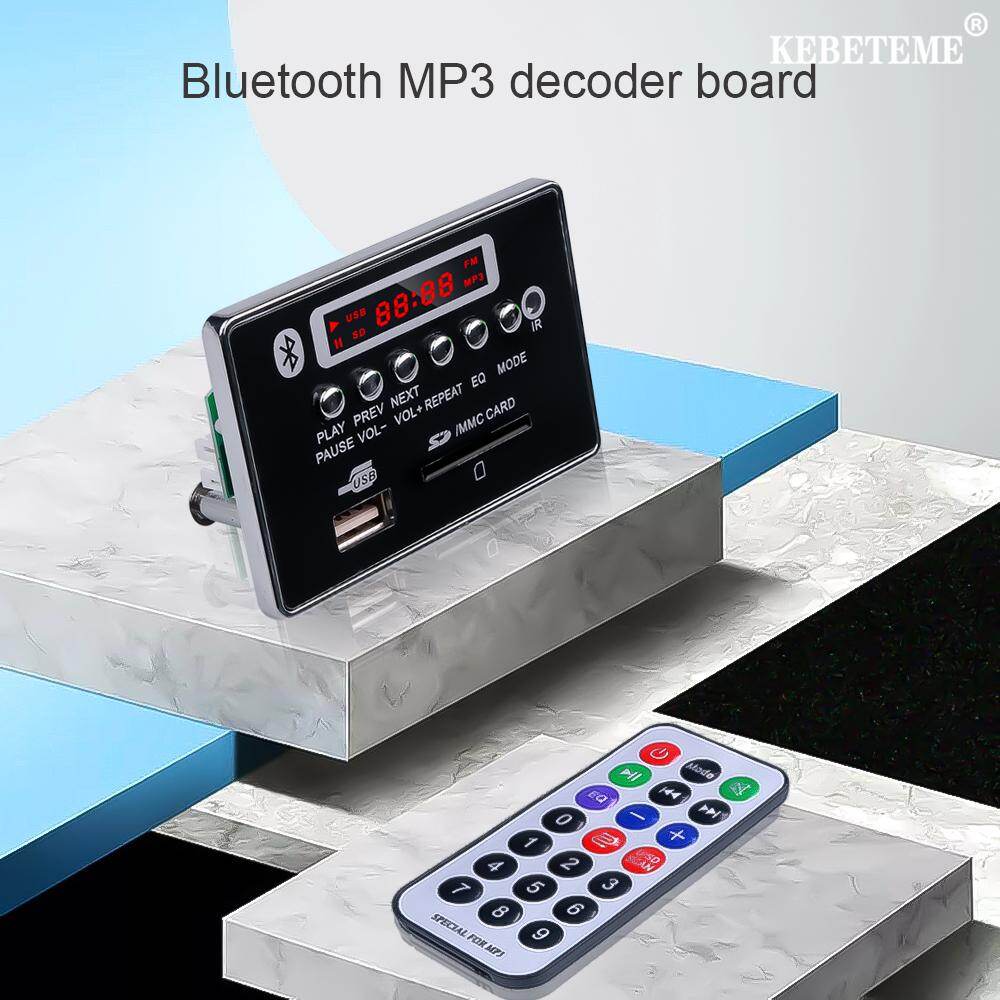

1 x MP3 Decoder Board with the Surface panel
1 x Remote Controller (Without battery)
2 x Power Cables

Note: This item comes without a retail box, but please rest assured that we will pack it well before shipping!
