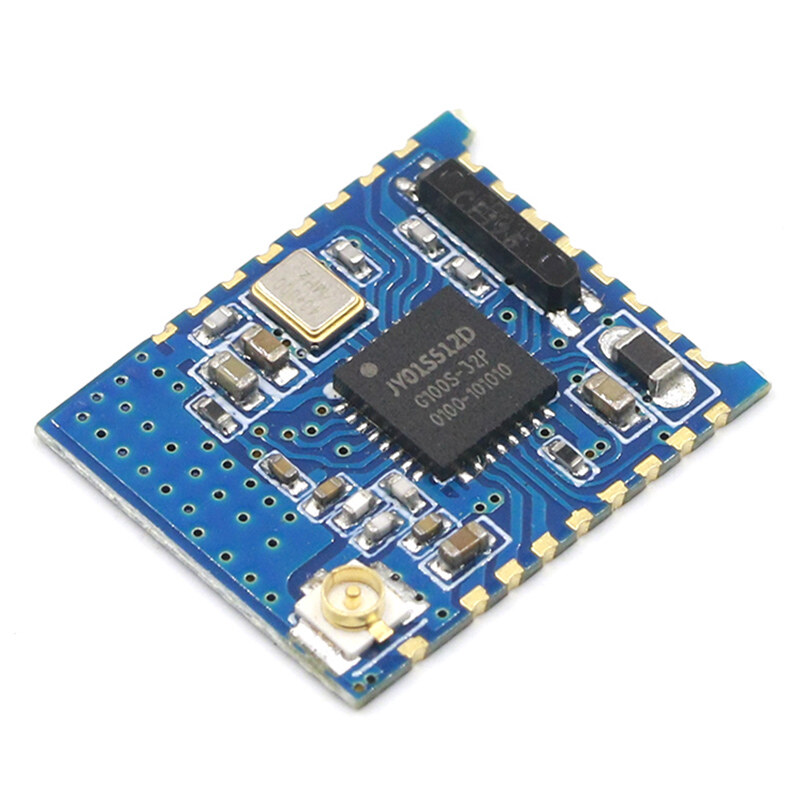

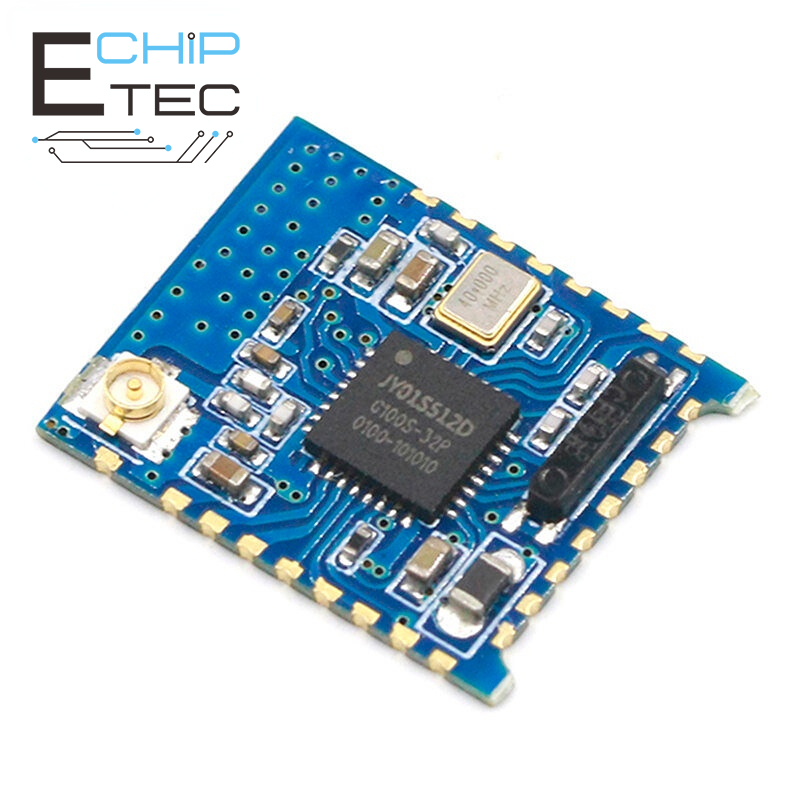

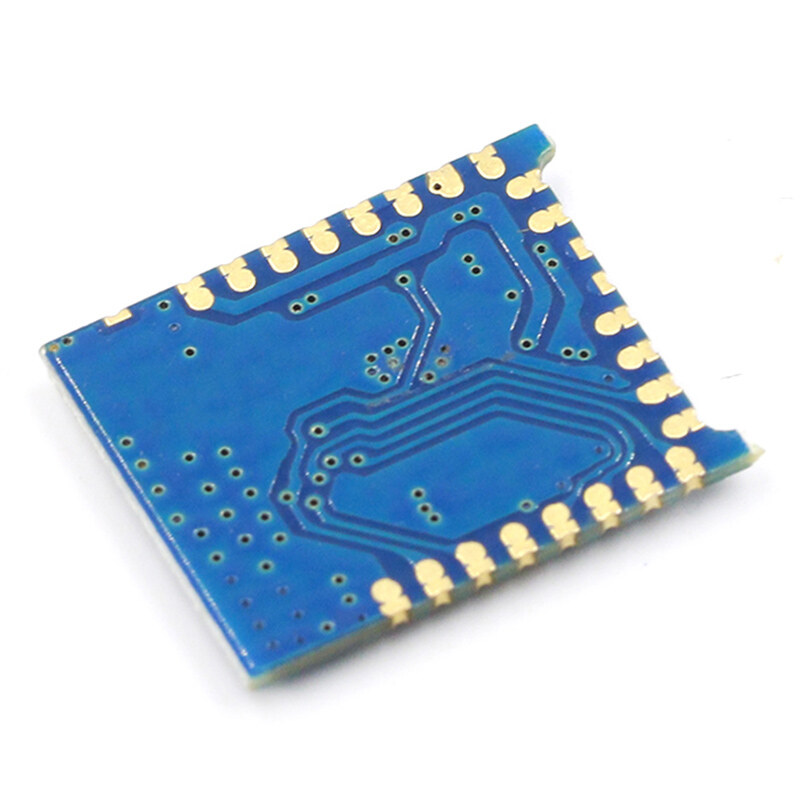

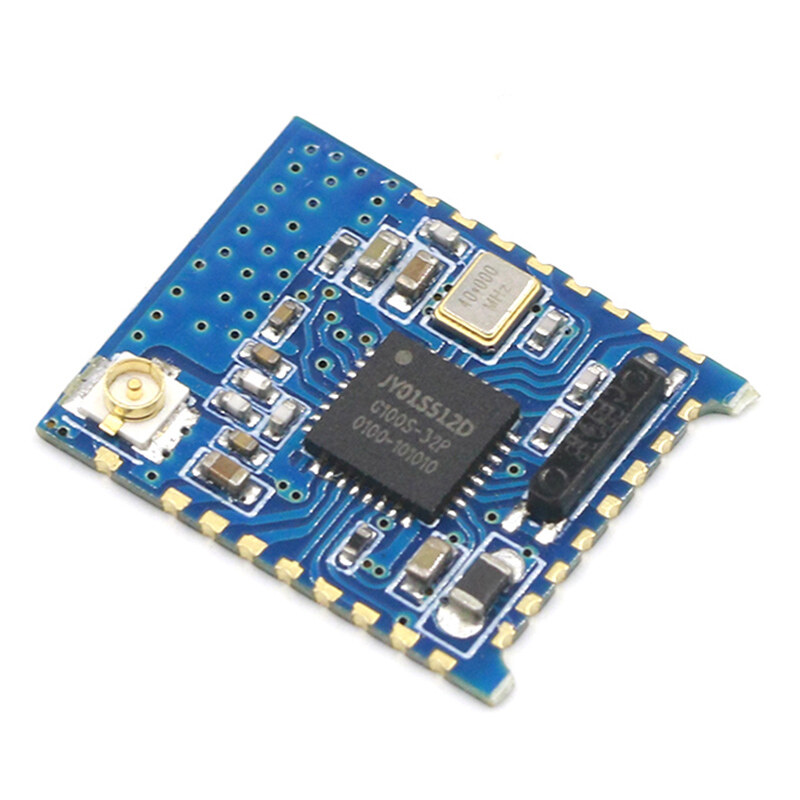

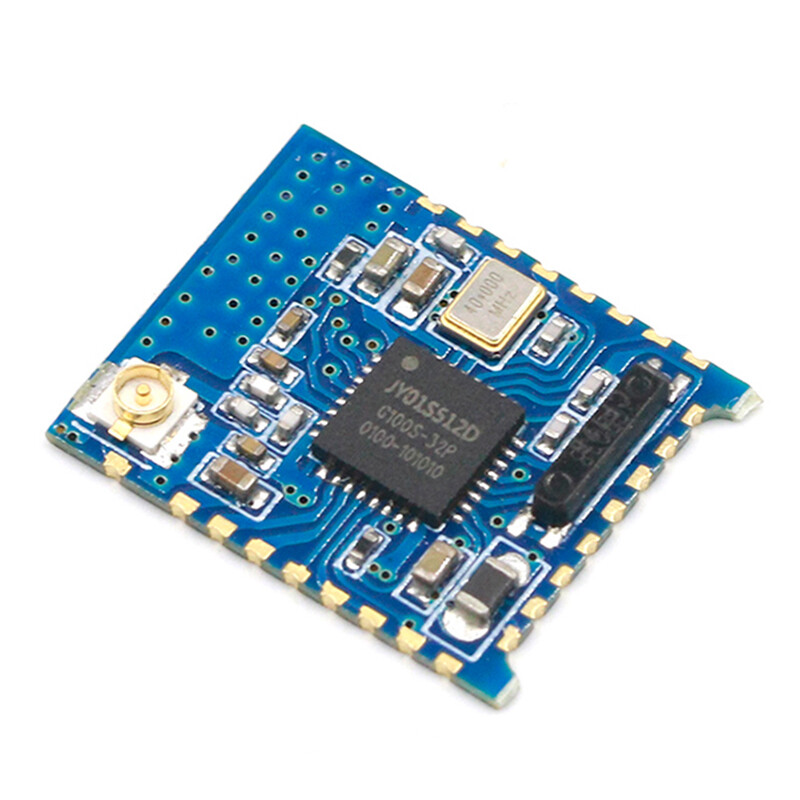

Mô-đun Bluetooth JDY-17 4.2 Chế Độ Truyền Dữ Liệu Tốc Độ Cao Mô-đun BLE

Introduction:
The JDY-17 transparent transmission module is based on the Bluetooth 4.2 protocol standard, the working frequency range is 2.4GHZ, the modulation method is GFSK, the maximum transmission power is Odb, the maximum transmission distance is 60 meters, and the imported original chip design is adopted. It supports users to modify the device through AT commands Name, service UUID, transmit power, pairing password and other instructions are convenient and flexible to use.
The JDY-17 Bluetooth module can realize the data transmission between the module and the mobile phone or between the module and the module. The UART or IIC communication mode can be selected through I0, and the BLE Bluetooth can be quickly used for product application through simple configuration.

Model: JDY-17
Work band: 2.4G
Emission power: Odb (maximum)
Communication interface: UART or IIC
Working voltage: 1.8V-3.3V
Working temperature: -40 -80
Storage temperature: -40-80
Antenna: external antenna
Receiving sensitivity: -97dbm
Transmission distance of: 60 meters

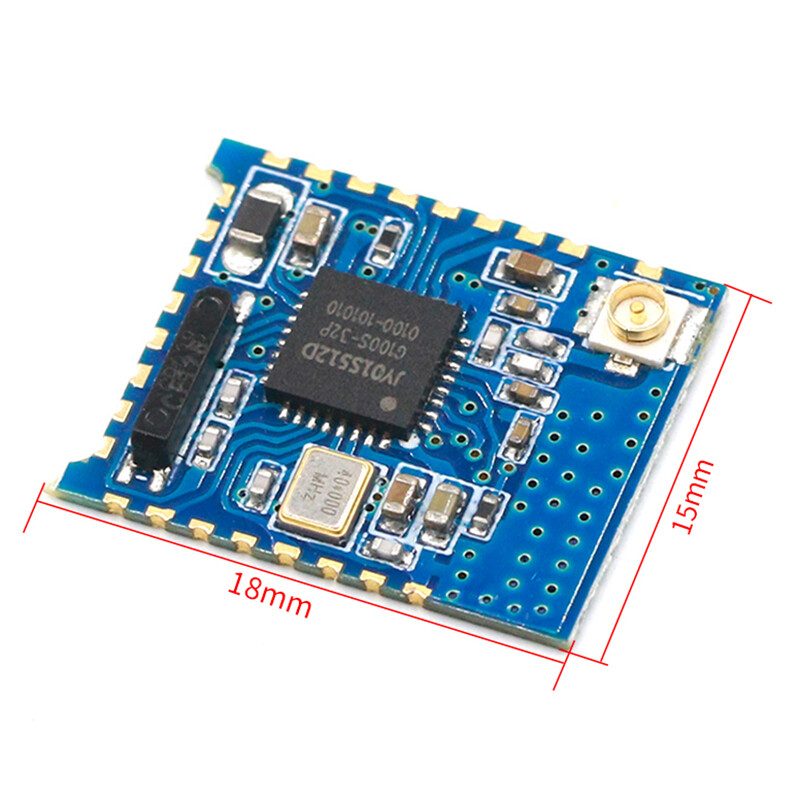

Module size: 18mm* 14.94 *2.6
bluetooth version: BLE4.2 (compatible BLE4.0 BLE 4.1)
Transmission rate: 115200bps/s
Wake-up state current ：4.9mA (broadcast)
Shallow sleep state current: <300uA (broadcast)
Deep sleep current: 1.8uA (no broadcast)
Instruction parameter preservation: Parameter configuration of power down data is saved
STM welding temperature: <300

Package:
1 x JDY-17 bluetooth 4.2 Module High Speed Data Transmission Mode BLE Mesh Networking Low Power.
