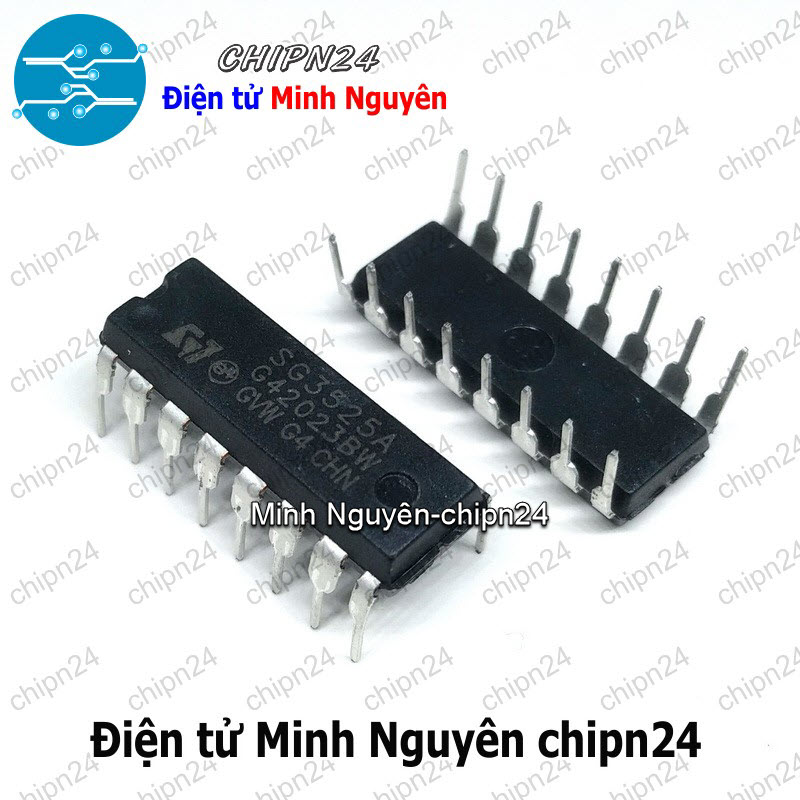

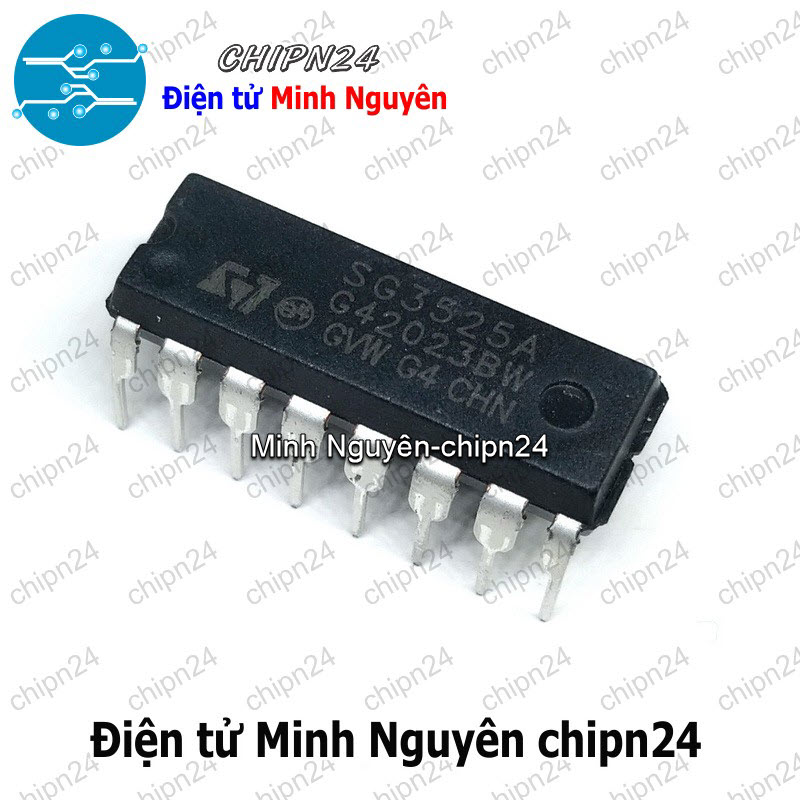

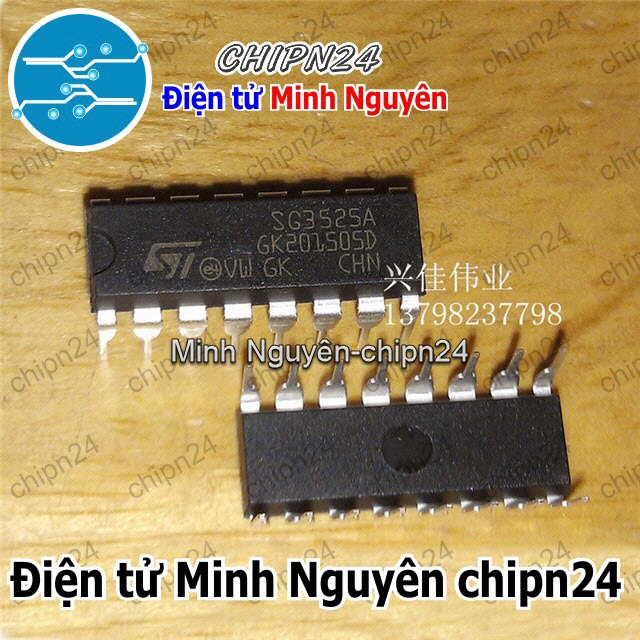

IC SG3525 DIP-16 (SG3525A 3525)
IC SG3525 SG3525A DIP-16
Mô tả:
- Manufacturer: STMicroelectronics
- Manufacturer Part Number: SG3525AN
- Description: IC REG CTRLR BCK/PUSH-PULL 16DIP
- Detailed Description: Buck, Push-Pull Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-DIP
Thông số kỹ thuật:
- Part Status: Active
- Output Type: Transistor Driver
- Function: Step-Down, Step-Up/Step-Down
- Output Configuration: Positive
- Topology: Buck, Push-Pull
- Number of Outputs: 2
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 8V ~ 35V
- Frequency - Switching: 100Hz ~ 400kHz
- Duty Cycle (Max): 0.49
- Synchronous Rectifier: Yes
- Clock Sync: Yes
- Serial Interfaces: -
- Control Features: Enable, Soft Start
- Operating Temperature: 0°C ~ 70°C (TA)
- Package / Case: 16-DIP (0.300"", 7.62mm)
- Supplier Device Package: 16-DIP
- Base Part Number: SG3525A
Datasheet:
http://www.st.com/content/ccc/resource/technical/document/datasheet/c0/12/98/4a/3b/1a/4b/8b/CD00000958.pdf/files/CD00000958.pdf/jcr:content/translations/en.CD00000958.pdf
