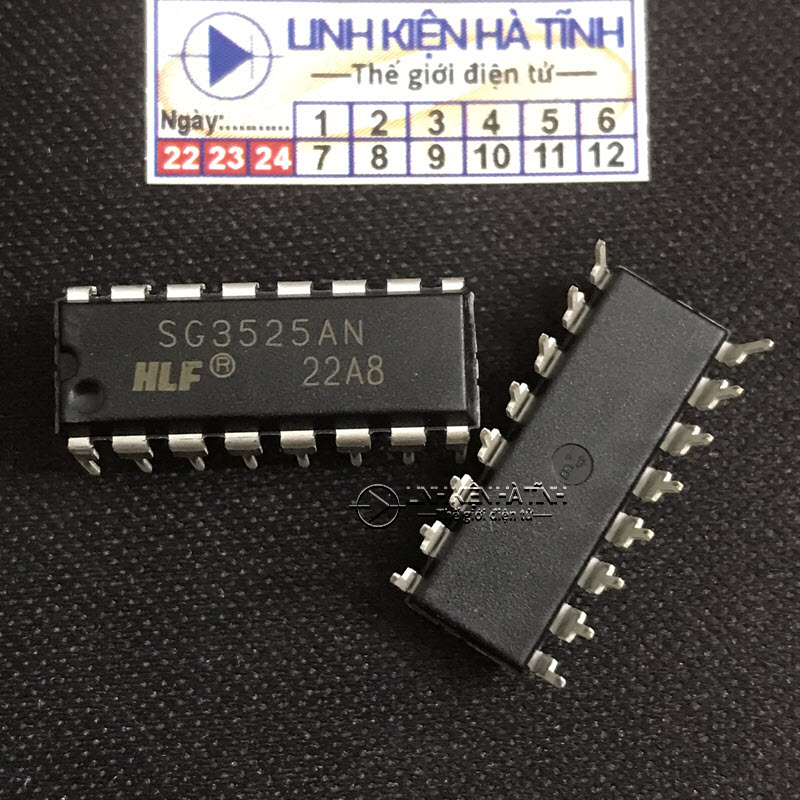

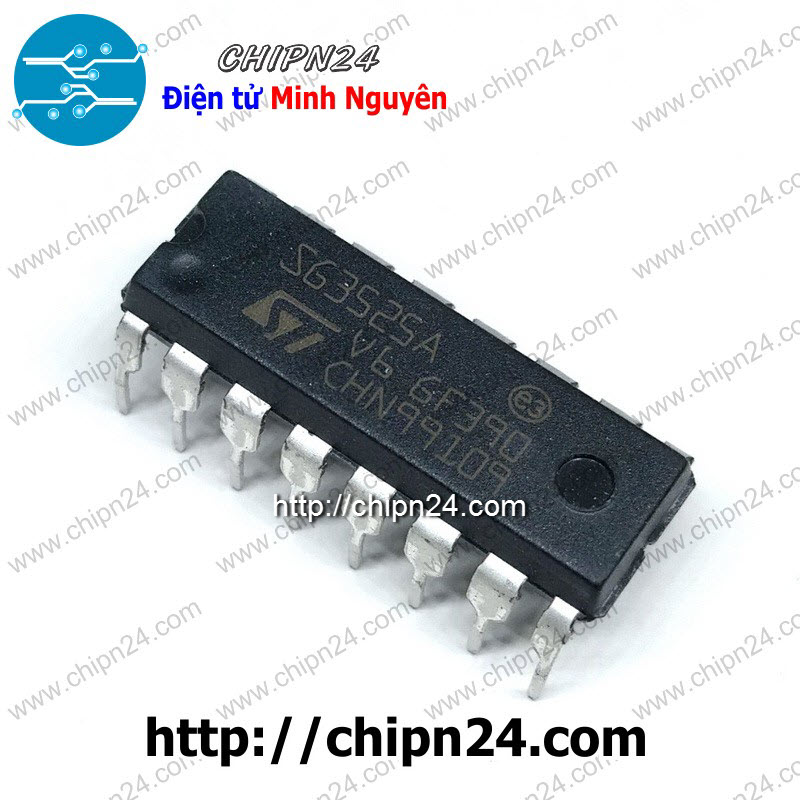

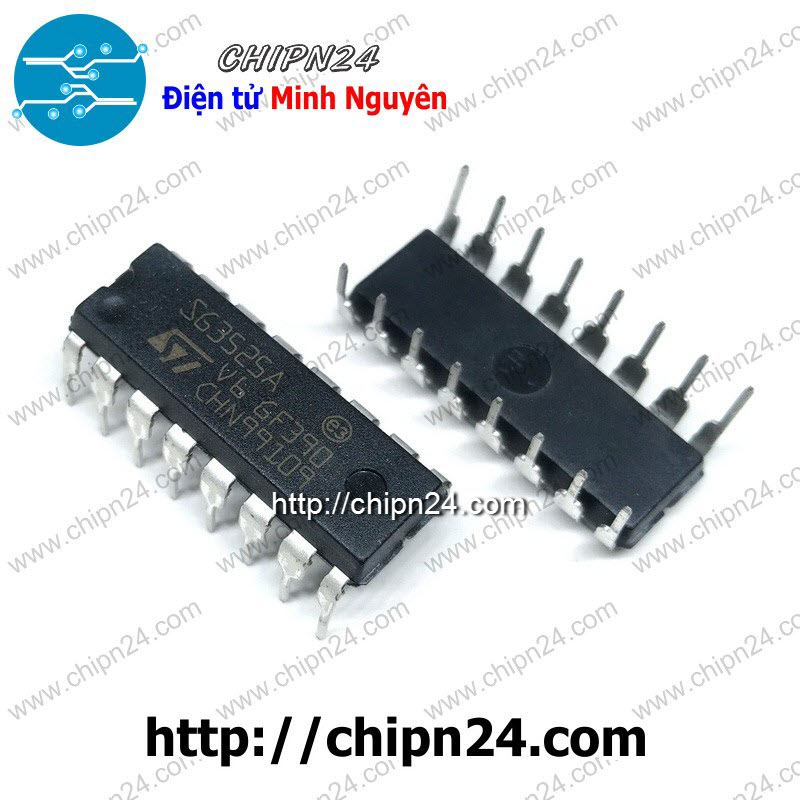

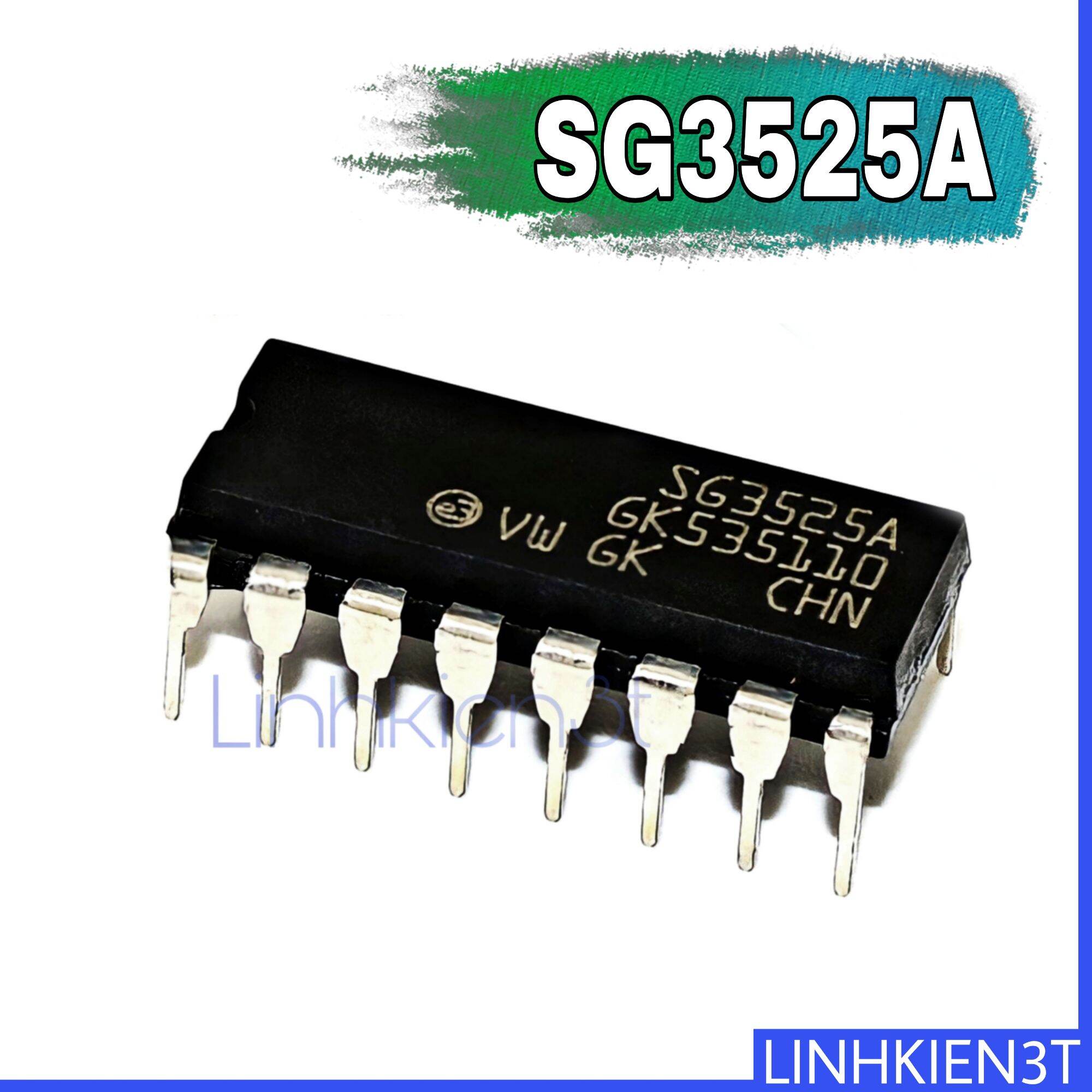

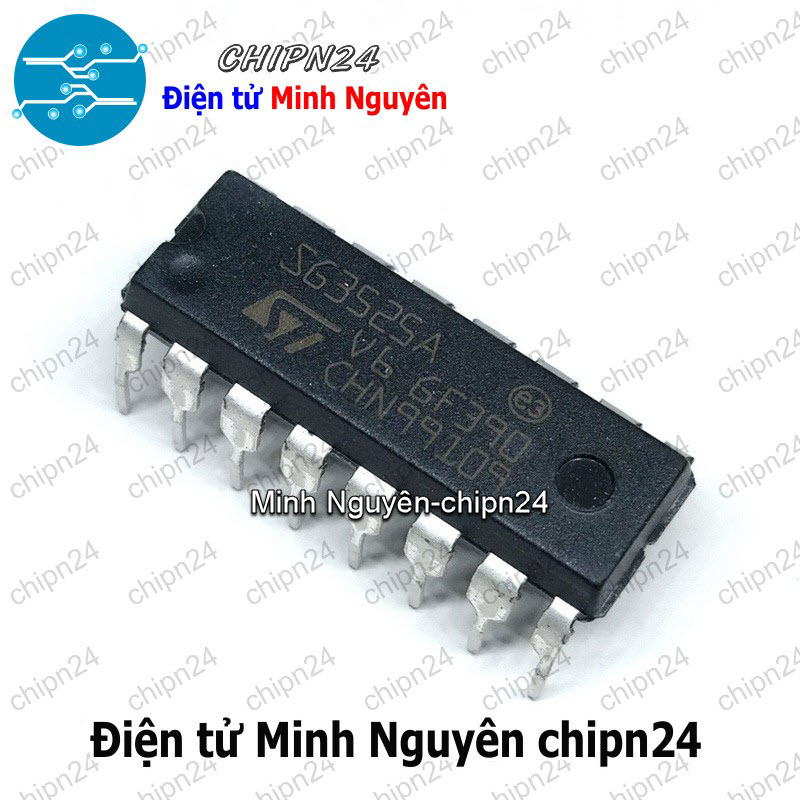

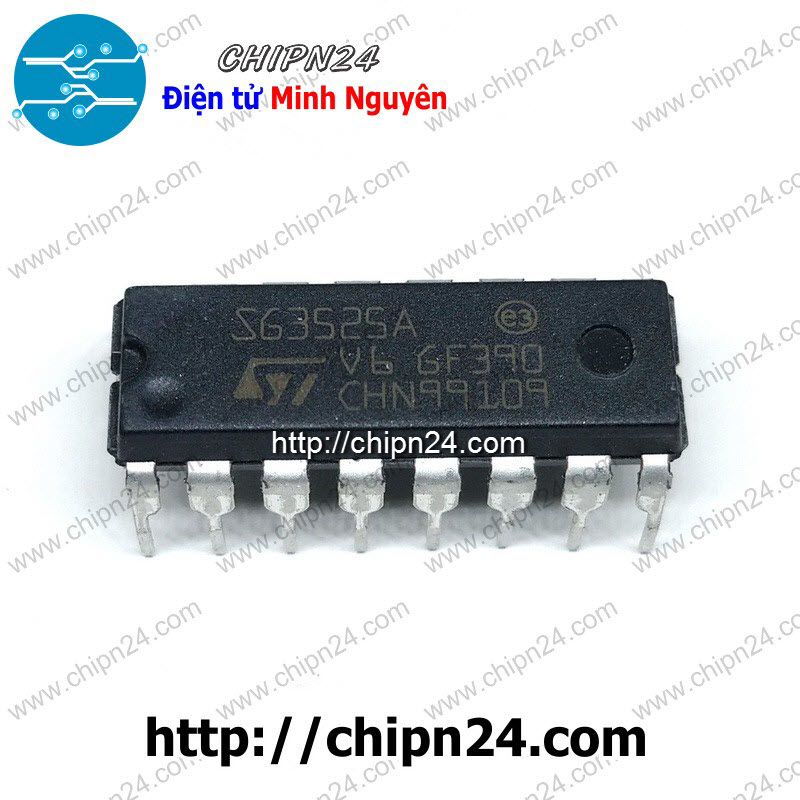

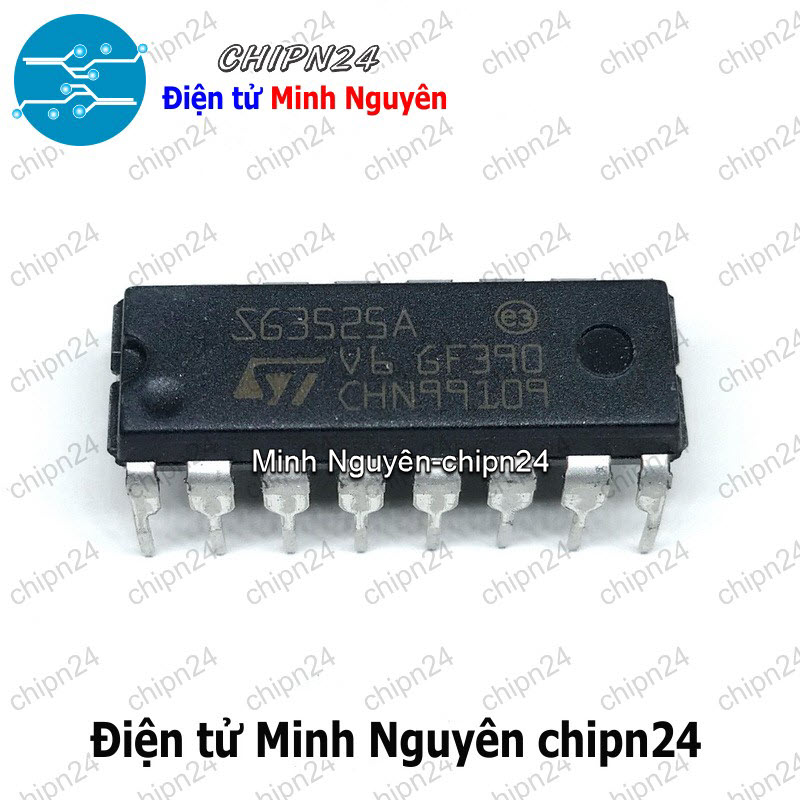

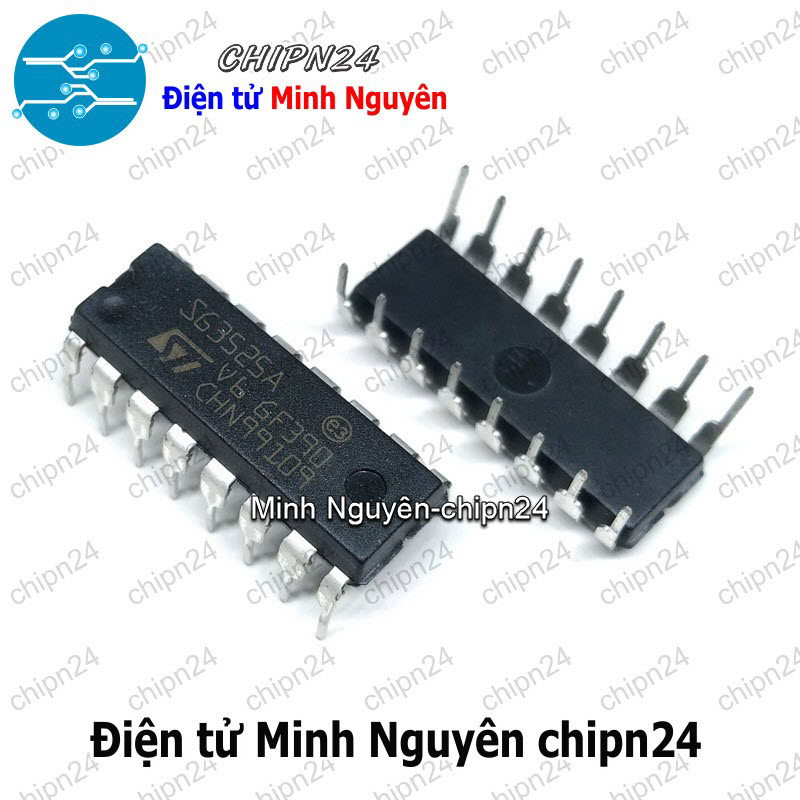

IC SG3525 DIP-16 (Hàng Tốt TI) (SG3525AN 3525)

IC SG3525 DIP-16 (Hàng Tốt TI) (SG3525AN 3525)

Mô tả sản phẩm:

Description

IC REG CTRLR BCK/PUSH-PULL 16DIP

Detailed Description

Buck, Push-Pull Regulator Positive Output Step-Down, Step-Up/Step-Down - DC-DC Controller IC 16-DIP

Thông số kỹ thuật:

- Package: Tube

- Part Status: Active

- Output Type: Transistor Driver

- Function: Step-Down, Step-Up/Step-Down

- Output Configuration: Positive

- Topology: Buck, Push-Pull

- Output Phases: 1

- Voltage - Supply (Vcc/Vdd): 8V ~ 35V

- Frequency - Switching: 100Hz ~ 400kHz

- Duty Cycle (Max): 0,49

- Synchronous Rectifier: Yes

- Clock Sync: Yes

- Serial Interfaces: -

- Control Features: Enable, Soft Start

- Operating Temperature: 0°C ~ 70°C (TA)

- Mounting Type: Through Hole

- Package / Case: 16-DIP (0.300"", 7.62mm)

- Supplier Device Package: 16-DIP

- Number of Outputs: 2

Datasheet:

http://www.st.com/content/ccc/resource/technical/document/datasheet/c0/12/98/4a/3b/1a/4b/8b/CD00000958.pdf/files/CD00000958.pdf/jcr:content/translations/en.CD00000958.pdf
