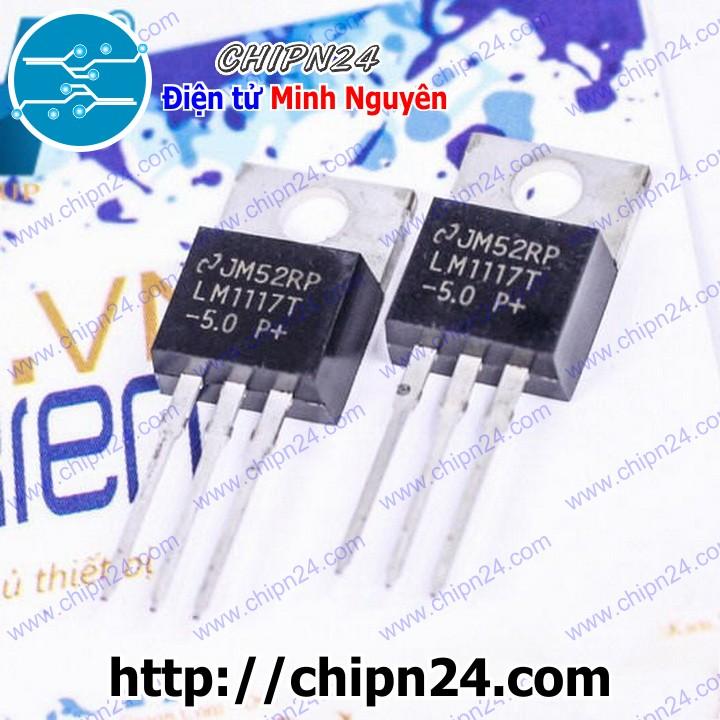

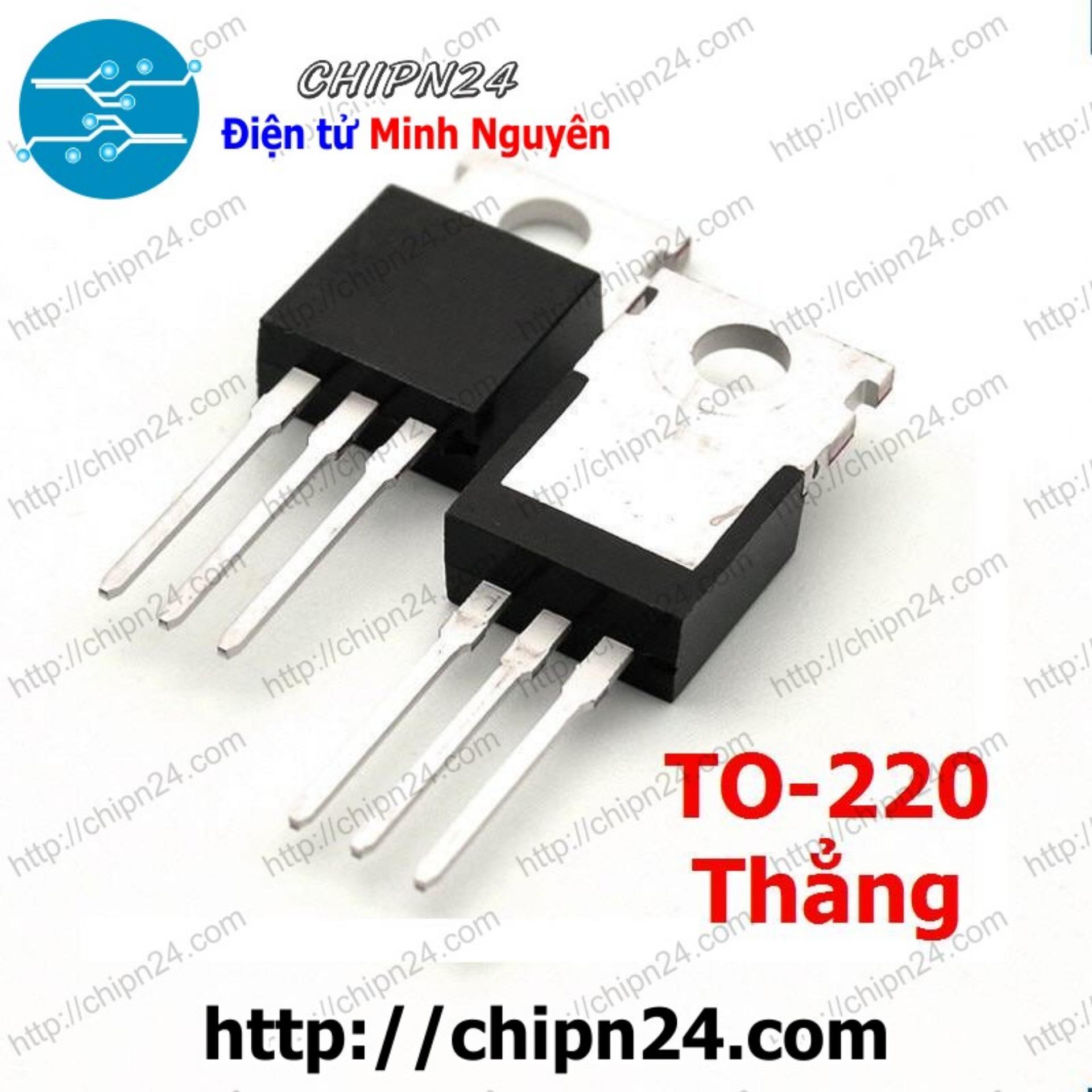

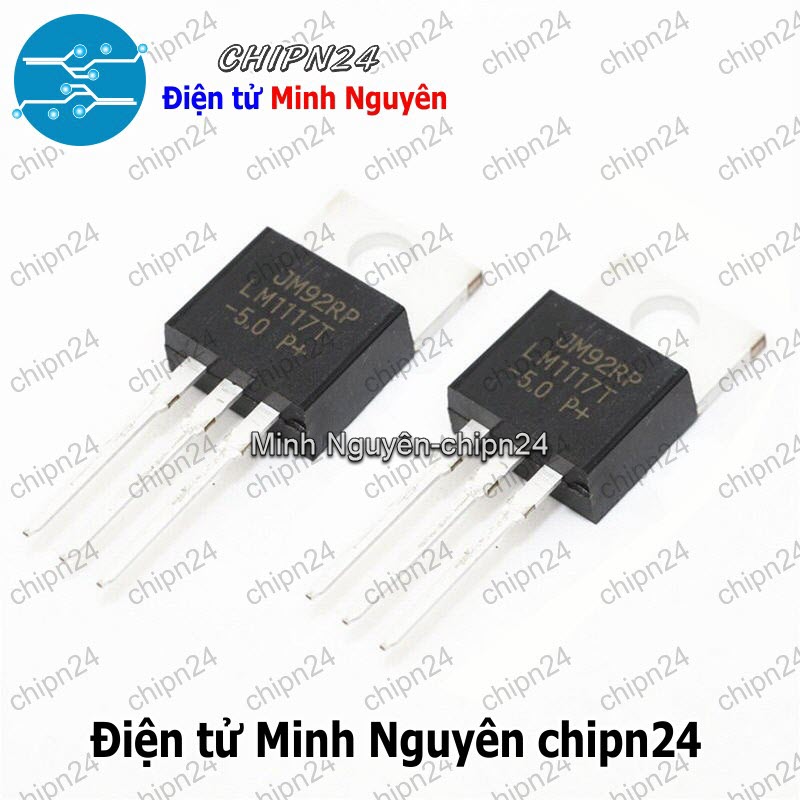

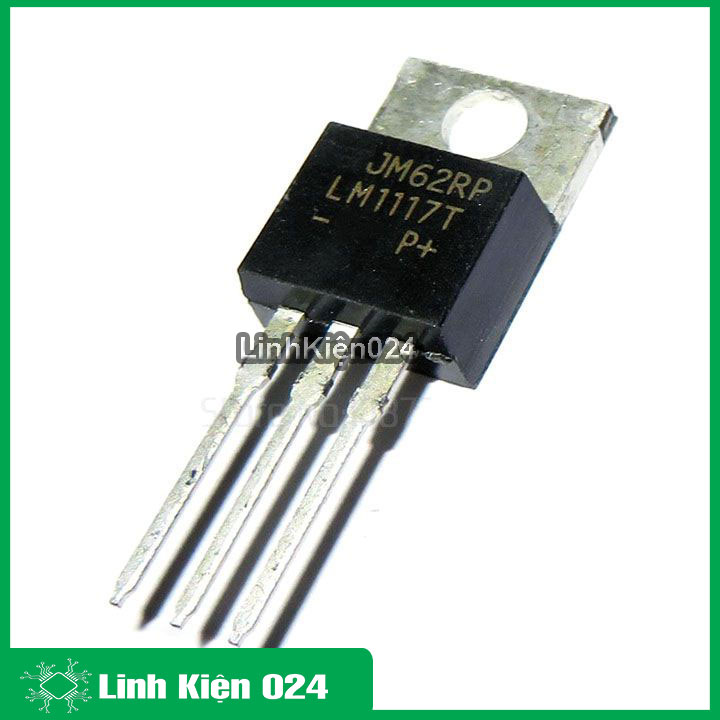

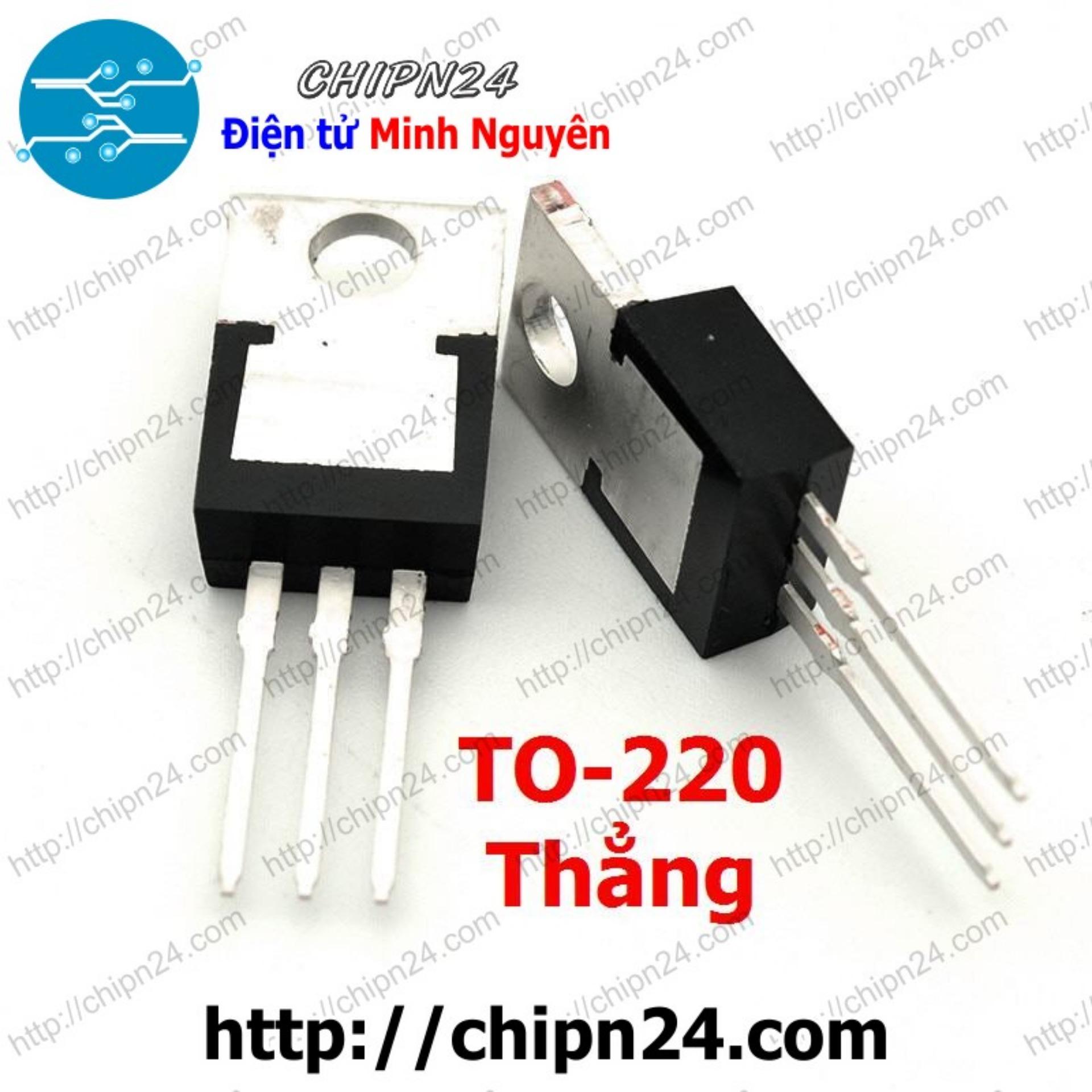

IC LM1117T-5.0 TO-220 (LM1117 LM1117-5.0 5V)

_x000D_ IC LM1117T-5.0 TO-220 (LM1117 LM1117-5.0 5V)

Mô tả sản phẩm:
Description:
IC LM1117T-5.0 TO-220
LDO Voltage Regulators 800mA LDO Linear Reg

Thông số kỹ thuật:
- Package / Case: TO-220-3
- Output Voltage: 5 V
- Output Current: 800 mA
- Number of Outputs: 1 Output
- Polarity: Positive
- Quiescent Current: 10 mA
- Input Voltage MAX: 15 V
- Input Voltage MIN: 2.6 V
- Output Type: Fixed
- Minimum Operating Temperature: - 40 C
- Maximum Operating Temperature: + 125 C
- Dropout Voltage: 1.2 V
- Series: LM1117
- Packaging: Tube
- Operating Temperature Range: -4
- Product: Linear Regulators
- Type: Low Dropout Positive Regulator
- Brand: Texas Instruments
- Dropout Voltage - Max: 1.2 V at 100 mA, 1.25 V at 500 mA, 1.3 V at 800 mA
- PSRR / Ripple Rejection - Typ: 75 dB
- Voltage Regulation Accuracy: 0,01
- Ib - Input Bias Current: 5 mA
- Line Regulation: 1 mV
- Load Regulation: 1 mV
- Operating Supply Current: 5 mA
- Product Type: LDO Voltage Regulators
- Factory Pack Quantity: 45
- Subcategory: PMIC - Power Management ICs
- Unit Weight: 6 g

Datasheet:
http://www.ti.com/general/docs/suppproductinfo.tsp?distId=26&gotoUrl=http%3A%2F%2Fwww.ti.com%2Flit%2Fds%2Fsymlink%2Flm1117.pdf
