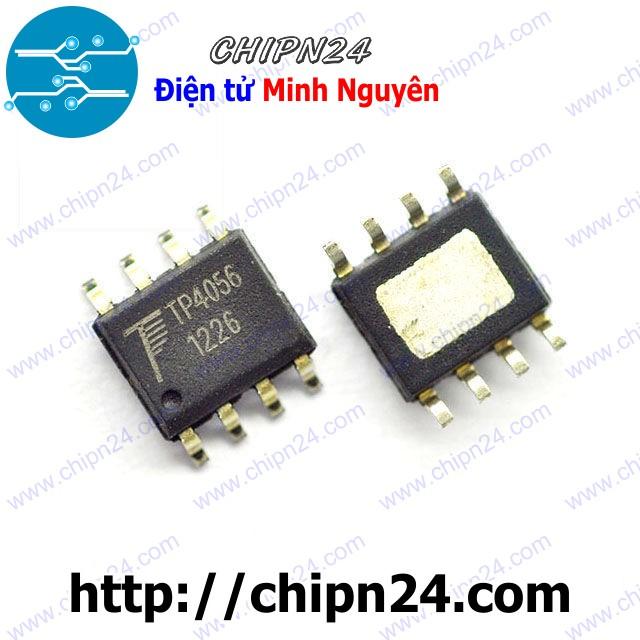

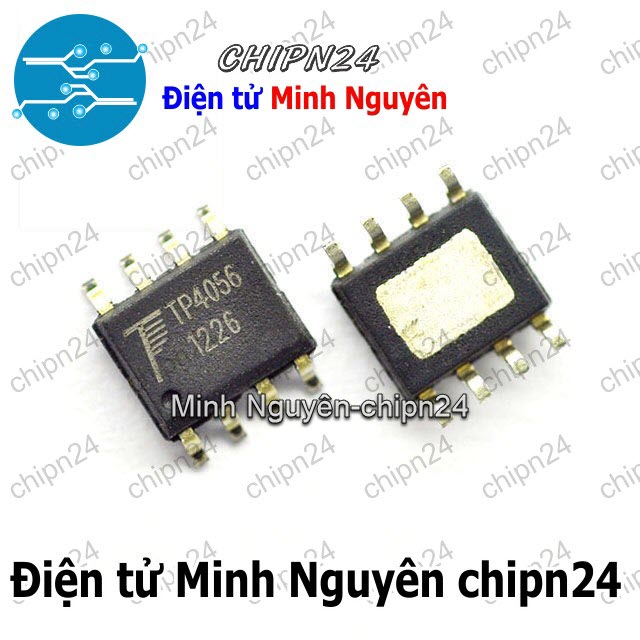

IC TP4056 SOP-8 (SMD Dán) (4056)

_x000D_ IC TP4056 1A SOP-8

TP4056 SOP-8 4.2V 1A Li-lon Battery Charger with Thermal Regulation

Features
Programmable Charge Current Up to 1000mA
No MOSFET, Sense Resistor or Blocking Diode Required
Complete Linear Charger in SOP-8 Package for Single Cell Lithium-Ion Batteries
Constant-Current/Constant-Voltage
Charges Single Cell Li-Ion Batteries Directly from USB Port
Preset 4.2V Charge Voltage with 1.5% Accuracy
Automatic Recharge
Two Charge Status Output Pins
C/10 Charge Termination
2.9V Trickle Charge Threshold (TP4056)
Soft-Start Limits Inrush Current
Available Radiator in 8-Lead SOP Package,the Radiator need connect GND or impending


ABSOLUTE MAXIMUM RATINGS
Input Supply Voltage(VCC)：-0.3V~8V
TEMP：-0.3V~10V
CE：-0.3V~10V
BAT Short-Circuit Duration：Continuous
BAT Pin Current：1200mA
PROG Pin Current：1200uA
Maximum Junction Temperature：145℃
Operating Ambient Temperature Range：-40℃~85℃
Lead Temp.(Soldering, 10sec)：260℃


APPLICATIONS
Cellular Telephones, PDAs, GPS
Charging Docks and Cradles
Digital Still Cameras, Portable Devices
USB Bus-Powered Chargers,Chargers

Datasheet:
https://dlnmh9ip6v2uc.cloudfront.net/Datasheet:/Prototyping/TP4056.pdf
