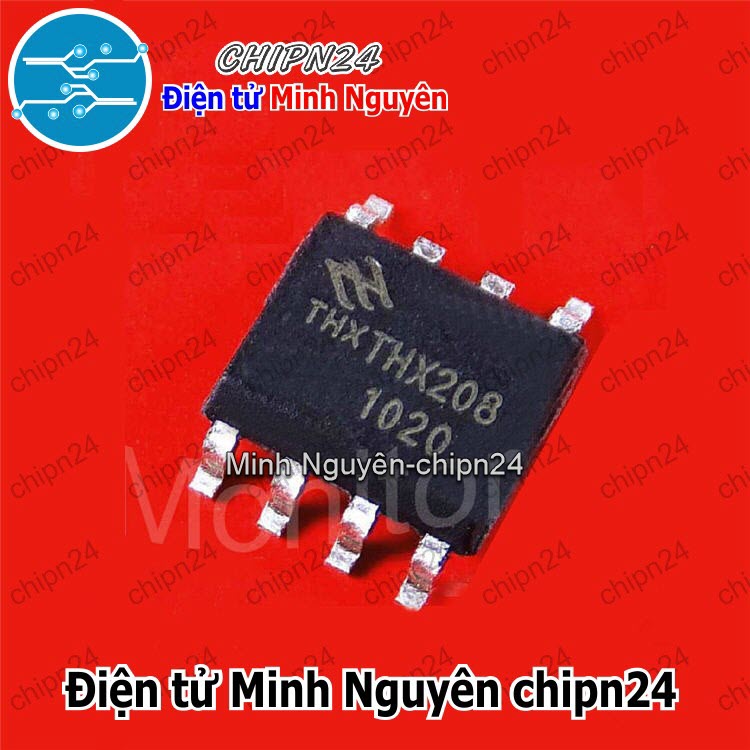

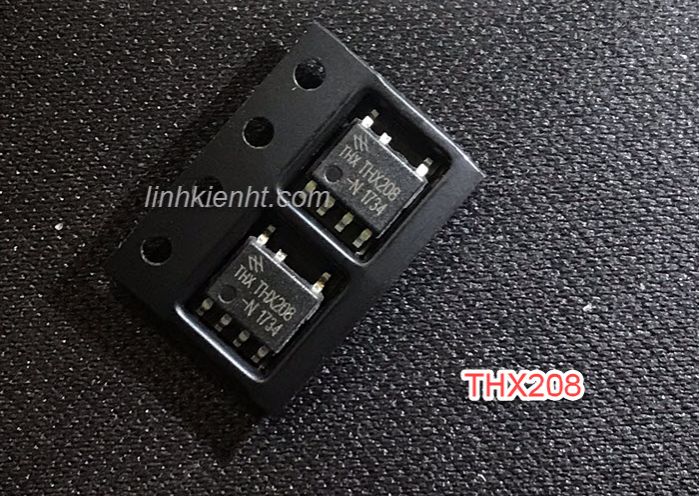

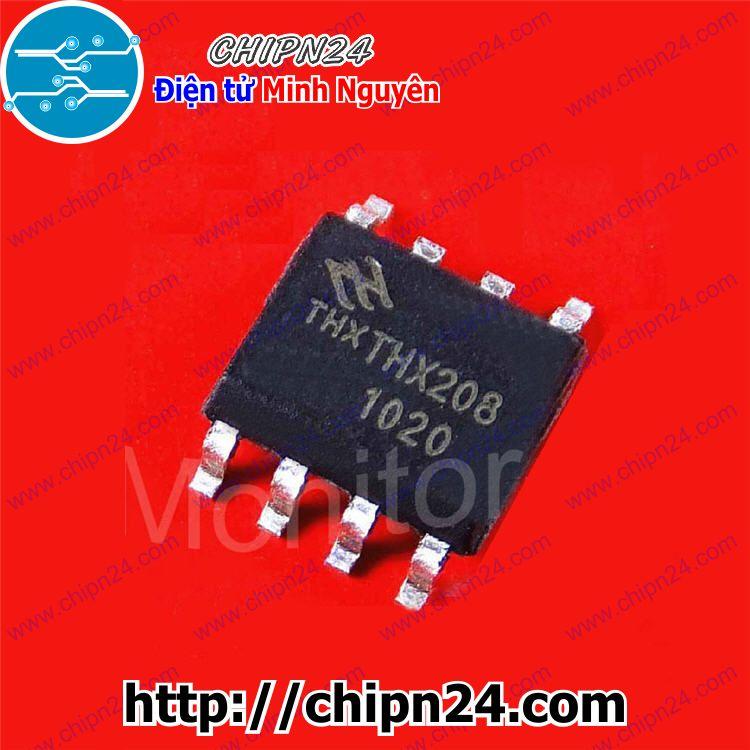

IC THX208 SOP-8 (SMD Dán) (208)

_x000D_ IC THX208 SOP-8 (SMD Dán) (208)

Mô tả sản phẩm:
Description
IC THX208 SOP-8, High-performance current-mode PWM controller

Thông số kỹ thuật:
- Built-in 700V high voltage power switch, minimal external components
- Latched pulse width modulation, pulse by pulse current limit detection
- Low output down function, no output power can be less than 0.25W
- Built-in slope and feedback compensation function
- Independent upper limit current detection controller, real-time processing controller overcurrent, overload
- Off period emitter bias output, increased power tube voltage
- Built-in current limiting resistor having a degree of compensation, accurate current limit
- Built-in thermal protection circuit
- Use switching power amplification tube complete startup, startup resistor to reduce power consumption by more than 10 times
- Minimal external components
- Low start-up and operating current
- VCC Overvoltage automatically limits
- Wide voltage output power up to 3.8W, narrow voltage output power up to more than 4.5W

Datasheet:
https://www.alldatasheet.com/view.jsp?Searchword=THX208
