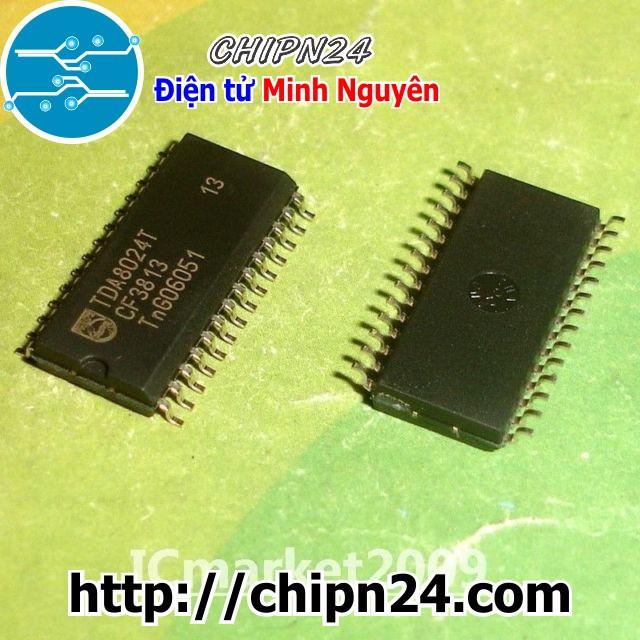

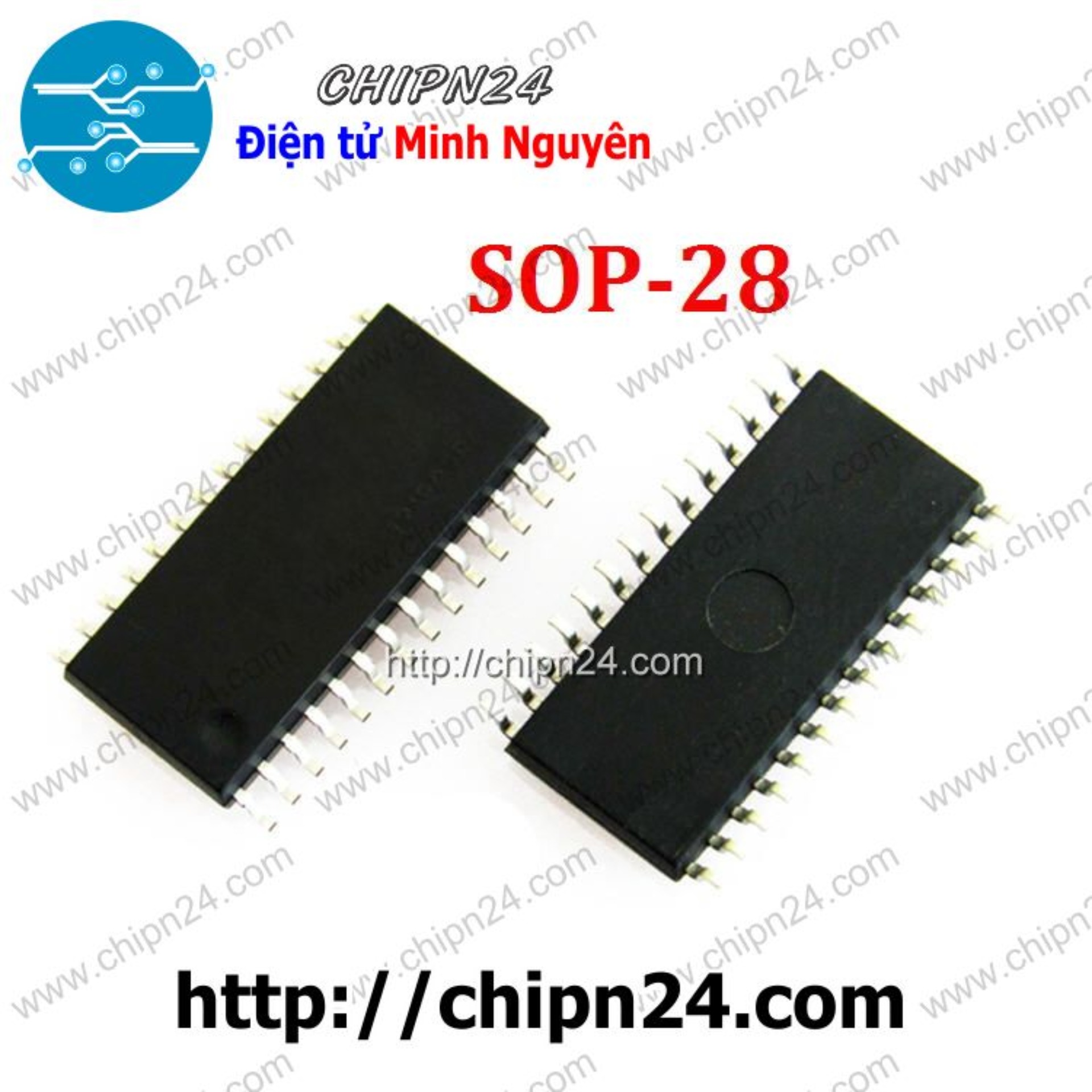

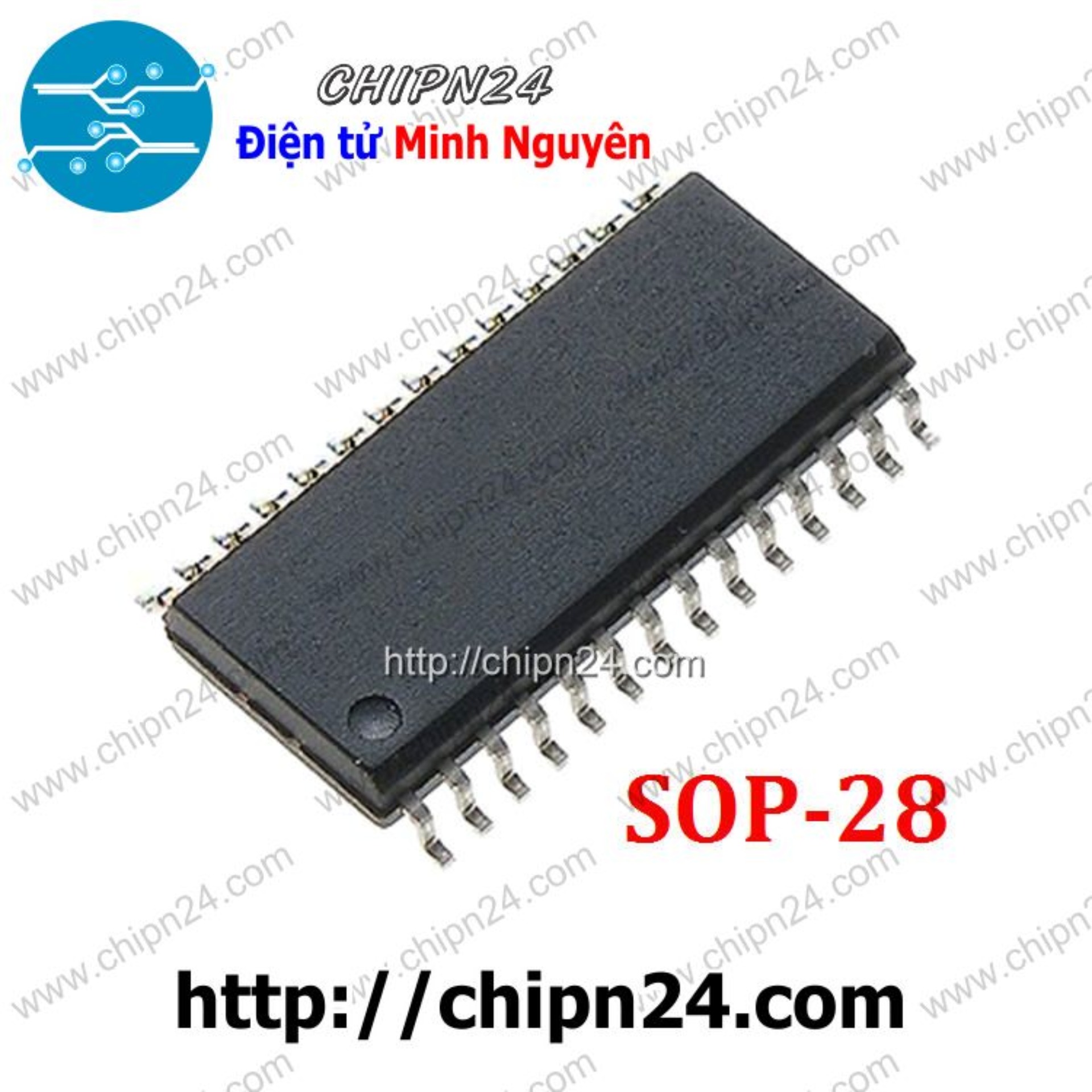

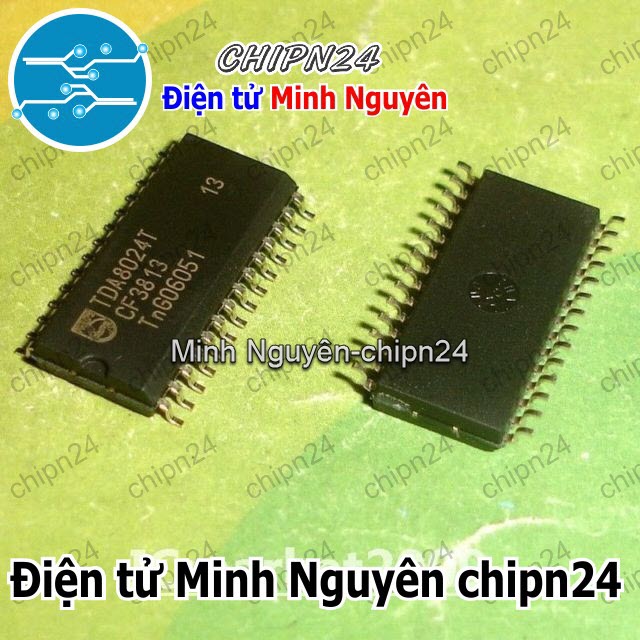

IC TDA8024 SOP-28 (SMD Dán) (TDA8024T 8024)

_x000D_ IC TDA8024 SOP-28 (SMD Dán)

Mô tả:
TDA8024 IC card interface
The TDA8024 is a complete and cost-efficient analog interface for asynchronous 3 V or 5 V smart cards. It can be placed between the card and the microcontroller to perform all supply, protection and control functions. Very few external components are required. The TDA8024AT is a direct replacement for the TDA8004AT.

Thông số kỹ thuật:
IC card interface
3 or 5 V supply for the IC (VDD and GND)
Three specifically protected half-duplex bidirectional buffered I/O lines to card contacts C4, C7 and C8
DC/DC converter for VCC generation separately powered from a 5 V +- 20 pct supply (VDDP and PGND)
3 or 5 V +- 5 pct regulated card supply voltage ((VCC) with appropriate decoupling has the following capabilities:Thermal and short-circuit protection on all card contacts
ICC< 80 mA at VDDP = 4 to 6.5 V
Handles current spikes of 40 nAs up to 20 MHz
Controls rise and fall times
Filtered overload detection at approximately 120 mA
Automatic activation and deactivation sequences; initiated by software or by hardware in the event of a short-circuit, card take-off, overheating, VDD or VDDPdrop-out
Enhanced ESD protection on card side (>6 kV)
26 MHz integrated crystal oscillator
Clock generation for cards up to 20 MHz (divided by 1, 2, 4 or 8 through CLKDIV1 and CLKDIV2 signals) with synchronous frequency changes
Non-inverted control of RST via pin RSTIN
ISO 7816, GSM11.11 and EMV (payment systems) compatibility
Supply supervisor for spike-killing during power-on and power-off and Power-on reset (threshold fixed internally or externally by a resistor bridge); not for TDA8024AT
Built-in debounce on card presence contacts
One multiplexed status signal OFF.
Target Applications
IC card readers for banking
Electronic payment
Identification
Pay TV.

Datasheet:
https://www.nxp.com/docs/en/data-sheet/TDA8024.pdf
